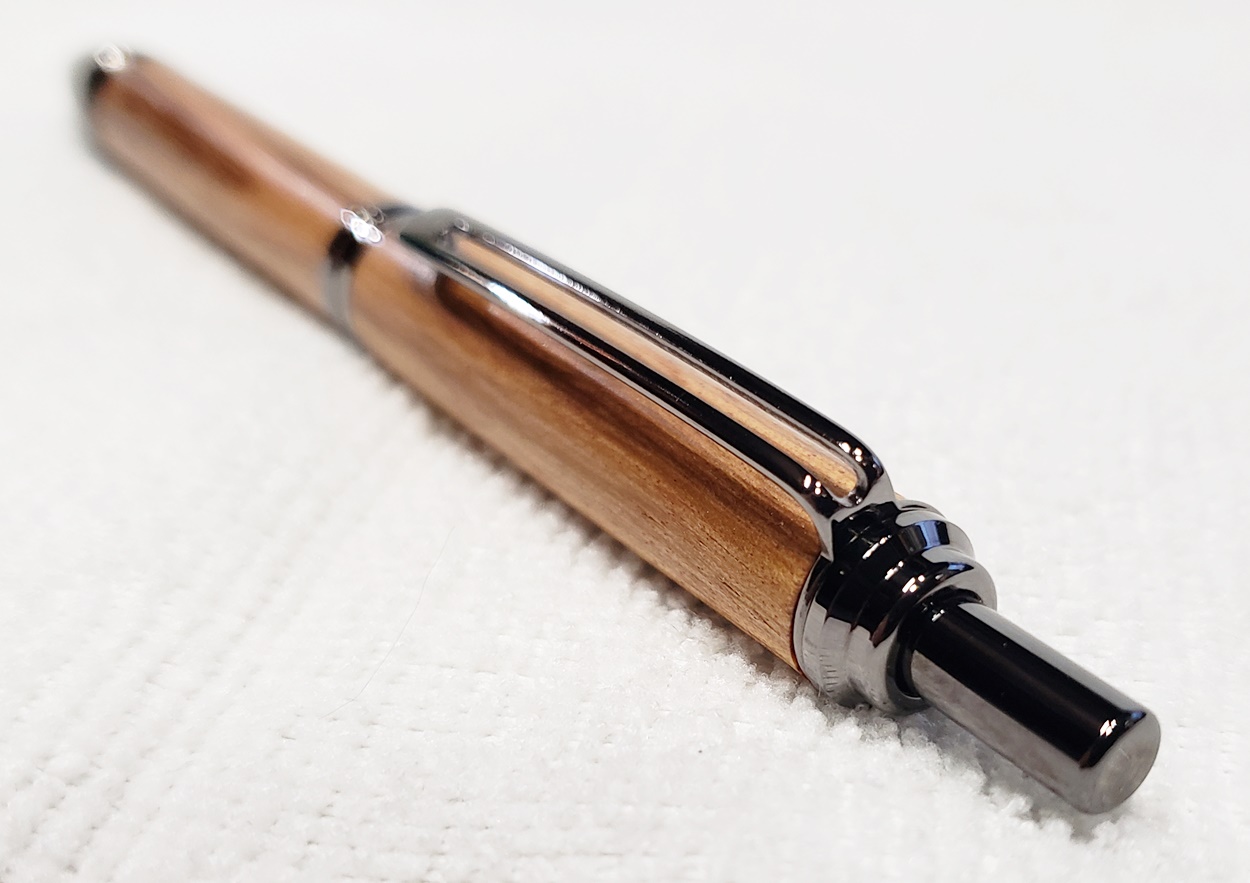

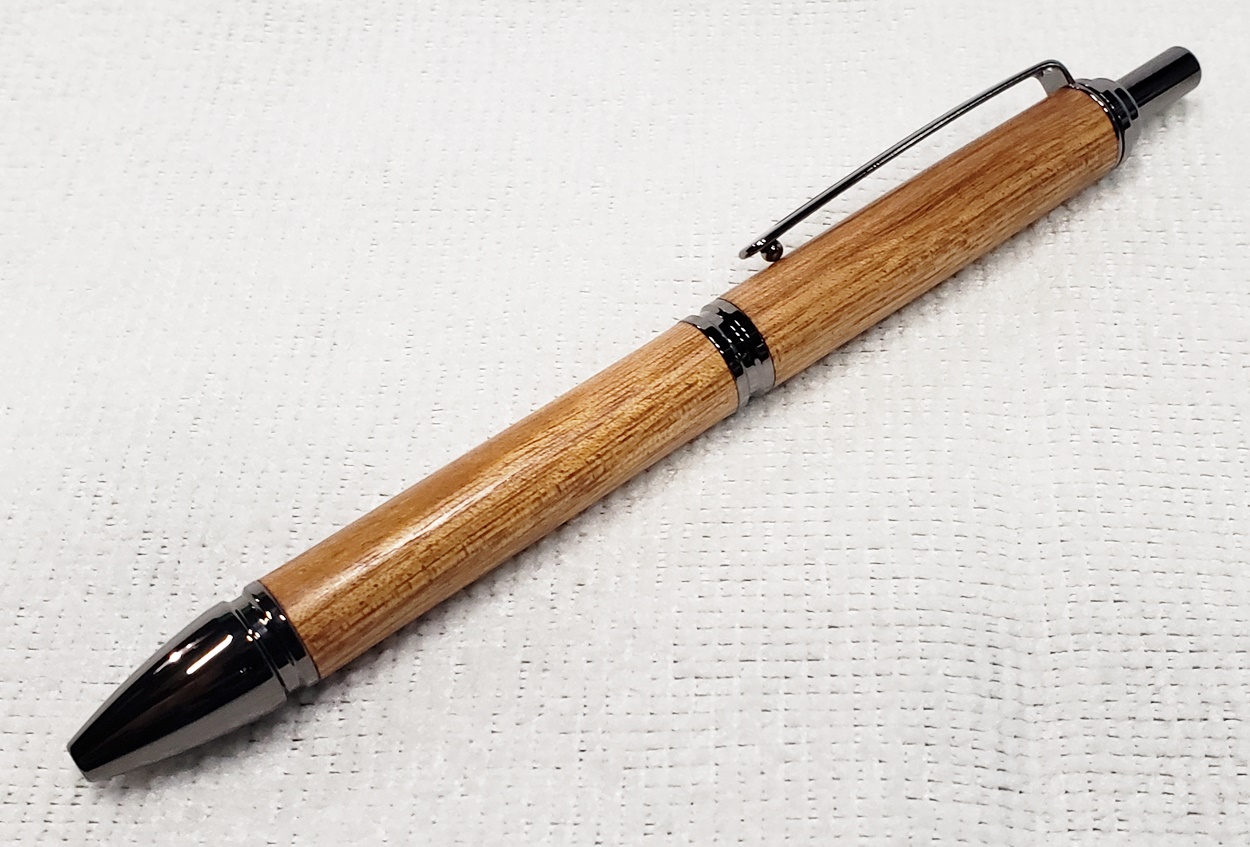

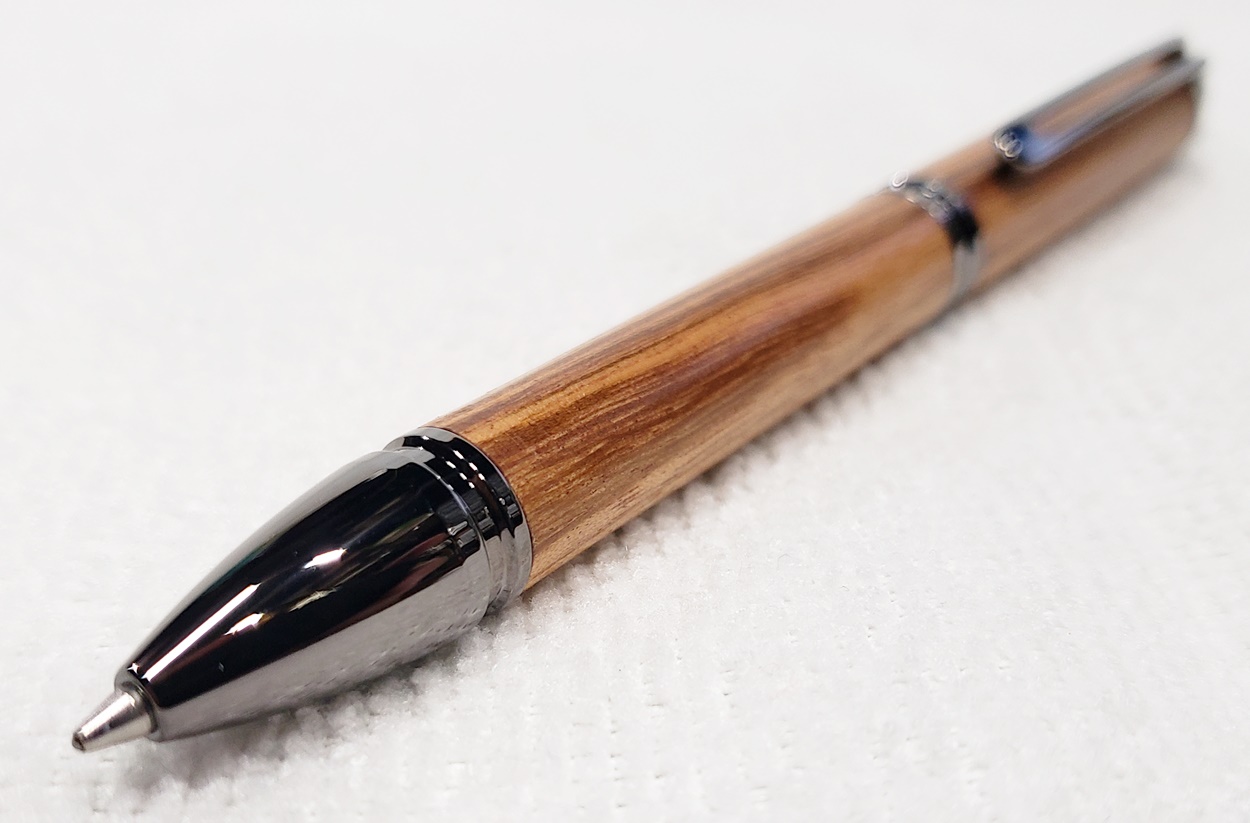

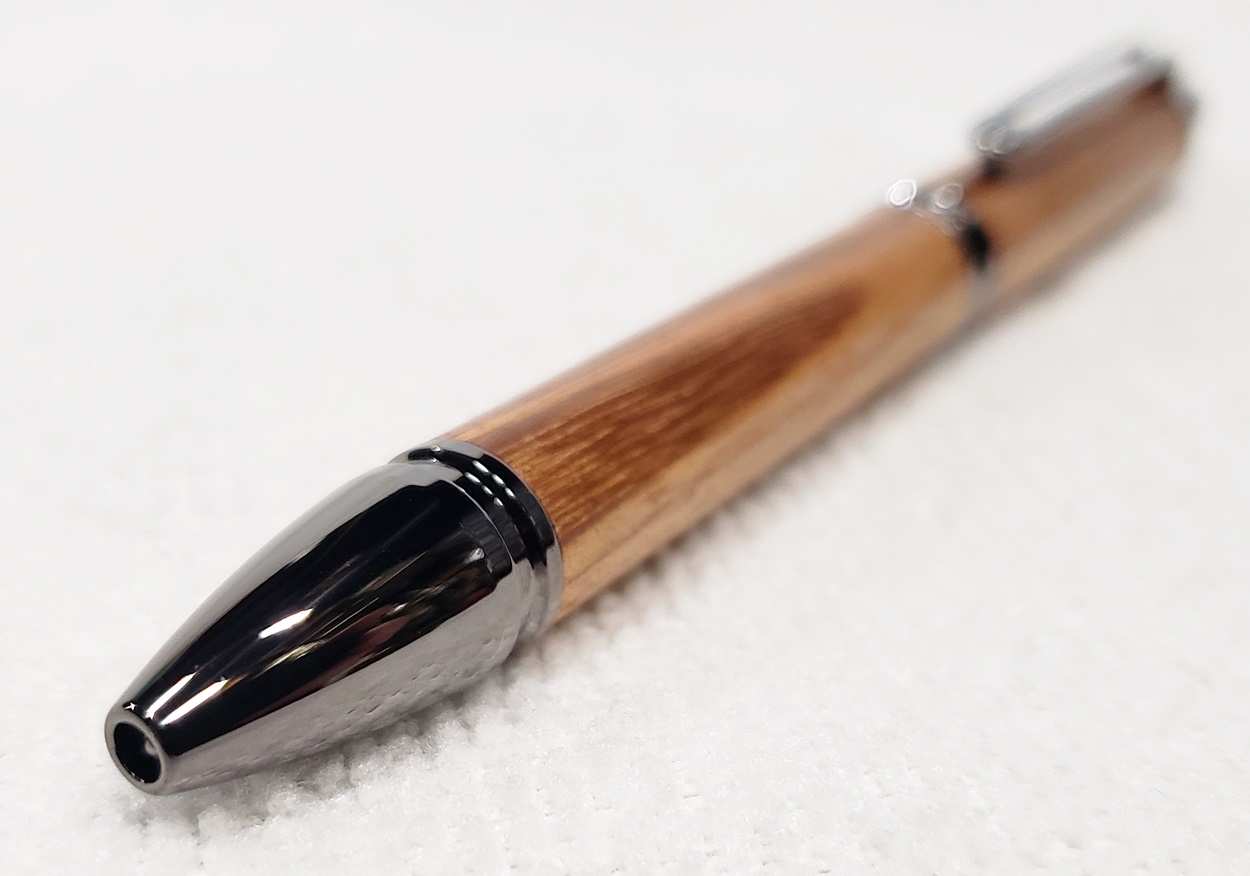

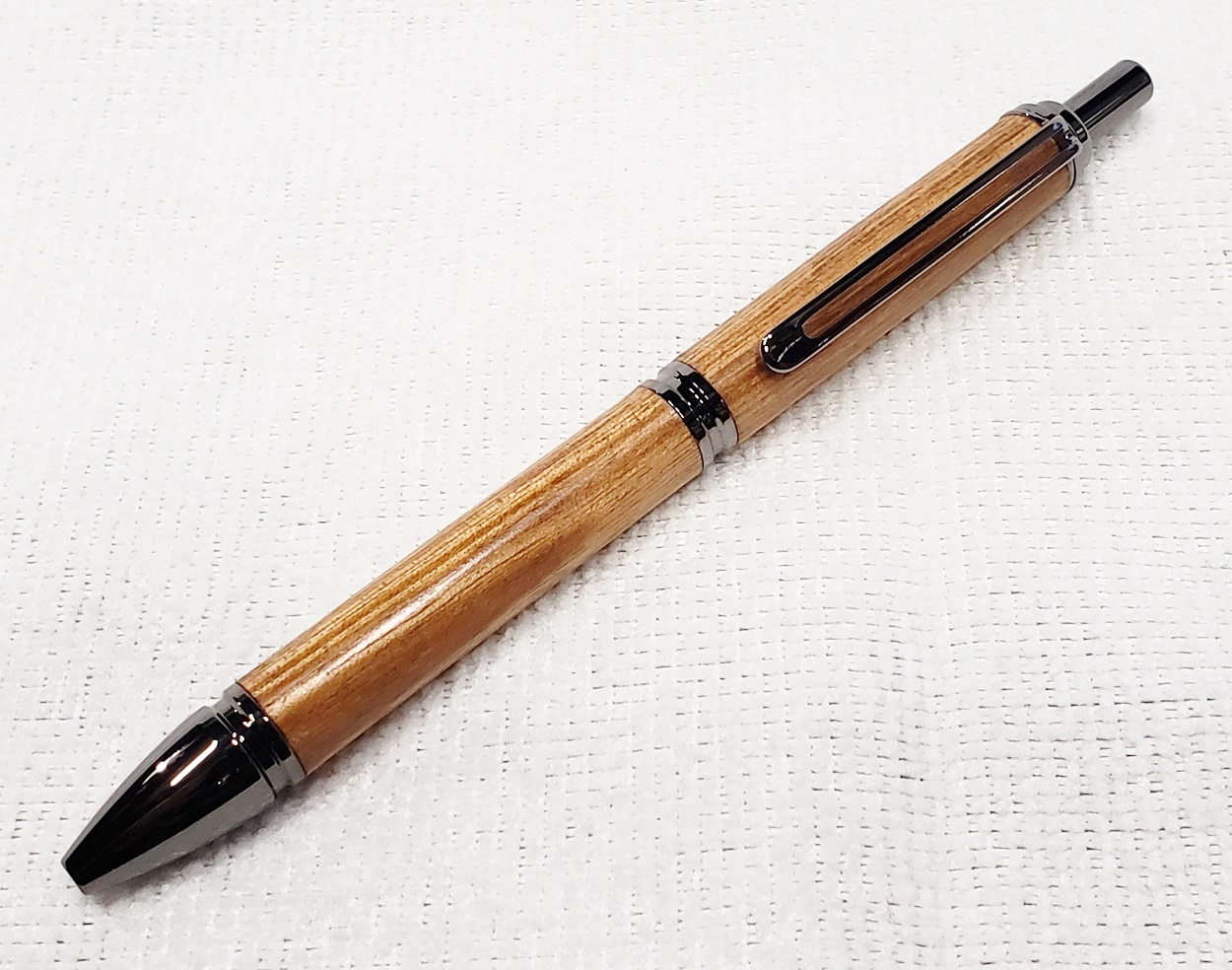

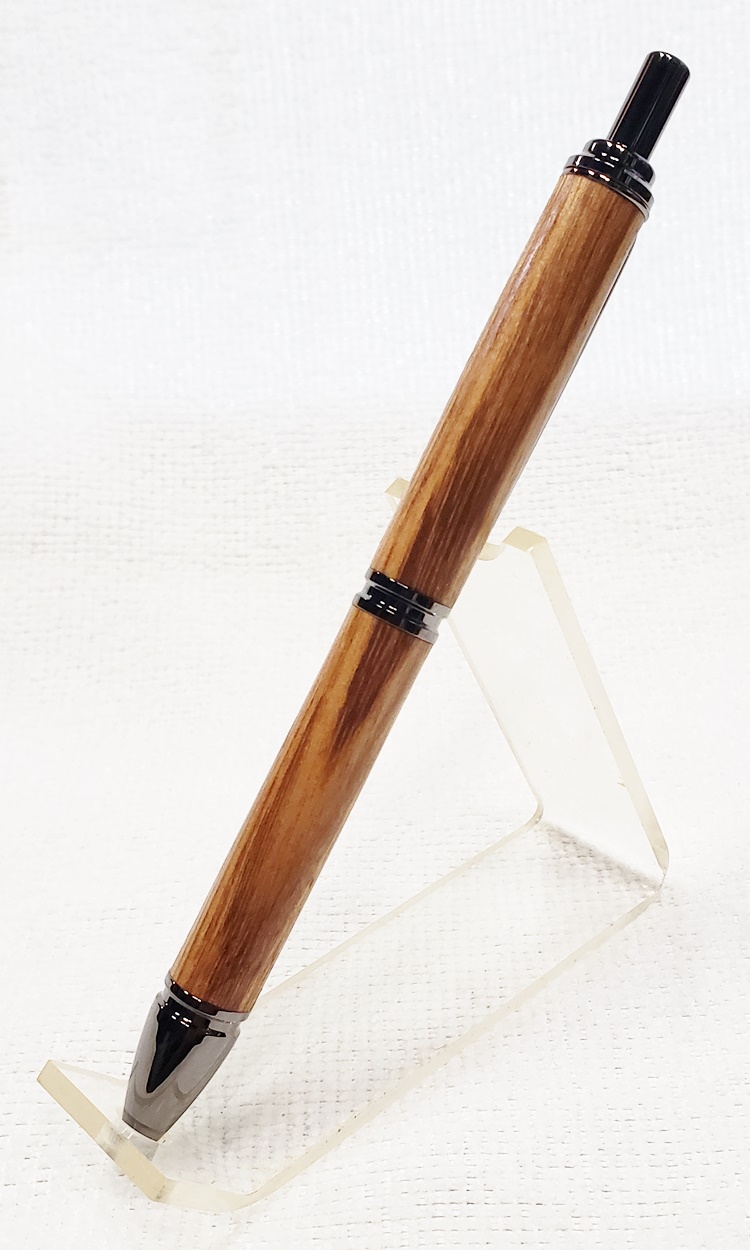

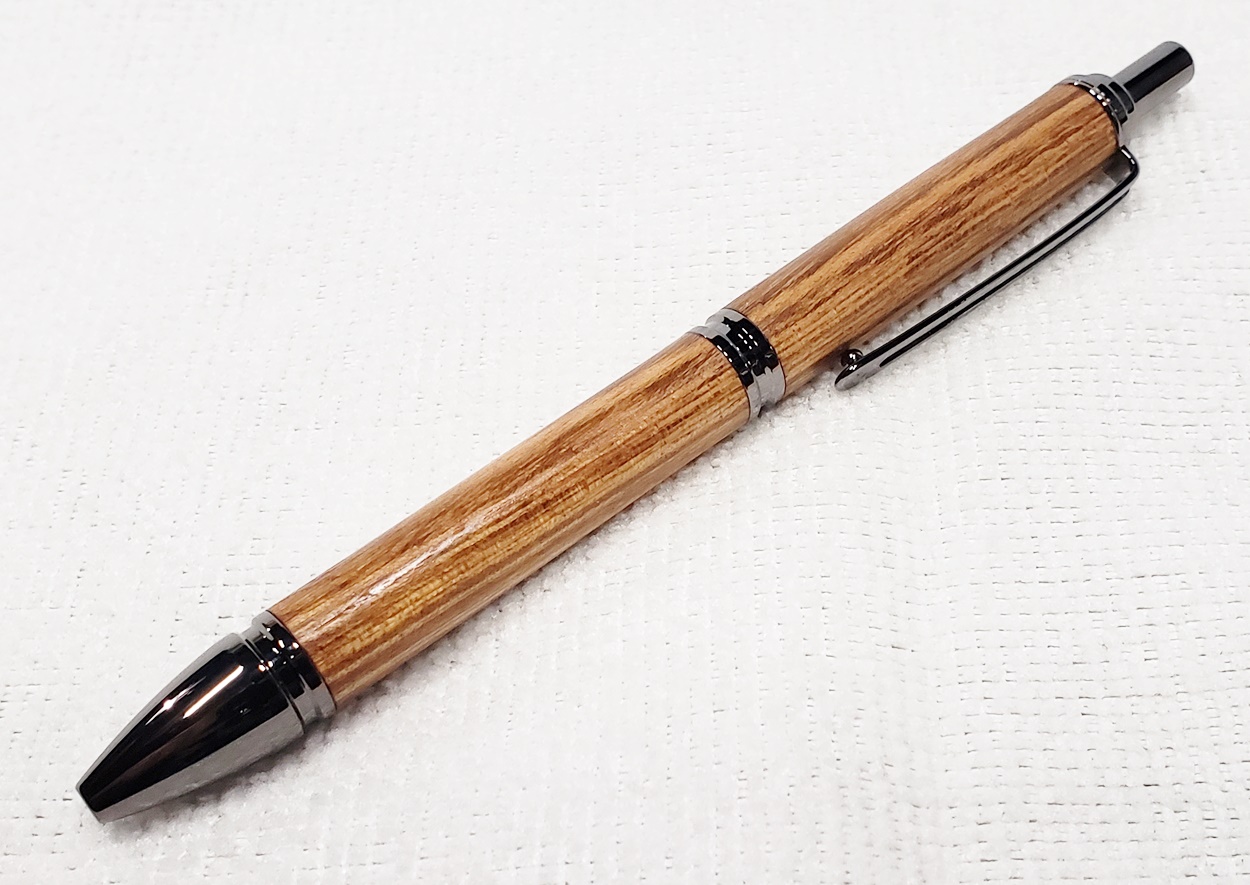

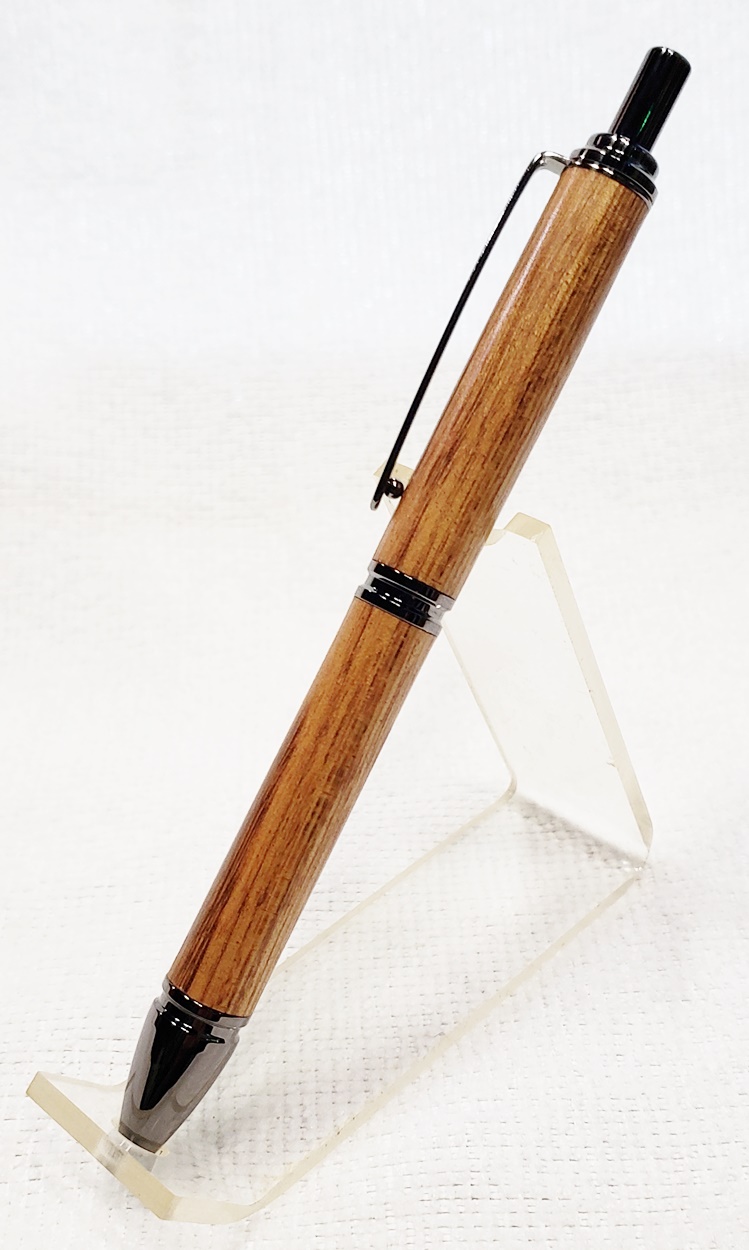

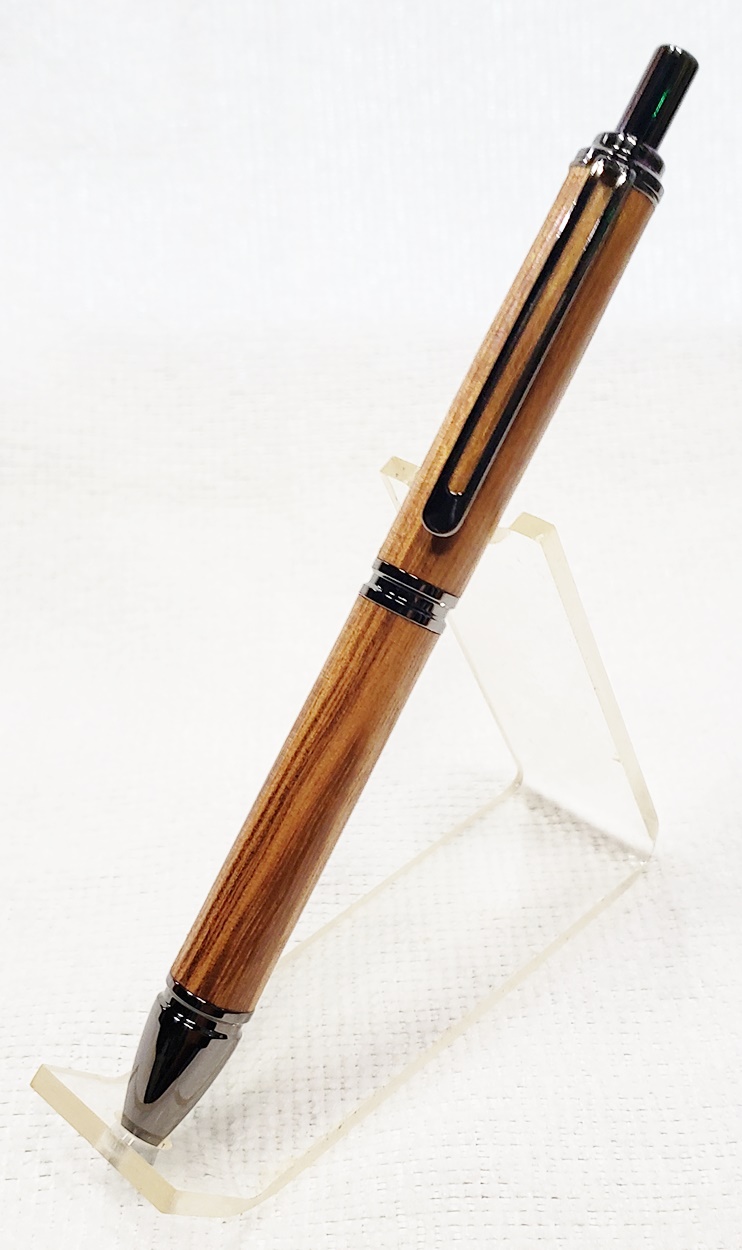

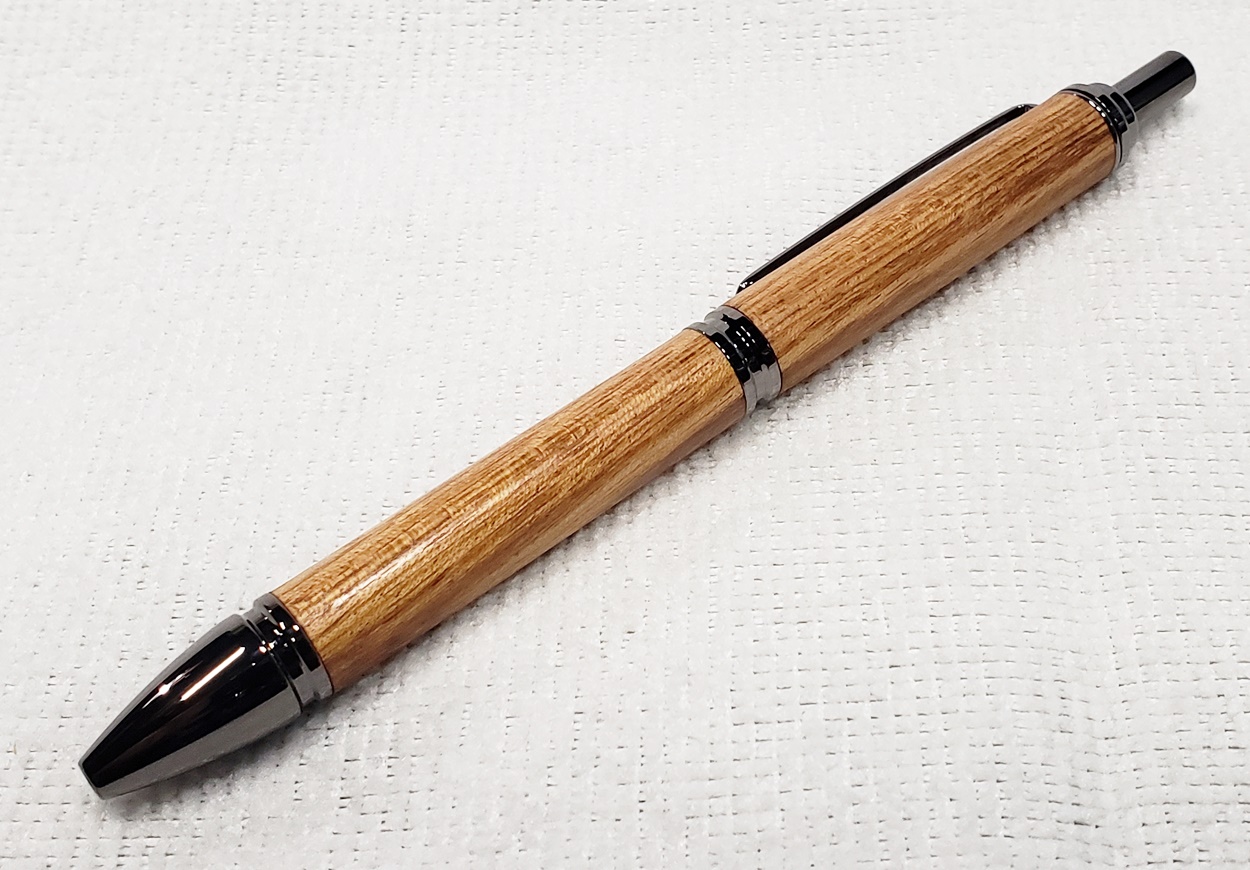

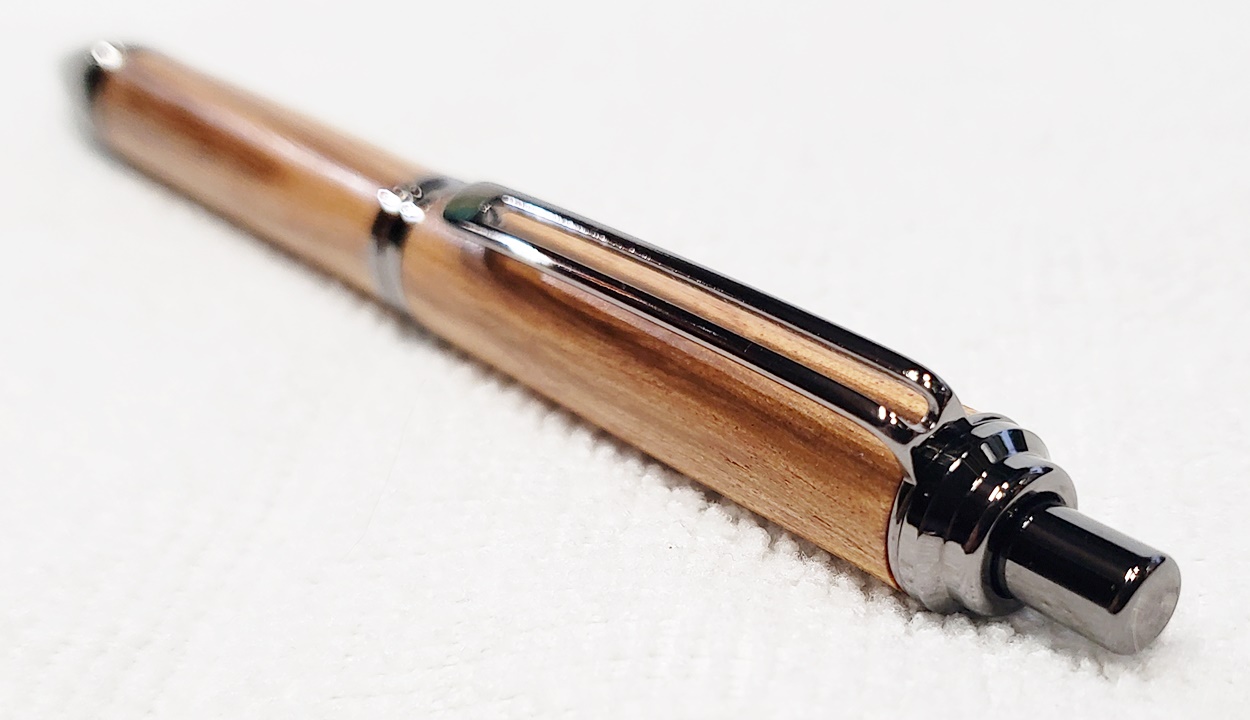

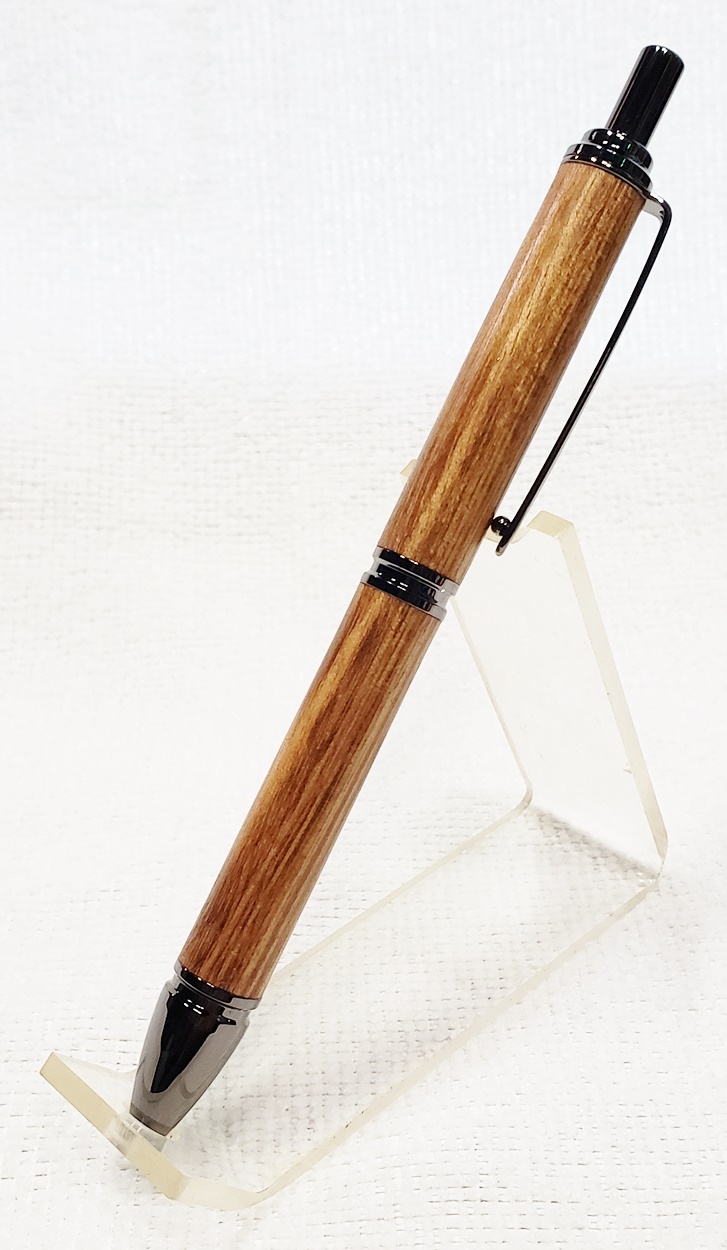

This is a PSI Slimline Pro EDC click pen in gunmetal. The blank is hububalli. This blank is nicer than the first hububalli blank I turned. The finish is Pens Plus. Made a great looking pen.


Attachments

  • 097.jpg
    361 KB · Views: 54
  • 098.jpg
    311.3 KB · Views: 55
  • 099.jpg
    331 KB · Views: 46
  • 100.jpg
    280.1 KB · Views: 46
  • 101.jpg
    149.6 KB · Views: 39
  • 102.jpg
    178.4 KB · Views: 33
  • 103.jpg
    167.1 KB · Views: 35
  • 104.jpg
    154.5 KB · Views: 34
  • 105.jpg
    162 KB · Views: 34
  • 106.jpg
    182 KB · Views: 34
  • 108.jpg
    191.4 KB · Views: 41
  • 107.jpg
    187.4 KB · Views: 38
Signed-In Members Don't See This Ad

qquake

Member
Joined
Feb 8, 2004
Messages
4,077
Location
Northern California

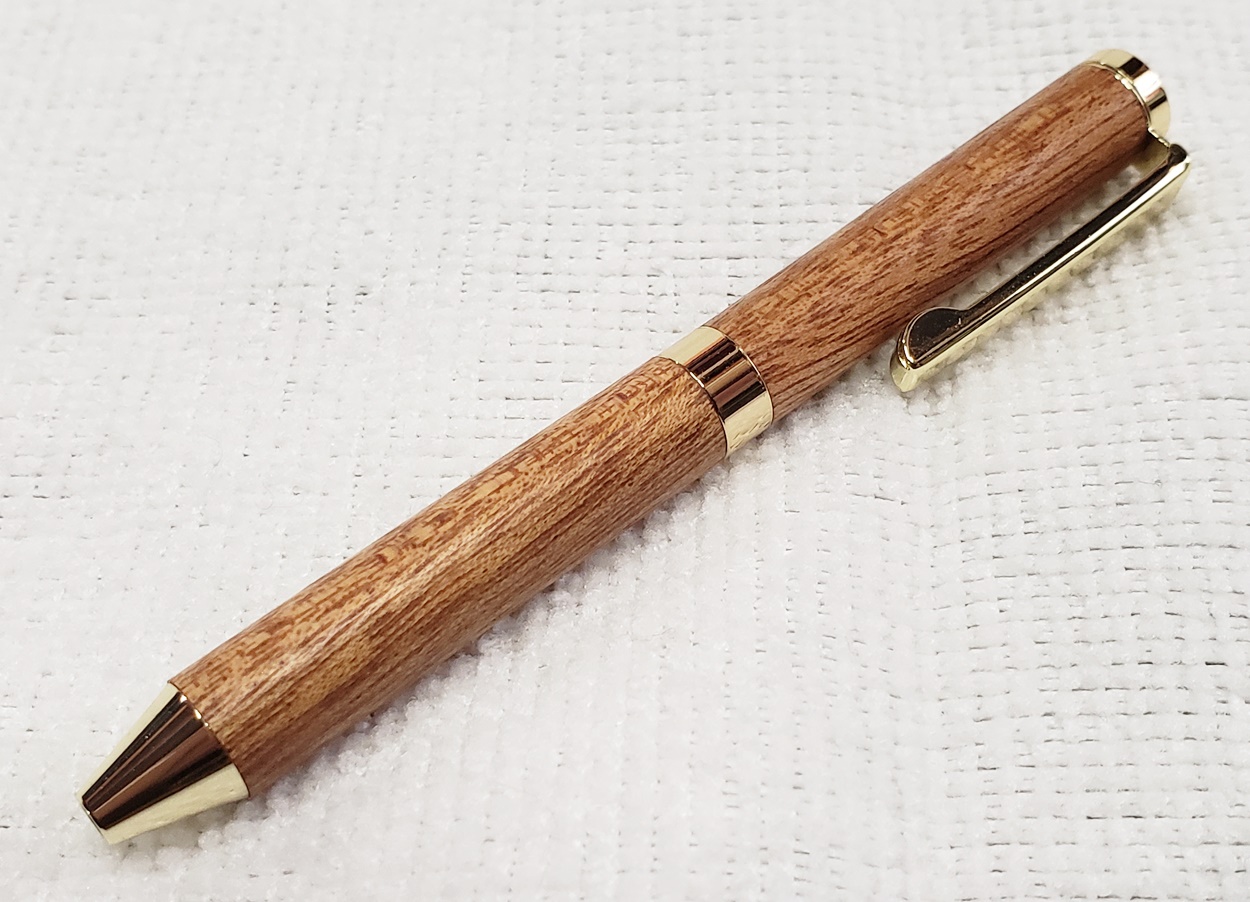

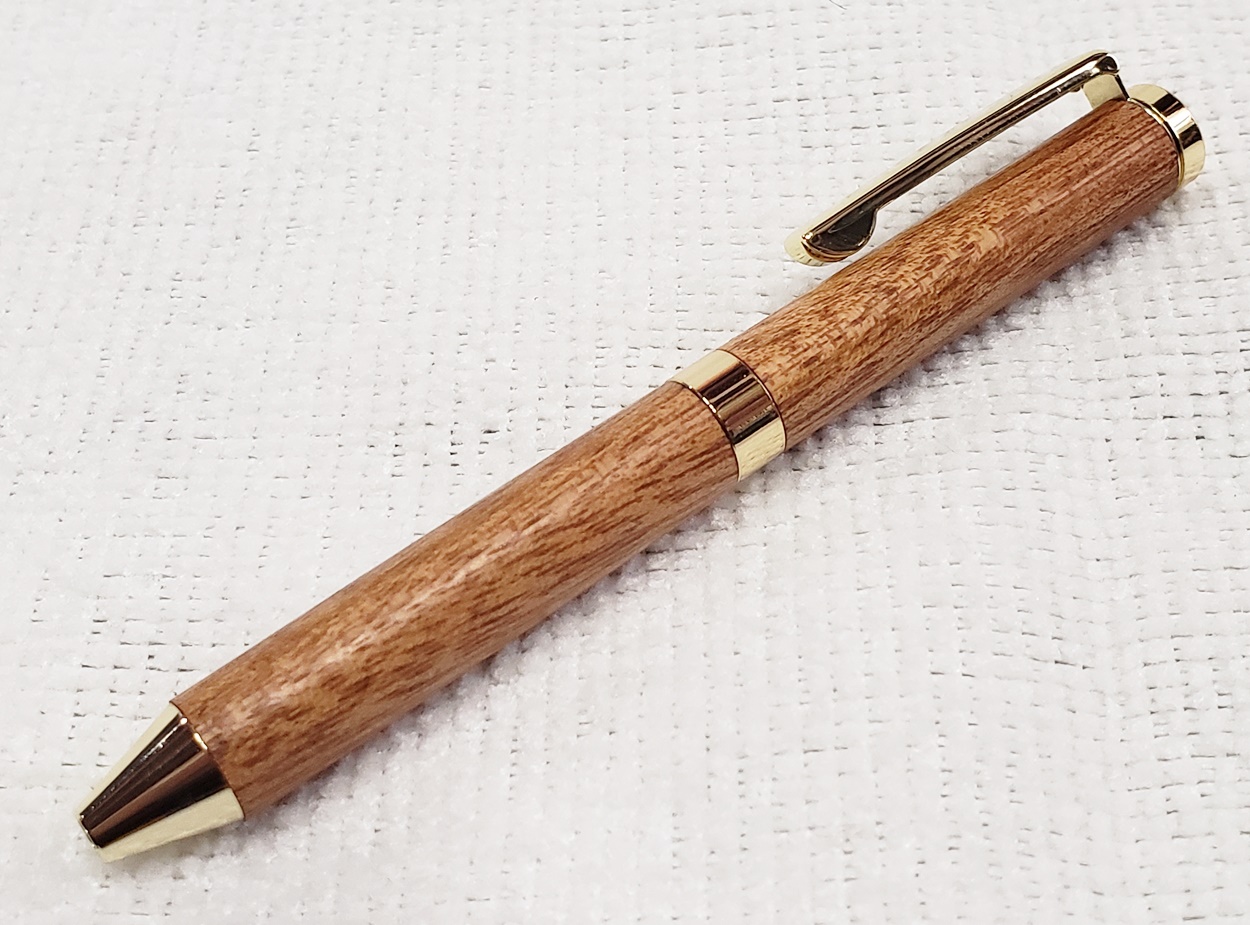

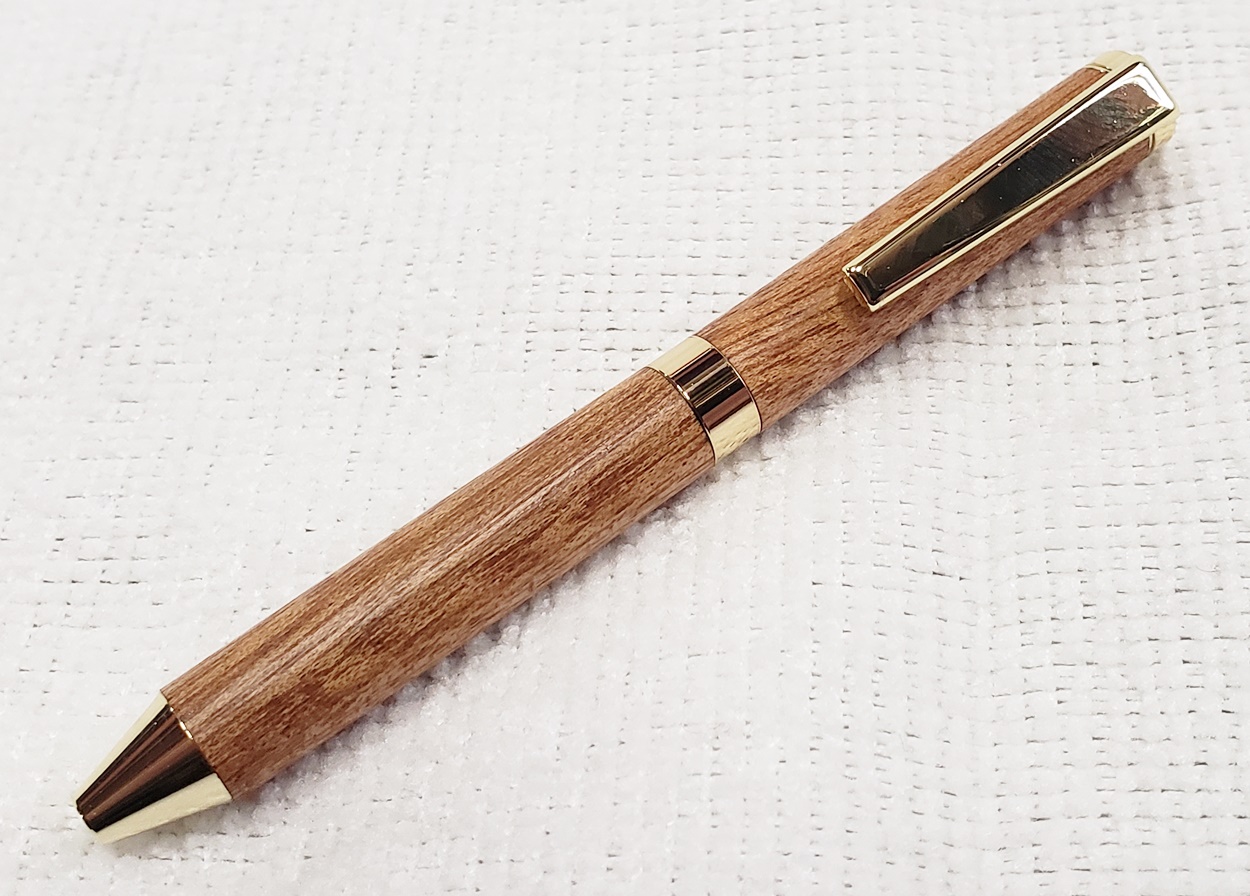

This is the first hububalli pen I turned. A little more bland.


Attachments

  • 073.jpg
    325.3 KB · Views: 23
  • 074.jpg
    330.7 KB · Views: 22
  • 076.jpg
    313.5 KB · Views: 22

KenB259

Member
Joined
Dec 24, 2017
Messages
2,241
Location
Michigan
Nice job. I’ve made a couple of those and I have to say it’s one of my favorite click pens and it uses a Parker refill.


qquake

Member
Joined
Feb 8, 2004
Messages
4,077
Location
Northern California
All very nice pens Jim. I may have to try some of those Pro EDC Click kits. - Dave

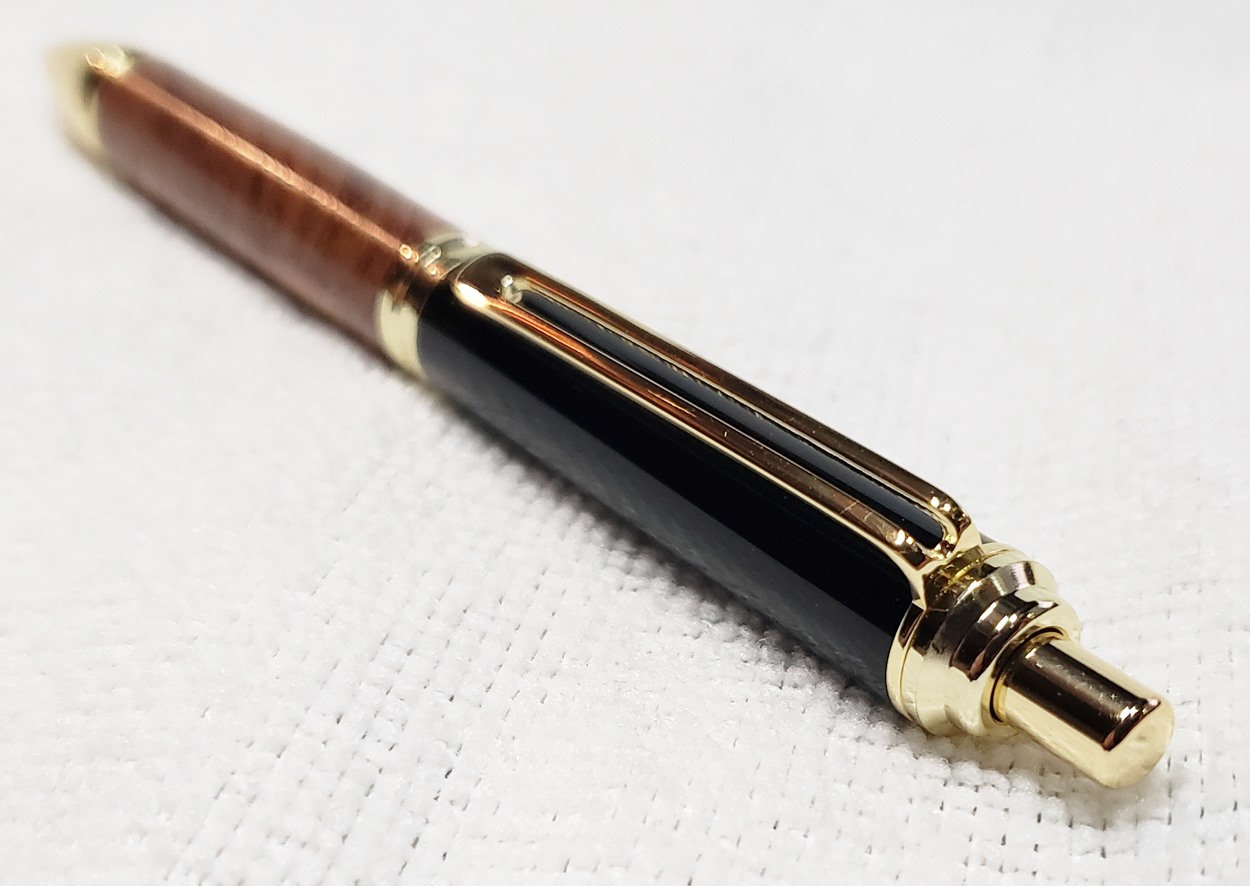

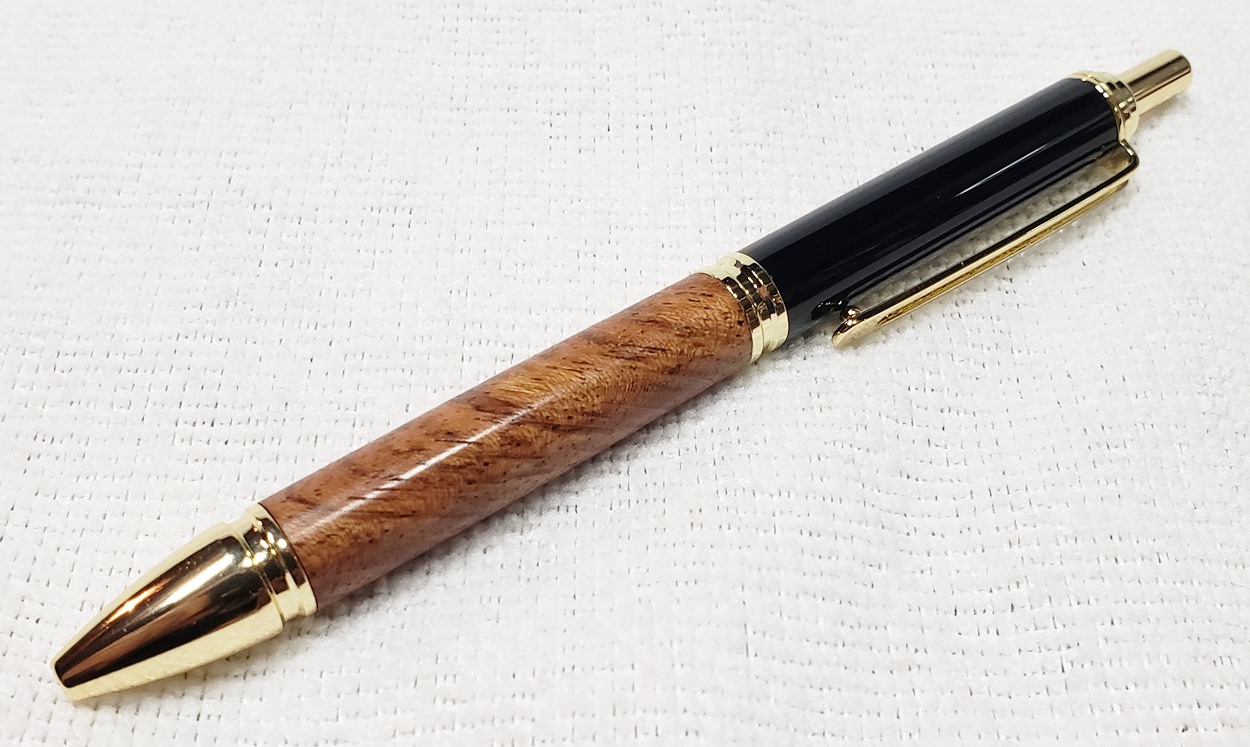

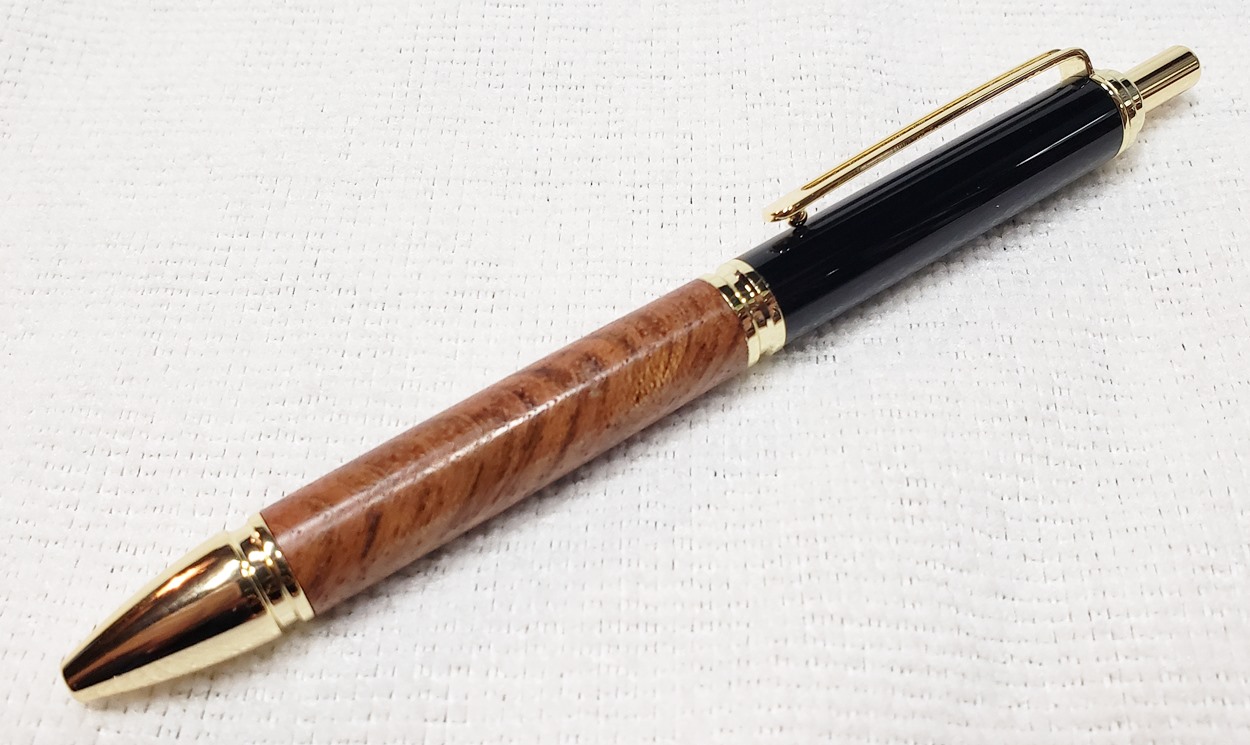

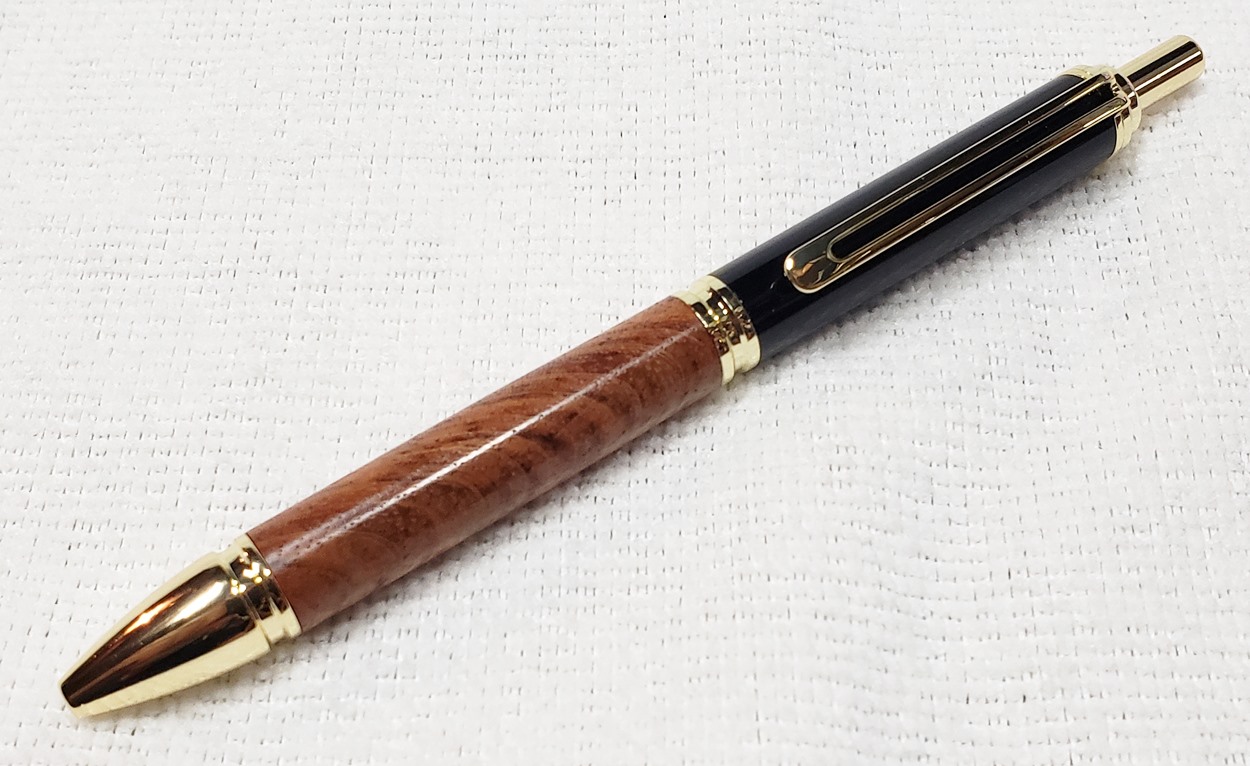

This is my second. I like them. The first was jatoba and black acrylic. One of the blanks chipped out on me, so I replaced it with the acrylic.


Attachments

  • 095.jpg
    211.1 KB · Views: 17
  • 096.jpg
    188.7 KB · Views: 19
  • 097.jpg
    204.8 KB · Views: 19
  • 101.jpg
    137.9 KB · Views: 19

qquake

Member
Joined
Feb 8, 2004
Messages
4,077
Location
Northern California

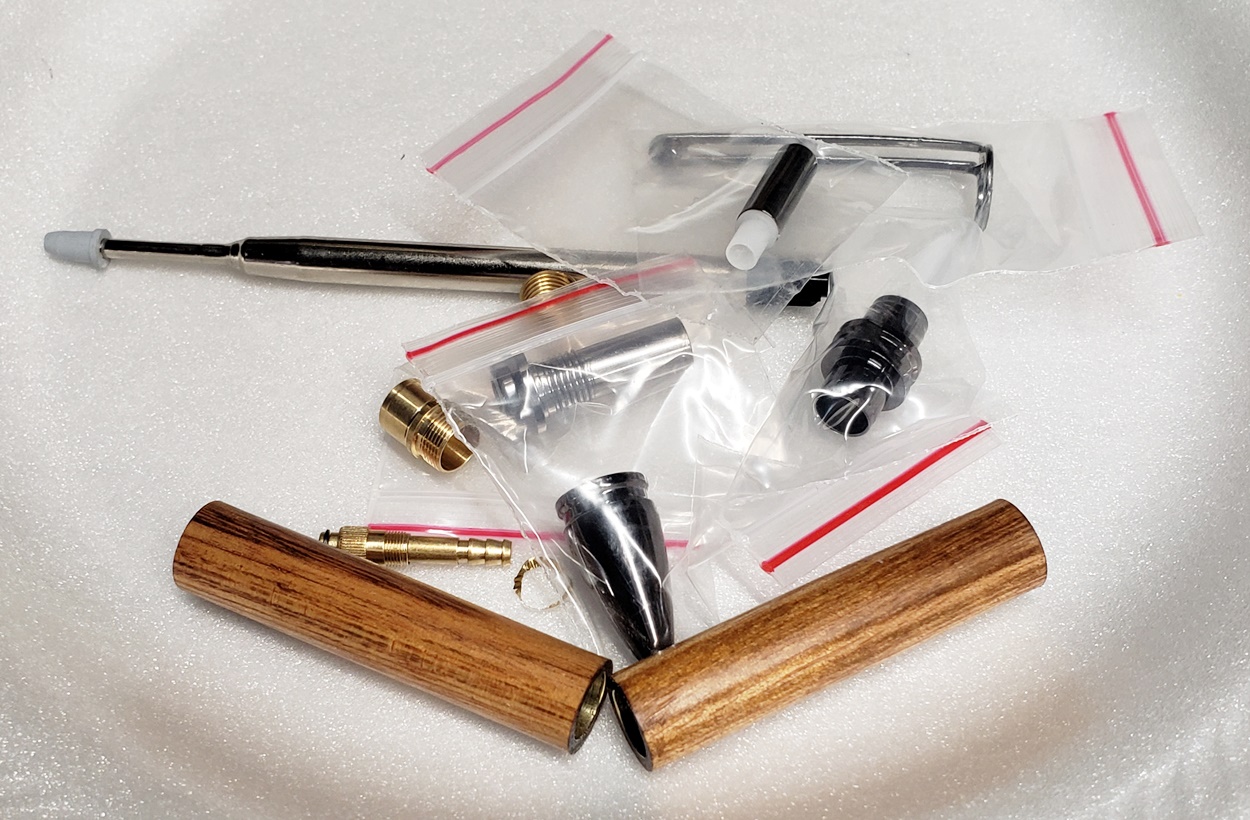

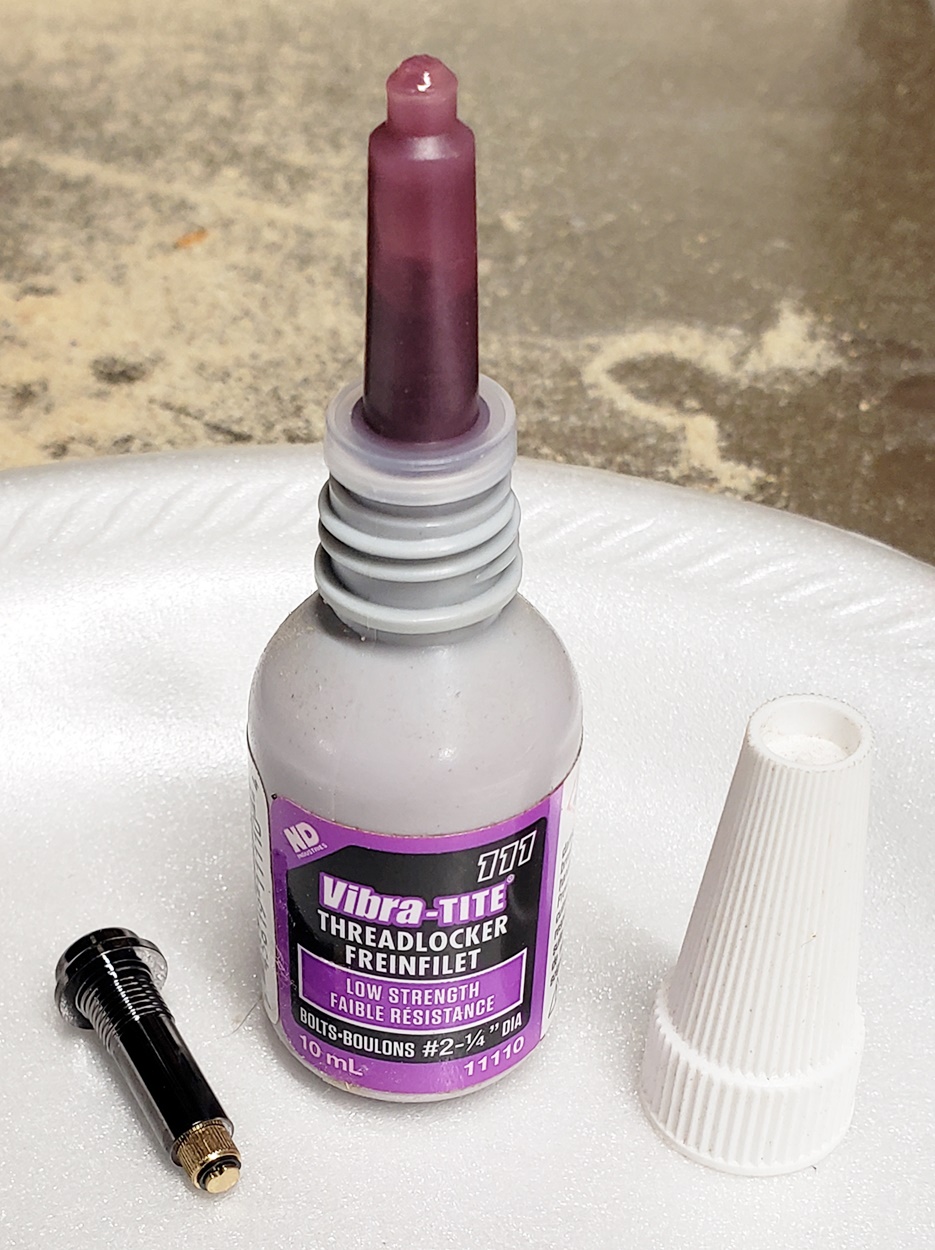

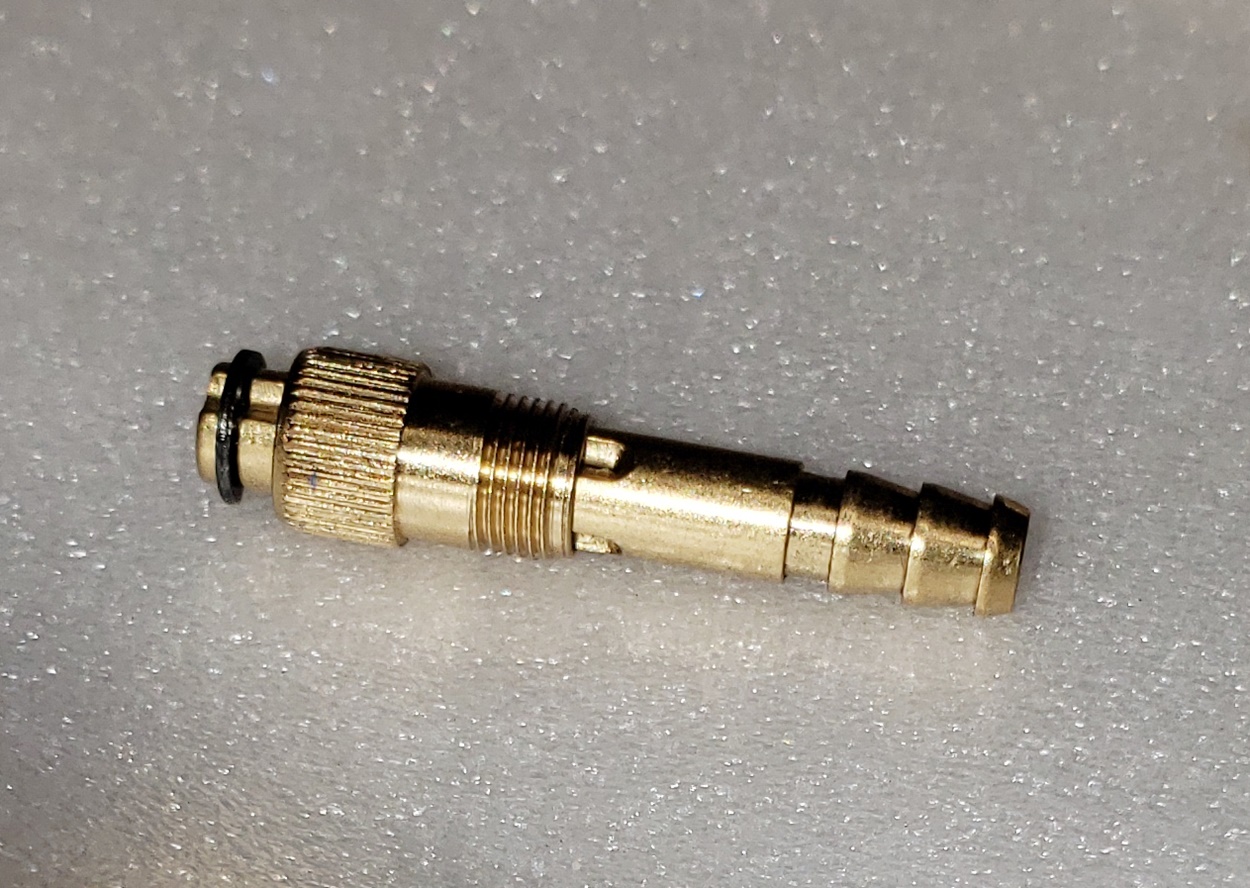

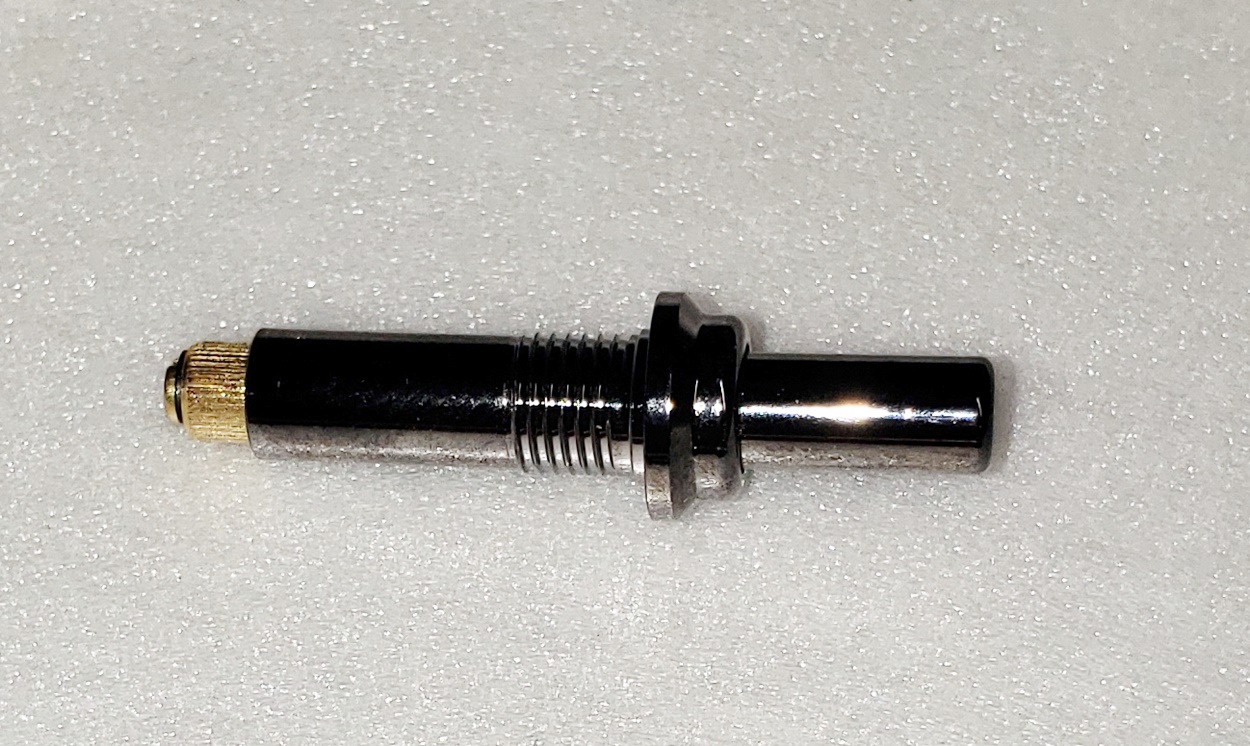

Here are the components. I use threadlocker on the click mechanism so it doesn't work loose.


Attachments

  • 084.jpg
    367.9 KB · Views: 19
  • 093.jpg
    368.8 KB · Views: 18
  • 094.jpg
    336.2 KB · Views: 21
  • 095.jpg
    337.1 KB · Views: 20

magpens

Member
Joined
Feb 2, 2011
Messages
15,586
Location
Coquitlam, BC, Canada
Another very nice pen, Jim. . . . . And an interesting new pen kit ( or at least fairly new to me ).

Thanks for this thread. . I am quite familiar with the original Slimline Pro pen kit, but this is the Slimline Pro EDC, a significant upgrade.
I have made many of the original Slimline Pro. . . I have not yet made any of the new Slimline Pro EDC.
Most of my Slimline Pro pens have been made with a single barrel. . There is a library article on how to do this.
It looks to me that the same modifications would work for the Slimline Pro EDC.

This Slimline Pro EDC kit makes use of the Schmidt SKM-192 click mechanism, which is a much improved and quieter click mechanism.

I would like to know how the two pen kits compare in other ways. . Maybe some who have made both can help do a comparison.

Here is a start at comparing the original Slimline Pro with this new Slimline Pro EDC (based on the PSI instruction sheets) :-

1. Both kits seem to use the same set of PSI bushings, namely the PK-PENXXBU
2. The brass tubes are the same diameter so that the drill size is the same, namely 8 mm
3. The original Slimline Pro has 2 brass tubes, each 2-1/32" long, whereas the Slimline Pro EDC has 2 tubes, each 1-7/8" long
4. The original Slimline Pro is sold with a Gelwriter refill, whereas the Slimline Pro EDC has a standard Parker refill
. . .Those two refills seem to by physically interchangeable. The Gelwriter has a clear plastic body; the Parker has a metal body.
. . . (not sure of the differences in the inks for writing quality, etc.)

The most significant difference, as already pointed out is :
5. The original Slimline Pro has a 3-piece click mechanism (plus spring) which has to be assembled by the pen-maker;
. . . the new Slimline Pro EDC has 1-piece Schmidt SKM-192 click mechanism (much better)

There is another major difference, which may not be very significant once the pen is assembled and operating :
6. The original Slimline Pro uses both a rear spring to help operate the click mechanism, as well as a front spring on the Gelwriter refill
. . .The new Slimline Pro EDC uses only one spring which is in the usual position at the front on the Parker refill.

So that's my listing of similarities/differences between the original Slimline Pro and the new Slimline Pro EDC.

Feel free to add any other points that you notice. . I am interested in anything that you might come up with.
