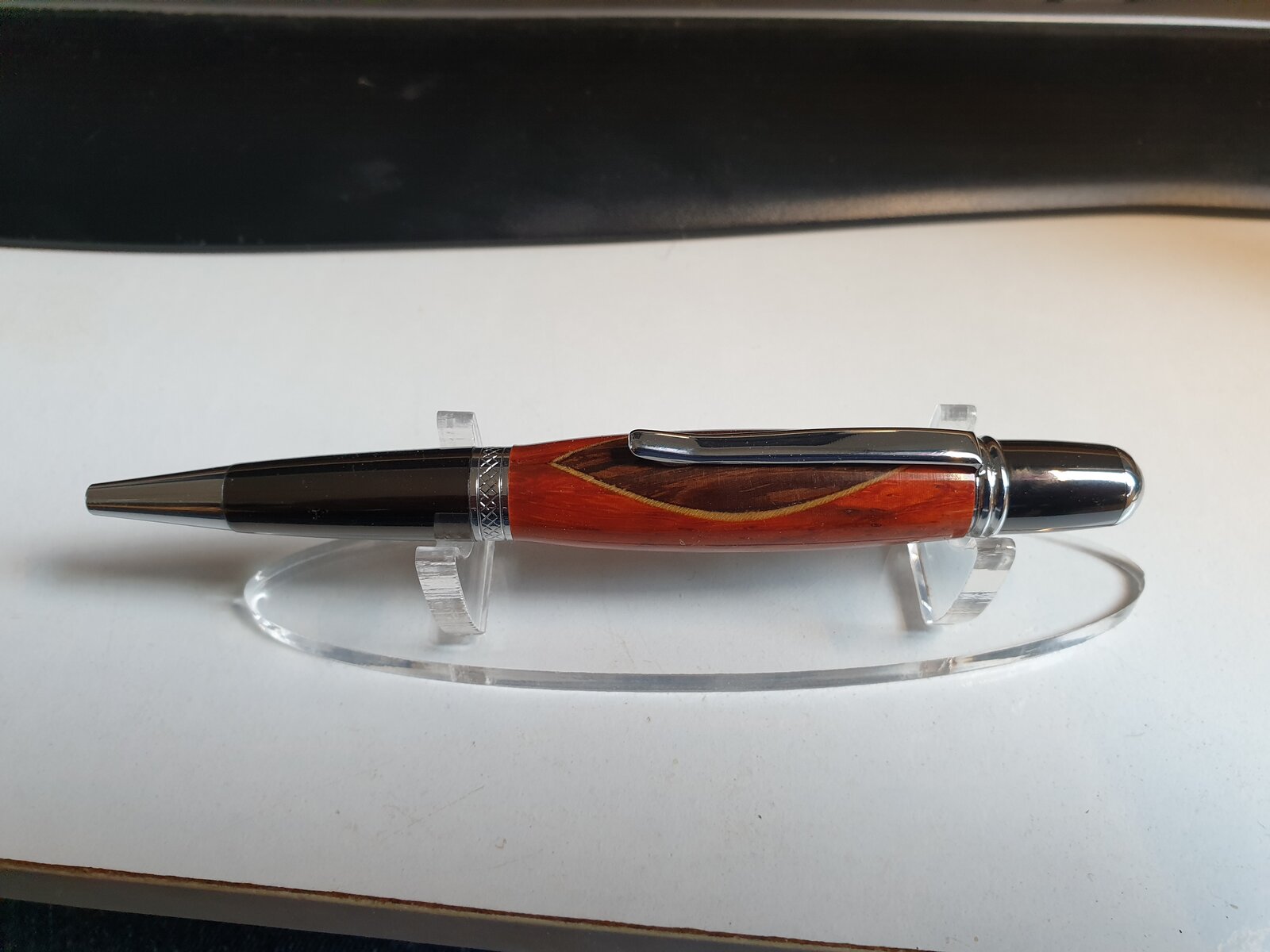

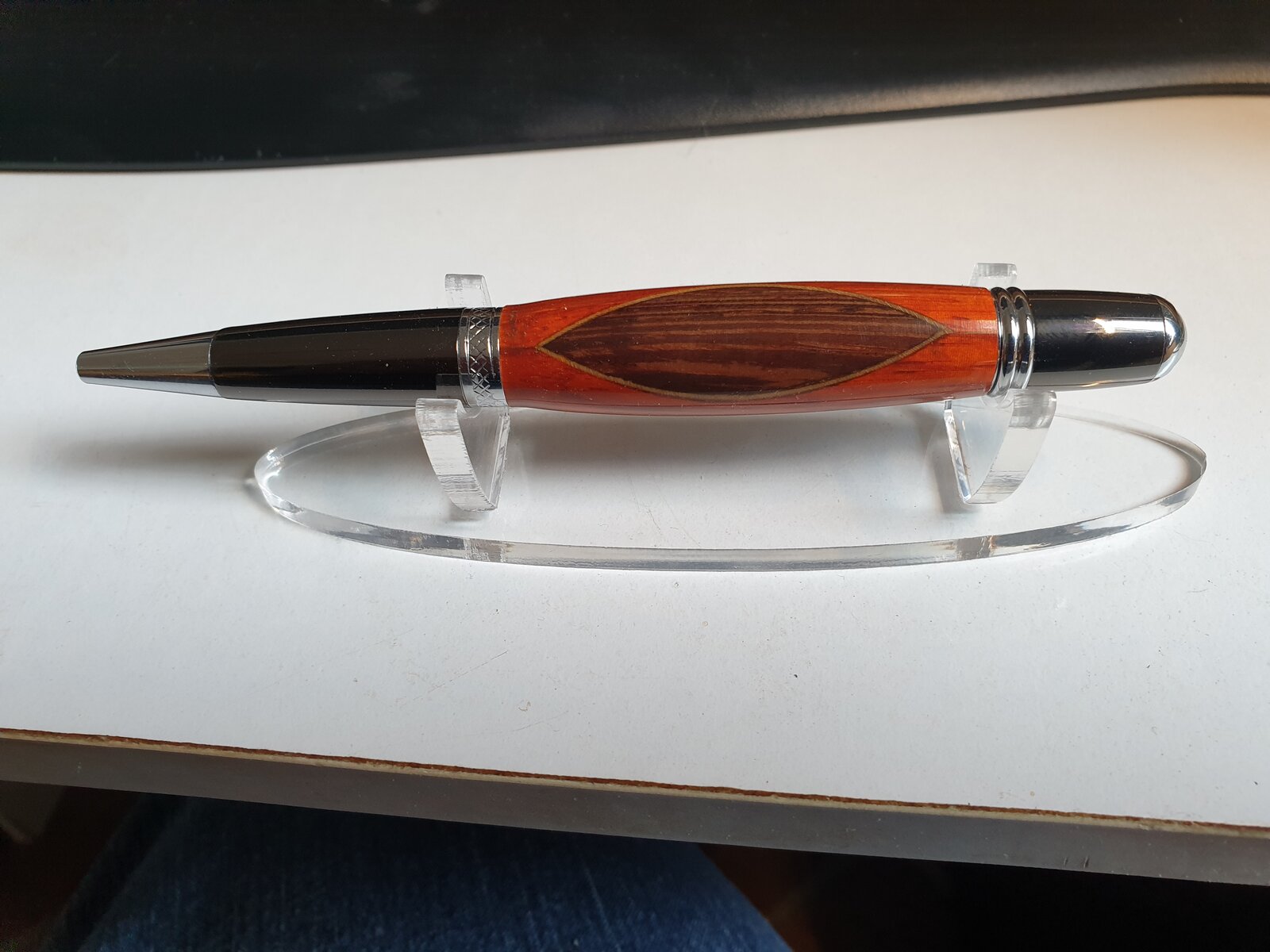

Wenge, padauk and veneer. CA finish.


Attachments

  • 20220710_191934.jpg
    169.2 KB · Views: 146
  • 20220710_191945.jpg
    139.1 KB · Views: 145

peter1958

Member
Joined
Dec 11, 2020
Messages
229
Location
Netherlands
Very interesting and you've hidden how you accomplished it very well!
It just opened the eye.... LOL The trick is a holesaw (92 mm) and 3 blanks. First a piece of wenge 1 inch by 1 inch, 3 inches long cut from 2 sides to make the eye. I don't cut completely through the wood, 1/32 is left. When done the wood breaks easy and the eye is carfully sanded.
Then 2 blanks 3/4 square and long enough for the sierra. carefully cutting a little too much out of the side (86mm holesaw). With a thin veneer between it fits perfectly. On the discsander the padauk blanks are sanded until it fits perfectly, Slowly is a must!!! Clamping all together and thin ca glue over all joints. let it soak in and another bit of ca glue. thats all.... drilling and so on.
