Show your disc sander squaring set up

[WriteON]

I just had a Squaring jig made for the Sorby belt sharpener. Works well but I do not like swapping the set up from chisels to squaring. I prefer separate stations. I'm thinking of a mini disc sander with a squaring jig using a rod inserted through the brass tube. Please show what you have.



[Curly]

I'll just link you to it as I have posted the picture lots before.

How to get a perfect length tube/blank every time?

Hey Guys, Got a question for you. How to I trim my blanks to an exact length. Let's say I'm turning an Elegant American. The tube gismo that gets pressed in there is exactly 2.0" long. The gismo has to protrude by 0.1" so my upper tube/blank needs to be exactly 1.99" long. Using the...

www.penturners.org



[WriteON]

I'm more interested in the motor/disc. Looking for a small footprint set up.



[WriteON]

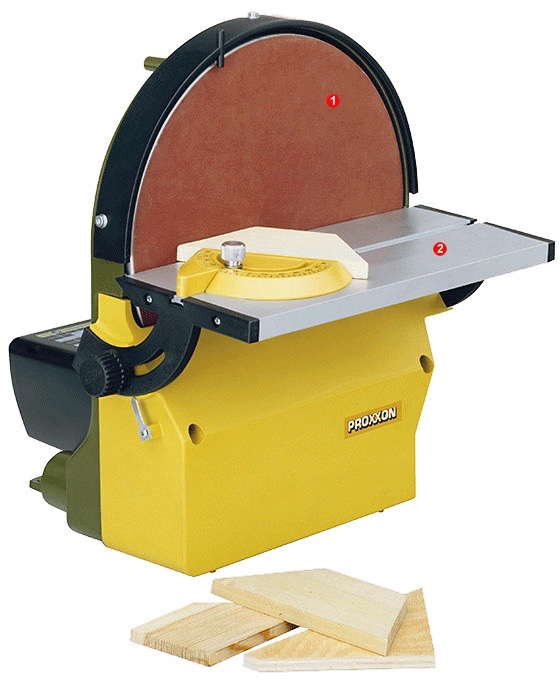

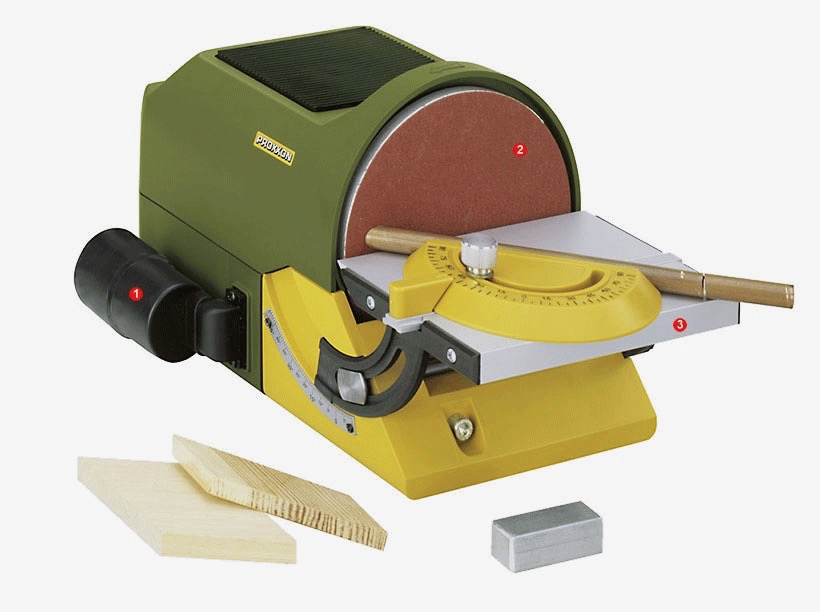

Anyone familiar with these. I use it as a dedicated blank trimmer with a Rick Herrell jig.



[JimB]

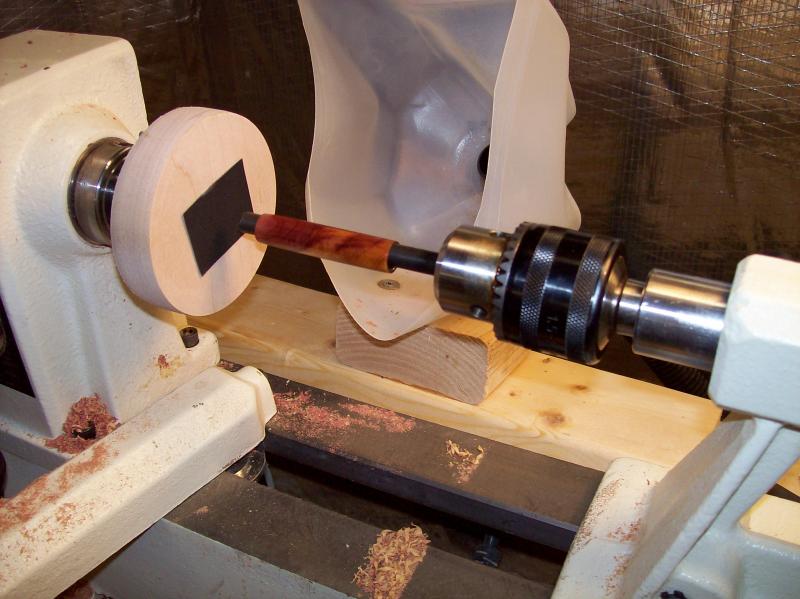

How about something like this...



[Charlie_W]

I use a 12" Delta disc sander with a gig similar to Curly's to get the blanks close to the tube and finish with a setup like JimB used for final squaring/fit.
A small disc doesn't give you much usable disc space since you can only use 1/4th if the disc.....and will clog more quickly.



[Curly]

I'm more interested in the motor/disc. Looking for a small footprint set up.

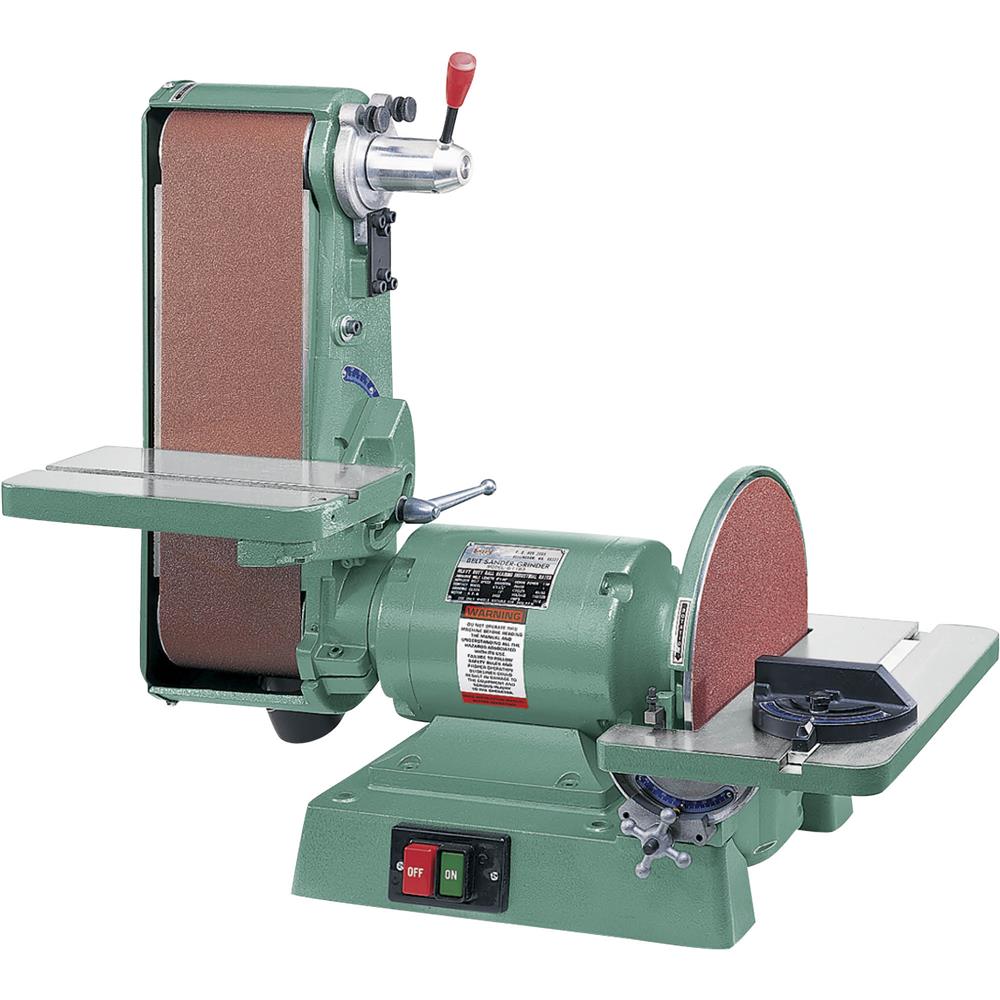

Well you likely won't care for mine. It is a 6" x 48" belt / 12" disc sander from Grizzly.

6" x 48" Belt/12" Disc Combo Sander, 1725 RPM

<h1>G1276 6" x 48" Belt/12" Disc Combination Sander</h1> <h2>A sander built to the scale and level of quality professional woodworkers demand.</h2> <p>The heavy-duty G1276 Combination Sander features a 6" x 48" sanding belt that operates horizontally, vertically, or at any angle in between and a...

www.grizzly.com



[Charlie_W]

Well you likely won't care for mine. It is a 6" x 48" belt / 12" disc sander from Grizzly.

6" x 48" Belt/12" Disc Combo Sander, 1725 RPM

<h1>G1276 6" x 48" Belt/12" Disc Combination Sander</h1> <h2>A sander built to the scale and level of quality professional woodworkers demand.</h2> <p>The heavy-duty G1276 Combination Sander features a 6" x 48" sanding belt that operates horizontally, vertically, or at any angle in between and a...

www.grizzly.com

That 6x48 w/12" disc is a nice size....had a couple in cabinet shops I worked in years ago.



[WriteON]

I do like it. Too big for my shop. Too heavy to lift (for me). But it's a nice piece of equipment.



[Curly]

If space is that tight you should use your lathe. A disc on a faceplate and either a jig in the tailstock or a table mounted to the bed/tool post. It might take a few minutes to setup and take down but it doesn't use anymore space than you already use at the moment.

You could also mount a disc to the hand wheel on the outboard end of the headstock and leave a jig setup all the time. It would take up a little more space but less than a separate machine.



[WriteON]

The lathe set up looks great. But again I prefer a dedicated trimmer. I am having benches built when I move... I should have room for whatever I need. For now I'm looking into disc sanders. I have no issue using barrel trimmers on a lathe. But like having a disc/jig to work on an almost or finished blank.



[Jarod888]

I have the harbor freight disk sander, you can get it on sale for 70$ or so. It's ok. If I had to do it over again, I'd pick up the rikon cast iron sander, but its about 4 times the cost of the harbor freight one.



[WriteON]

I thought about the Proxxon but want more HP. What do you feel is the smallest disc that is suitable for blank squaring with a jig. The Sorby belt "field" is too small. I don't mind having a belt/disc combo but a disc is enough for what I'm doing. I'm ok for price.



[Jsavage4]

I am really fortunate to own a Shopsmith with a disc sander. I do so much of my work with the Shopsmith, but do all my drilling on my lathe.


Sent from my iPhone using Penturners.org mobile app
