Shop organization

[Muddydogs]

Decided it was time to get a handle on my HF parts storage boxes. They were taking up way to much shelf space and of course I always needed the bottom one. I guess I don't have a before photo.

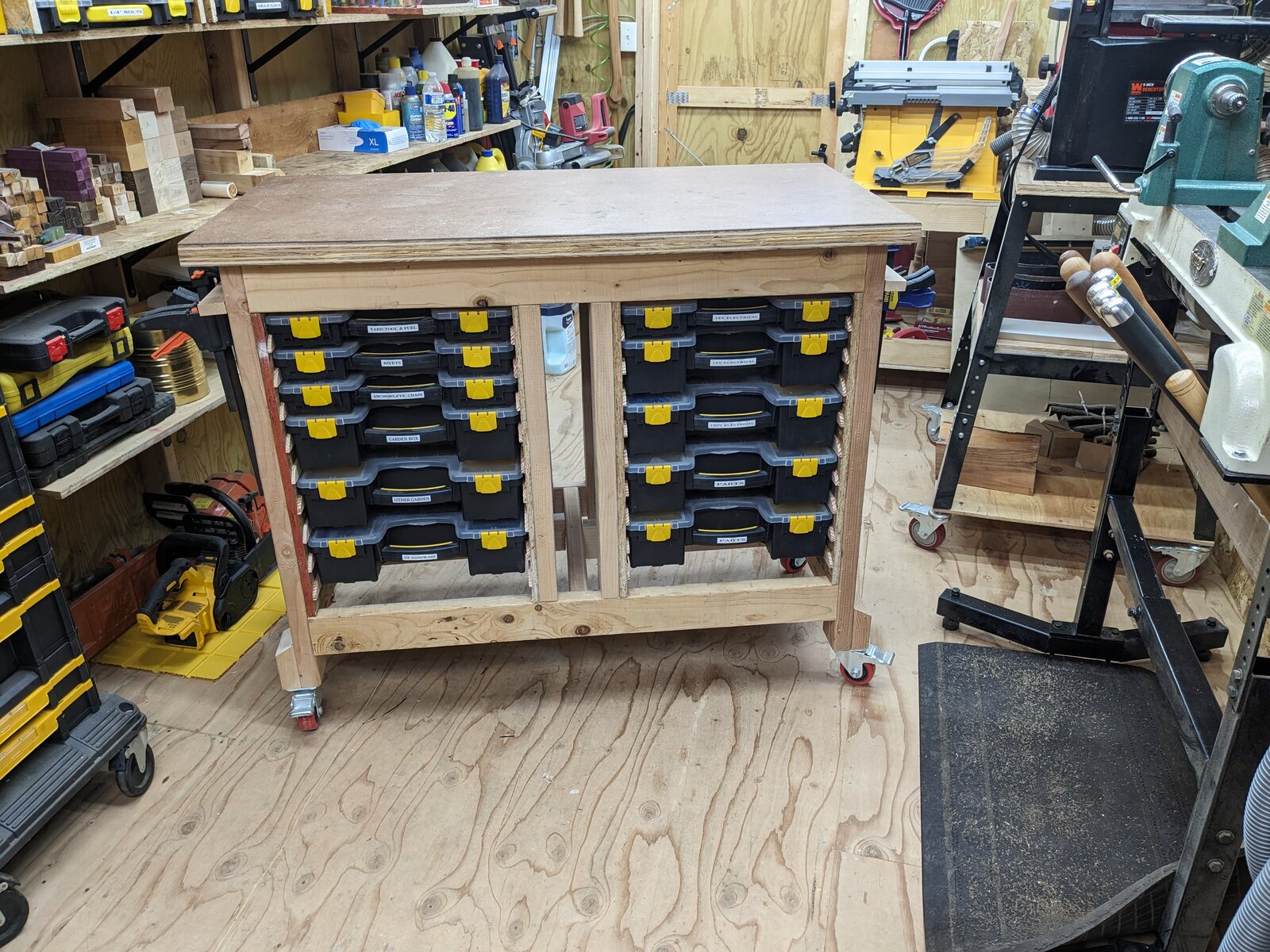

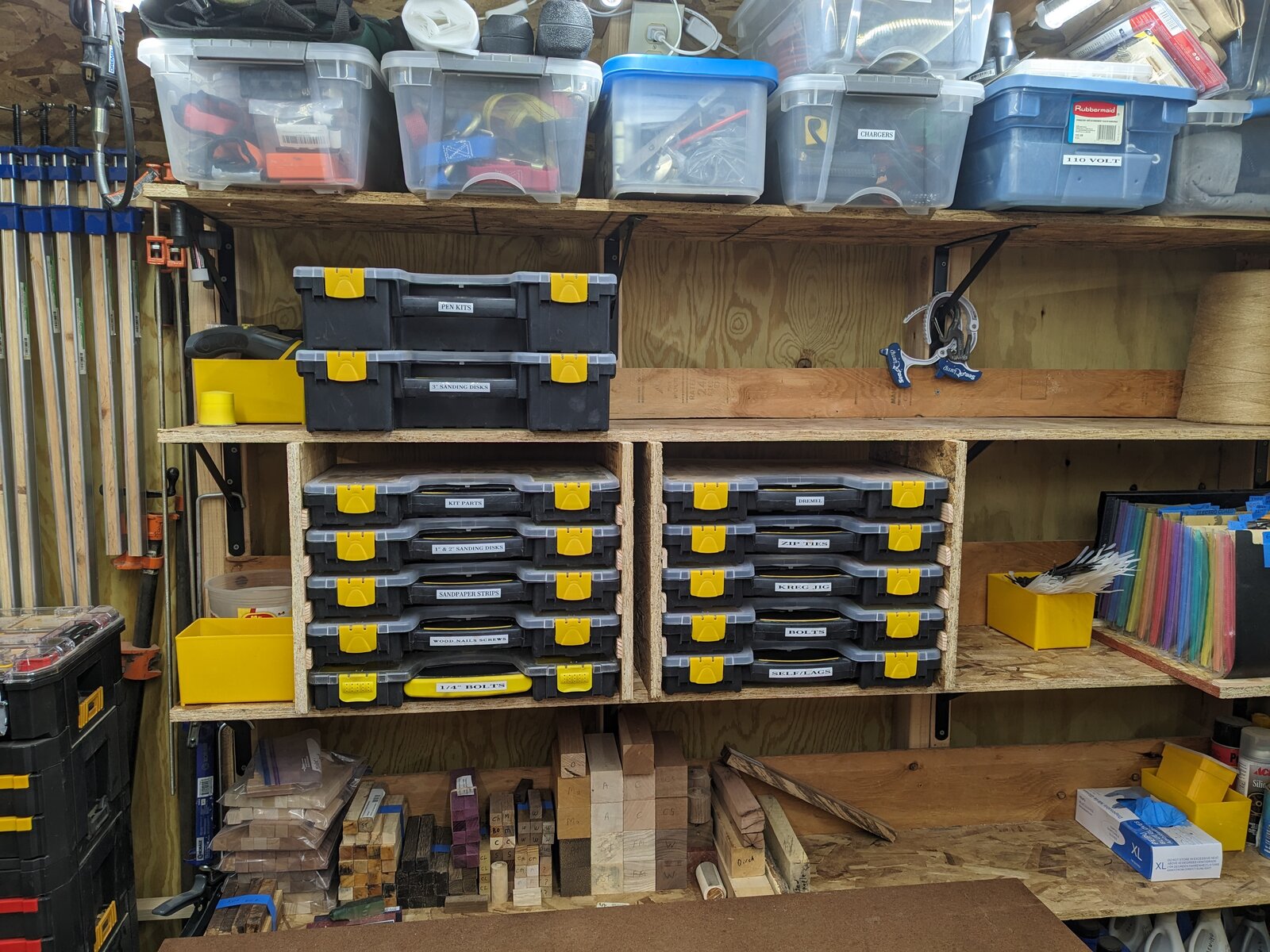

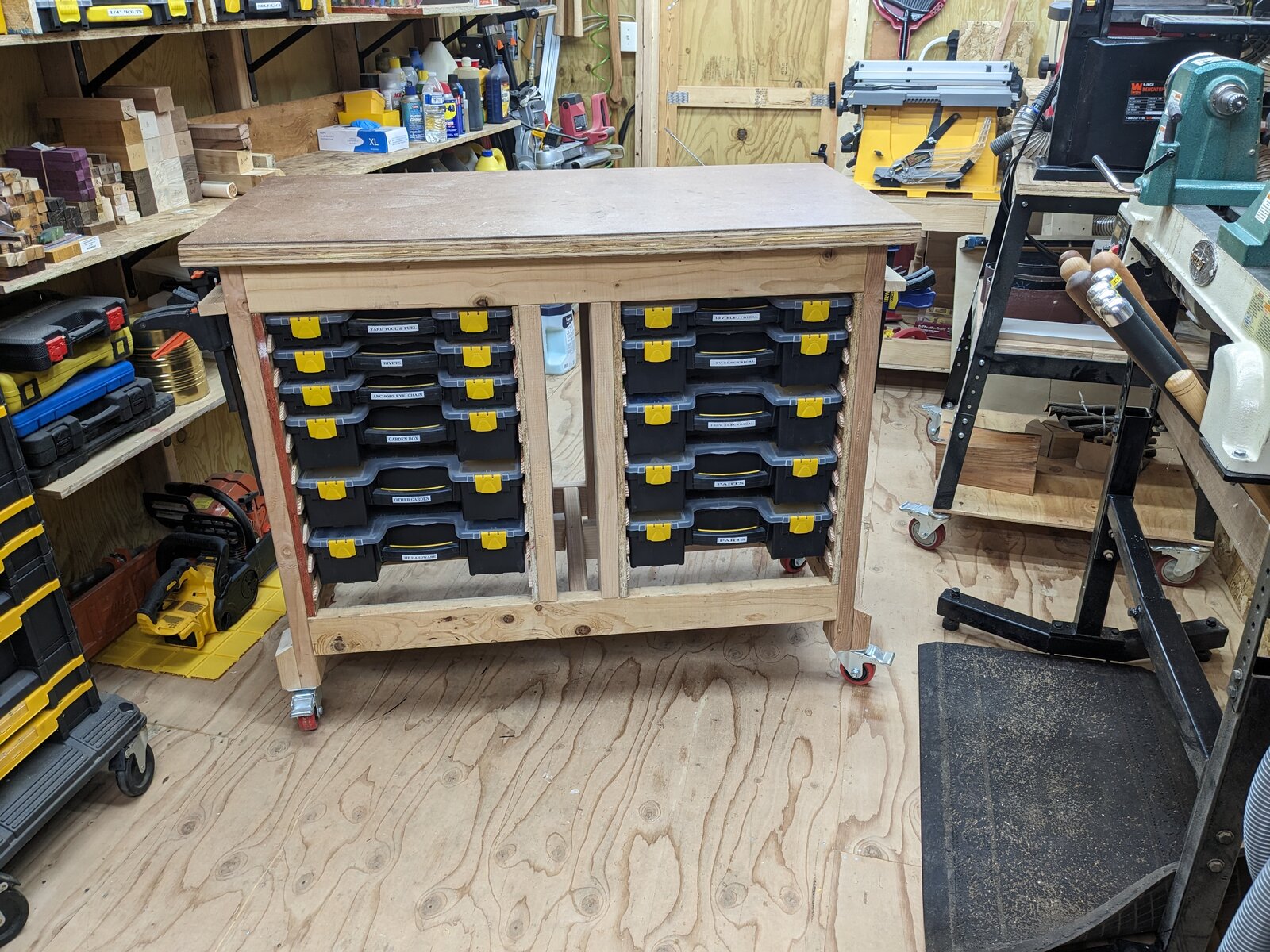

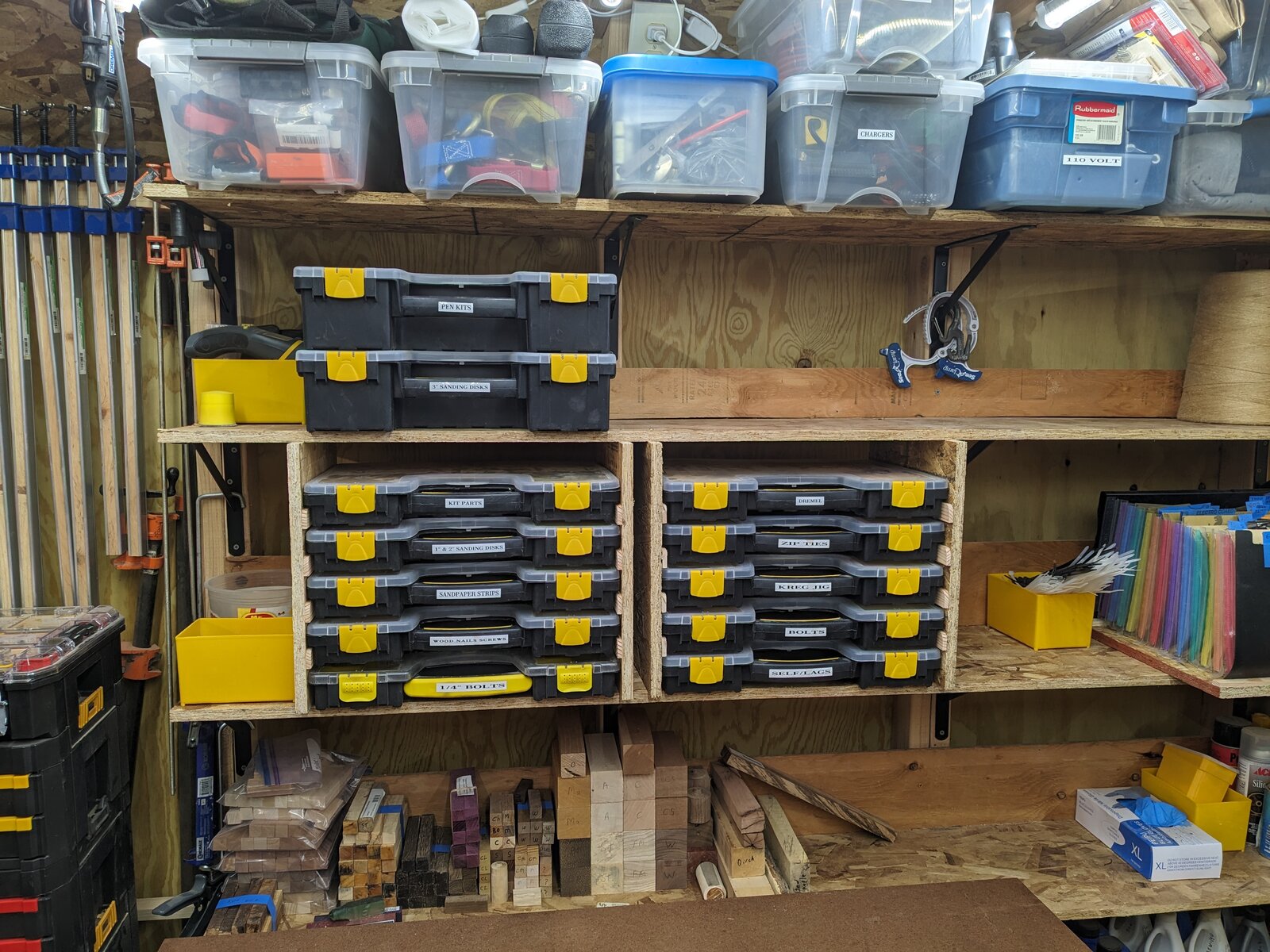

Built a storage rack under my work table and a couple shelf mounted units.



[sorcerertd]

and of course I always needed the bottom one.

Always!
I've been meaning to do a "drawer" unit like that. One of these months...



[turtle032]

Decided it was time to get a handle on my HF parts storage boxes. They were taking up way to much shelf space and of course I always needed the bottom one. I guess I don't have a before photo.

Built a storage rack under my work table and a couple shelf mounted units.

I like this. I need to do something similar. I have a few very heavy boxes and wondered about the cleats you have vs. an entire shelf. I like the cleats since you can put boxes wherever you like.



[moke]

Nicely done.....I love to have my shop organized....nothing upsets me more than having to look endlessly for something! I think you and I can agree the best tool we ever bought was a labelmaker....



[Woodchipper]

Nicely done.....I love to have my shop organized....nothing upsets me more than having to look endlessly for something! I think you and I can agree the best tool we ever bought was a labelmaker....

If I can't find anything, I tell my wife what I'm looking for. Finds it within five minutes. Or to find it: buy another and the lost one shows up he next day. Oh yes, have a label maker, too. Labels on the doors of an old school locker for the larger things.
Best investment was a HF 9 drawer cabinet; https://www.harborfreight.com/46-in...-cabinet-with-solid-wood-top-black-56613.html. I was able to put 99% of my turning things in the long top drawer. Rest of the drawers are filled with screwdrivers, squares and rulers, etc.



[derekdd]

If I can't find anything, I tell my wife what I'm looking for. Finds it within five minutes. Or to find it: buy another and the lost one shows up he next day. Oh yes, have a label maker, too. Labels on the doors of an old school locker for the larger things.
Best investment was a HF 9 drawer cabinet; https://www.harborfreight.com/46-in...-cabinet-with-solid-wood-top-black-56613.html. I was able to put 99% of my turning things in the long top drawer. Rest of the drawers are filled with screwdrivers, squares and rulers, etc.

I've been thinking about getting one of those to mount a lathe on.

Once you fill it up with tools and accessories, the weight should make for a pretty stable stand.



[Woodchipper]

derekdd, it also has locking casters. If you decide to leave it in one place, remove the casters. It would drop the top by a few inches. I like it and it's much less $$$ that the ones at the big box stores. Probably made in the same place.



[Muddydogs]

O ya I like my label maker whether the shop, reloading room or the spice cabinet. Wife wouldn't be surprised if I labeled her and the cat.



[Muddydogs]

I like this. I need to do something similar. I have a few very heavy boxes and wondered about the cleats you have vs. an entire shelf. I like the cleats since you can put boxes wherever you like.

I made the rails / cleats by ripping a 2x4 1/4" thick by 1" wide and 13" long. Rounded the top corner so the boxes will slide up the end then attached them to 1/2" OSB with Tightbond and 3/4" 18ga brad nails. A couple of my boxes are a bit heavy so we'll see if the rails hold.

Nice thing about this design is I can but 2 medium boxes in 2 slots or 1 big box in the 2 slots so I'm able to swap box sizes around if needed.



[Fizzy]

If I can't find anything, I tell my wife what I'm looking for. Finds it within five minutes. Or to find it: buy another and the lost one shows up he next day. Oh yes, have a label maker, too. Labels on the doors of an old school locker for the larger things.
Best investment was a HF 9 drawer cabinet; https://www.harborfreight.com/46-in...-cabinet-with-solid-wood-top-black-56613.html. I was able to put 99% of my turning things in the long top drawer. Rest of the drawers are filled with screwdrivers, squares and rulers, etc.

That what I did. Except it's a husky from HD. Works very nicely



[Ray-CA]

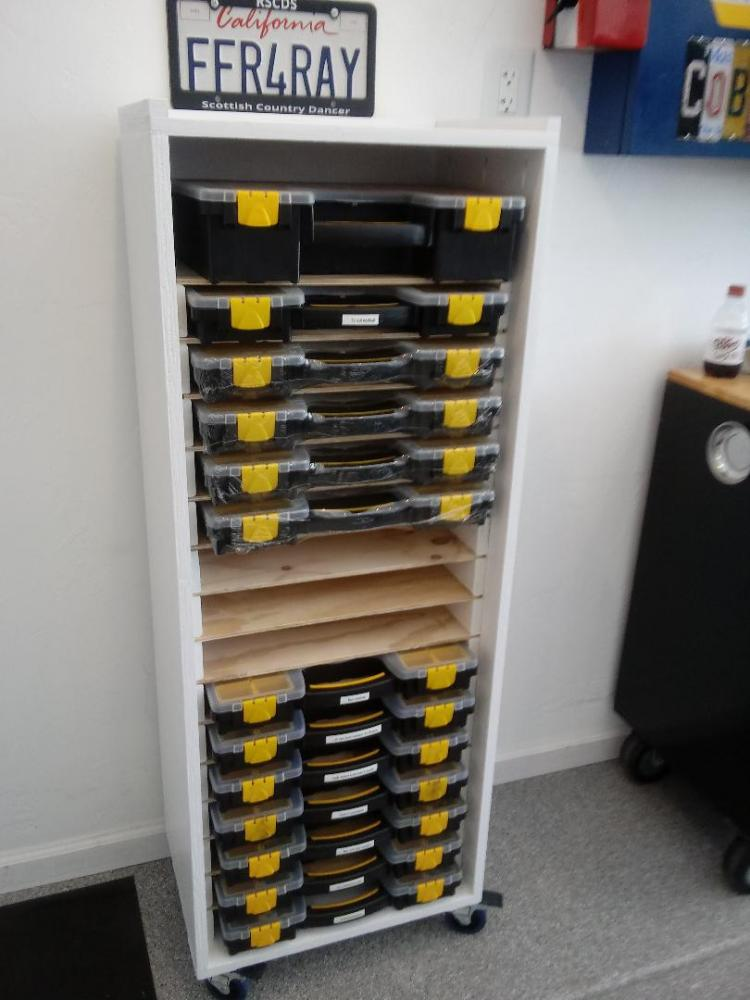

I built this one a few years ago. Just keep the heavy stuff in the bottom boxes.



[moke]

I bought the craftsman version of that cabinet...because it was 8 drawer and a little lower and put my metal lathe on it. It has a little "wiggle" to it, but I only turn pens and small parts so it is fine.
