Sharpening carbide

Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad

Curly

Well-Known Member
Joined
Nov 20, 2010
Messages
3,274
Location
Saskatoon SK., Canada.
The Tormek manual shows sharpening of carbide blades on the bevel side.
Okay. Everything I’ve ever read said aluminium oxide wheels won’t sharpen Carbide. Only special black grinding wheels (not really well), CBN and Diamond. I sit corrected. ;)

Last edited:

Ed McDonnell

Well-Known Member
Joined
Oct 20, 2008
Messages
2,288
Location
Melbourne, FL
I have the black silicon carbide wheel (SB-250) on my tormek. I use it to lightly sharpen carbide tooling that already has a good edge (no chips). It would not be a good choice for trying to reshape a carbide tool (or to try and grind out a chip).

Don't try and sharpen carbide on any part of the standard grey wheel on the tormek. Unless you want a really nice groove in the wheel. DAMHIKT.

Ed


leehljp

Member Liaison
Joined
Feb 6, 2005
Messages
6,596
Location
Tunica, MS,
I have the Tormek 186 jig for gouge sharpening. Just last week found an attachment in a box next to the 186 jig and the attachment is for sharpening carbide inserts. I didn't know that I had it.

But yes, carbide inserts can be sharpened. Let us know how it works out.

In the mean time, I am happy with my new CBN wheels for shaping and sharpening my HSS tools!

Last edited:

PenPal

Well-Known Member
Joined
Nov 29, 2006
Messages
2,045
Location
Canberra, A.C.T., Australia.

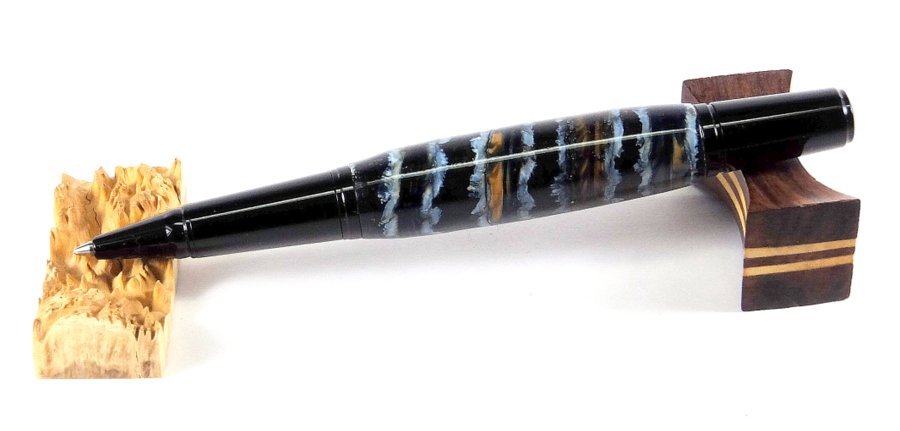

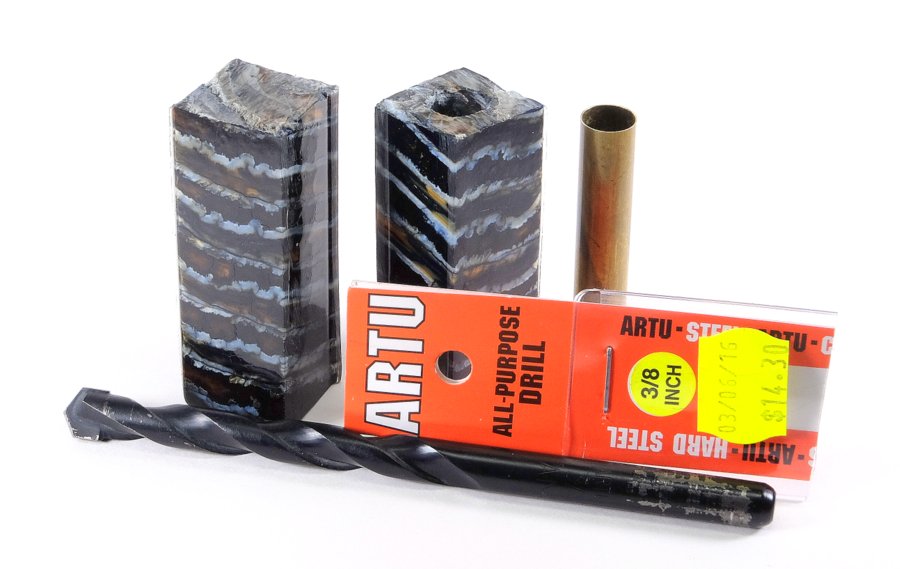

Not long ago I made a pen from Mammoth tooth. As I blunted the four facets i removed them from the tool and placed them cutter face down on a fine Diamond file. I had to do this ten to fifteen times,each time restoring a useful cutter group. I am still using that one so it works for me. The surface was bands,really hard,about 4 -5 hrs turning.rock and glass.

Good luck with your needs.

Peter.


Attachments

Last edited:

Rifleman1776

Well-Known Member
Joined
Dec 18, 2004
Messages
7,344
Location
Mountain Home, Arkansas, USA.
Not long ago I made a pen from Mammoth tooth. As I blunted the four facets i removed them from the tool and placed them cutter face down on a fine Diamond file. I had to do this ten to fifteen times,each time restoring a useful cutter group. I am still using that one so it works for me. The surface was bands,really hard,about 4 -5 hrs turning.rock and glass.

Good luck with your needs.

Peter.

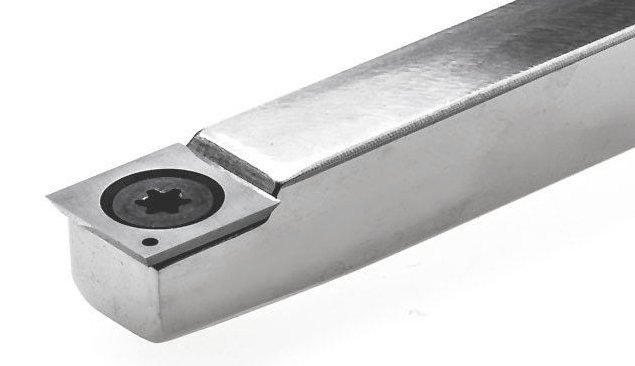

Your post told me more about turning mammoth tooth than carbide sharpening. But, that is a good thing. I believe I will pass on trying to turn that material. However, your results with that pen are stunning. Enjoy using or sell for top dollar. BTW, the hardest material I have ever turned was some faux ivory (not what the pen supply vendors sell). Results were beautiful but time and effort have dissuaded me from using the one blank I have left. Maybe one day. BTW, the carbide turning tools I use I made myself. The cutters are replacements for planers and jointers. They cost under $5.00 each and have four edges. I don't bother to try resharpening. For any material other than actual rock and glass, one edge lasts almost indefinitely.


JPW062

Active Member
Joined
Nov 3, 2016
Messages
142
Location
Ohio
aluminum oxide, stainless steel, and most other things used in grinding are pretty hard on your lungs.
I have always been told carbide is the worst. I wouldn't go farther than rubbing an insert on a diamond card myself.

I was told by my local sharpening service the vast majority of cutters sent to his shop simply needed cleaned.
