Had these for quite some time.
SEEKING HELP Looking for instructions Flat top American Filigree Pen BPK05GA, pm please.
- Thread starter PenPal
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
jjjaworski
Member
Not sure if this will help - from PSI kits - might be some similarities in the assembly process ( or not ).
Fro PSI Instruction Library --- http://www.psiwoodworking.com/MARK_LIB.php
PSI Classic Filigree Pen
Legacy Euro Filigree which is a round top version
European Filigree- different supplier in UK
www.penkitzandbitz.co.uk
OLD forum thread on them:
Berea Flat Top Pen
From Berea Website
Hope some of this may help you.
Jim
Fro PSI Instruction Library --- http://www.psiwoodworking.com/MARK_LIB.php
PSI Classic Filigree Pen
Legacy Euro Filigree which is a round top version
European Filigree- different supplier in UK
European Filigree - Penkitzandbitz
For POST FREE pen kits, pencil kits, spares and pen blanks, magnifying glass, Rollerball kits, Fountain Pen kits, etc, www.beaufortink.co.uk., world class penkits, pen turning kits, woodturning pen turning kits, british made pen kits, pen kits suppliers, pen kit suppliers...
OLD forum thread on them:
PSI Filigree Pen Kit
It seems that PSI has discontinued the Filigree Pen kit (not the slimline cap thing). I need 2 -3 if anyone has these in stock. This is the kit that is pictured below. Let me know, thanks.
www.penturners.org
Berea Flat Top Pen
From Berea Website
Hope some of this may help you.
Jim
Last edited:
Do you know who the supplier was?
Paul in OKC
Member
I think I may have these. Will try to remember when I get home from work to look.
PenPal
Member
There are so many squinks of differences in Filigree Pens,the tricky part I find with these and so as not to stuff it up is the depth of the part that links the top and the winder since it is critical,about 14 pieces in this kit. any help from you all will be appreciated. Before I retired some 25 years ago management told me over 60 brings uncertainty,now nealy 90 it can be chaos.
randyrls
Member
Peter; There is an Internet archive that saves all web pages. archive.org (aka Way-Back-Machine) Who gets the reference?
You can search for a website domain name there and display pages from specific dates. So if you know the seller and website name, you can locate the instructions. PK looks like a Penn State Industries pen.
You can search for a website domain name there and display pages from specific dates. So if you know the seller and website name, you can locate the instructions. PK looks like a Penn State Industries pen.
Have you been able to match up the parts in your kit with either the PSI or the Berea instructions that jjjawoski linked above?
That style of pen kit was a popular variant on the "Parker Ballpoint Pen" in the early to mid 2000s. PSI called theirs the Classic & Berea called theirs the American. Both offered a flat top version, with and without a filigree sleeve.
I don't think that the BPK05 kit number is either a PSI or a Berea part number. It might be a similar kit by another manufacturer or a supplier's own part number.
That style of pen kit was a popular variant on the "Parker Ballpoint Pen" in the early to mid 2000s. PSI called theirs the Classic & Berea called theirs the American. Both offered a flat top version, with and without a filigree sleeve.
I don't think that the BPK05 kit number is either a PSI or a Berea part number. It might be a similar kit by another manufacturer or a supplier's own part number.
Paul in OKC
Member

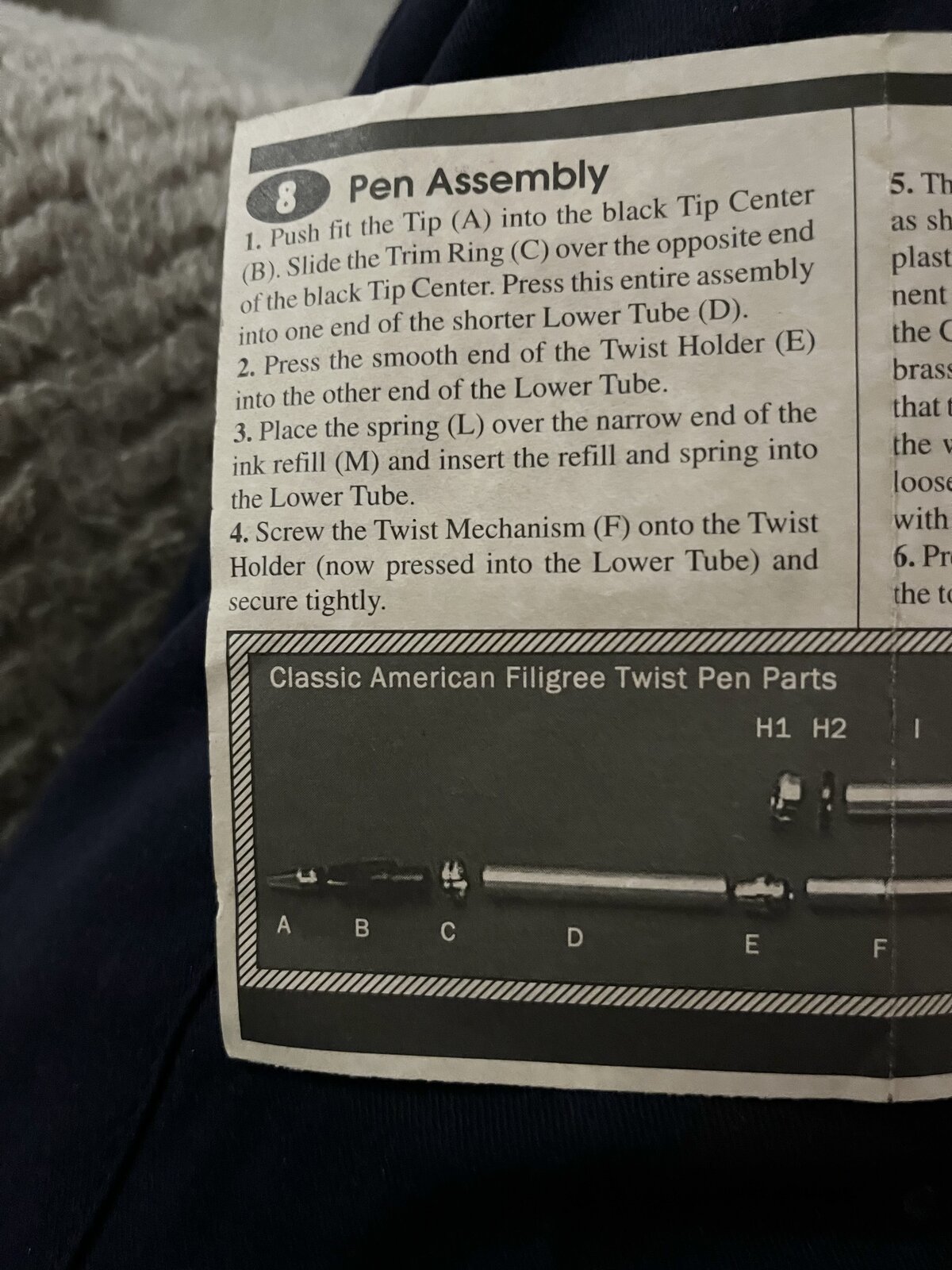

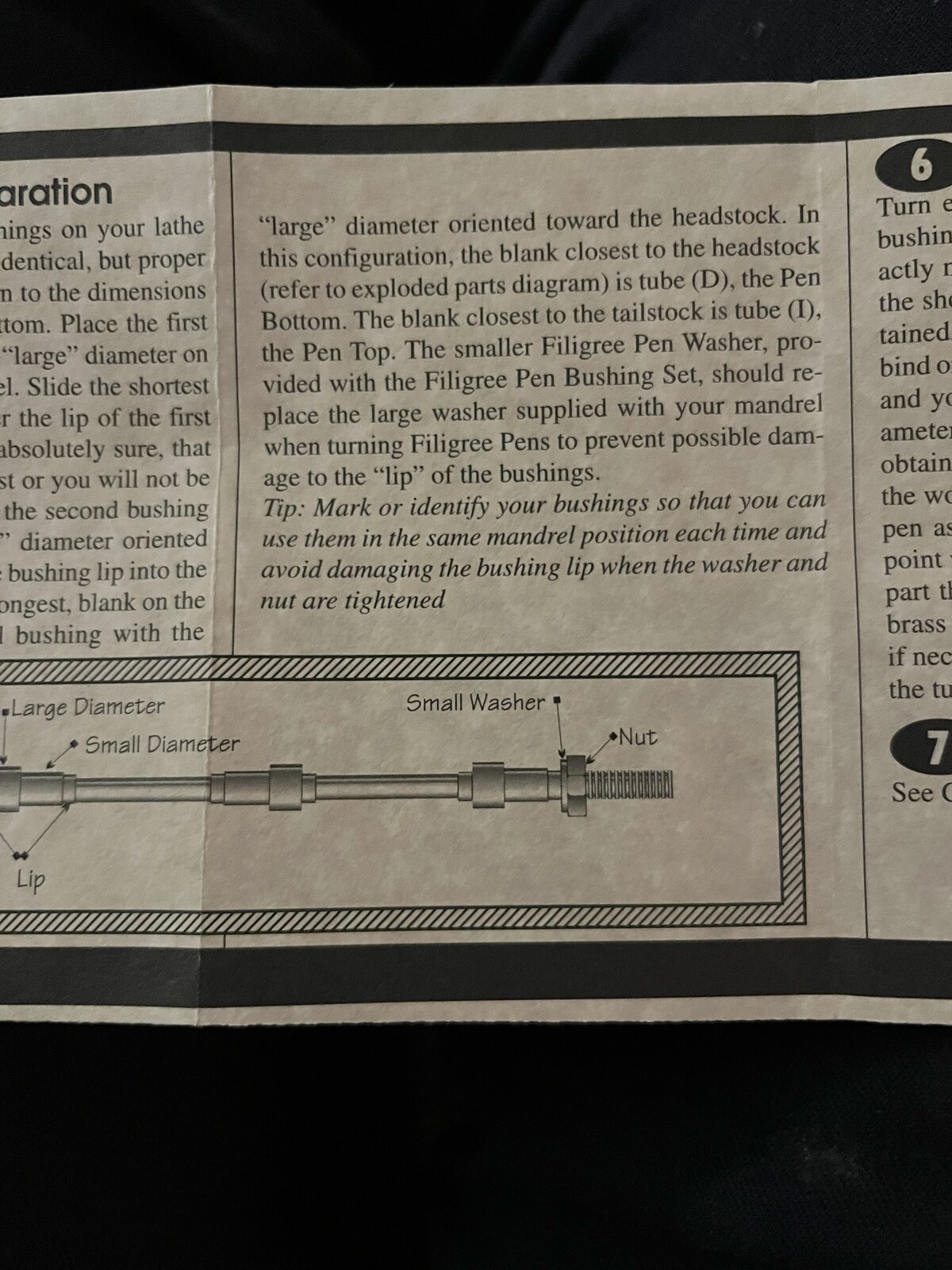

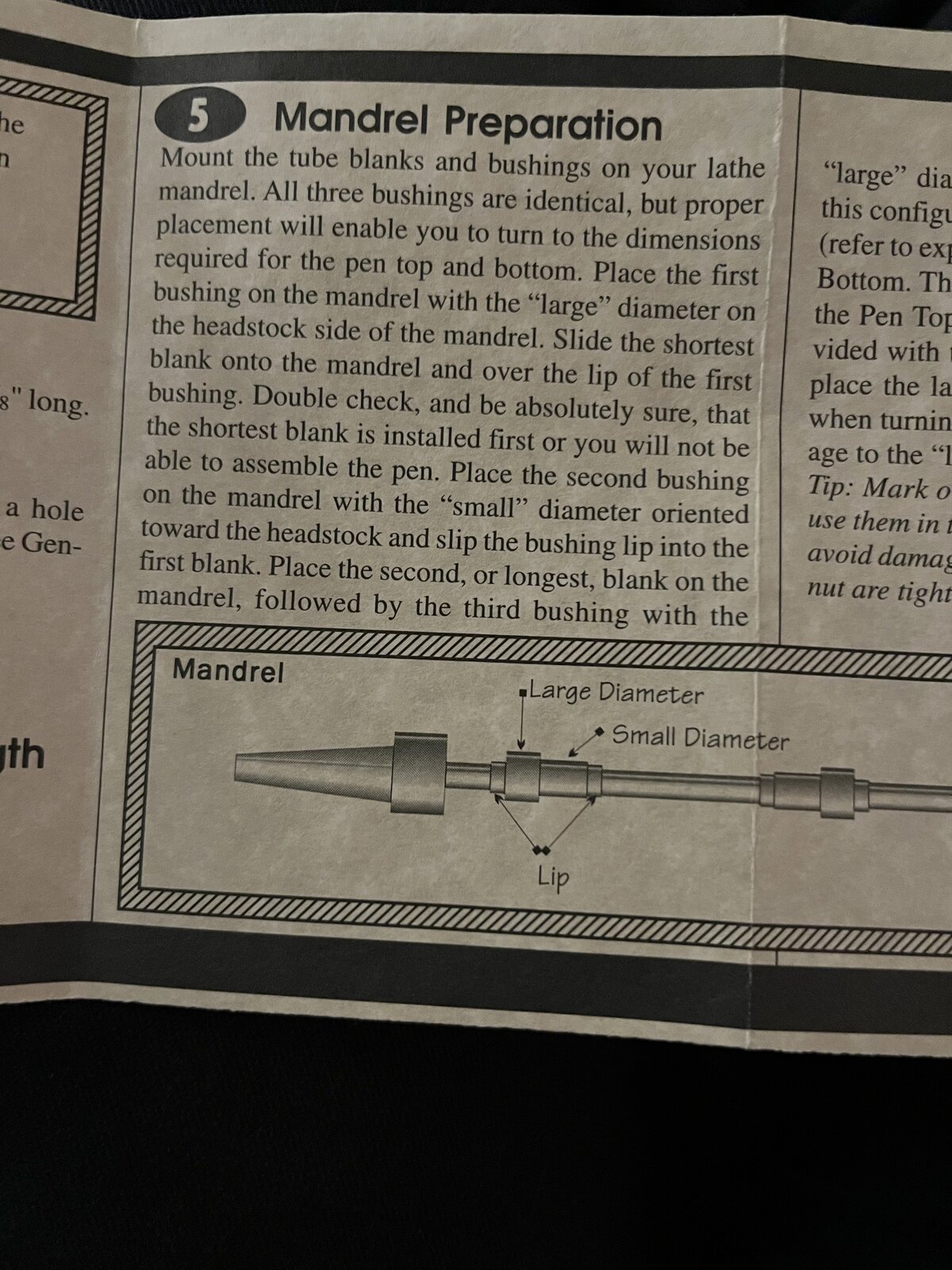

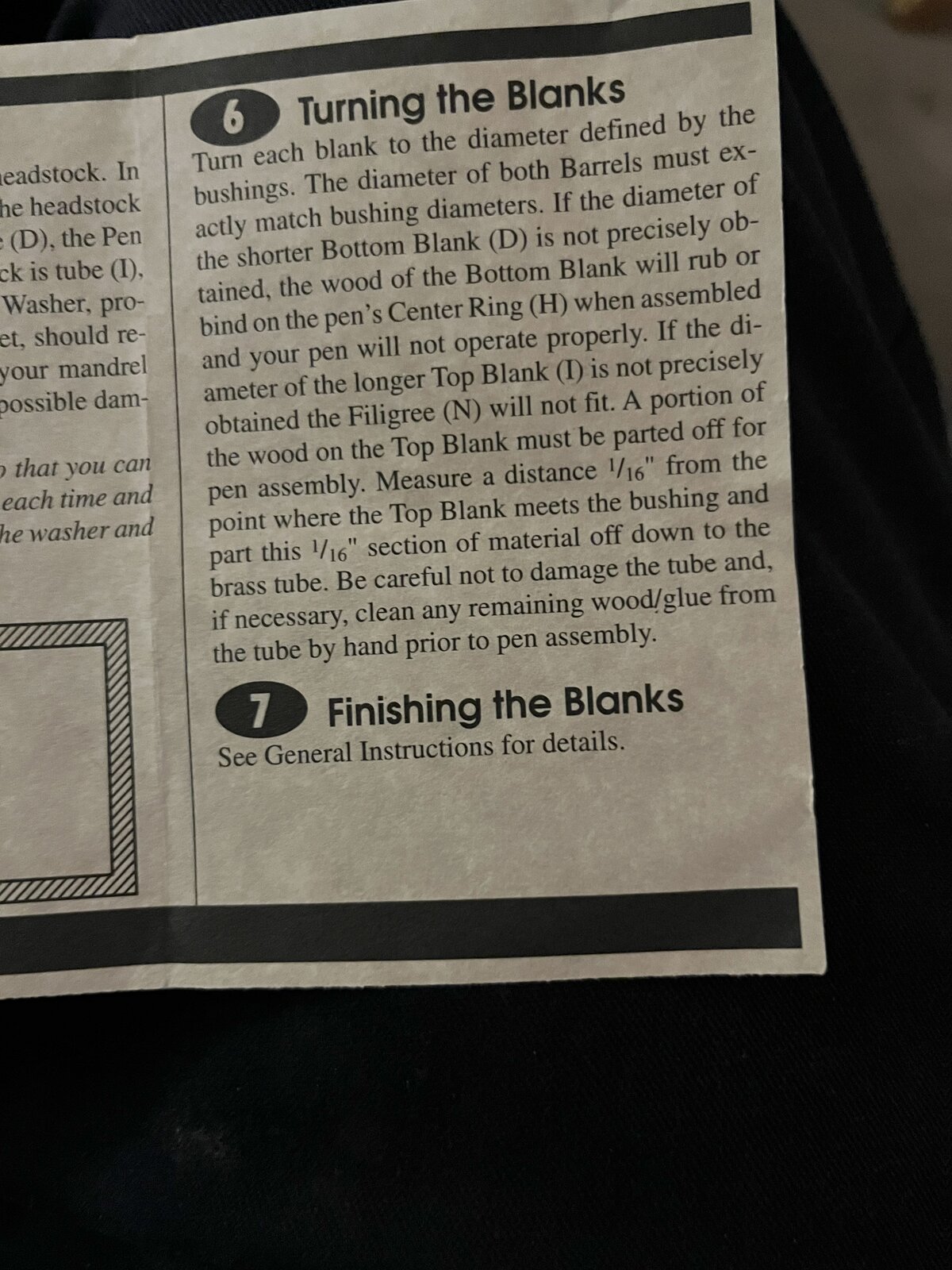

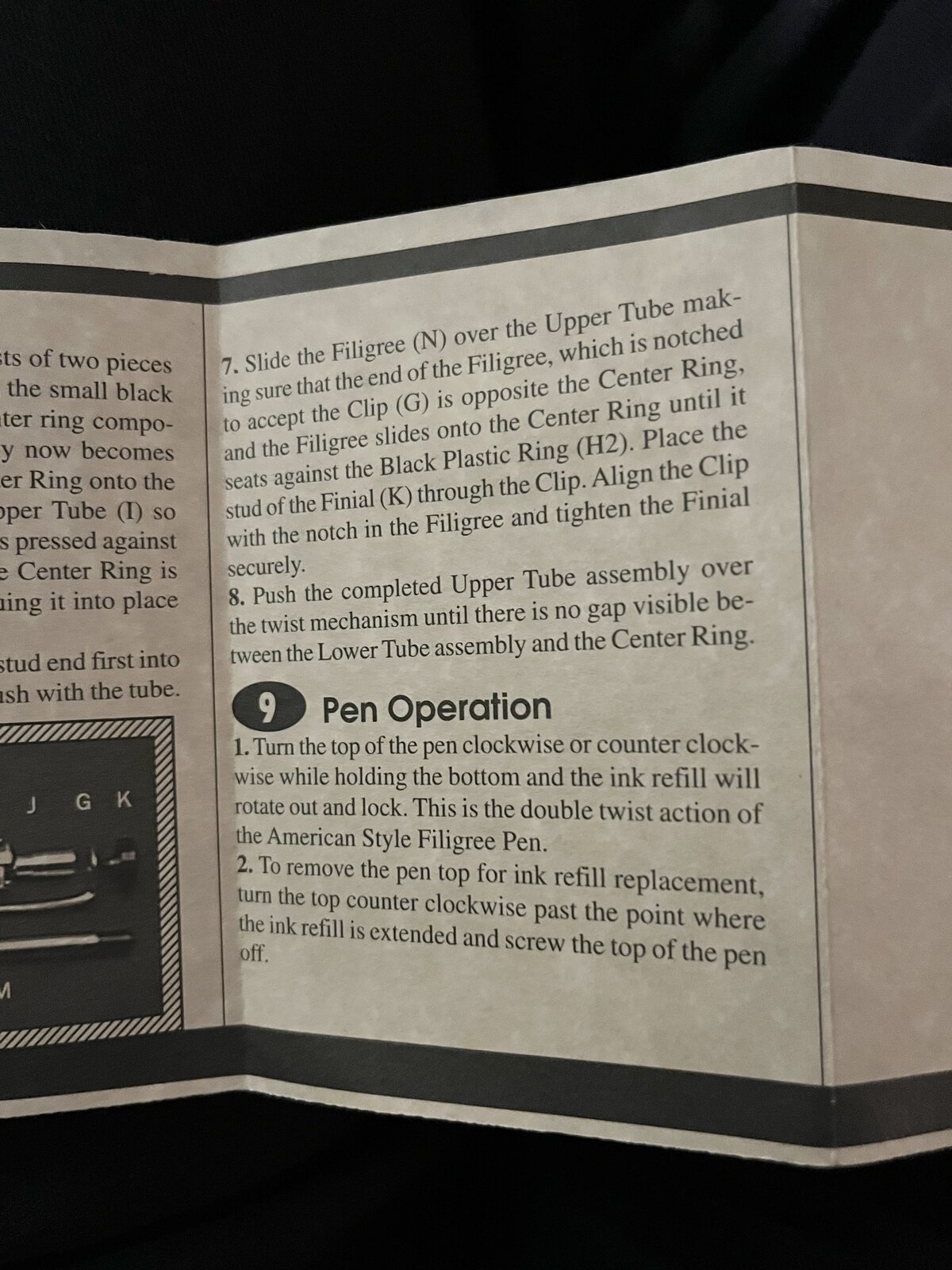

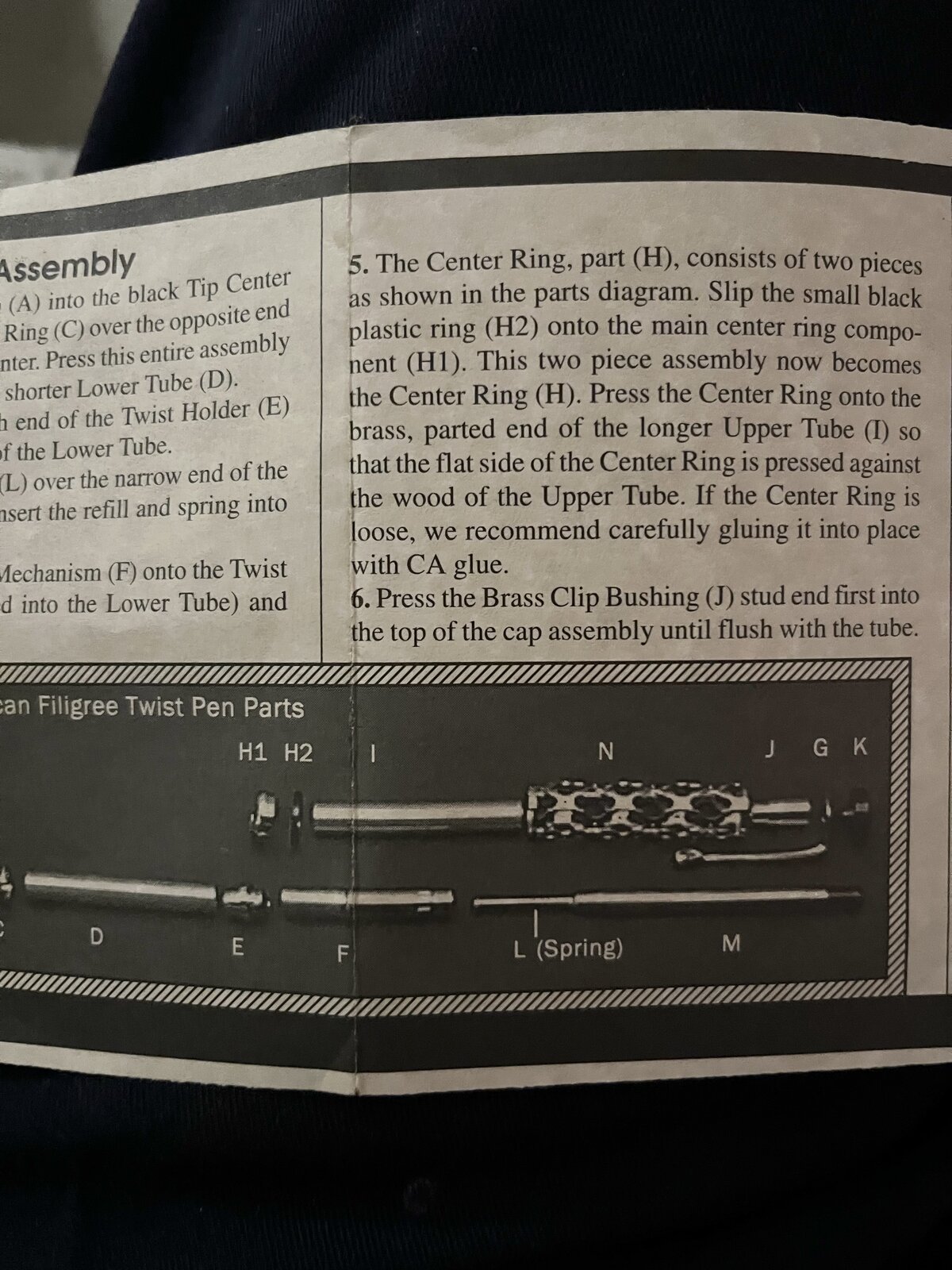

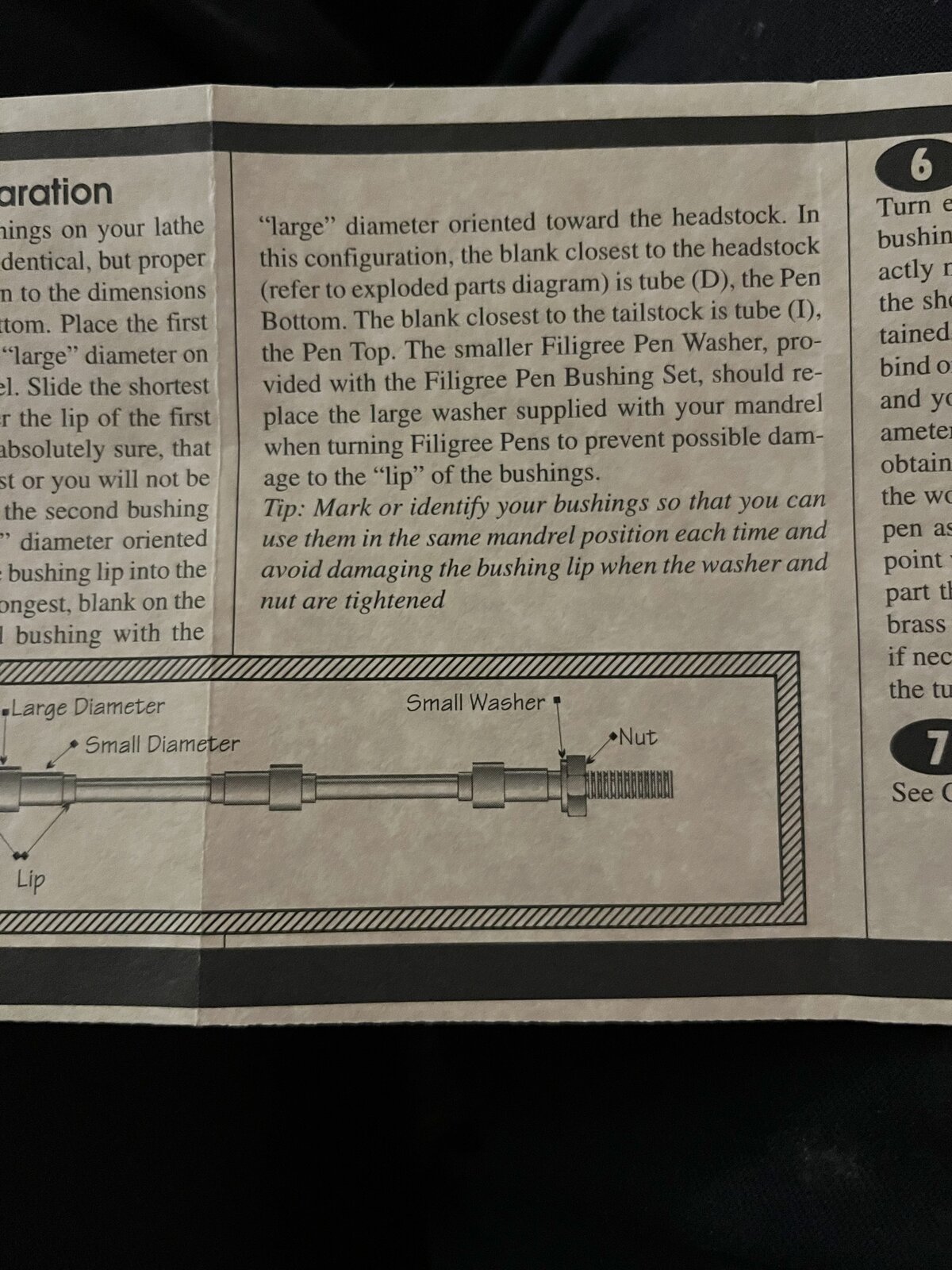

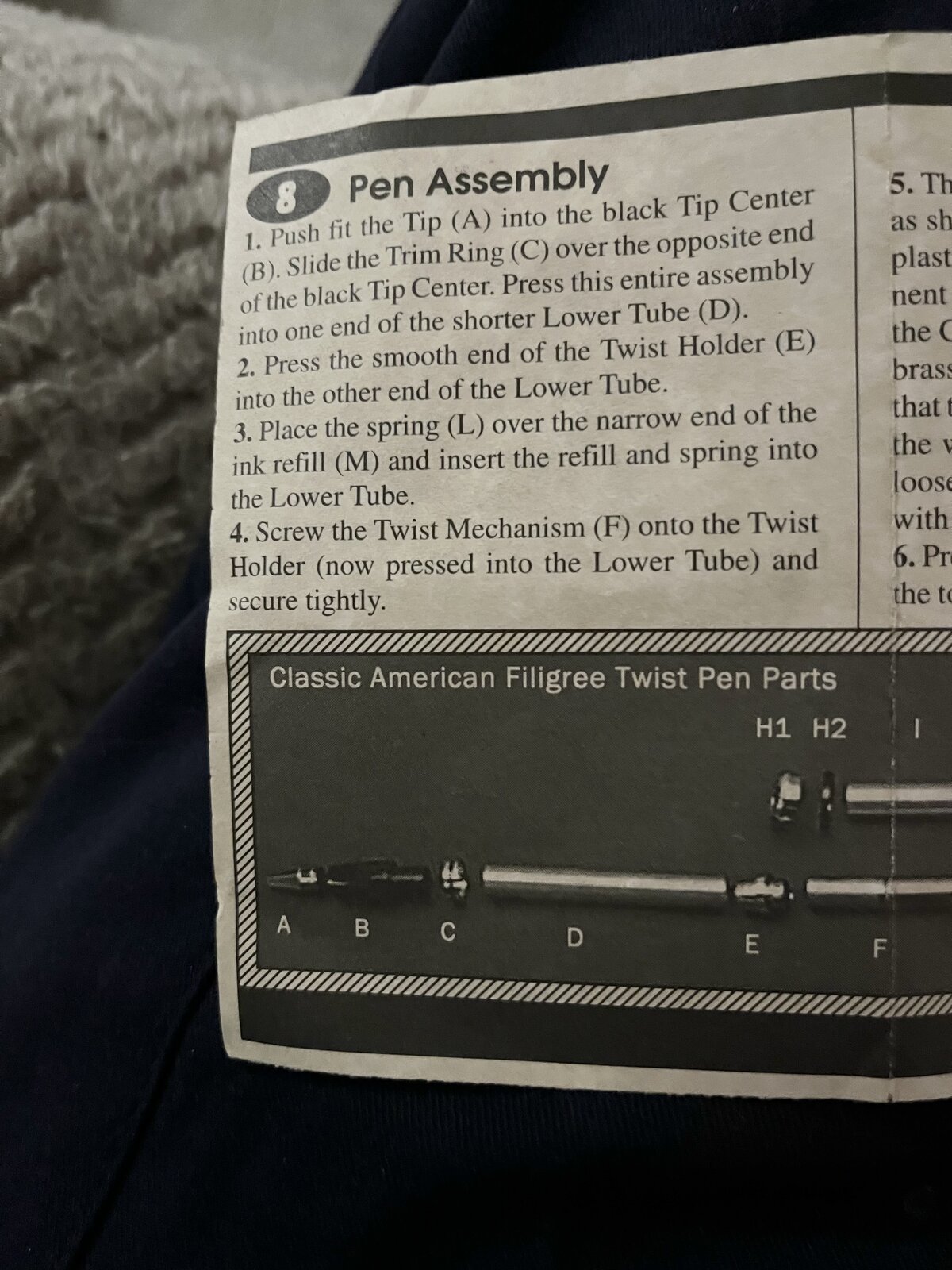

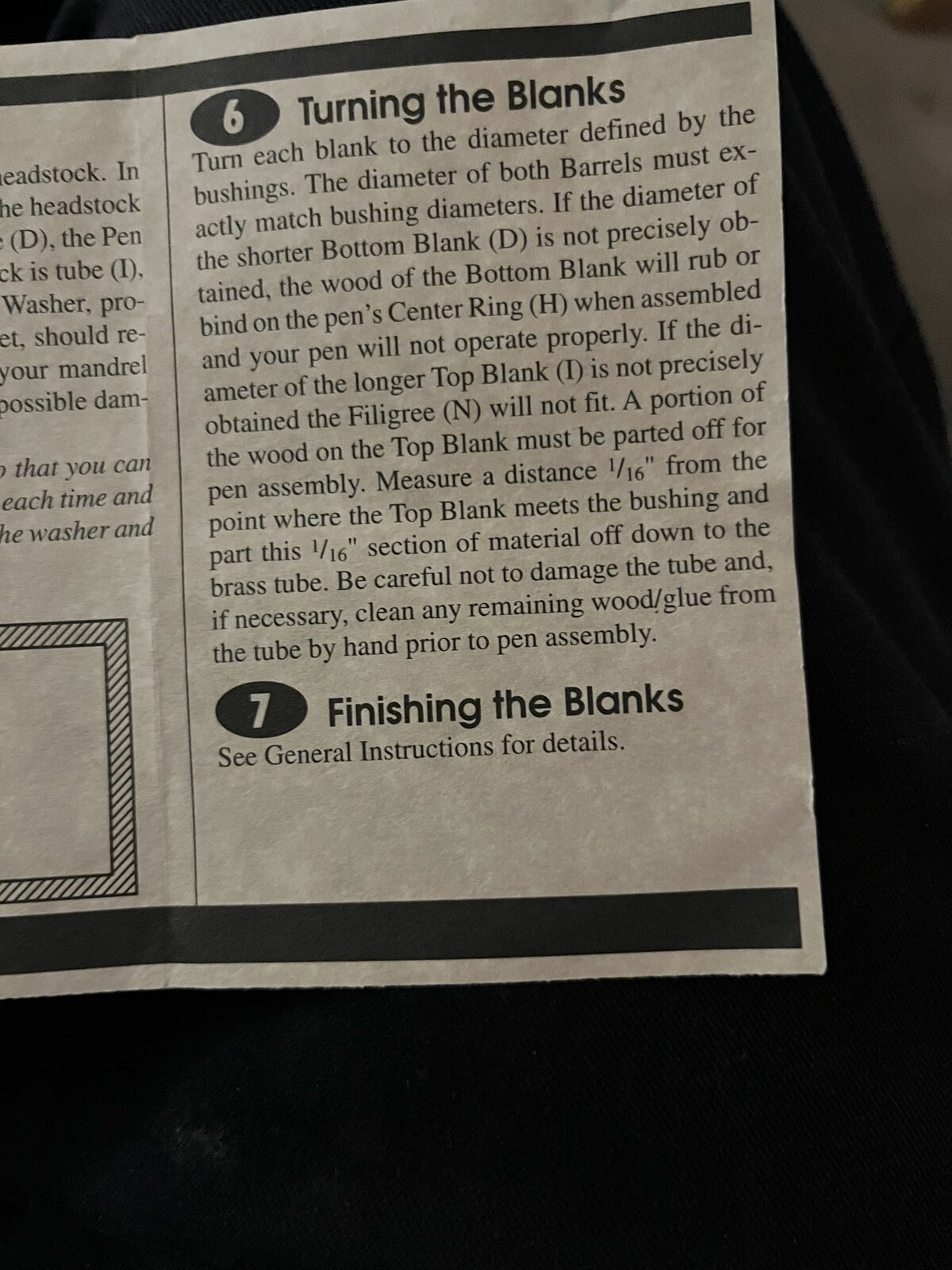

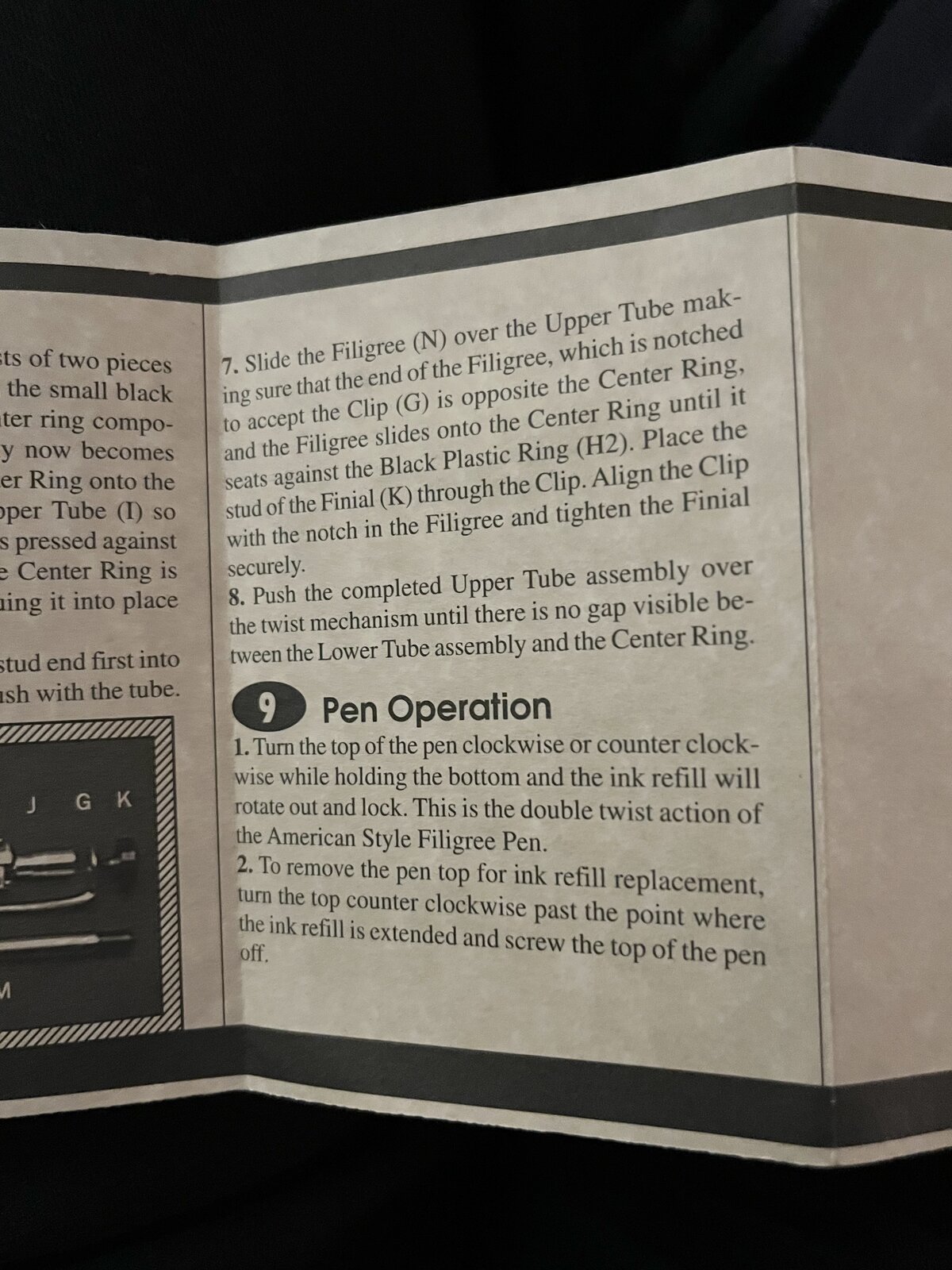

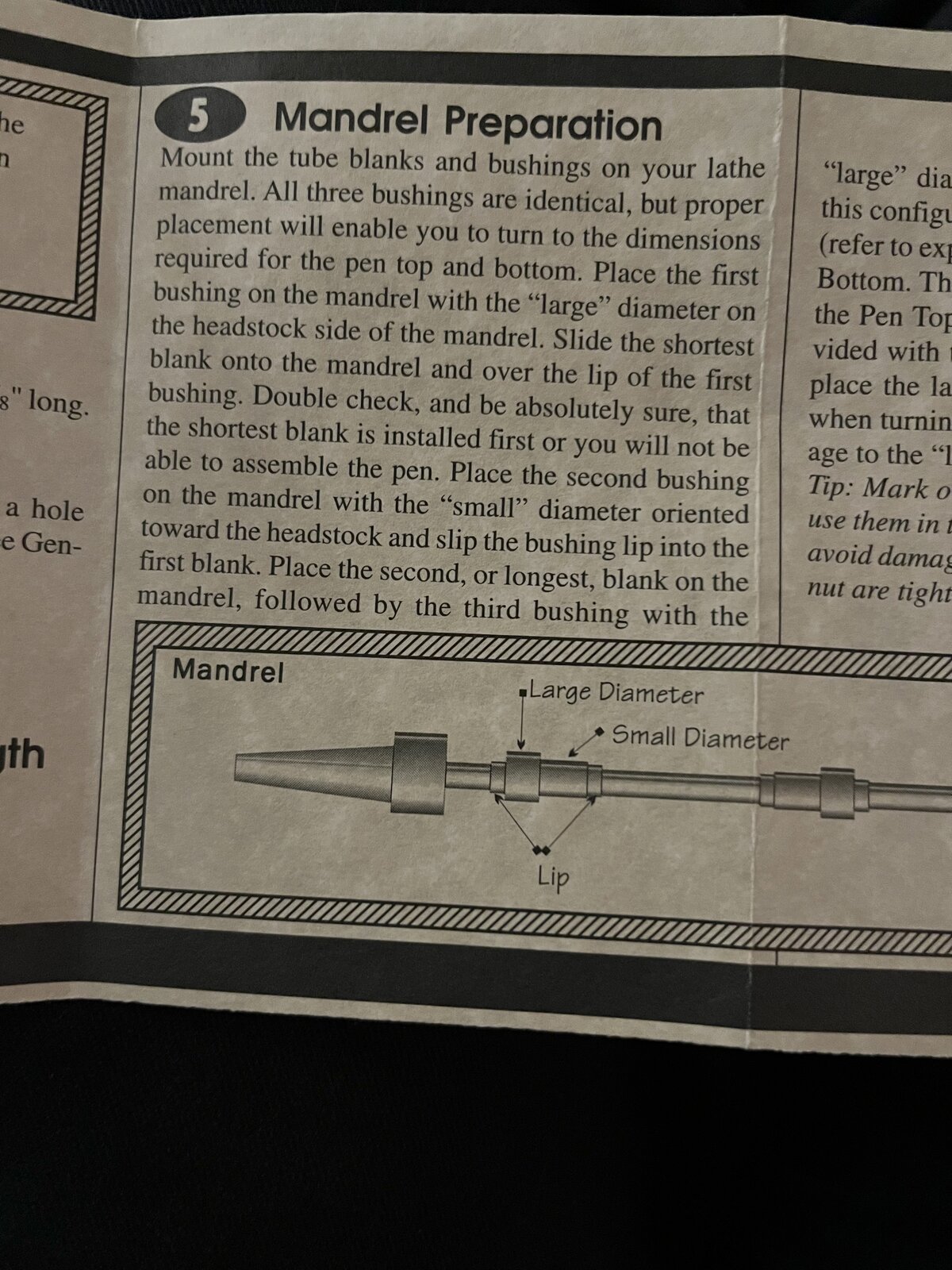

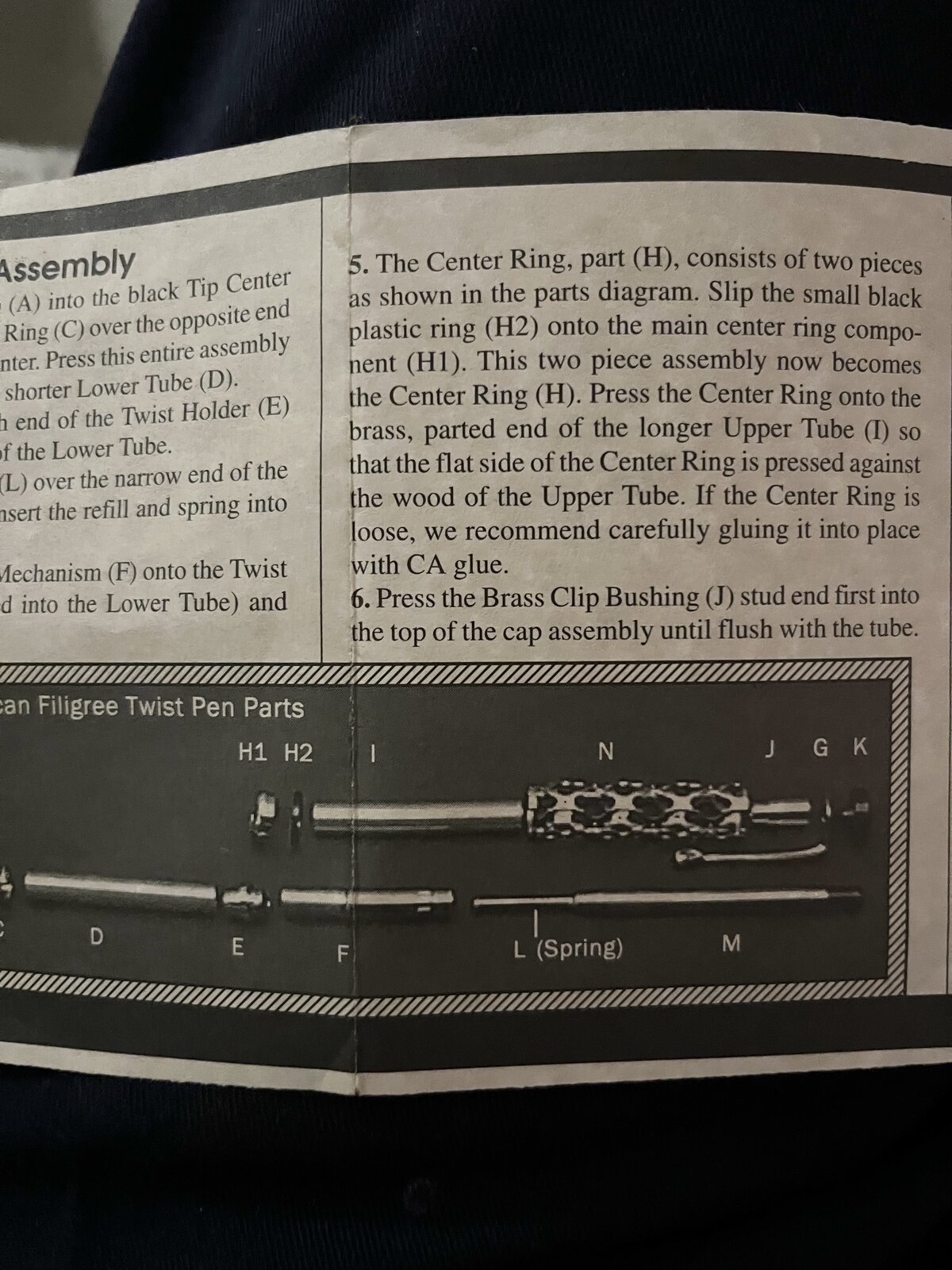

Surprisingly I found them. These are 20+ years old.
Attachments

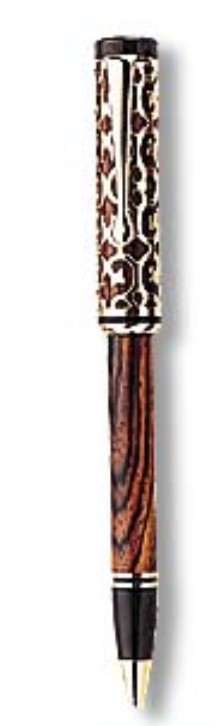

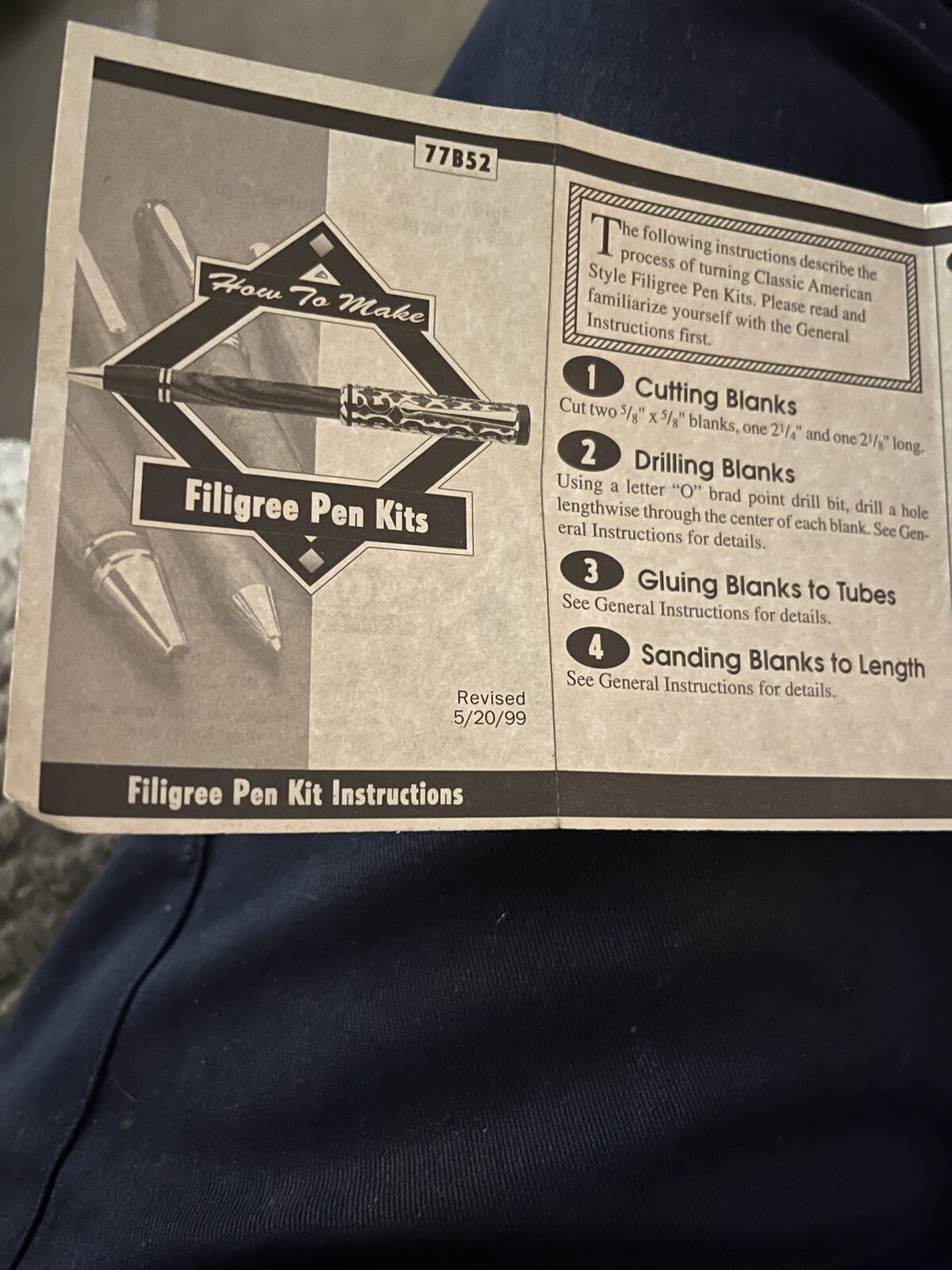

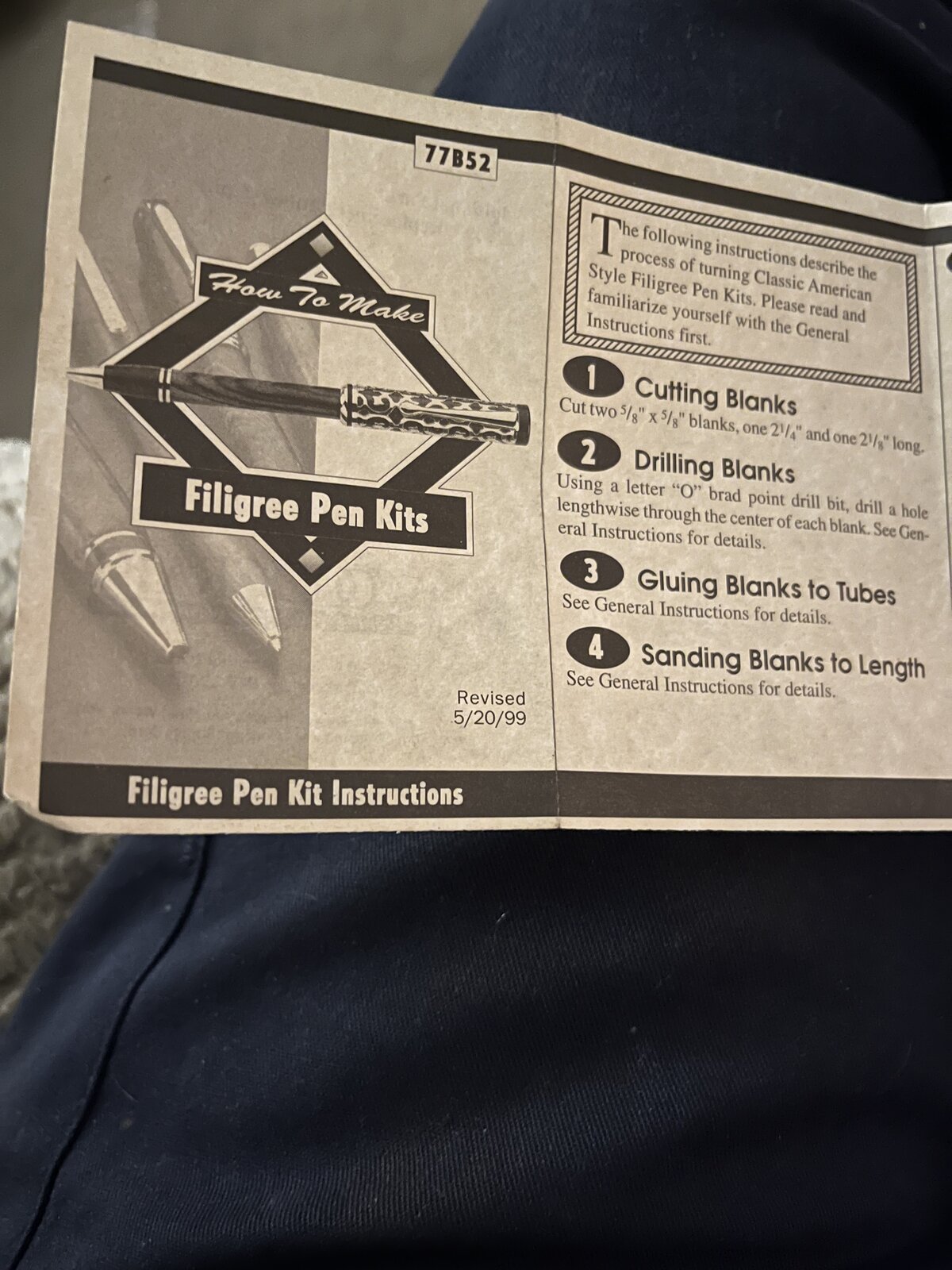

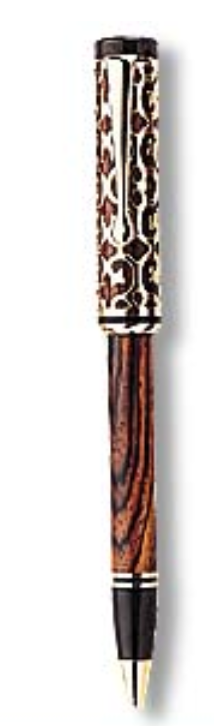

Thanks, Paul - I can tell from the 77B52 that it appears to be a Woodcraft kit. I found a photo of the pen and a 2003 version of their instructions in pdf format on the Wayback Machine. Probably not the exact kit that Peter has, but at least now we have 3 sets of instructions for these kits. Hopefully they will do the job for him.
All 3 are being added to the Bushings & Tubes app database.
