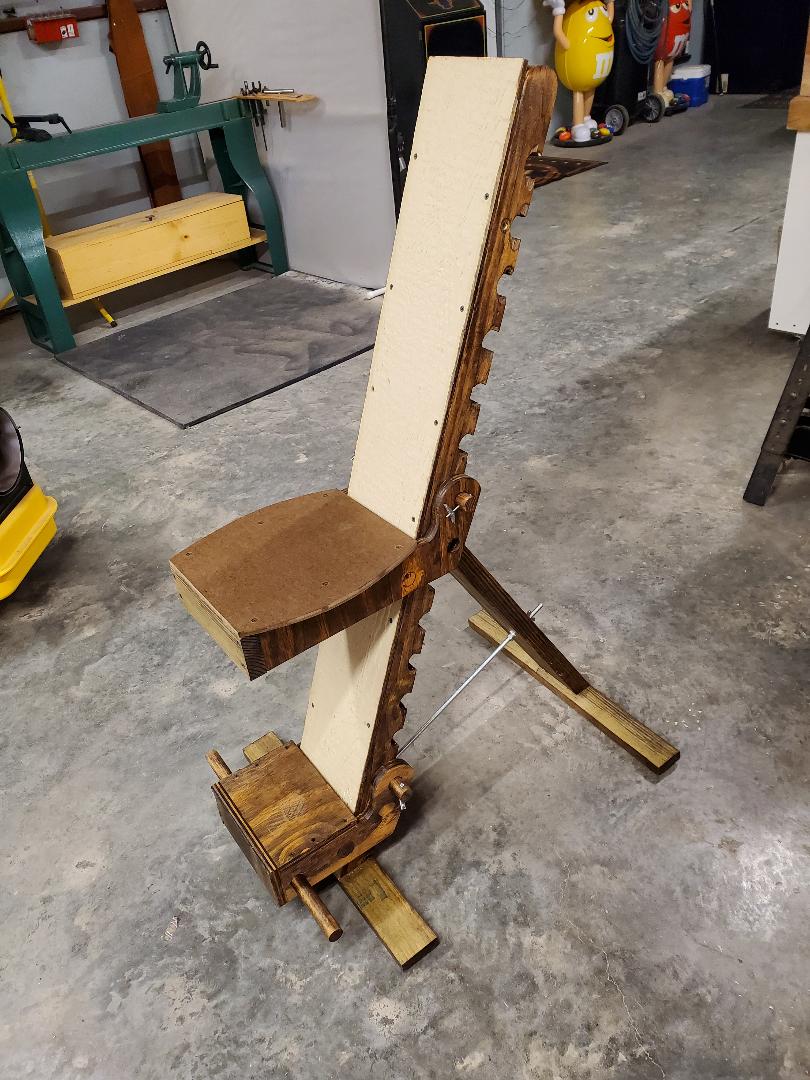

I know I haven't been on here much lately but with the covid, my $'s have been stretched thin this past year. Anyway, I never throw any lumber away as I'm sure most of you don't either. Well I get a little into astronomy. I have a couple telescopes and I'm usually having to pull out the old fold out chair to look thru my scope with. I had heard of a Denver chair (observing chair) that is adjustable for viewing. So I looked on line and seen some pics of them. I thought, heck I can build one of those. So it's a combination of pine, dowel rod (1 1/4" lathed down to 1") and a little hardy panel. I did have to by the 3/8" threaded rod for the adjustable leg extension. The seat and footrest raise and lower and the overall height is about 4' which is plenty high enough. Anyway, here is my scrap wood made Observing Chair. Lol
Scrap wood project
- Thread starter bsshog40
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
Bryguy
Member
Get some cushions on that!
Dalecamino
Local Chapter Leader
Nice Bobby. I had never heard of a Denver chair, until now. Although when rarely observing, I certainly felt the need for one.
Thank you!
Thank you!
I was gonna make a padded seat but I'm usually up and down when viewing slewing around to different things so it wasn't a biggie!
Thanks Chuck!
DrD
Member
Low drag and waaay cool, Bobby
TellicoTurning
Member
You know a little piece of chain in lieu of the threaded rod would maybe make it more portable??
Yea, I may look into that. Right now, the rod has a wing nut at each end so I can just twist those off. Thanks for the idea Chuck.

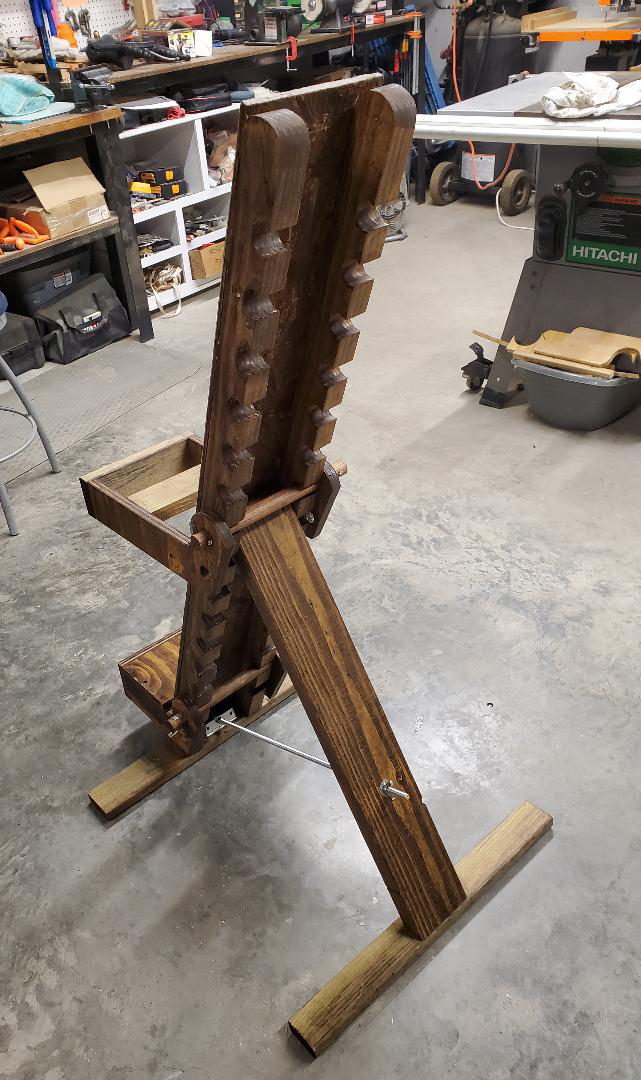

Well I found some chain in the shop today. Bolted it in at the base and pinned at the rear. Pin fits nice and tight so I can adjust if I need to. Thanks for the idea Chuck. Seems like it's gonna work pretty good. Folds right up.
howsitwork
Member
neat idea guys
TellicoTurning
Member
great,glad it worked for you.... I use two A-frame ladders to hold my bowl display shelves when doling shows... I use the chain to keep them from spreading too far apart... then just fold them together to pack up.
