Schmidt SKM-88 thread size

Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad

magpens

Member
Joined
Feb 2, 2011
Messages
10,074
Location
Coquitlam, BC, Canada

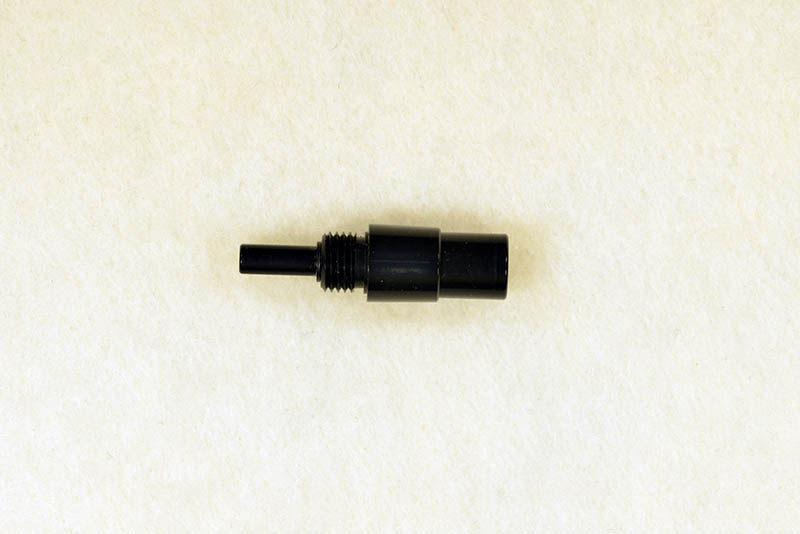

As Dan said, M7mm x 0.75mm x 1 is the SKM-88 thread size. I just did the threading for one a couple of days ago and can vouch for that specification.

That is an easy tap and die size to get quite cheaply. I got a set from a local tool store not long ago off the shelf (not special order) ... cost under $10 for the tap and the die was not much more ... tap made in China (no name), die made in Poland (TMX brand) both HSS.

Last edited:

hippi

Member
Joined
Apr 5, 2014
Messages
199
Location
sedalia mo
thanks to all for the size, I used to have thread gages when I was working for NAPA but that was 20+ years ago


hippi

Member
Joined
Apr 5, 2014
Messages
199
Location
sedalia mo
thanks more4dan and magpens for the info, I used to have thread gages when I worked For NAPA 20+ years ago
