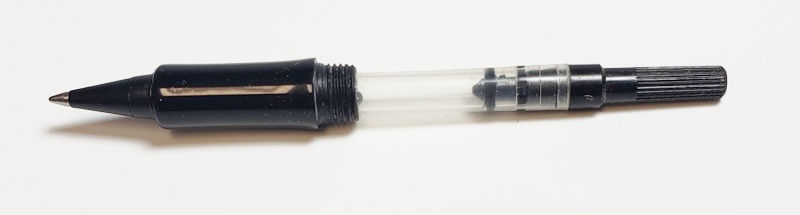

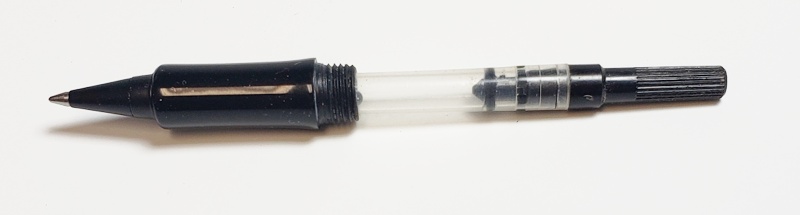

This pen uses the Schmidt Rolling Righter cartridge system. Ink supply is either a cartridge or converter.

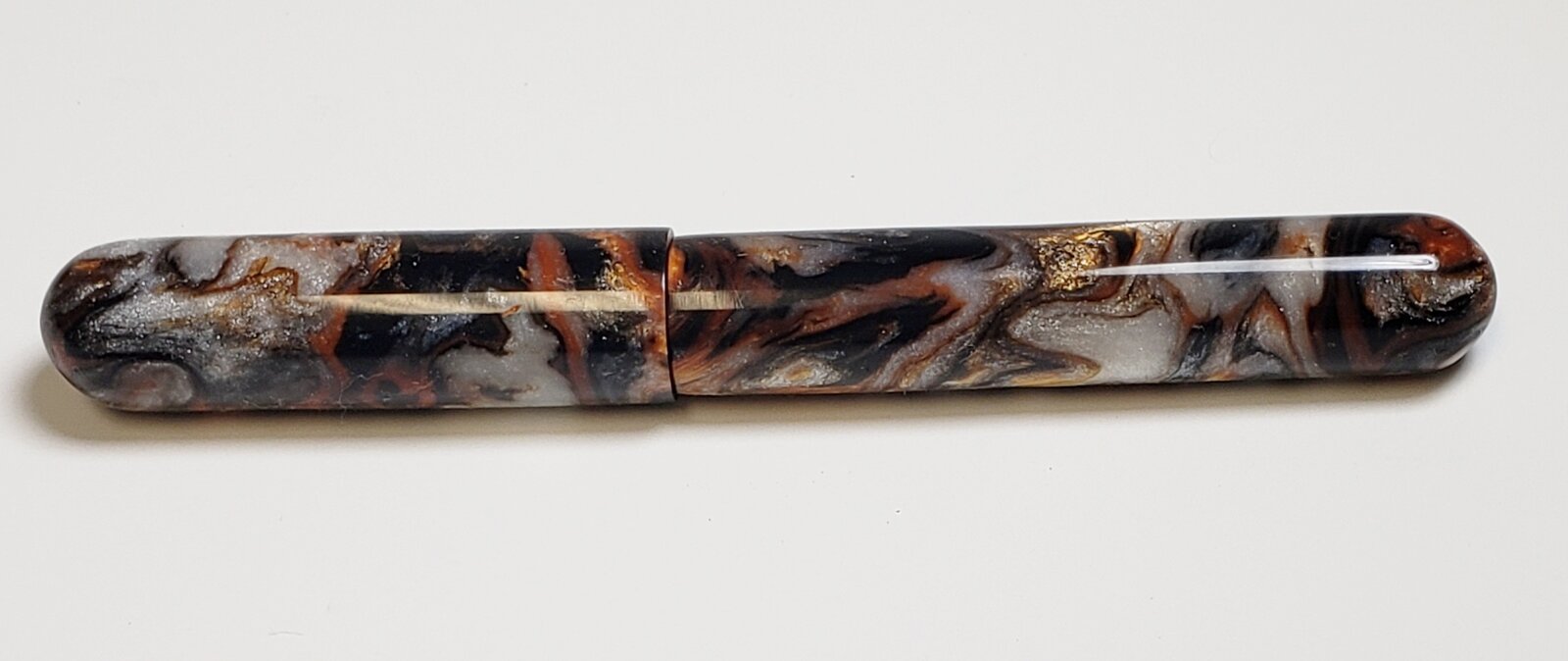

Material is from Eugenio Soto at muttblanks.com and the section is made by me using Alumilite Clear Slow.

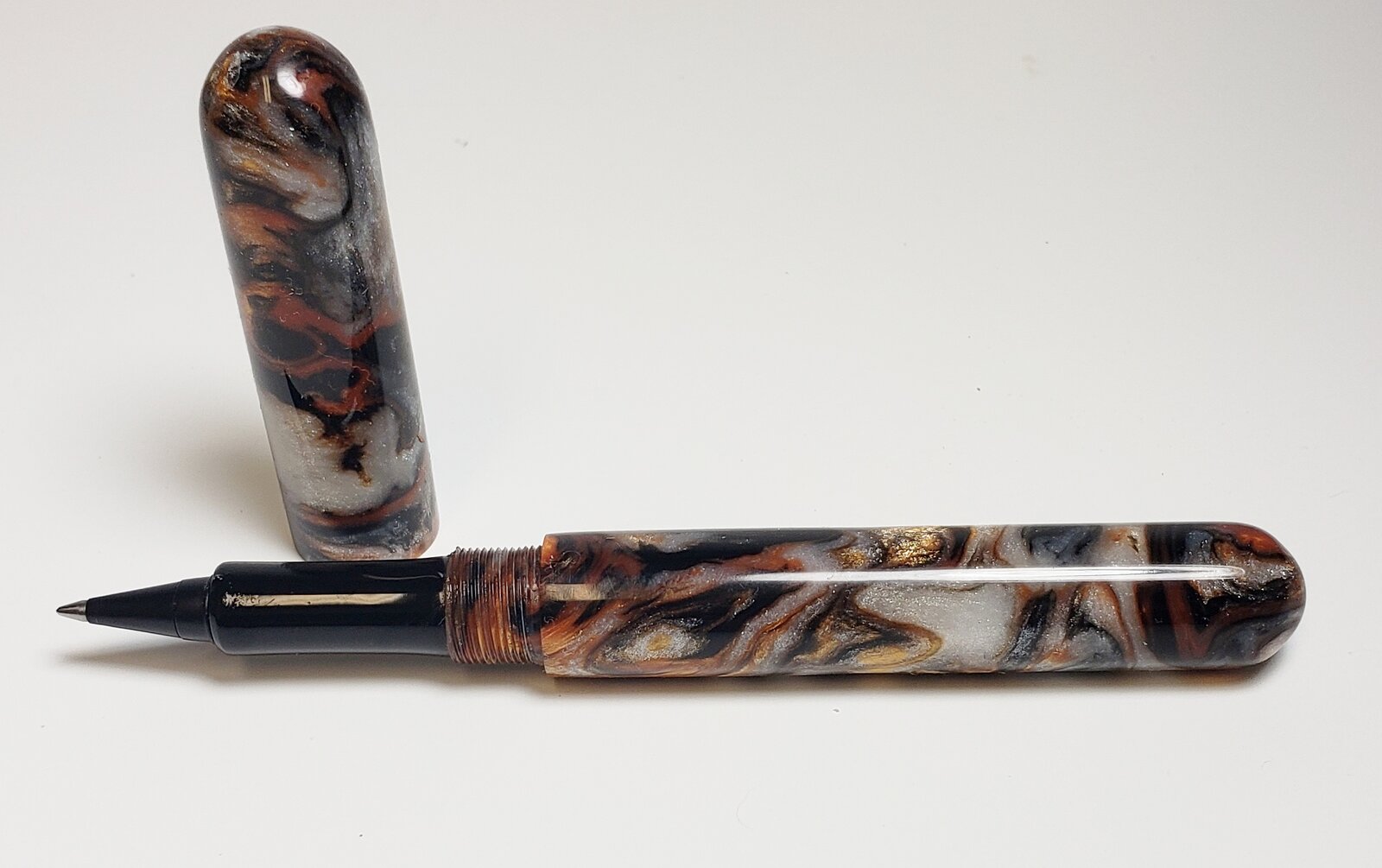

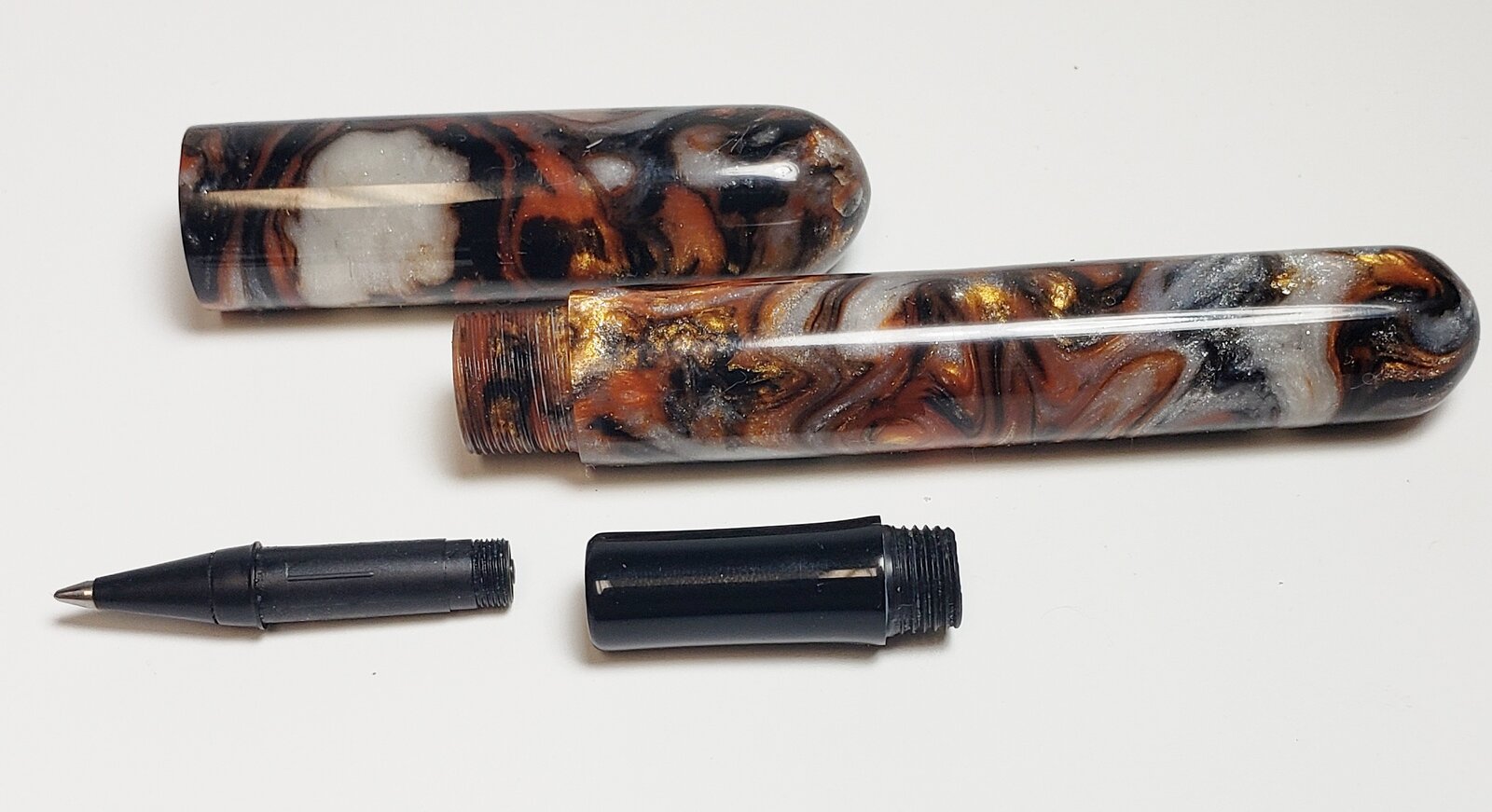

Cap: dia .72 length 2.65
Barrel dia .66. Length 3.32
Cap threads M14x.8 TL

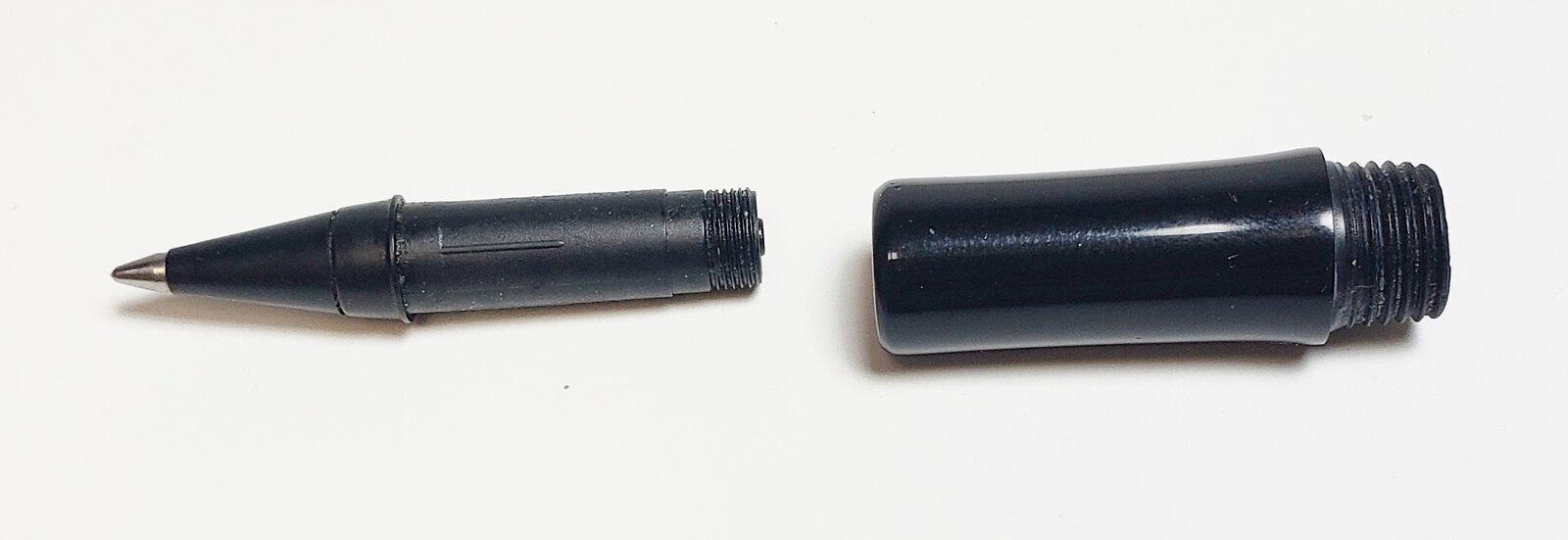

Section M10x1
20221008_185918-01.jpeg20221008_185749-01.jpeg20221008_185736-01.jpeg20221008_185629-01.jpeg20221008_185540-01.jpeg
Do a good turn daily!
Don

Signed-In Members Don't See This Ad

Curly

Member
Joined
Nov 20, 2010
Messages
4,828
Location
Saskatoon SK., Canada.
Well done.

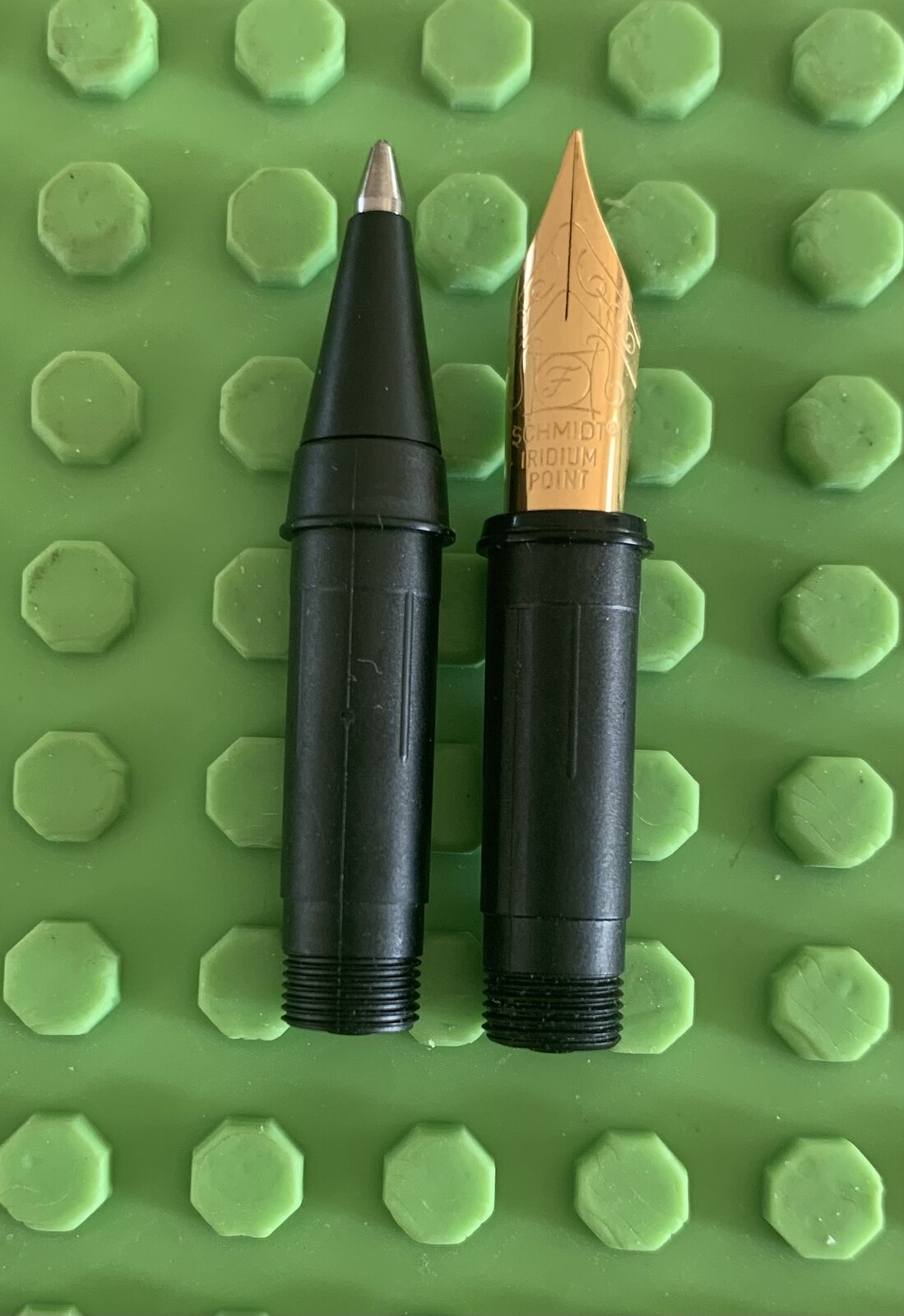

My first plays with kitless were with the Rolling Righter because the tap to cut the section thread is the same one Schmidt uses for their #5 fountain pen feed, giving you the option of using either in the same pen.


its_virgil

Member
Joined
Jan 1, 2004
Messages
8,102
Location
Wichita Falls, TX, USA.
I have never used Schmidt #5 nib units so it is good to know they are interchangeable. I knew the thread pitch was the same but had no idea they were interchangeable. File away for future use. Thanks Pete.
Don
