qquake

Member
Joined
Feb 8, 2004
Messages
5,007
Location
Northern California

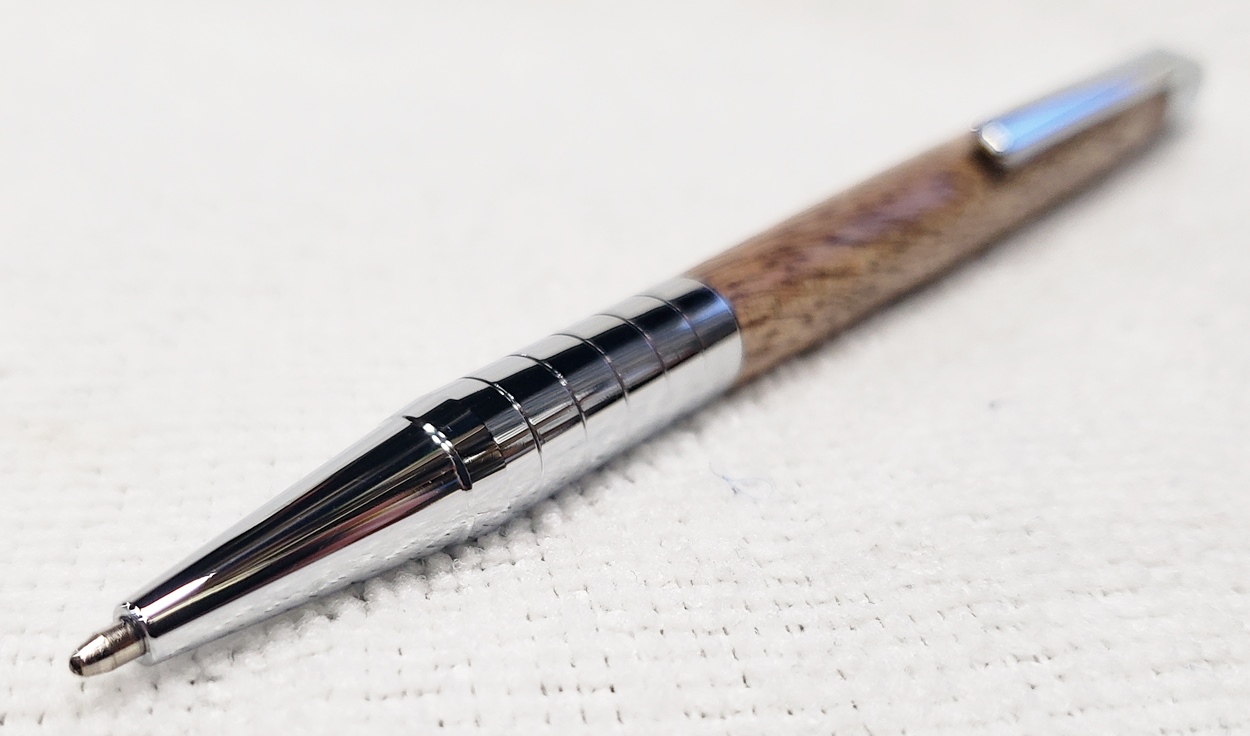

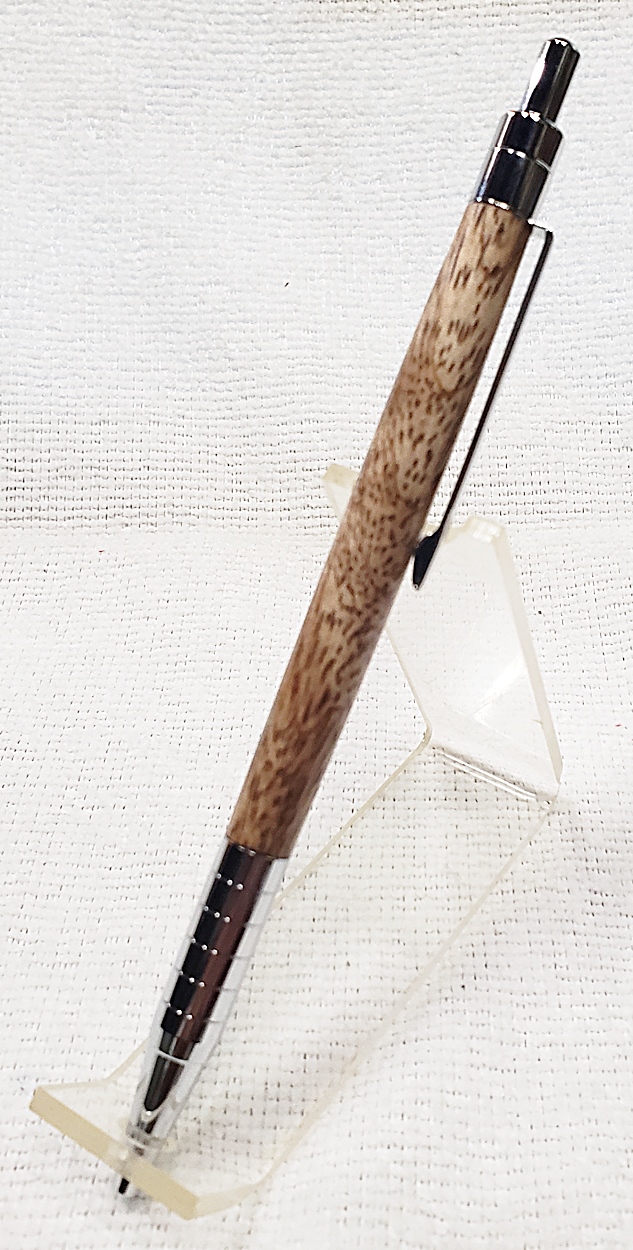

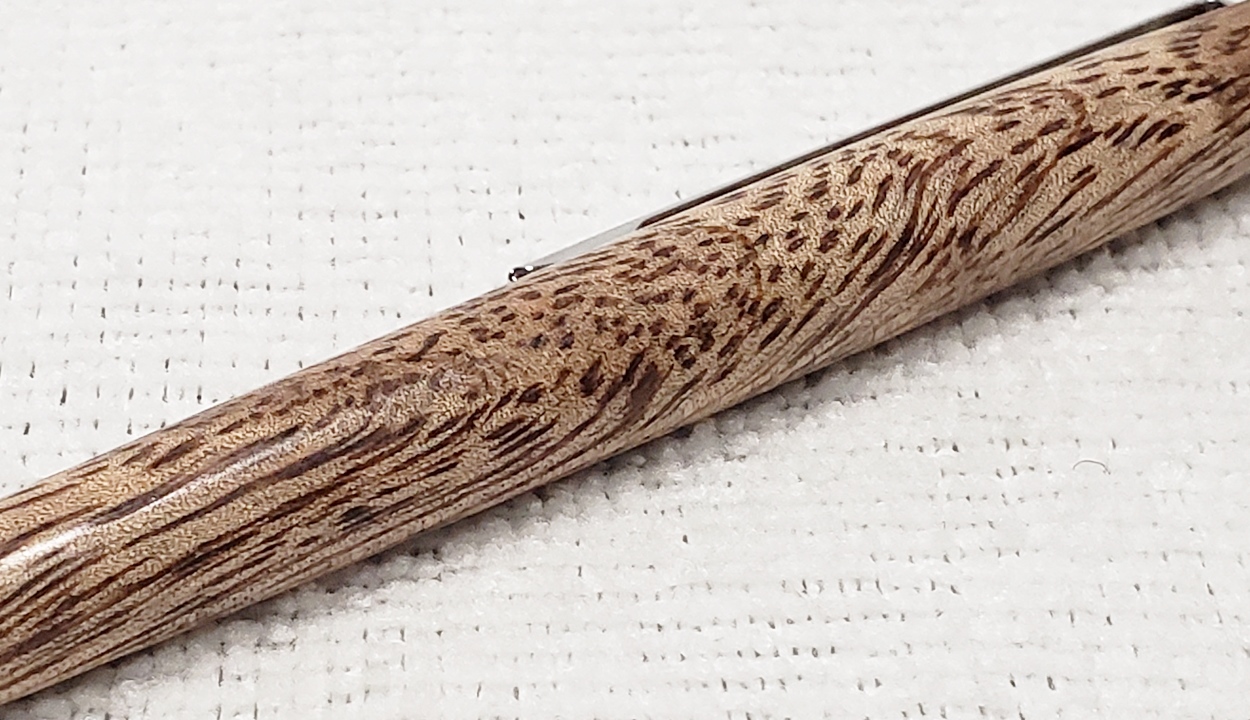

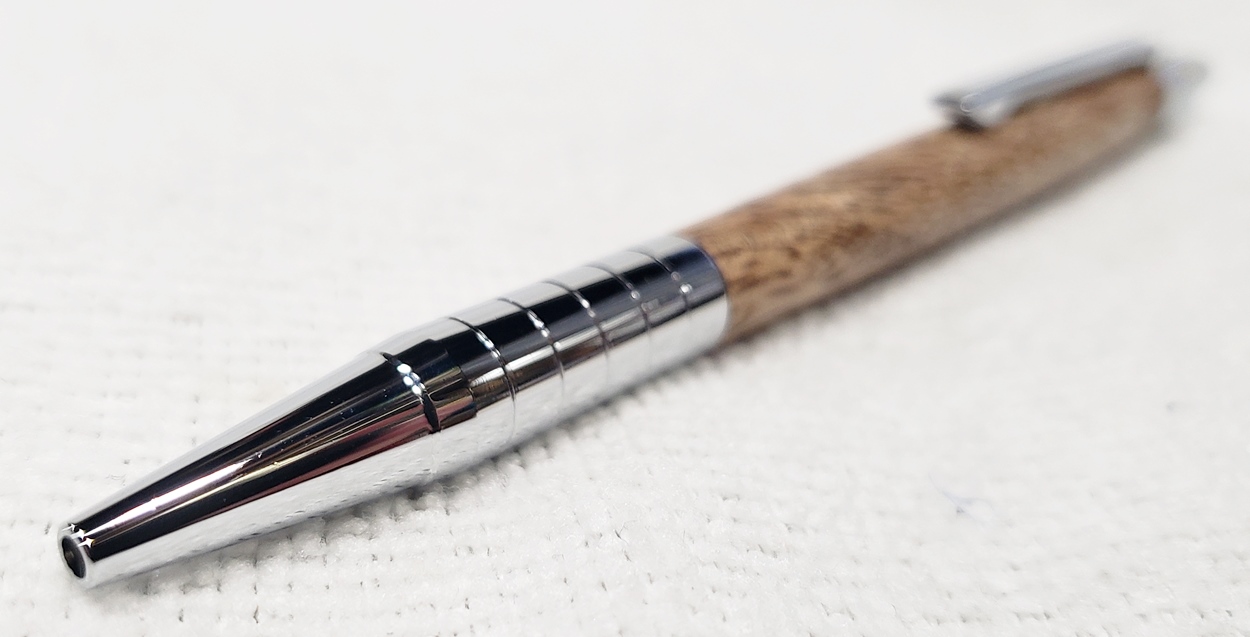

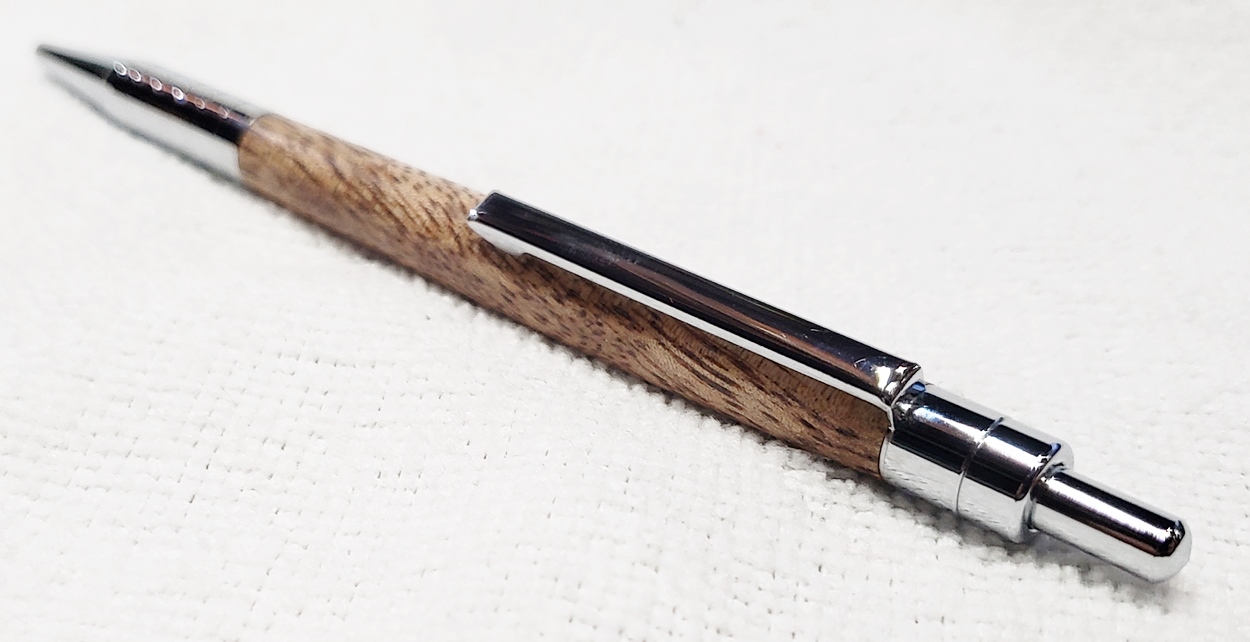

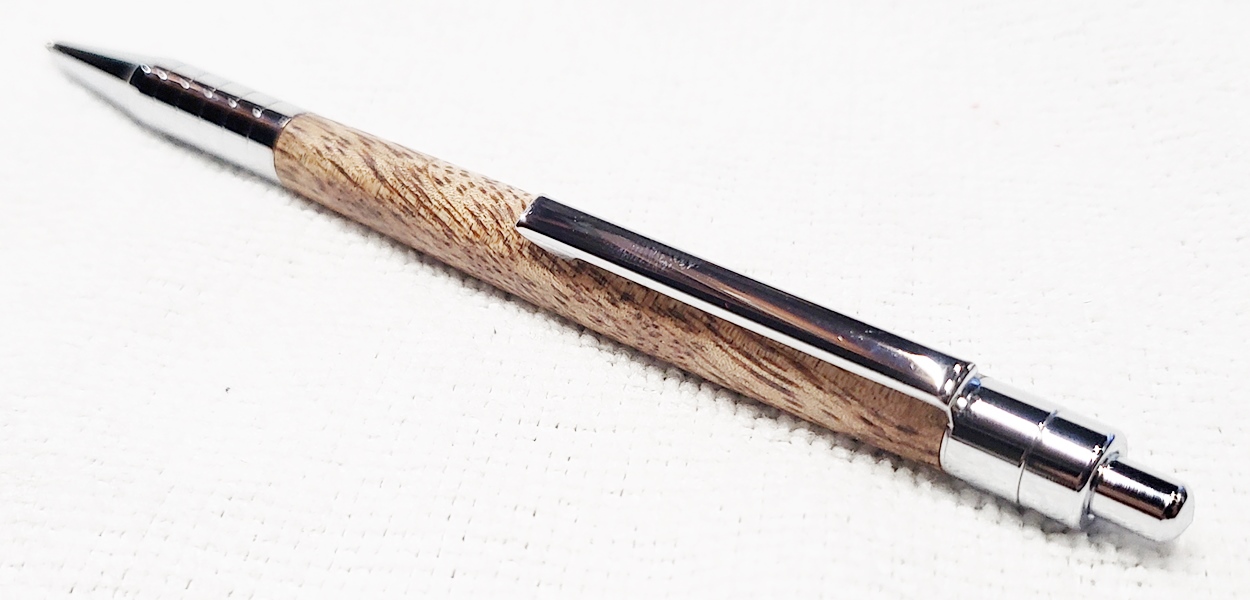

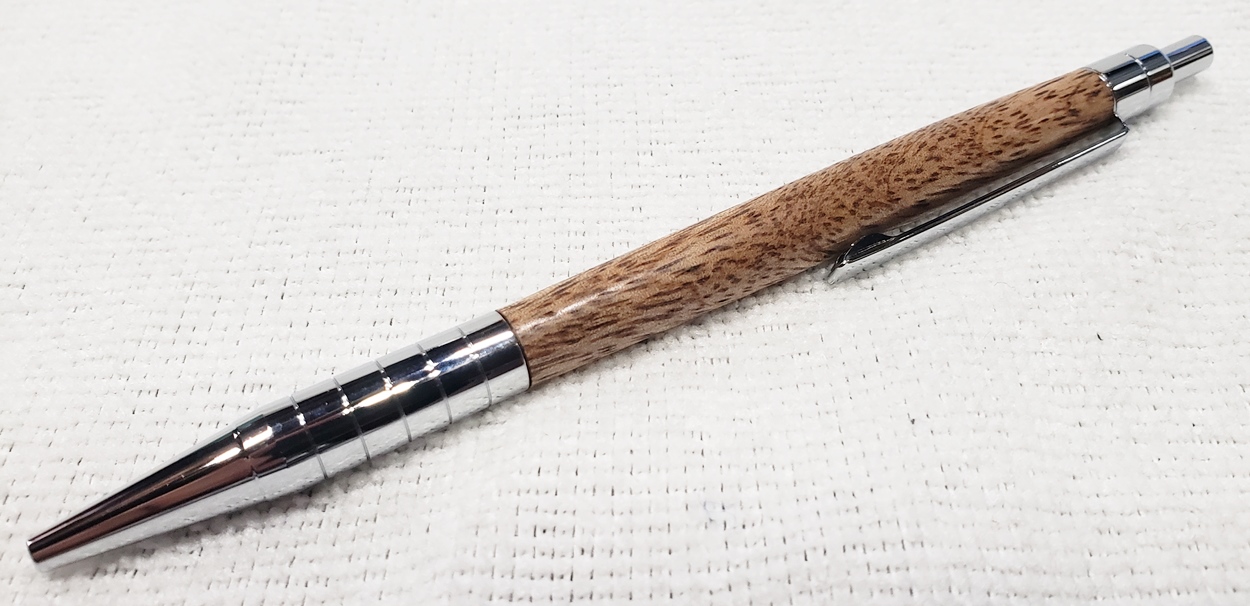

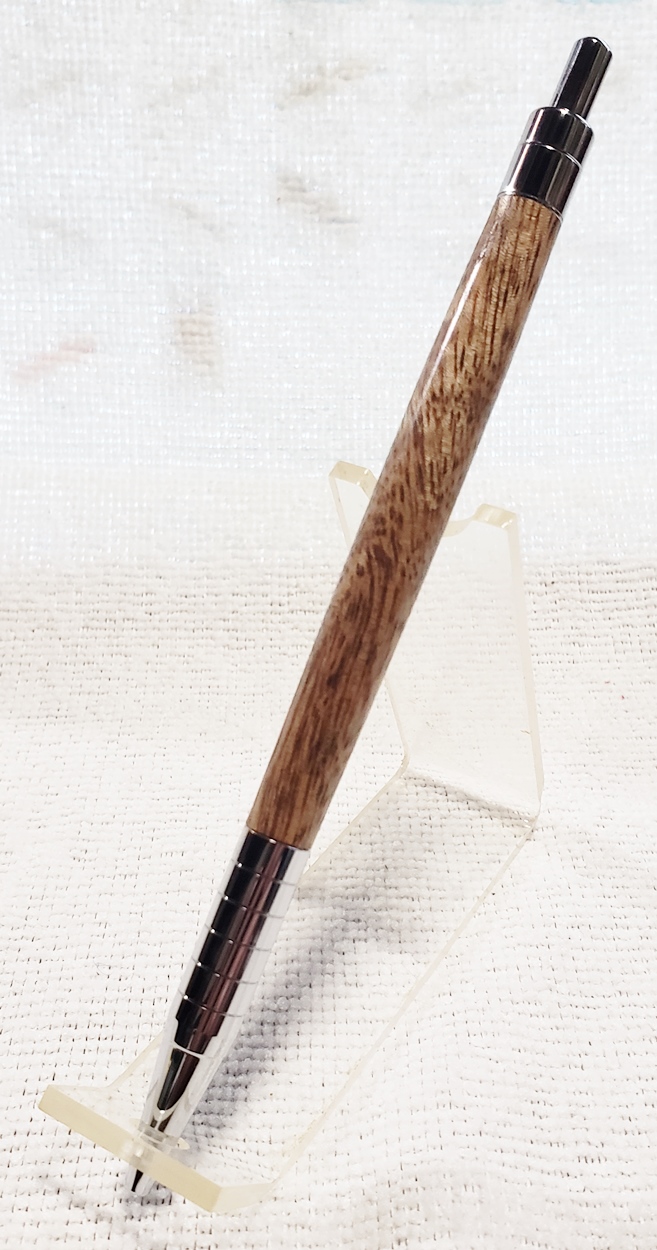

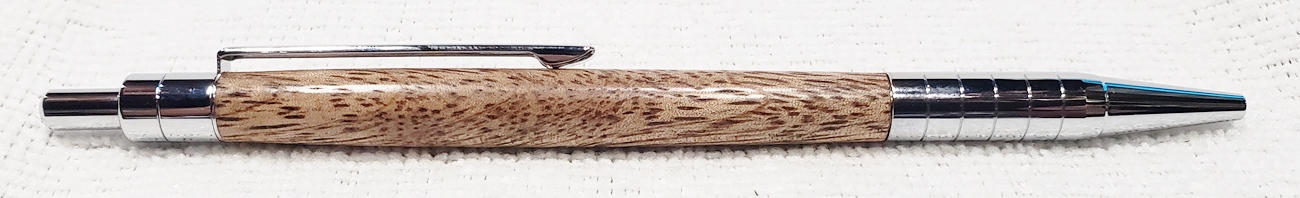

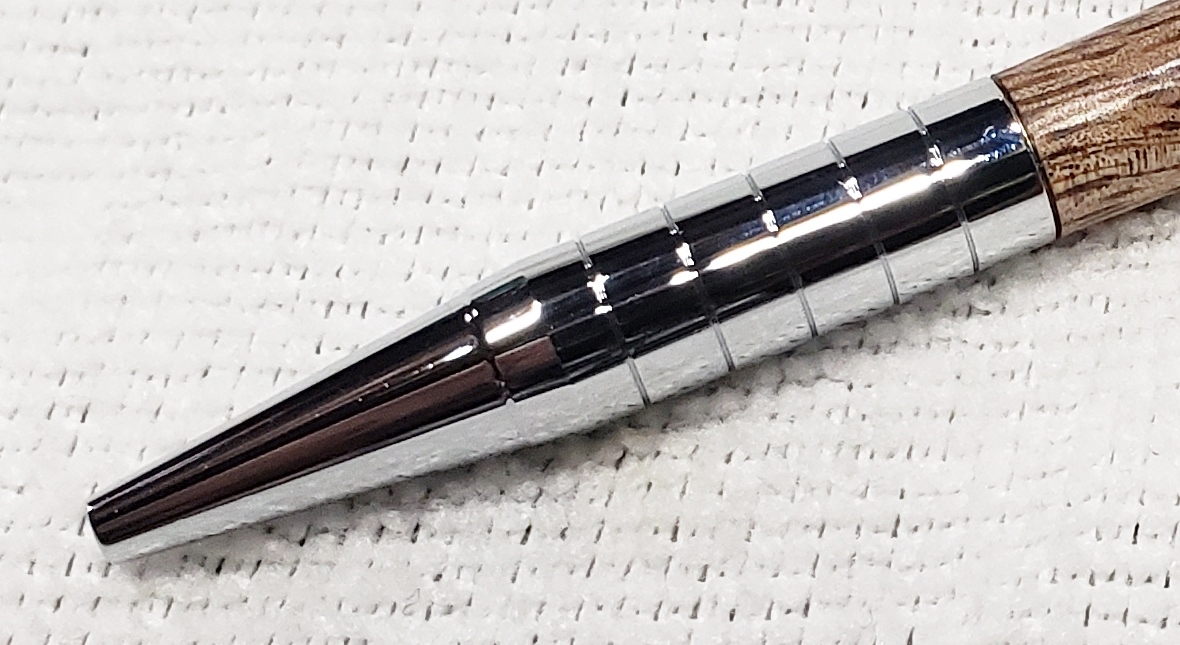

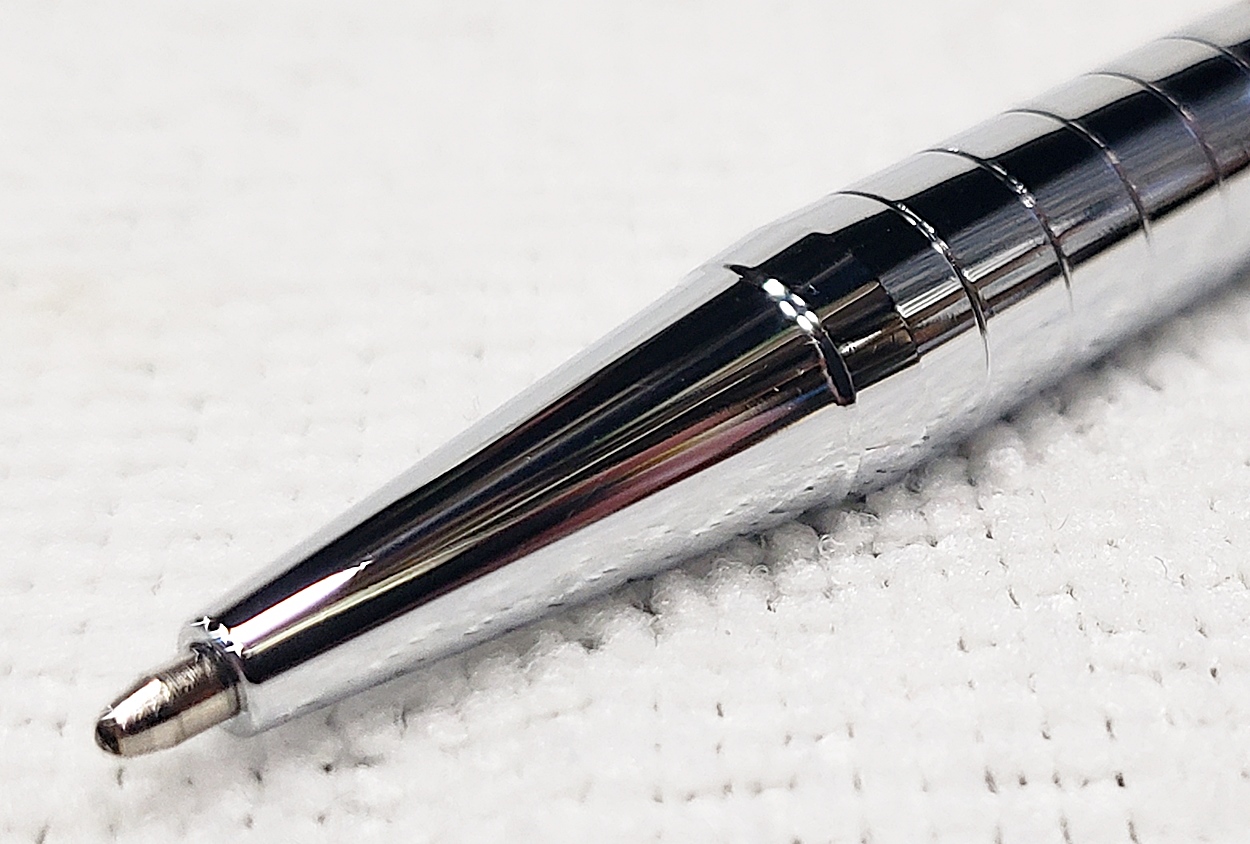

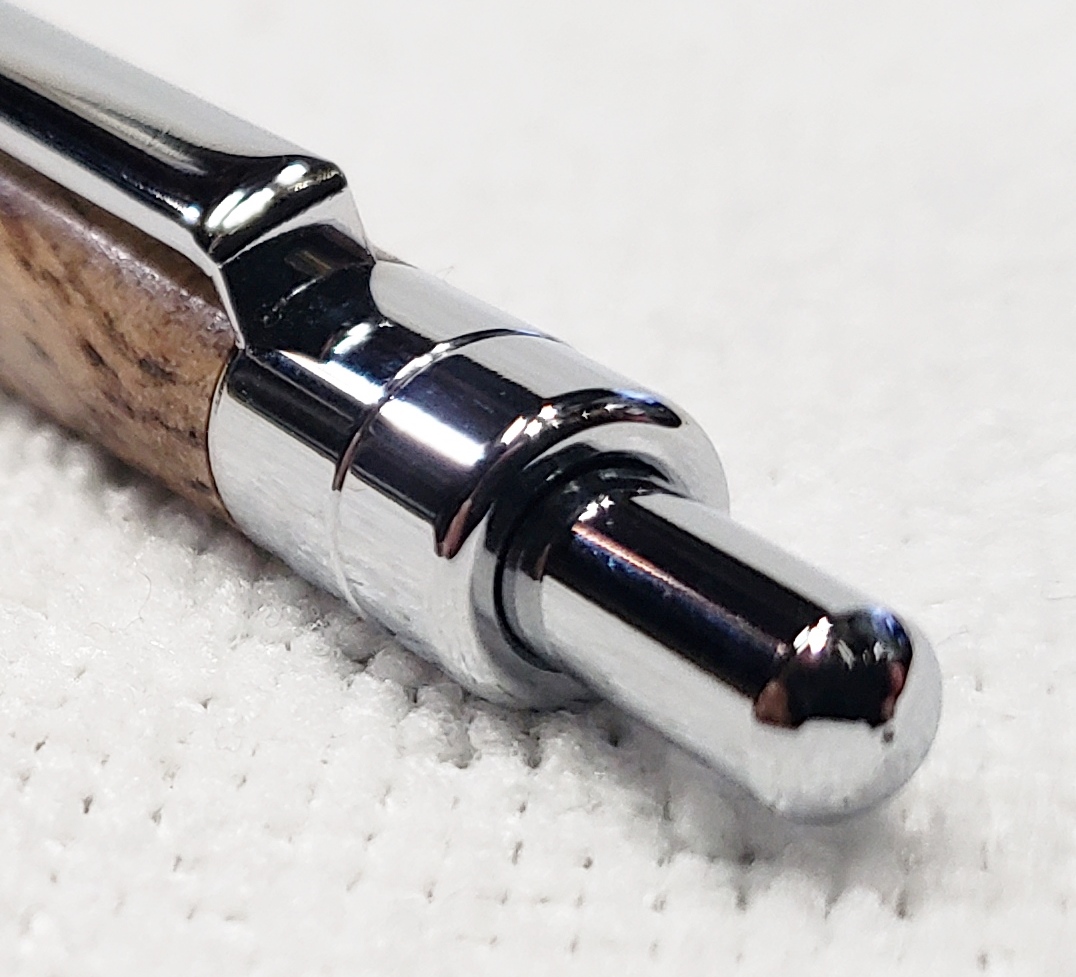

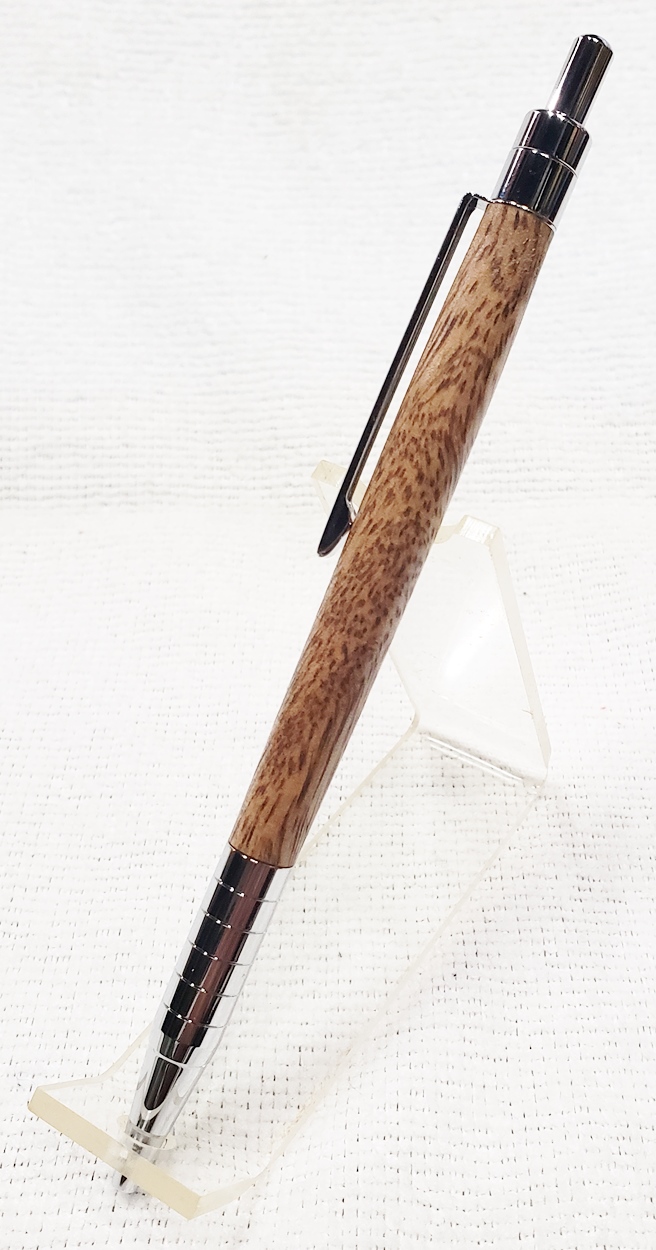

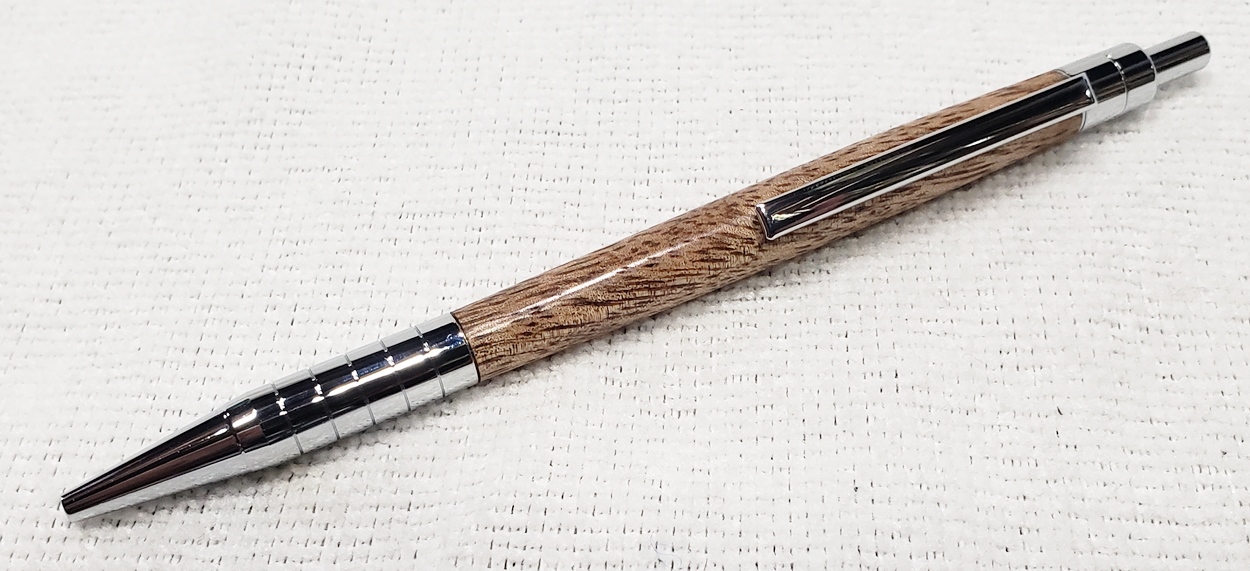

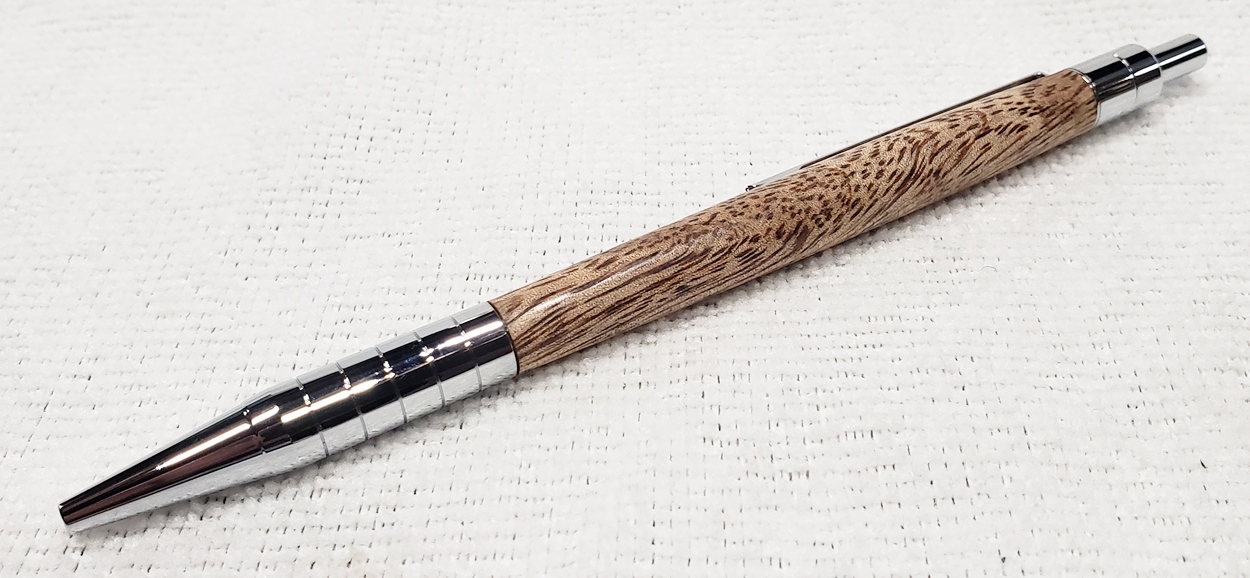

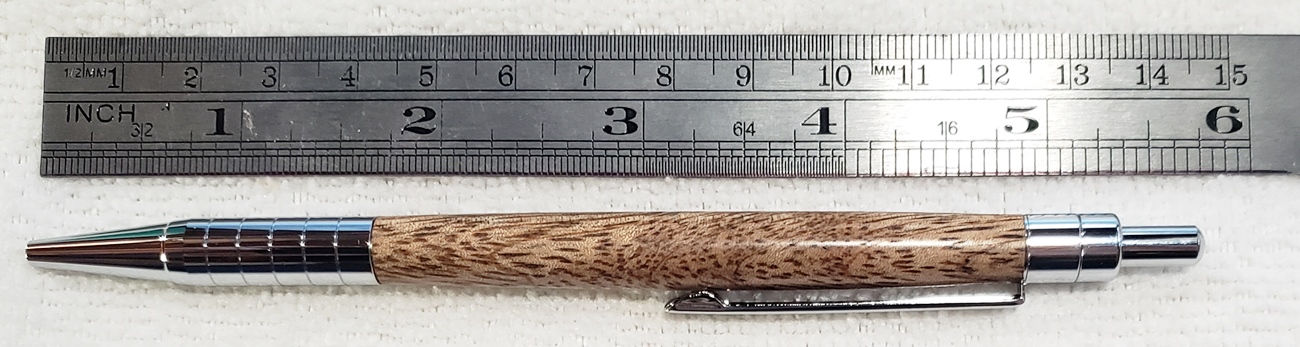

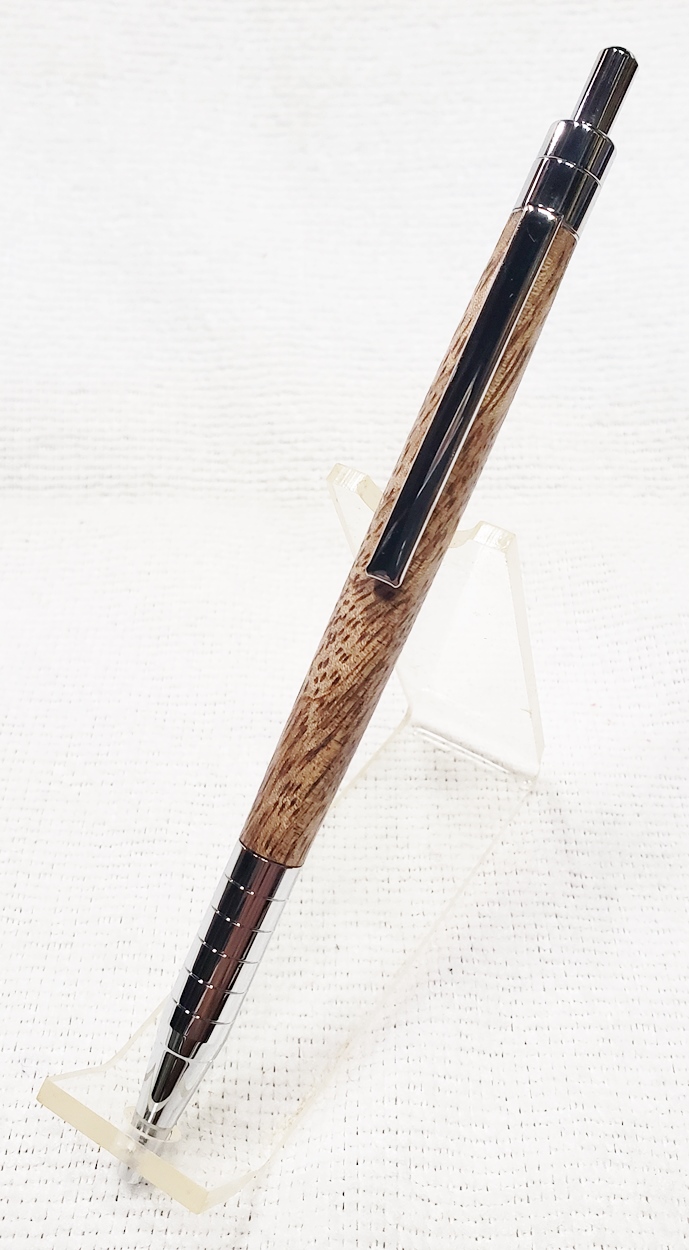

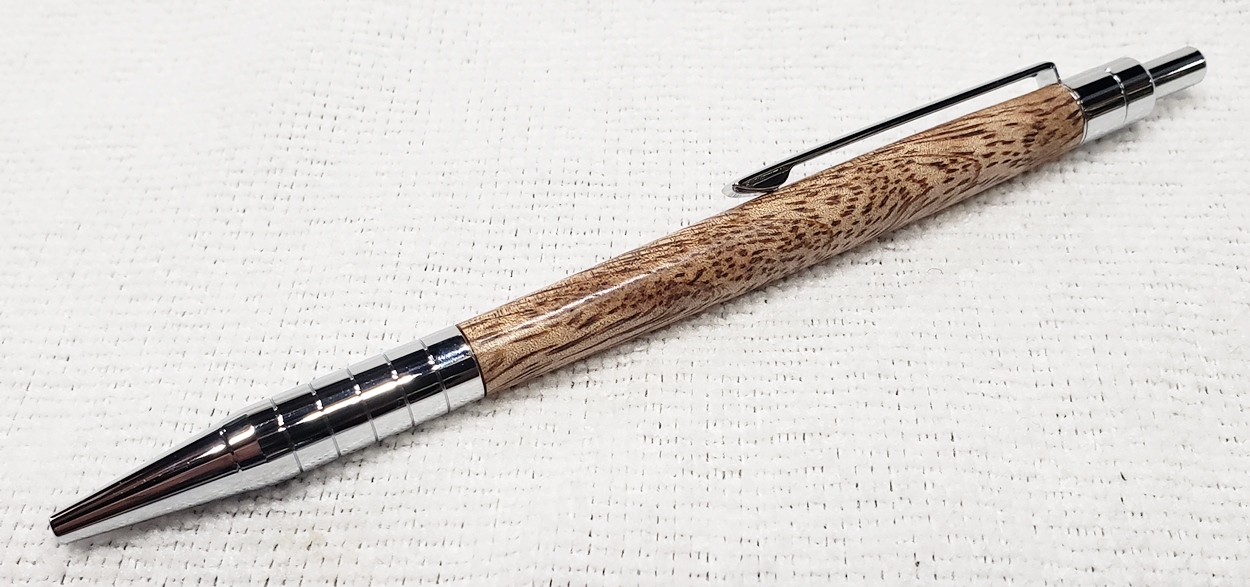

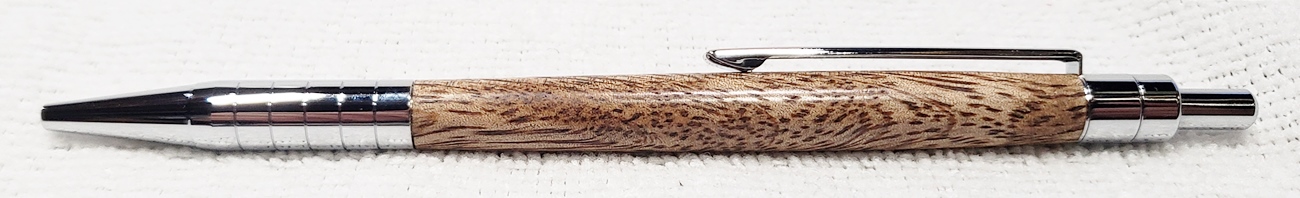

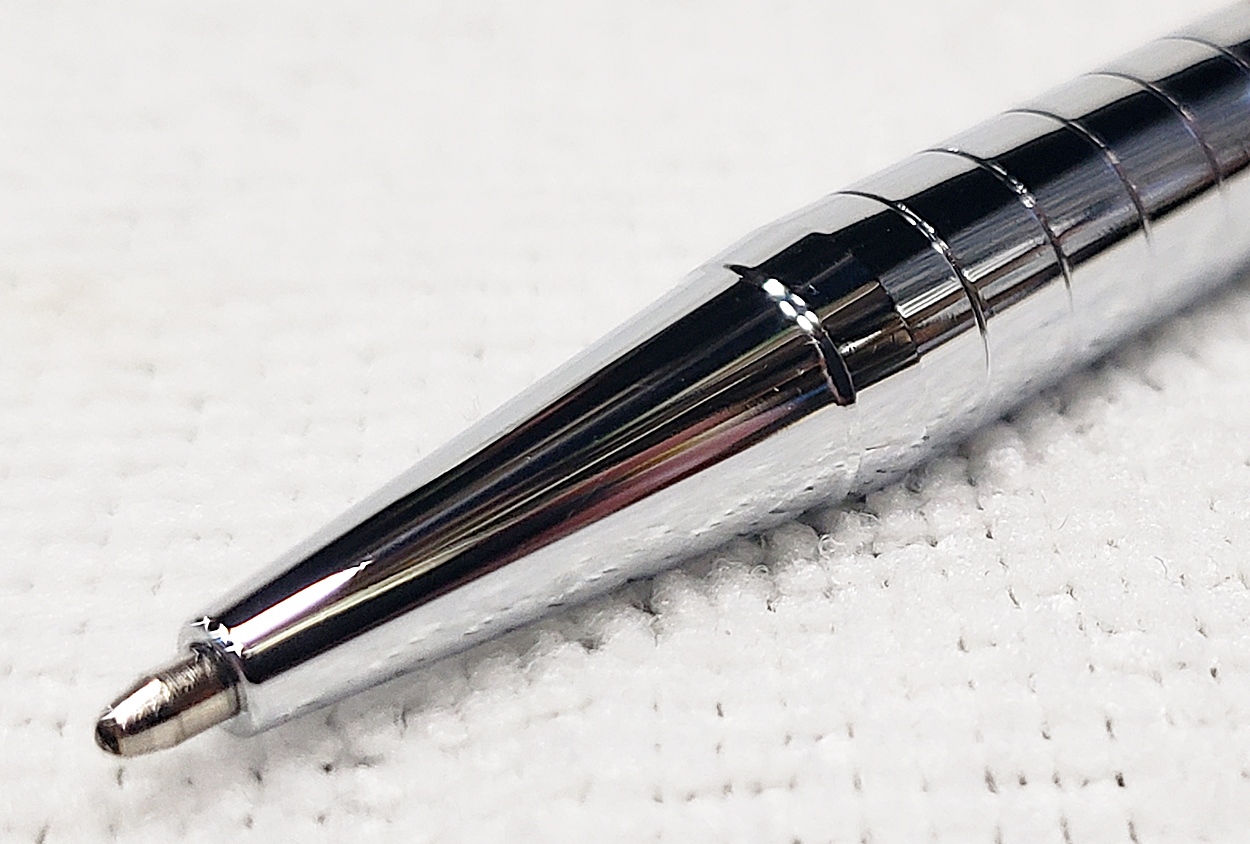

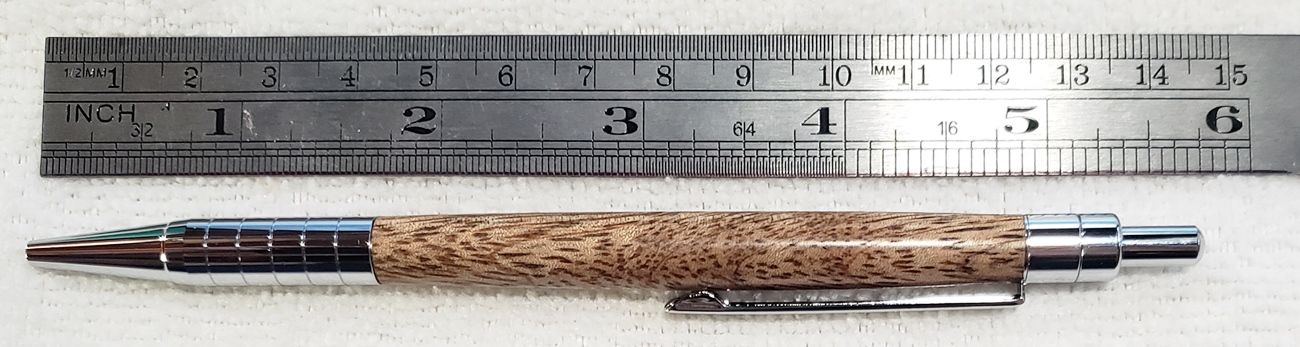

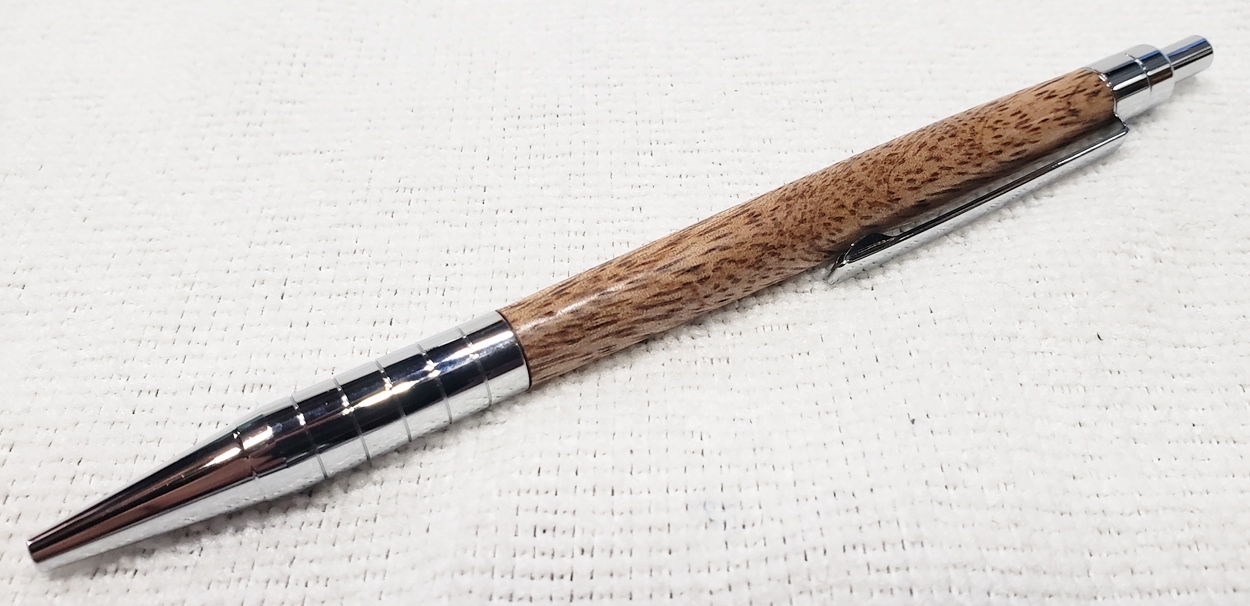

This is a new Saxa click pen from PSI, in chrome. It's my first. The wood is mango from Exotic Blanks, and is my first time turning it. It's denser than I expected, but has very interesting grain. The finish is Pens Plus.


Attachments

  • 069b.jpg
    299.4 KB · Views: 113
  • 069.jpg
    307.9 KB · Views: 125
  • 070.jpg
    310.9 KB · Views: 113
  • 071.jpg
    293.2 KB · Views: 113
  • 071b.jpg
    374.8 KB · Views: 121
  • 072.jpg
    276.3 KB · Views: 102
  • 073.jpg
    176.1 KB · Views: 95
  • 074.jpg
    208.1 KB · Views: 93
  • 074b.jpg
    345.6 KB · Views: 99
  • 075.jpg
    205.1 KB · Views: 94
  • 076.jpg
    187.8 KB · Views: 79
  • 077.jpg
    235.6 KB · Views: 83
  • 077b.jpg
    301.8 KB · Views: 88
  • 078.jpg
    123.4 KB · Views: 77
  • 079.jpg
    126 KB · Views: 84
  • 080.jpg
    257.1 KB · Views: 79
  • 081.jpg
    265.3 KB · Views: 77
  • 082.jpg
    302.9 KB · Views: 87
  • 083.jpg
    392.5 KB · Views: 98
Signed-In Members Don't See This Ad

Fine Engineer

Member
Joined
Nov 17, 2021
Messages
286
Location
Carson City, NV

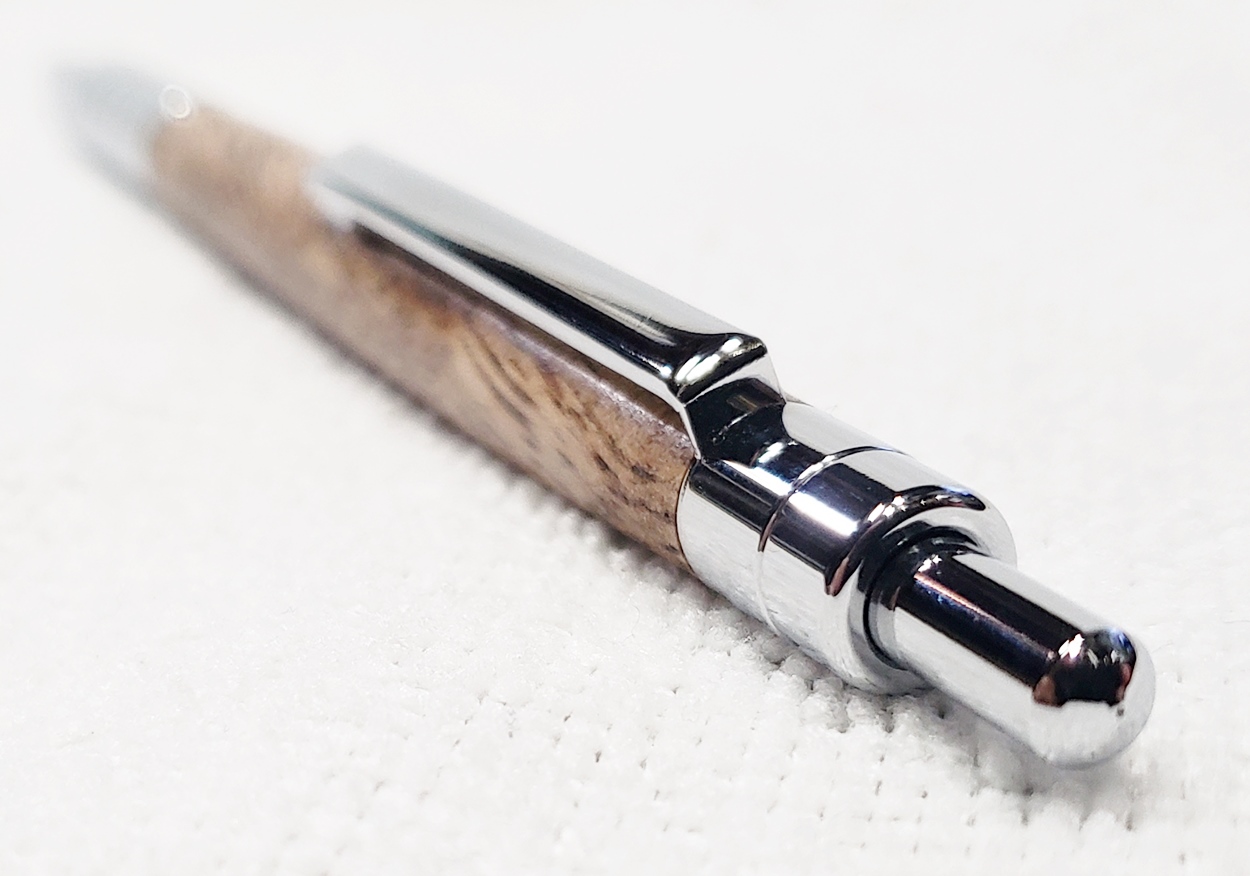

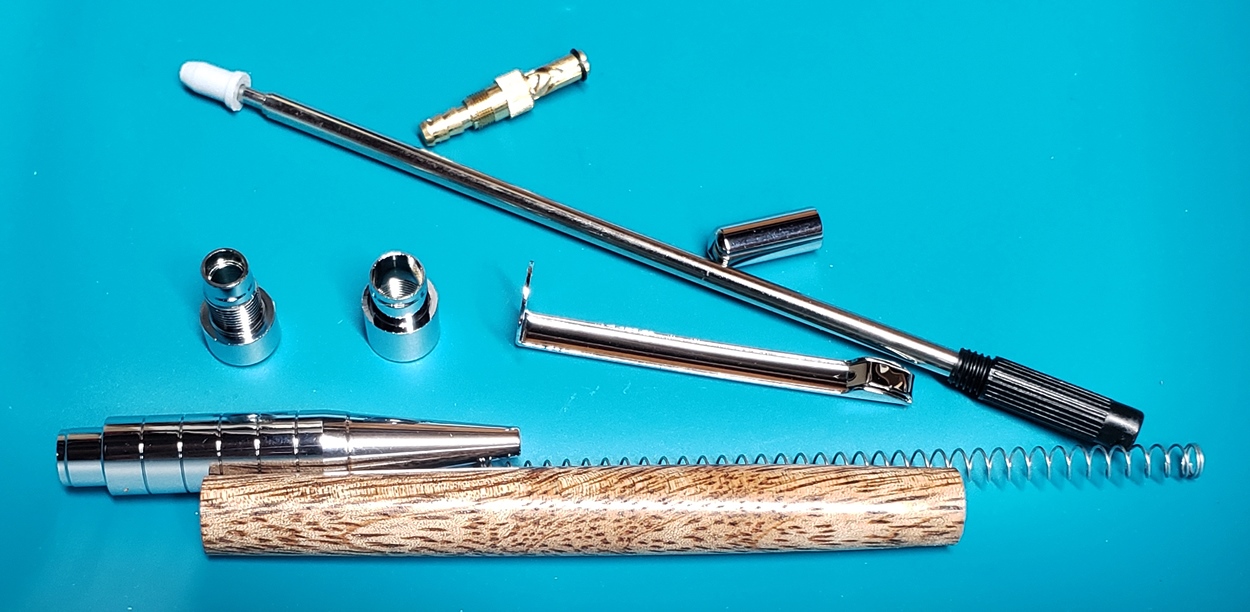

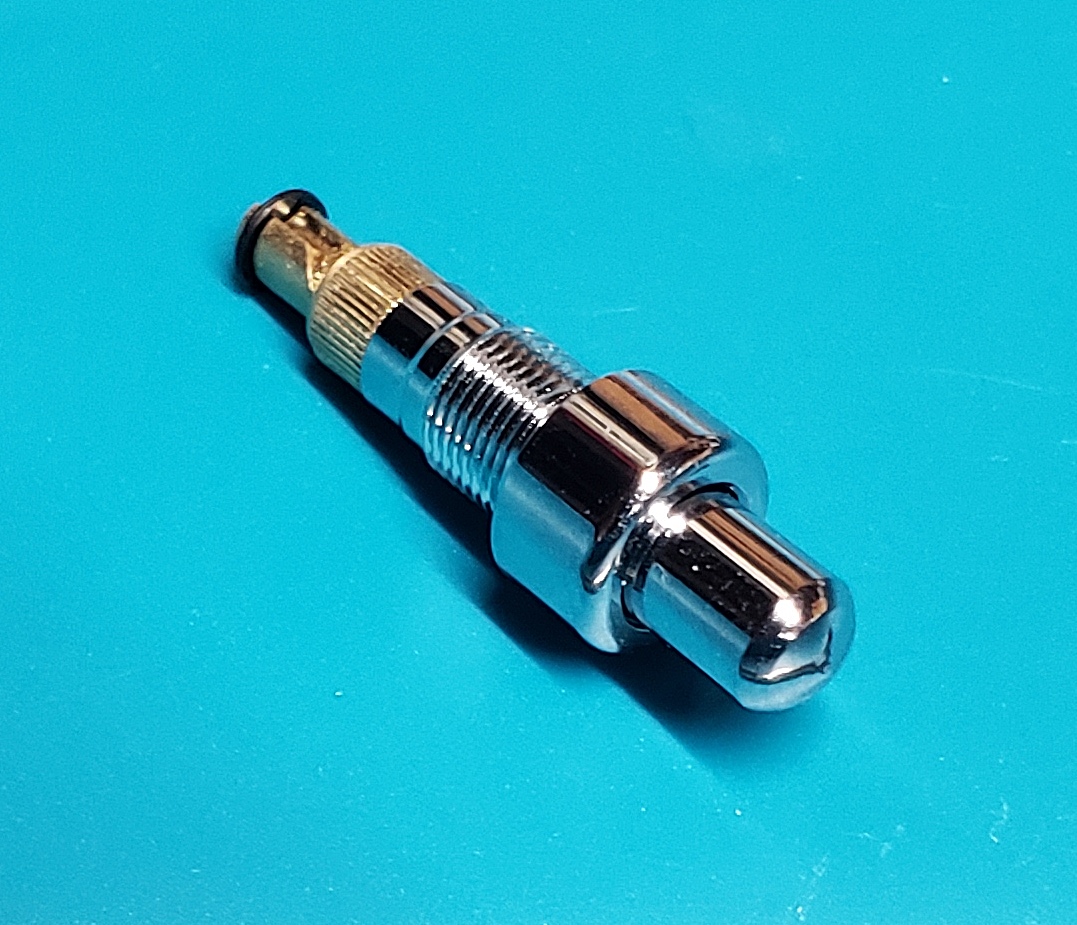

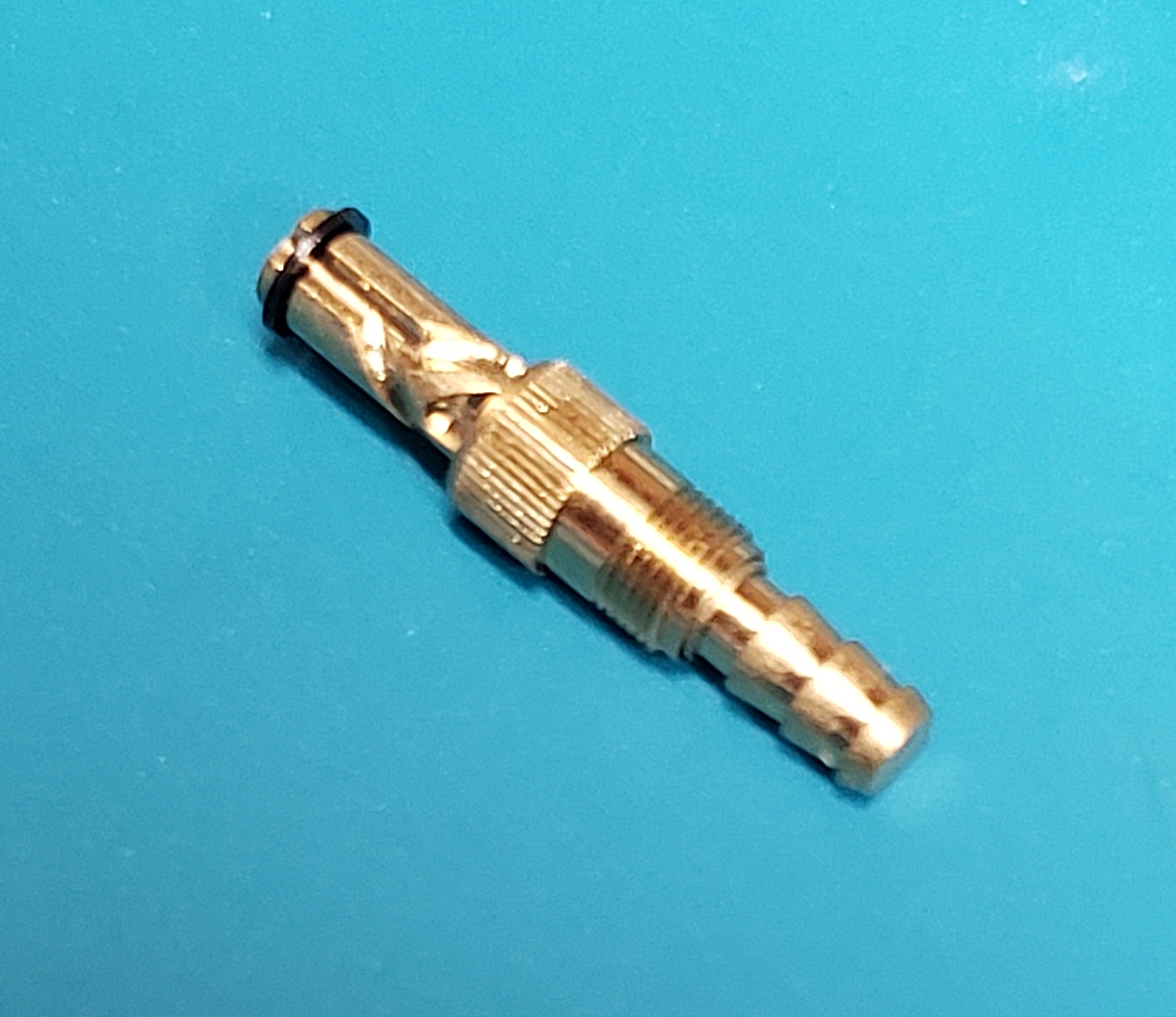

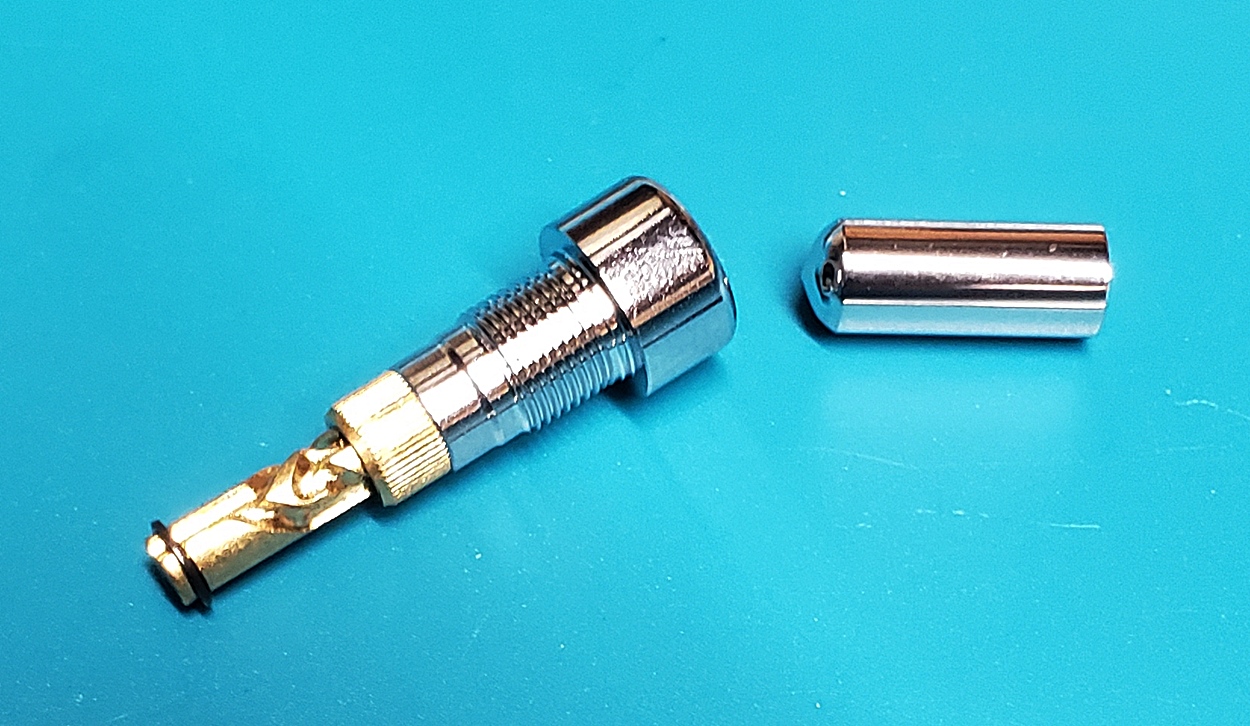

The amazing and tiny click mechanism.
A couple of notes on this click mechanism.
When assembling, use a pen press to get the plastic part of the button to fully engage the barbs on the brass section.
The brass part threads into the mid part that threads into the back end barrel. If it isn't really tight, it can become loose over time. The same thing with the metallic part of the button that threads over the plastic section. I made one of these for my daughter and the button came loose and she lost it. What I have been doing since is using a tiny dab of Locktite 241 (the blue stuff) thread locker on both to prevent them from loosening.
