I tried to remove the bushings and noticed a little bubble where the CA glue began to peel away from the wood...anyway to prevent this?

Signed-In Members Don't See This Ad

leehljp

Member Liaison
Joined
Feb 6, 2005
Messages
6,809
Location
Tunica, MS,
Some people wax their bushings and some make a spacer and place between the bushing shoulder and blank. Be careful with wax, it can migrate to the blank and mess with the finish.

Your problem was the very reason that I started using the mandrel-less method - or also known as "turning between centers". Bushings are used to turn it down to size and then the bushings are removed, blank placed back on the lathe and finished (without the bushings.) No more bubbles/lifting of finish.

Also, thinner finishes will cut down on some of this.


dabull24

Member
Joined
Nov 19, 2008
Messages
51
Location
bmore
If I wanted to turn between centers instead of the mandrel for applying the CA finish, which centers would I need?


rick_lindsey

Member
Joined
Feb 2, 2005
Messages
125
Location
Tucson, AZ

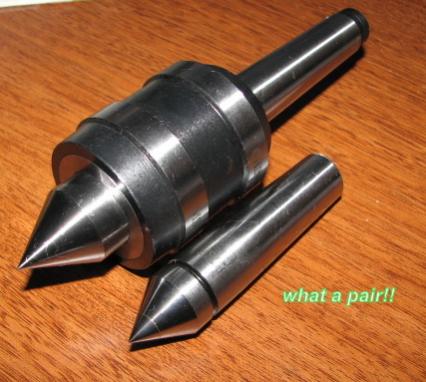

Hi dabull. I'm a newbie so take a grain of salt, but I believe you need a dead center in your headstock and a live center in your tailstock (you almost certainly already have a live center in your tailstock, but you may need to get a dead center for your headstock).

-Rick


lwalden

Member
Joined
Nov 3, 2005
Messages
1,237
Location
Trophy Club, Texas, USA.
And make sure the live center in the tailstock is a 60degree live center, the stock live center that comes with most mini/midi lathes can't be used for this with how the tip is configured.


dabull24

Member
Joined
Nov 19, 2008
Messages
51
Location
bmore
What if I fashioned a piece of wood to slightly taper down and used that in a chuck to hold the pen piece instead of a dead center? Think it would work?


fiferb

Member
Joined
Mar 20, 2006
Messages
2,442
Location
Ninety Six, SC, USA.
What if I fashioned a piece of wood to slightly taper down and used that in a chuck to hold the pen piece instead of a dead center? Think it would work?
It would once. Each time you took it out of the chuck you would have to make sure it ran true the next time you mounted it. Wood may also have more "give" or wear and allow the tube to run out of round.


jkeithrussell

Member
Joined
Oct 20, 2008
Messages
1,277
The tapered wood would also get glued to the blank if you are using a CA finish. The dead center is pretty cheap -- I think I paid less than $20.


marcruby

Member
Joined
Feb 22, 2008
Messages
1,175
Location
Warren, Michigan, USA.
Simpleminded as I am, I just take the point of an old skew and cut through any buildup right at the edge of the blank. Then I use a wee bit of 400 grit to smooth out the ends. Oh, then I drop the bushings into some acetone to dissolve the CA.

I also have a set of delrin (read non-stick) bushings that I can switch in just for CA finishing. It all comes down to what do you want to clean when you finish finishing. I prefer to keep the centers clean and toothbrush the bushings.

Marc


TylerRiddle

Member
Joined
Oct 11, 2008
Messages
36
Location
Newcastle, OK
After experiencing the same tear away on my finishes, I went with the turning between centers approach as well. The little machine shop (littlemachineshop.com) has #2MT dead centers for around 6 dollars. I think I paid more for the shipping than the actual dead center.


smitty

Member
Joined
Nov 28, 2005
Messages
161
Location
Greenville, Ohio, USA.
I made a set of under size bushing that I use between centers. I tried not using any bushing between centers and I always flared the tubes. With the under size bushing I don't have the CA chipping of the end of the blanks. I then us my disc sander to square the ends back up.


Rick_G

Member
Joined
Nov 30, 2007
Messages
1,978
Location
Bothwell, Ontario, Canada.
I'll turn between centers almost to bushing size. Then I take the bushings off and sand to size between centers without the bushings. So far no problem flaring the ends but with the sanding I use the bare minimum that will keep the blank turning without slipping.


sandking

Member
Joined
Oct 16, 2006
Messages
217
Location
Hauppauge, NY.
I tried to remove the bushings and noticed a little bubble where the CA glue began to peel away from the wood...anyway to prevent this?
I purchased a 12" piece of delrin rod. I cut a 3" piece, and drill a 1/4" hole and mount it to the mandrel. I then turn a tapered end that will fit the tube, then use my thin parting tool to remove. I do this 4 times for each end of the barrels. Because of the taper I don't have to worry when I move the CA glue back and forth it won't crack the CA when I remove them.

What I do is turn with the bushings to get to size and coat with a few passes of thin CA (doesn't crack when I take them out). I then mount the tubes on the derlin inserts and finish with thick CA. There will be some extra glue over the edges so I just slowly sand the tubes on end once finished with some sandpaper on my flat tablesaw.

For the extra little bit of glue on the metal bushings (or if I don't have finishing bushings made yet for that style) I have a small canning jar with an inch or two of Acetone in it. I drop in the bushings, put the lid on and swirl the jar. Between the Acetone and bushings hitting eachother the glue comes off pretty quickly. I use a bent piece of hanger to grab each bushing and after a quick wipe with paper towels I'm ready to go. Make sure you put the lid back on the jar or it evaporates (it lasts a pretty long time in there).


jkeithrussell

Member
Joined
Oct 20, 2008
Messages
1,277
where can i buy a piece of delrin rod?

I purchased a 12" piece of delrin rod. I cut a 3" piece, and drill a 1/4" hole and mount it to the mandrel. I then turn a tapered end that will fit the tube, then use my thin parting tool to remove. I do this 4 times for each end of the barrels. Because of the taper I don't have to worry when I move the CA glue back and forth it won't crack the CA when I remove them.

What I do is turn with the bushings to get to size and coat with a few passes of thin CA (doesn't crack when I take them out). I then mount the tubes on the derlin inserts and finish with thick CA. There will be some extra glue over the edges so I just slowly sand the tubes on end once finished with some sandpaper on my flat tablesaw.

For the extra little bit of glue on the metal bushings (or if I don't have finishing bushings made yet for that style) I have a small canning jar with an inch or two of Acetone in it. I drop in the bushings, put the lid on and swirl the jar. Between the Acetone and bushings hitting eachother the glue comes off pretty quickly. I use a bent piece of hanger to grab each bushing and after a quick wipe with paper towels I'm ready to go. Make sure you put the lid back on the jar or it evaporates (it lasts a pretty long time in there).
