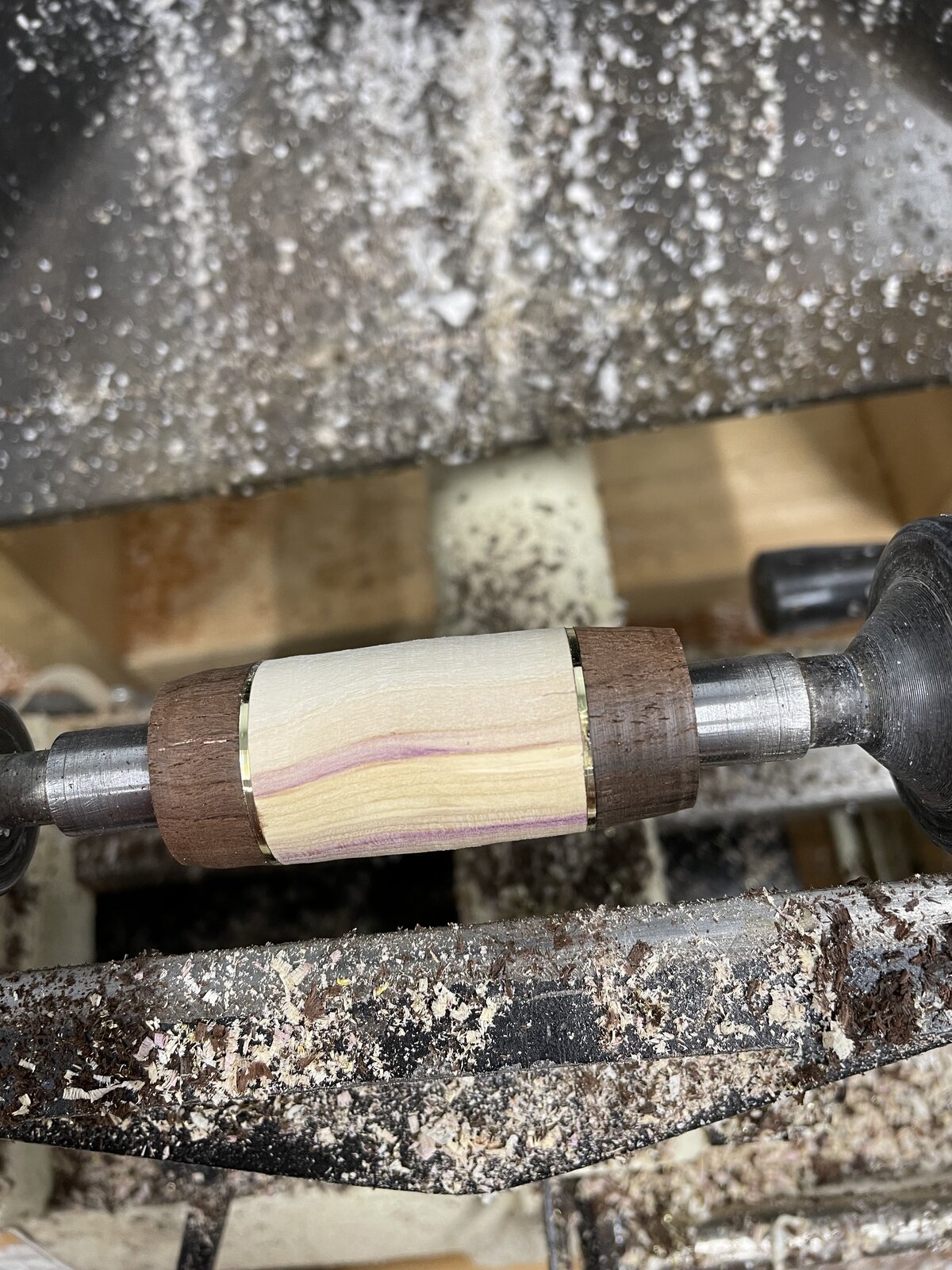

I just tried making my first segmented pen yesterday which incorporated two brass bands separating two pieces of Brazilian Rosewood from a piece of Lilac. I'll include a photo of the blank after it was rounded below. Everything went somewhat okay, but it left me with quite a few questions about using metal in segmenting:
What thickness of metal is best?
Where do other penturners buy metal?
What should I cut metal sheets with?
Can you use a brad point on metal if it's thin enough?
How do I do diagonal strips of metal (glueing and drilling)?
For my first try at segmenting, I used a brass sheet from Hobby Lobby (not sure of the thickness, but it was probably between 0.75-1 mm thick). I cut out two small squares from it using a standard bandsaw and glued them together with the three pieces of wood I used. I then drilled the entire thing as a stack using a 27/64" brad point, which managed to drill through brass without too much trouble. I turned it with a spindle gouge, which didn't have too much trouble cutting through the brass.
Any critique is much appreciated, as I am completely new to this part of penturning, along with any feedback on the above questions. Thanks in advance!
