PSI Keychain O-ring question

Signed-In Members Don't See This Ad
See more from Dehn0045

Dehn0045

Member
Joined
Mar 19, 2017
Messages
1,357
Location
Houston, Texas
I looked up the bushing diameter on PSI website (PKSECRETC) and turned to those dimensions. I measured with calipers before starting and the diameter seemed a little small, the diameter at the endcap didn't seem important but the importance at the threaded end was less clear. I decided to go with the specified diameter (0.450) with a slight bulge. I'm not disappointed with the look, but the O-ring seems a little wonky. It bulges out unevenly and doesn't look the best. I wonder if it will be fine without the O-ring or if it will tend to unscrew on its own (obviously without an O-ring there will be greater risk of moisture issues). I have a few more of these in-progress, so I am wondering if a larger diameter will work better with the O-ring. Any advice or suggestions?

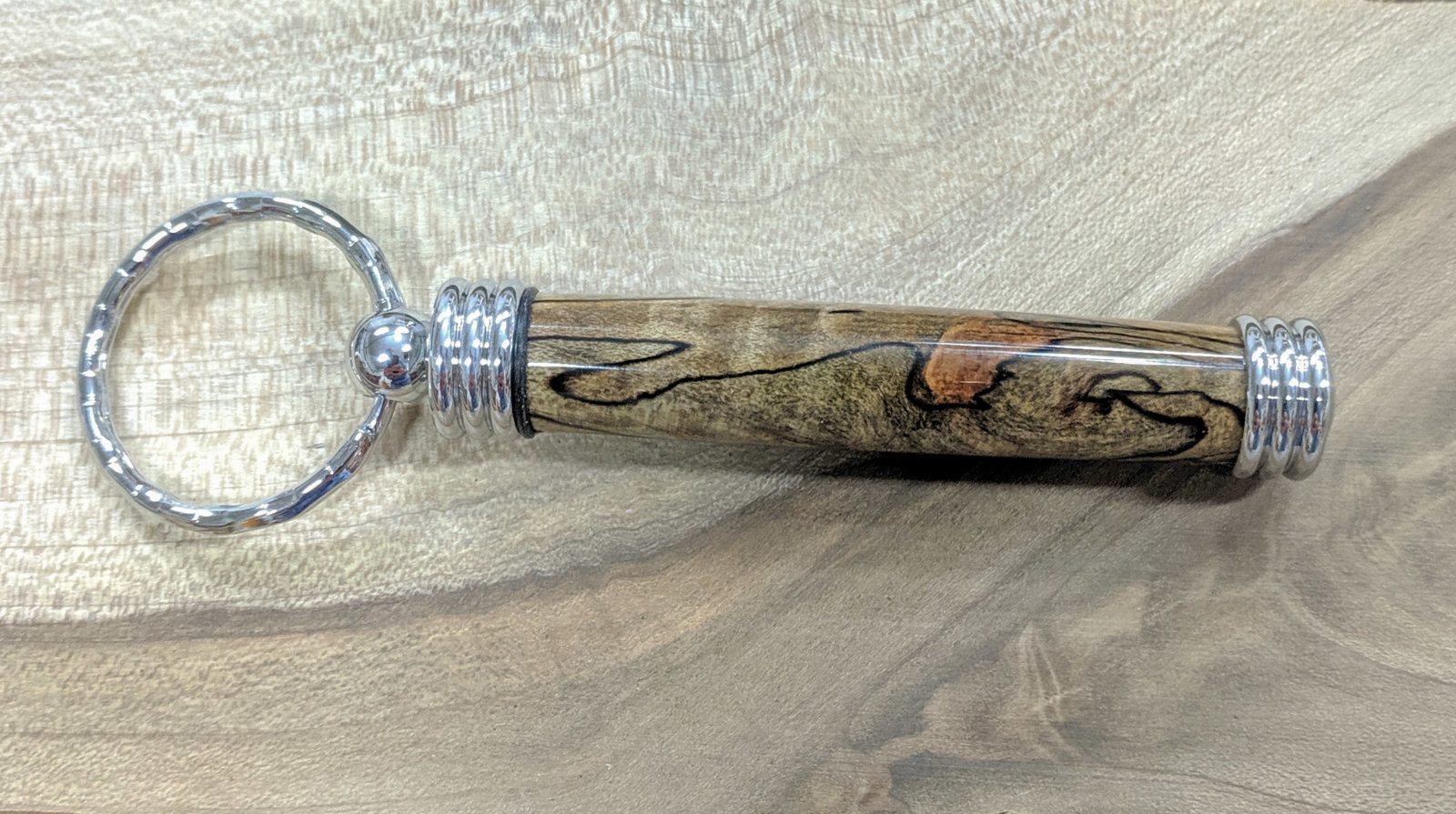

The wood is spalted Magnolia that I collected from alongside the road on my way home from work (the spalting was unintentional but somehow worked out perfectly)


Signed-In Members Don't See This Ad

BCnabe

Member
Joined
Apr 17, 2013
Messages
63
Location
Hamilton, MI
I didn't like the o-ring and left it off of the one I carry every day. I've had it come unscrewed a couple times in the 4-5 years I've used it.


Humongous

Member
Joined
Feb 20, 2019
Messages
165
Location
Canandaigua, NY

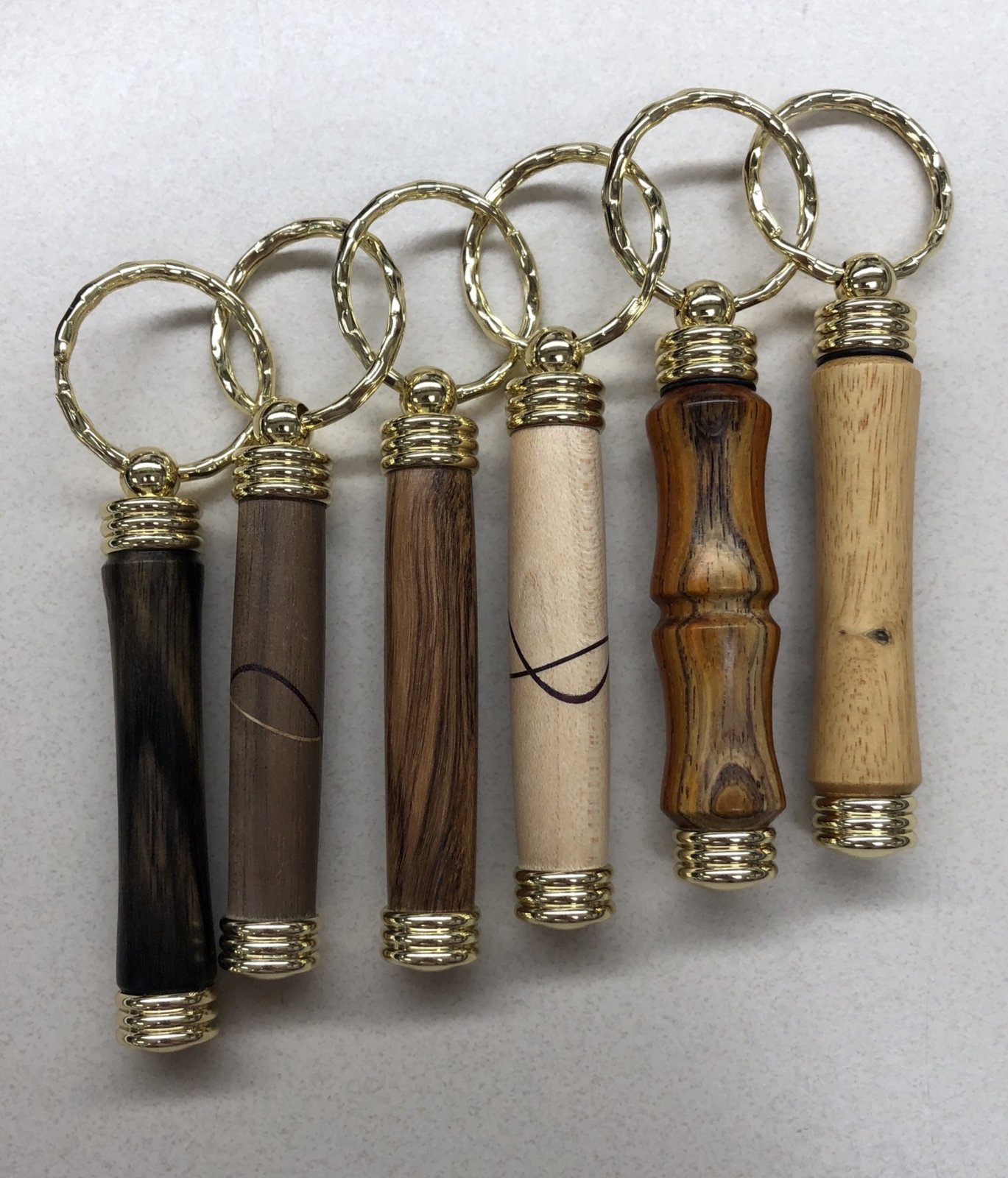

The ones that I did didn't have a problem. If I remember right I put the o-ring on the coupler, threaded on the cap then pressed the whole assembly into the tube. Maybe the coupler is too far in? I believe there is a groove where the o-ring sits.



Dehn0045

Member
Joined
Mar 19, 2017
Messages
1,357
Location
Houston, Texas
I didn't like the o-ring and left it off of the one I carry every day. I've had it come unscrewed a couple times in the 4-5 years I've used it.

Thanks Dennis! Good to know I shouldn't worry too much. I have a wife and a young daughter, so I haven't had my hands on a $100 bill in years, but I was thinking about putting a $20 in it -- would hate to have it unscrew and lose it.

The ones that I did didn't have a problem. If I remember right I put the o-ring on the coupler, threaded on the cap then pressed the whole assembly into the tube. Maybe the coupler is too far in? I believe there is a groove where the o-ring sits.

I was considering disassembling and giving something like that a try. The "groove" seems really small, not really much bigger than the threads. Maybe leaving a little gap inside of the threads is better.

It looks like you turned the ends to small.

Yeah, I turned it to their specified diameter. I knew that it would look too small on the endcap, but I thought that the diameter was critical for proper function of the o-ring. It seems like the o-ring might function better with a larger diameter instead...

I found this customer photo on PSI's website. It looks a lot like what I have going on. Even with the slightly larger diameter at the ends the o-ring is still visible. I am thinking something like Ken suggests (with a slightly larger diameter) is probably the best. I will give it a try and see what happens.


More4dan

Member
Joined
Mar 17, 2016
Messages
2,026
Location
Katy, TX
You could leave the body slightly longer than the tube and cut a recess for the o ring while holding it in a collet prior to final turning. Then turn the body to the cap OD or bit larger. That way the cap can screw down and contact the wood.


Sent from my iPad using Penturners.org mobile app


Humongous

Member
Joined
Feb 20, 2019
Messages
165
Location
Canandaigua, NY
Another tip for these is to take a large drill bit and ream or countersink the bottom cap before assembling. Creates a V shape in the base and makes it easier to insert money into. It won't catch on that lip at the bottom.


Dehn0045

Member
Joined
Mar 19, 2017
Messages
1,357
Location
Houston, Texas
Another tip for these is to take a large drill bit and ream or countersink the bottom cap before assembling. Creates a V shape in the base and makes it easier to insert money into. It won't catch on that lip at the bottom.

Thanks Ken, I saw a thread where it was suggested to mount in a collet chuck and chamfer the sharp edges. A drill bit sounds even easier. Thanks for the tip


Dehn0045

Member
Joined
Mar 19, 2017
Messages
1,357
Location
Houston, Texas
For this one I turned to 0.495 versus the specified 0.450. on assembly I left a small gap between the threads and the blank. It appears that the threaded couplers that I got do not have a groove for the O-ring. It seems possible that mine came with the wrong coupler (the whistle version doesn't have a groove). I decided use a little blue threadlock during assembly to keep things secure. I also champferred the fittings by mounting in my 4-jaw chuck using pin jaws and my skew, was pretty simple. I like the fit better at this diameter and the O-ring seems to be doing its job.

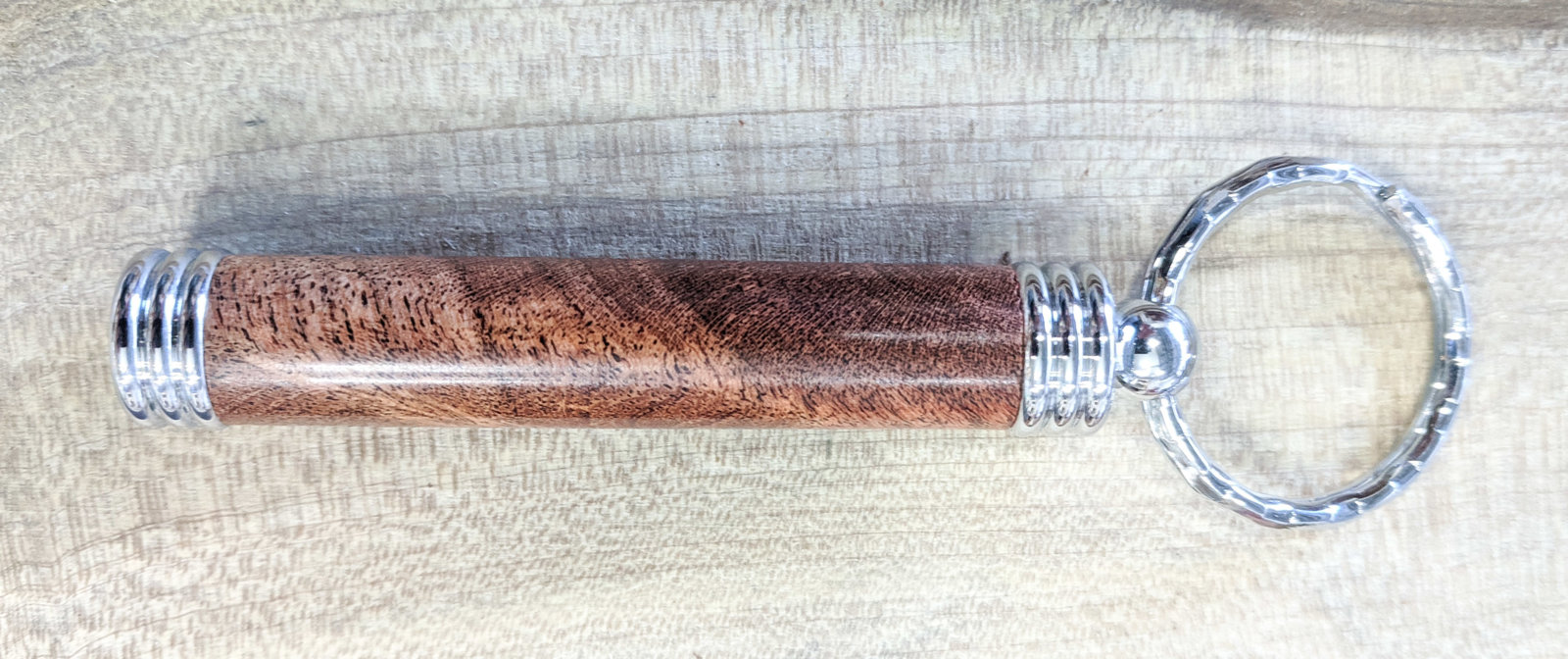

This time in mesquite with wax finish.
