Practicing up for the segment contest!

Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad

mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
8,488
Location
Medina, Ohio

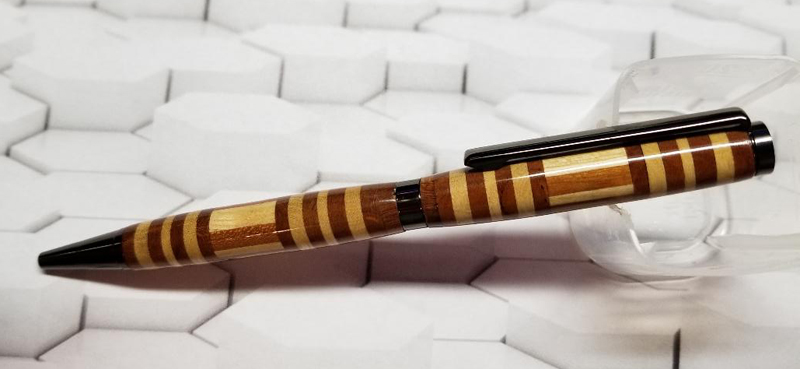

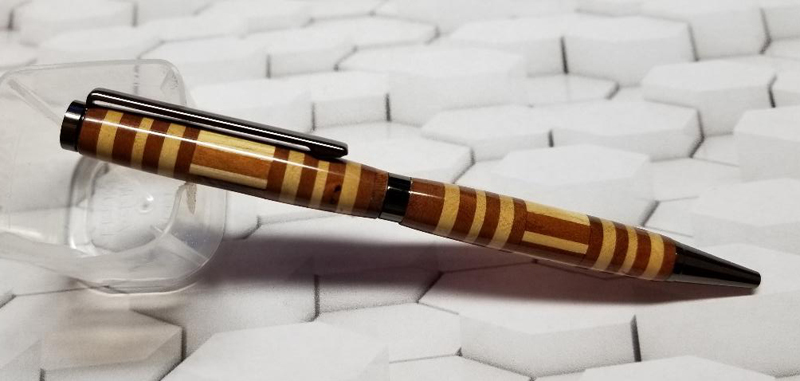

I'm far from some of the work I've seen here, but with a little more practice, I think I'll get close one day. Here's one I decided not to use. It is a combination of Oak and Cherry wood.
Bobby, not speaking as the contest chair right now, but as a fellow segmenter. With each design you are refining your skills and are really getting a critical eye for symmetry, wood combinations and an appealing visual presentation.

Here, I like the attention you paid to the dimensions of the rings and the alignment of the middle sections.

Well done!


bsshog40

Member
Joined
Oct 2, 2018
Messages
707
Location
Midland, Tx
Thanks Mark! It's a lot harder than I thought to try to make a design using a 3/4" blank and turning it down to a little over 10mm and coming out like you hoped it would. Lol


leehljp

Member Liaison
Joined
Feb 6, 2005
Messages
6,855
Location
Tunica, MS,
I second what Mark said. Your attention to detail, measurements, centering and precision is showing your skill level - Excellent!


mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
8,488
Location
Medina, Ohio
Thanks Mark! It's a lot harder than I thought to try to make a design using a 3/4" blank and turning it down to a little over 10mm and coming out like you hoped it would. Lol
Yes! What we see at 3/4" is not what will be there at 10 mm. I usually design my patterns from the inside out.


View in Gallery


View in Gallery

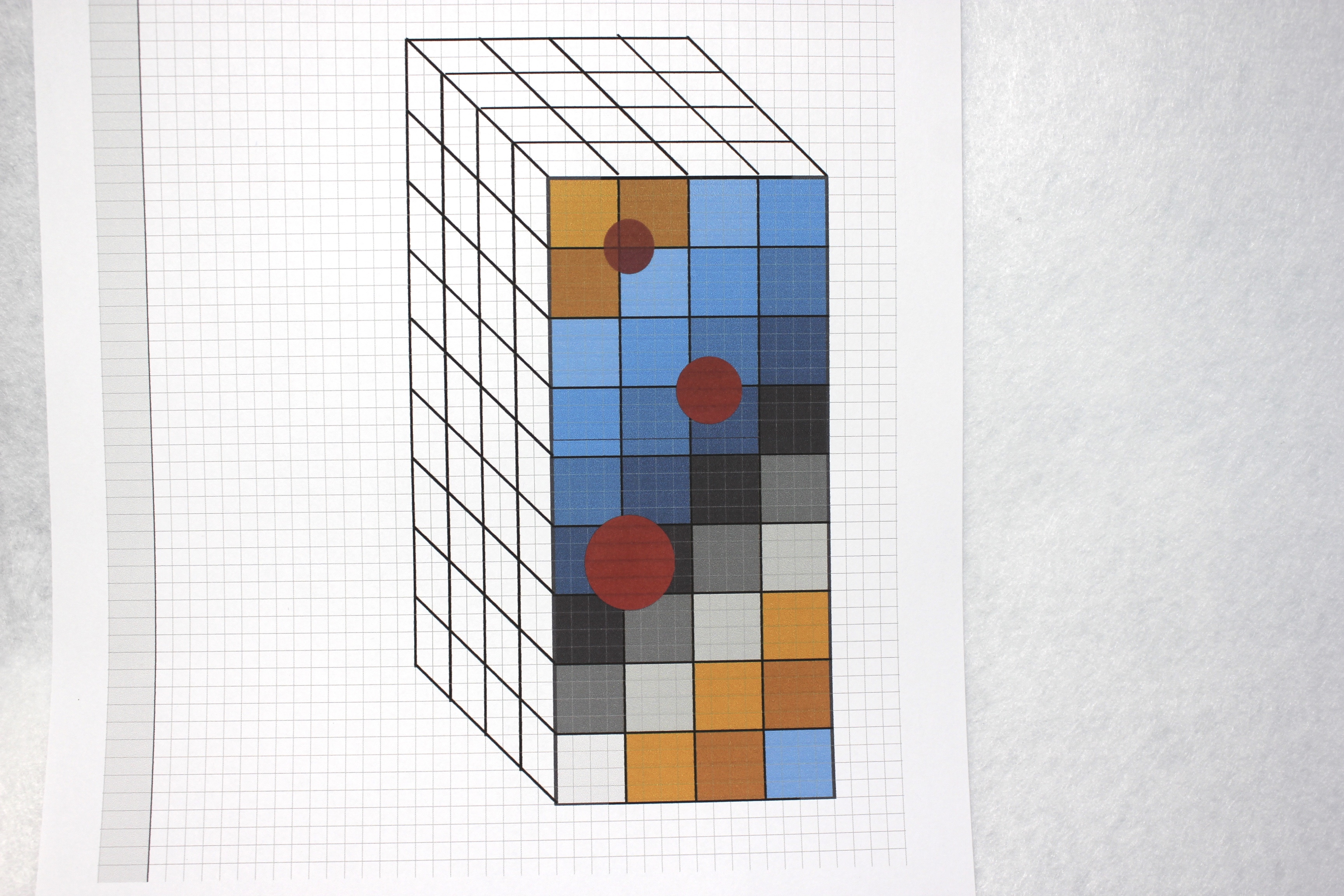

Both of these patterns will look very different at final dimension. For the schematic, most of the outside blocks will be essentially gone - so why build it as it looks here - this I need to tweak prior to construction.

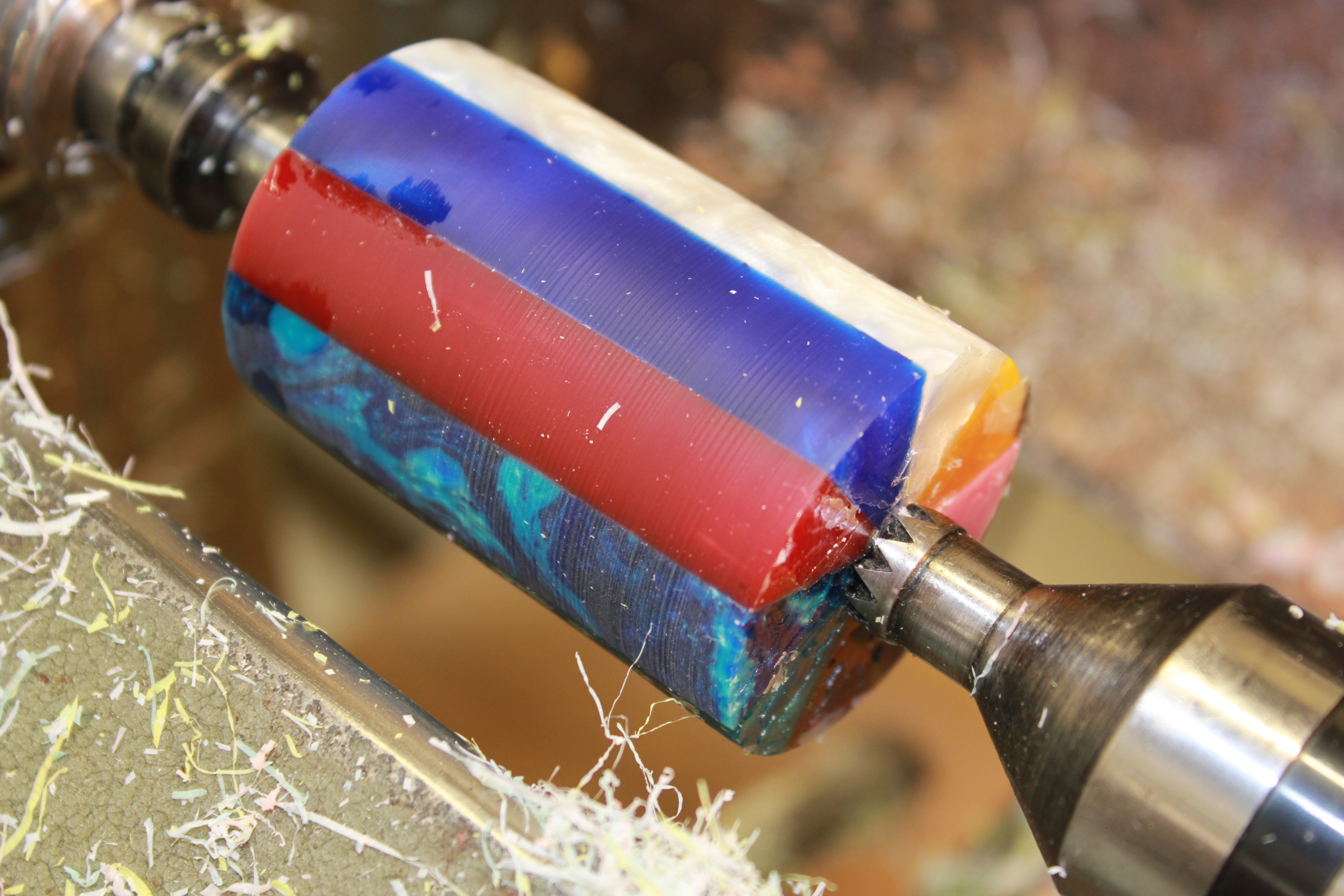

For the lathe mounted blank, before I cut it into slices, If I want rectangles or squares, I will need to estimate what the color dimensions are at bushing size. If the width at bushing size is .462", then my slices need to be .462" - then I'll get something close to a square (yea, right). If I want a rectangle, then the slices need to be smaller than .462".

Have fun!


OZturner

Member
Joined
Aug 5, 2013
Messages
6,664
Location
Sydney. NSW. Australia
Excellent Segmented Pen, Bobby.
You are so right, they are a lot more difficult than you imagine.
Perhaps you should get a pair of special Glasses, like Marks, that look into the Blank at the 10mm Zone. :glasses-cool::rolleyes::biggrin:
Nicely Turned, Fitted and Finished.
Fine work,
Regards,
Brian.
