Pink Abalone Kitless

[Weldon0405]

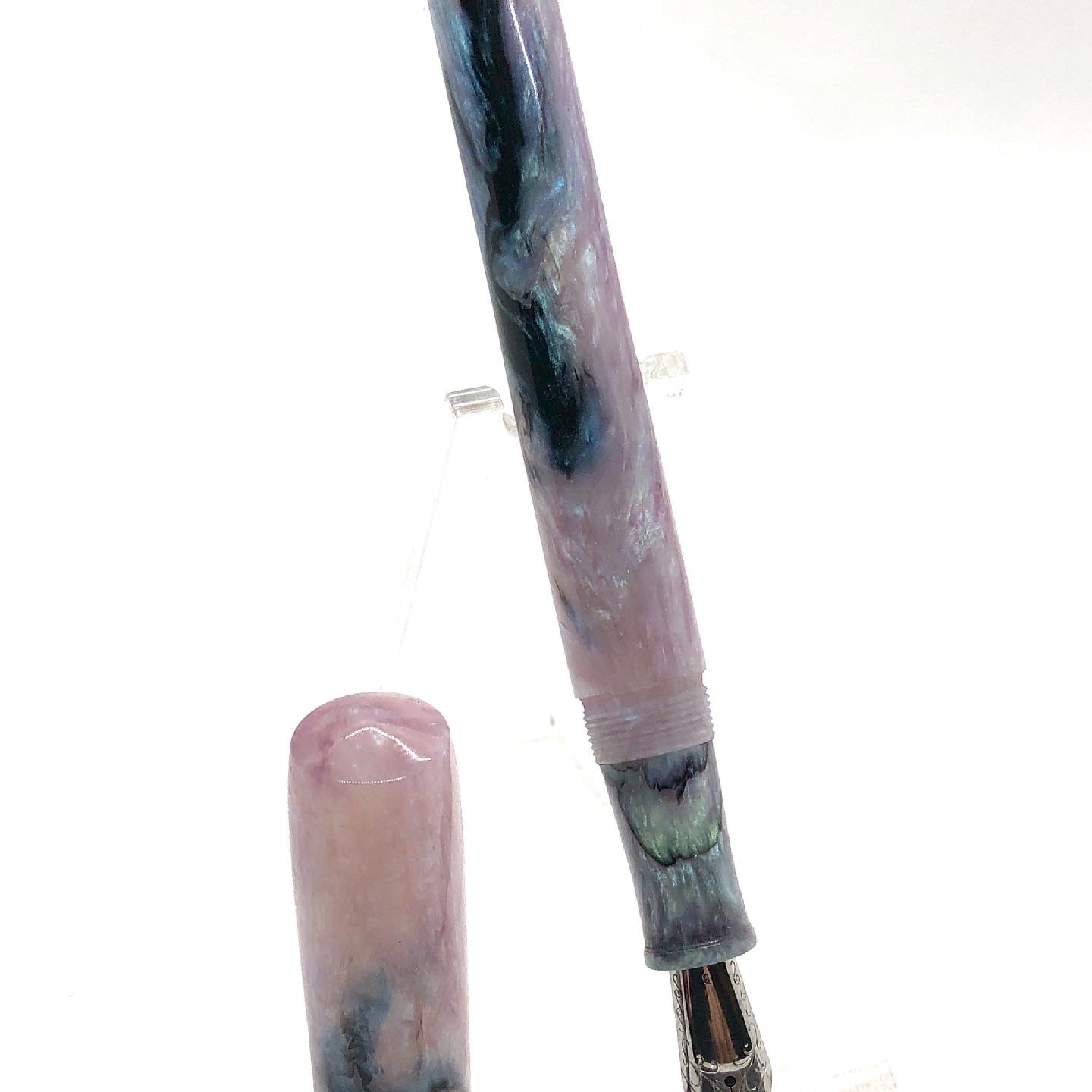

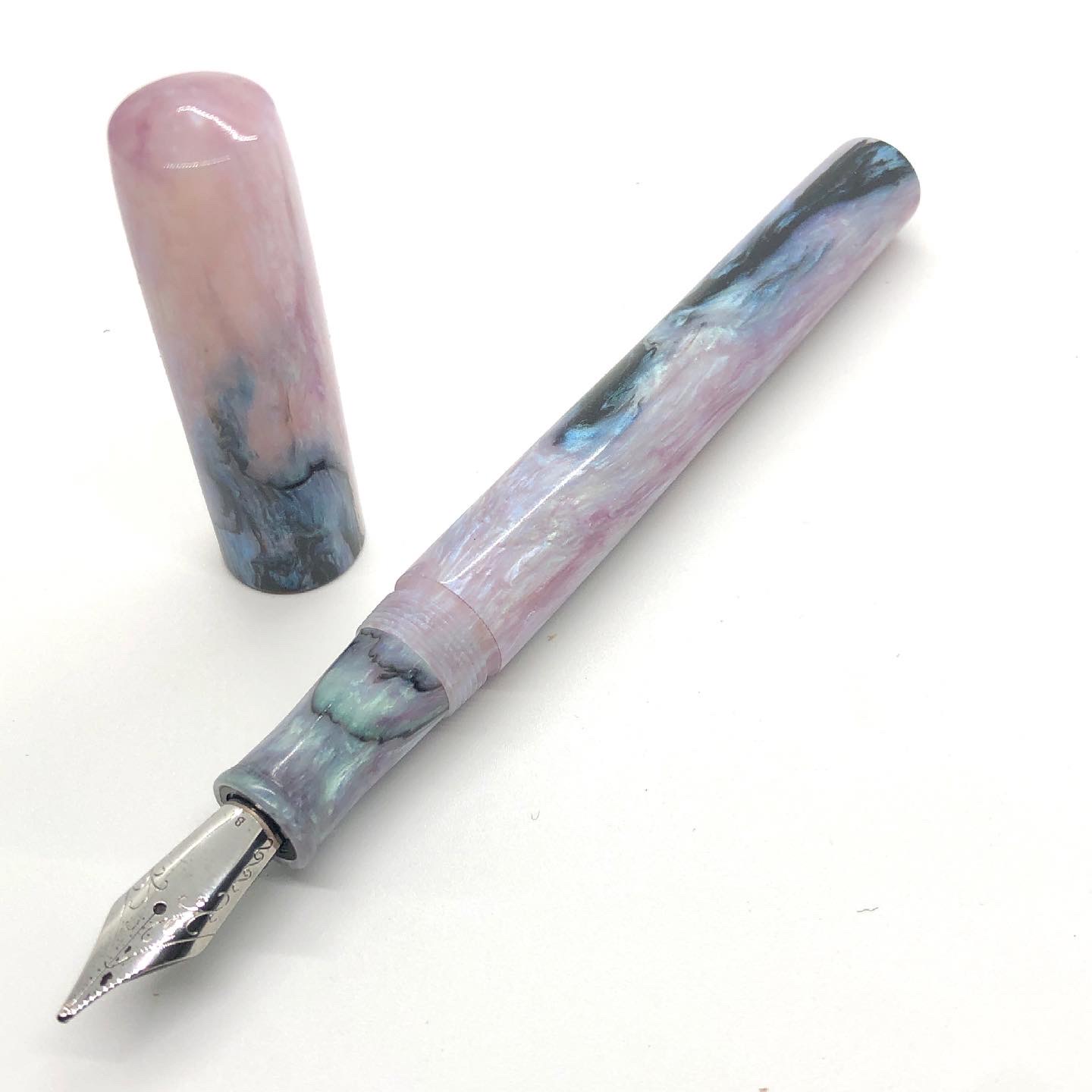

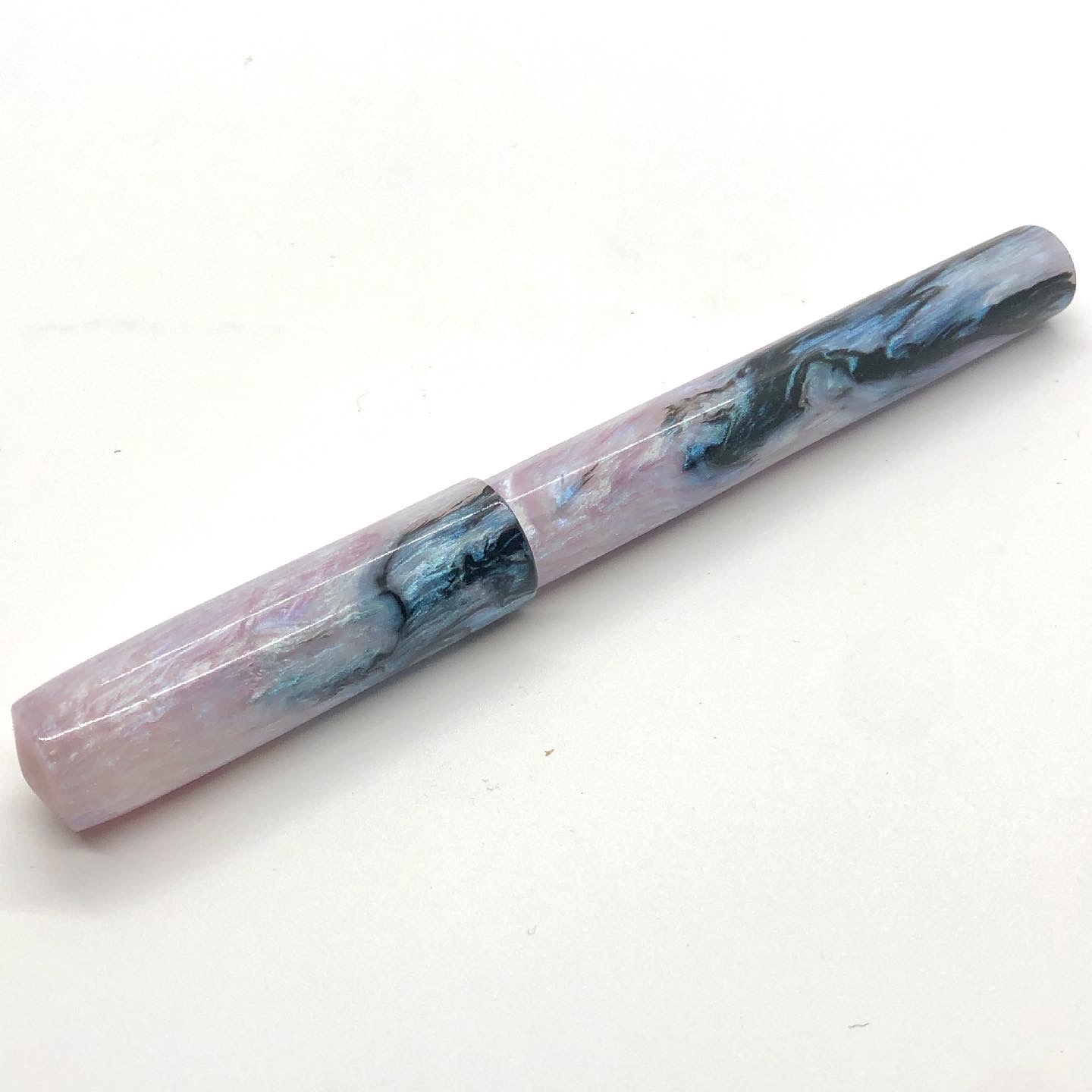

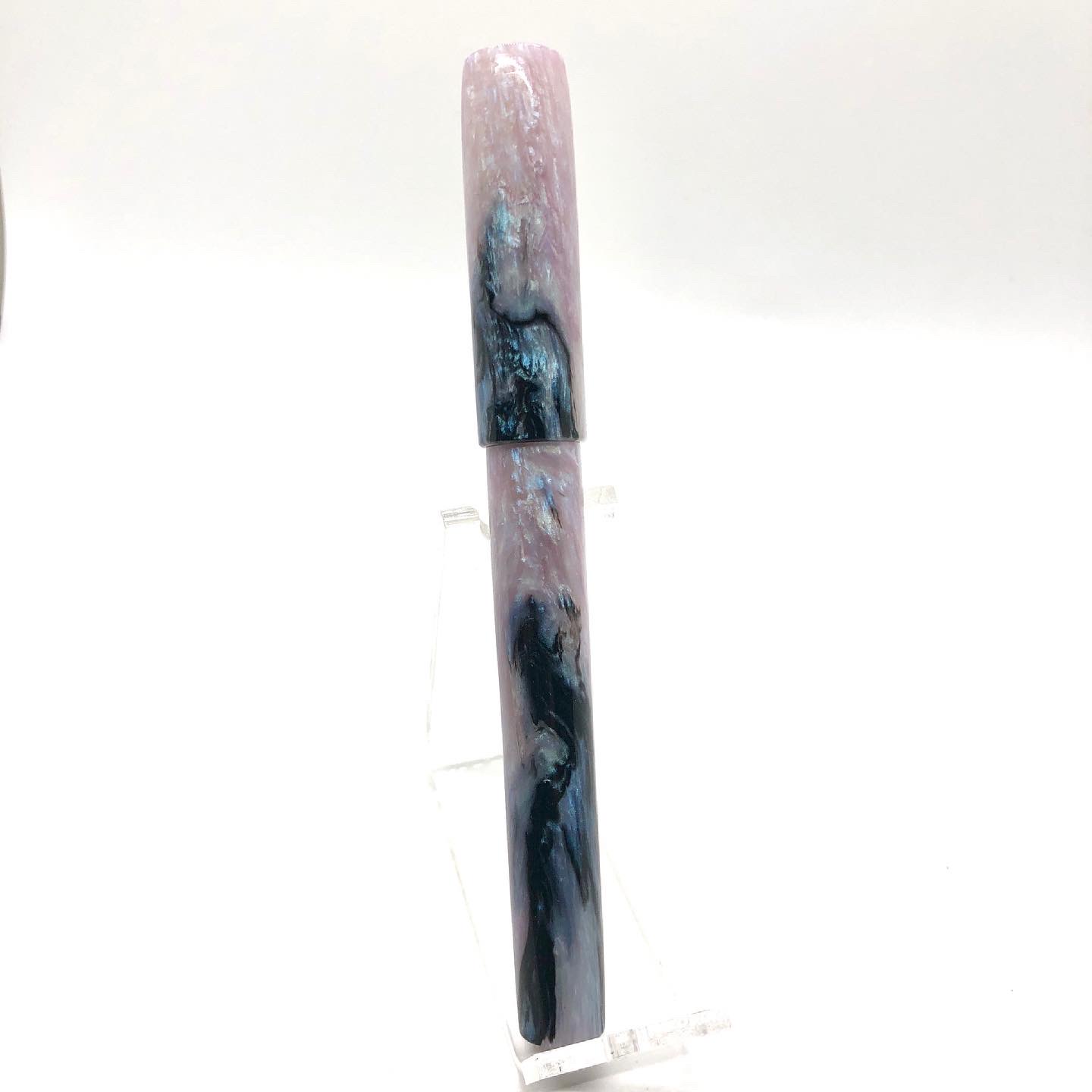

Here is my most recent pen.


Pink Abalone material poured in house.

Nib: Jowo #6
Capped: 138 mm / 5.4"
Uncapped: 134 mm / 5.25"
Section pinch: 10mm / 0.4"
Body diameter: 13.5mm / 0.54"

thanks for looking!



[magpens]

Very nice work !!!



[mark james]

Very attractive. Great job with a unique blank. Thanks for sharing.



[magpens]

@Weldon0405

Thanks for giving most of the dimensions ...

... a couple more, please ...

the cap diameter ? ... and the cap length ?



[Jim15]

Looks great.



[Weldon0405]

@Weldon0405

Thanks for giving most of the dimensions ...

... a couple more, please ...

the cap diameter ? ... and the cap length ?

I'll get those measurements this evening. Cheers



[Weldon0405]

@Weldon0405

Thanks for giving most of the dimensions ...

... a couple more, please ...

the cap diameter ? ... and the cap length ?

@magpens
Cap length: 55.2mm / 2.2"
Cap diameter: 15.6 mm / 0.6"

The diameter is at the widest portion.

Thanks for looking!



[magpens]

@Weldon0405

Thanks very much !!!



[EatenAppleCrafts]

Here is my most recent pen.


Pink Abalone material poured in house.

Nib: Jowo #6
Capped: 138 mm / 5.4"
Uncapped: 134 mm / 5.25"
Section pinch: 10mm / 0.4"
Body diameter: 13.5mm / 0.54"

thanks for looking!View attachment 309009

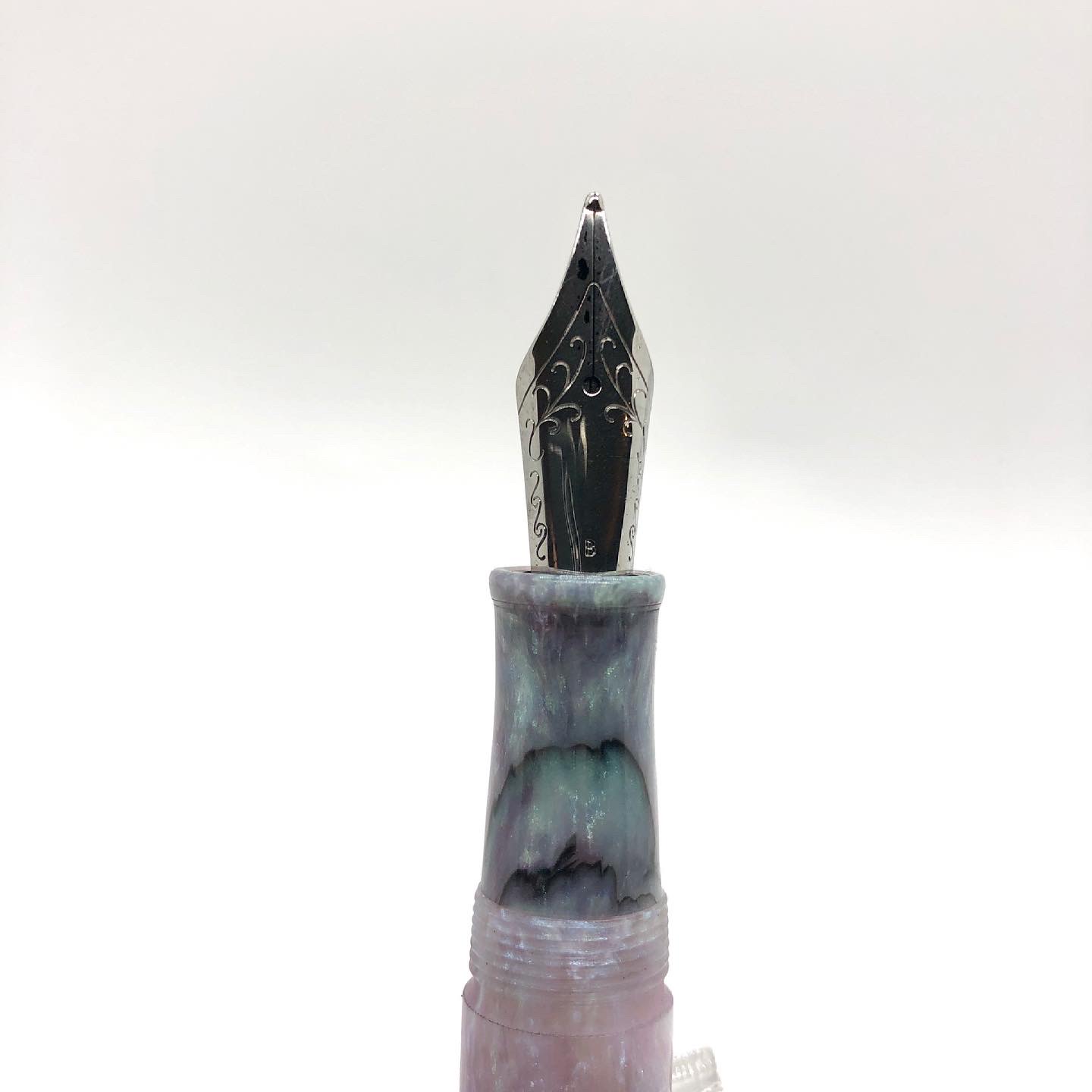

The fit/alignment between nib assembly and the section is just about perfect. Well done, that is something I always struggle with. Just repeated testing and drilling?



[Weldon0405]

The fit/alignment between nib assembly and the section is just about perfect. Well done, that is something I always struggle with. Just repeated testing and drilling?

Correct. I have spent a lot of time experimenting with different drill sizes and depths. and by experimenting, I mean I've ruined many trying to get it right. Haha!
