Pattern from the New York Public Library Digital Collections.

[Ken Wines]

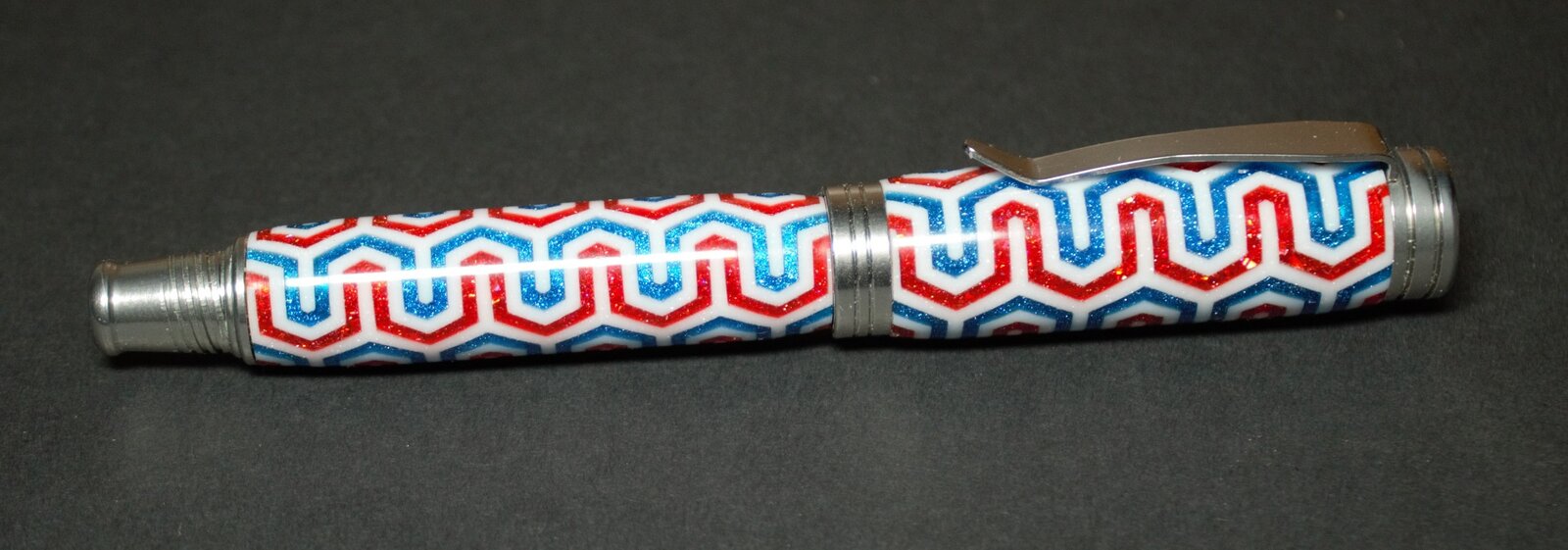

Here is pattern I found late one night while perusing the New York Public Library Digital Collections. The name of the book is Arabische und Alt-Italienische Bau-Verzierungen and was published in 1842. Originally I used this pattern to do a blank that had segmented stacked rings (I'll show photo a little later). I decided to rotate the pattern 90 degrees and allow it to run the length of the tube and be stacked radially around the tube. There are sixteen DiamondCast radial segments in each tube. The hardware is a stainless steel Desire kit from McKenzie PenWorks.

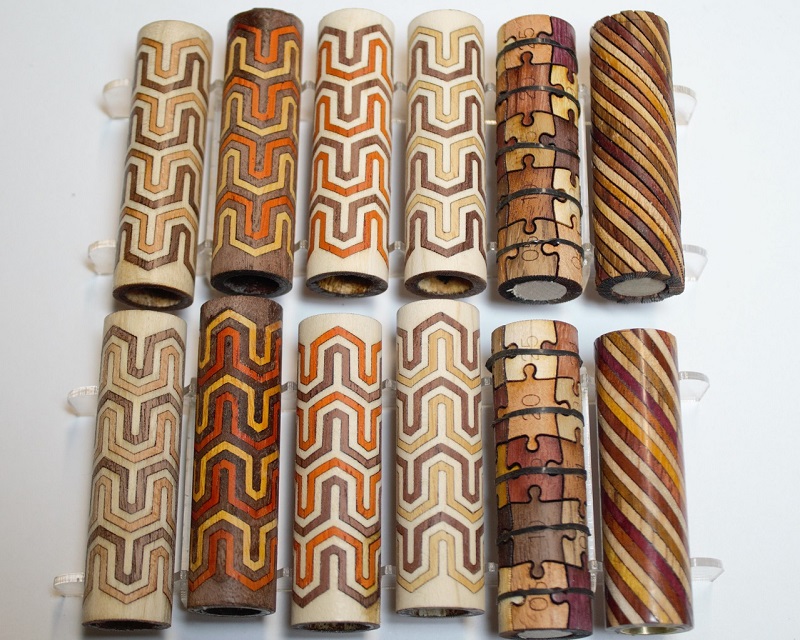

Here is the pattern in it's original orientation to the tube when I first used the pattern.



[walshjp17]

Mad genius!!



[egnald]

They are all amazing. The extra dimension from the sparkle in Tim's DiamondCast blanks add is astonishing. - Thank you so much for sharing it with us. - Dave



[EricRN]

Wow! Incredible.



[BULLWINKLE]

A lot of work I'm sure but……
Absolutely beautiful result. Great job !!!



[Jim15]

Awesome work.



[smik]

Here is pattern I found late one night while perusing the New York Public Library Digital Collections. The name of the book is Arabische und Alt-Italienische Bau-Verzierungen and was published in 1842. Originally I used this pattern to do a blank that had segmented stacked rings (I'll show photo a little later). I decided to rotate the pattern 90 degrees and allow it to run the length of the tube and be stacked radially around the tube. There are sixteen DiamondCast radial segments in each tube. The hardware is a stainless steel Desire kit from McKenzie PenWorks.


View attachment 356623


Here is the pattern in it's original orientation to the tube when I first used the pattern.


View attachment 356624

Fantastic work Ken.



[TDahl]

Amazing work



[randyrls]

Blows me away! Can't even figure out how you did it!



[Wmcullen]

I had never explored the New York Digital Library before but found the book you referenced and spent some enjoyable time with it. Thanks for the recommendation!
-Cullen



[calabrese55]

extraordinary................Bravo
calabrese55
