Opinions on Sander

Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad

magpens

Member
Joined
Feb 2, 2011
Messages
10,234
Location
Coquitlam, BC, Canada
IMHO, if you are making only pens, you use a sander for two things ... squaring the blank ends, and taking off the sharp blank edges in order to make a headstart for blank rounding on the lathe. . You can achieve both functions using only a disc sander. . So you don't really need the belt sander, although you could use it also for both operations but moreso for the second one.

For squaring the blank ends a disc sander affords better accuracy (which is important) and there are tools and jigs available to help you with this.

Other people may have other opinions.


Wildman

Member
Joined
Jan 12, 2008
Messages
1,390
Location
Jacksonville, NC, USA.
Lot has to do with what you want too do with a bench top belt sander. You can find BTBS’s new for less than what the seller is asking, for one new in the box. Would like to see and hear thing before buying! Would also like to know little history before buying could be a reconditioned item better ask.

Many years ago and lot less expensive this disk sander was the darling of pen turners. It excelled at squaring up blanks and if you did a lot of sement pens. They also sold a smaller version don’t see that one listed anymore.

https://www.harborfreight.com/12-inch-direct-drive-bench-top-disc-sander-43468.html

Guess most people buy bench top belt sanders today due to price and variety of brands. Biggest complaints motor too noisy, miter gauges not accurate even if table level on some models, and dust collection.

Bought Hitachi brand belt sander, Lowe’s no longer sells many years ago for less than $100. Seldom used but handy for lot of things when needed other than pen turning for me.

Last edited:

Gwatson50

Member
Joined
Apr 10, 2017
Messages
345
Location
Maryville, IL
IMHO what magpens says! Rockler sells a small table fits on my disc sander with a fence that rotates 45 degrees. I use my punches and the square aluminum support against the fence to square the ends... works well


Sent from my iPhone using Penturners.org mobile app


Edgar

New Member Advocate
Joined
Feb 6, 2013
Messages
5,407
Location
Alvin, TX 77511
I don't know anything about that P-C sander, but I do have 2 similar sanders. I bought a Ryobi at Home Depot for $80 when it was on sale a couple of years ago - regular price $120. It's pretty good for the price - plenty of power & has a dust collection port which is not great but better than nothing and very easy to change belts. I don't use it too often, but it's sure nice to have when I need it. I mostly use the belt, very seldom the disk - as someone noted, the miter guides on these inexpensive sanders are not very good.

I also have a Harbor Freight unit - regular price $75 but about $60 with a 20% off coupon. That's about all it's worth & I wouldn't recommend it for it's intended purpose at all. Much flimsier than the Ryobi, not easy to change belts, no D.C. port. However, I reversed the drive belt & use it to sharpen my tools. It's very good for that purpose - there's a tutorial in the IAP library on making the conversion.

I use a disk sander in a chuck on my headstock & a Rick Herrell jig in my tail stock to swuare up blanks on my lathe. Some folks have jigs to do the job on a BTBS, but I prefer to do that job on a lathe.


gtriever

Member
Joined
Apr 23, 2017
Messages
1,131
Location
Paducah, Kentucky

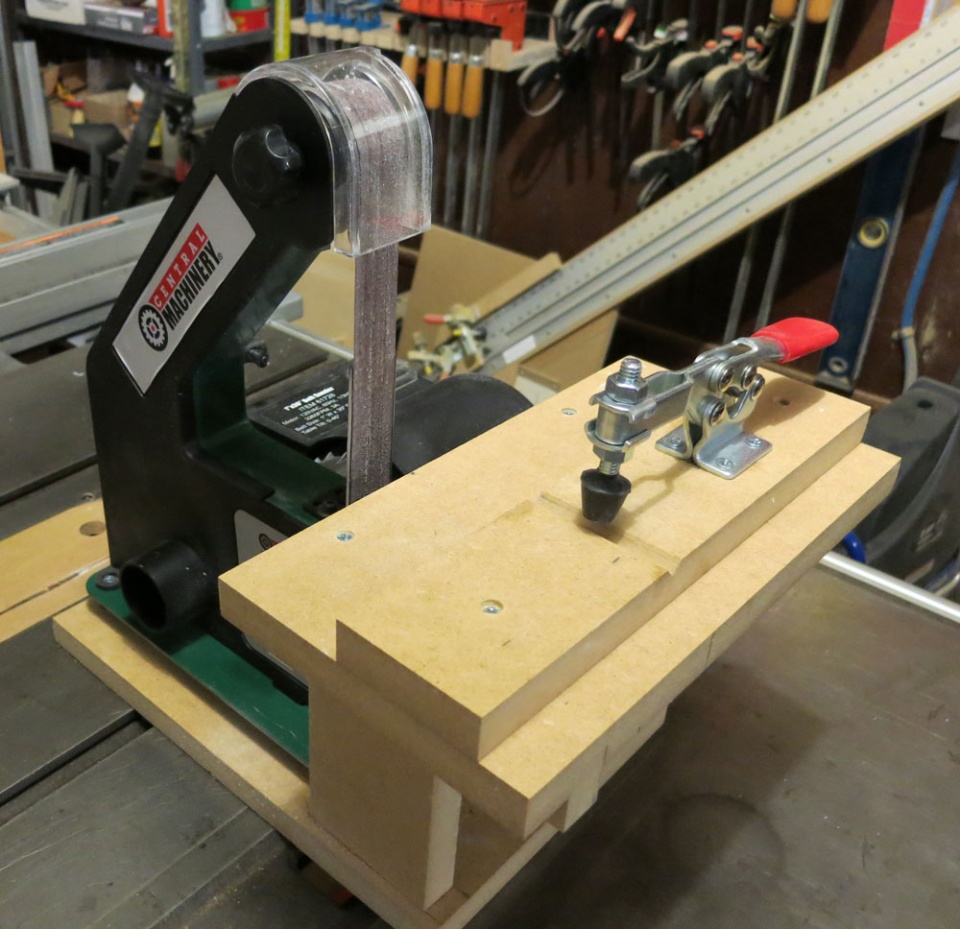

I've had one of the Ryobi sanders for about 12 years now, and it's seen its share of sanding and is still going strong. However, for pen blank squaring it was hard to keep that cheap miter gauge aligned. I purchased the Harbor Freight 1x30 belt sander and built a squaring jig for it. It uses a set of HF punches to align the blank. Picture is below if you're interested. The toggle clamp in the photo has since been replaced with a Bessey self-adjusting clamp.




magpens

Member
Joined
Feb 2, 2011
Messages
10,234
Location
Coquitlam, BC, Canada
I forgot to say that for pen-turning you can quite nicely get away without having a sander at all.

As for squaring blank ends, there are better ways to do it than using a sander. . Squaring blanks on the lathe with a skew or gouge is easy and accurate.

As for getting a headstart for rounding blanks on the lathe, you can bypass that and do the whole rounding operation with a gouge.

You can quite effectively make high quality pens without ever using a sander of any kind.

Now, for making pen stands and boxes a sander could be very useful.

Last edited:

DavidD

Member
Joined
Oct 4, 2017
Messages
186
Location
Boulder, Colorado
I think a belt sander is one of the most important beginning tools for a shop, and the combination belt/disk sander would be a huge asset for pen turning and general woodworking!

I'd echo Edgar & Bill in stating (1) make sure to pay attention to the ease of belt swaps, and (2) don't expect much from the miter gauge/disk table at this price point. I have several comparable models (Rikon, Ryobi) and pretty much avoid the disk sander. I'm sure someone more motivated could find ways to sure up the table/gauges, but they have too much play and I don't trust them for squaring blanks.

If you're on the fence and have the room in your budget, I hope you consider moving forward! It's amazing all the uses you will find for these little machines.

Good luck!

David


raar25

Member
Joined
Mar 29, 2011
Messages
761
Location
Glastonbury CT
My experience is that these smaller sanders are not rigid enough to sand the end of blanks square. Also recognize that your blank end needs to be square to the drilled hole and not the outside which are rarely every perfectly aligned. Use your lathe or a pen mill to get a really square end. If you want to sand than try a set up on the lathe using a rod sticking out of the tail stock with sandpaper set up on a faceplate turning on the headstock.

Hope this helps.
Ray


Houtkop

Member
Joined
Jan 13, 2016
Messages
55
Location
Jhb, South Afrika
He who dies with the most tools win!

It all depends on what you want to use it for. I also make knives, so I have a few dedicated sanders and belt grinders in my workshop, but when making pens I have a 5" velcro pad that I mount on the headstock and a MDF jig that fits on the bed to square my blanks (total cost about $8). It is always right there and easy to use.


StephenM

Member
Joined
Apr 16, 2011
Messages
535
Location
Webster Groves, MO
I have that same machine. I used it all the time when doing segmented blanks but never for squaring blanks. For that I use an end mill in a hand drill as the end will always be perpendicular to the tube.

Changing belts is a little bit of a pain because you have to remove the table to do so. Just 2 screws but enough that I just leave 120 on it and use it for shaping and stock removal only.
