Olympian Elite II with scallops and stripes

Signed-In Members Don't See This Ad
See more from KMCloonan

KMCloonan

Member
Joined
Jun 13, 2017
Messages
289
Location
Fox Lake, Illinois

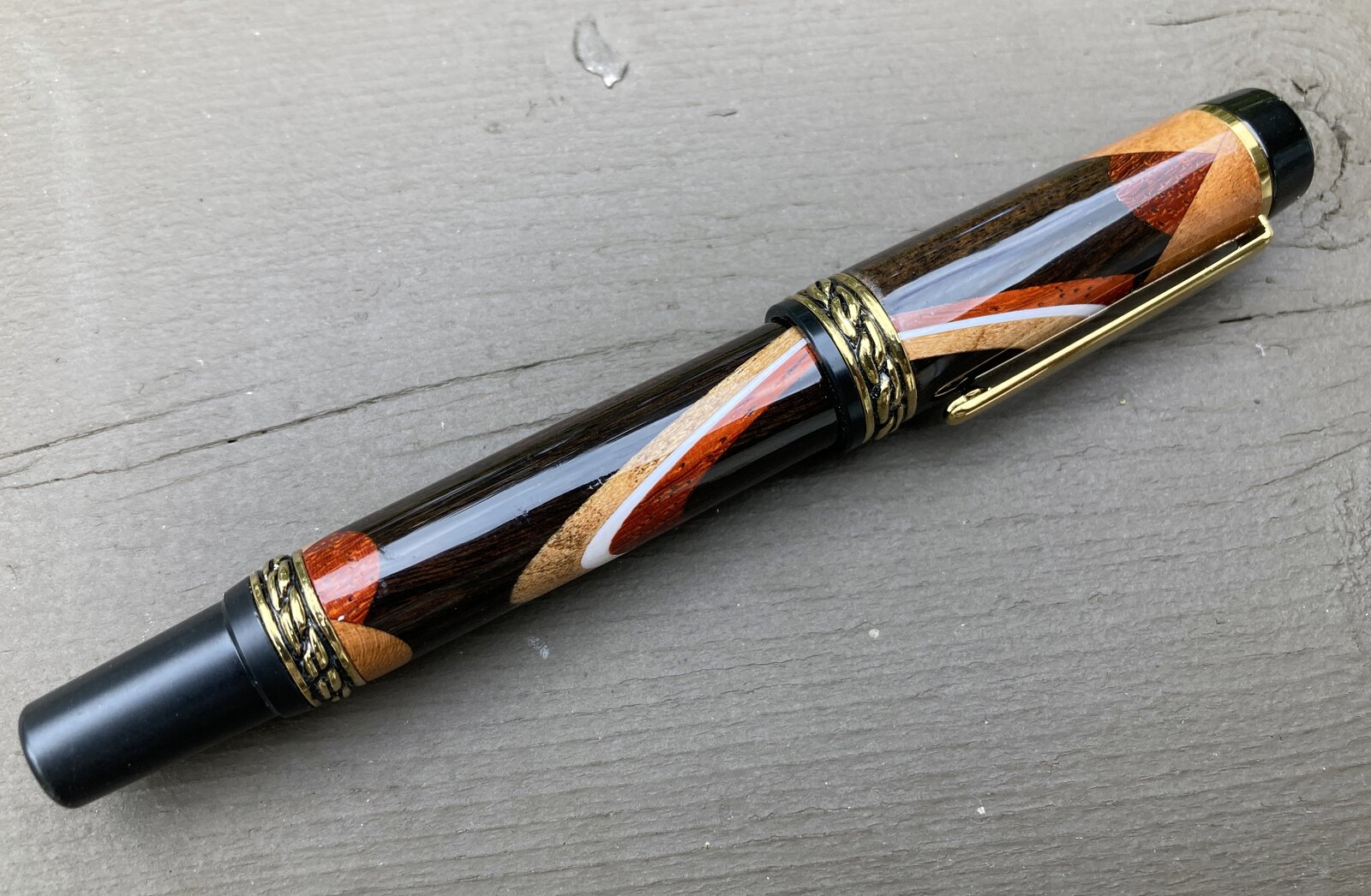

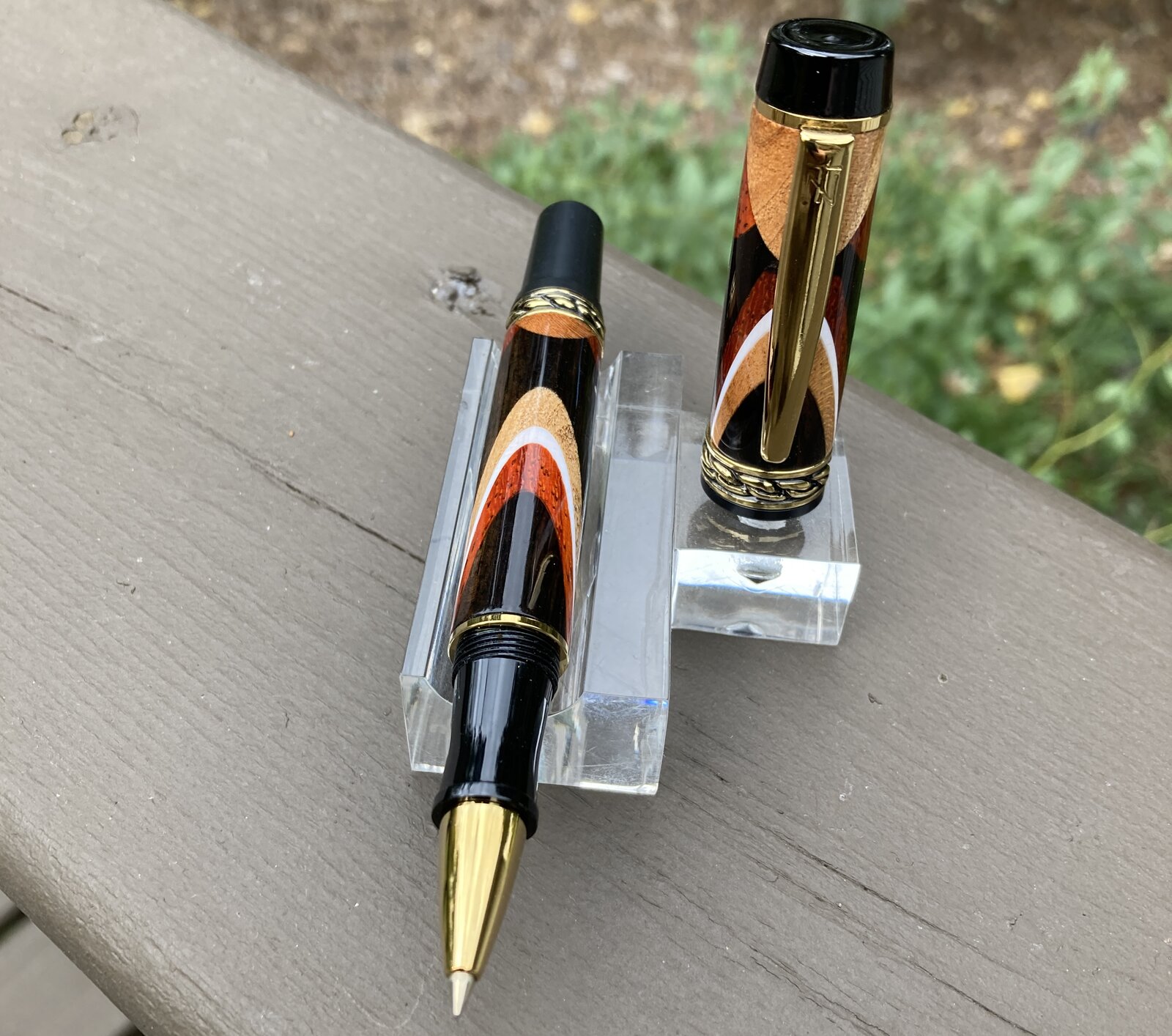

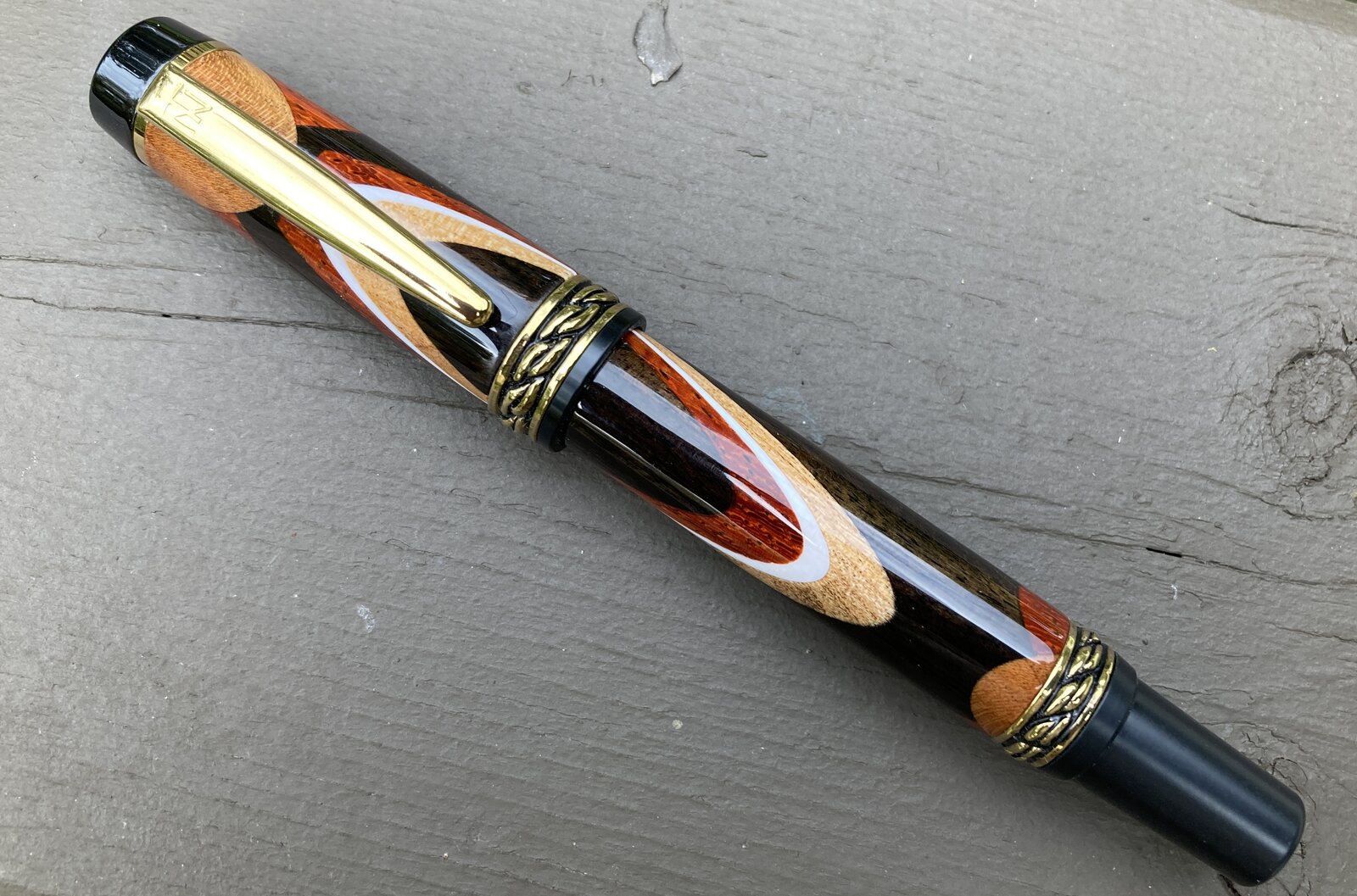

A bit of a mishmash of design elements, but it turned out pretty well. I like the stripes, even though they look nothing like what I had envisioned. With the shallow angle, the ends of the stripes really flatten out, but they are actually interesting to look at. Also, for the scallops, I used 45 degree cuts for the small scallops and 31.5 degrees for the larger scallops. Really makes a difference in the final size.
001.JPG 003.JPG 005.JPG

Signed-In Members Don't See This Ad

mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
11,313
Location
Medina, Ohio
I've never done scallops on the ends, but the mid-blank ones yes. I agree that they look very appealing. When I get something nice/unexpected, I tend to take lots of notes and save the photos. I like to plan for future success, as well as to tweak my results.

I really like your vibrant colors - very nice.

Well done and thanks for sharing.


KMCloonan

Member
Joined
Jun 13, 2017
Messages
289
Location
Fox Lake, Illinois
I've never done scallops on the ends, but the mid-blank ones yes. I agree that they look very appealing. When I get something nice/unexpected, I tend to take lots of notes and save the photos. I like to plan for future success, as well as to tweak my results.

I really like your vibrant colors - very nice.

Well done and thanks for sharing.
Thanks Mark!


smik

Member
Joined
Apr 12, 2013
Messages
196
Location
Ohio
A bit of a mishmash of design elements, but it turned out pretty well. I like the stripes, even though they look nothing like what I had envisioned. With the shallow angle, the ends of the stripes really flatten out, but they are actually interesting to look at. Also, for the scallops, I used 45 degree cuts for the small scallops and 31.5 degrees for the larger scallops. Really makes a difference in the final size.
View attachment 320052 View attachment 320054 View attachment 320056
Wow very nice.


leehljp

Member Liaison
Joined
Feb 6, 2005
Messages
8,357
Location
Tunica, MS,
I missed this the first time around but I was out of town for 3 days.

BEAUTIFUL. Well deserved Front Page!

I am not generally a fan of segments of wood on wood, but yours is exceptional. I like brass, copper or aluminum shims separating different colored woods but in your case, it is stunning!

I think (and am guessing) that you cut your angles very carefully with a sharp TableSaw or Byrnes type of saw. The way the segments are so smooth suggest it was not done by a Band Saw - UnLess you fine sanded the matching segments after cutting! The segments do not feather out unevenly as BS can cause. EXCEPTIONAL! AND the Finish also!


KMCloonan

Member
Joined
Jun 13, 2017
Messages
289
Location
Fox Lake, Illinois
I missed this the first time around but I was out of town for 3 days.

BEAUTIFUL. Well deserved Front Page!

I am not generally a fan of segments of wood on wood, but yours is exceptional. I like brass, copper or aluminum shims separating different colored woods but in your case, it is stunning!

I think (and am guessing) that you cut your angles very carefully with a sharp TableSaw or Byrnes type of saw. The way the segments are so smooth suggest it was not done by a Band Saw - UnLess you fine sanded the matching segments after cutting! The segments do not feather out unevenly as BS can cause. EXCEPTIONAL! AND the Finish also!

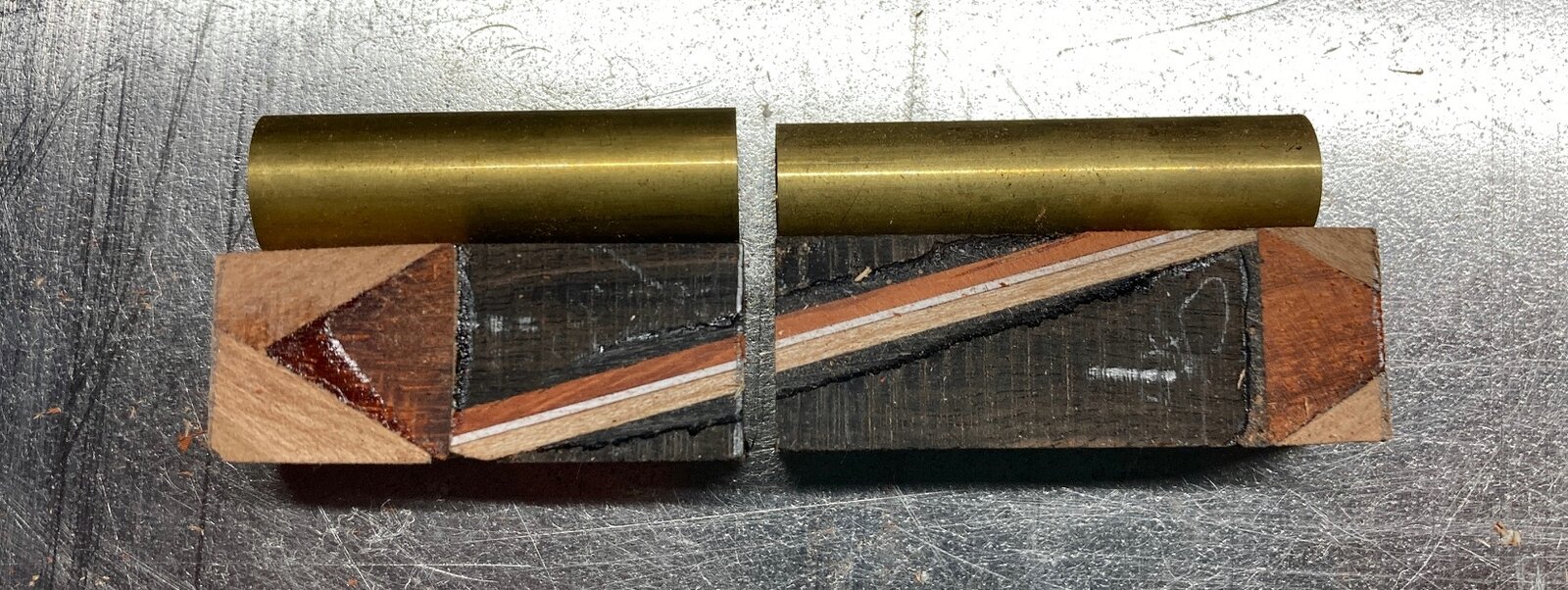

Thanks Hank. Truth be told, I made this blank the same way I make a lot of blanks - I cut the blank on my table saw using a jig to hold the blank at (in this case) a shallow angle. You can see from the picture how the blank went together.


Because the stripe is at a shallow angle, it flattens out when it hits the outer edge of the blank. Then, as I turned it, the stripe became rounded on the end. The combination of my turning, and finish sanding seemed to give the stripe some good crisp lines.

The other end of the stripe is cut off by the chevron (more bad design on my part than anything intentional).


I guess I just got really lucky with the finished pen. I had made several others with the same woods, and the combination of ebony, padauk and mahogany always seems to go together well. I like the white PVC cardstock to provide some crisp separation - some thing I learned from Mark James' pens when I first joined this group.


Anyway, that's all there is to it. I was very surprised, and quite happy to make the front page. I am delighted that others like the pen. :)


EDIT - I should add one more explanation on this pen. Several months ago I posted about Fat vs normal pens - I have a customer who really likes the larger diameter pens - I was concerned at the time about how a Celtic knot would look on a larger diameter (it looks fine).

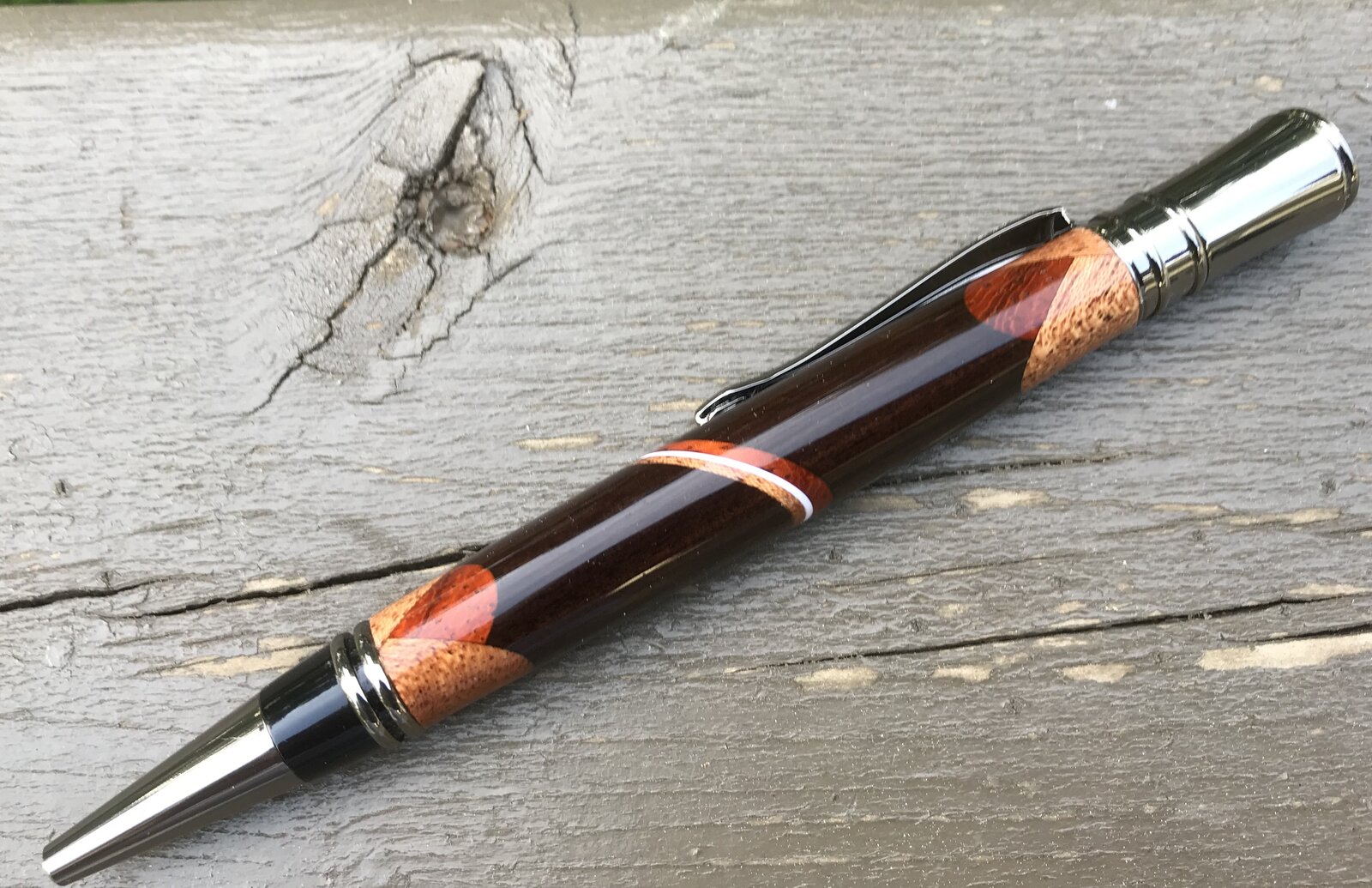

Anyway, my customer saw one of my earlier pens and asked if I could make something similar for him in an Olympian Elite 2, with the larger diameters. Below is a photo of the Executive pen that was the original inspiration. I made it about 2 years ago.


When my customer asked for this, I set about making the blank I showed above. But I made a key mistake - with my customer wanting large diameter segments, there is less opportunity to remove wood from a normal (3/4") blank. As such, I could not remove enough material to blend in the ends of the stripe, and the scallops were not fully developed. I basically threw the turned blanks you see in the photos above into my scrap bin, and started over on the pen, using 1" thick blanks.

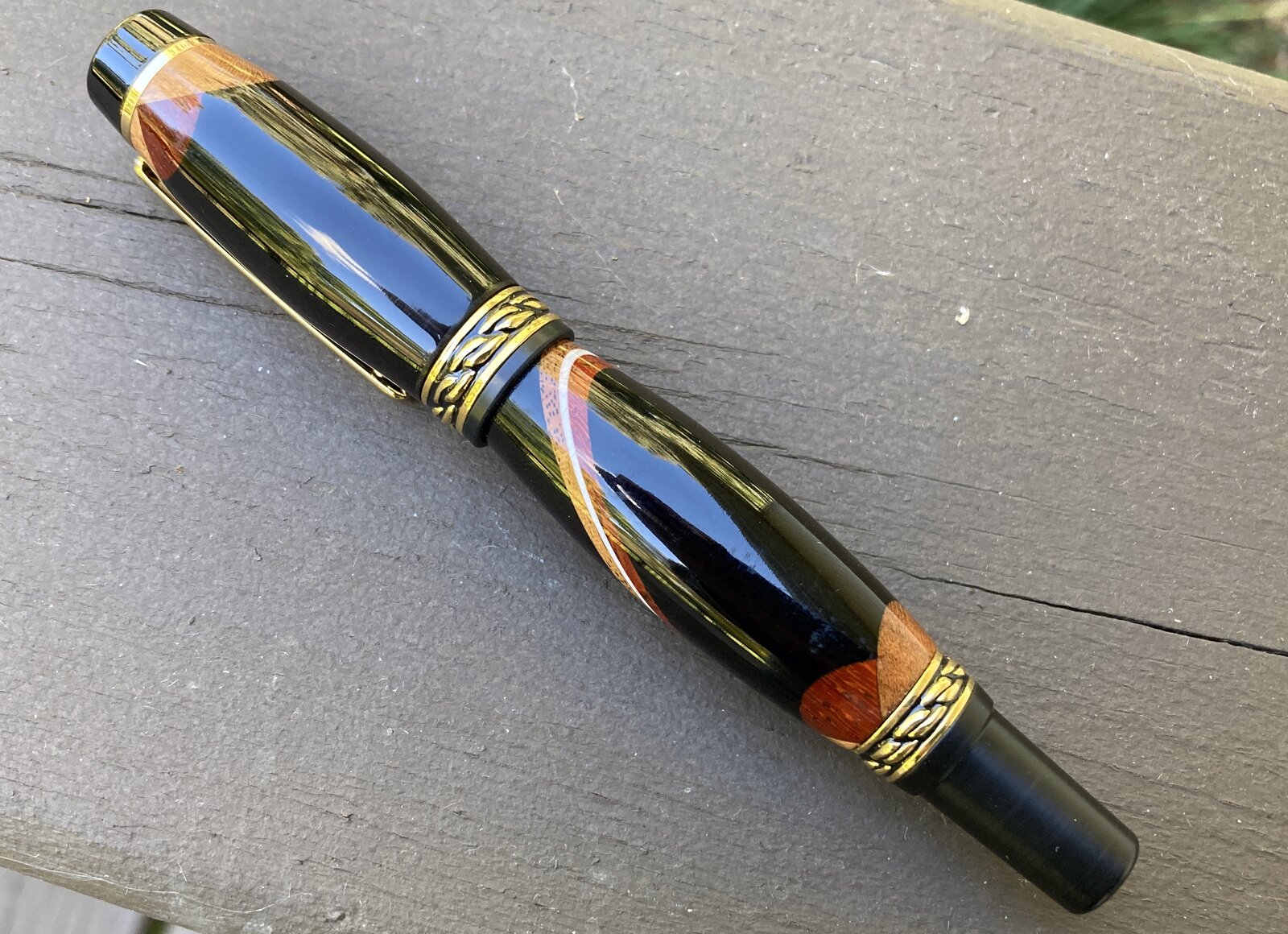

Here is a photo of the finished pen I ended up making for my customer:

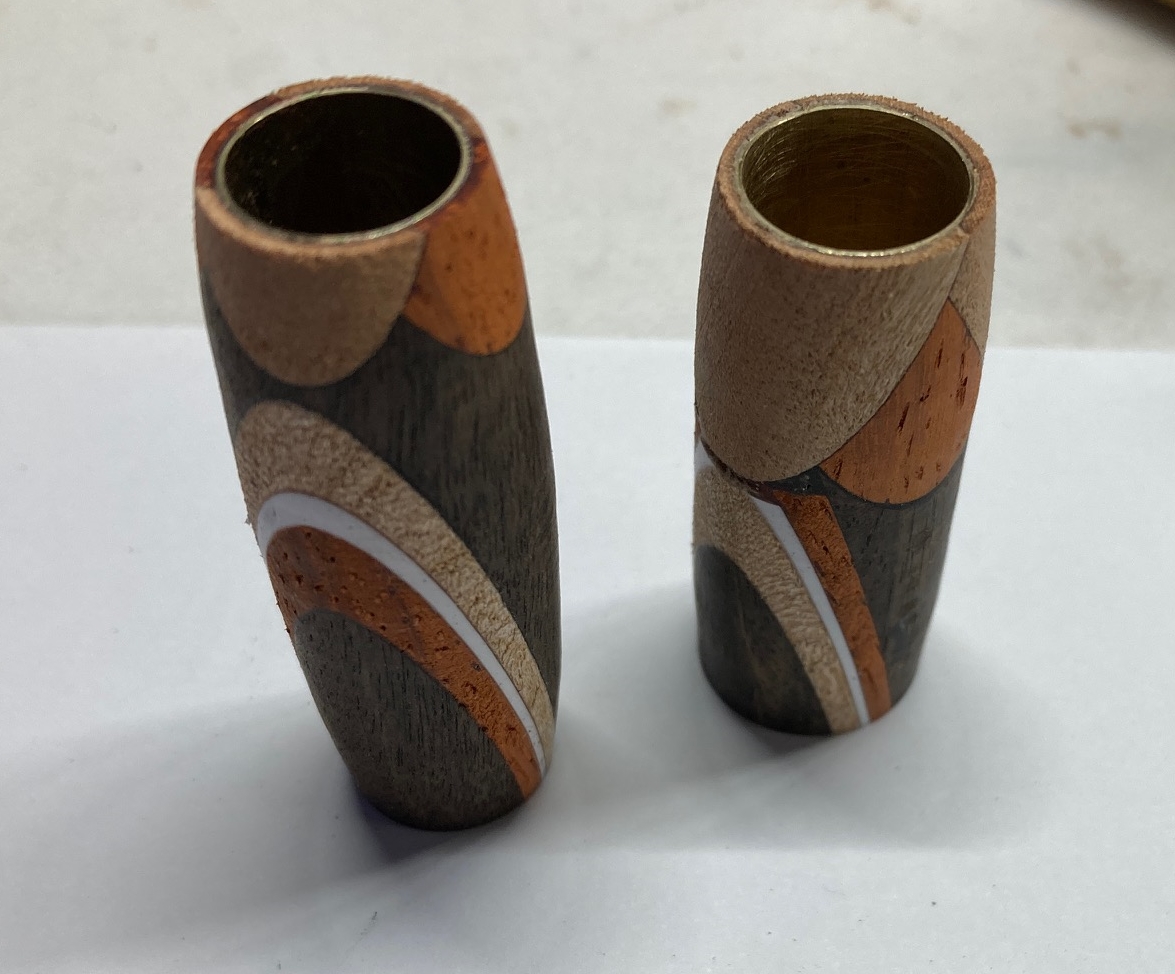

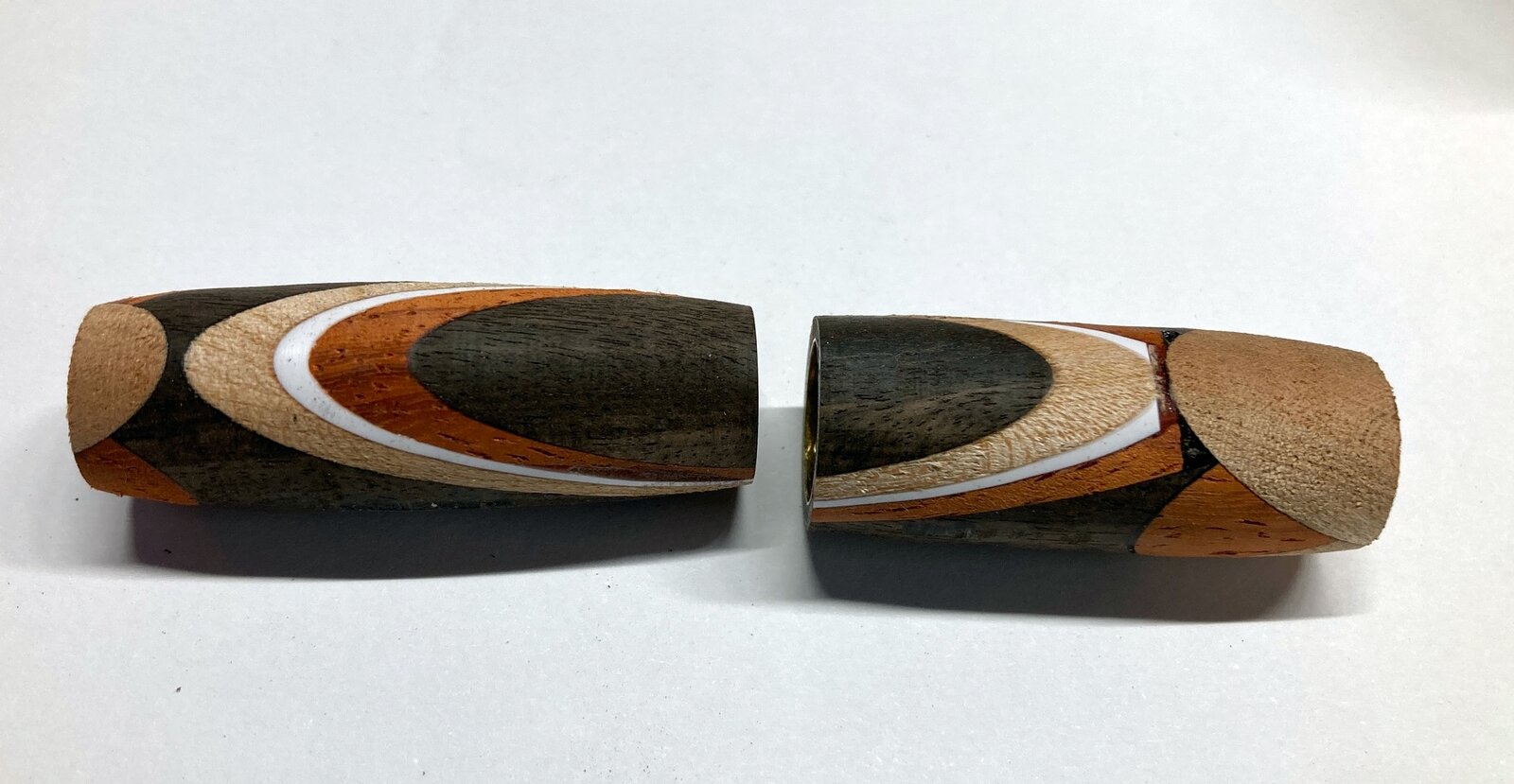

After I completed this pen, I started wondering what the original pen would look like if I threw it back on the lathe, and turned it to the bushing diameters. So I dug the blanks out of the scrap bin and finished turning them. The result is what I posted here last week, and it ended up on the front page.

Apologies for the long post, but I thought I would share with the message that not everything that goes in the scrap bin is beyond being salvaged.

Last edited:

howsitwork

Member
Joined
Jul 9, 2016
Messages
1,697
Location
Thirsk
Kevin

an excellent result and many thanks for the clear itemised explanation of how it was achieved. One of those that just works


Kcimdrib

Member
Joined
Nov 1, 2020
Messages
910
Location
UK
Amazing thanks for sharing that with us. I'm at least inspired to keep trying. And one day I will get close.
Excellent work.


cyclop5

Member
Joined
Jun 26, 2021
Messages
1
Location
Chicago
This pen inspires me (as do most others I see here). The walkthrough sure helps to see how putting various pieces together in different ways creates a specific effect.

Thank you for the details.
