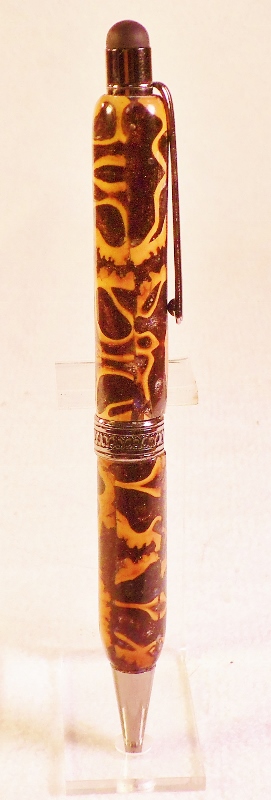

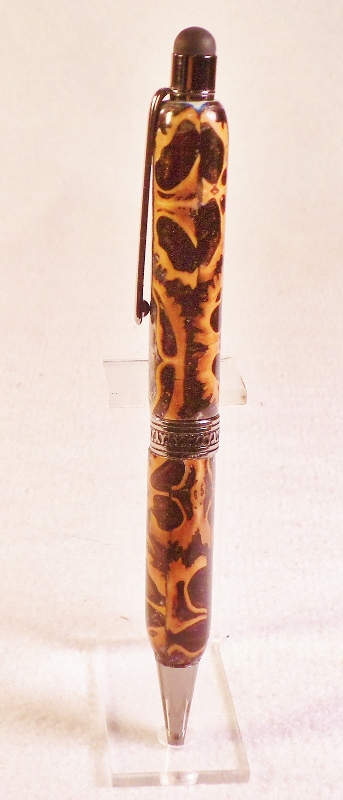

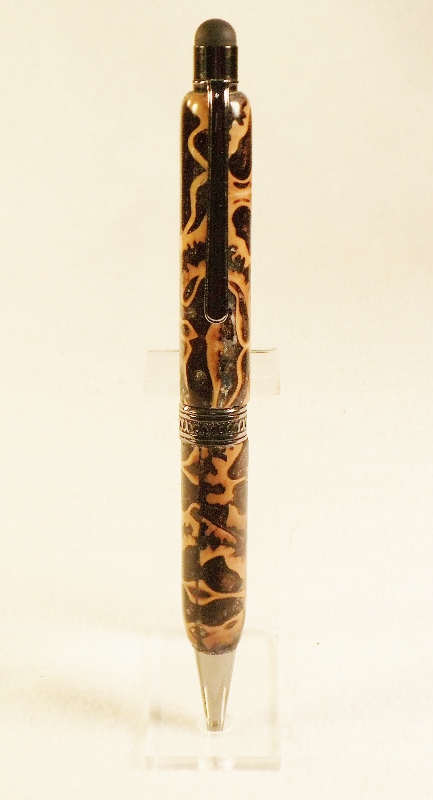

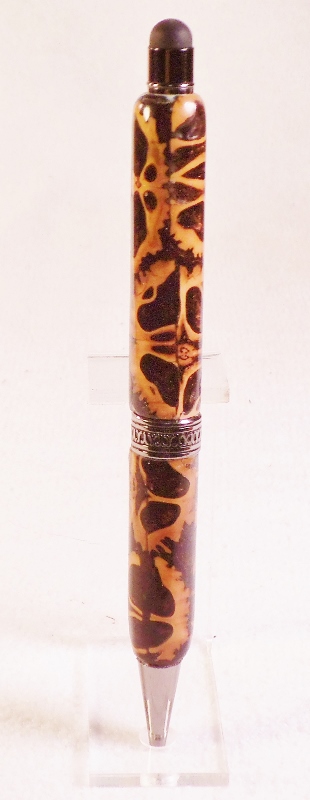

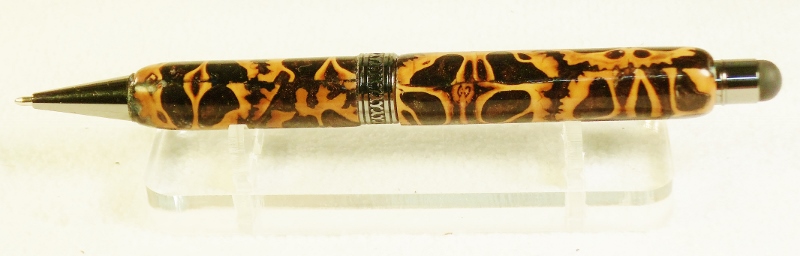

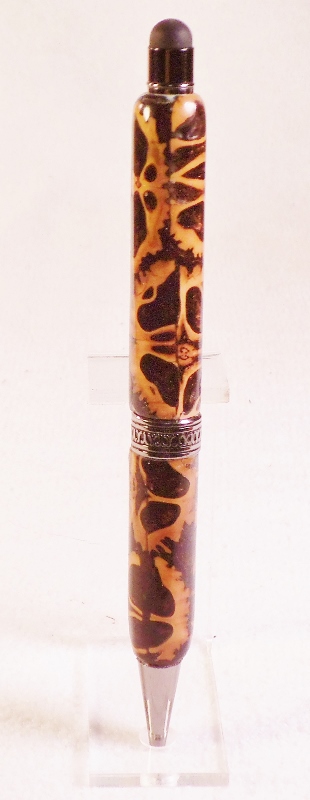

Walnuts, that is !! This is one of several blanks I cast the other day. As you can see I had nothing to do, and all day to do it. The kit is a CSUSA Artisan European Soft Touch Stylus/Pen in a Gun Metal finish. The blanks are PR with Pearlex Carbon Black and Super Copper powders added. The design comes from segmented Walnut shells glued on all four sides to a central shaft. Turned round, sanded to 1200, and 8 coats of thick CA added. Resanded to 1200 and polished with One-Step plastic polish. The Walnuts are as they fell from the tree with the thick protective coating covering the nut, not as you would buy them at the store. I segmented them on the band saw into 1/8 inch slabs and resawed the slabs to fit my center shaft. Before casting I rounded the rough edges and corners on the belt sander. After casting I used a Sure-Foam file on my mid size lathe to round the blank. Next it went to my mini metal lathe for final turning to size and finishing. Jim S


Attachments

  • DSCF0001 (800x256).jpg
    DSCF0001 (800x256).jpg
    179 KB · Views: 359
  • DSCF0002 (433x800).jpg
    DSCF0002 (433x800).jpg
    200.6 KB · Views: 285
  • DSCF0003 (271x800).jpg
    DSCF0003 (271x800).jpg
    192.5 KB · Views: 266
  • DSCF0004 (310x800).jpg
    DSCF0004 (310x800).jpg
    184.9 KB · Views: 201
  • DSCF0005 (343x800).jpg
    DSCF0005 (343x800).jpg
    214.4 KB · Views: 231
Signed-In Members Don't See This Ad

Band Saw Box

Passed Away Dec 8, 2021
In Memoriam
Joined
Sep 21, 2013
Messages
3,670
Location
Hampton, VA 23666
That is a really cool looking pen Jim. I like the coloring of the blank, your fit and finish is fantastic. Well done.


JohnU

Member
Joined
Jan 31, 2008
Messages
4,923
Location
Ottawa, Illinois
Your too quick for me. I have a pile of them drying in my basement as I type. lol
I think it looks awesome! I love the natural edge of the black walnuts. They are no fun to pick clean but they sure make a nice looking "one of a kind" pen. Nice work!


stonepecker

Member
Joined
Oct 29, 2012
Messages
4,382
Location
central Minnesota
Wait till this fall..........I usually pick up somewhere between 600-900 nuts just to get them out of my yard. The rest disappear until spring when I have about 2 dozen seedlings in my yard.
Looks like I might just have to peal a few of them for fun.

GREAT looking pen.


plantman

Member
Joined
Jan 2, 2012
Messages
3,437
Location
Green Bay, Wi
Wait till this fall..........I usually pick up somewhere between 600-900 nuts just to get them out of my yard. The rest disappear until spring when I have about 2 dozen seedlings in my yard.
Looks like I might just have to peal a few of them for fun.

GREAT looking pen.

:eek: Don't peal the outer shell off !! Thats what gives you the feathered edge. I have also sliced the nuts in 1/8 inch crosss sections, routed out an oval in a box lid, glued the section in the oval, filled the routed oval with black body filler, and sanded smooth. Makes a very interesting design. If you have to many nuts, just send a box my way. Jim S


BSea

Member
Joined
Dec 28, 2009
Messages
4,628
Location
Little Rock, Arkansas
You know yesterday when I 1st saw this thread, I really liked the pen, and wanted to give it a try. Then this morning I looked at it again, and I thought . . . . . . . . ummm not so much. But this afternoon I really like it again. So I guess you could say. . . . . . .

Sometimes you feel like a nut . . . . . Sometimes you don't. :biggrin:

But on the serious side. That's a really nice pen. :good:


JohnU

Member
Joined
Jan 31, 2008
Messages
4,923
Location
Ottawa, Illinois
Wait till this fall..........I usually pick up somewhere between 600-900 nuts just to get them out of my yard. The rest disappear until spring when I have about 2 dozen seedlings in my yard.
Looks like I might just have to peal a few of them for fun.

GREAT looking pen.

I have about 12 black walnut trees on my property with 5 around the side and front of the house. I usually spend 2 days a week for a good month picking up walnuts. Apparently I don't have enough squirrel in the area. I sliced a couple up a couple years ago and then put it on the "to do" list, just to find a use for the nut shells. Lately I was thinking of smashing them in to jagged pieces and then cast them like acorn caps. Just never go around to it yet. Now that I see some of you wanting nuts..... I think I know a yard where you can pick up all you want. lol


stonepecker

Member
Joined
Oct 29, 2012
Messages
4,382
Location
central Minnesota
Who has done this before that is willing to make a vid showing us dummies how this is done.
I have the nuts. I have the desire.......I just don't have the knowledge.

Thanks,


plantman

Member
Joined
Jan 2, 2012
Messages
3,437
Location
Green Bay, Wi
You know yesterday when I 1st saw this thread, I really liked the pen, and wanted to give it a try. Then this morning I looked at it again, and I thought . . . . . . . . ummm not so much. But this afternoon I really like it again. So I guess you could say. . . . . . .

Sometimes you feel like a nut . . . . . Sometimes you don't. :biggrin:

But on the serious side. That's a really nice pen. :good:

Bob; You realy crack me up !!! Jim S


OZturner

Member
Joined
Aug 5, 2013
Messages
6,663
Location
Sydney. NSW. Australia
Great Blank, Jim.
I am exhausted just reading your description of the steps required to make them.
Glad it's you and not me.
Terrific Work, Fantastic result.
Brian.


plantman

Member
Joined
Jan 2, 2012
Messages
3,437
Location
Green Bay, Wi
Your too quick for me. I have a pile of them drying in my basement as I type. lol
I think it looks awesome! I love the natural edge of the black walnuts. They are no fun to pick clean but they sure make a nice looking "one of a kind" pen. Nice work!

John; I am out of walnuts. If you are interested, send me a shoe box of nuts along with your favorite pen kit, and I will make the kit up for you. Jim S


plantman

Member
Joined
Jan 2, 2012
Messages
3,437
Location
Green Bay, Wi
Great Blank, Jim.
I am exhausted just reading your description of the steps required to make them.
Glad it's you and not me.
Terrific Work, Fantastic result.
Brian.

Thank You Brian: It's about the same as doing the egg shells. Second blank went a lot faster because I had an idea of what I was about to do, and how to go about it, sort of !!! I ran out of Walnuts so I won't be trying any more until I can find another sorce. Jim S
