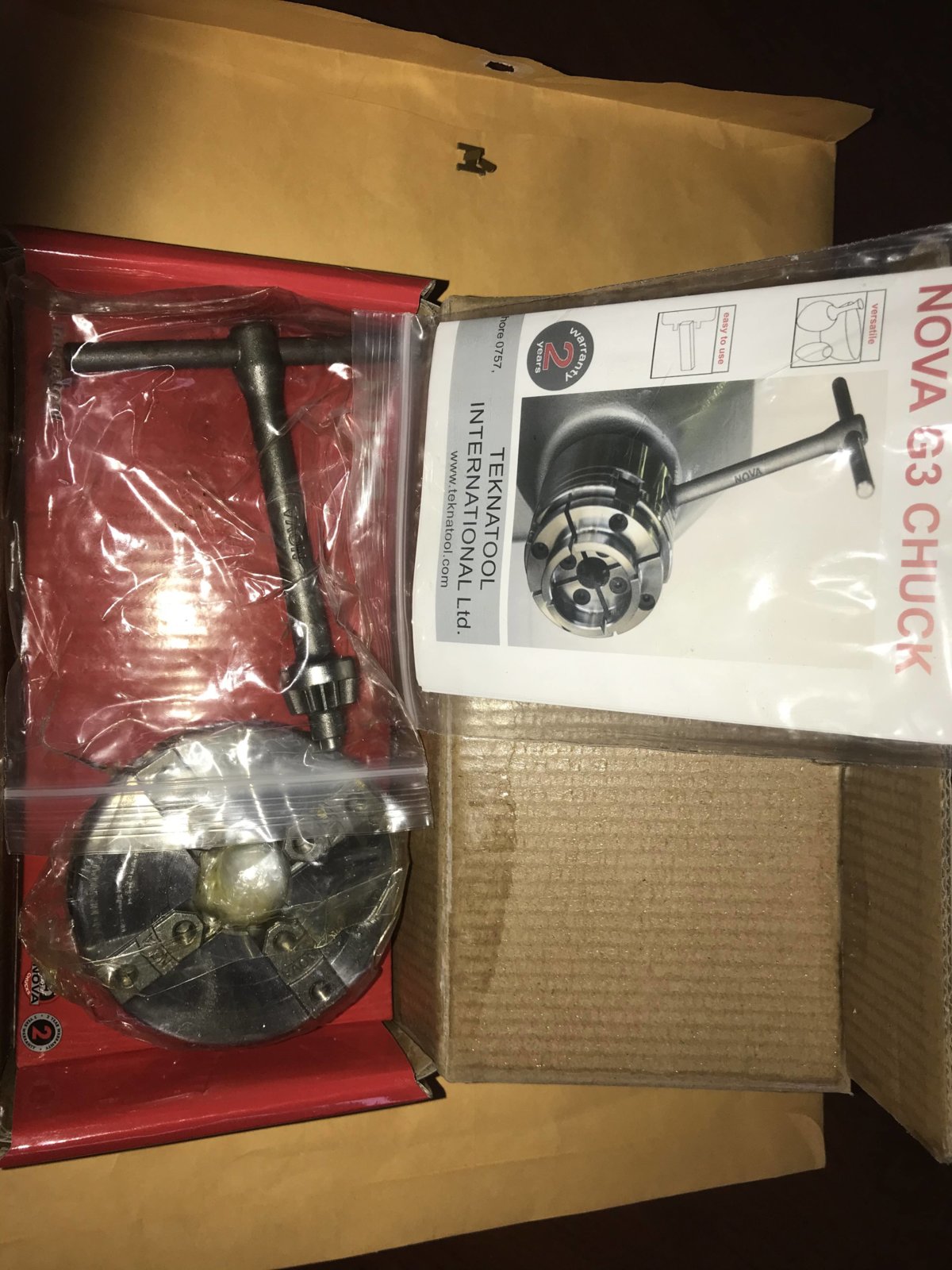

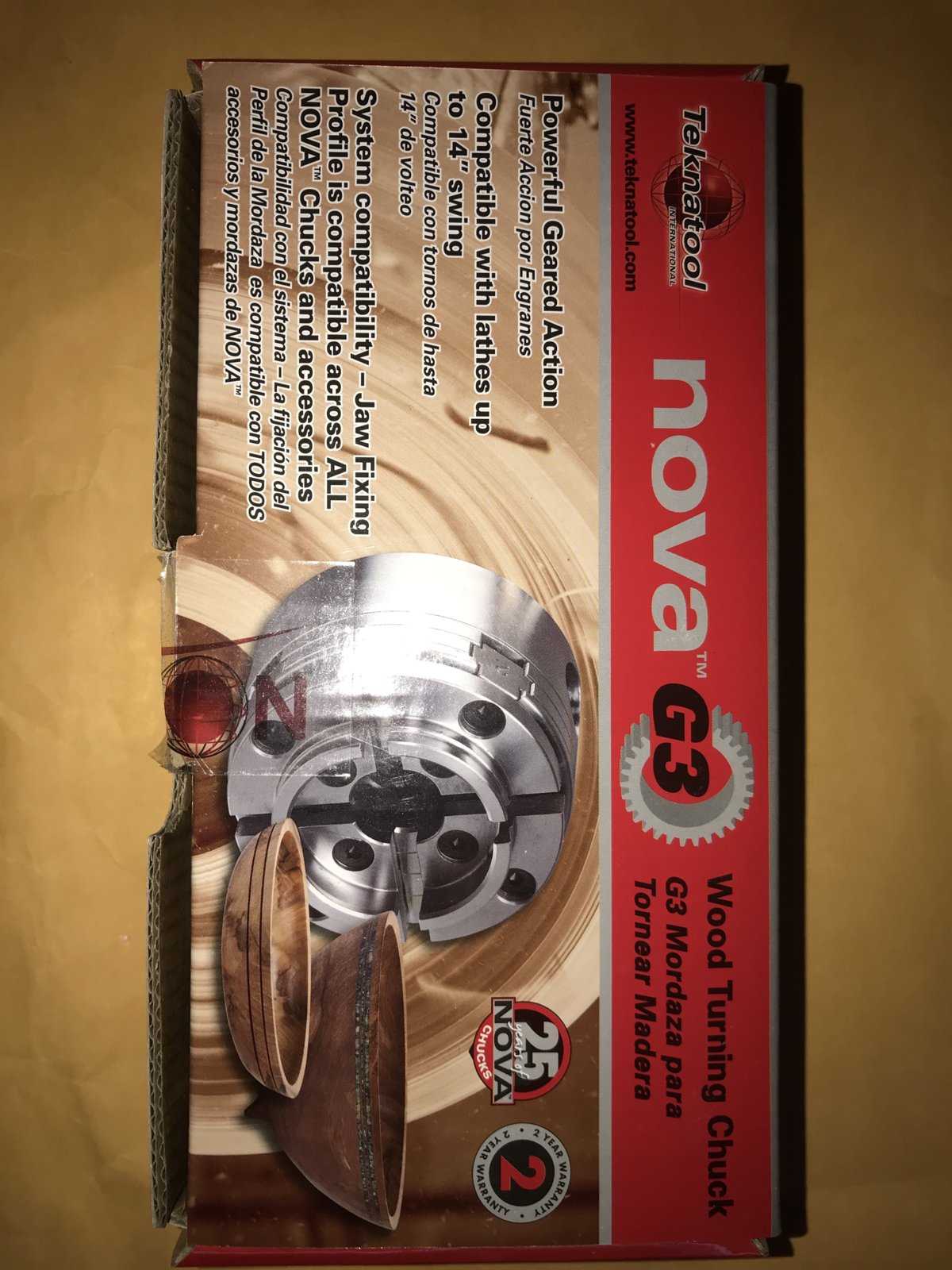

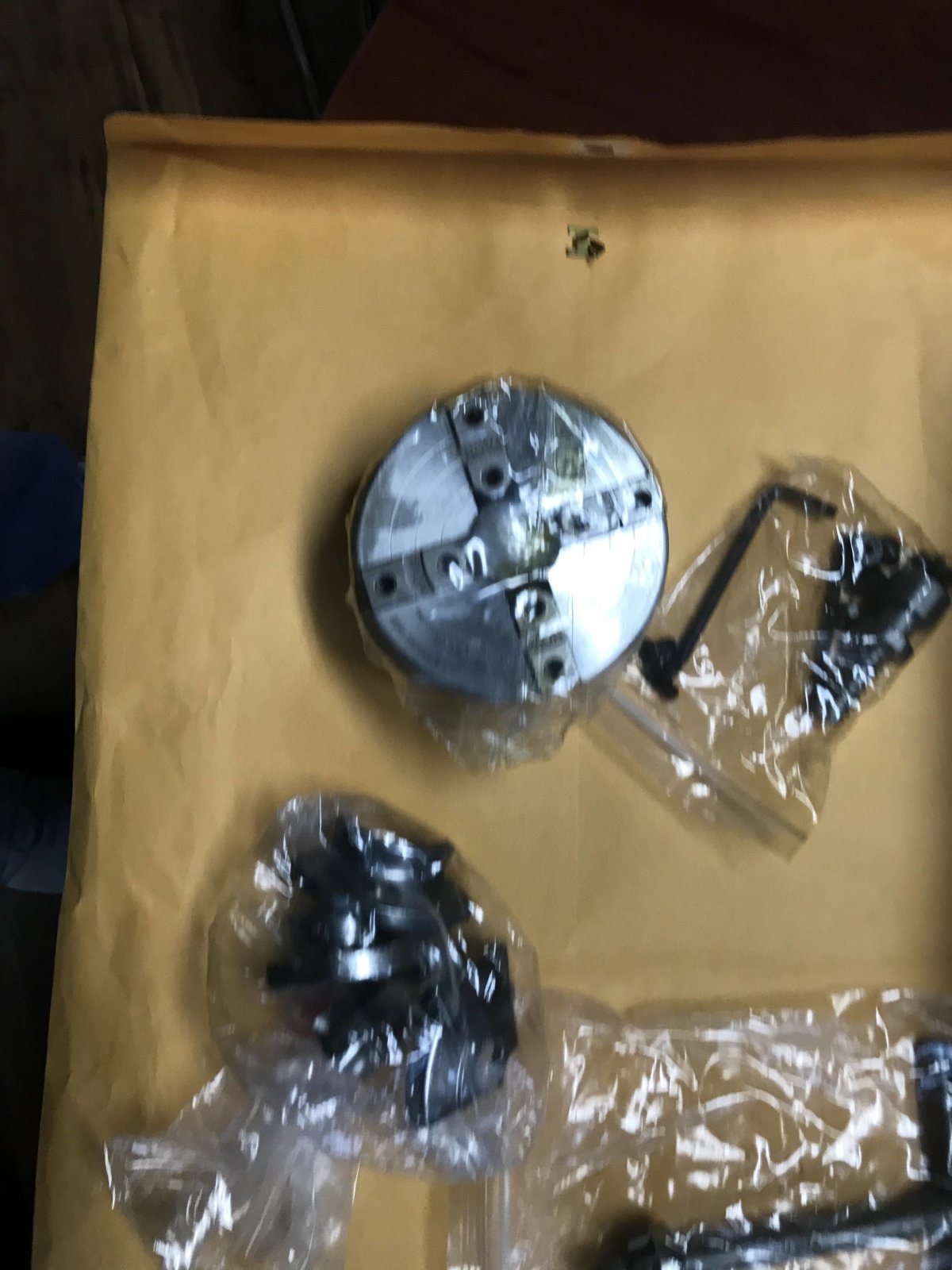

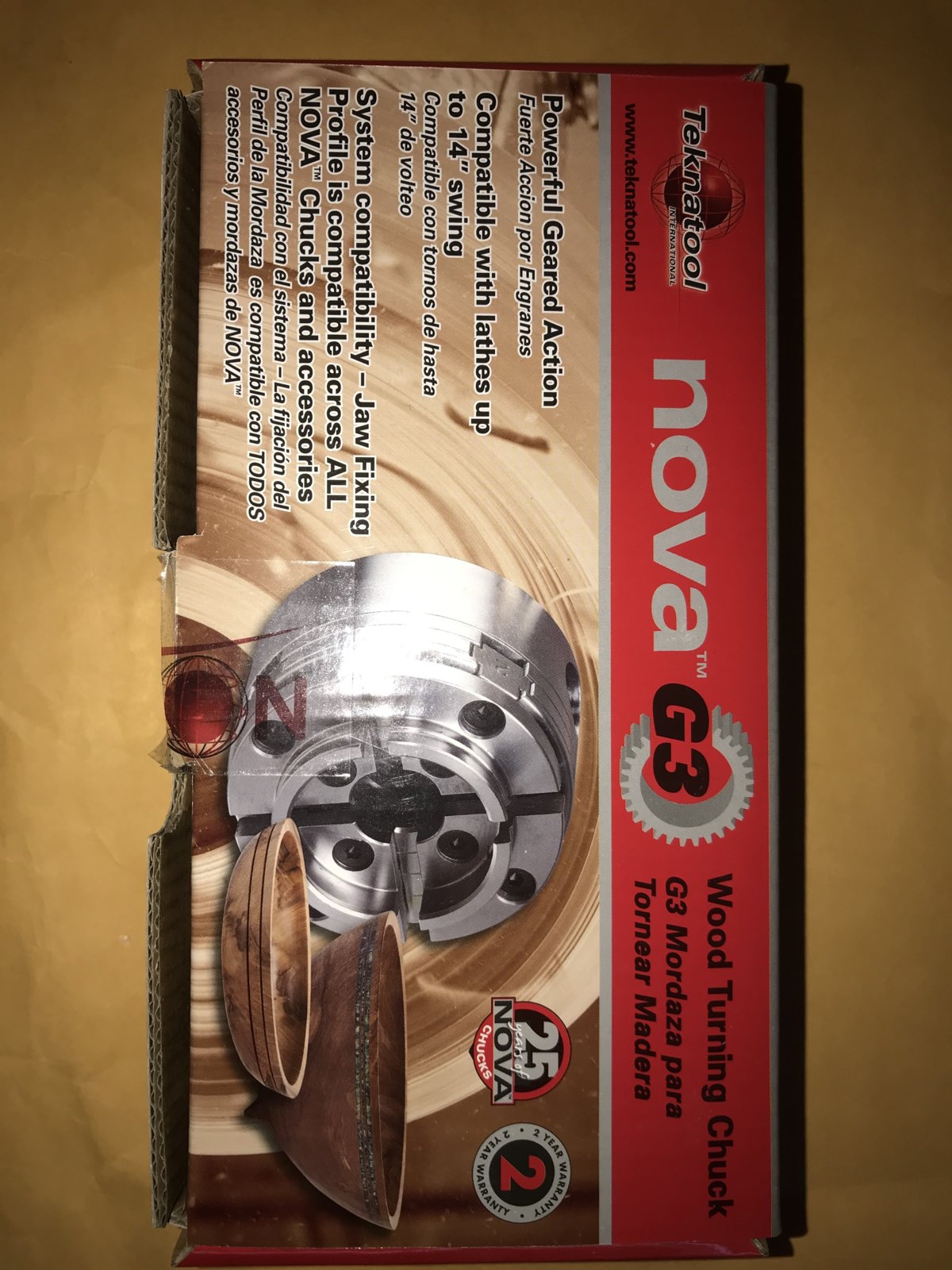

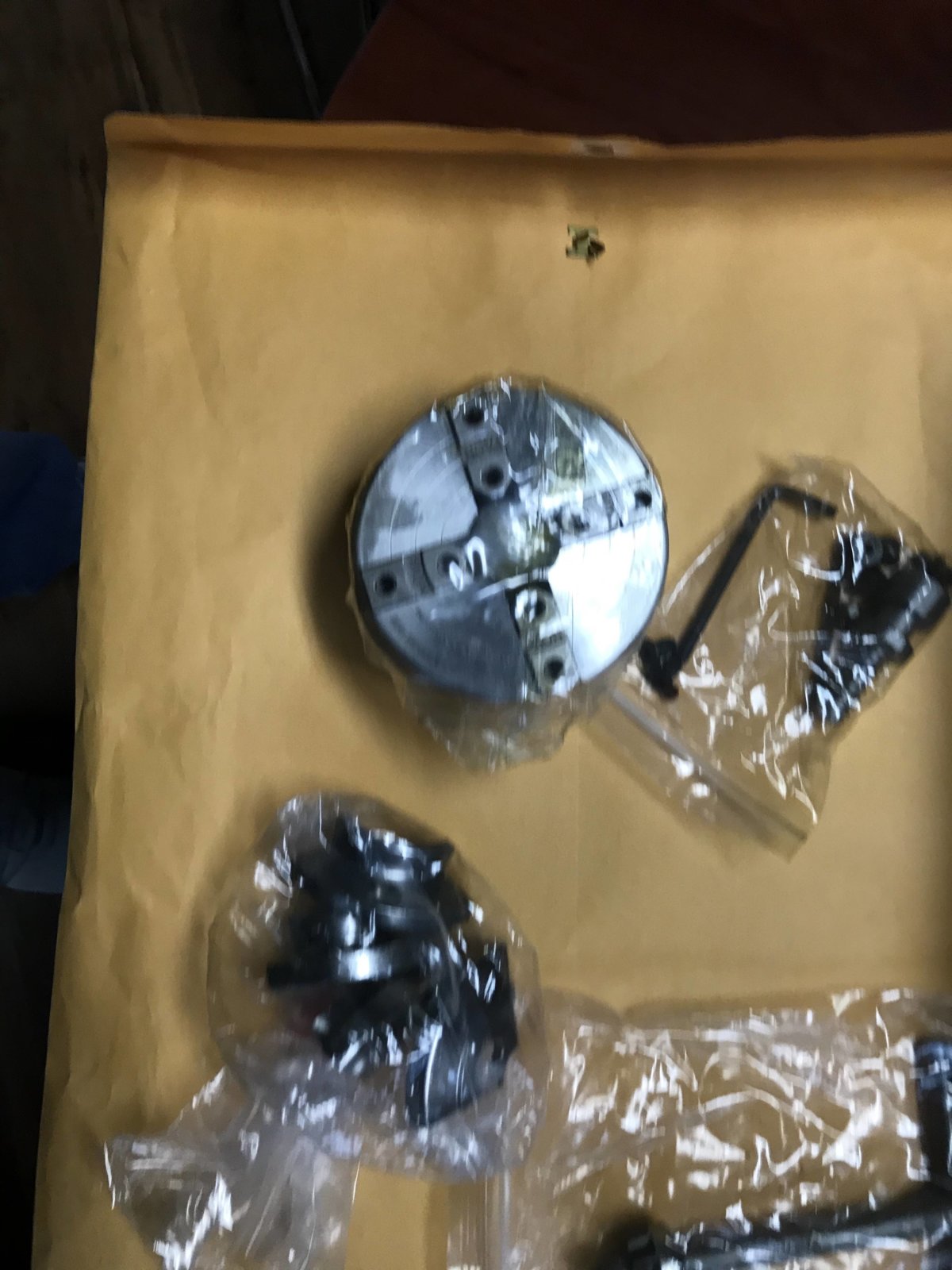

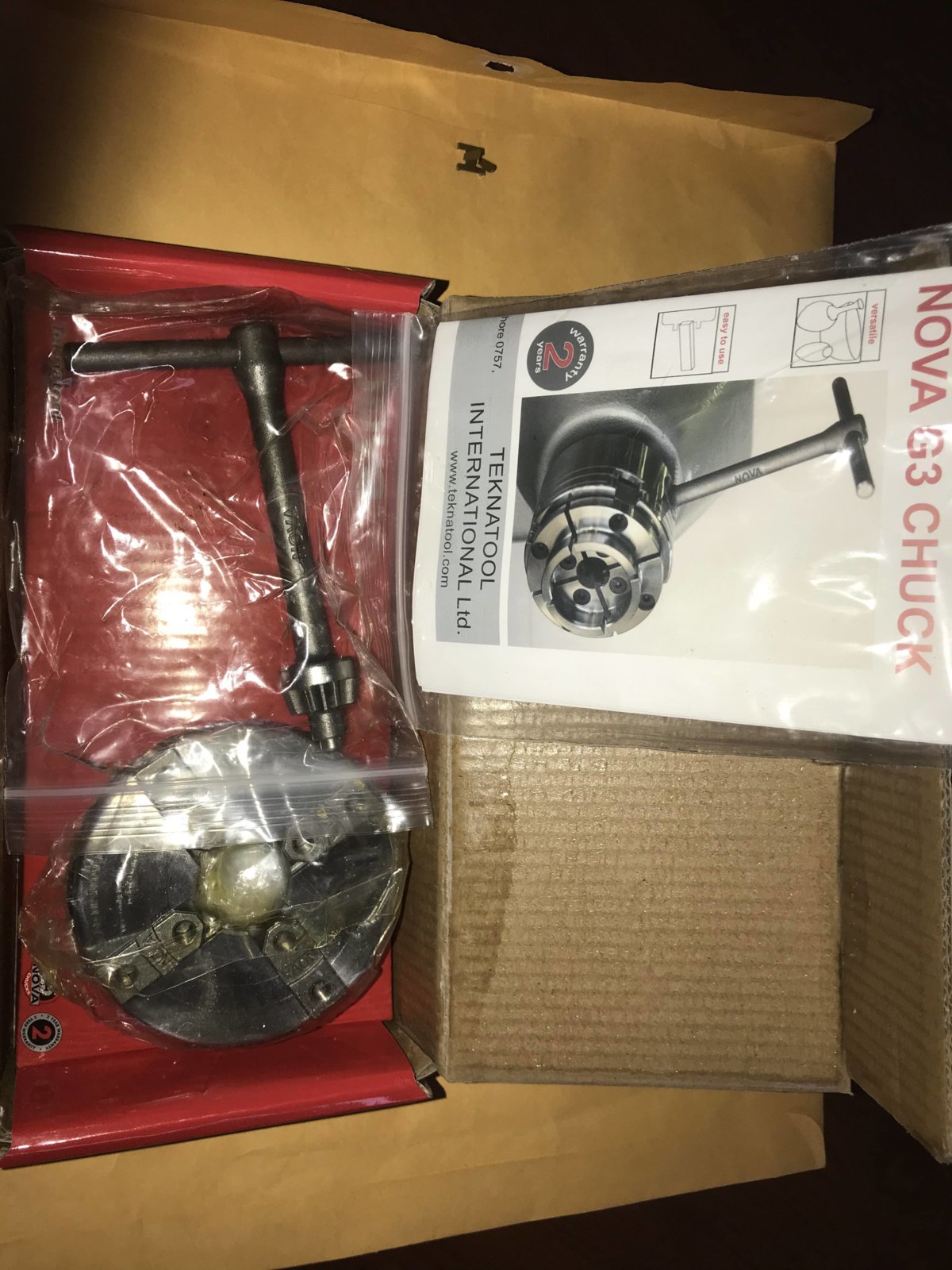

I have a new still in the box, never used Nova G3 Chuck for Sale - $100 and I will ship it to the continental US via USPS for Free. Please PM me for PayPal information and any questions you may have. It is part number 48232 and the box includes:
The Nova G3 Chuck
T Bar Chuck Key
50mm Jaws
Woodworm Screw
Fasteners
Instruction manual

The product description from Technatool reads:
NOVA G3 DIRECT THREAD (NON-INSERT) CHUCK 1″X 8TPI REVERSIBLE (SKU 48232)

The NOVA G3 Woodturning Direct Thread (non-insert) 1″ x 8TPI LH/RH is a 4 Jaw self-centering reversible geared chuck. The strong but lightweight body has less overhang which is perfect for smaller lathe spindles. The small 1.79″ body length delivers less overhang from the spindle than the larger geared chucks – the SuperNOVA2 Chuck and the Titan III chuck, reducing stress on smaller lathe spindles. With unique NOVA features such as Auto Stop, Copper Composite Jaw Slides, Woodworm Screw, Comfortable T-Bar Handle and 2″ Jaws as standard, this chuck is fully featured. Powerful TuffLock™ gearing with precise, hardened action delivers incredibly smooth strength for a solid, vibration free performance. Enhanced Jaw Gearing and Reverse Lock features that ensure this chuck will remain engaged and locked on the spindle for use in forward and reverse. WILL NOT ACCEPT CHUCK ADAPTOR. Will only accept NOVA Spindle Adaptor: SKU 9085 or SKU 9084

FEATURES:
• Quality materials used throughout for long life in tough woodworking conditions.
• Precision machined from single solid steel billet for maximum performance.
• High Tech Precision Composite Jaw Slides. Special NOVA Woodturning Dovetail Profile on Jaws
• Special NOVA Woodturning profile on Jaws to cut into and grip wood fibers firmly
• Powerful Geared Grip with TuffLock™ technology. Precise, hardened geared action delivers incredible smooth strength. Solid, vibration free.
• Auto Safety Stop Feature. Jaw slides can’t protrude past the chuck body.
• Comprehensive Instructions. Common Insert/Adaptor Fitting – compatible across all NOVA Chucks.
• Single Handed Operation. Chuck key has a fast, positive location, easy and comfortable to use. More time spent turning and less time spent preparing.
• Safe Lock™ Woodworm Screw included.
• Open back for easy cleaning and to reduce weight on smaller lathe spindles
• Fits the full range of NOVA Chuck Accessories
• Small, Compact Design. Minimizes load on small spindles and bearings.

SPECIFICATIONS:
• Direct Threaded 1″x 8TPI RH
• Up to 350mm/14″ diameter, bowls using 50mm/2” Jaws (supplied with chuck)
• Up to 50mm/2″ length spigots (using 50mm/2” Jaws (supplied with chuck)
