Segmenting Nothing unique, but....

[KenB259]

These blanks turned out nice. These are a 3 sided design. Materials are maple and padauk and black vaneer. 103 segments , if I counted correctly.


Sent from my iPhone using Penturners.org mobile appView attachment 236727



[Lucky2]

Ken, there's something missing from your posting.

Len



[KenB259]

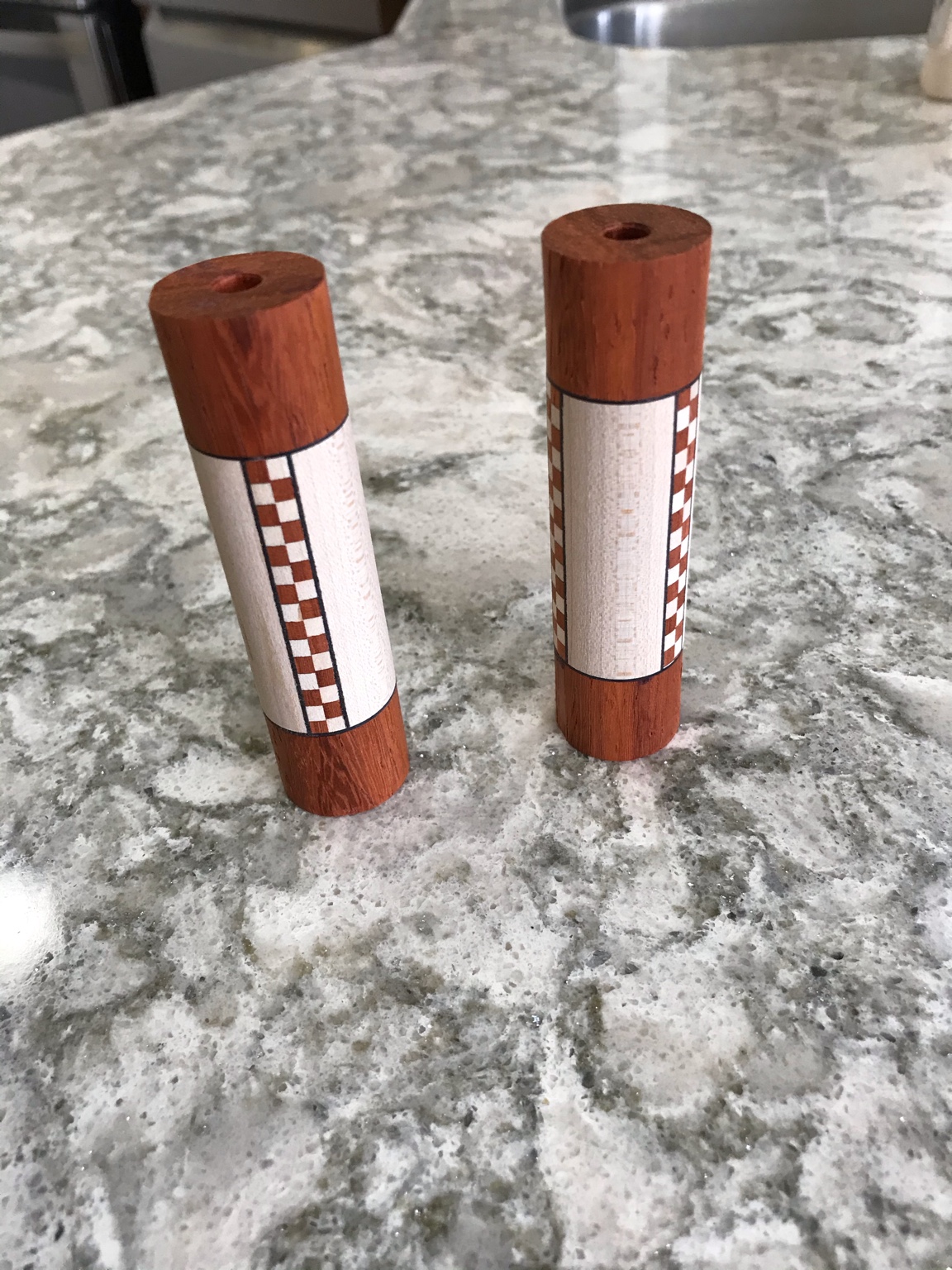

Here's the blanks.

Sent from my iPhone using Penturners.org mobile app



[Lucky2]

Wow, those should make for a gorgeous pen, what type of kit do you plan to put it on?

Len



[KenB259]

Wow, those should make for a gorgeous pen, what type of kit do you plan to put it on?

Len

Gotta be a 3 inch barrel so most likely these will be a Knurl GT or a Cortona.


Sent from my iPhone using Penturners.org mobile app



[mark james]

I do love your precision Ken. Excellent work. I hope these needed a new jig... Very clean, neat lines.



[KenB259]

I do love your precision Ken. Excellent work. I hope these needed a new jig... [emoji12] Very clean, neat lines.

LOL, nope no new jig needed.


Sent from my iPhone using Penturners.org mobile app



[magpens]

I would suggest, as a kit, the "Blade" from Berea ... 3.71" long brass tube and needs a really classy blank like the one you've shown.

3-sided, eh? ... did you cut the maple with lengthwise cuts at 120 degrees ( using one of your jigs, of course ! ) ?



[KenB259]

I would suggest, as a kit, the "Blade" from Berea ... 3.71" long brass tube and needs a really classy blank like the one you've shown.

3-sided, eh? ... did you cut the maple with lengthwise cuts at 120 degrees ( using one of your jigs, of course ! ) ?

I did use one of my jigs, slots for the infill was routed out on my router table.


Sent from my iPad using Penturners.org mobile app



[dogrunner]

I was just thinking of trying something similar to to that they look great



[Bob in SF]

Beauties!



[skiprat]

Wow, those are absolutely stunning!!
I hope the colours remain as vibrant once turned and finished.
The accuracy and precision of the workmanship is just superb too.
Very well done....(as usual)

I count 103 segments each too.... 3 x 30 checkers, 3 x white parts and 2 x orange ends...and 8 black veneers.



[KenB259]

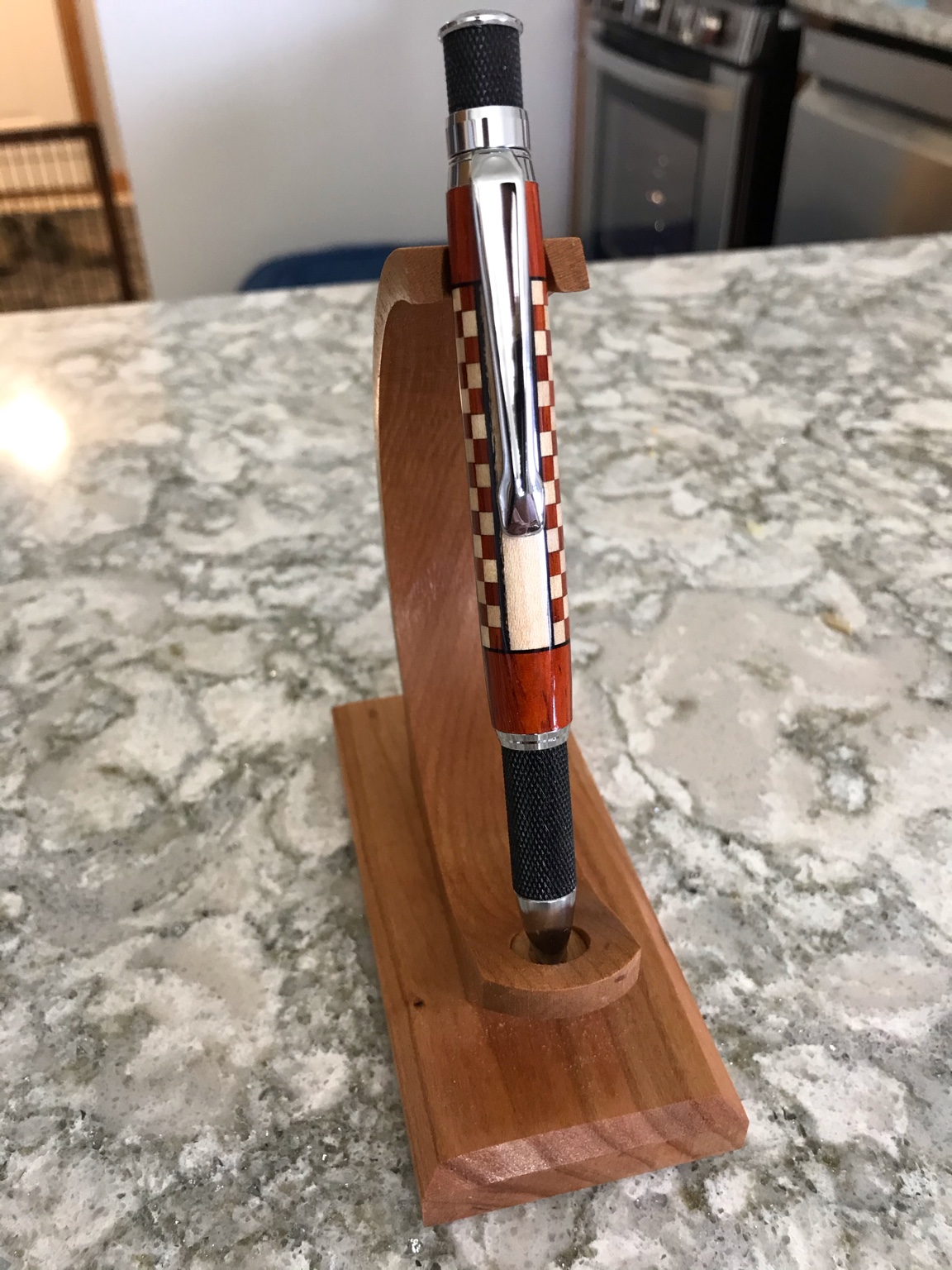

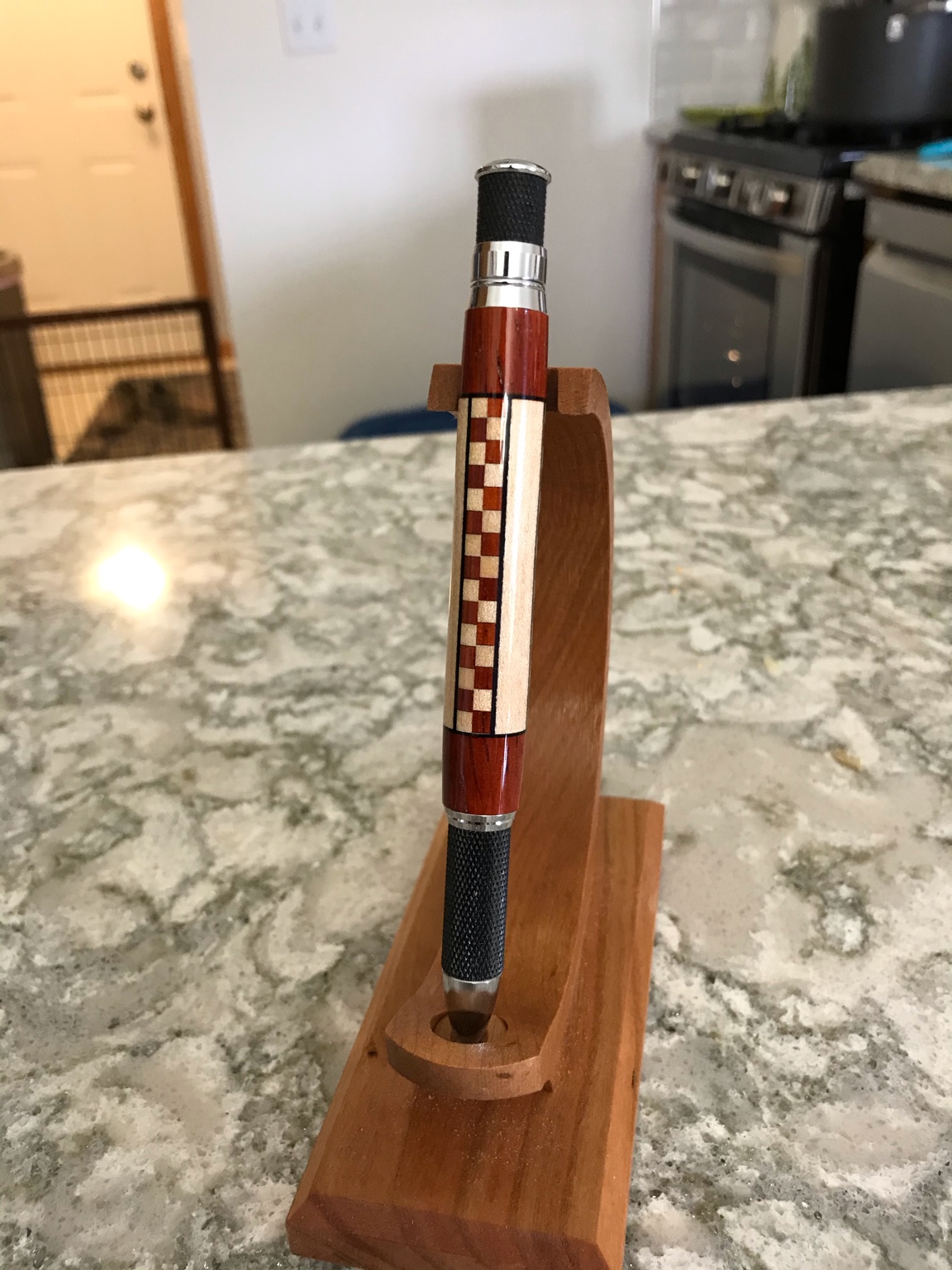

Here's the finished pen. GT Knurl , chrome and black finish. Kit from Exotic Blanks.

Sent from my iPhone using Penturners.org mobile app



[mark james]

That is might nice Ken. And I love the pairing with the kit - excellent. Superb precision on the blank.



[KenB259]

That is might nice Ken. And I love the pairing with the kit - excellent. Superb precision on the blank.

Thanks Mark, one of the segmented checkers could have aligned a little better, but all in all, I'm happy with it. I tried something a little different with this one. Since it's a 3 sided design, I had to turn it round before routing the slots for the inlay. In order to glue on the end caps I drilled a little way into the blank for a short piece of 1/4 inch dowel and also drilled through the end caps. That made aligning the end caps very easy. Not really necessary on a square blank, but probably be the way I do round ones in the future.


Sent from my iPhone using Penturners.org mobile app



[howsitwork]

Incredible ! well done



[magpens]

Your blank is nicely proportioned to suit that pen kit.

Looks great .... brilliant, in fact !!!

Do you remember the size of the little "checkers" in the checkerboard strips ? . They seem pretty small and all very equal in size ... WELL DONE !!

A rough "guesstimate" tells me that the checkers are about 0.120" square, or about an eighth inch ... that's pretty small for cutting on a table saw.



[KenB259]

Your blank is nicely proportioned to suit that pen kit.

Looks great .... brilliant, in fact !!!

Do you remember the size of the little "checkers" in the checkerboard strips ? . They seem pretty small and all very equal in size ... WELL DONE !!

Thanks Mal, the checkers are .102. I make them to fit my table saw kerf.


Sent from my iPhone using Penturners.org mobile app



[KenB259]

Your blank is nicely proportioned to suit that pen kit.

Looks great .... brilliant, in fact !!!

Do you remember the size of the little "checkers" in the checkerboard strips ? . They seem pretty small and all very equal in size ... WELL DONE !!

A rough "guesstimate" tells me that the checkers are about 0.120" square, or about an eighth inch ... that's pretty small for cutting on a table saw.

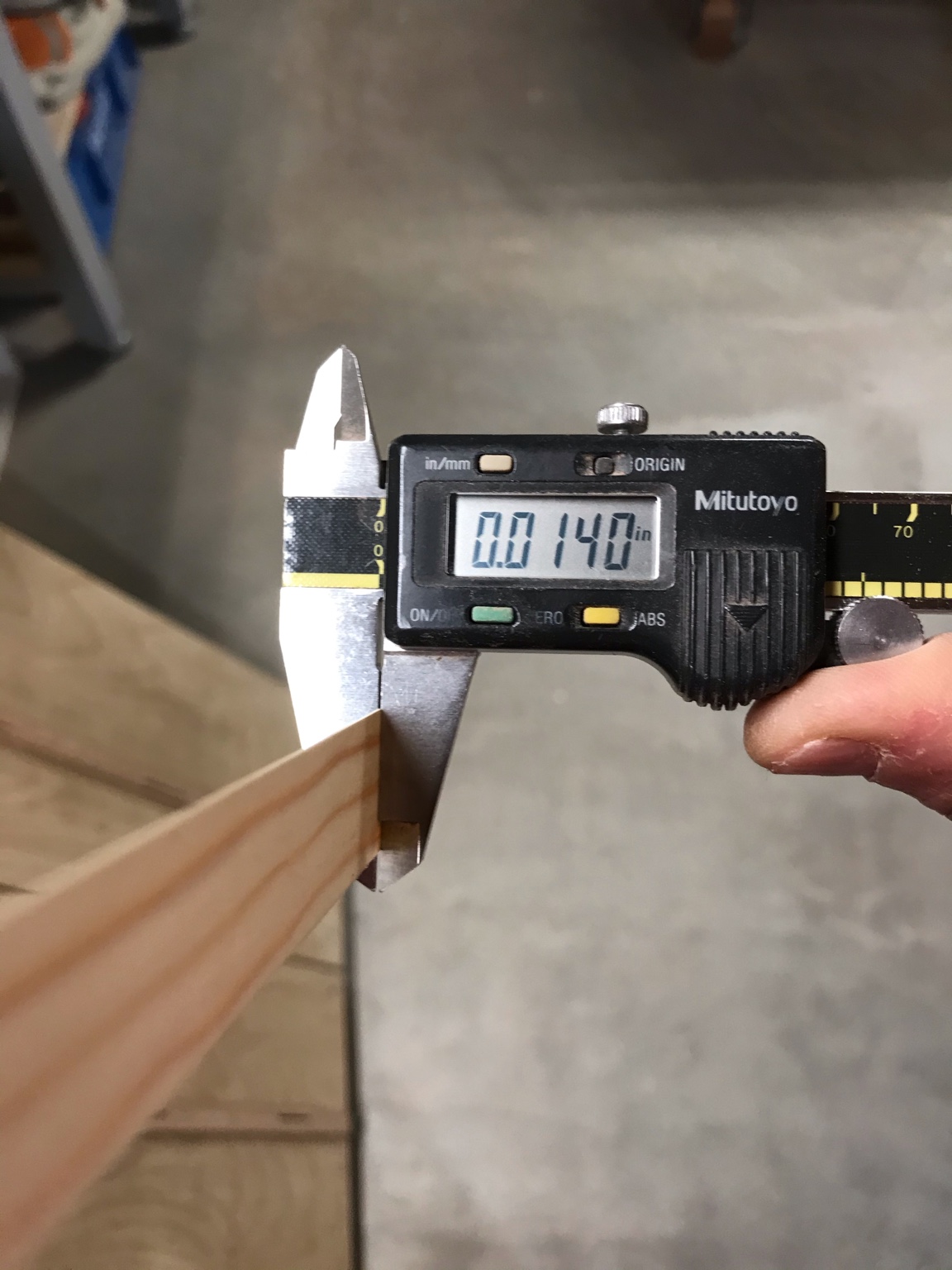

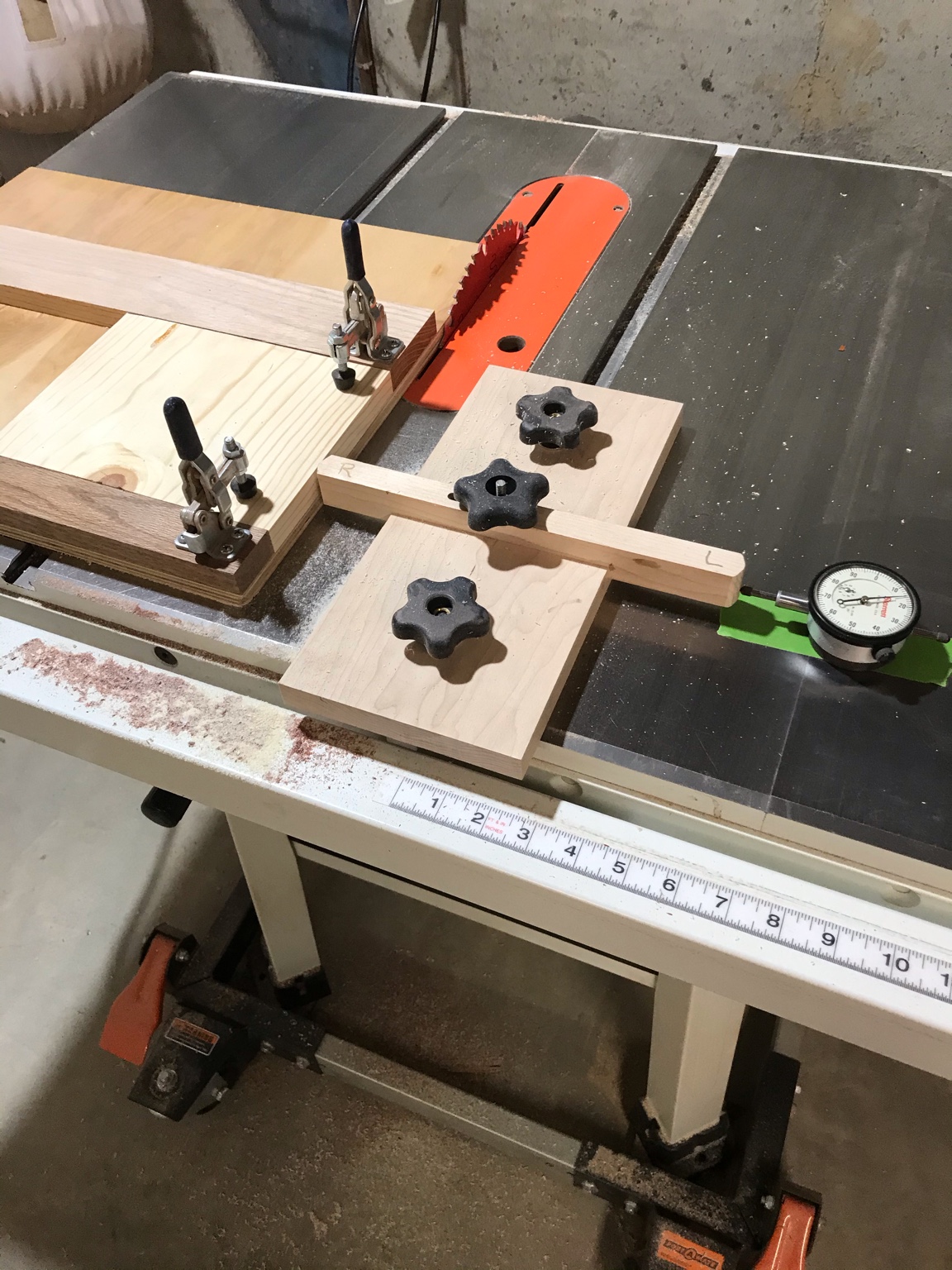

Probably a surprise to you , but I built a thin rip jig for my table saw, so I can cut strips way thinner than .102. To be honest I've been able to cut the inlay to whatever I've needed. Am I lucky in this way? I've never really put that much thought into it.


Sent from my iPhone using Penturners.org mobile app



[magpens]

@KenB259

Probably a surprise to you , but I built a thin rip jig for my table saw, so I can cut strips way thinner than .102. To be honest I've been able to cut the inlay to whatever I've needed. Am I lucky in this way? I've never really put that much thought into it.

I think you meant to say: "Probably NOT a surprise to you .... " .... LOL ! . Nothing you post is a surprise anymore ! . And you seem to work so fast !

No .... I wouldn't say you are "lucky"; I would say you are "skillful" !

And I'll bite on your .... "I can cut strips way thinner than .102." .... .... HOW THIN ? .... and what size table saw are you cutting on ... 10" ??

BTW .... I am working on a pool cue blank .... different technique from yours .... but don't hold your breath for a pic anytime soon !! . LOL !
I work even slower than I think !! . LOL !!



[jttheclockman]

Well tuned machines is what works best Mal. Use a bandsaw and save the kerf and less material. Again a well tuned saw can cut paper thin slices. Can do on a tablesaw as well but lose material because the size of the blade. I use a 1/16" blade if doing thin slices and use a 7-1/4" blade for that. There are a ton of videos of jigs for thin strip slicing on the net.



[KenB259]

@KenB259

I think you meant to say: "Probably NOT a surprise to you .... " .... LOL ! . Nothing you post is a surprise anymore ! . And you seem to work so fast !

No .... I wouldn't say you are "lucky"; I would say you are "skillful" !

And I'll bite on your .... "I can cut strips way thinner than .102." .... .... HOW THIN ? .... and what size table saw are you cutting on ... 10" ??

BTW .... I am working on a pool cue blank .... different technique from yours .... but don't hold your breath for a pic anytime soon !! . LOL !
I work even slower than I think !! . LOL !!

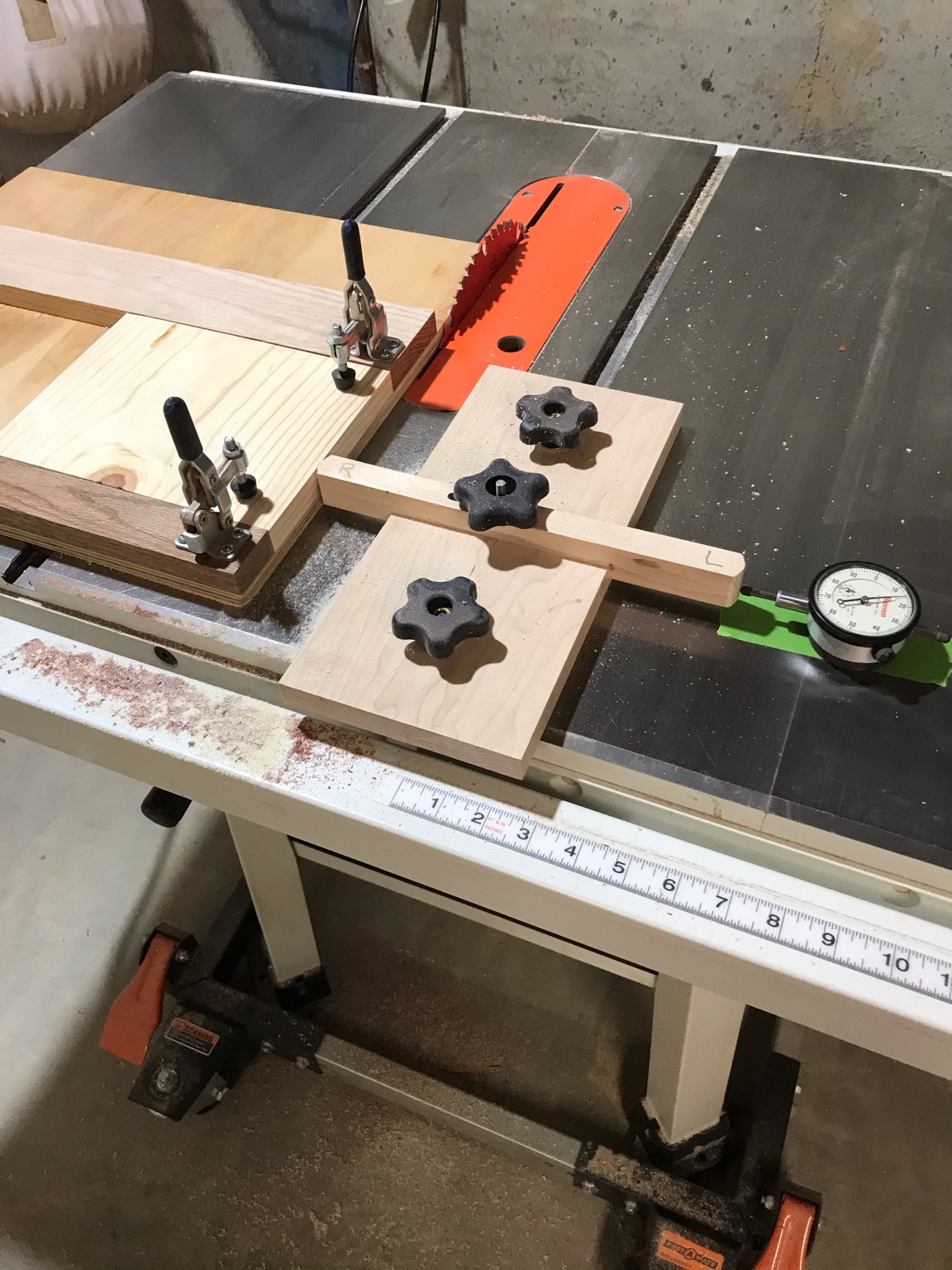

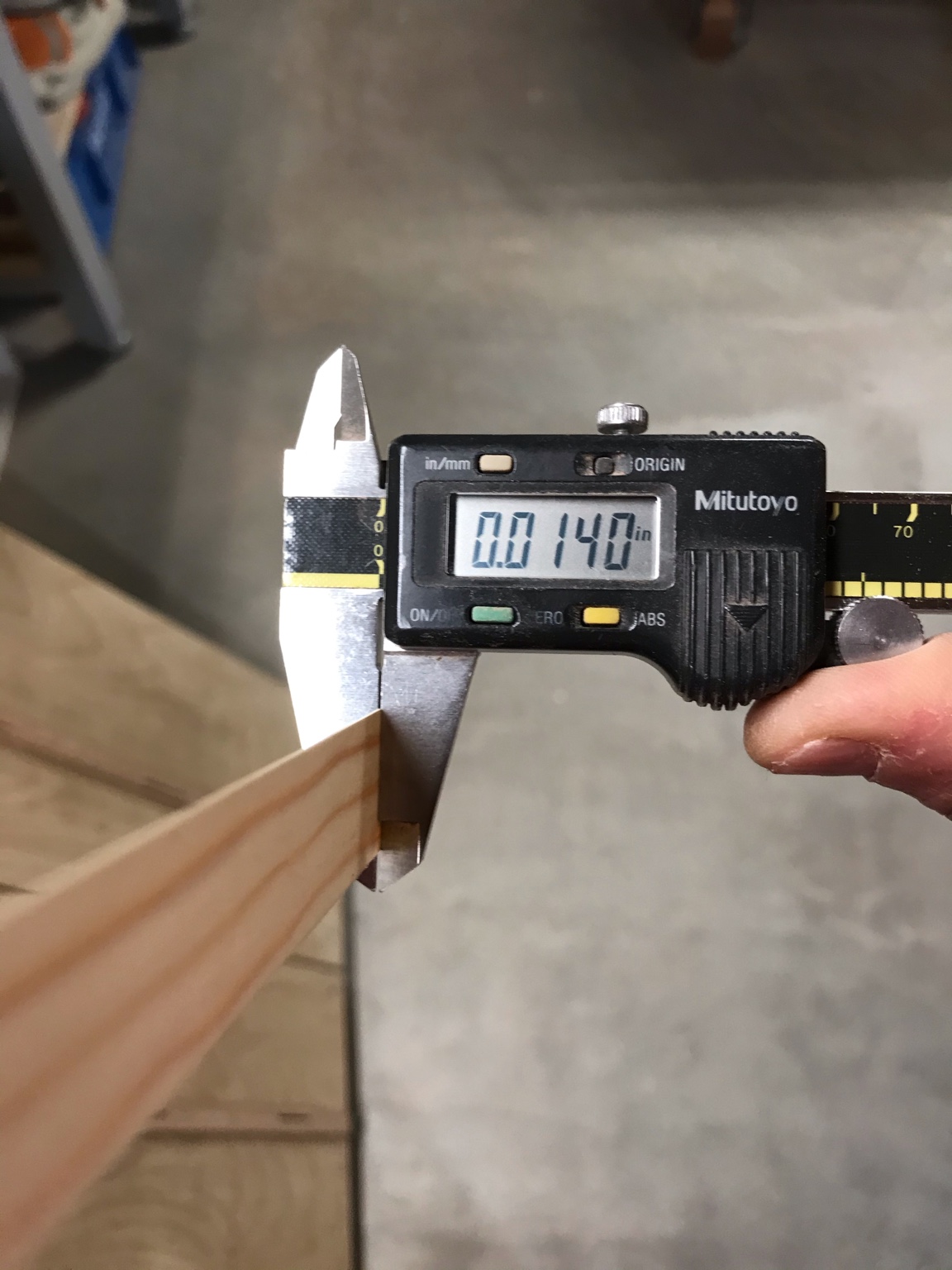

I am looking forward to seeing your cue stick blank and method. My table saw is a Jet Proshop. I could not be happier with it. It's 10 inch and performs the nickel test admirably. You got me thinking just how thin I can slice. I ran this test with just some pine scrap, hardwoods would probably work even better. I am attaching pictures. Anyone that segments will need some method of thinly slicing wood though not the extent my pictures show.

Sent from my iPhone using Penturners.org mobile app



[magpens]

NICE !! . Thank you !!

I am going to have to make up some jigs like you show "to improve my putt" !!!

Need to get some slot guide material and some clamps like you use. . Been doing things in a "haphazard way" for too long.

I like how you are using that gauge.



[mick]

I am looking forward to seeing your cue stick blank and method. My table saw is a Jet Proshop. I could not be happier with it. It's 10 inch and performs the nickel test admirably. You got me thinking just how thin I can slice. I ran this test with just some pine scrap, hardwoods would probably work even better. I am attaching pictures. Anyone that segments will need some method of thinly slicing wood though not the extent my pictures show. View attachment 236814View attachment 236815


Sent from my iPhone using Penturners.org mobile app

I love the jig! Was this the one you cut the wood for the checkerboard?

Sent from my SM-G955U using Tapatalk



[KenB259]

I love the jig! Was this the one you cut the wood for the checkerboard?

Sent from my SM-G955U using Tapatalk

Sure was[emoji16]


Sent from my iPhone using Penturners.org mobile app



[howsitwork]

Ok Ken

you posted a picture of your many jigs and gadgets to fascinate us all.

As , (many of us ) are under "supervision" and home , not quite alone , how about a brief picture with caption of what each does. I would never have guessed at the method is using the above jig b might have to make one now.

So how about on your jig thread giving some clues??

Thanks for considering this



[KenB259]

NICE !! . Thank you !!

I am going to have to make up some jigs like you show "to improve my putt" !!!

Need to get some slot guide material and some clamps like you use. . Been doing things in a "haphazard way" for too long.

I like how you are using that gauge.

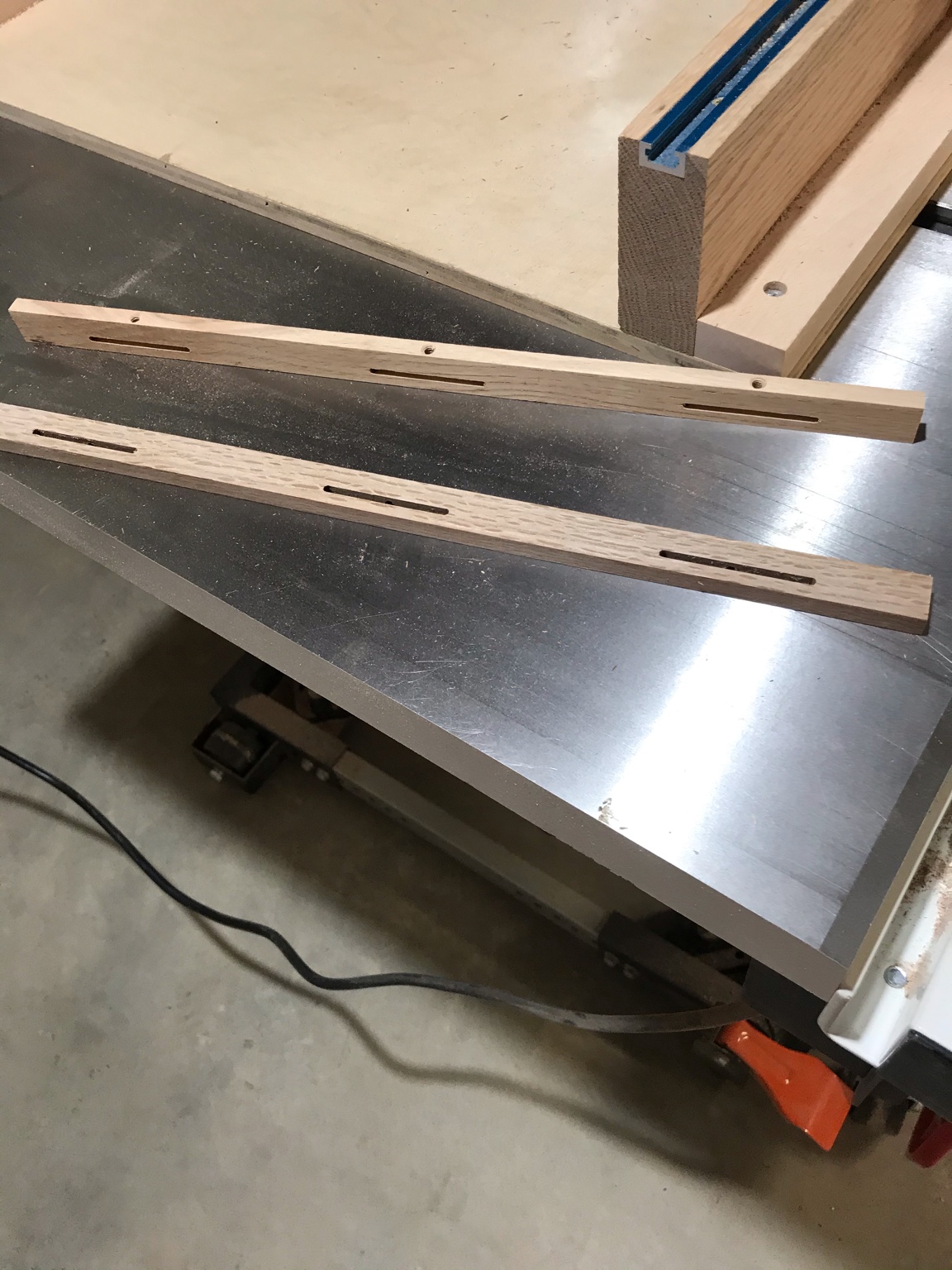

Mal, I make my own miter slot guides. Very easy to do, I just cut them so they have a little slop, rout usually 3 slots, then drill through the wide part of the guide. The small slots are not centered. Tap the holes to match the set screws I have. Screw in the set screws and as they push against the thin side of the slot, they tighten up. That's why you need a little slop, gives you the capability for adjustment. I have always made them out of oak, but I would guess any hardwood would work.

Sent from my iPhone using Penturners.org mobile app



[KenB259]

Ok Ken

you posted a picture of your many jigs and gadgets to fascinate us all.

As , (many of us ) are under "supervision" and home , not quite alone , how about a brief picture with caption of what each does. I would never have guessed at the method is using the above jig b might have to make one now.

So how about on your jig thread giving some clues??

Thanks for considering this [emoji120]

I can do that. [emoji52]


Sent from my iPhone using Penturners.org mobile app



[magpens]

@KenB259

Ken, thanks very much for the details above for your miter slot guides ... very clever !! . Never thought of making wood ones ! . Or using set screws like you show .... the tighter slide would improve things !



[KenB259]

@KenB259

Ken, thanks very much for the details above for your miter slot guides ... very clever !! . Never thought of making wood ones ! . Or using set screws like you show .... the tighter slide would improve things !

I've made plenty of them, they have never failed me. Give em a try, they're easy.


Sent from my iPhone using Penturners.org mobile app



[dogrunner]

3 sided I make a hexagon blank and cut the slot on the table saw



[KenB259]

Well tuned machines is what works best Mal. Use a bandsaw and save the kerf and less material. Again a well tuned saw can cut paper thin slices. Can do on a tablesaw as well but lose material because the size of the blade. I use a 1/16" blade if doing thin slices and use a 7-1/4" blade for that. There are a ton of videos of jigs for thin strip slicing on the net.

Well John, you made me think of something I already knew. You know me and jigs, I've been wanting to be able to cut thin strips on my bandsaw for awhile and since I can't work right now, what better time. So, just finished it up. I'm using the same stop as I do on the table saw, so heck it was half built already. It's very very simple and works great. The first test run took only 1 adjustment and cut 6 inch long strips that only vary .001 anywhere along the length

Sent from my iPhone using Penturners.org mobile app



[KenB259]

Ok Ken

you posted a picture of your many jigs and gadgets to fascinate us all.

As , (many of us ) are under "supervision" and home , not quite alone , how about a brief picture with caption of what each does. I would never have guessed at the method is using the above jig b might have to make one now.

So how about on your jig thread giving some clues??

Thanks for considering this [emoji120]

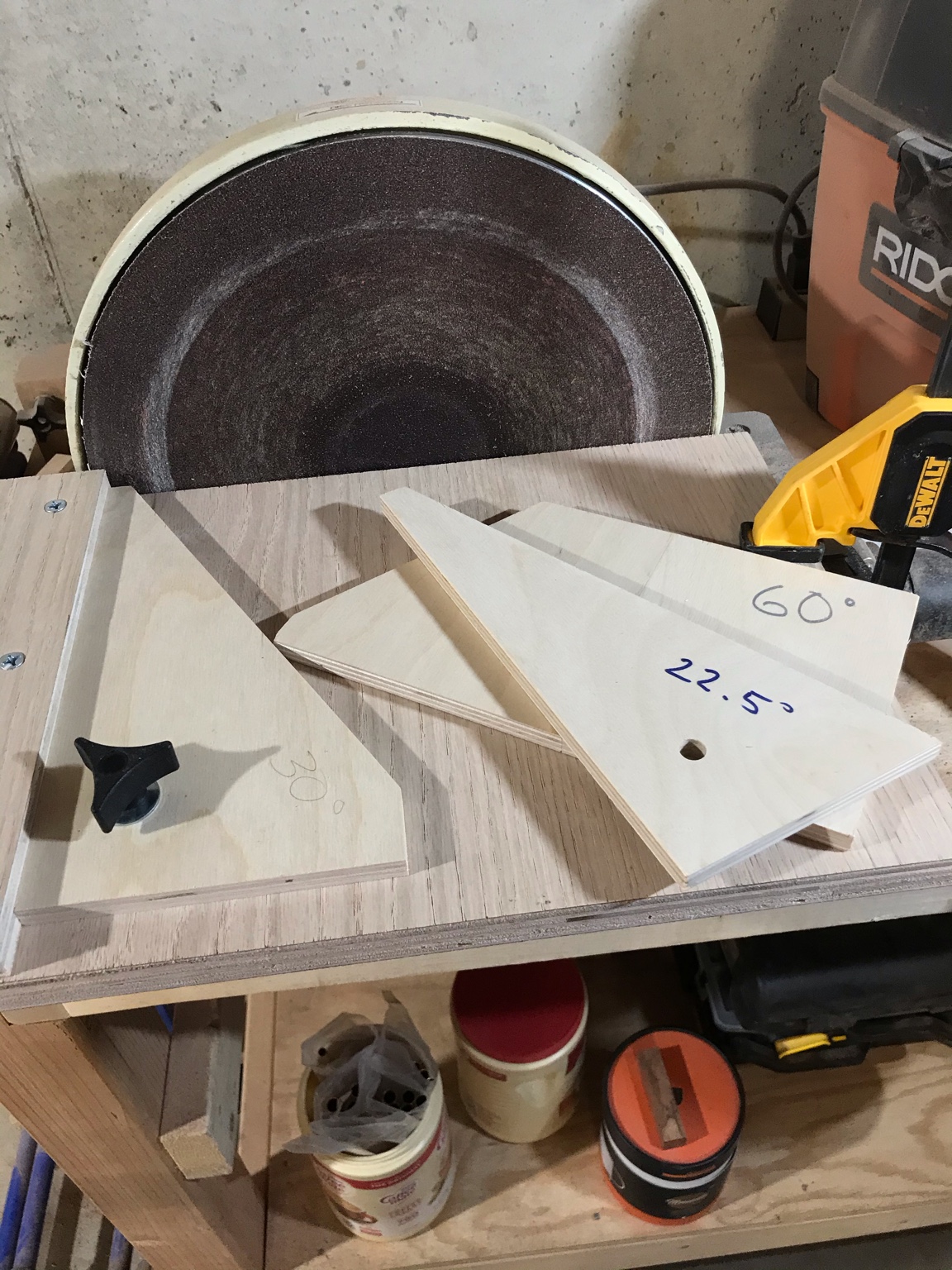

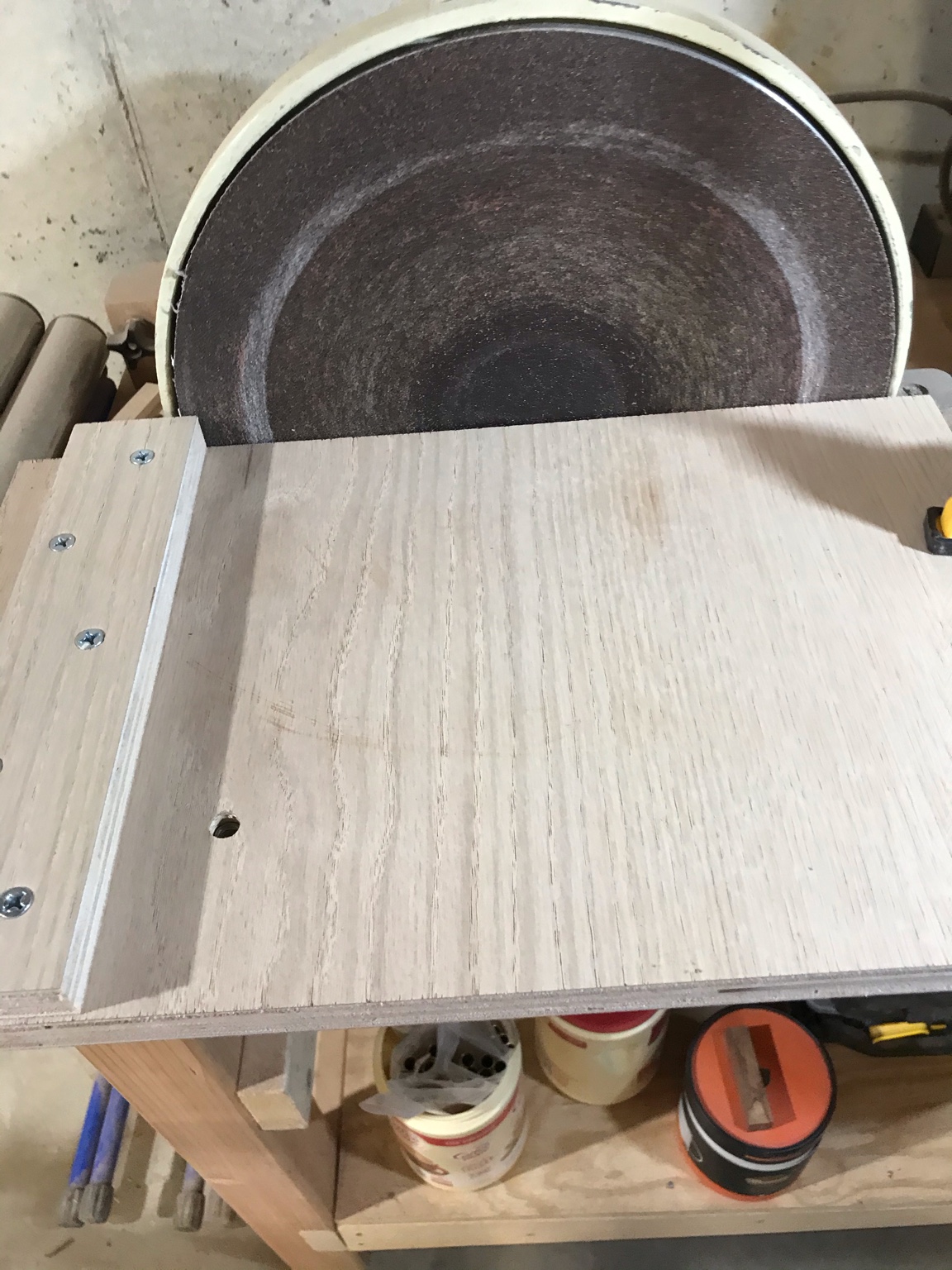

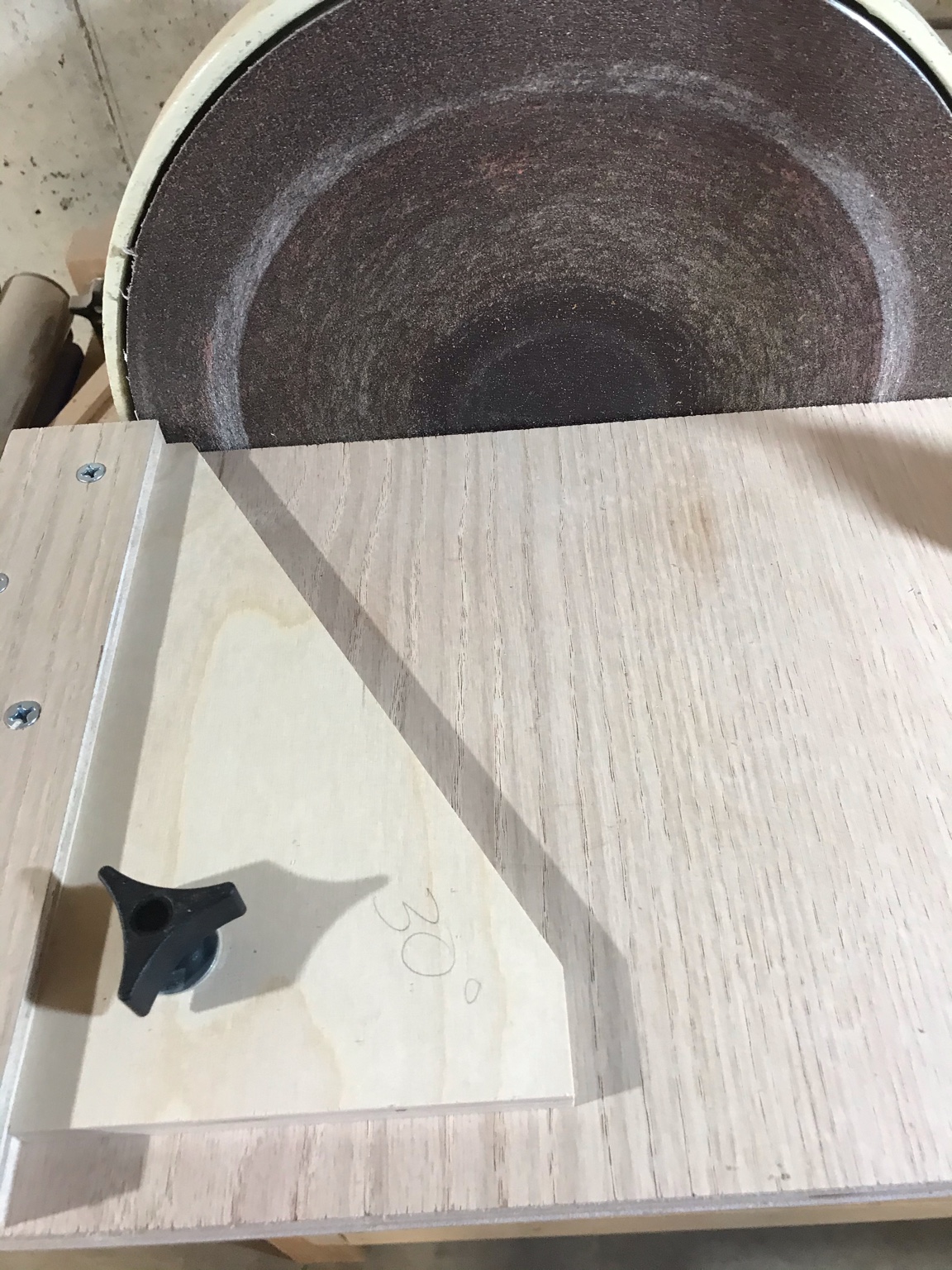

Here's one I don't think I've shown before, very simple disc sander jig and it uses the same angle inserts as my main segmenting jig. Could be used to make "GISI" style blanks, but I just cut mine in the table saw. I can make any inserts at any angle that I want and use them in three different jigs.

Sent from my iPhone using Penturners.org mobile app



[mick]

Sure was[emoji16]


Sent from my iPhone using Penturners.org mobile app

I think I may steal the idea for that! I've seen others that weren't near as simple.

Sent from my SM-G955U using Tapatalk



[KenB259]

I think I may steal the idea for that! I've seen others that weren't near as simple.

Sent from my SM-G955U using Tapatalk

I'm a firm believer in the "KISS" method [emoji16]


Sent from my iPhone using Penturners.org mobile app



[jttheclockman]

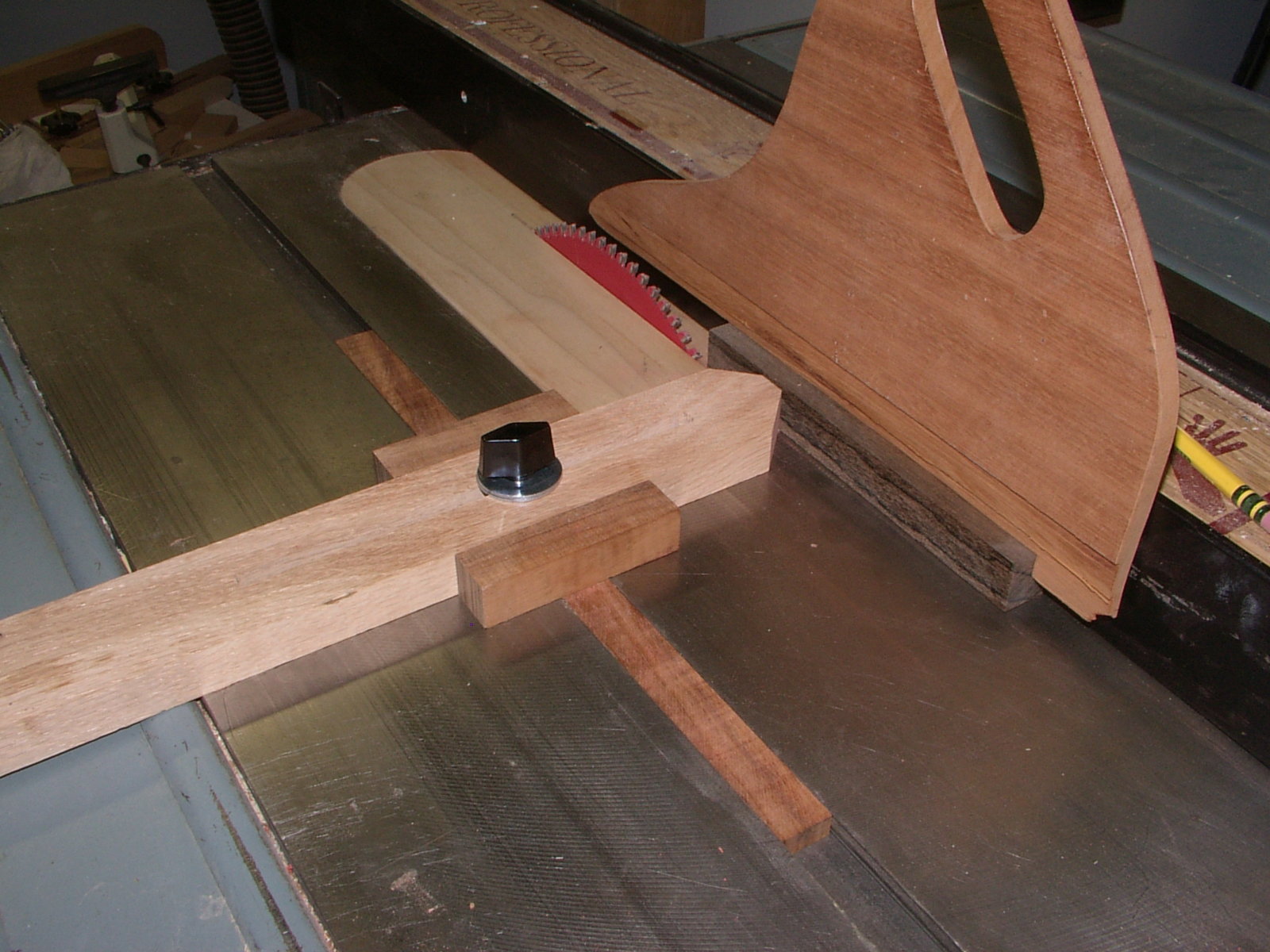

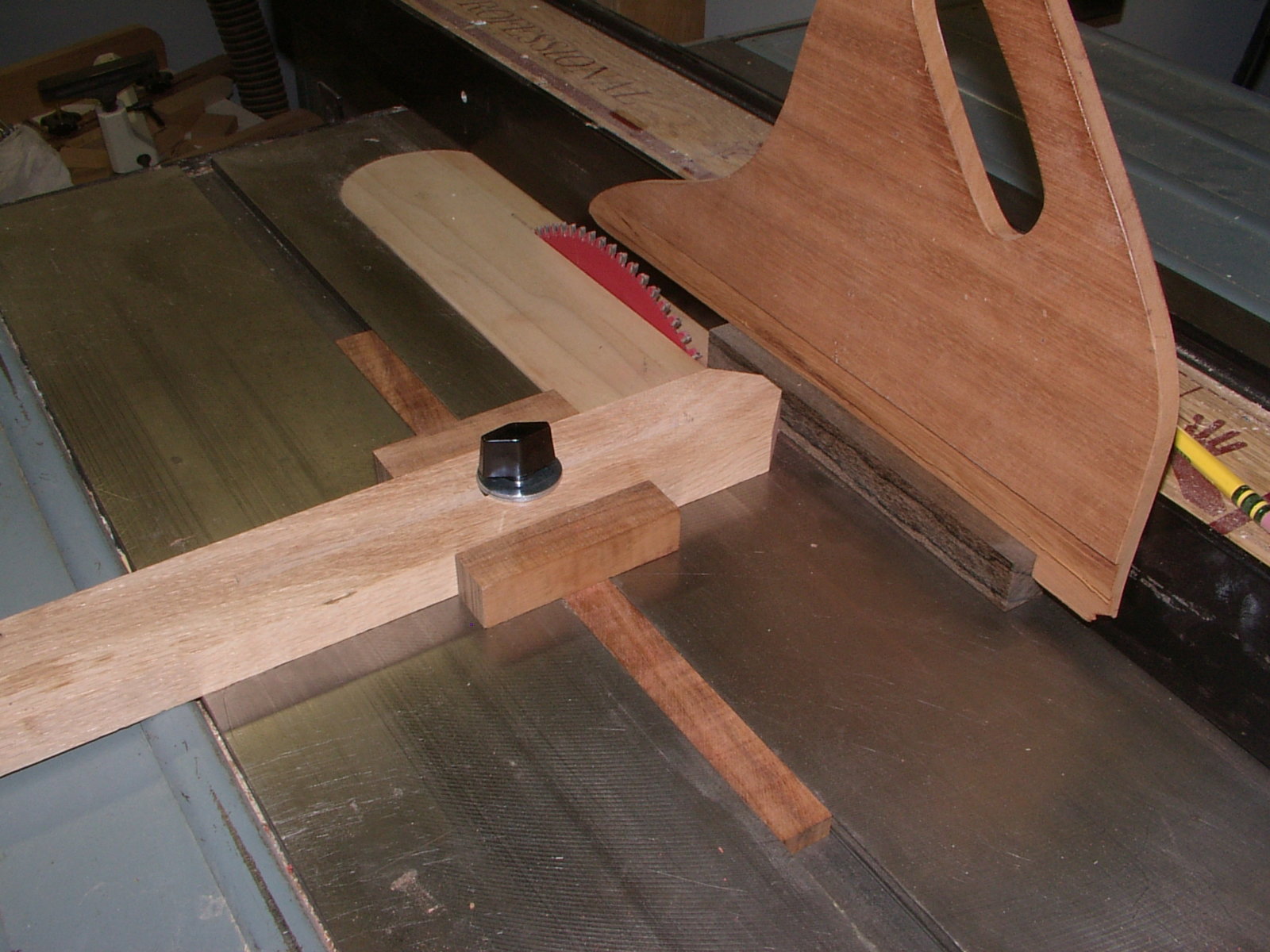

Ken I do the same keep it simple. Here is one of those thin strip jigs I made. I have since gone to a pro one with a ball bearing for ease of use.



[KenB259]

Ken I do the same keep it simple. Here is one of those thin strip jigs I made. I have since gone to a pro one with a ball bearing for ease of use.

View attachment 236863

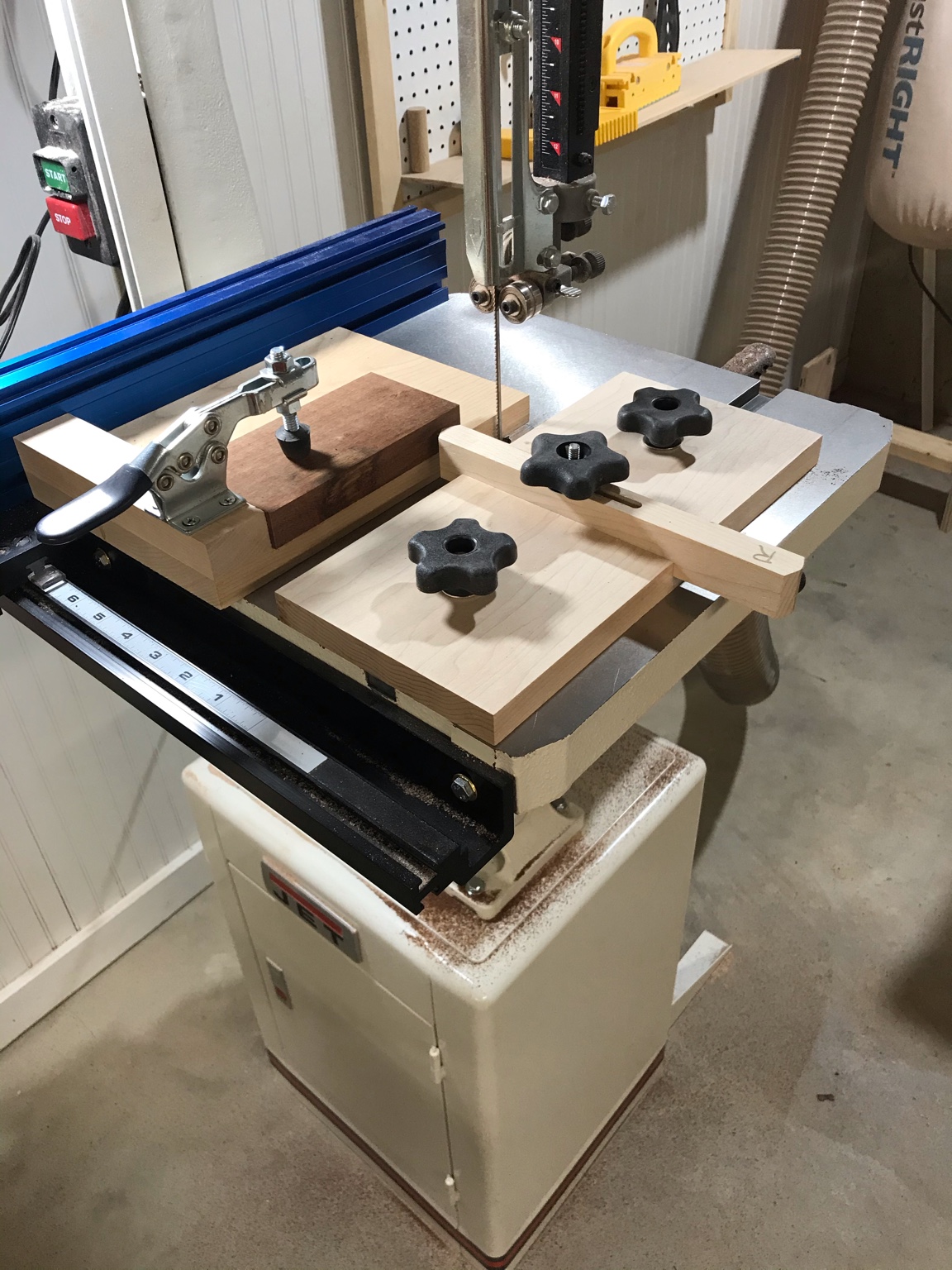

I have some bearings , I toyed with the idea of using them on this jig. I would only have to make the one part to my jig. Do they really make that much of a difference? Only a very small area of my stop actually touches anything.


Sent from my iPad using Penturners.org mobile app



[jttheclockman]

I have some bearings , I toyed with the idea of using them on this jig. I would only have to make the one part to my jig. Do they really make that much of a difference? Only a very small area of my stop actually touches anything.


Sent from my iPad using Penturners.org mobile app

Yes because I set them up so the jig runs almost the entire length of the blank. What this does is not allow any walking away from the fence. I do not use a sled like you do which locks the board in place. Just the way I have been doing it. I again do not just do 5" pen blanks so I need to be versatile. I can saw a 24" board with a strip if need be and have at times. Many ways to do this. As I have said I will double side tape to a carrier board and attach my piece I want to cut strip with. So no need for all those clamps which again get costly. You seem to be into that stuff so that is just the way you do things. Me I am even more simple.

One thing I suggest if you can lower the blade guides on the bandsaw and keep that blade tighter because that is a small blade you are using and it will deflect very easily on a bandsaw.



[KenB259]

Yes because I set them up so the jig runs almost the entire length of the blank. What this does is not allow any walking away from the fence. I do not use a sled like you do which locks the board in place. Just the way I have been doing it. I again do not just do 5" pen blanks so I need to be versatile. I can saw a 24" board with a strip if need be and have at times. Many ways to do this. As I have said I will double side tape to a carrier board and attach my piece I want to cut strip with. So no need for all those clamps which again get costly. You seem to be into that stuff so that is just the way you do things. Me I am even more simple.

One thing I suggest if you can lower the blade guides on the bandsaw and keep that blade tighter because that is a small blade you are using and it will deflect very easily on a bandsaw.

The blade guard is as low as I can go without the clamp interfering. I didn't know if it would be an issue, but so far it has worked great. I could probably get by without clamp, but we'll see how it goes.


Sent from my iPad using Penturners.org mobile app



[jttheclockman]

The blade guard is as low as I can go without the clamp interfering. I didn't know if it would be an issue, but so far it has worked great. I could probably get by without clamp, but we'll see how it goes.


Sent from my iPad using Penturners.org mobile app

I thought that maybe the case but to me too high when dealing with thin strips especially heavy grained ones. Been there done that. If you need to do that use double side tape and eliminate the clamps if just for a piece or two.
