New lathe stand

[rherrell]

I finally got an outside deck built on my shop so now I can weld. I don't feel comfortable welding inside because I have wooden floors and there's alot of sawdust. I still have a wooden deck but I feel OK about welding outside.

My new South Bend is still on backorder but they say it will be ready tomorrow....I'll believe it when my credit card is credited!:biggrin:

Anyway, here's the cabinet/stand I made for it......

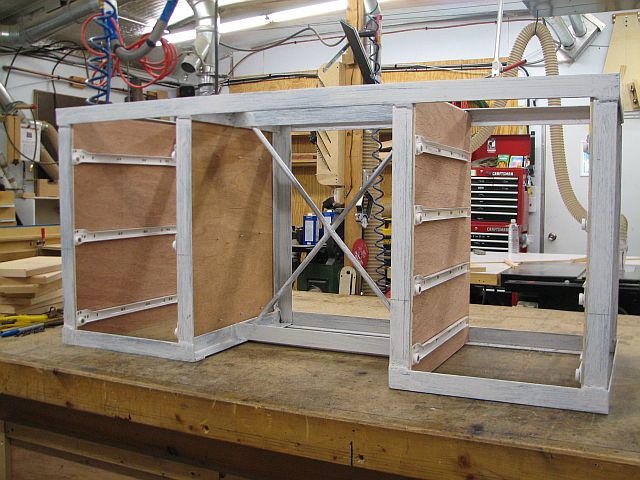

This shows it with a coat of primer and the drawer slides installed. It's made from 1 1/2" angle iron and I was a welder in a former life so it's plenty strong.

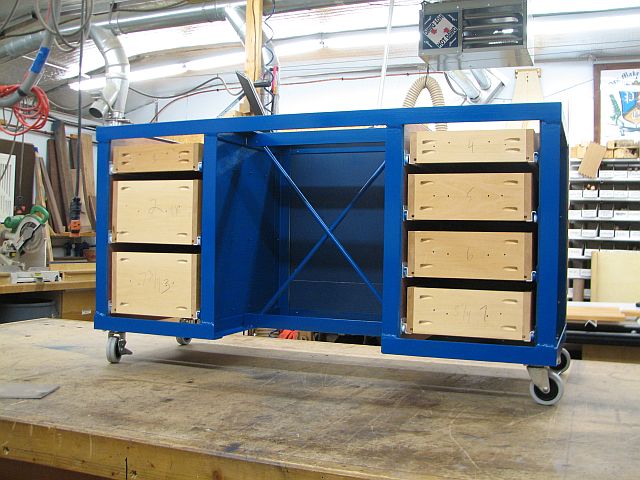

Drawers and wheels installed and some South Bend blue paint.

This is one of the drawers. I made the handles from 3/8" aluminum stock. I really like the "industrial" look.

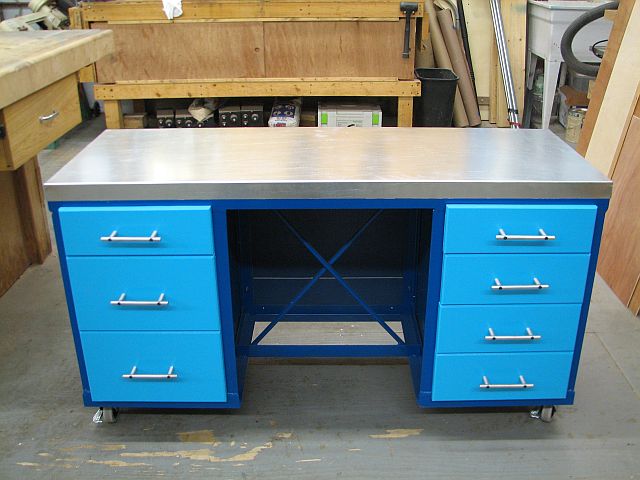

Here's the finished product. I have a 1" plywood top and I covered it with 22 ga. galvinized sheet metal so it will be easy to clean.

Now if I only had a lathe to put on top.:biggrin::biggrin::biggrin:

IT'S COMING ROY, IT'S COMING!!!!



[MarkD]

Very nice! That should have no problem holding the lathe!



[socdad]

It's made from 1 1/2" angle iron and I was a welder in a former life so it's plenty strong.

Beautiful and functional … I would really hate to see; an really, really hate to move, what you consider 'down write sturdy'



[hewunch]

Nice! What kind of finish does it have



[Jim15]

Awesome work. The lathe will look great sitiing on it.



[bitshird]

Rick you want to build me a new stand for my old Jet?? Had it sitting on a Craftsman work bench with a bunch of drawers, but I think the frame was made from old beer cans. now we kind of have to chase the lathe around. That's a good looking Lathe Cabinet!!



[bluwolf]

That looks terrific! Your Southbend will feel right at home on that.

Mike



[Dalecamino]

Dude, I am so jealous. That's really nice work. Got enough drawers?:biggrin:



[rherrell]

THANKS guys, I'm glad you like it!

Nice! What kind of finish does it have

Hans, the steel is just rattle can enamel and the drawers are latex brush paint with a coat of clear spray for easy cleaning



[OKLAHOMAN]

Now that's a lathe stand!!!!!! Looks like in a few weeks we both will be happy campers....



[Robert111]

Beautiful work, Rick. Enjoy!



[titan2]

Beautiful work bench you got there!!!

Also, be sure to do a 'Fire Watch' whenever you finish welding on your nice, new wooden deck! Would really be a shame to have it light up after you're done and gone....


Barney



[Knucklefish]

Not unexpected....

Wow, this is really great! You make the best stuff!!! This is what I expect from a perfectionist like you :biggrin:



[EarlD]

I'm not sure...looks a little flimsy to me. Just kidding! That's fantastic. Please remember to post pictures after you get the lathe mounted. And of course, we want to see what you make on it!



[opfoto]

I mean this with true admiration.......Wow!!!!



[Lenny]

Rick, when you do something you don't know how to do it any other way but FIRST RATE! That is awesome!



[LeeR]

Hey Rick, those drawer pulls look vaguely familiar ...

Oh, really similar to your tool rests!

I like the colors, too -- anxious to see pictures of the lathe perched on top of it.



[johncrane]

Looking really good Rick! great design.
