Need a little help here finding a photo.

Signed-In Members Don't See This Ad

Dale Parrott

Member
Joined
Feb 22, 2012
Messages
177
Location
Goshen, Indiana
Within the last week I saw a photo a a jig used to cut an arch on a pen plank. The jig involved using bandsaw to do this. A couple days later I saw the completed, but unturned blank. I'd like to find this post again but I'm not having any luck it could be here on IAP or one of several FB groups I belong to. I'd appreciate any help locating this project.
Thanks in advance
Dale

Last edited:
Signed-In Members Don't See This Ad

jttheclockman

Member
Joined
Feb 22, 2005
Messages
13,584
Location
NJ, USA.
It was a nail in a circle template. Not sure how it was used. He did not say. The end results looked promising.


Gary Beasley

Member
Joined
Sep 18, 2009
Messages
1,132
Location
Marietta, Ga. USA

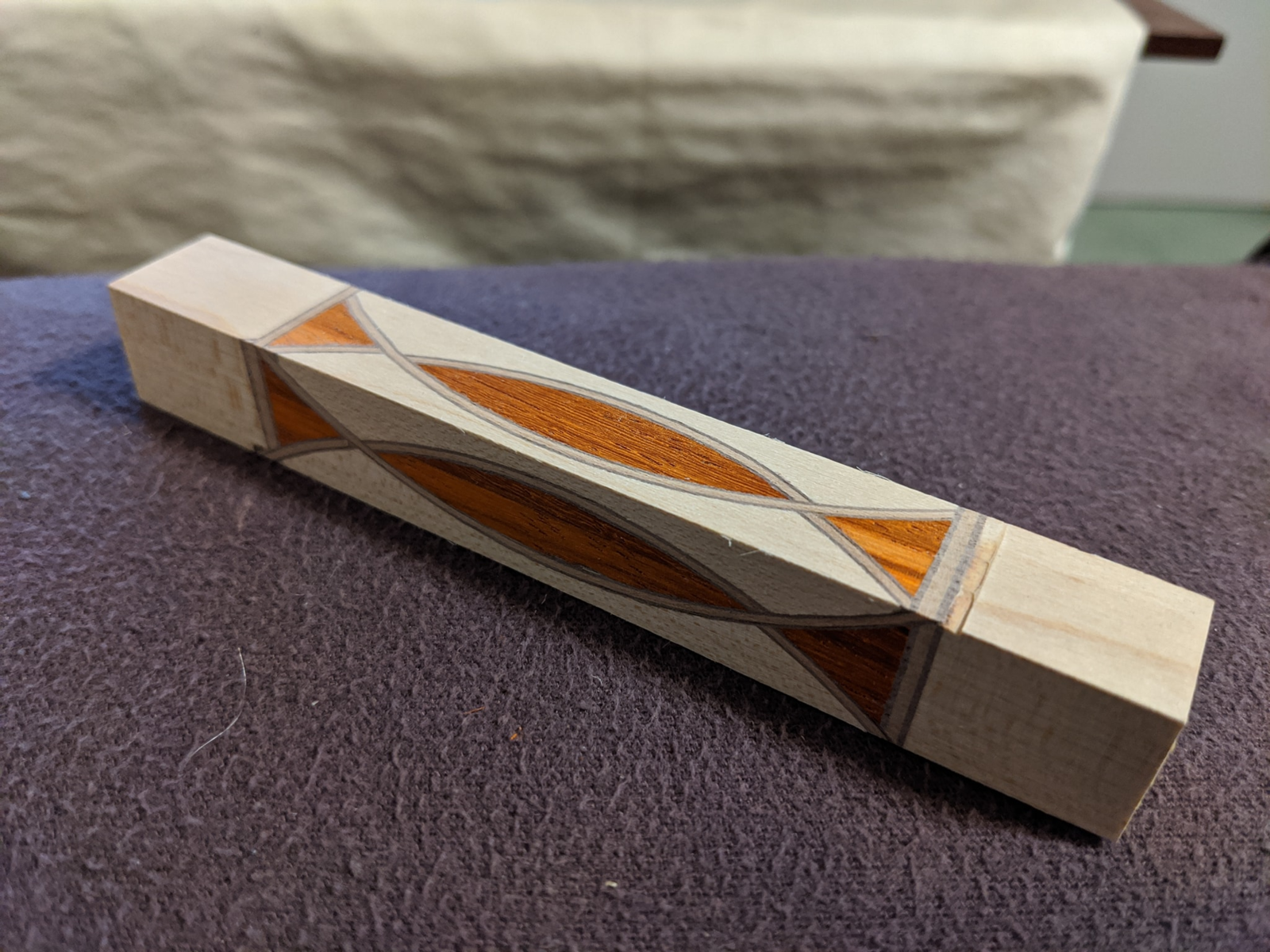

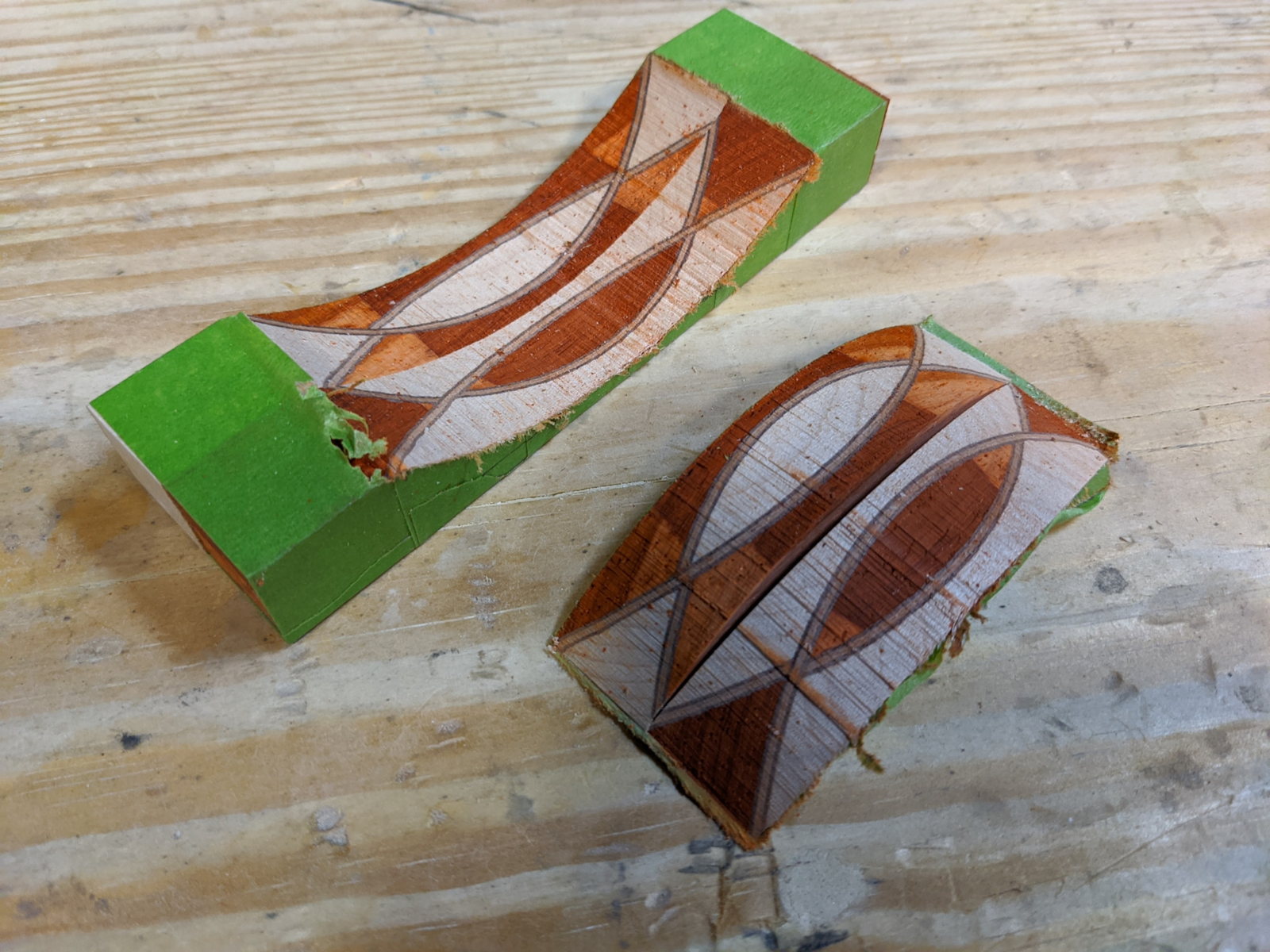

Cutting arcs out of two different wood then swapping sections and laminating veneer into the cuts. Then do it again. Would love to see the exact sequence.


dogcatcher

Member
Joined
Jul 4, 2007
Messages
1,958
Location
TX, NM or on the road
You stack 2 blanks, cut and swap out between the 2. So in reality you are making 2 segmented blanks at the same time. The wood of each being opposite of the other one.

Simple way to get the idea is to stack 2 blanks, one lite colored, one dark. Like he did, tape them together so they do not move. Cut a wiggly line down the center. remove the tape, take the light color and the opposite dark color and glue them together, Same with the 2 remaining pieces. Allow the glue to dry, then repeat, stack the "new" blanks and tape them together. again cut a wiggly line down the center. Again remove the tape, and again glue the opposite sides together. You should have 2 blanks that are color opposites of each other.


jttheclockman

Member
Joined
Feb 22, 2005
Messages
13,584
Location
NJ, USA.
I stack cut all the time and have the idea with interchanging pieces, in fact I have a blank I started years ago that has that concept but I cut on my scrollsaw. Another one of those I should break out and finish. but what does the nail do and how does the jig work. Usually a nail is a pivot point for making circles but I see no nail holes on the blanks. Love to learn something new.


jttheclockman

Member
Joined
Feb 22, 2005
Messages
13,584
Location
NJ, USA.

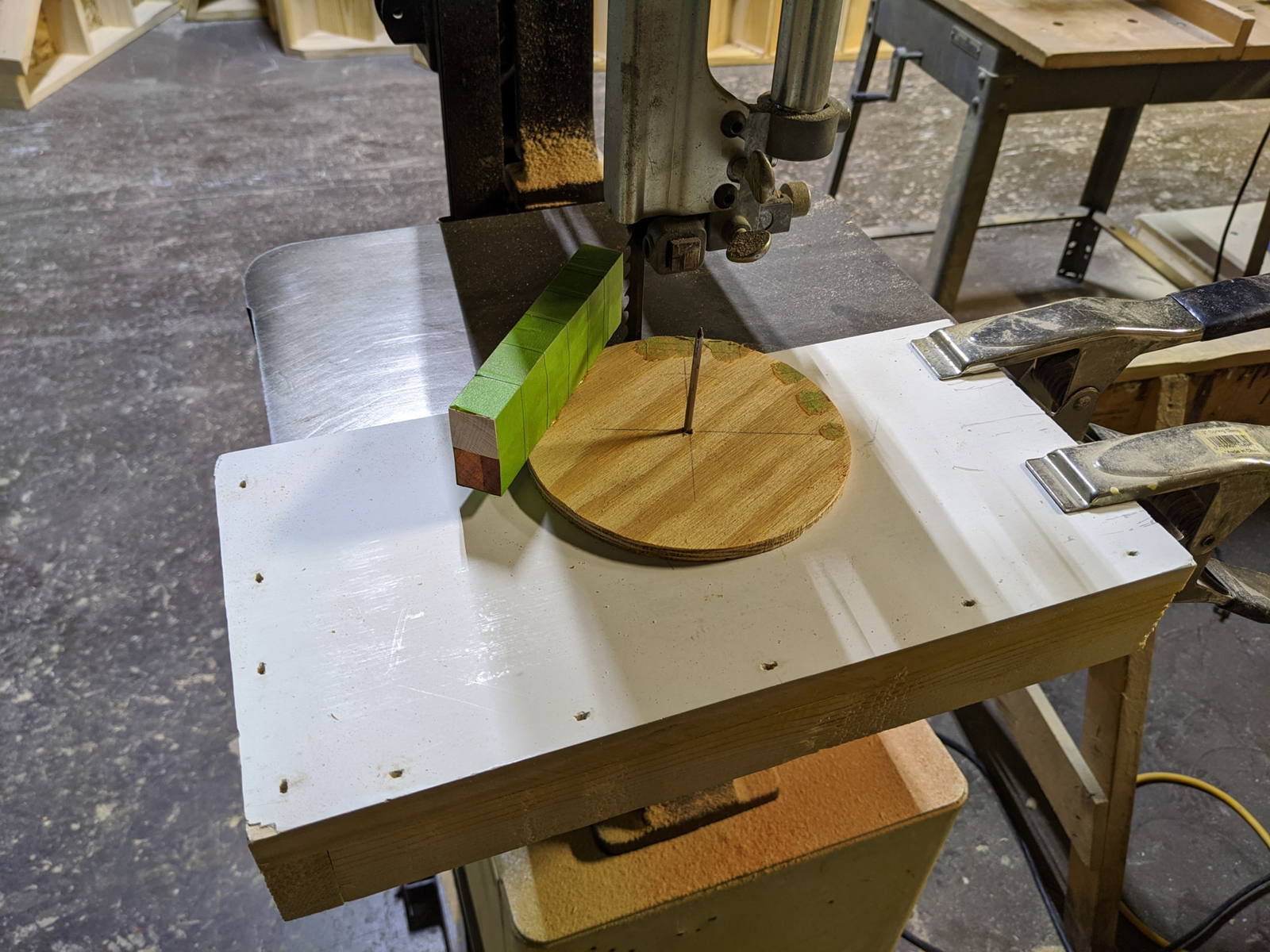

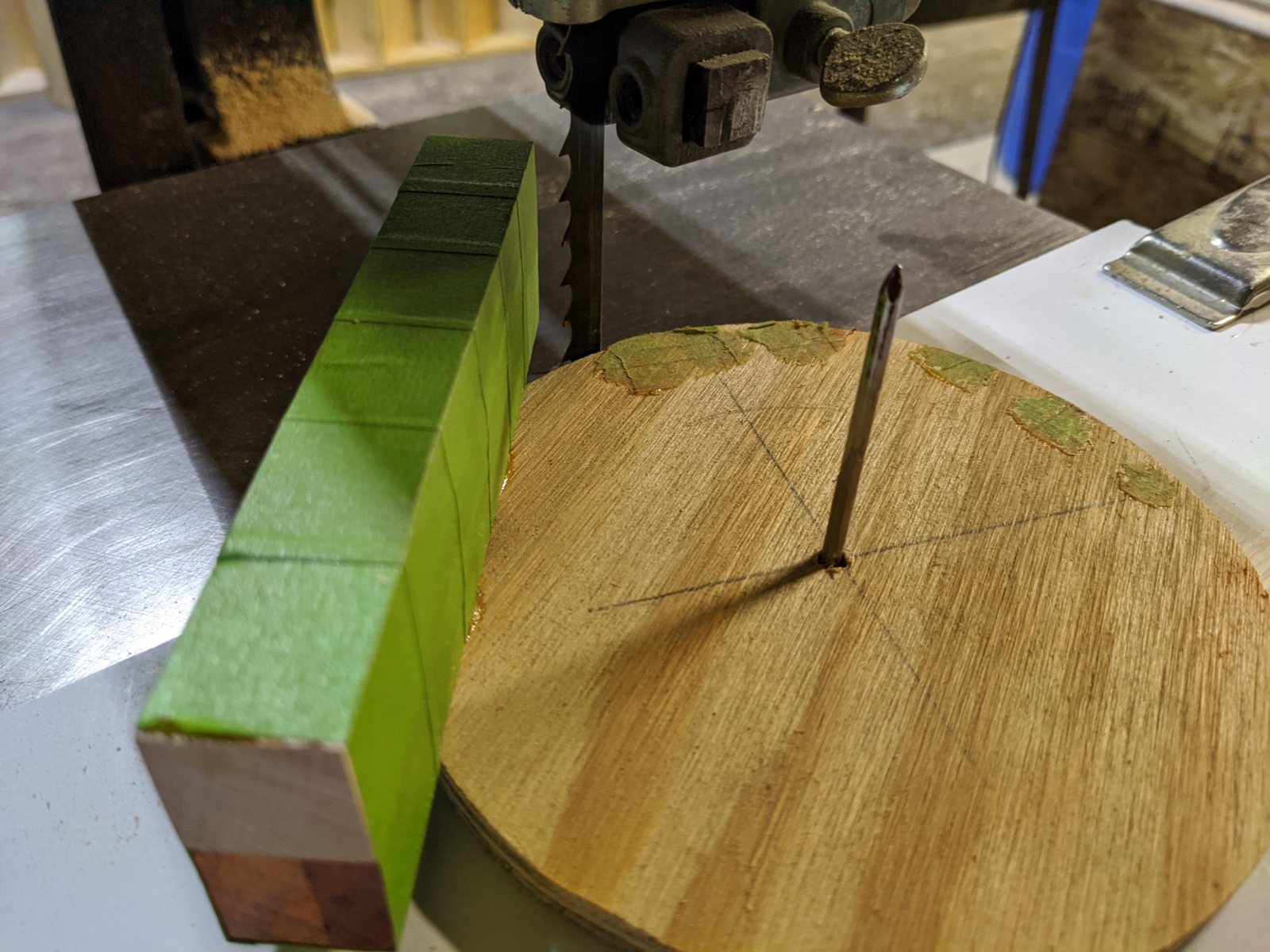

The nail is the anchor for the disc that rotates the blank that are hot glued to it through the bandsaw blade giving a smooth arc to the cut.
This makes sense now because I see the glue under the blank. mystery solved and another learning lesson has been filed. Very ingenious. Will need to work on that for my scrollsaw. I can do many things with that idea and a scrollsaw.


Gary Beasley

Member
Joined
Sep 18, 2009
Messages
1,132
Location
Marietta, Ga. USA
A similar jig can be used for cutting layers for vortex bowls on the scrollsaw. Pete Marken made a jig on his cnc and was selling it at a symposium and I bought one. Worked real well.


Dieseldoc

Member
Joined
Oct 28, 2017
Messages
807
Location
Livermore, Ca 94550
If you check you tube Gabe Castro has been using the same process with his pen ,only he uses a hole saw, jig and drill press.

I have made his jigs and built some blanks with his process.
