My New Low Cost Offering

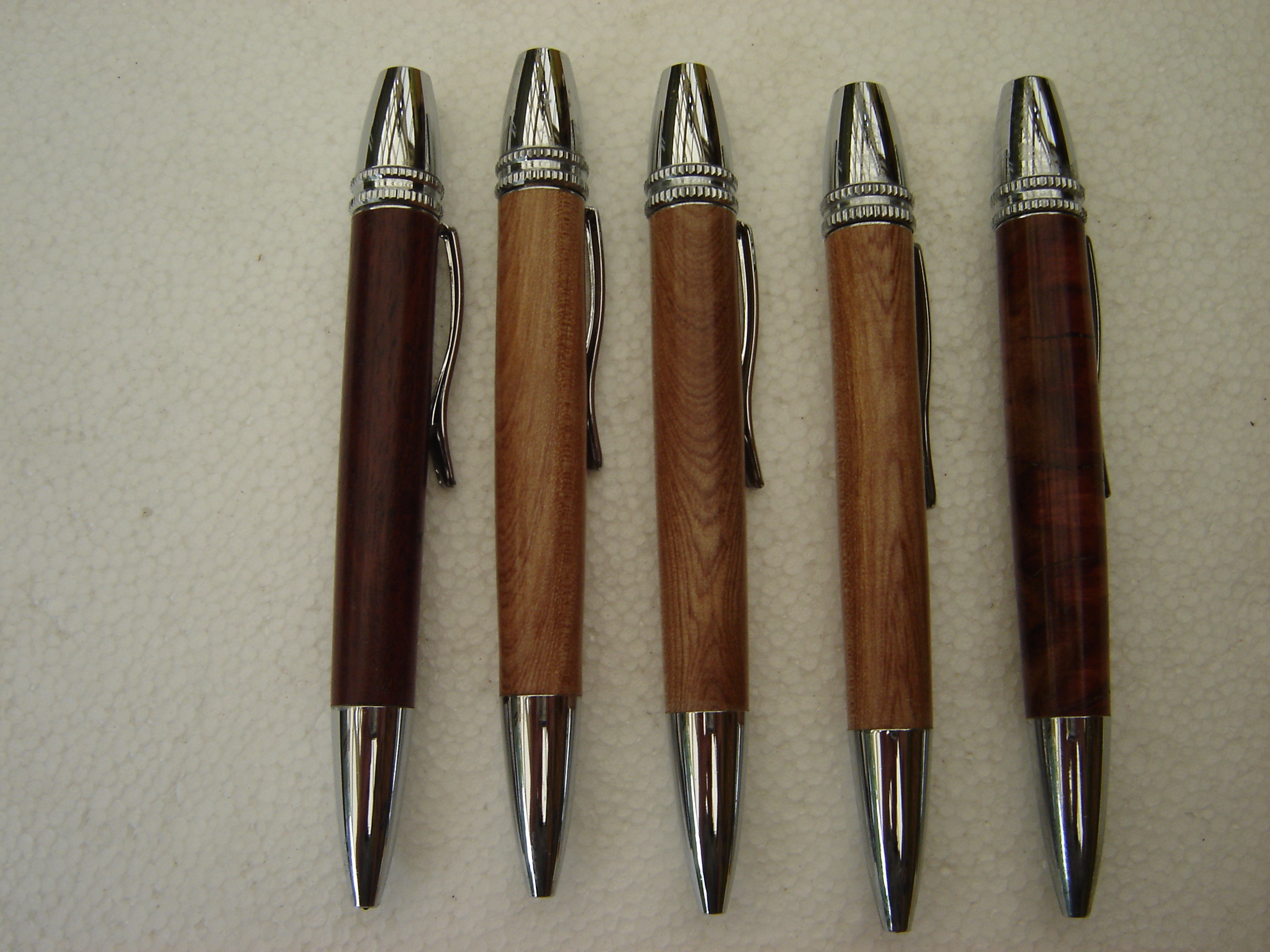

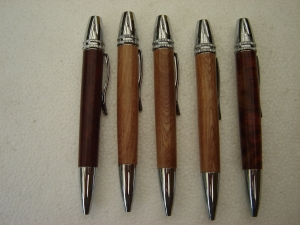

Our Men’s Shed, last year for the Older children looked after by the various Charities that we Make and Donate Toys too for Christmas, we changed our Pens from the Traditional Slimline to the Chrome Polaris Ball Point Pen.
These were very well received, so we used Polaris again this year, and the Feed Back from the Charities has been very positive.
This led me to thinking, why should we continue with the Slimline.
Which is a much more difficult Pen to make, having two bodies, and turning to such a small diameter to match to the Nose Cone, the Center Band, and the Clip Cap.
The small diameter more readily creates tearing of the Blank Material from the Tube, and having so thin a Wall does not allow for much compromise in correcting errors.
Also we are expecting our trainee turners to work on that, which many like me consider the Slimline to be one of the more difficult Pens to make.
The Cost of the Chrome Slimline in Australia, is $AU2.50, while the Chrome Polaris is $AU5.00, that is twice the cost.
But for that extra $AU2.50, you have a Larger, Heavier, and more Robust Pen, and a Pen that uses the more Popular and Available “Parker Style” Refill.
The Pen also has a Single, Larger Body, so can Display the Blank more Easily.
The Blanks are drilled by 9.5mm that is 3/8” dia. Drill Bits.
The Turning of the Blank to 11.55mm i.e.0.455” at the Nib End, and to 13.6mm i.e. 0.535” at the Clip and Twist Knob.
From an assembly perspective, there are two Parts pressed into the Blank. The nib Coupler, and the Clip /Twist Mechanism Coupler.
Then the Twist Mechanism is pressed into the Clip Coupler.
You are given a Critical Dimension of 3.75” from the End of the Nib Coupler to the Top of the Twist Mechanism.
This Critical measurement is to ensure that the Refill will completely retract into the Nose Cone. Depending on what type of Press you have will determine how easy you will be able to achieve this Dimension Accurately.
I have overcome the difficulty for me, by using a concept expounded by Ed of Exotic Blanks, in one of his Excellent Youtube presentation, on how to avoid Drill Breakthrough, with Acrylic and Fragile Material Blanks.
In this presentation, Ed overcame the problem of “Breakthrough”, by drilling the Blank, longer / deeper, than required, then cutting the Blank to the desired length with an allowance to square the Blank and Mill the end to display the Tube, after the Tube fitted and Cured.

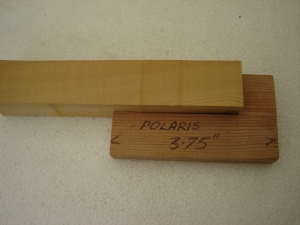

Go To Gallery for picture of Gauge w/Blank

View in Gallery

He showed the making of a small Gauge for the Blank required.
I have adopted Ed’s method for all my repetitive Pens, I firstly cut the end of the Blank square on the Drop Saw, then I drill the Blank, through the “squared” surface, to a depth beyond what is required for the Tube.
Once that is done, I then put the Blank, with the Squared Drilled face against the raised section of the Gauge, I then position the Blank and Gauge against the Blade of the Drop Saw to accurately locate the Blank and Gauge, then fasten the hold down, onto the Blank.
Then Cut the Blank.
Now the Blank is ready to have the Tube Fitted, Cemented and Cured, after which the Blank can have the Ends Milled and the Tube Edges exposed.
When the Blanks are turned and finished, and the components, namely the Nib Coupler and the Clip and Twist Mechanism Coupler (less the Twist Mechanism) pressed, then I position the Pen with the Twist Mechanism onto the Gauge, and place the Gauge and Pen against the press Ram, then actuate the press until the Gauge is in full compression against the Press Ram and Bed.
Fit the Refill and Spring into the Pen Body, then fit the Nose Cone.
Rotate Twist Mechanism and observe the full operation of the Refill. Then Fit the Twist End Knob.

Last edited:
Signed-In Members Don't See This Ad

PenPal

Member
Joined
Nov 29, 2006
Messages
2,089
Location
Canberra, A.C.T., Australia.

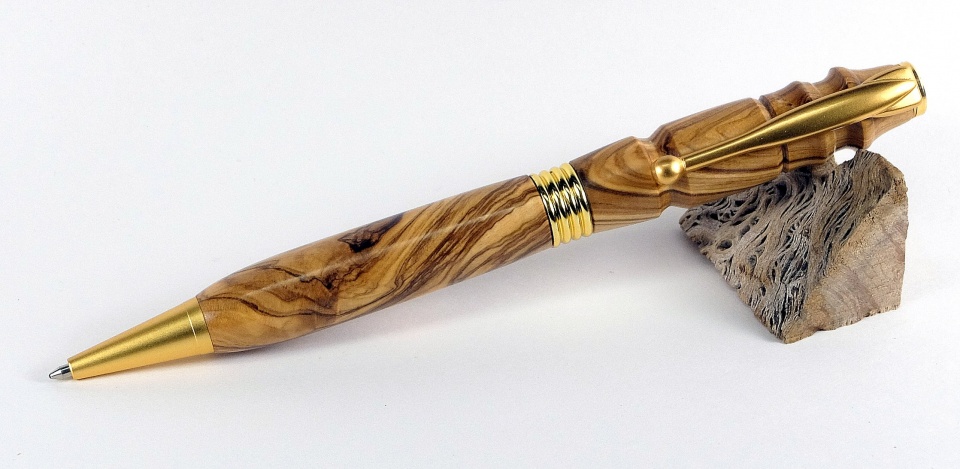

Brian for so many years I have been using Slimline pens with Streamline centre bands giving a miss to the skinny pens and not enough timber around the kit.

I enjoy the challenges of the two part pen.

Your exercise in changing makes sense with a larger biro inside and simpler making,much easier to make etc.

Kind regards Peter.


Attachments

Last edited:

RobS

Member
Joined
Jun 20, 2016
Messages
524
Location
Carlsbad, CA
100% agree, I would also recommend the Executive as a similar choice for those that want a slightly thinner body. Single barrel pens, that have longer blank lengths always are winners.


OZturner

Member
Joined
Aug 5, 2013
Messages
6,664
Location
Sydney. NSW. Australia
Brian Brian Brain, your Polaris pens are great, however, real men turn slimlines and enter them in Slimline contests

http://www.penturners.org/forum/f18/bash-slimline-contest-157472/

BTW, I commend you on your charitable activities.
Brian for so many years I have been using Slimline pens with Streamline centre bands giving a miss to the skinny pens and not enough timber around the kit.

I enjoy the challenges of the two part pen.

Your exercise in changing makes sense with a larger biro inside and simpler making,much easier to make etc.

Kind regards Peter.
Nice pens. Polaris/Atlas/Patriot is one of my favorites. Nice variety of finishes available as well--depending on the source.
earl
100% agree, I would also recommend the Executive as a similar choice for those that want a slightly thinner body. Single barrel pens, that have longer blank lengths always are winners.
Thank You Cody, Peter, Earl, and RobS. For your Responses.
Cody, I am sure that you will continue to Get Sufficient "Real Men" to Enter your Slimline Contests, I am not advocating Not to use Slimline, but just suggesting, that perhaps we should have the New Turners start with an Easier and Larger Pen, until they reach the Standard, that can achieve the Difficulties of the Slimline.

Peter, you make Spectacular Variations of the Slimline, with experienced and consummate ease. My remarks are mainly directed for those New Turners, who with "White Knuckles" approach their First Pen, The Infamous Slimline.
I believe that there are easier Pens that they should or could cut their teeth on without the Fearful History of the Slimline.

Earl, Thanks for your comments and inclusion of the Atlas/Patriot.

RobS Thank you for your Kind remarks.

Merry Christmas to You and Yours.
Kindest regards,
Brian.


RobS

Member
Joined
Jun 20, 2016
Messages
524
Location
Carlsbad, CA
Brian,
You are an inspiration on the art of class and tact. Must be that fantastic down under charm. Merry Christmas to you, enjoy your summer.

RobS


Woodchipper

Member
Joined
Mar 15, 2017
Messages
2,522
Location
Cleveland, TN
Brian, thanks for the detail rendering of your method. Will study it further in detail for the great info.
Peter, my complements on that pen! Thanks. We are having a cold spell now and the shop is at 50 degrees F. Will take a lot to get it it the low 60s.


OZturner

Member
Joined
Aug 5, 2013
Messages
6,664
Location
Sydney. NSW. Australia
Brian, thanks for the detail rendering of your method. Will study it further in detail for the great info.
Peter, my complements on that pen! Thanks. We are having a cold spell now and the shop is at 50 degrees F. Will take a lot to get it it the low 60s.
Thank you John for your interest and kind words.
If there is anything that is unclear please drop me a PM, I would be very pleased to assist you, if I can.
Kindest regards, and Best Wishes to you and yours, for a Very Merry Christmas,
Brian.
