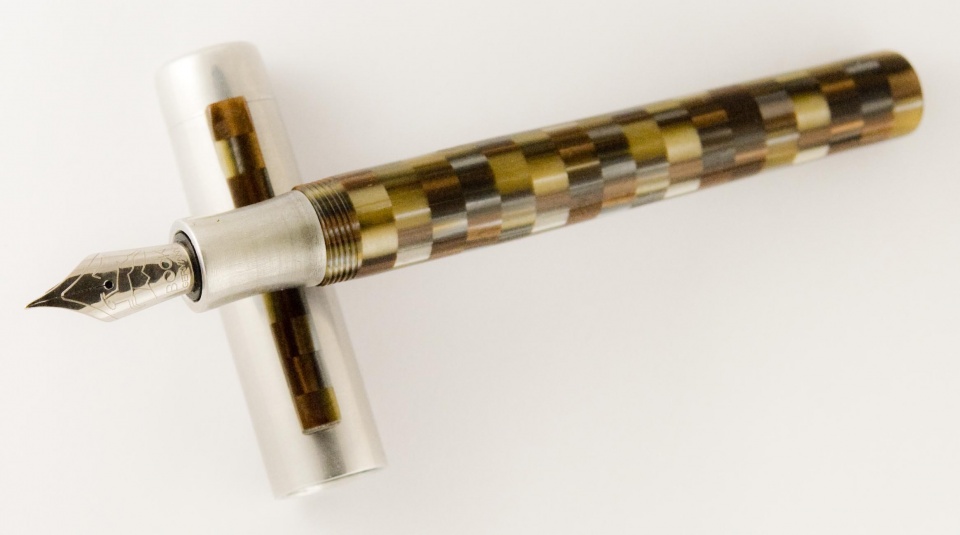

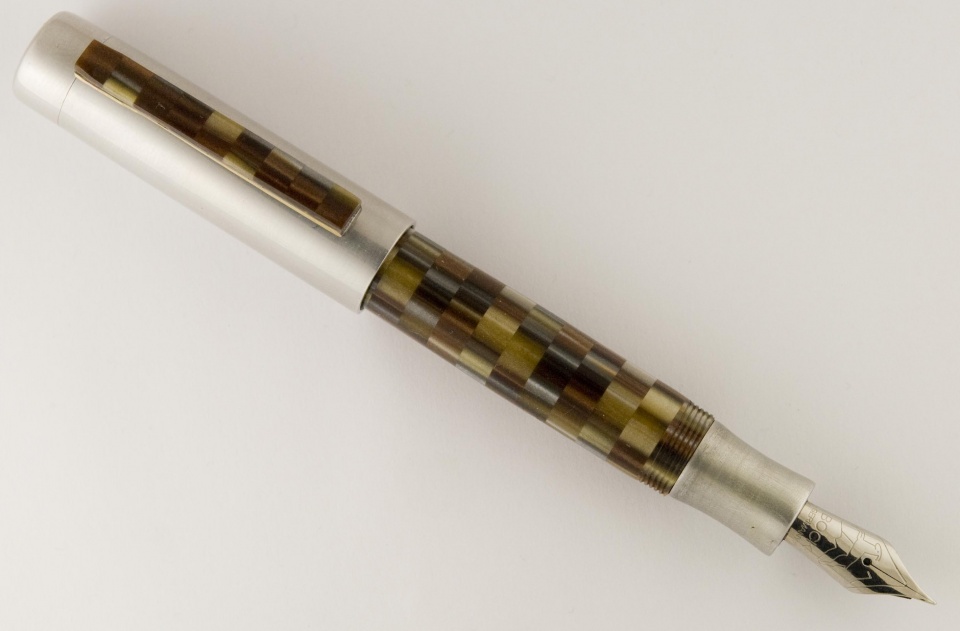

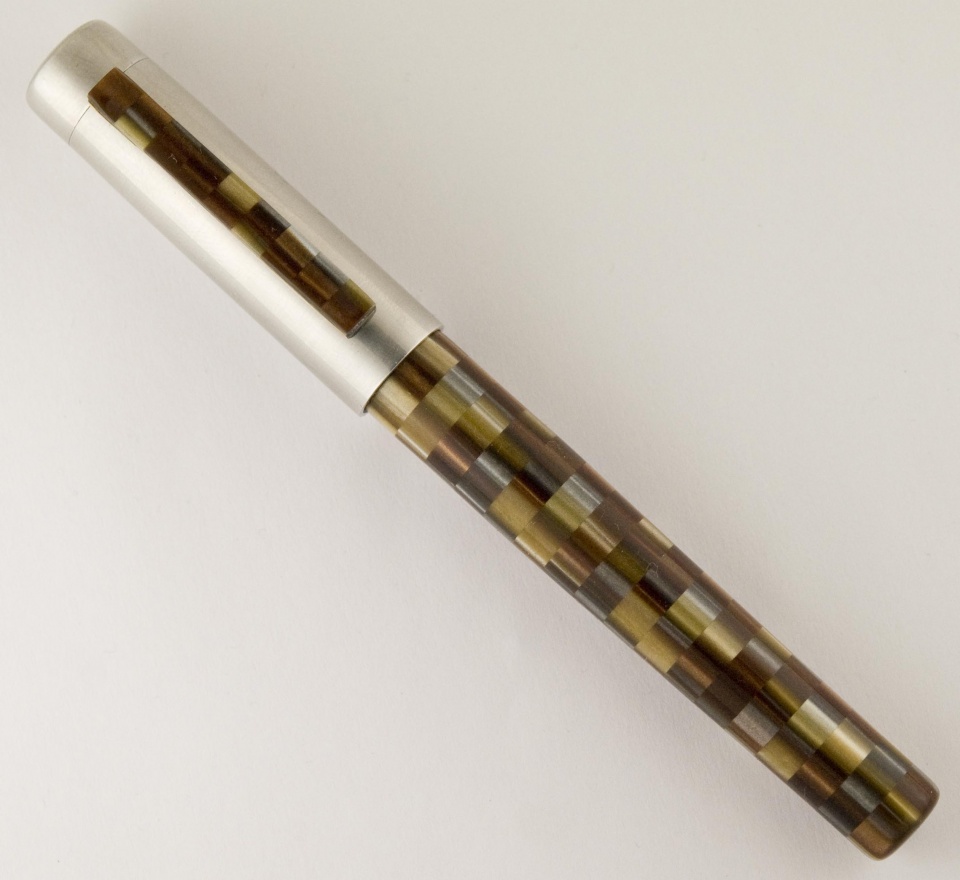

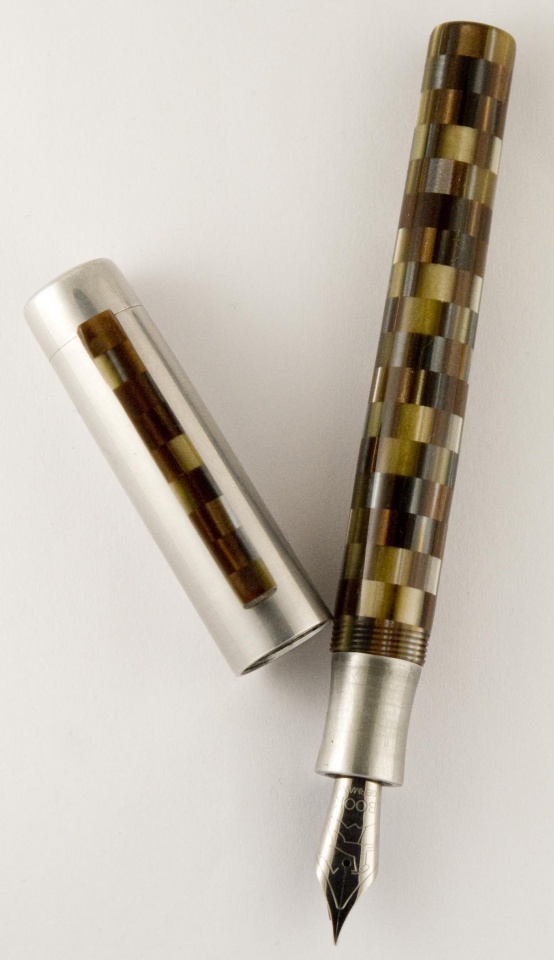

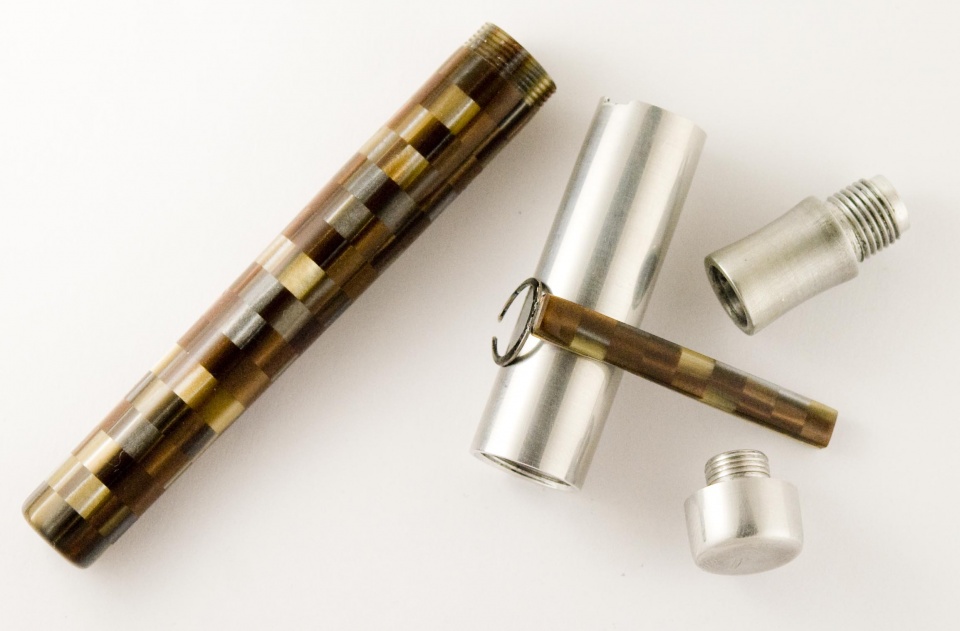

Made this a little at a time whenever I had a chance to...it's made from a mosaic resin and aluminum. Thought I would finish it tonight. Doc:)


Attachments

  • Mosaic and Metal.jpg
    Mosaic and Metal.jpg
    144.1 KB · Views: 398
  • Mosaic and Metal_3.jpg
    Mosaic and Metal_3.jpg
    78.5 KB · Views: 270
  • Mosaic and Metal_2.jpg
    Mosaic and Metal_2.jpg
    112.7 KB · Views: 255
  • Mosaic and Metal_1.jpg
    Mosaic and Metal_1.jpg
    90.6 KB · Views: 231
  • Mosaic and Metal_4.jpg
    Mosaic and Metal_4.jpg
    115.5 KB · Views: 311
Signed-In Members Don't See This Ad

magpens

Member
Joined
Feb 2, 2011
Messages
15,913
Location
Canada
That is SOOOOOOOOO nice !!!!

Would you mind telling me what thread sizes you used, please. I think there are 4 threaded regions.

Is the clip steel ? . I assume you glued a strip of resin to the clip. . Thanks


wizard

Member
Joined
Aug 27, 2009
Messages
3,568
Location
Houston, Texas
Thank You!

Thank you all for your kind comments! Doc:)

That sir is simple and beautiful at the same time. Very nice. I would love to know that mosaic resin is though.

Bill, Thank you. The resin was a gift or freebie from Dawn at Exotic Blanks. Don't know the type of resin. I think it had Conklin on the end I cut for pen.

That is SOOOOOOOOO nice !!!!

Would you mind telling me what thread sizes you used, please. I think there are 4 threaded regions.
Is the clip steel ? . I assume you glued a strip of resin to the clip. . Thanks

Mal, Thank you.
The thread sizes in millimeters are as follows:
Body to Cap: 14×.8 (X3)
Section to Body: 10 X 1
Cap to Finial: 9×.75
Bock housing to section: 7.9x 0. 6
The clip is a Rinehart with a vertical slot milled to form a joint with the resin and glued in with J&B steel
epoxy. Resin finished and polished.
Hope that helps.


Very nice Doc. You did a great job on the clip. I like the two tone body.

Mike

Mike, Thanks so much!
Hmm... wonder why I thought about making this Aluminum and resin pen...
Some inspiring dude in Florida made this cool red resin and Aluminum pen and another Aluminum, Ebonite and Cebloplast pen.... Trying to remember the name of that magical metal melding blue tinted lupine... LOL. :biggrin:
