Mood Stone Kitless Rollerball

[hooked]

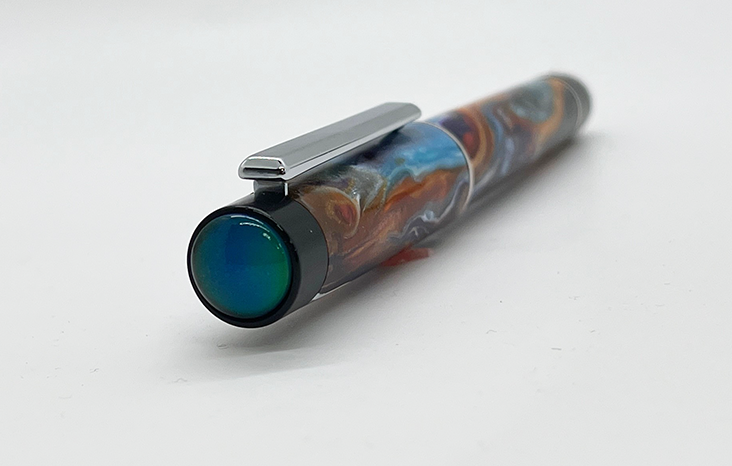

Hi all. I wanted to share this one as it came out well...for me. I tried a kitless rollerball. I also put a mood stone in the finial that changes color depending on the temperature. I thought it was an excellent little addition that fits the crazy blank (beautiful blank from Turnt Pen Co.). I have been working on this one for a few days while trying to learn to incorporate a section for the rollerball nib. This pen uses fountain pen ink and is fed with a convertor.


M13 x .8
M10 x 1
M6.5 x .5 (rollerball nib threading)
Turnt Pen Co. blank - Badfish
Ebonite section
Rollerball nib came from Beaufort



[jttheclockman]

Love to see more kitless rollerballs. Yours is very well done and very nice blank. Thanks for showing.



[rixstix]

Good looking work. I like the blank & accent combination.



[Drewby108]

That is gorgeous and very practical looking. I love the blank.



[Jim15]

Great work.



[hooked]

Thanks for the feedback! I got a couple of questions regarding the rollerball nib. I thought I would just post the info in case others are interested.

I got the nib from Beaufort (they also sell the required tap M6.5 x .5):

Beaufort Ink refillable rollerball nib - chrome

Mechanisms,Beaufort Ink refillable rollerball nib - chrome

www.beaufortink.co.uk

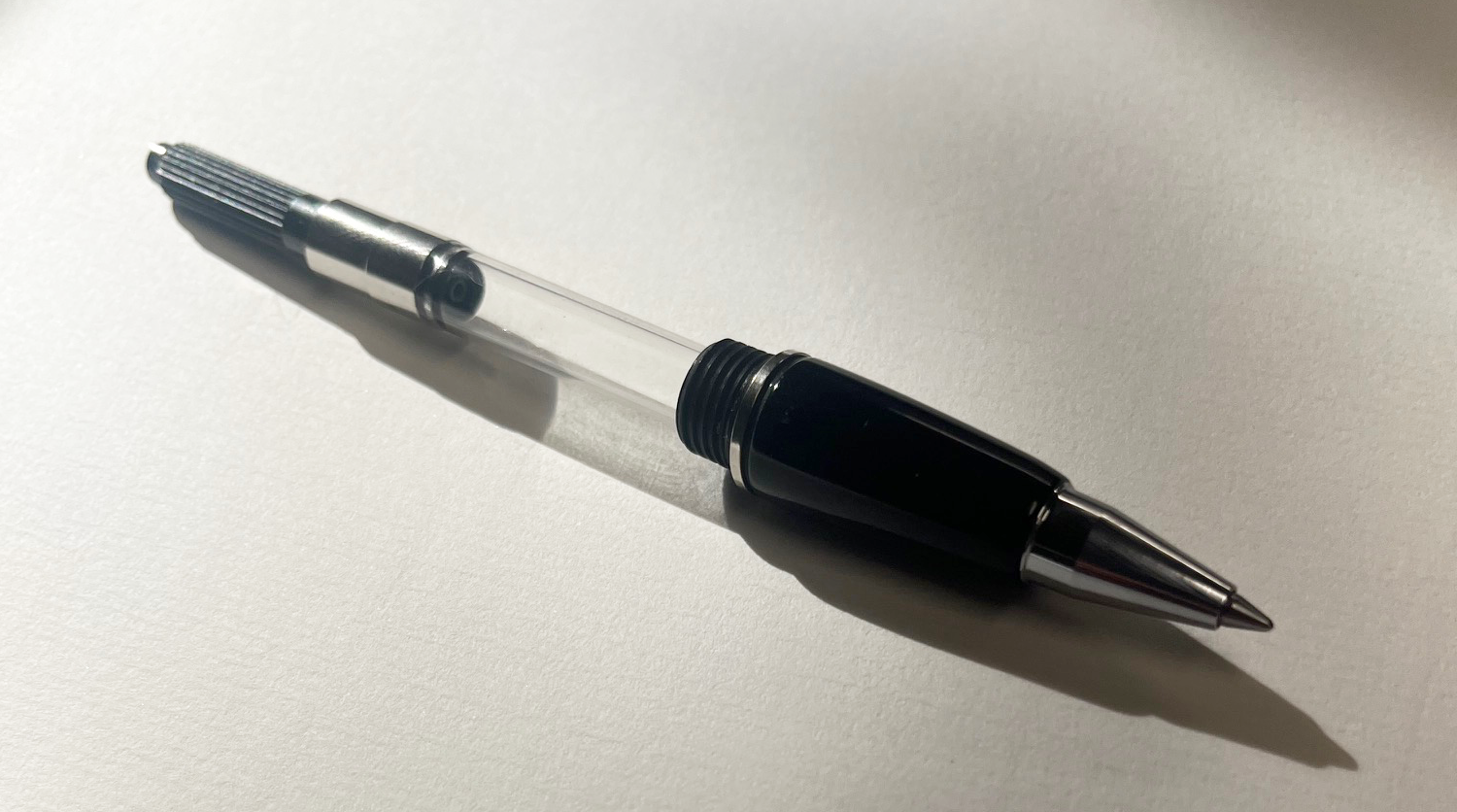

Here is a picture of the section with the nib and convertor:



[rixstix]

Do these RB nibs come with a snap-cap like the ones from ExoticBlanks do? I always thought the cap was for protection from physical damage in transit and storage instead of intended to be built into the cap to prevent dryouts.



[hooked]

Do these RB nibs come with a snap-cap like the ones from ExoticBlanks do? I always thought the cap was for protection from physical damage in transit and storage instead of intended to be built into the cap to prevent dryouts.

Yes, they do. I actually thought it was for protection too. I thought it was strange that they put such effort into a piece of plastic to protect the nib. Next, I will have to incorporate that into the cap. Thanks for letting me know! I also didn't realize that Exotic Blanks sold them.



[rixstix]

Exotic blanks has the chrome & black versions.

There is a thread a few months back that had details about the snapcap which wss a lightbulb moment for me. & snapcap adjustment tool.



[rixstix]

Here's the link to the thread I mentioned earlier. Shown on Schmidt fp nib but applies to rb nibs too

https://www.penturners.org/threads/plunger-filler-in-diamond-cast.175725/post-2170611



[KMCloonan]

Pen is beautiful! I really like the mood stone finial too! Where did you find the material for that?



[hooked]

Pen is beautiful! I really like the mood stone finial too! Where did you find the material for that?

Thank you!

Found them on Amazon:

https://www.amazon.com/dp/B082WXY3XL?psc=1&ref=ppx_yo2ov_dt_b_product_details



[TDahl]

Very nice. The pen turned out really nicely.
