Mods to my Pen Wizard

[KBs Pensnmore]

Now that I have a camera I can show the mods that I've done to my Pen Wizard
Storage for spare gears

Chuck for lace bobbins etc storage spot
.
Modified end support for bobbins

Cutting lace bobbin

Drawer for small bits


Comments and criticism welcome
Enjoy
Kryn



[Waxman]

Some great tips there, the wizard needs to be customized for individual use, I am working on mine, I will post some pics when I have finished.



[walshjp17]

Nice mods. I'm looking at doing something similar to your drawer for all my cutters, spare mandrels and gears.

Do you have more detailed photos of the drawer?

Did you raised the Wizard on riser blocks to accommodate the drawer?



[its_virgil]

Thanks for sharing but larger pictures would help those of us with older eyes.
Do a good turn daily!
Don



[KBs Pensnmore]

Nice mods. I'm looking at doing something similar to your drawer for all my cutters, spare mandrels and gears.

Do you have more detailed photos of the drawer?

Did you raised the Wizard on riser blocks to accommodate the drawer?

The Wizard is in its original position mounted with 1" aluminium angle.
I don't think you can get the mandrels to fit in the space, where I put the drawer.
Will get a close up shot of the drawer, which is made from 3 ply with 3 spaces (2 small & 1 large to take the depth gage) as is the case around it from 1/8" (3 mm) thick, with a cut out D for a finger pull.
There is going to be another box assembly underneath it all, to take the Dremel and Makita trimmer, everything will then be in the one place.
I'm still learning to submit/edit photos, so my apologies for those of us, that have older/tired eyes.
Regards and Thanks for the comments,
Kryn



[KBs Pensnmore]

Here are some photos, with more detail, hopefully more readable for tired eyes.

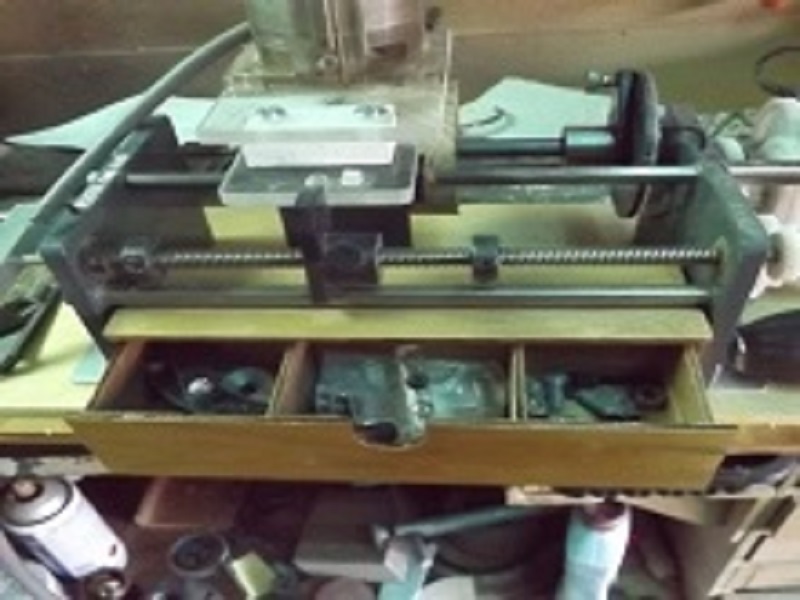

Drawer made from 3ply 1/8" (3mm)

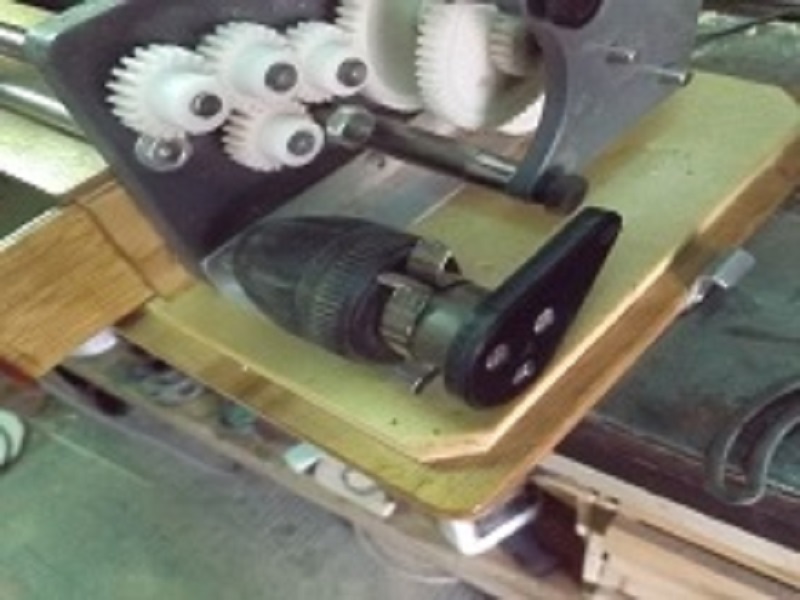

3/8" chuck for lace bobbins, etc

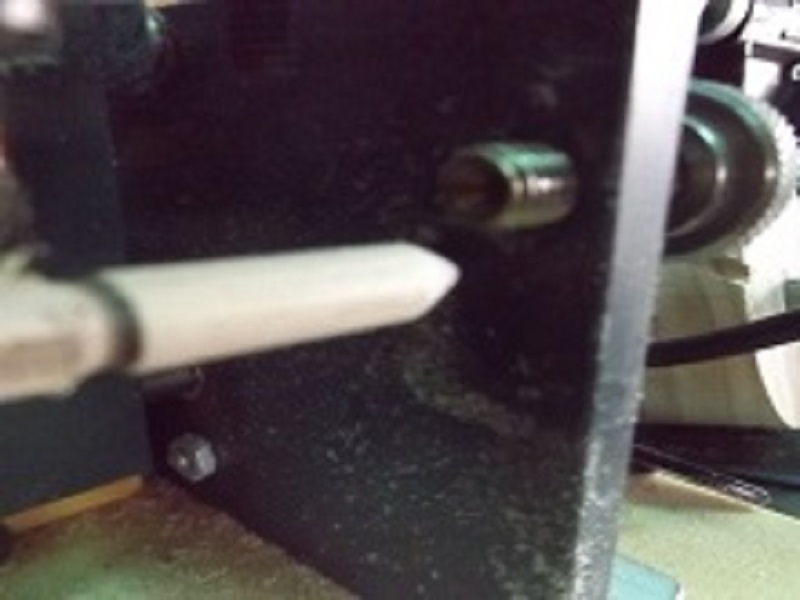

Modified end for lace bobbins

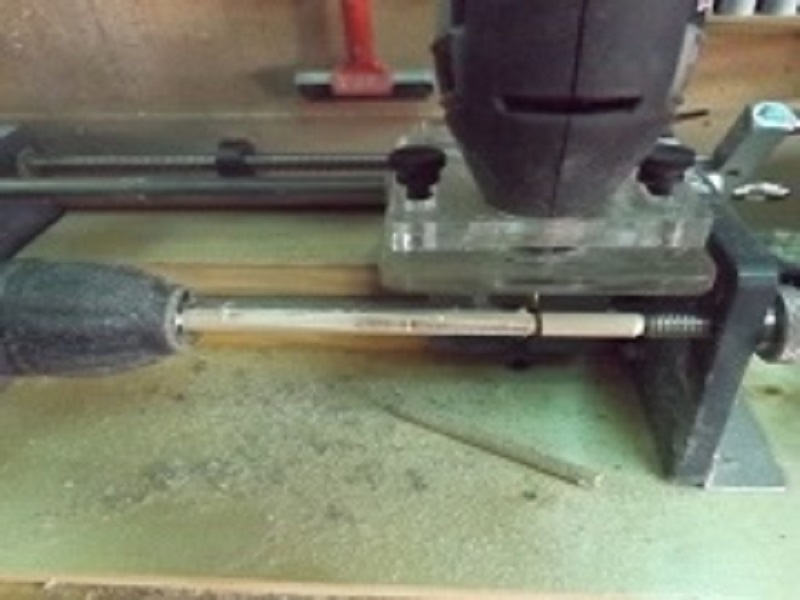

Showing set up for bobbins

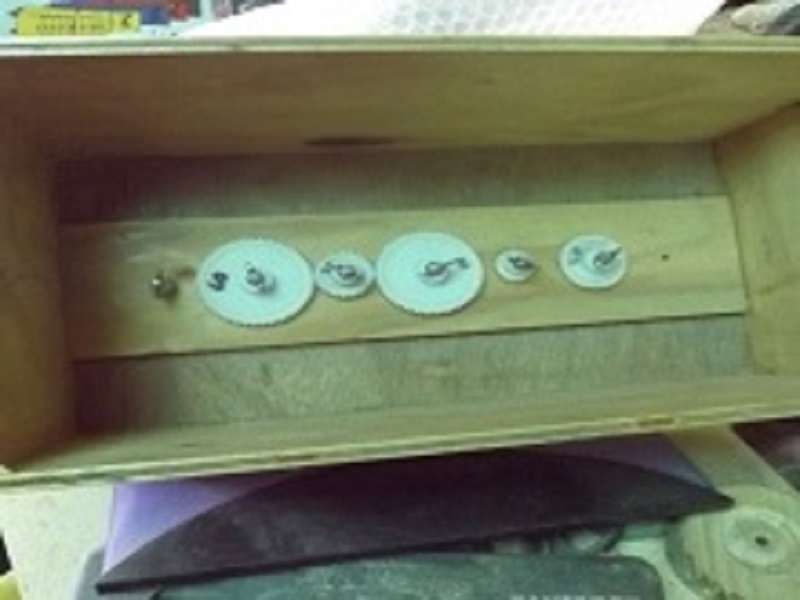

Storage for the spare gears

Kryn



[dogcatcher]

A lot better on the pics, thanks.
