Mechanical Hummingbird!

Signed-In Members Don't See This Ad

btboone

Member
Joined
Dec 5, 2004
Messages
2,433
Location
Roswell, GA, USA.

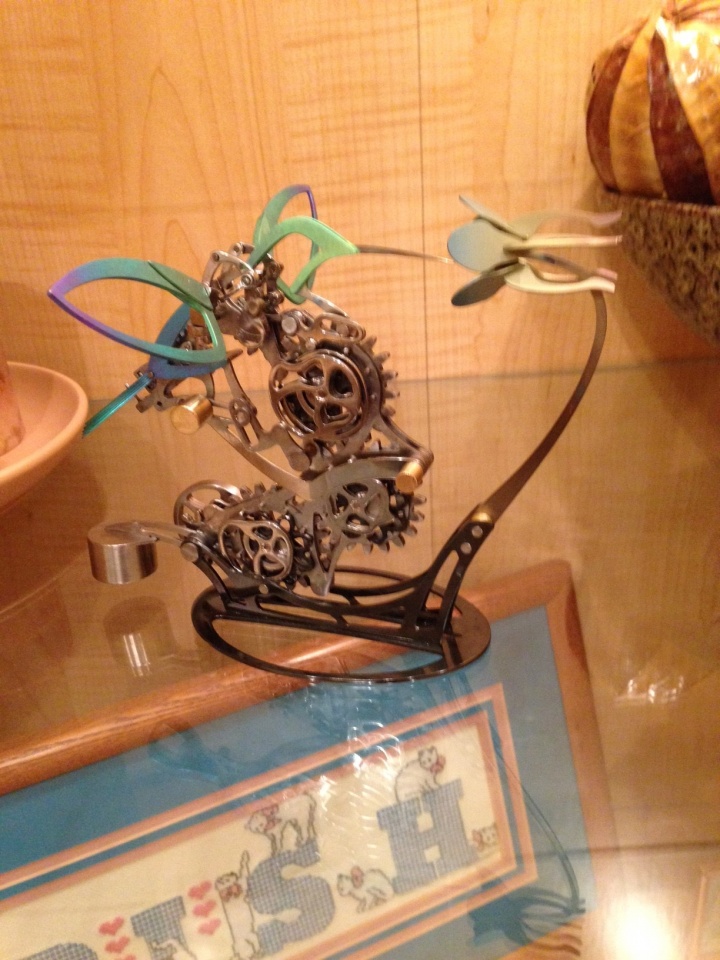

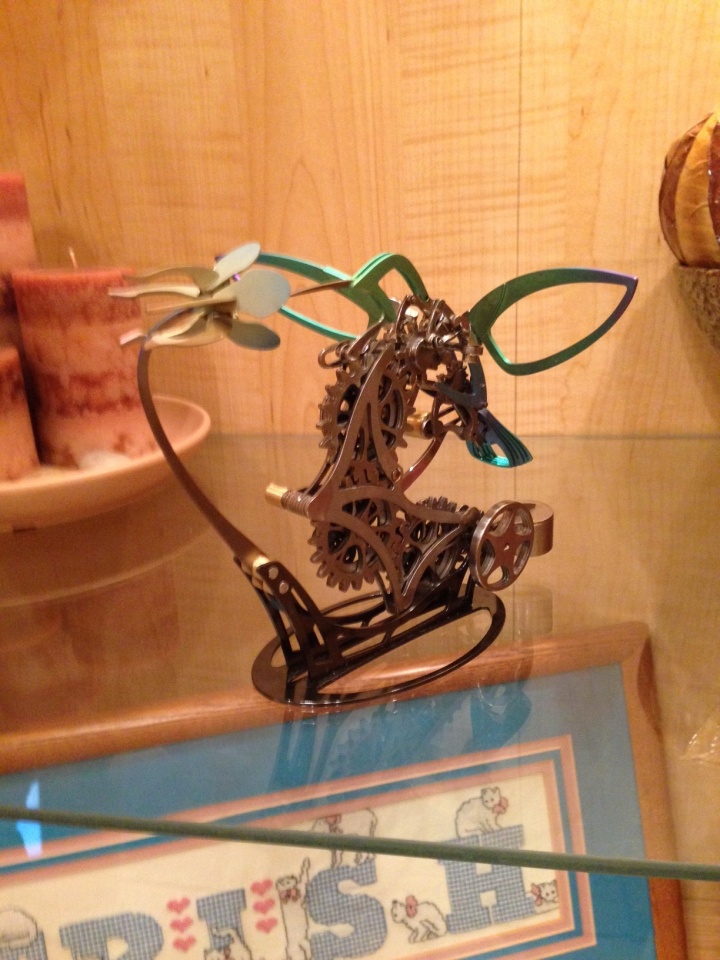

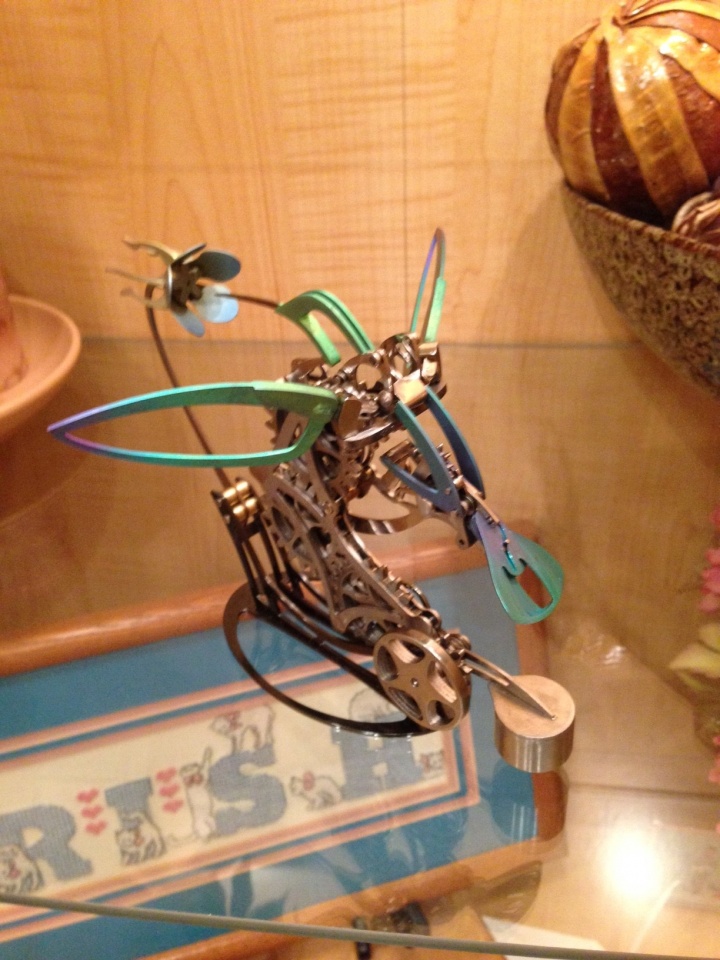

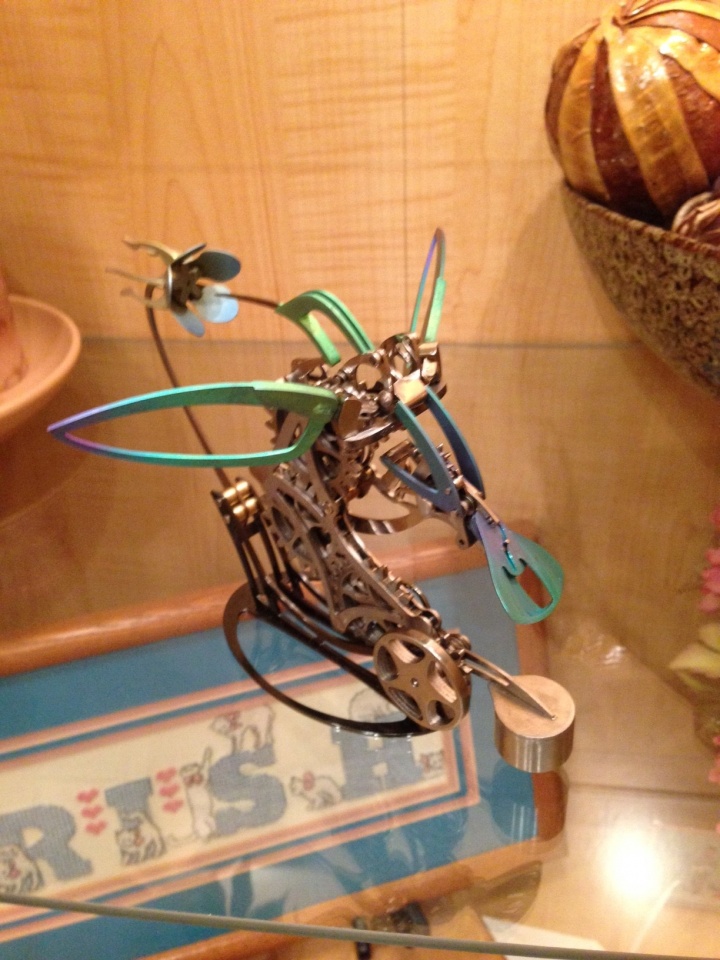

OK, so this one's a little different. It's a mechanical hummingbird that flaps its wings, spreads its tail feathers, and hovers closer and further from the flower. It made from titanium, with parts of black zirconium, brass, and tungsten. The bird itself is anodized in iridescent colors. It works by rotating a gear at the bottom. I have a movie of it on the Facebook page of Boone Titanium Rings which anyone can see.

I based it off of some plans by a guy named Derek Hugger that made the sculpture in wood that's about 18" tall. Here's a link to a YouTube video of his sculpture working: https://www.youtube.com/watch?v=1scj5sotD-E I had to redesign each and every part for scale, plate thickness, and lack of bearings. I made a prototype one while redesigning and made a final one. It is laser cut and laser welded. It took something like a month to make. By far my most complex project ever.


Attachments

Signed-In Members Don't See This Ad

mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
7,991
Location
Medina, Ohio
Just a quick comment.

Bruce, you are one IAP member that I have saved previous threads and pictures for inspiration. It gives me great pleasure to see you posting again on topics of unique interest! Welcome.


btboone

Member
Joined
Dec 5, 2004
Messages
2,433
Location
Roswell, GA, USA.
Thanks guys. Mark, I was kinda thrust into a penmaking situation where I took on a job without fully realizing what it would take to do it. A buddy of mine that had intimate knowledge of what it would take turned it down. I have a couple of employees and the ring market is a bit shaky lately with the political situation, so I decided to take it on. I'm attempting to adapt and overcome. I'll need to do things quite differently from my prototypes in order to be efficient at it.

I have read the forums for quite some time but my password didn't work anymore so I couldn't respond. I recently reapplied for a new password and am begging for any and all help in cutting edge technologies that will allow me to do the big batch without selling the farm.


bruce119

Member
Joined
Jul 30, 2007
Messages
2,977
Location
Franklin, NC, USA.
Hey Bruce that looks great. You inspired me to get get one of those. I got the Zybach a wood mechanical clock seen HERE. I hand cut it with a scroll saw got it all built up and am in the process of trying to get it to run. I can appreciate the work that goes into one of these...

Last edited:

eharri446

Member
Joined
Mar 17, 2016
Messages
767
Location
Marietta, GA
You said that you had a large order of pens to make. Are they all going to be the same, or are they going to be different? If they are all going to be the same, you might want to take a look at getting a lathe duplicator so that you can do production like quantity while still having a quality product.


btboone

Member
Joined
Dec 5, 2004
Messages
2,433
Location
Roswell, GA, USA.
You said that you had a large order of pens to make. Are they all going to be the same, or are they going to be different? If they are all going to be the same, you might want to take a look at getting a lathe duplicator so that you can do production like quantity while still having a quality product.
They will all be the same. I have a Mazak CNC lathe, so they are very repeatable. I figured out the process and it works well.
