Maple Mug

Signed-In Members Don't See This Ad

Cwalker935

Well-Known Member
Joined
May 18, 2014
Messages
2,973
Location
Richmond, Va

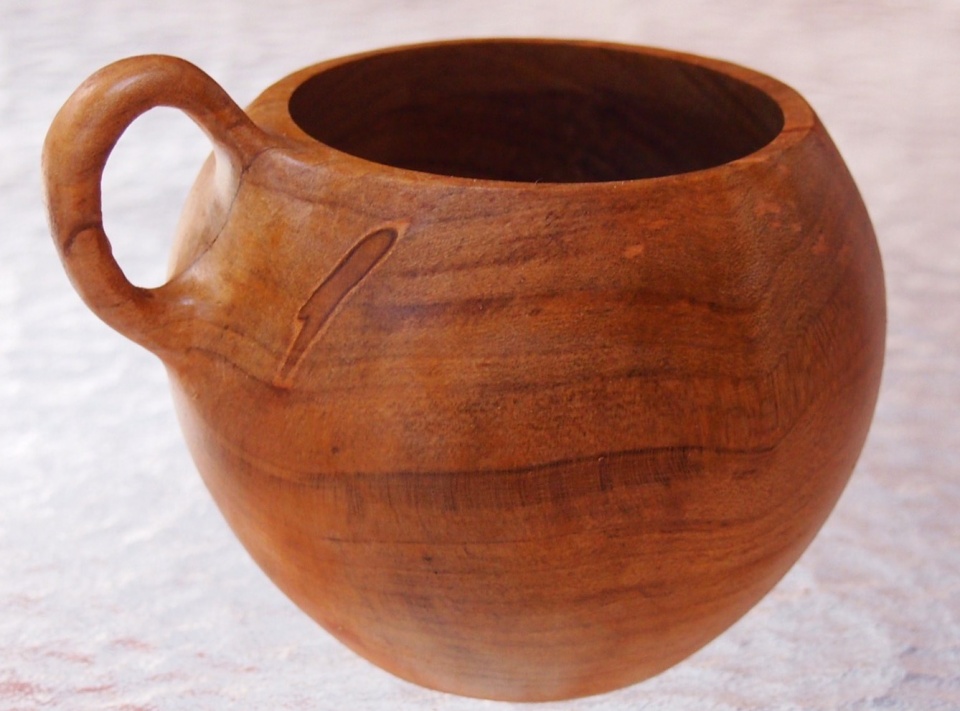

I thought a coffee mug would be easy after making teapots, but not really. The smaller size presented some challenges.


Signed-In Members Don't See This Ad

leehljp

Member Liaison
Joined
Feb 6, 2005
Messages
6,607
Location
Tunica, MS,
I'll take one filled with columbian to go! :biggrin: Nice looking!

Why was smaller more difficult? More tedious? I enjoy your wood pots and now your wood cups/mugs.


mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
7,871
Location
Medina, Ohio
Another wonderful turning Cody. Excellent in all respects. The shape and profile is very attractive, as is the wood grain.

Kudos.


Cwalker935

Well-Known Member
Joined
May 18, 2014
Messages
2,973
Location
Richmond, Va
I'll take one filled with columbian to go! :biggrin: Nice looking!

Why was smaller more difficult? More tedious? I enjoy your wood pots and now your wood cups/mugs.
To do these, I turn on two axes and I turn four separate faces. That involves turning between centers on one axes and using a 4 jaw Chuck on the other axes. If you are not careful you can either turn off your between centers mounting points or your recess for the 4 jaw chuck before you are ready to change axes. A smaller piece leaves you with less working room to maintain the various mounting points.


Cwalker935

Well-Known Member
Joined
May 18, 2014
Messages
2,973
Location
Richmond, Va
How do you turn that without knocking the handle off each time it comes around? :confused::confused:
I turn it on two separate axes. One axes for shaping the lower portion and for hollowing. The second axes for shaping the upper portion, stopping the cut on either side of the handle.


greenacres2

Active Member
Joined
May 2, 2017
Messages
841
Location
Northwest IN
How do you turn that without knocking the handle off each time it comes around? :confused::confused:
I turn it on two separate axes. One axes for shaping the lower portion and for hollowing. The second axes for shaping the upper portion, stopping the cut on either side of the handle.
I read what you wrote, and all the words are easy enough for me to understand one at a time--i'm just having trouble with putting them together!!

Great mug!!
earl


SteveG

Well-Known Member
Joined
Dec 21, 2009
Messages
2,742
Location
Eugene, Oregon 97404
Thanks for making a complex process clear, Cody. Now I can visualize the turning process. I can understand the need for careful planning, as you will shift the turning axis about 90* to work the portion where the handle will reside. Very cool process, and clearly not easy. That is what makes it fun, and yields such a nice result. Thanks for the explanation.


Charlie_W

Well-Known Member
Joined
Nov 16, 2011
Messages
5,087
Location
Sterling, VA USA
Awesome turning Cody!! Shape, design and execution are spot on.

I’m still scratching my head a bit.....glad you have it figured out!
