That is a cool pen. I would love to make one of those blanks for a pen for my sister-in-law who is an artist and art teacher. She would certainly think it was cool too.


elyk864

Member
Joined
Jun 12, 2017
Messages
257
Location
Phoenix, AZ
That is a cool pen. I would love to make one of those blanks for a pen for my sister-in-law who is an artist and art teacher. She would certainly think it was cool too.
You just need some alumilite, dye, pressure pot, and some pencils. It was honestly very easy to make.


jttheclockman

Member
Joined
Feb 22, 2005
Messages
12,269
Location
NJ, USA.
Did you cut the strips into staves and glue and then pour the resin. You had to do something different than what others do because the sides are usually oval and not round all the way around.


elyk864

Member
Joined
Jun 12, 2017
Messages
257
Location
Phoenix, AZ

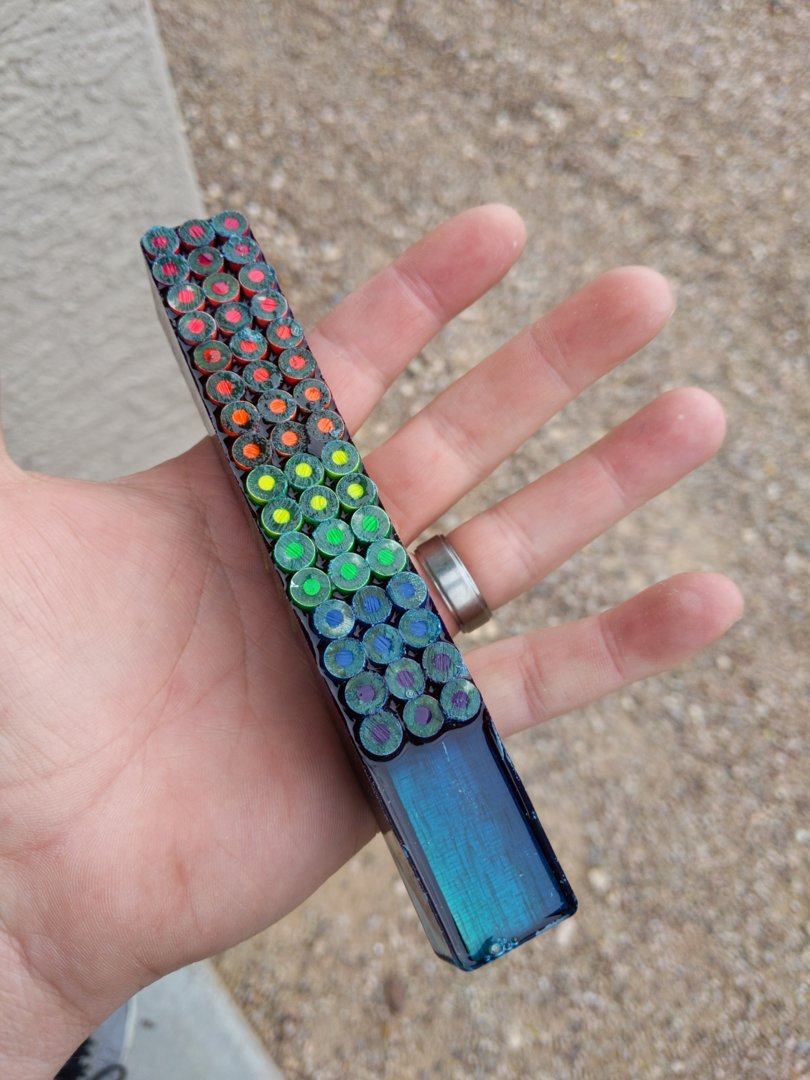

Just cut sections, braced the mold so they stayed lined up. Then poured the resin. Didn't do anything special.

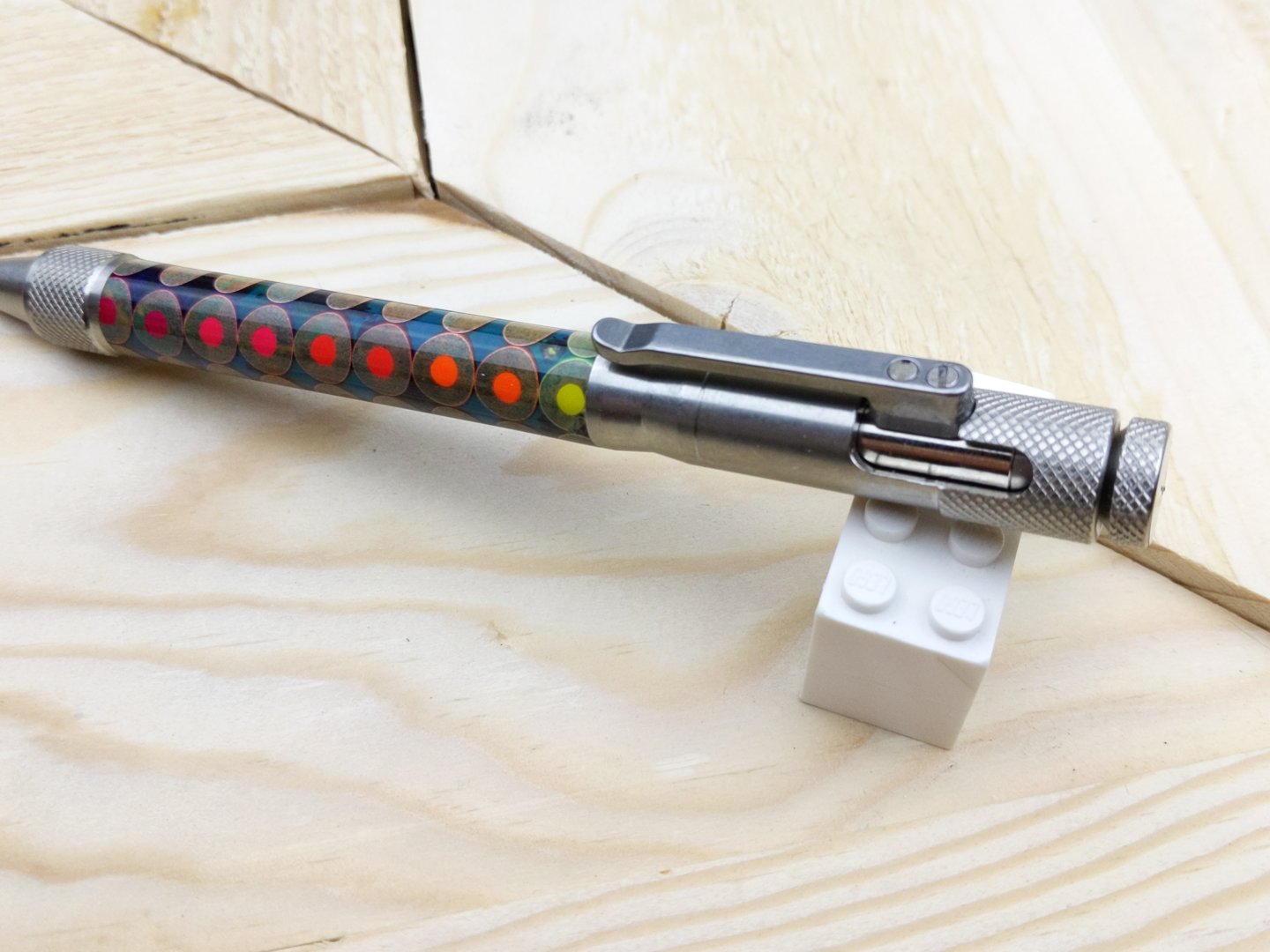

Another angle.219855


jttheclockman

Member
Joined
Feb 22, 2005
Messages
12,269
Location
NJ, USA.

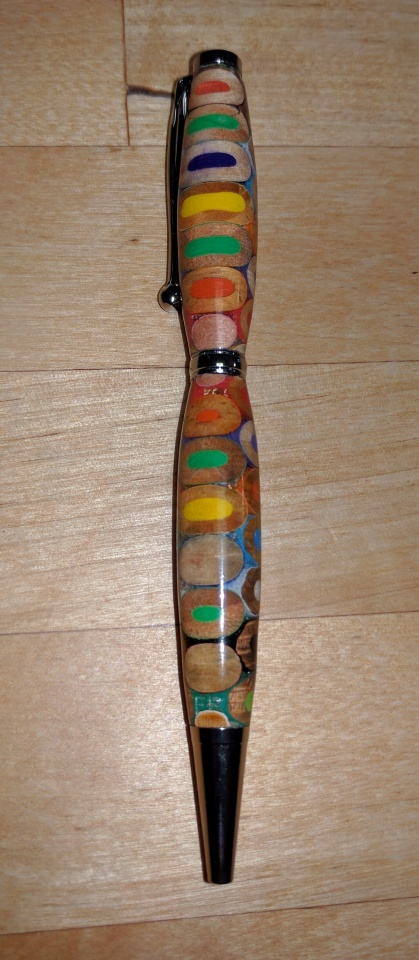

So then you say you drilled down the center of the center row of pencils and inserted tube and that is it. Either that tube is just the right size to not distort those side pencils or something else is going on. I say that because here is an example of someones pencil pen and this is what you see most of the time. Maybe the trick is 3 rows of pencils as opposed to 2.


Attachments

jttheclockman

Member
Joined
Feb 22, 2005
Messages
12,269
Location
NJ, USA.

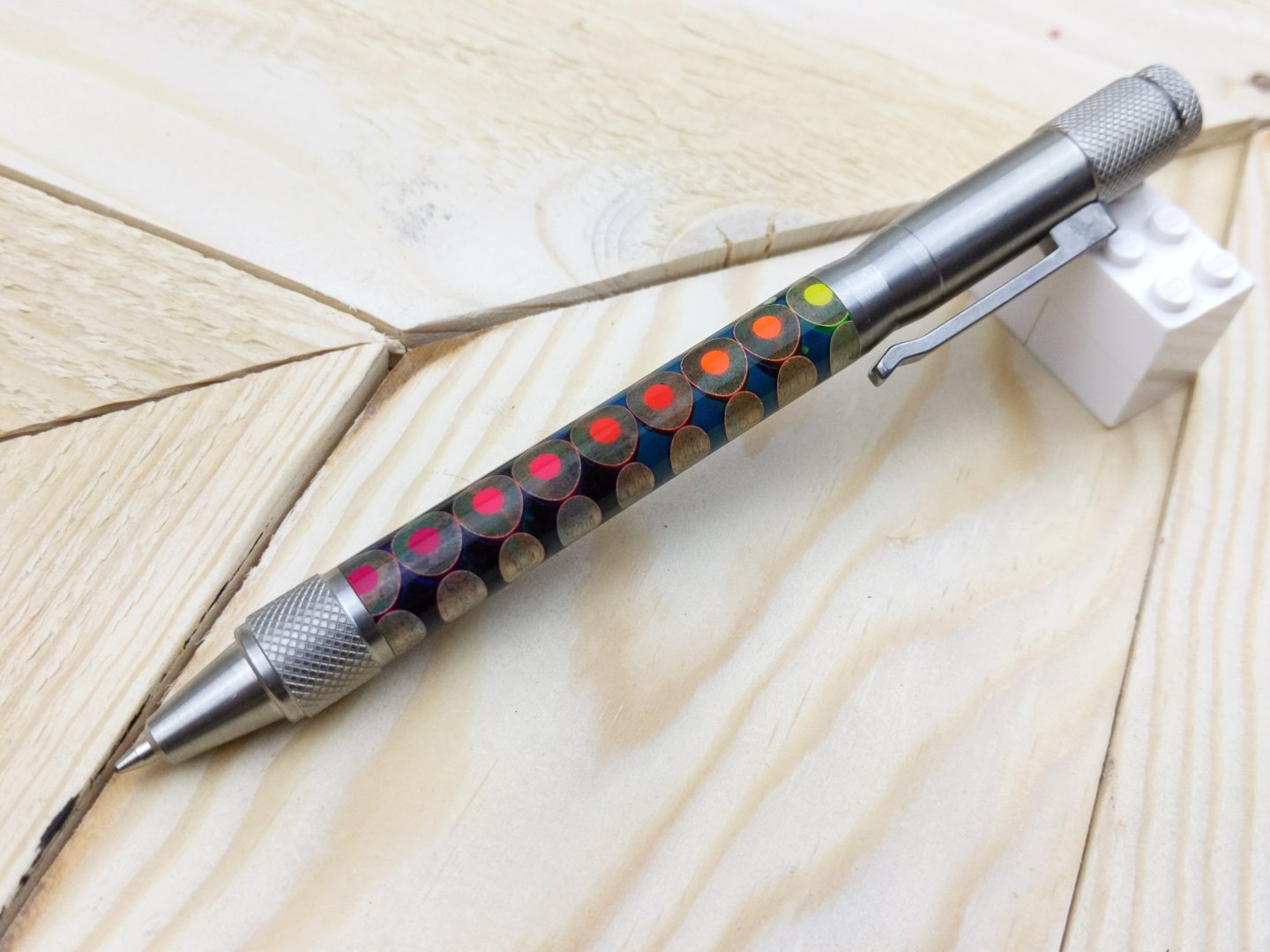

OK I have looked at this pen a few times now. Are you constantly showing us the "A" side of the pen. Being I never used this kit I am not sure how it operates. It looks like it is a slide system . The reason I am saying this I am trying to reference the clip to the row of pencils you are showing. There is no way that you get perfect rows of pencils on 4 sides. Not the way you have them layed out in the mold or at least my mind can wrap around this. I can see the top and bottom being the good sides but unless you turned the pencils on their sides that would be the only way that I see you would have a fighting chance to being close to perfect all around. But from your photo of the mold you did not do that. Could you show us the 4 sides to the pen so I can sleep at nights. Thanks. 😴😴


jttheclockman

Member
Joined
Feb 22, 2005
Messages
12,269
Location
NJ, USA.

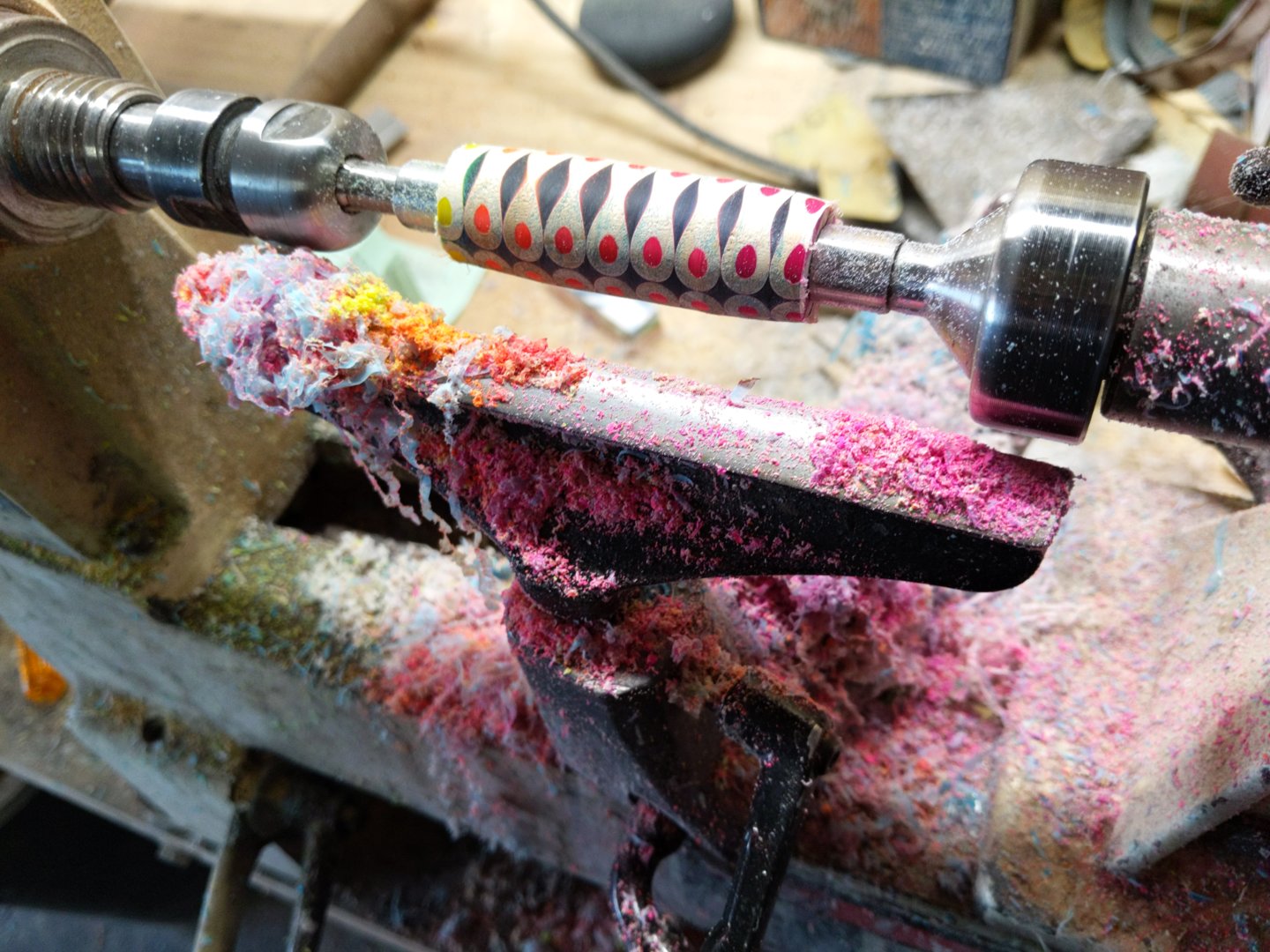

You are not doing anything different than anyone else then from your photo on the lathe. It is not that is a mind bender at all. I kept seeing the same photo with the clip moved and thought you figured out a way to make that one true row of pencils to be the same all the way around the tube. Do that and then you have something. That is the only reason I was asking. I like to see new things.

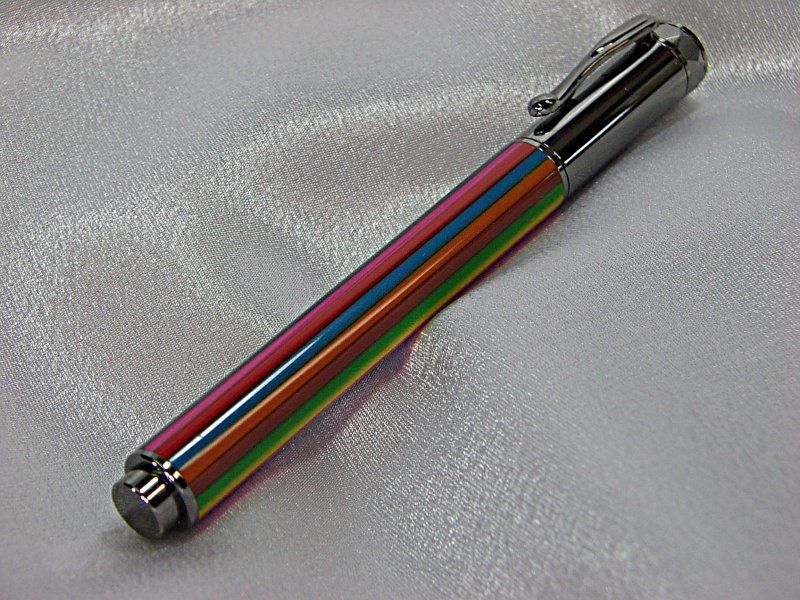

I avoided the look with the wood and here was my version of the colored pencil pen.:)


Attachments

OZturner

Member
Joined
Aug 5, 2013
Messages
6,620
Location
Sydney. NSW. Australia
Excellent Pencil Pen Kyle.
You had a number of us scratching our Head's having seen the Photograph, you posted with the Perfectly Round Pencils, neatly Lined Up like a Platoon of Soldiers, But it all came clear with the Photograph on the Lathe, where we could see the Elongated Cut Pencils on the sides of the Blank,
Great Work,
Brian.


penicillin

Member
Joined
Feb 27, 2019
Messages
141
Me too. I kept looking at the photo and wondering whether it looked the same all the way 'round. I am glad to learn that I am not the only one. Thanks for the clarification!


Woodchipper

Member
Joined
Mar 15, 2017
Messages
2,461
Location
Cleveland, TN
Unique, to say the least. My first thought was, "Why go to the trouble when you can use a pen kit to make a pen." I don't do casting but I like your blank and how you line up the pencils in a neat order. Complements are in order!


deeceedub

Member
Joined
Mar 24, 2018
Messages
75
Location
Brownfield, TX
I think Turners Warehouse is carrying some of these blanks, as well. I’ve done several as teacher gifts and they are always a huge hit.
