Machinists Tool Chest

[rherrell]

Some of you might remember when I made this...

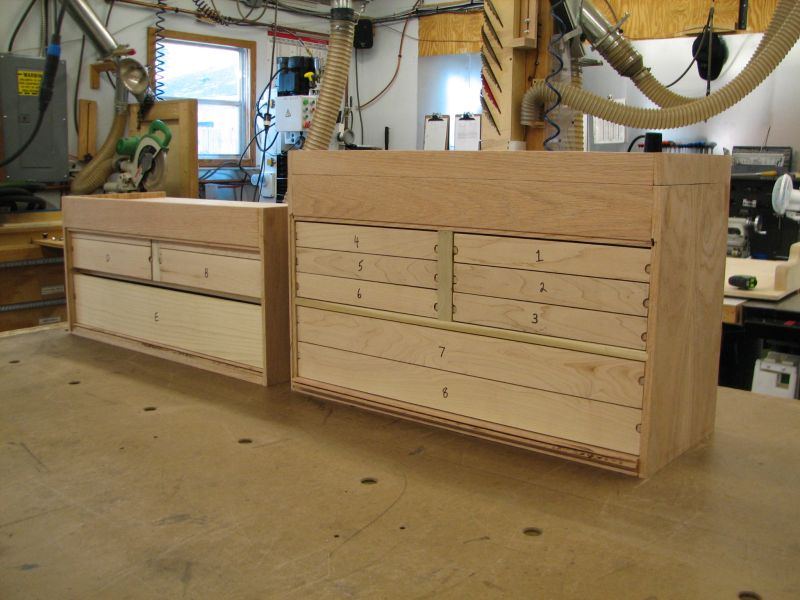

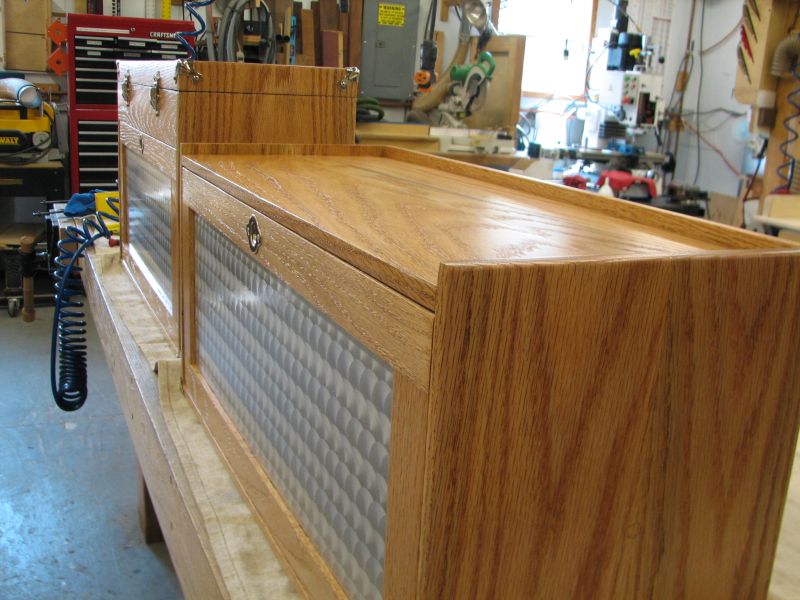

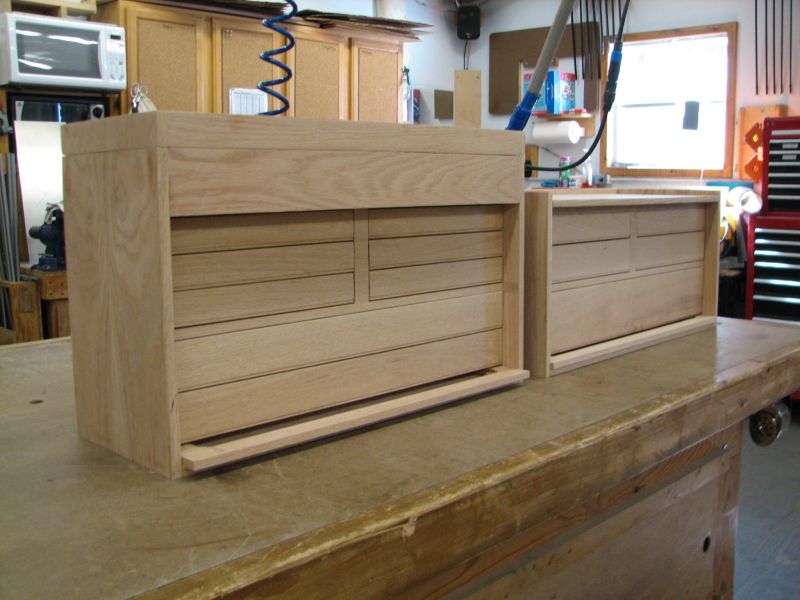

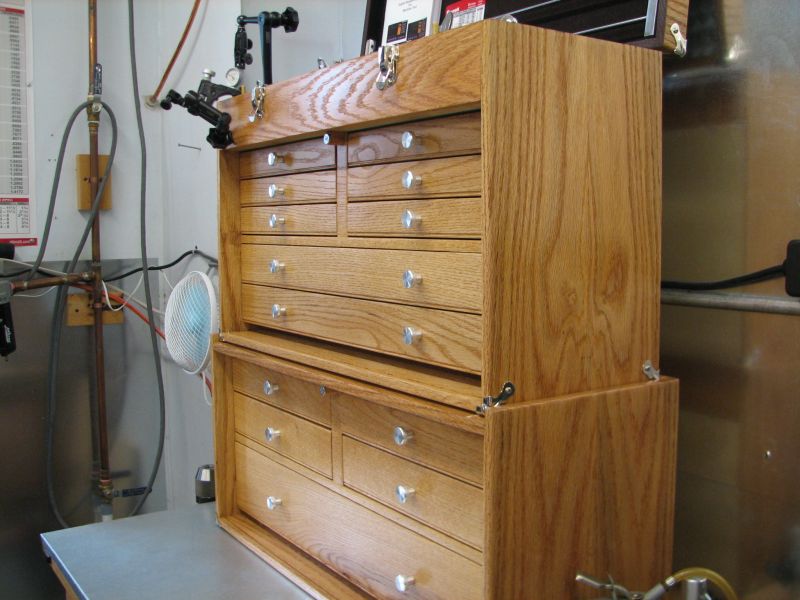

Well, I finally got around to making the top part. It's loosely based on a Gersner tool chest, I didn't have any plans, I just made a full size drawing so I had the basic dimensions and sort of winged it from there.

I hope you enjoy the pics!

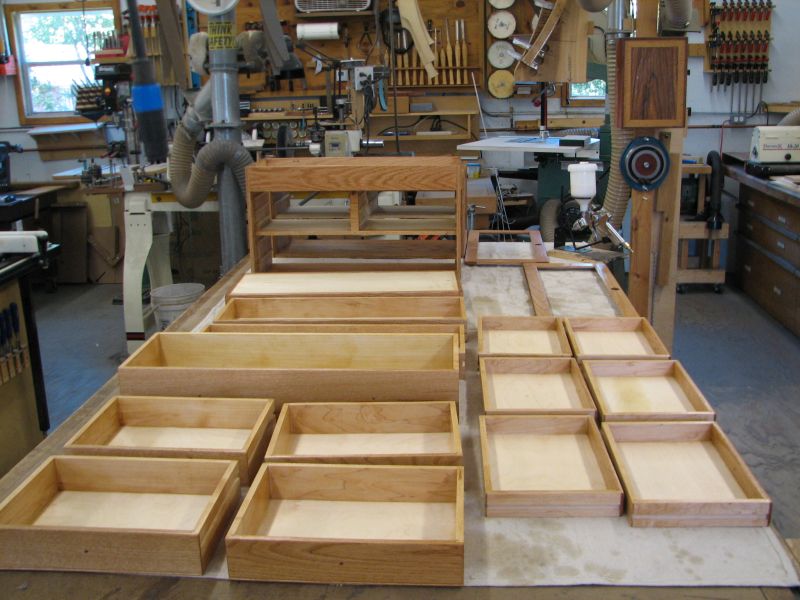

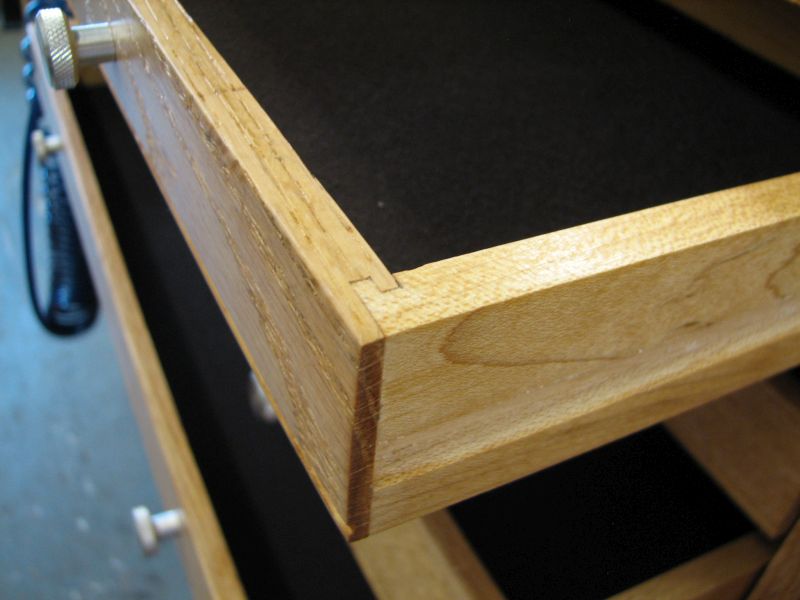

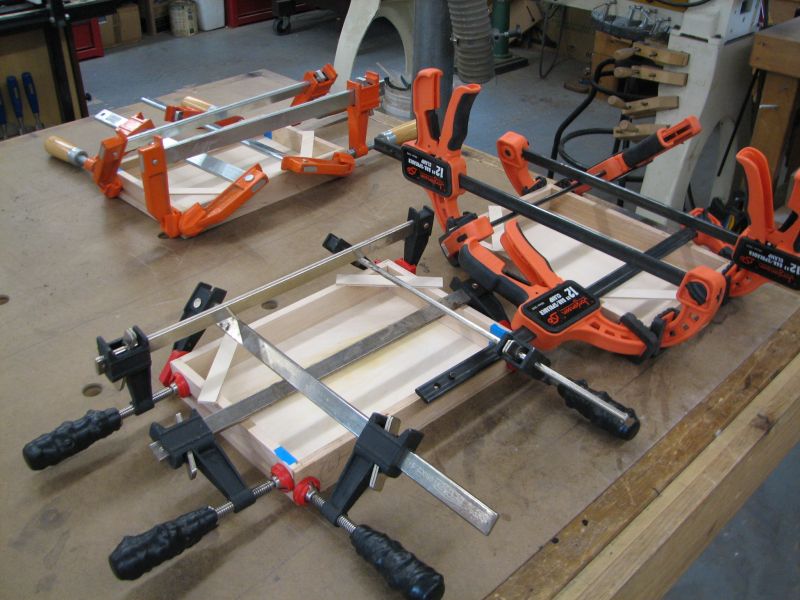

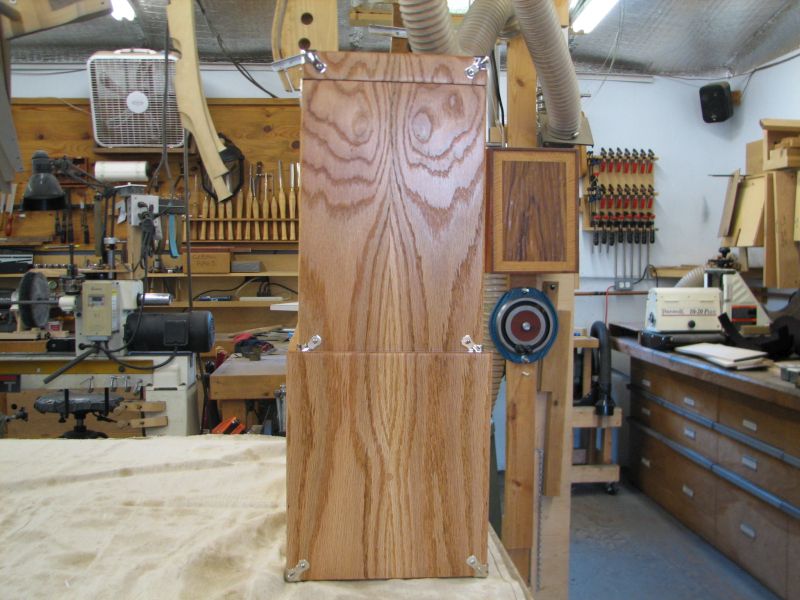

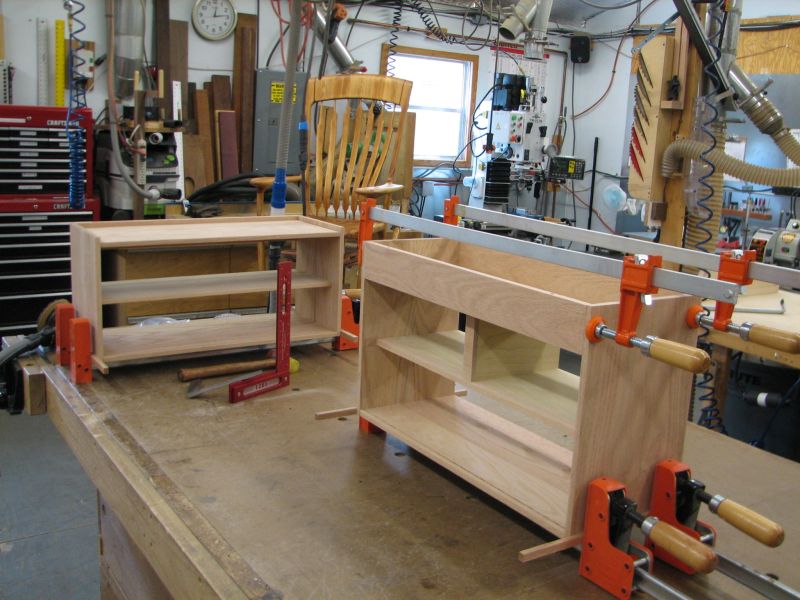

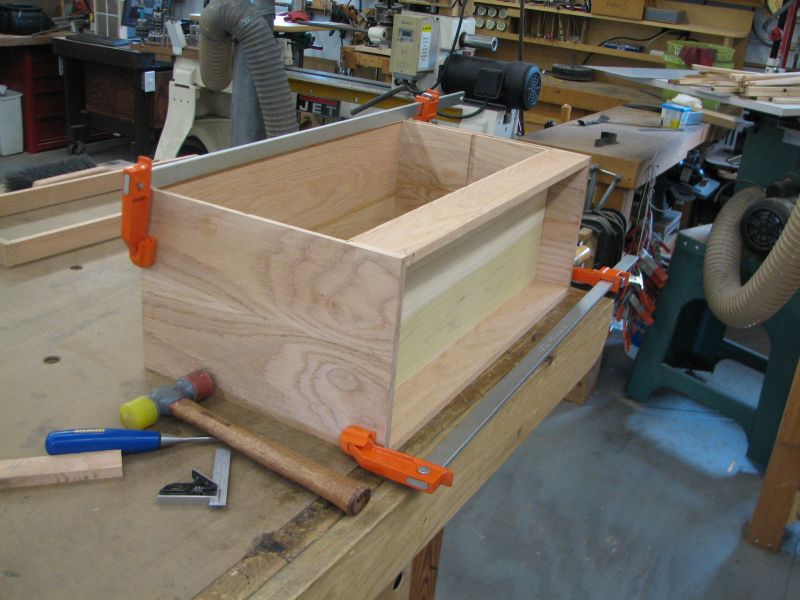

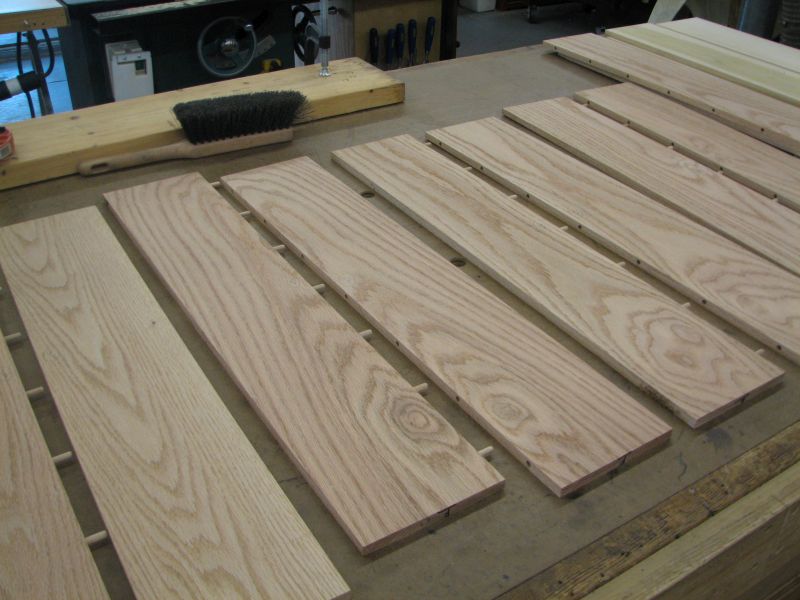

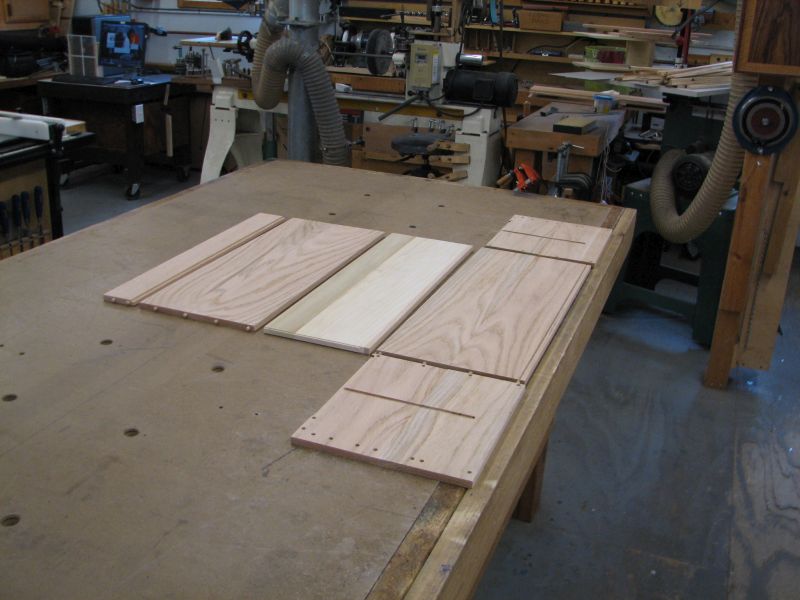

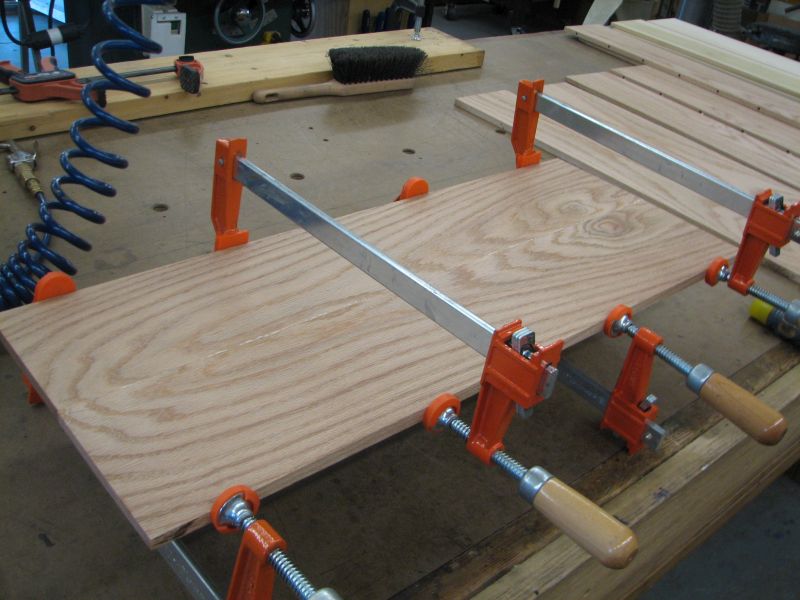

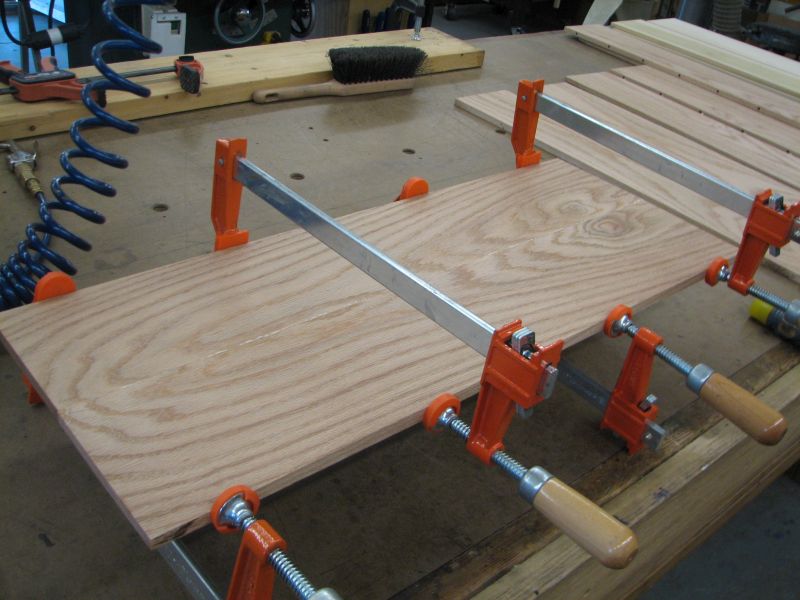

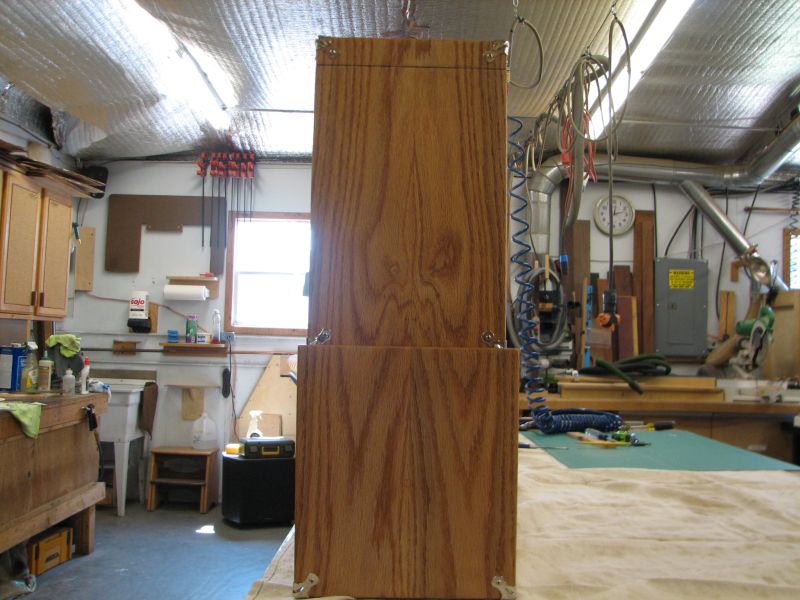

I put everything together using dowels, it's REALLY solid!

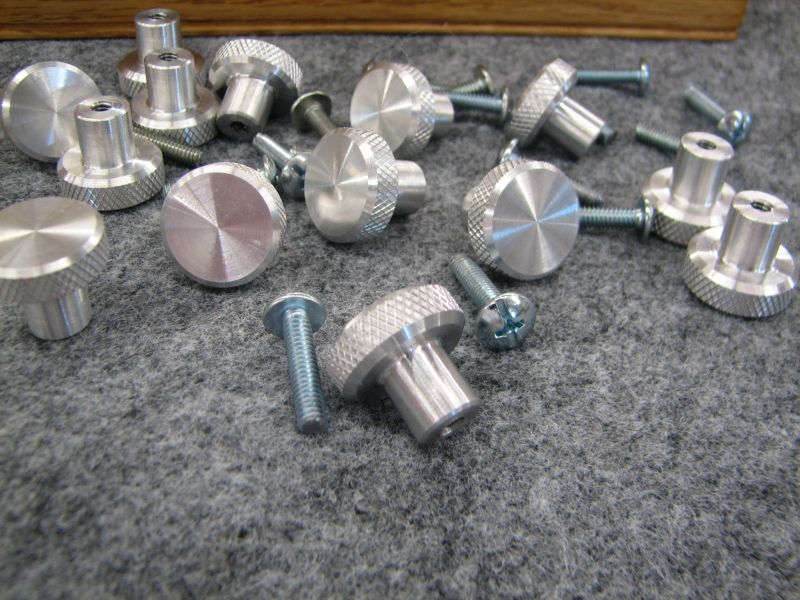

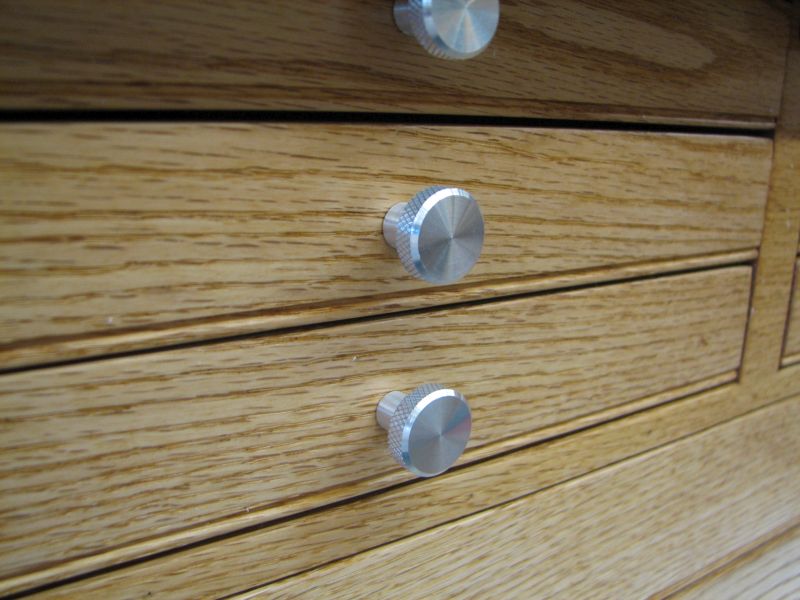

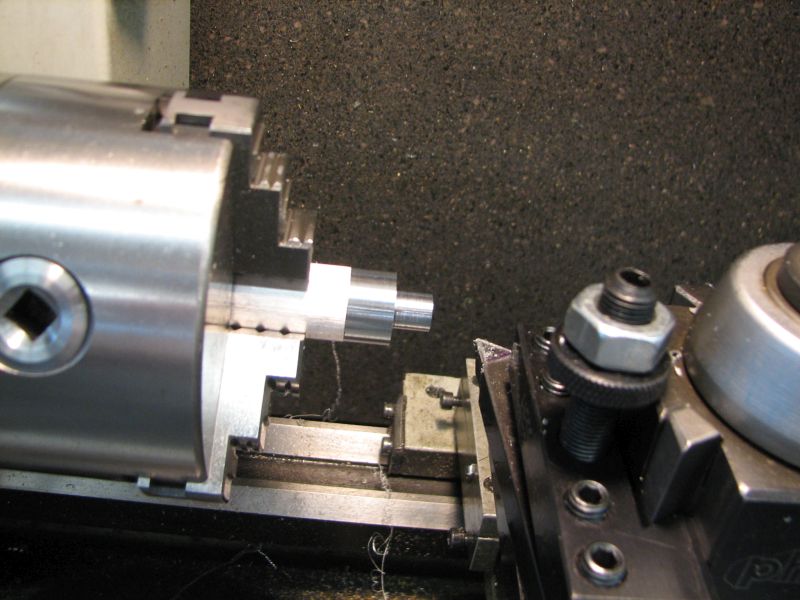

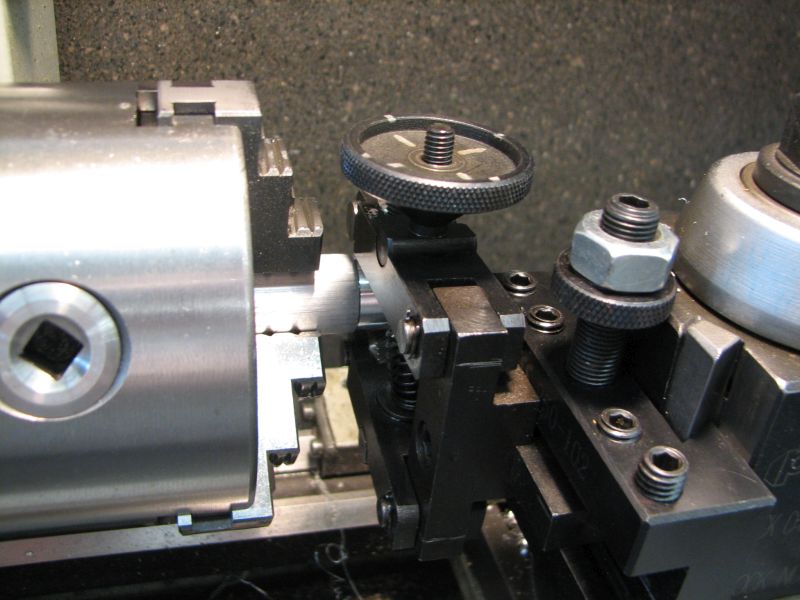

I made all the knobs out of aluminum...

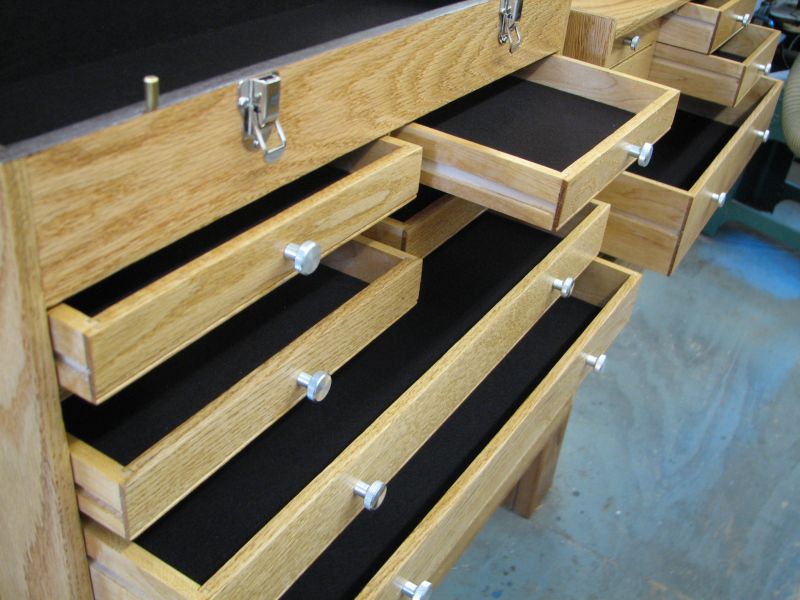

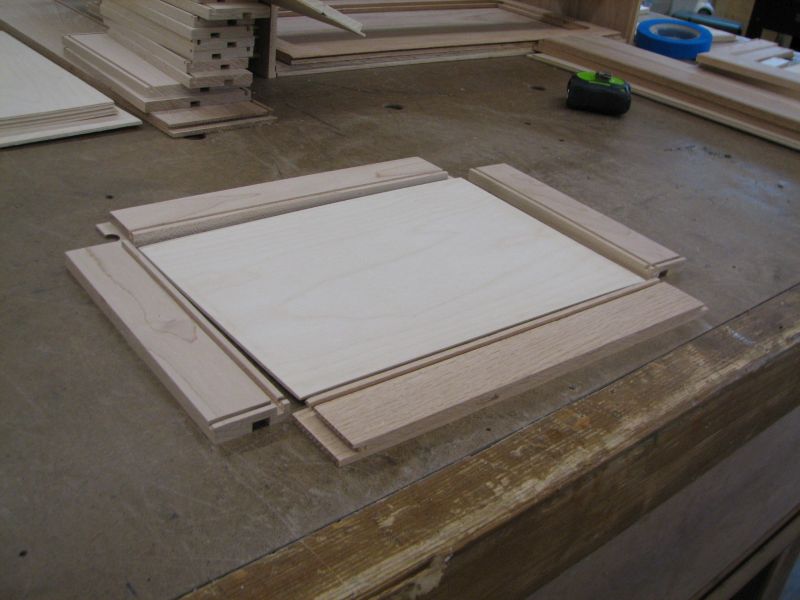

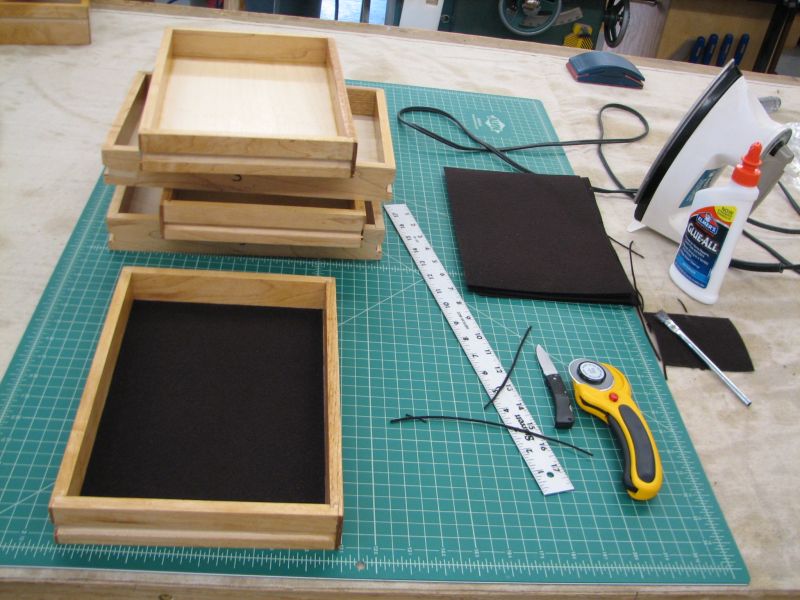

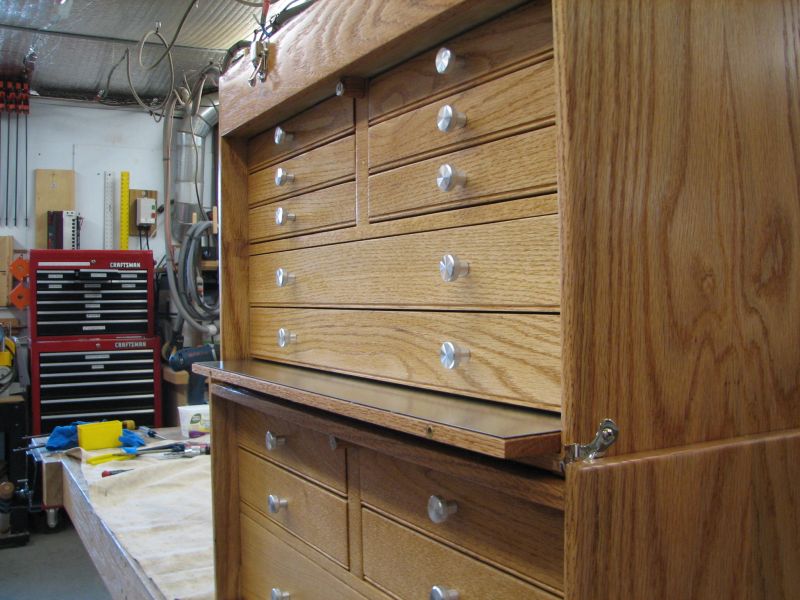

I lined all the drawers with felt...

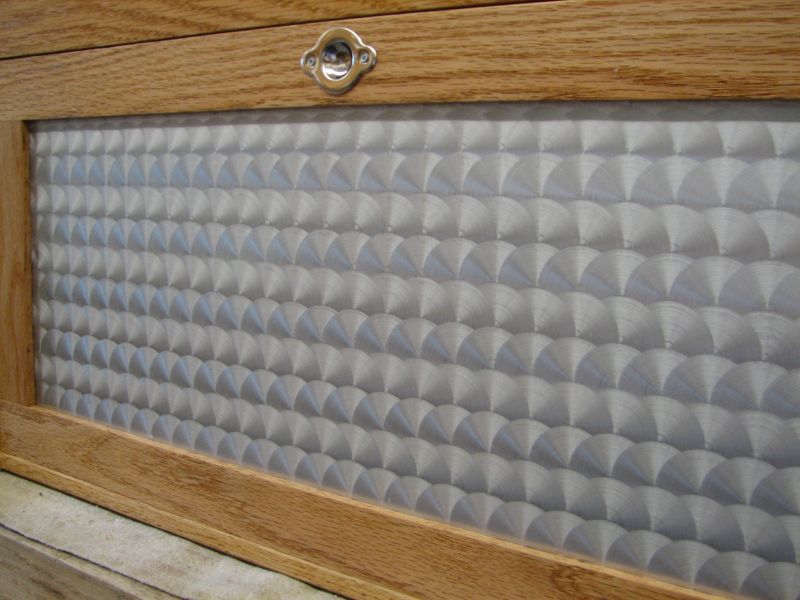

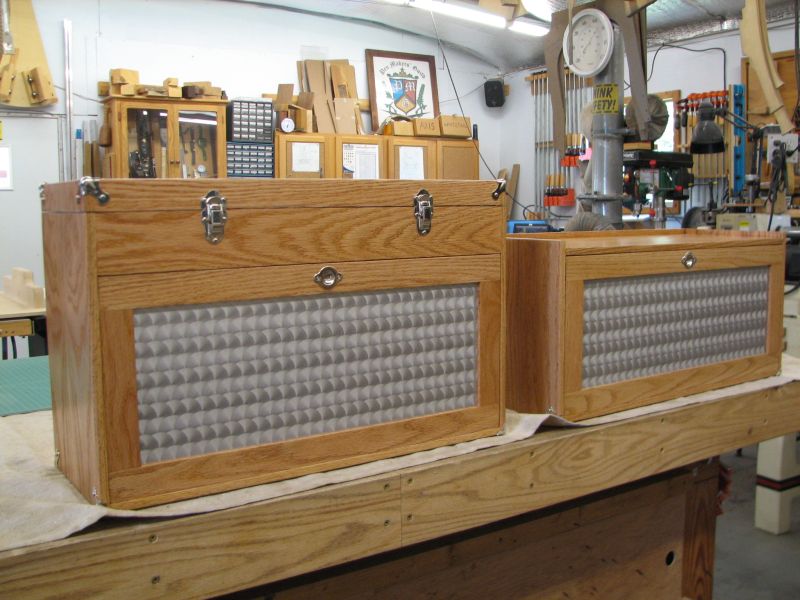

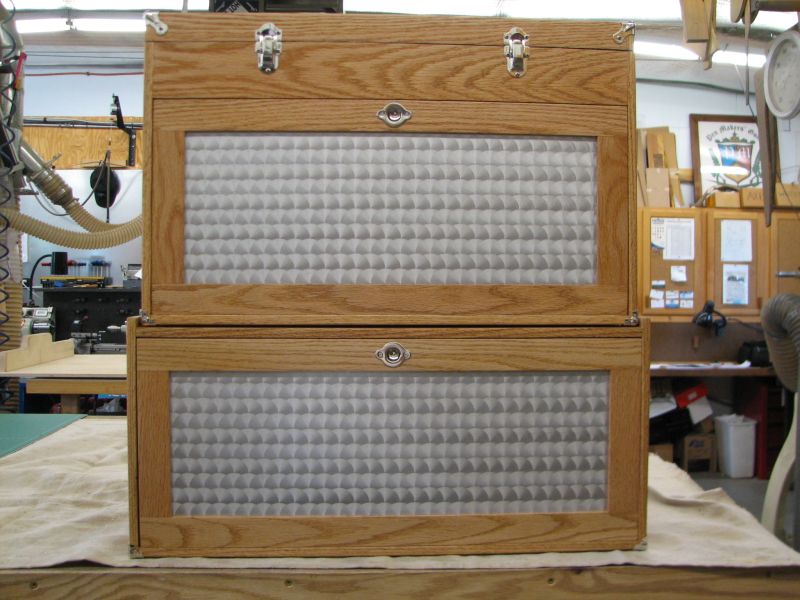

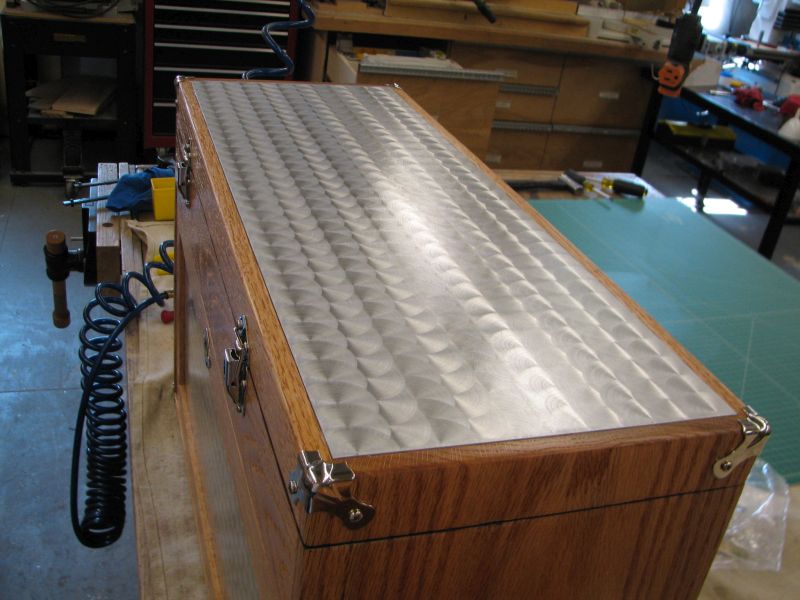

I did some engine turning on both front covers and the lid...

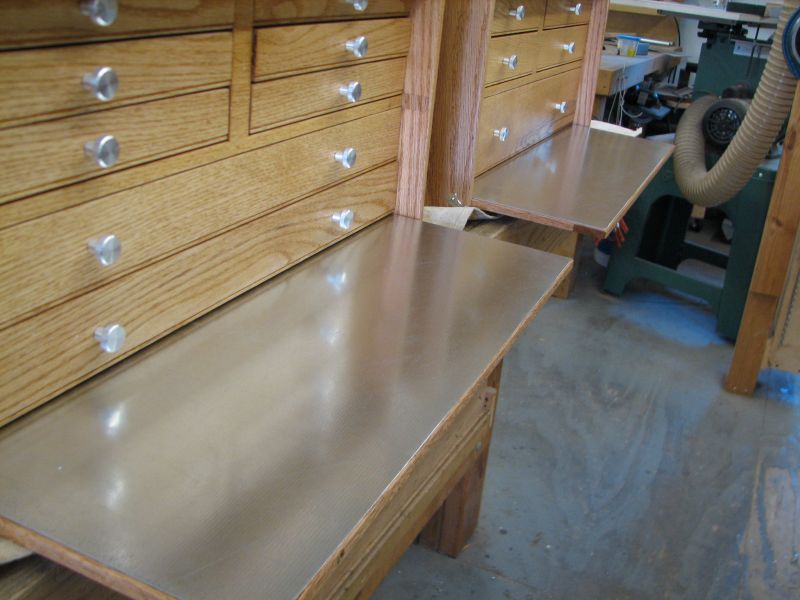

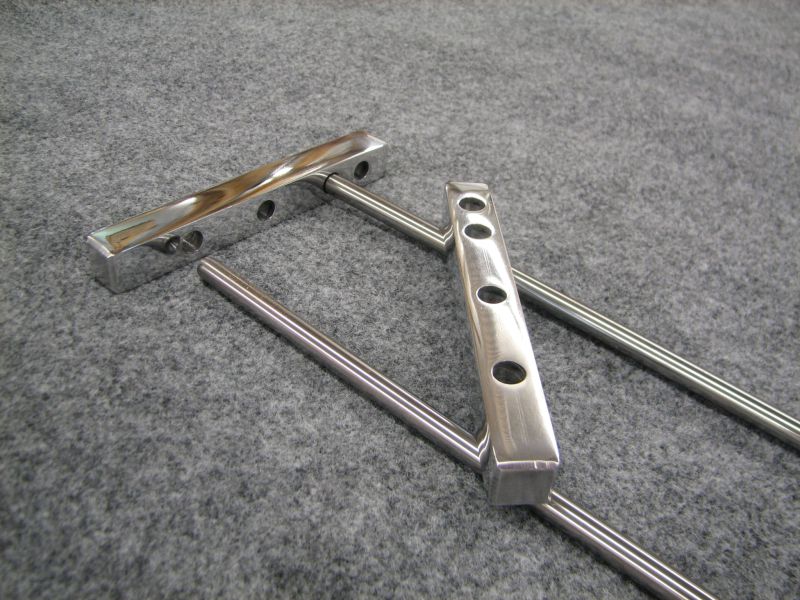

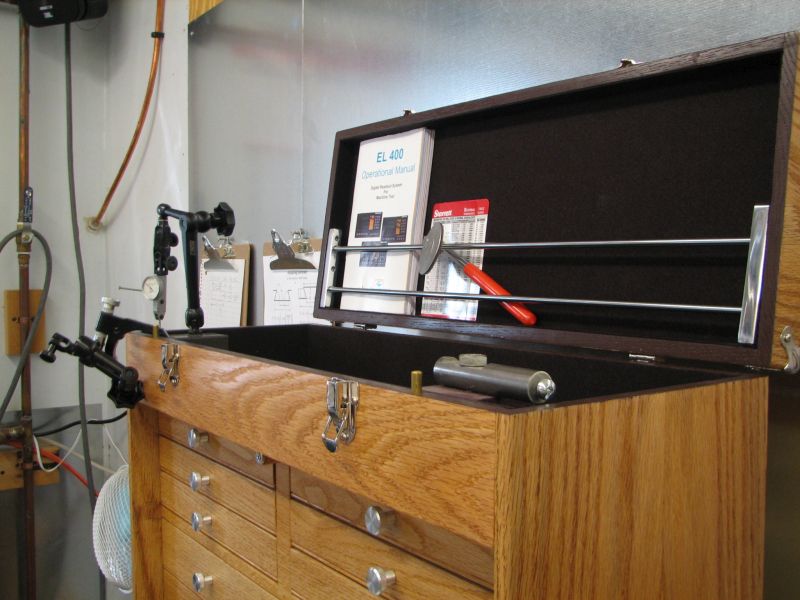

After I had it together I realized I need something to hold charts and papers so I made this from drill rod and some 1/2" aluminum which I sanded and buffed to a high gloss...

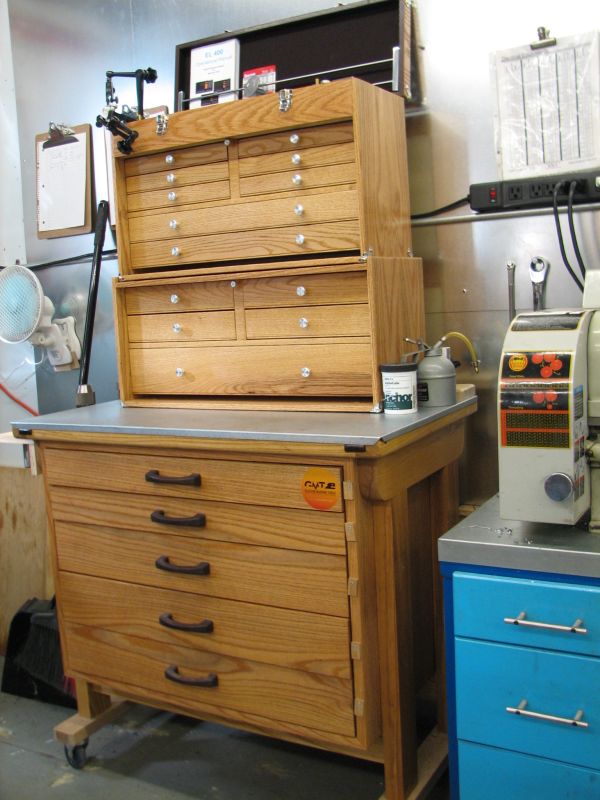

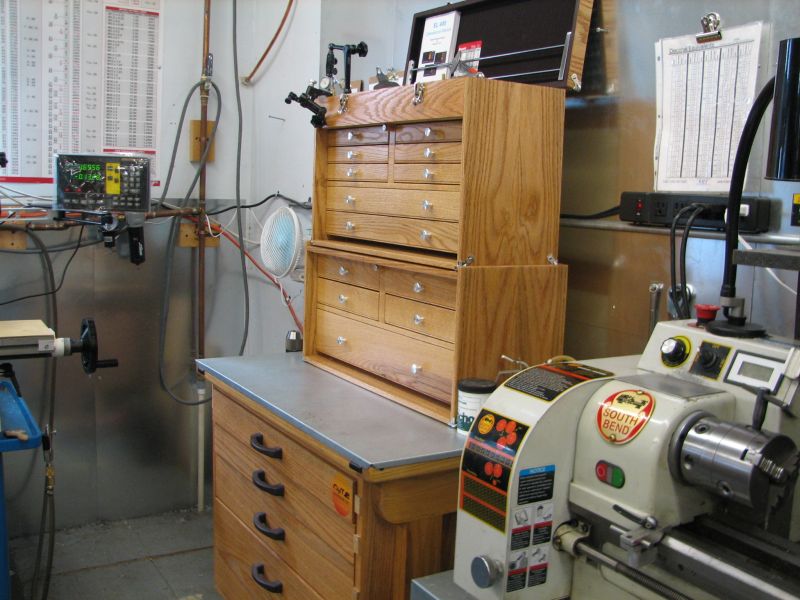

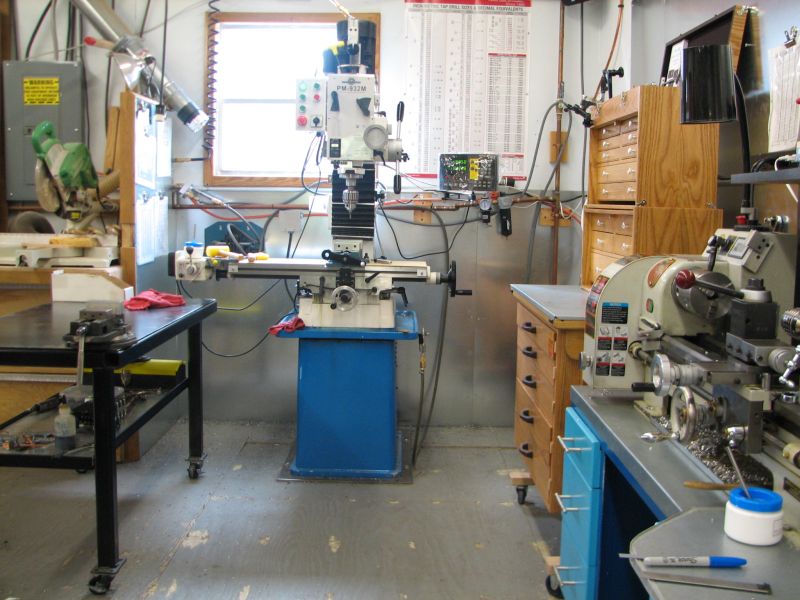

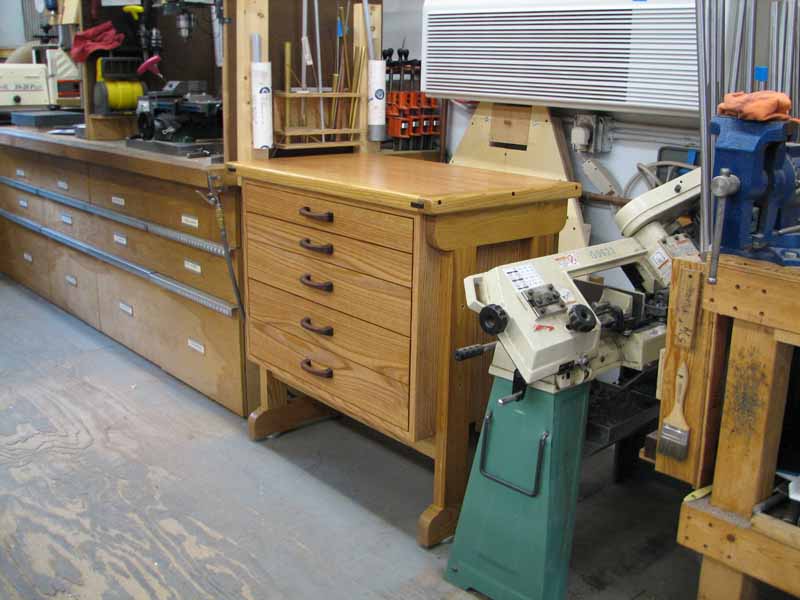

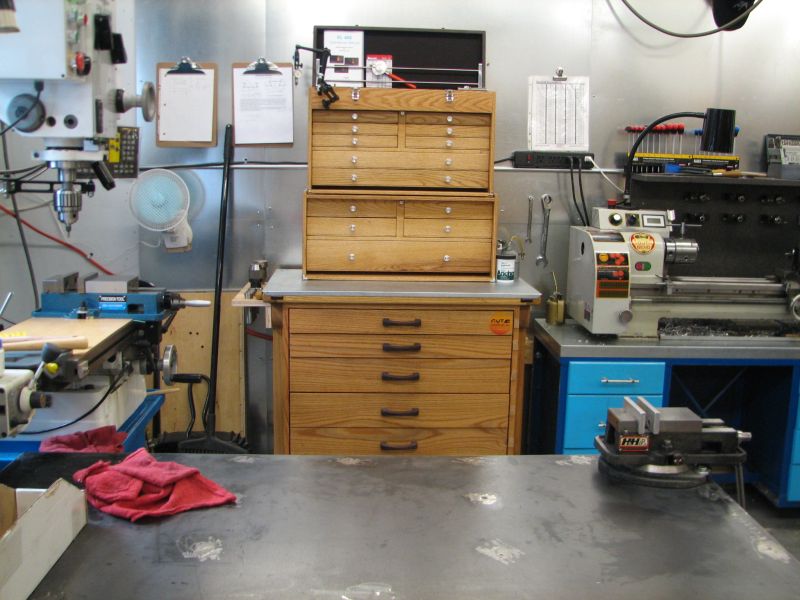

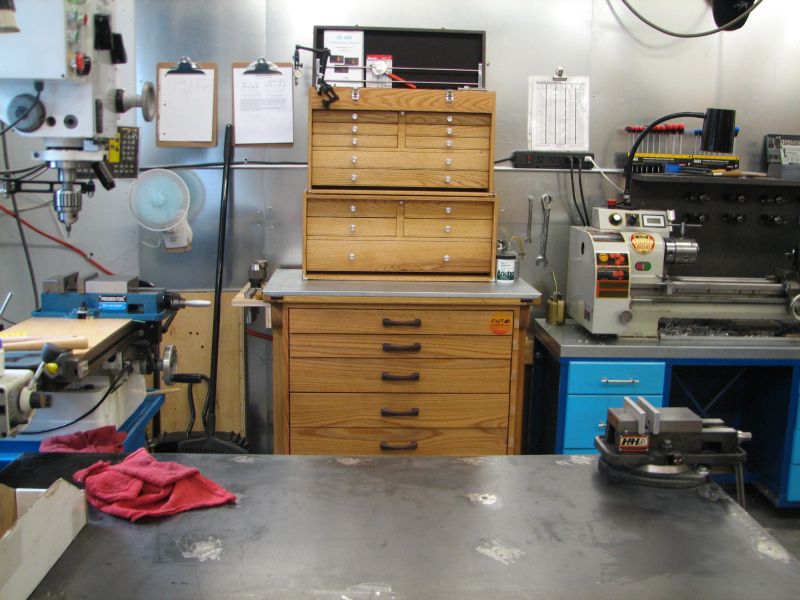

Here it is in it's final resting place. I reorganized my shop when I got my new milling machine, I put all my metal working tools in one corner, it makes fabricating my products alot easier...













That's about it, THANKS for taking the time to look!:biggrin:



[nava1uni]

What an amazing and beautiful set of tool boxes. You do great work. I still you all of the tools I have purchased from you over the years. Great workmanship. Thanks for sharing



[MikeL]

You are very talented! The craftsmanship is outstanding. Thanks for posting and including all the pictures. Nice shop as well!



[Carl Fisher]

Beautiful



[triw51]

That is one awesome piece of workmanship.



[papaturner]

AWESOME!



[kruzzer]

Absolutely amazing...
now I want to know who's workshop you used to make that because yours is waayy to clean..



[thewishman]

That's not a tool chest, it's a tool shrine! Beautiful!



[brownsfn2]

That is a thing of beauty. Very nice workmanship. You can tell a lot of thought went into it. Well done!



[oneleggimp]

Absolutely Beautiful. Beats Gerstner hands down. Wonderful Craftsmanship.



[Skie_M]

Now you just need a rack to hold a bunch of mailing tubes all about the same length (12 inches or so) horizontally, so you can store a bunch of rolled up blueprints and CAD layouts... And just for grins and giggles, you could put some in there that are jokes. Aircraft carriers, modern jets, tanks, cars, ect ... so if someone looks through your stuff they'll start staring at you in utter awe... (Not that your shop alone won't do that at first, but this is for after the shiny gleam is gone from their eyes...)



[skiprat]

That entire set-up is just way tool cool. A future heirloom for sure. Wanna adopt me....???? :biggrin:



[mark james]

Absolutely beautiful! I would love to have that, but would worry about getting sawdust on it! :tongue:

The pictures are great - thank you.

Maybe when I find time and talent! You should be proud of that chest.



[skiprat]

Ok, I've drooled and drooled......now for three serious observations/questions

1.Once fully loaded, will the little caster wheels be practical or upto the job?
2. Why is your shop so clean and light?
3. Does Mrs Herrell know you have her iron?

:biggrin:



[Jim15]

Beautiful work.



[kenmic]

Upper Chest

Beautiful presentation of your craftsmanship Rick. Thanks for sharing and for all the great tools and jigs you've made for us.



[rherrell]

THANKS for all the kind words, you made my week!!:biggrin:

Since you liked them here's a few more....

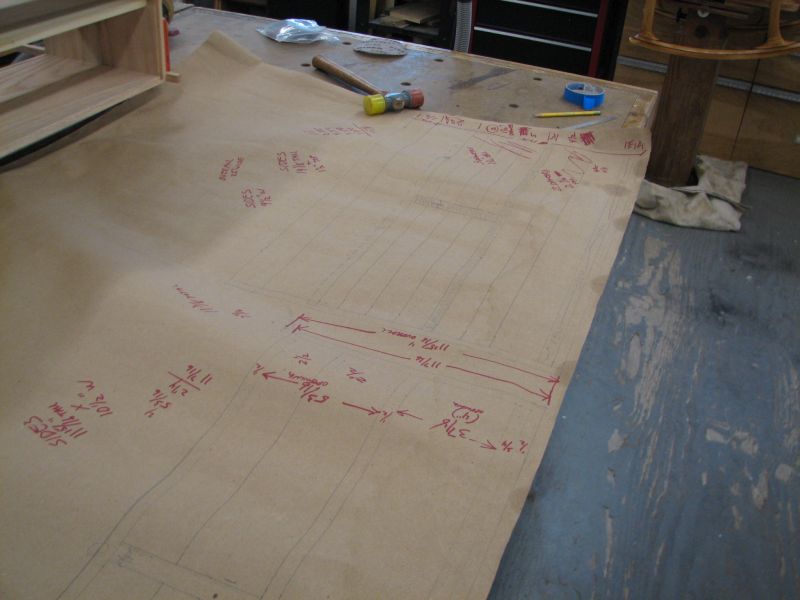

This is my "plan". I made a full size drawing and played around with it until I liked what I had.
