Kitless FP with Tiffany Casein

Signed-In Members Don't See This Ad
See more from Butlerwalt66

Butlerwalt66

Member
Joined
Jun 6, 2017
Messages
39
Location
New york

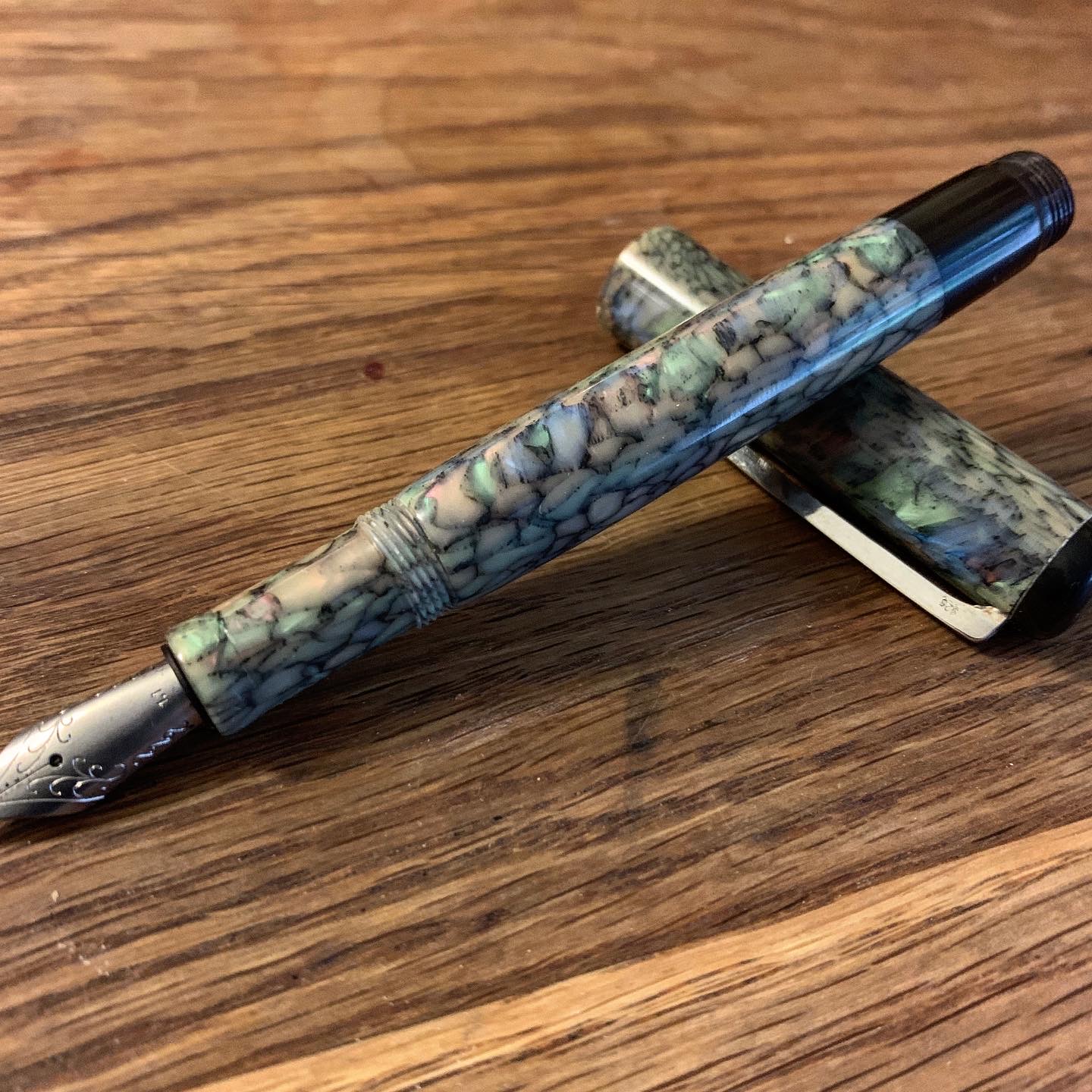

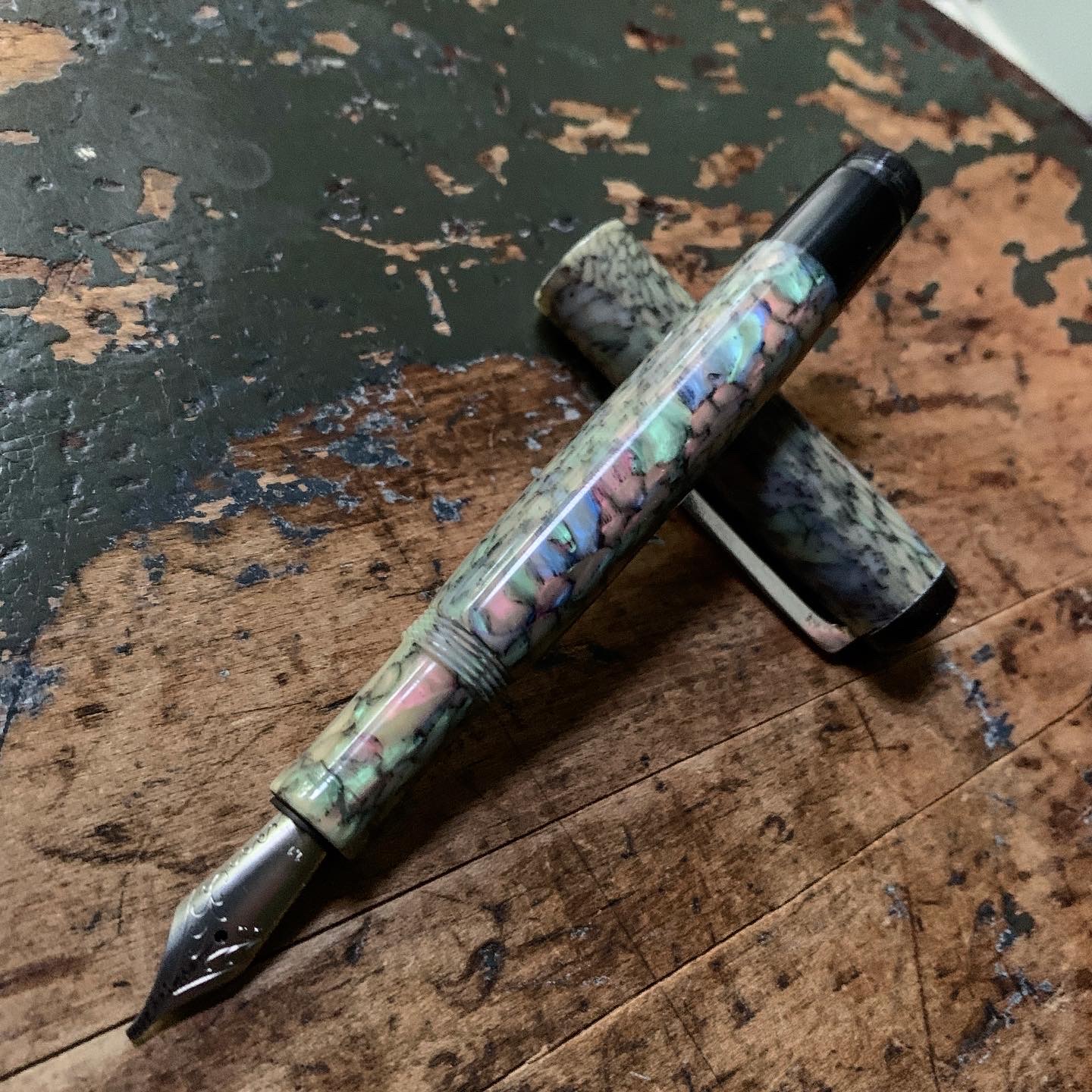

First time I threaded the section, rather than the barrel, to accept the cap. Ebonite ends. Cast sterling clip from Silver Pen parts. 15mm cap, 13.5mm barrel.
There's a nice depth to this material, and it turns pretty well. That's a Jowo 1.1 stub on there....sandblasted SS


Attachments

  • A3E63CE3-5EAA-40EA-B301-7E796FF3C86D.jpg
    548 KB · Views: 358
  • C9D63799-547E-44BD-8AE1-BD41A7CCCE3A.jpg
    500.4 KB · Views: 325
Signed-In Members Don't See This Ad

magpens

Member
Joined
Feb 2, 2011
Messages
15,913
Location
Canada
That is a nice pen !!!

I suppose that threading the section to accept the cap avoids having two sets of threads "on top of each other" in the body, and that would mean that the result is a smaller diameter pen.

Is that the reason for doing it that way ?

You get a longer section and obviously that must be OK.

By the way, what is the material ? . Oh ... you already stated that in the title of this thread ... Tiffany Casein.

Last edited:

Ironwood

Member
Joined
May 31, 2010
Messages
1,226
Location
Mackay. Australia
First let me say that is a very nice looking pen.
I have never used casein before, but your pen makes me want to try it for myself.

I remember reading somewhere that putting the cap threads on the section let's you run the risk of the section unscrewing from the pen and staying in the cap when trying to uncap the pen. It may not be an issue if you are the one using the pen, but in the hands of a customer........?


darrin1200

Member
Joined
Mar 17, 2010
Messages
1,835
Location
Lyn, Ontario, Canada
That's a beautiful pen Walter. But I to have the same concern as Brad, with regards to the section unscrewing with the cap. I have heard of pens built like this, but they had left hand section threads, to counter the cap.

Great work.

Joined
Aug 5, 2009
Messages
3,227
Location
Millersburg, OR
I've been playing with using the same threads to hold in the nib and the cap on. If you thread the body of the pen a bit short so there is a fair bit of friction between the nib and the body and polish the nib to cap threads and make sure the cap tightens when the cap touches the body and not on the ends of the threads it doesn't seem to be a problem. You can also put an extra ring at the bottom of the pen body and "lock" the ring against the body against the pen to keep it from coming off.


Butlerwalt66

Member
Joined
Jun 6, 2017
Messages
39
Location
New york
I agree with what y'all have said about the dangers of unscrewing the section when you're removing the cap...but I swear up-and-down I have been trying to make that happen, and it hasn't happened yet.
This section is 30mm long, the same length that I make other, "regular" sections. I threaded this section so that I could (theoretically) make the cap a little shorter...But I didn't pare this one down. I had wanted an ebonite section (matching the barrel end) but sorta happy-accidented my way out of my last black ebonite nubbin.
Thanks for the feedback.


Sent from my iPhone using Penturners.org mobile app


darrin1200

Member
Joined
Mar 17, 2010
Messages
1,835
Location
Lyn, Ontario, Canada
I agree with what y'all have said about the dangers of unscrewing the section when you're removing the cap...but I swear up-and-down I have been trying to make that happen, and it hasn't happened yet.
This section is 30mm long, the same length that I make other, "regular" sections. I threaded this section so that I could (theoretically) make the cap a little shorter...But I didn't pare this one down. I had wanted an ebonite section (matching the barrel end) but sorta happy-accidented my way out of my last black ebonite nubbin.
Thanks for the feedback.


Sent from my iPhone using Penturners.org mobile app

I am glad that its working. It's a good solution for shrinking the body diameter.
Is it a commission pen, or is it for yourself. I would be interested to know how it is after a couple of months of daily use. I am wondering if it would become looser, the more often it was taken apart.


Butlerwalt66

Member
Joined
Jun 6, 2017
Messages
39
Location
New york
Well, it was going to go up for sale, but I'm thinking that I need to chuck it back into the lathe, and thread the barrel...there's enough room in the cap so it won't bottom out on the nib. I'll either turn a new section, or pare off the threads of the one that's on there now.


Sent from my iPhone using Penturners.org mobile app


magpens

Member
Joined
Feb 2, 2011
Messages
15,913
Location
Canada
I see that you said ...

" I threaded this section so that I could (theoretically) make the cap a little shorter...But I didn't pare this one down. "
... so it seems that you have, in this case, left enough room in the cap.

But why the change in thinking now ? . Seems to me the original plan was a good one and you said it was working as hoped for.

Just curious.


Butlerwalt66

Member
Joined
Jun 6, 2017
Messages
39
Location
New york
Well, I wouldn't want to sell it knowing that there is even the potential for a problem. And it'll take me what, an hour to modify it? (famous last words)
I'd honestly like to see a black ebonite section on it...I've got a couple of rods on order.


Sent from my iPhone using Penturners.org mobile app


magpens

Member
Joined
Feb 2, 2011
Messages
15,913
Location
Canada
Oh, well ..... OK then ..... I can relate to that kind of precautionary thinking !! . LOL . 😀 :)


darrin1200

Member
Joined
Mar 17, 2010
Messages
1,835
Location
Lyn, Ontario, Canada
I did not mean to throw doubt on your work. I wouldn't remake this pen. It is beautiful, and there may not be an issue. You have a good idea here that seems to work, it just needs to be trialed. Make this your own every day carry, to test the concept. If it works out after a couple of months of putting the section in and out, then you'll know.


oldwritingpen

Member
Joined
Jul 1, 2020
Messages
6
Location
Ontario
First time I threaded the section, rather than the barrel, to accept the cap. Ebonite ends. Cast sterling clip from Silver Pen parts. 15mm cap, 13.5mm barrel.
There's a nice depth to this material, and it turns pretty well. That's a Jowo 1.1 stub on there....sandblasted SS
Beautiful pen. Love the casein.
