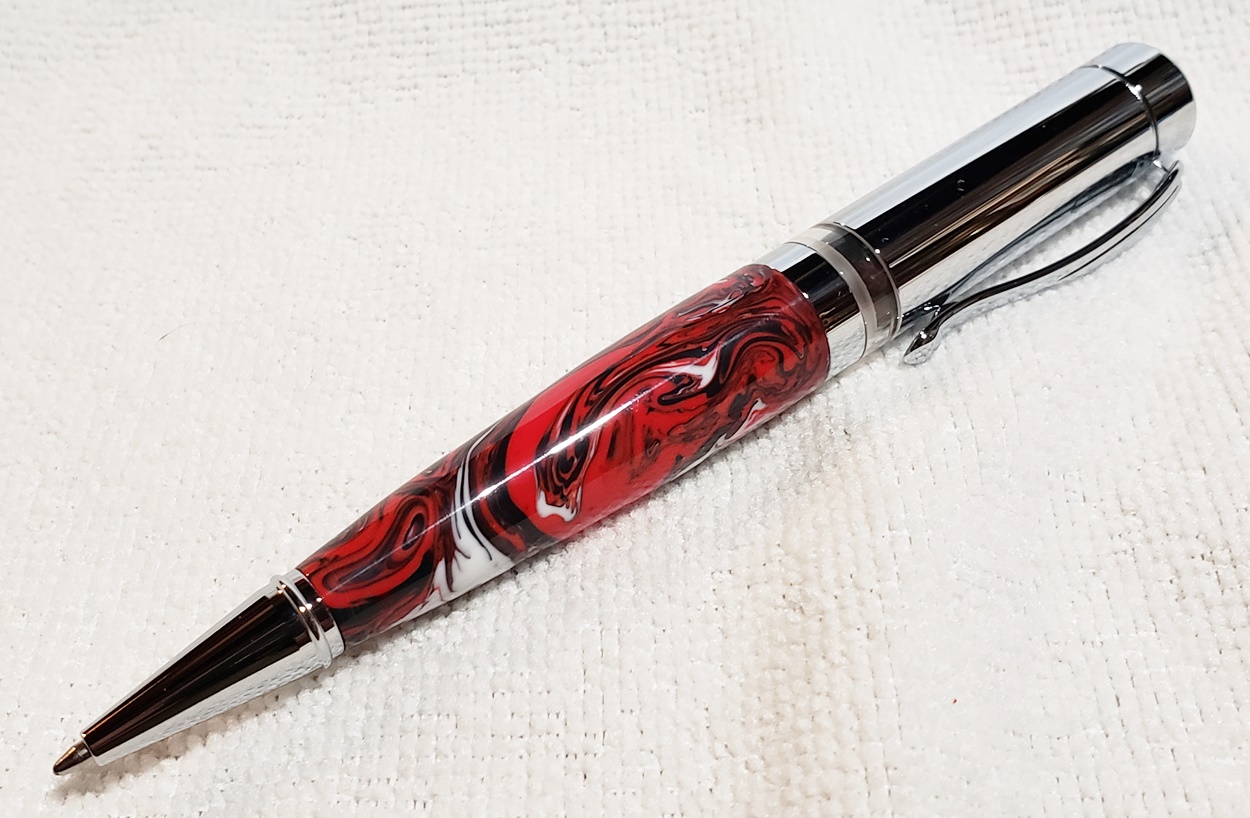

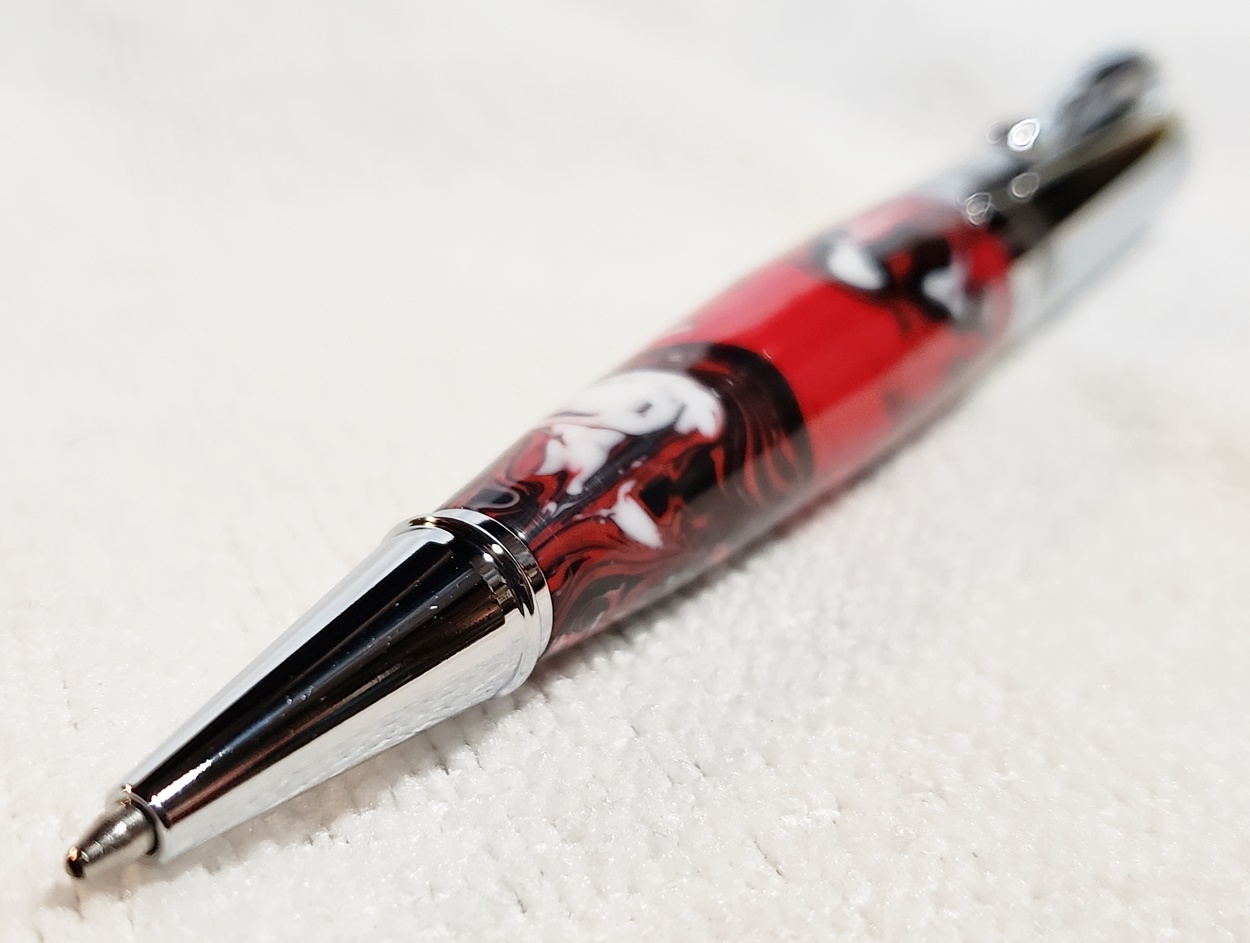

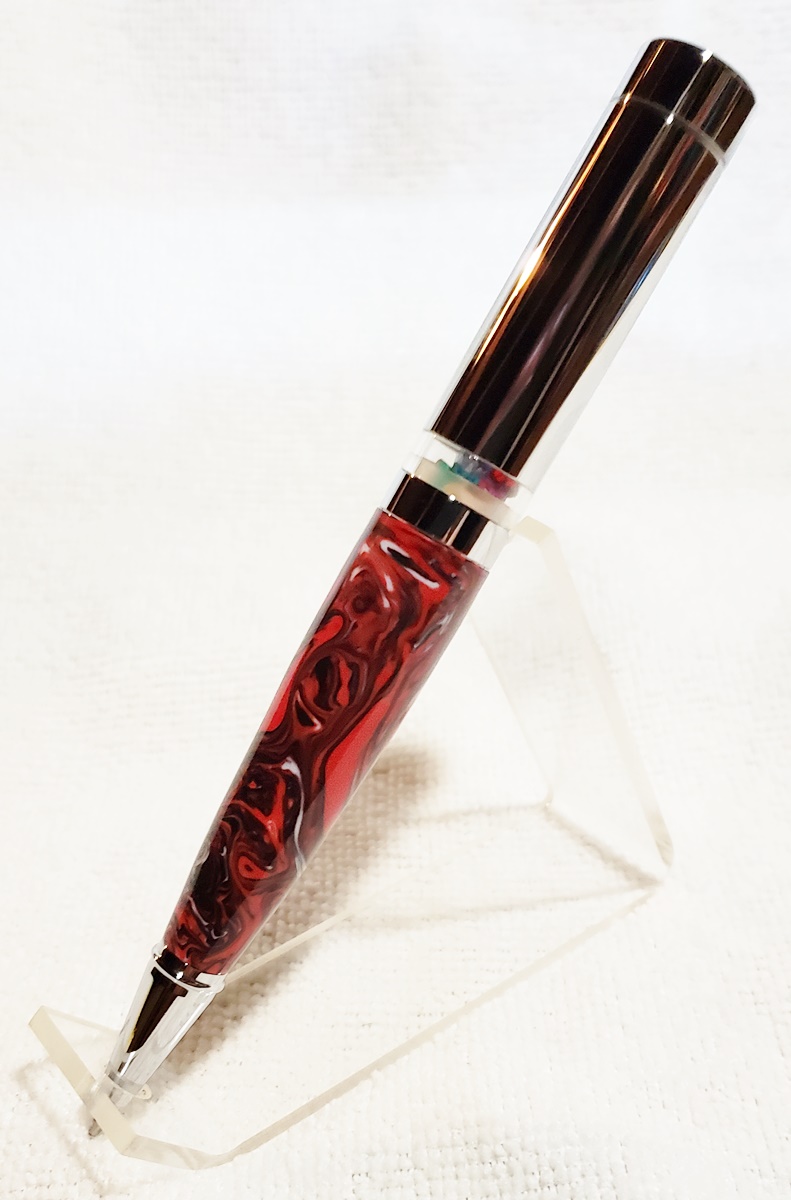

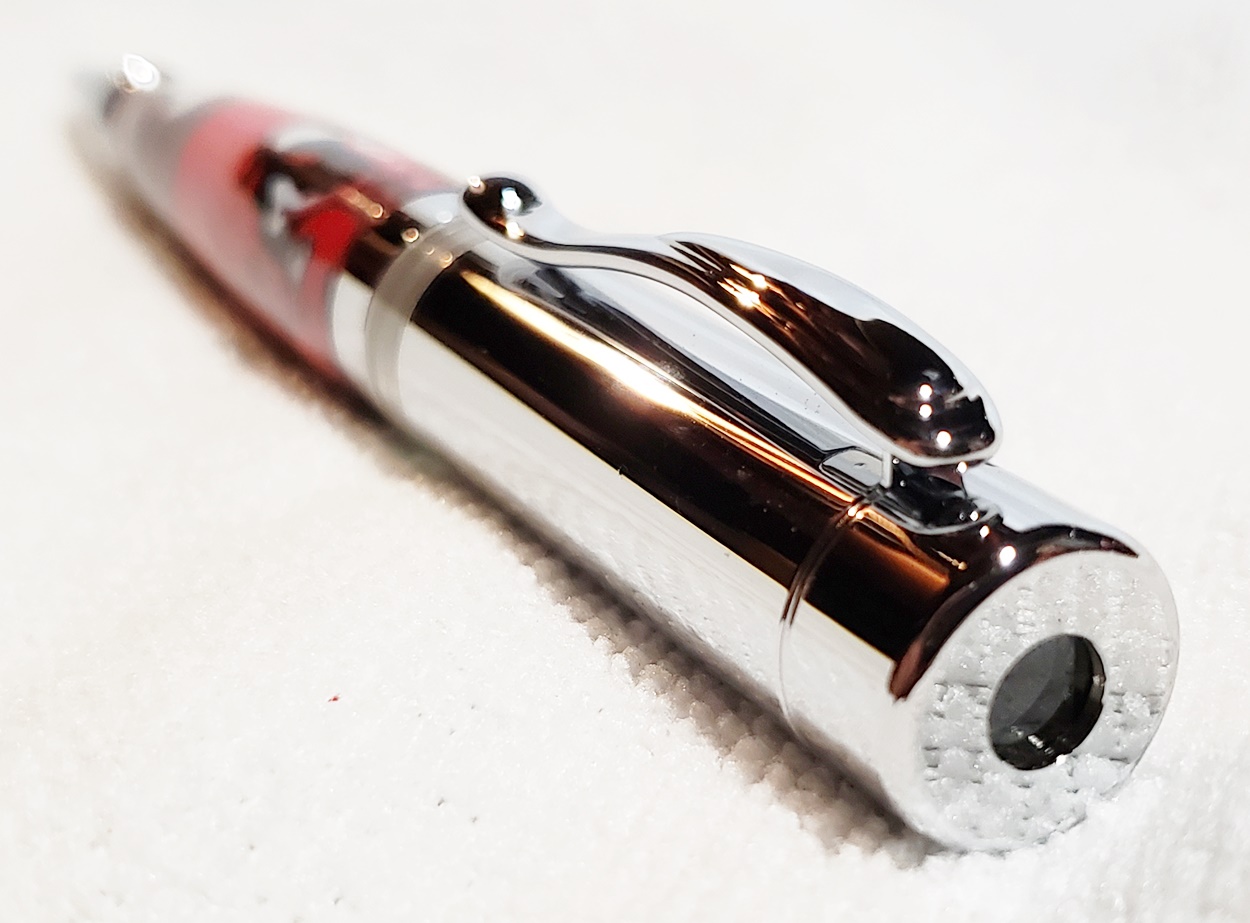

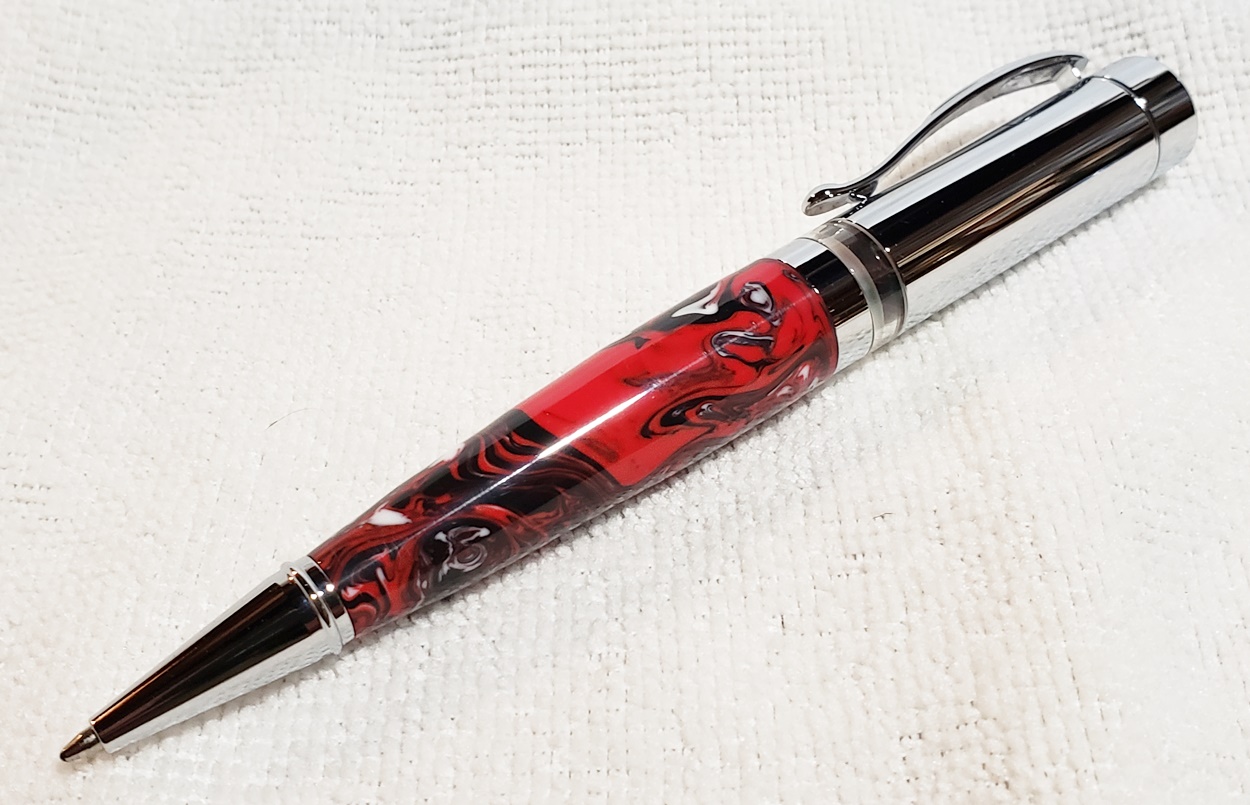

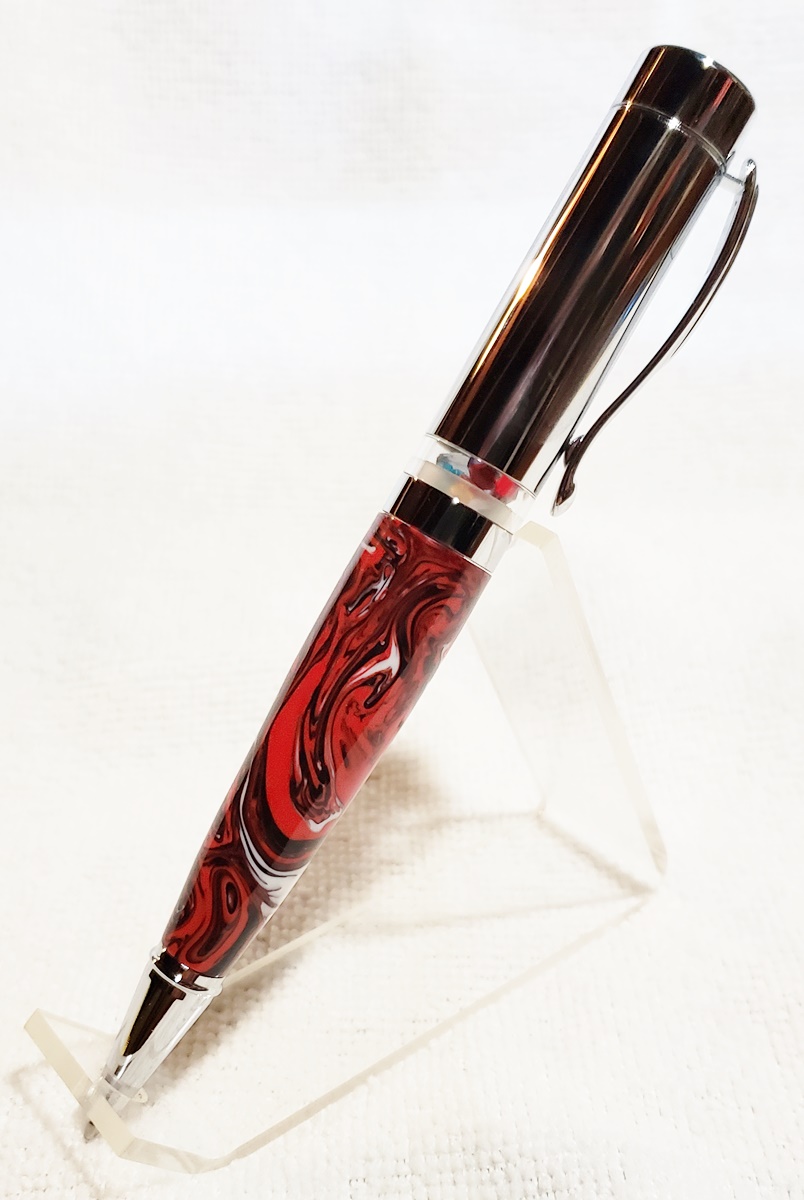

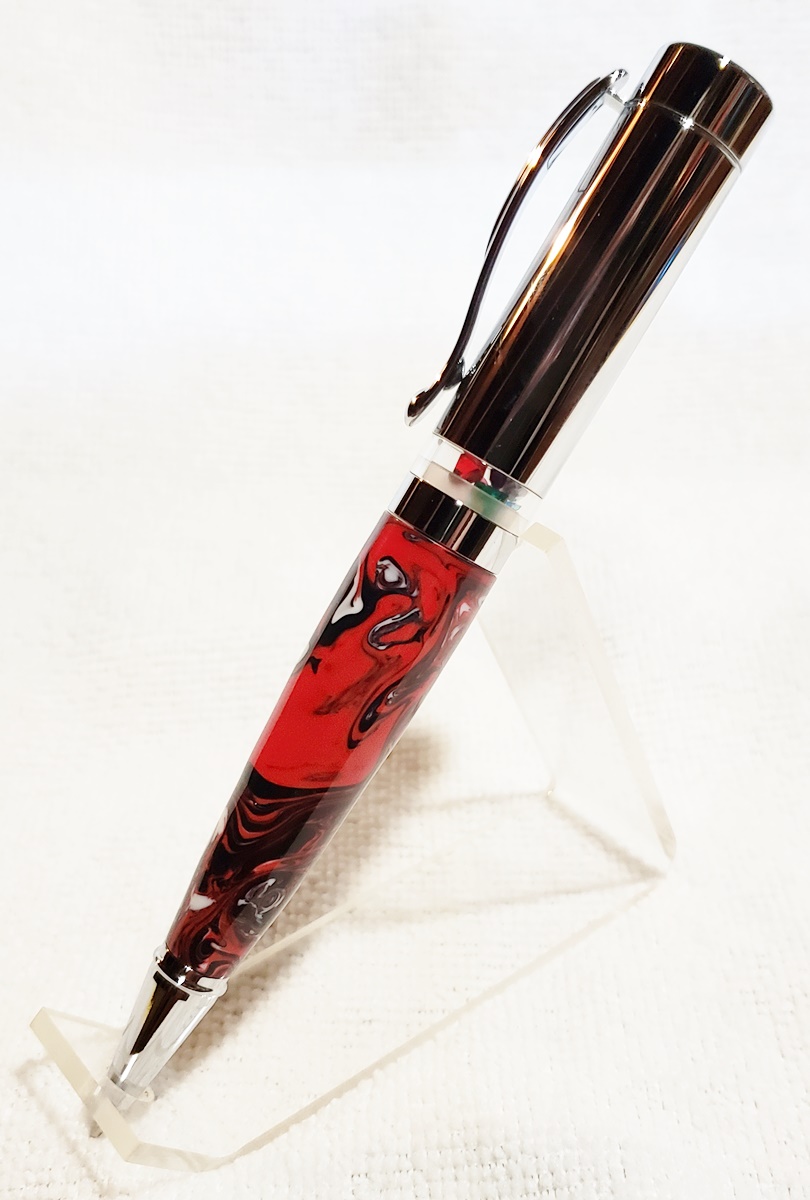

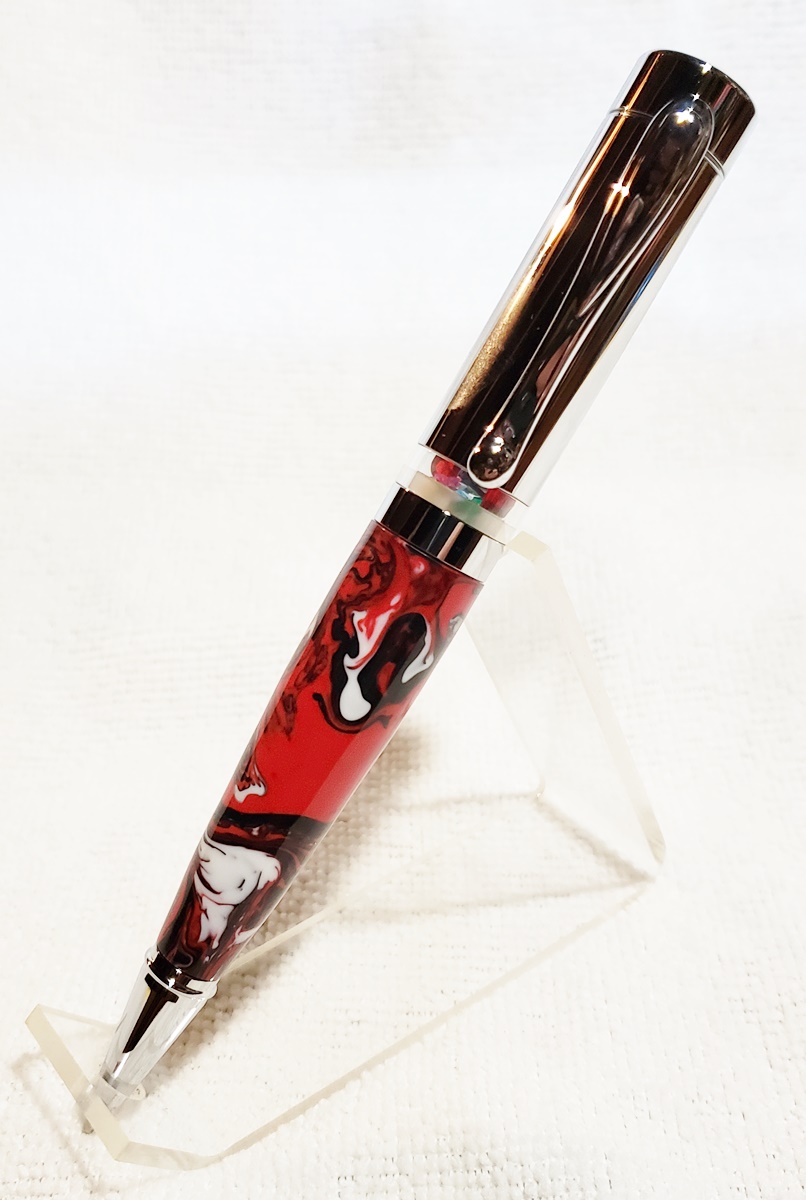

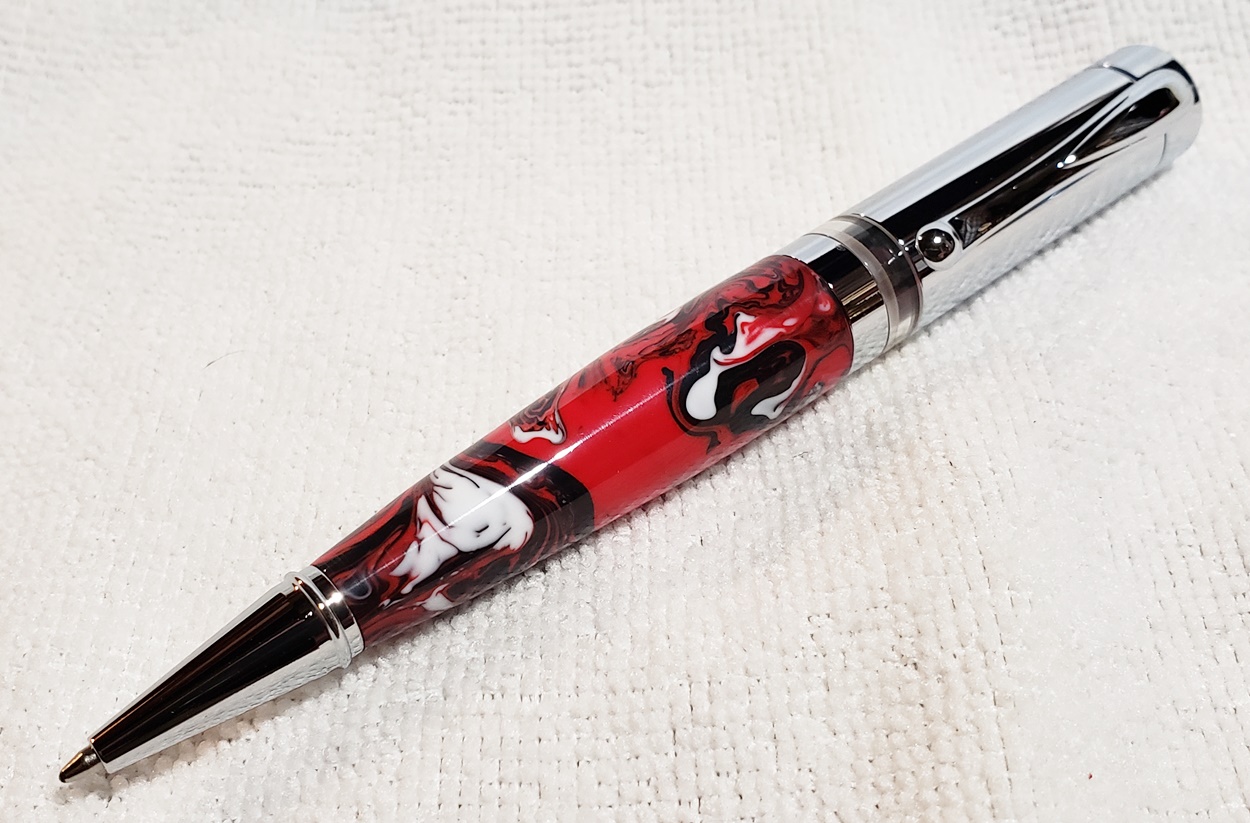

This is a Kaleidoscope pen in chrome, from Woodcraft. The blank is an Alumilite called, oddly enough, Black Red & White. I can't remember where I got the blank. The pen is gimmicky, but still cool. It is an odd shape, the body is .600" at the wide end, and .355" at the nib end. Kind of a neat pen.


Attachments

  • 064.jpg
    290.3 KB · Views: 55
  • 065.jpg
    265 KB · Views: 51
  • 066.jpg
    282.8 KB · Views: 45
  • 067.jpg
    183.1 KB · Views: 42
  • 068.jpg
    213.3 KB · Views: 45
  • 070.jpg
    169.6 KB · Views: 41
  • 071.jpg
    167 KB · Views: 40
  • 072.jpg
    156 KB · Views: 36
  • 073.jpg
    163 KB · Views: 49
Signed-In Members Don't See This Ad

qquake

Member
Joined
Feb 8, 2004
Messages
2,811
Location
Northern California

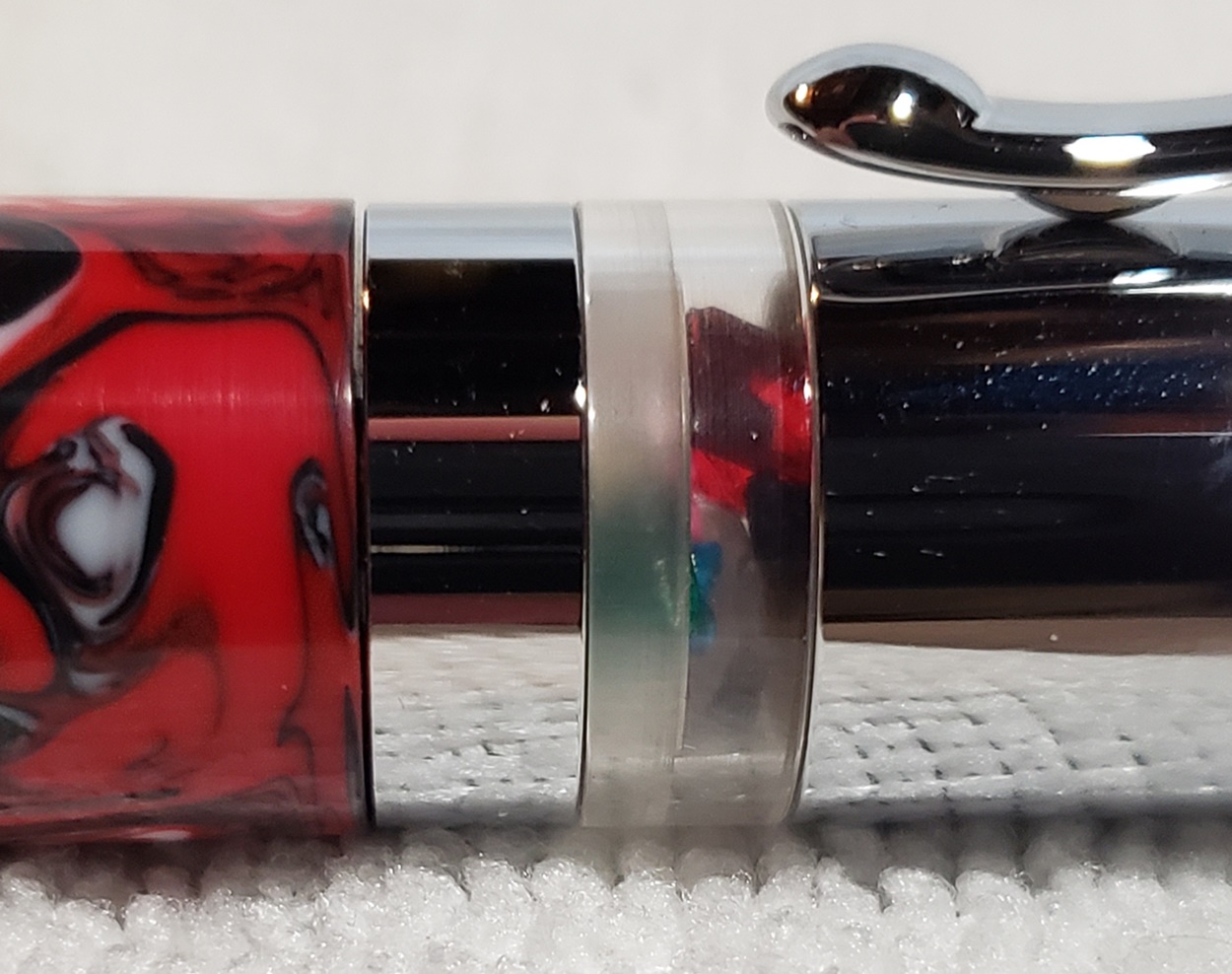

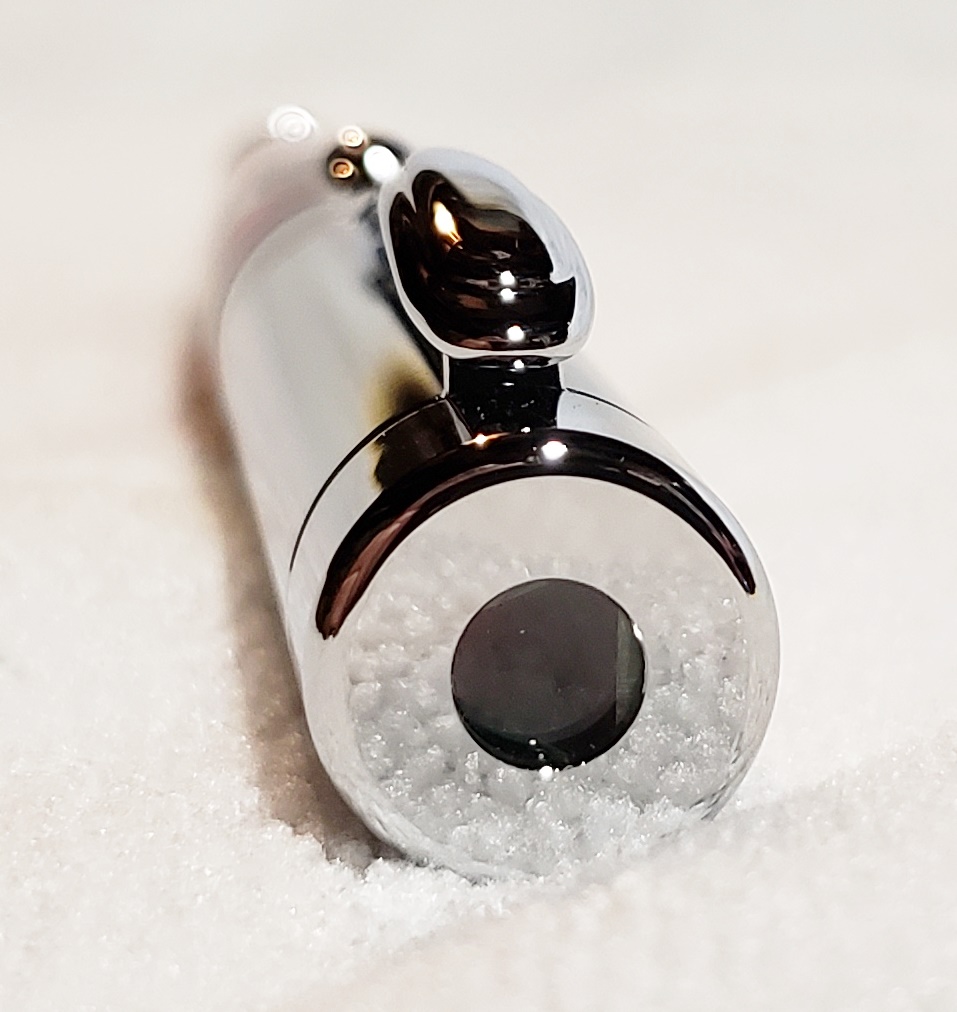

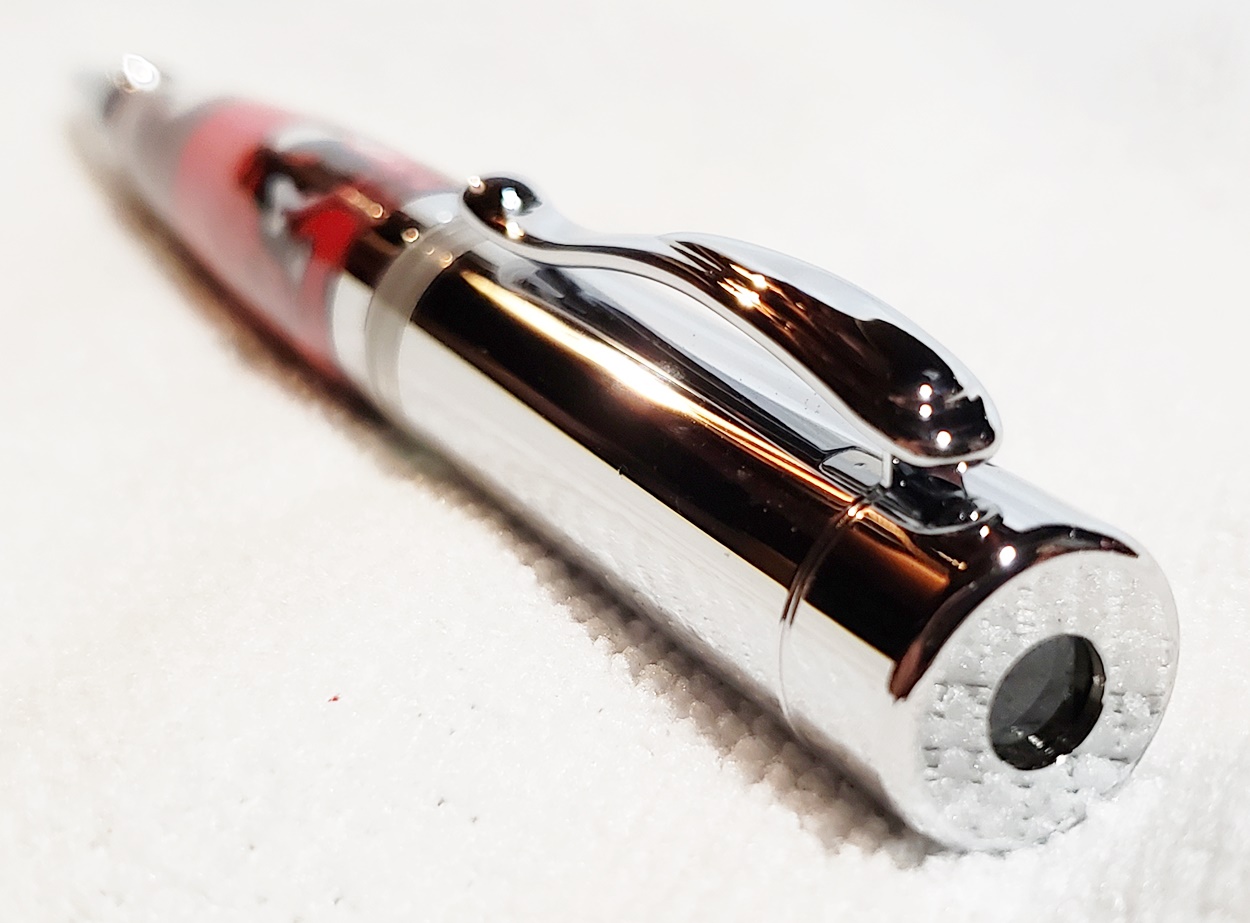

The viewing "port" isn't very big, and the view isn't that clear, but it's still an interesting pen. These are the best photos I could take through the viewing port.


Attachments

  • 069.jpg
    183.6 KB · Views: 20
  • 074.jpg
    283.8 KB · Views: 24
  • 054.jpg
    267.6 KB · Views: 20
  • 055.jpg
    184.1 KB · Views: 19
  • 056.jpg
    168.5 KB · Views: 21

qquake

Member
Joined
Feb 8, 2004
Messages
2,811
Location
Northern California

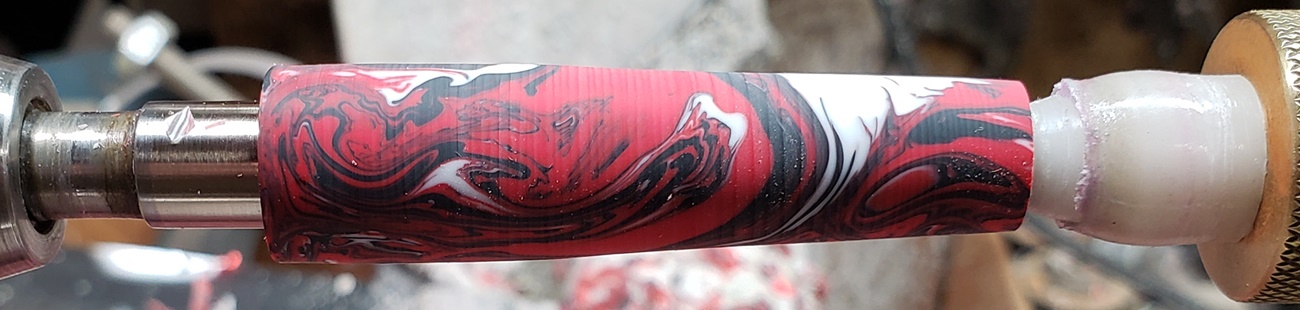

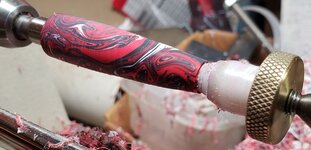

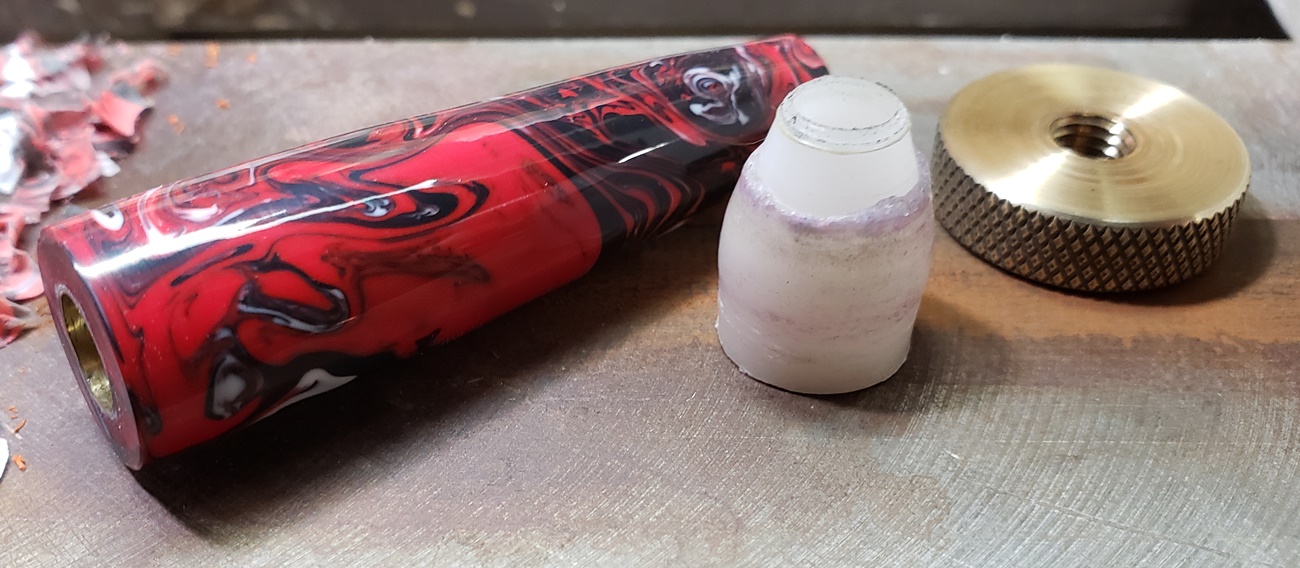

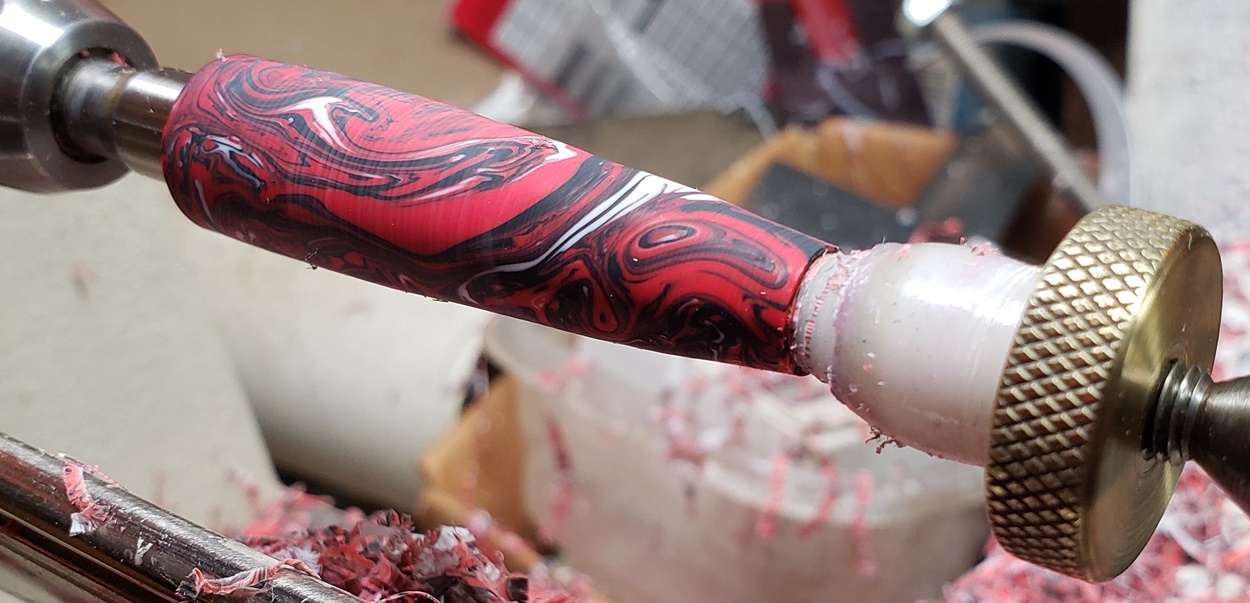

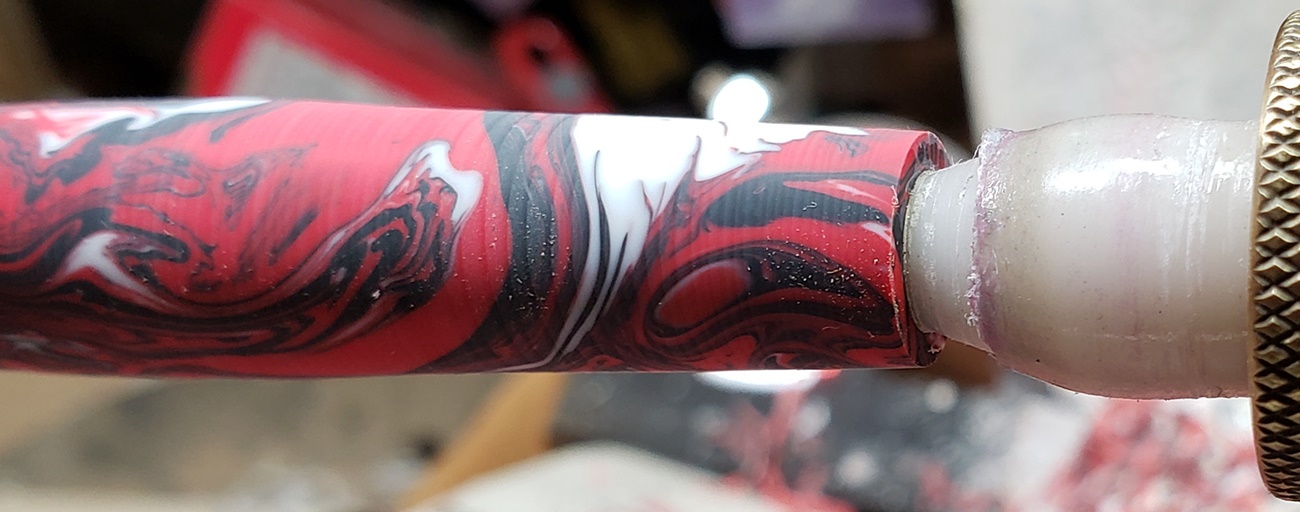

I forgot to mention, that Woodcraft was out of the bushings when I bought the kit. So I decided to try using a caliper to turn it to the correct diameters. I used a set of Editor/Tiny Giant bushings initially, which were fine for the larger diameter. But the smaller diameter is smaller than the bushings, and I couldn't find one small enough. So I used a homemade Delrin bushing I had on that end. Worked out pretty good. At first I thought I had over-turned it, but as it turns out, I very slightly under-turned both ends. But not enough to matter.


Attachments

  • 051.jpg
    256.1 KB · Views: 18
  • 037.jpg
    141.6 KB · Views: 18
  • 038.jpg
    182 KB · Views: 17
  • 041.jpg
    231.6 KB · Views: 18
