Jowo #5 Nib Unit Dimensions

Signed-In Members Don't See This Ad
Joined
Sep 13, 2019
Messages
4
Location
Washington
Hey y'all!

I can't seem to find any reliable information for the dimensions of the standard #5 nib housing for Jowo nibs. Do any of you have that information?

On a related note, do any of you know the dimensions of the nib itself? Feed dimensions would also be helpful if available.

Thanks,
Cameron

Signed-In Members Don't See This Ad

FGarbrecht

Member
Joined
Aug 22, 2019
Messages
549
Location
NY

mredburn

IAP Activities Manager
Staff member
Joined
Jul 5, 2009
Messages
8,500
Location
Fort Myers FL

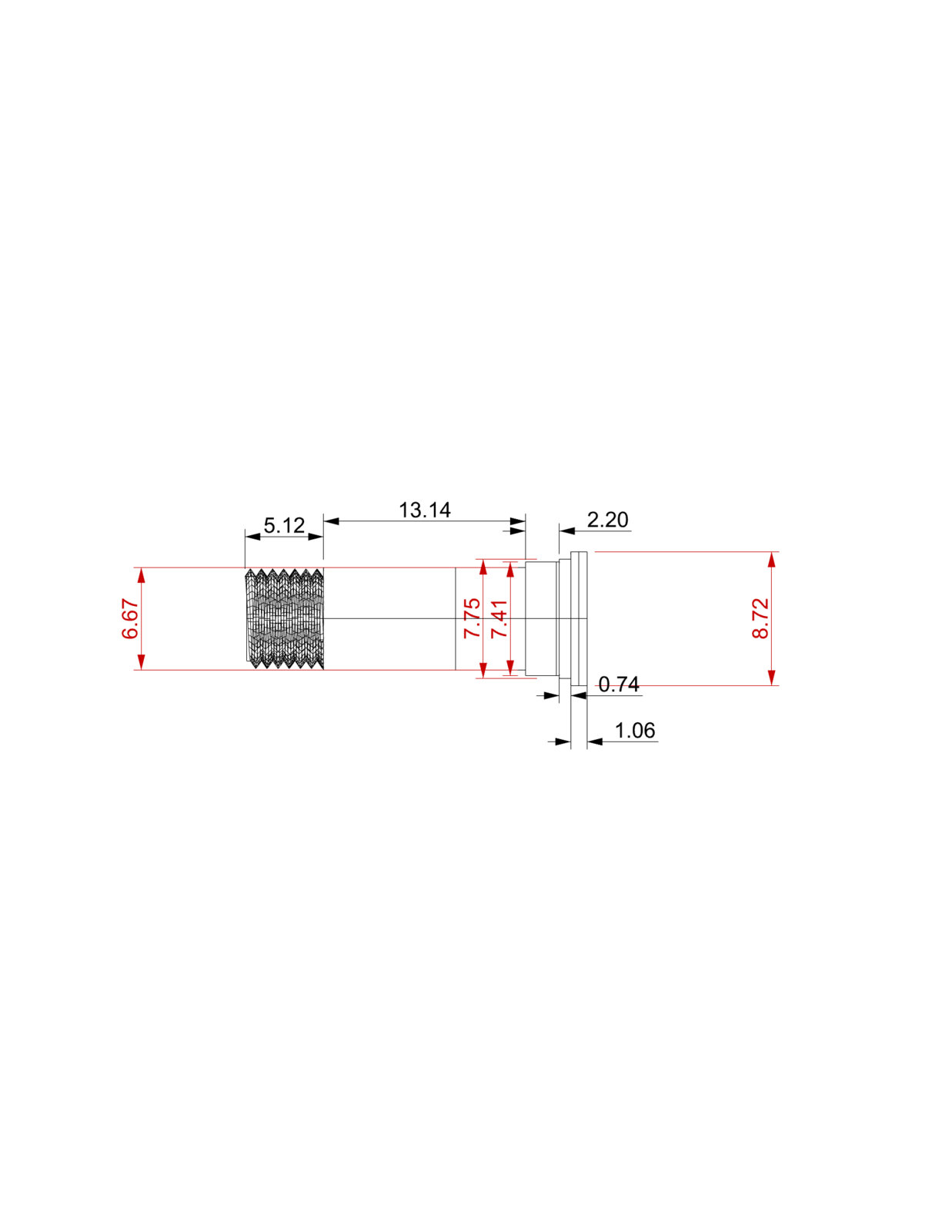

number 5 feed.jpg

Ripped off a quick drawing, threads are 6.4 x .5 but 5mm long not 5.12 The lip at the front is not as crisp as drawn on the nib housing I have but its close enough. The dimensions because its a piece of plastic are not consistent around the housing but this will get you close.
