Inside-out Ornament

Signed-In Members Don't See This Ad
See more from alamocdc

alamocdc

Member
Joined
Apr 26, 2005
Messages
7,970
Location
San Antonio, Texas, USA.

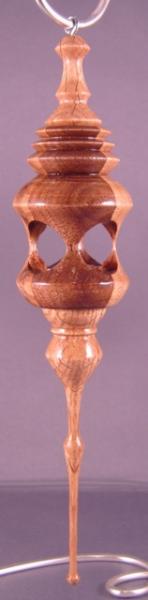

I actually started this one and its twin five years ago. I used two butternut and two walnut pen blanks and intended to part the turning in the middle and finish each ornament. I had a catch and lost one of the twins two weeks ago. I messed up on the inside of both so I put them in my v-block for drilling cylinders and used a Forstner bit to make the openings a more appropriate size. The finial and icicle are red oak. The main body of the ornament is about an inch and a half wide. Finished with Deft spray.


Attachments

  • 640IO_ornament.jpg
    10.1 KB · Views: 527
Signed-In Members Don't See This Ad

SDB777

Member
Joined
Feb 6, 2010
Messages
6,620
Location
Cabot, Arkansas USA
Have always wondered.....do you need to do anything special on the 'icicle' piece to keep it from breaking, or is it as 'tender' as it looks?


I can see that being on a Christmas tree for generations!!!







Scott (long time in coming) B


alamocdc

Member
Joined
Apr 26, 2005
Messages
7,970
Location
San Antonio, Texas, USA.
Thanks to all for the kind remarks!

Have always wondered.....do you need to do anything special on the 'icicle' piece to keep it from breaking, or is it as 'tender' as it looks?

Scott (long time in coming) B

I was always worried about that too, Scott. But if you use sharp tools and go slow with light cuts it is actually pretty easy (with a straight grained wood, anyway). I actually leave it between centers through the sanding/sealing phase. Then I part of the thin end of the icicle and sand and seal it before parting off the tenon. Oh, I do support the back of the icicle with my fingers while I'm cutting. Kinda like a slidable steady rest. I keep the thumb of that support hand on the front of the tool rest. I'm not sure that makes sense, but that's what I do. It means one handing the skew, but with practice it isn't terribly difficult.

Now some will break or split despite your best efforts. You just never know what is inside the wood until you get there. I actually feared the Red Oak not being strong enough that small, but it was suprisingly resilient. Tighter grained woods like Maple and Cherry are definitely better for small things like that. The icicle on this one is just under 3/32" at the thinnest.

Last edited:

OOPS

Member
Joined
Feb 6, 2010
Messages
674
Location
Spokane, WA
That's a beautiful ornament. I was wondering how it was done. Forstner bit, eh? I feel as though I learned a tip from one of the masters. Superb craftmanship.

Thanks for posting and telling us how it was done.


Talfalfa33

Member
Joined
Feb 19, 2012
Messages
141
Location
Dallas, Tx
Great job and save. So, if the finial portion is 3/32 at the thinest, how tall is it? The one I posted just after yours is close to 9 inches tall and 1 3/4 at the widest. But someday I'll get to where you are with the small turnings.


alamocdc

Member
Joined
Apr 26, 2005
Messages
7,970
Location
San Antonio, Texas, USA.
Great job and save. So, if the finial portion is 3/32 at the thinest, how tall is it? The one I posted just after yours is close to 9 inches tall and 1 3/4 at the widest. But someday I'll get to where you are with the small turnings.

It's actually the icicle that is the thinnest, Timothy. It is 7" tall not counting the eye.

Looks great, also looks like the pucker factor while turning is quite high.

Christopher, you have no idea! Especially after its twin blew up.

Joined
Jan 22, 2012
Messages
307
Location
Laurens,SC
I have wanted to try some really thin ornament finials.My worry is how to safely pack it up for off season.I quess lots of tissue.Your's looks real good.Lots of pucker facter,but loots of fun too.Thanks for posting.


Sully

Member
Joined
Dec 9, 2006
Messages
116
Location
Summerville, South Carolina
Very nice work. After I saw this the other day I went on youtube and watched alot of videos to see how it's done. I REALLY appreciate your work. It's another project to add to my list of things to try. Thanks for showing.

Sully
