Initial sketches of my first pen design

Signed-In Members Don't See This Ad

AdventiveIowa

Member
Joined
May 2, 2020
Messages
29
Location
Los Angeles California

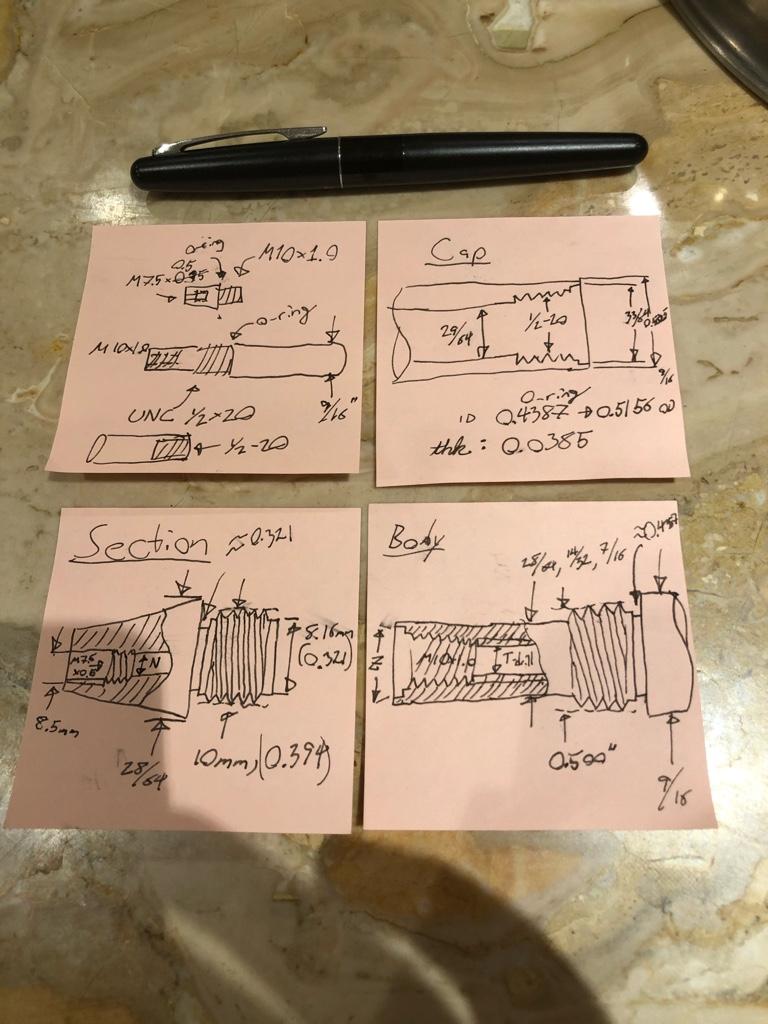

Starting to lay out sketches for the brass pen I’m going to make. These are just my initial thoughts, I might change them up a bit when I actually get to turning, I mostly just wanted to figure out what my OD was gonna be.

Going to use a JoWo #6 nib unit. One of the key features I want to build in is a small lip for O-rings on the interface between the section and the body as well as the body to the cap. This is because I’ll be making this out of Brass, and I don’t want it to come undone. I guess I could put washers in somewhere, but the o-rings will help seal it so it doesn’t dry out. To that end, I’ve sketched in a little space at the base of the tenon and the cap threads. I’ve also sketched in a flat lip I’ll have to drill in at the lip of each interior thread, so it doesn’t cut my O-ring.




You may notice that my threads are a little coarse for what’s usually seen here: this is my first pen, so I’m trying to use the taps and dies I have on hand, without having to buy too many tools. So the only tap I’m buying for this is going to be the M7.5x0.5 tap, which I know I can get on Amazon for ~$10.

Thoughts are always appreciated, but mostly I want to show progress so I actually commit to finishing the pen.

-Hank


Sent from my iPhone using Tapatalk

Signed-In Members Don't See This Ad
Joined
Aug 5, 2009
Messages
3,032
Location
Seattle, WA

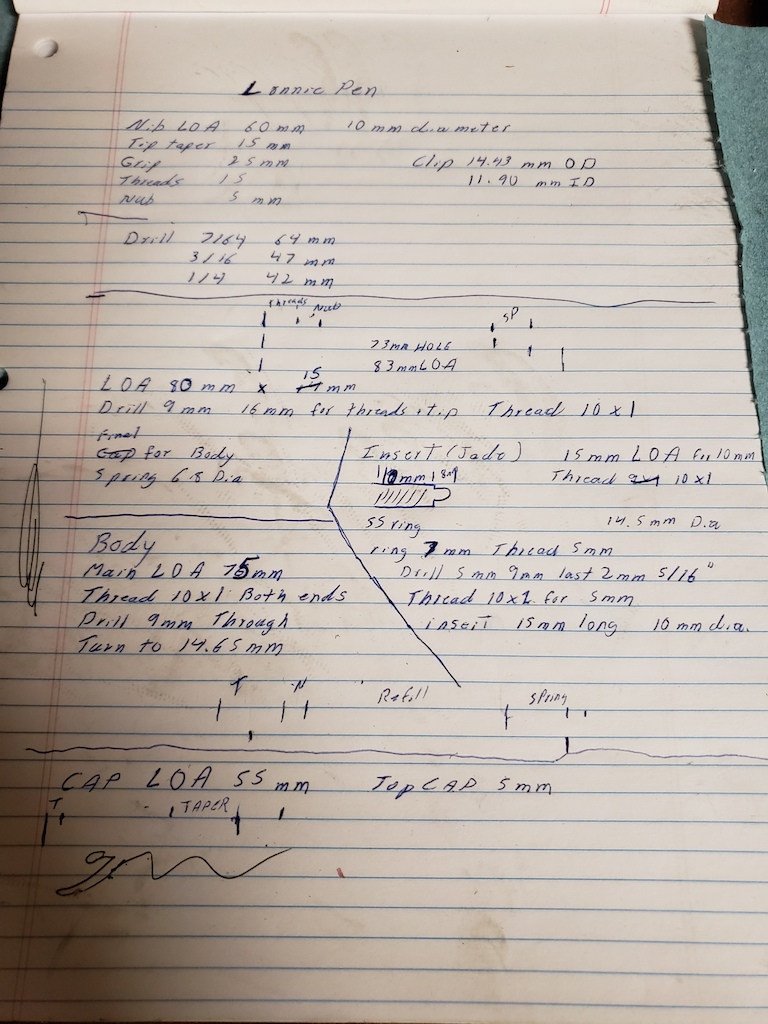

It's wise to start with what you have. Then when you decide to continue you have a better idea of what you really need to buy. Have a pad of paper handy for those "design changes" that will happen and notes for next time. don't be in a hurry, enjoy the process.


AdventiveIowa

Member
Joined
May 2, 2020
Messages
29
Location
Los Angeles California
Dan,

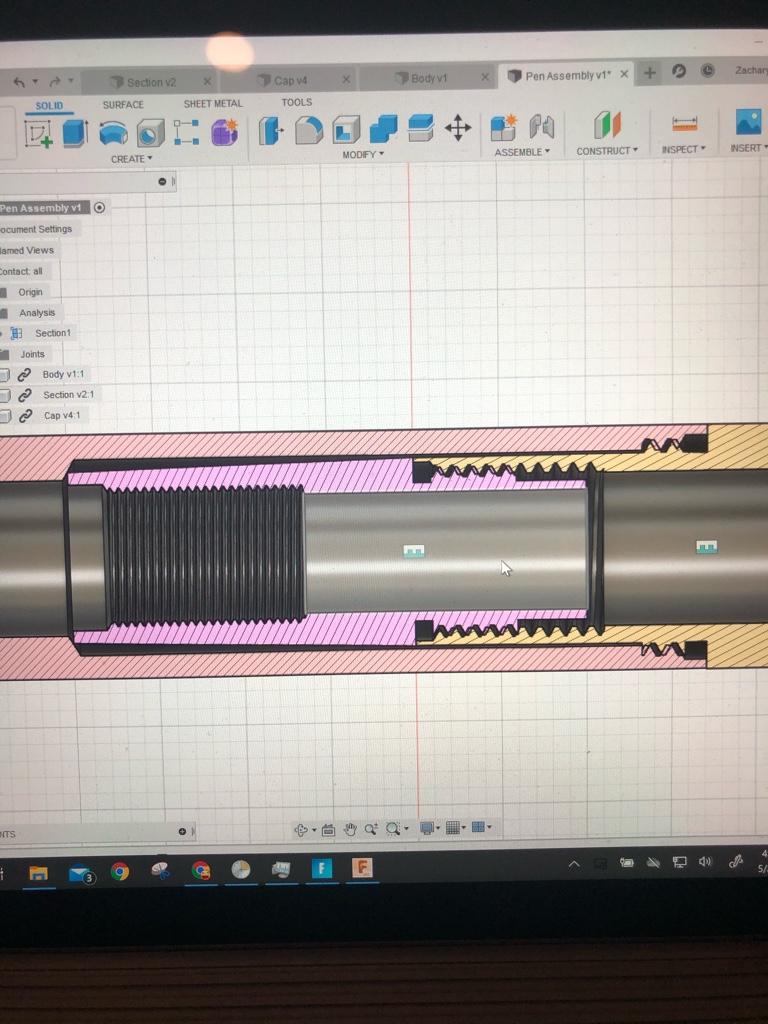

That’s a good idea, I’m looking at the cross section in Fusion 360 (I opened it up last night and reminded myself how aggravating it is to work with) and the gaps I have right now are not square, so I’m not sure how well the o rings will fit.

I’ll try to make some practice fits.

-Hank




Sent from my iPhone using Tapatalk


More4dan

Member
Joined
Mar 17, 2016
Messages
2,026
Location
Katy, TX
With a cap flush to the body, it’s kinda of tight. I believe o ring are made to seal side to side, ID to OD with just interference. You might try a short section of flat on either side of the groove to get the best seal with minimum interference. I’ve done brass, aluminum and SS pens similar w/o o rings and didn’t have issues unscrewing nor drying out. O ring would’ve necessary for eye dropper fill of the body.


Sent from my iPhone using Penturners.org mobile app
