I made a ballpoint pen using the minimum parts

I used twist parts and coil springs from Penkit Sierra.

The body parts are ebonite and the twisted parts are wood.

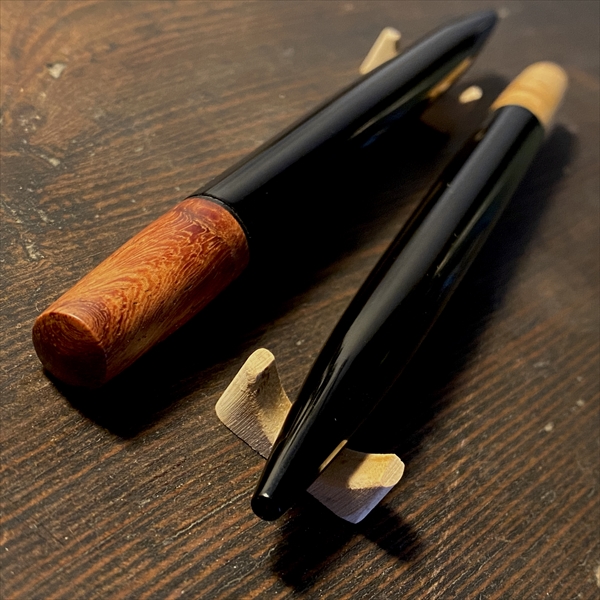

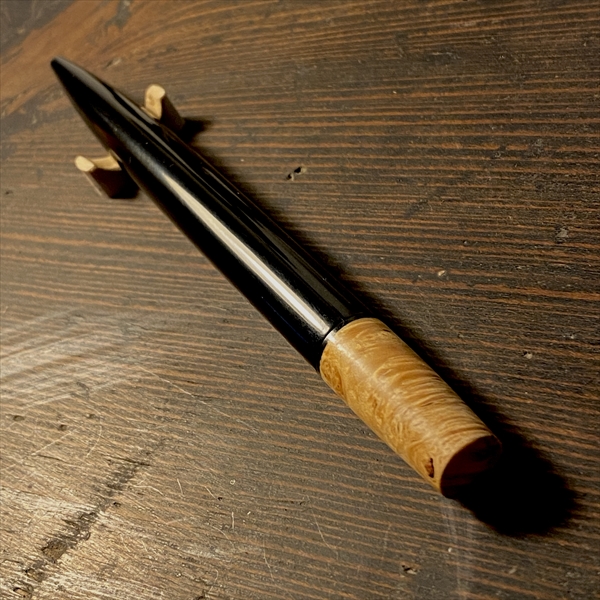

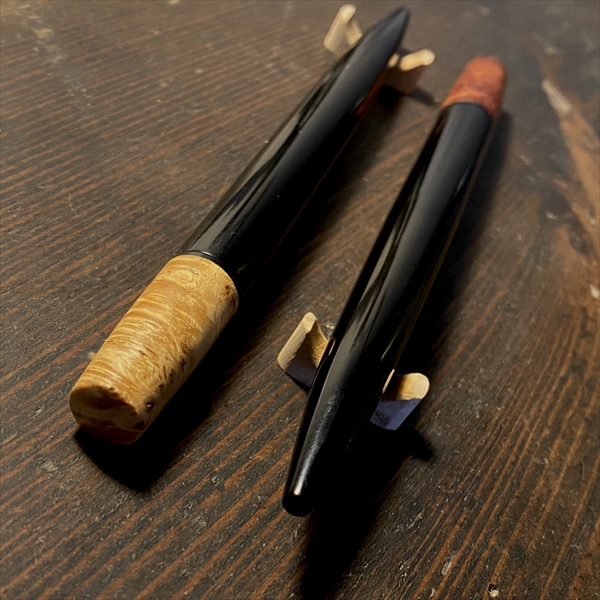

Body : Black ebonite

Twisted parts : Maple wood burl or bubinga

Refill parker type

You can see the disassembled on

Instagram
Various details are "Youtube"







Attachments

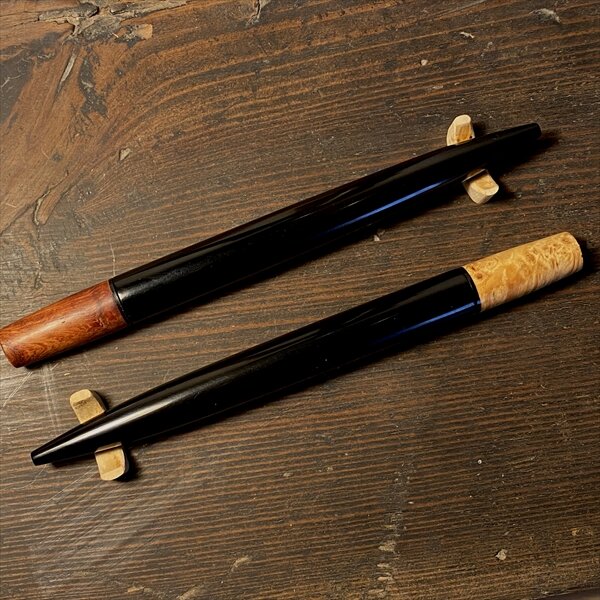

  • IMG_6765_R.JPG
    103.2 KB · Views: 88
Last edited:
Signed-In Members Don't See This Ad

takayuki_sz

Member
Joined
Aug 12, 2019
Messages
54
Location
japan
最小限のパーツでボールペンを作りました

ペンキットシエラのツイストパーツとコイルスプリングを使用しました。

ボディパーツはエボナイト、ツイストパーツはウッド。

本体:黒エボナイト

ツイストパーツ:メープルウッドバールまたはブビンガ

パーカータイプの詰め替え

あなたはで分解されたのを見ることができます

インスタグラム
いろいろなディテールは「Youtube」です

View attachment 298976


View attachment 298975

View attachment 298974

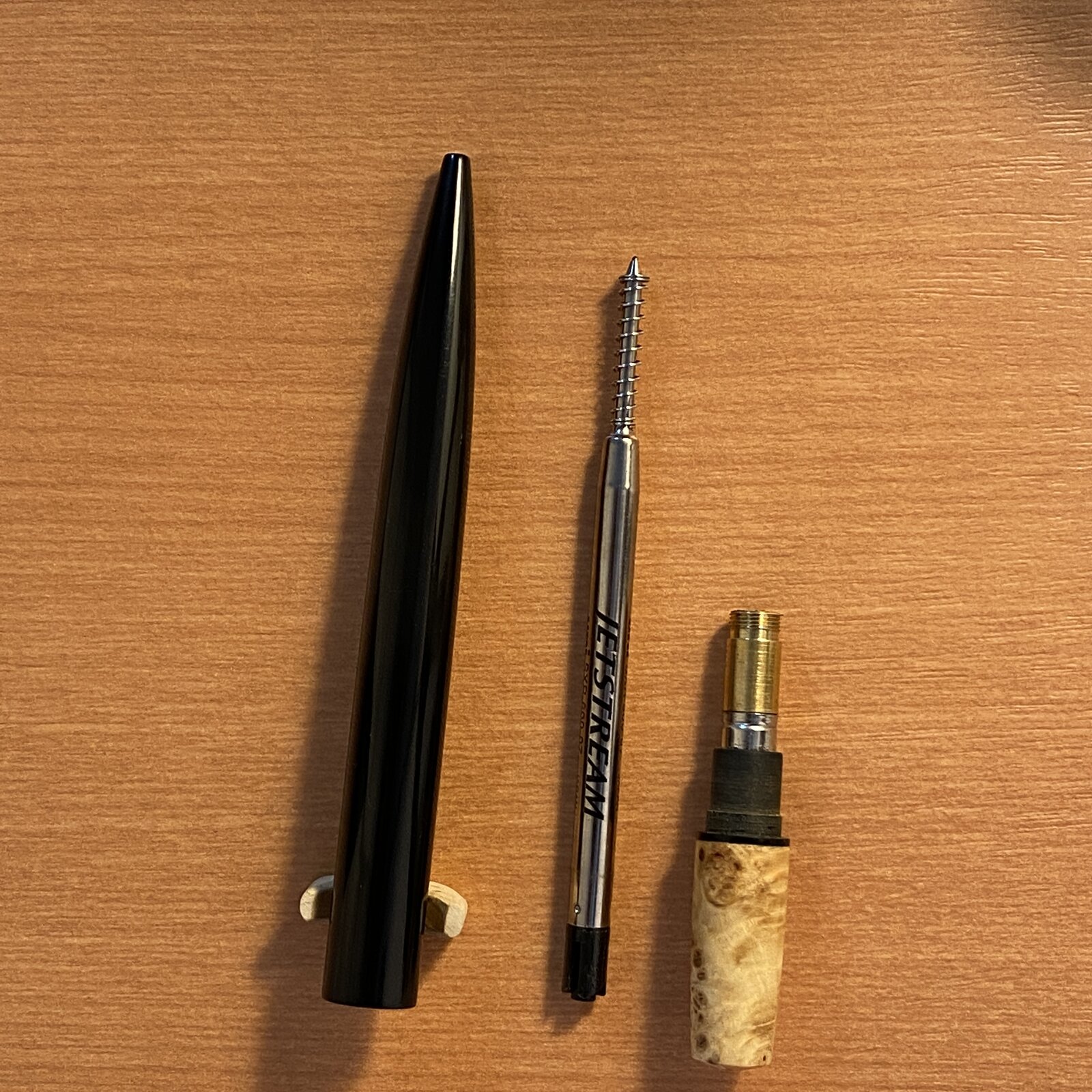

分解化された。


takayuki_sz

Member
Joined
Aug 12, 2019
Messages
54
Location
japan
Those are beautiful! Did you thread the ebonite for the twist mechanism or insert the threaded part from the kit somehow?
Thank you .
I took out only the twist system from the kit. However, this method takes a lot of time to adjust the tip of the pen. It's a challenge
