How to make a Glacia pen longer

Signed-In Members Don't See This Ad
See more from magpens

magpens

Member
Joined
Feb 2, 2011
Messages
13,277
Location
Coquitlam, BC, Canada
Firstly, I apologize for the poor photography!!
Secondly, I apologize for the poor photography !!!!
Thirdly, I apologize ... Oh, what the heck ! . Let's just get on with it ...

The Berea Glacia pen kit has seemed attractive to me for some time ... for its styling, but it is too short, for my liking.
As supplied, the kit results in a pen with a finished length of 4 3/4". . It needs to be at least 1/2" longer.

Recently, I set myself the challenge of modifying the kit to achieve the longer length.
I am amazed at the number of hours I spent thinking about methods of increasing the length.
For several days, all I could come up with were methods that were overly complex, requiring considerable lathe work to create new parts.

Finally, yesterday, I had the "Eureka moment", and the method is extremely simple ... using one added part from a very old Berea Sierra Click Pen.

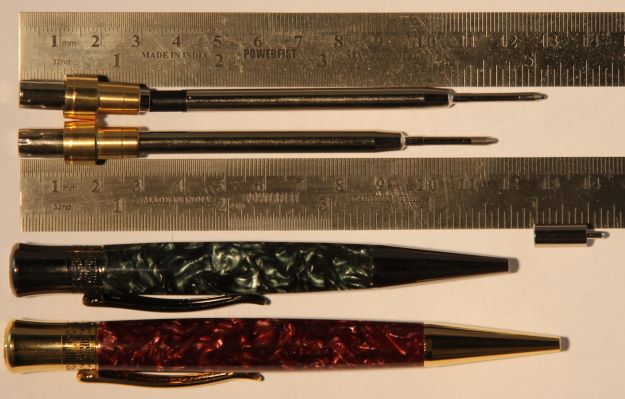

Please refer to the picture below. . The Glacia pen with the green barrel is unaltered from the original kit design. . Notice the length of 4.75"
The red-barreled modified version has a length of 5.25". . Notice that the clip is in better proportion to the longer barrel length.

The barrel was lengthened by 0.5". . This involved cutting the brass tube in half, and using one half at each end, leaving the center of the barrel un-tubed.

Of course, this change requires an extension piece for the Parker refill, so here's the revelation that was a long time coming to me but proved the ideal solution.
The original Berea Sierra Click Pen included a half-inch long refill extender which was the source of a lot of consternation because it had a habit of getting lost.
I made a lot of those Sierra Clicks when I first started making pens 10 years ago. . The kits came with two of the extenders .... just in case you lost one.
So when I made those pens (none of them sold) I collected a bag of extra extenders .... which I managed to find yesterday afternoon !!
Turns out that these extenders are exactly what I need ... perfect fit and everything ... to complete my project of lengthening the Glacia.

So in the picture, you will see the two completed Glacia pens along with a ruler to show their lengths. . Both pens have their refills fully retracted.
You'll also see a Sierra Click refill extender (small chrome cylinder 0.5" long with a pin out one end of it ... that pin fits perfectly into the Glacia twist mechanism.)

In the upper part of the picture, you'll see two of the Glacia twist mechanisms plus Parker refills. . One twist mechanism has a Sierra refill extender inserted.
The other Glacia twist mechanism does not have the Sierra refill extender. . Notice that the tip-to-tip lengths differ by 0.5" ... just exactly what I need.
Both twist mechanisms are in the fully retracted positions, as they should be for comparison with each other and with the pens shown.

And ... Guess What ! ... the Sierra refill extender is a snug friction fit into the Glacia mechanism ... it does not fall out when you replace the refill !!! ... YIPPEE !!!

Oh .... I DO apologize for the poor photography .... I don't know what went wrong. . But I just HAD to get this exciting result published tonight !!!

I hope you are as excited as I am !!! šŸ˜ :po_O . . ( I might retake a better picture. . Will post if I do that. )
