having fun with non-kit pens

Signed-In Members Don't See This Ad

its_virgil

Member
Joined
Jan 1, 2004
Messages
7,251
Location
Wichita Falls, TX, USA.

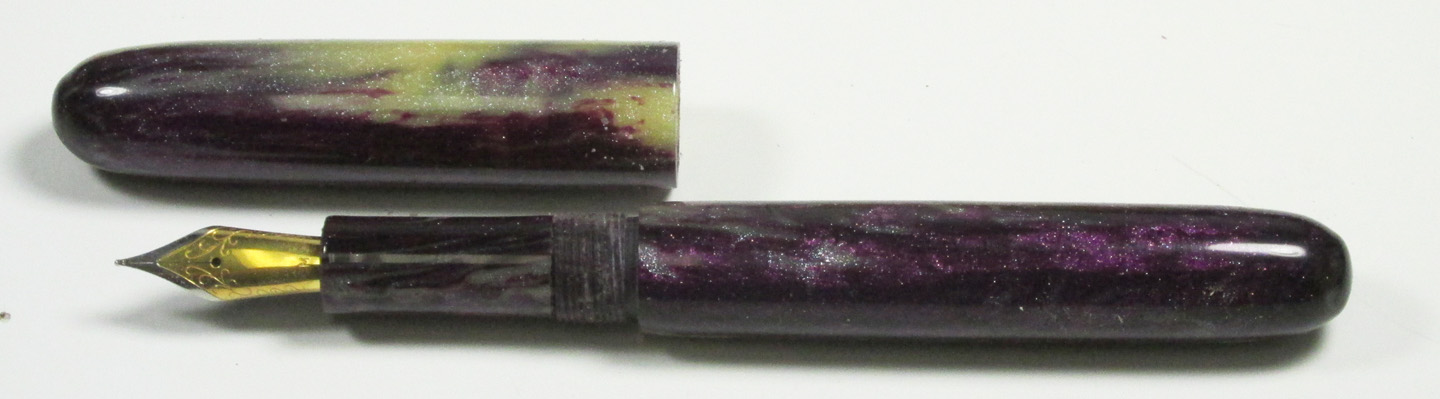

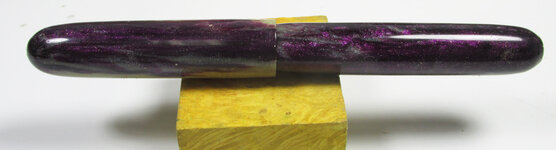

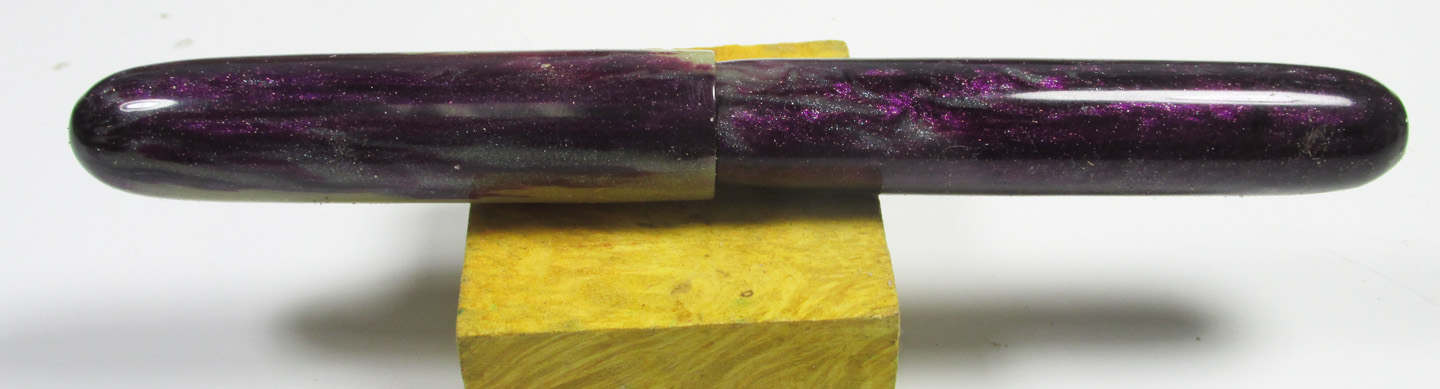

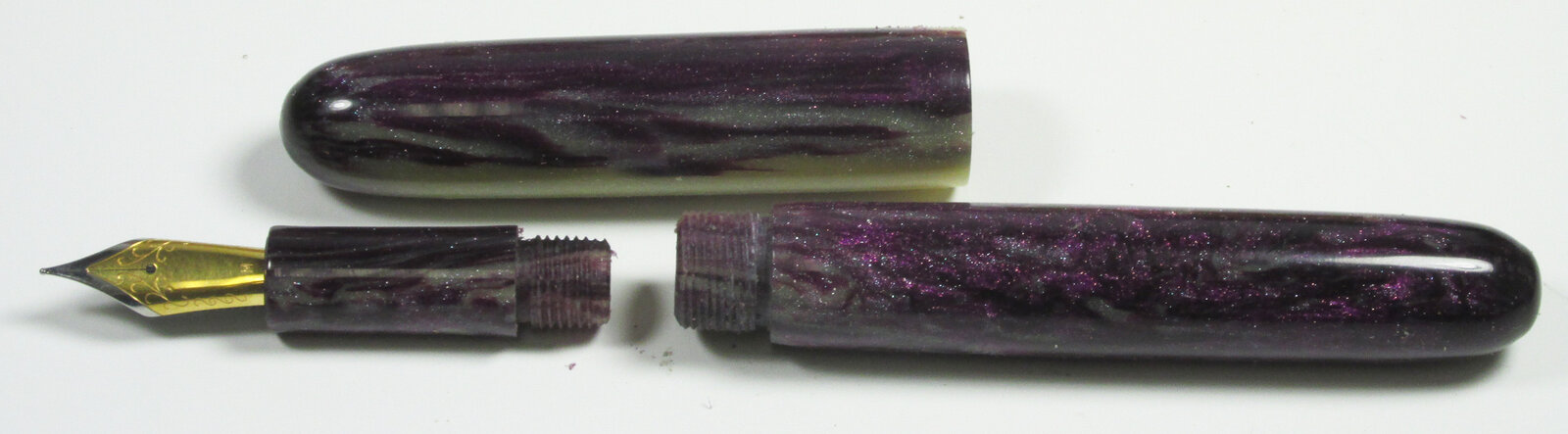

Here is my pen from yesterday. stated wed evening and completed yesterday. The blanks is a diamond cast from McKenzie Penworks. The threads are M13 x .8 triple lead for the cap and body. M10 x 1 single start for the section to body thread and M7.4 x .5 for the JoWo nib uint. Working on shape, lengths, and diameters to find what i like and find pleasing. Adding a clip is next.
Do a good turn dsily!
Don

purple FP 1032020.jpgpurple open 1032020.jpgpurple 3pts 1032020.jpg

Signed-In Members Don't See This Ad

its_virgil

Member
Joined
Jan 1, 2004
Messages
7,251
Location
Wichita Falls, TX, USA.
Beautiful work !!!

I am not really rapt in the color mix of yellow with purple, but apart from that the overall look is pleasing.
Thanks
Beautiful work !!!

I am not really rapt in the color mix of yellow with purple, but apart from that the overall look is pleasing.
Thank you. I'm not a fan of the color. Like the purple but was somewhat disappointed with the yellow being uncovered. Not really sure I like the diamond dust either. I'll give it some time.
Don
