montmill
Member

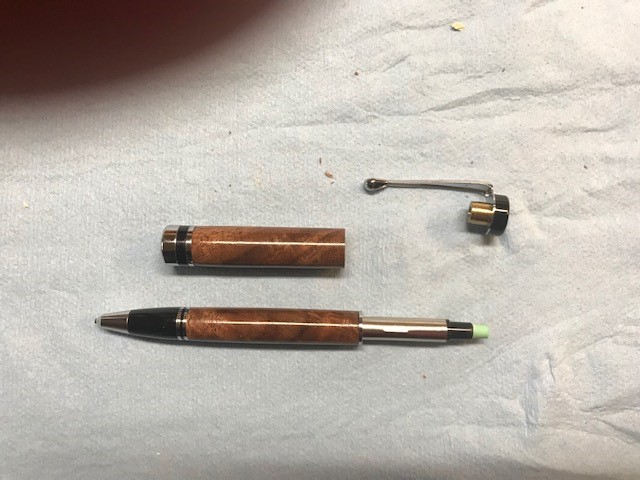

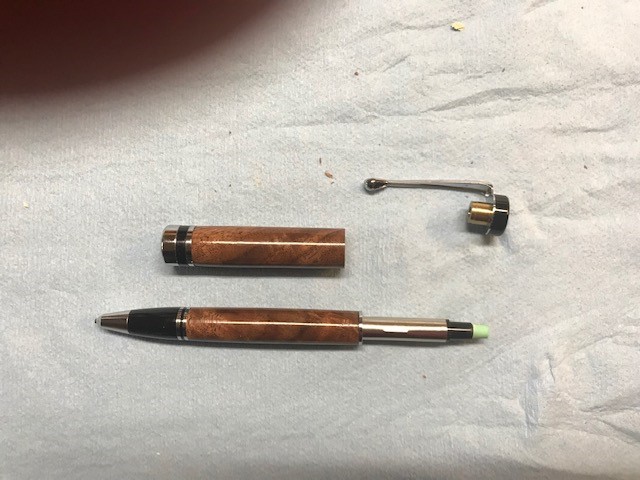

This is a very old kit from Beartooth Woods. The brass piece on the top is too small for the tube and I'm not sure how make the pencil work. Have I put it together wrong or what am I missing?
Flat Top American Pencil
- Thread starter montmill
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
Rob
Member
looks like you're missing the inner tube for the cap...this kit has three tubes...
its_virgil
Member
Beartooth woods sells mostly Berea kits so you can find insturctions on the Berea website. There are 3 tubes. One for the lower barrel and two for the cap. I agree with Rob...you may be missing one of the tubes.
Do a good turn daily!
Don
Do a good turn daily!
Don
montmill
Member
Yup, now I see it. I did have it but mistakenly glued it in another piece of wood. Duh! Looks like it's a standard seven mm brass. If that's the case I can cut one from stock I have on hand. Thanks so much, makes sense now.
montmill
Member
Well, the plot thickens, it's not a standard 7 mm tube. It's not clear to me what the smaller tube is. Does anyone know the measurement?
Lucky2
Member
I currently have no way to tell if a 7 mm tube, will fit inside an 8 mm tube. But that doesn't matter, it can be made to. It's repairable, depending upon how confident you are in your turning abilities. Turn or sand the inside of the 8 mm tube, to the size needed to fit the 7 mm tube inside of it. (I'm not sure if a 7 mm tube will fit inside of an 8 mm tube, and I presently have no way to check.) Then install the 7mm tube in place, and glue it there with CA glue. This is a bit tricky to do, that's why I was commenting about your confidence in your abilities. Good luck,and stay safe.
Len
Len
montmill
Member
The 7 mm does fit but it's small so I doubt the brass piece will fit into it. Best I can tell the tube is at least 7.5 mm. I'm going to call Berea tomorrow and see if I can get replacements. Thanks for the response.
montmill
Member
According to Berea the OD of the tube is .31 of an inch. They must get them from someone, I wonder who? They don't sell replacement tubes for the smaller tube. Get going on this stuff and it sort of pull you in. Becomes a challenge.
montmill
Member
Yes, they only sell the larger tube "because that's the one people goof up".
its_virgil
Member
The larger two tubes are .31 and the smaller is .29. I just measured a set from my last kit. A 7mm tube is .26. The only tube set that seems to be available is the two tube set that are .31--Berea hardwoods #BHW505. But you know that already. Instructions are available. The smaller tube (.29) drives the mechanism and slips inside the larger cap tube(.31). Unfortunately, a 7mm tube will not work but you may be able to sand and reduce the ID of a 7mm tube to slide over the mechanism . Not sure if it is large enough to work properly inside the cap tube (,31).
That was actually, and may still be, one of the better pencil kits 15 yrs ago.
Have you checked with other Berea resellers? Arizona silhouette, Exotic blanks? the kit is still available but the only tube set I could find just has the two larger tubes.
I would shoot Barry Gross a message and see if he can help. Good luck.
Do a good turn daily!
Don
That was actually, and may still be, one of the better pencil kits 15 yrs ago.
Have you checked with other Berea resellers? Arizona silhouette, Exotic blanks? the kit is still available but the only tube set I could find just has the two larger tubes.
I would shoot Barry Gross a message and see if he can help. Good luck.
Do a good turn daily!
Don
Rob
Member
This string caused me to rummage through some stuff in the shop. Before it closed I worked at Woodcraft in Baltimore. At one time Woodcraft/Berea sold replacement tubes in a five pack (in this case 15 tubes for 5 pencils). As I was looking I found a pencil kit less the pencil mechanism in my stash. Must have tried some sort of modification or repair to another kit. In any event, if you send me a private message with your name and mailing address, I'll send you the rest of the kit to include all three tubes, but most importantly, the one you're missing. I don't want anything for this...just pay it forward when you can.
Rob
Rob
montmill
Member
Rob, thank you so much. I will indeed pay it forward. PM on it's way.
qquake
Member
That looks like a Berea kit. Here are the instructions:
montmill
Member
Well I'm afraid I'm out of luck. The tubes Rob so graciously sent me were .31, the outer tube. Email to Berea asking if I could get the .29 tubes hasn't been answered. They have to get them from somewhere so I'm baffled why they don't support this product.
Rob
Member
Dave check your private messages...inner (smaller) tube is in packet...2 outer, one inner...very tight fit
montmill
Member
Thank you Rob. I found the smaller tube. I'd only measured on of the three thinking they were all the same. Don't assume, you think I'd know that by now.
montmill
Member

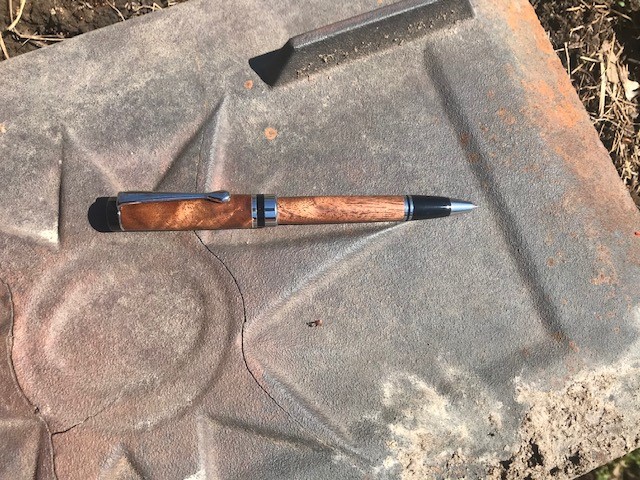

Thank you Rob. Sorry for the bad picture but things are crazy here right now.
Rob
Member
Dave, glad it worked out. That's some pretty timber on that pencil. Thanks for posting.
