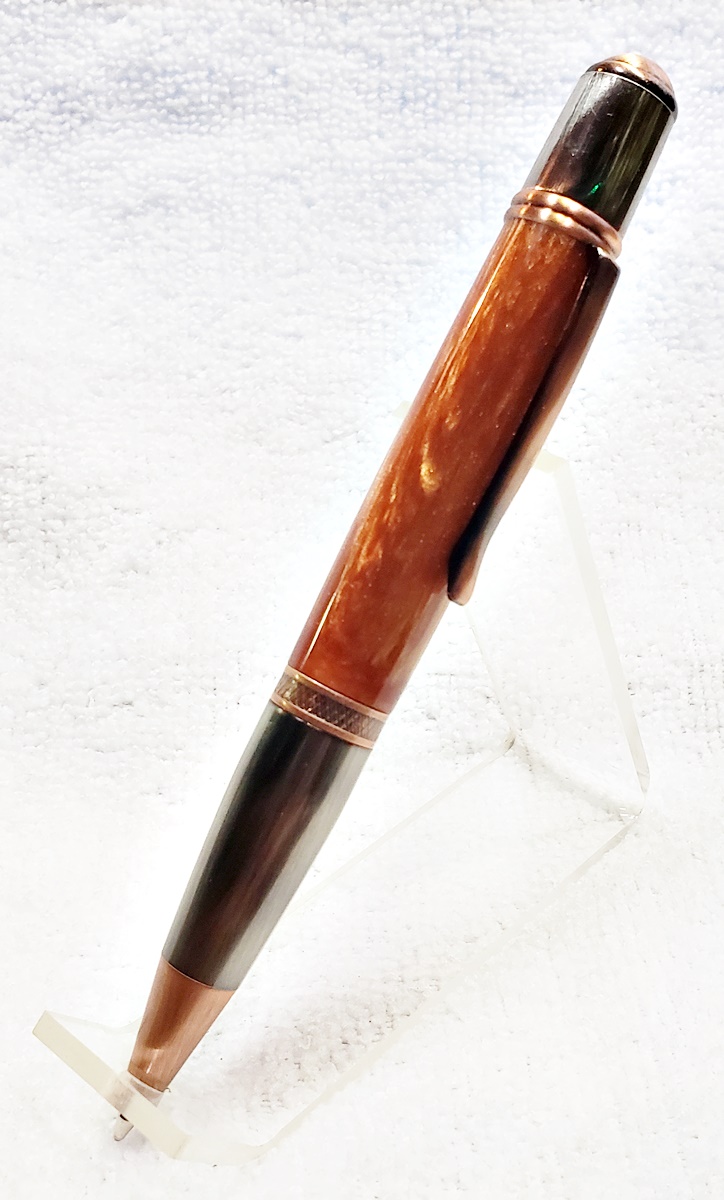

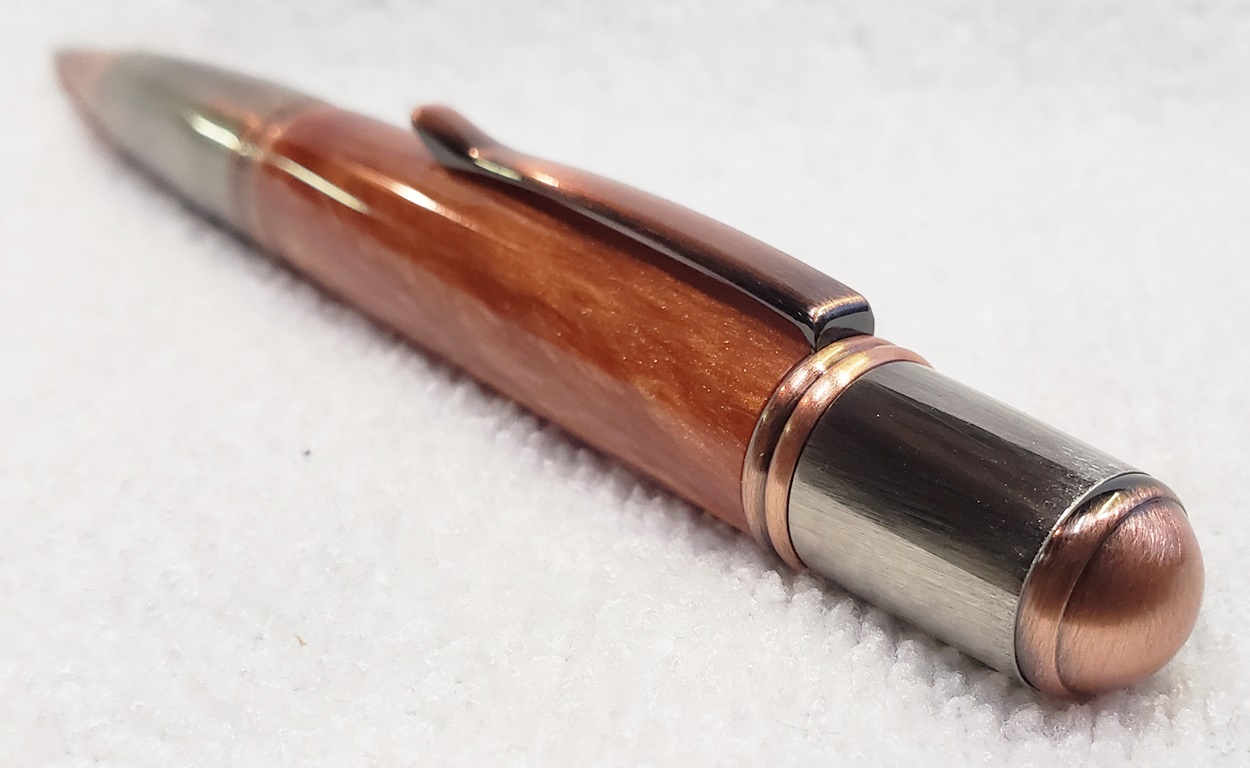

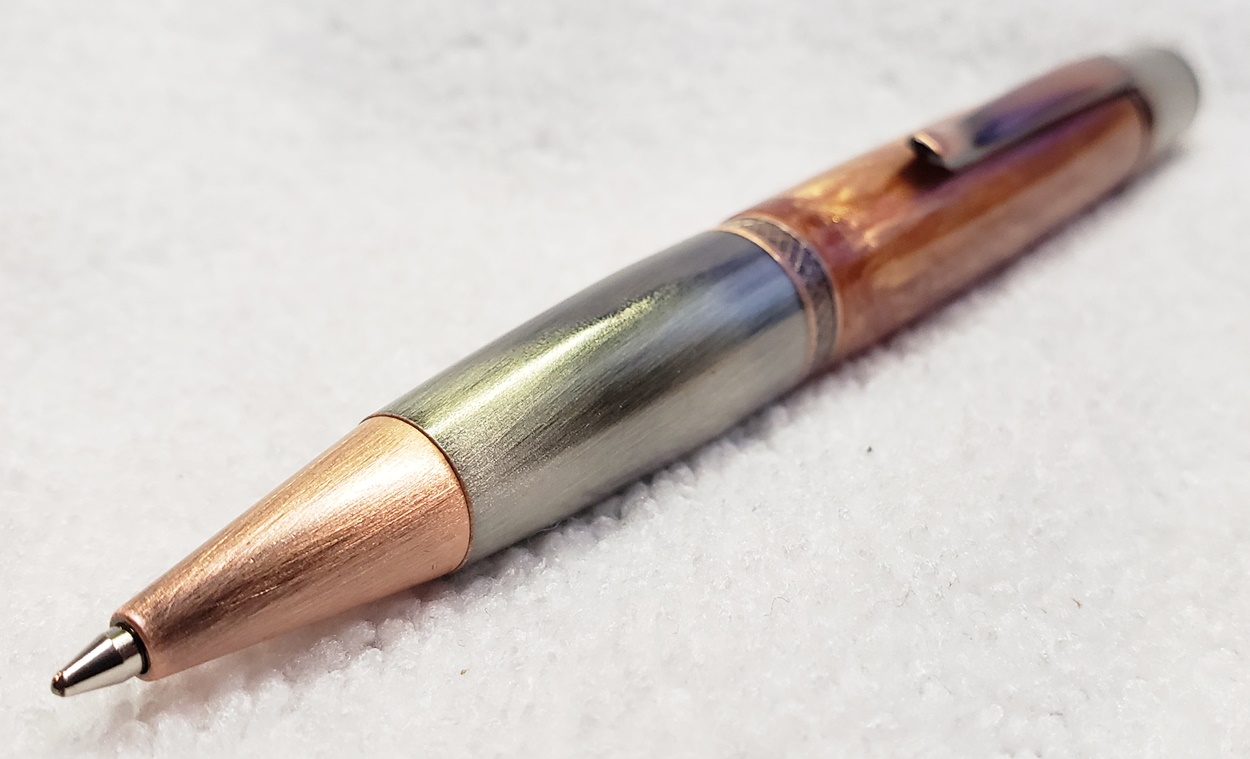

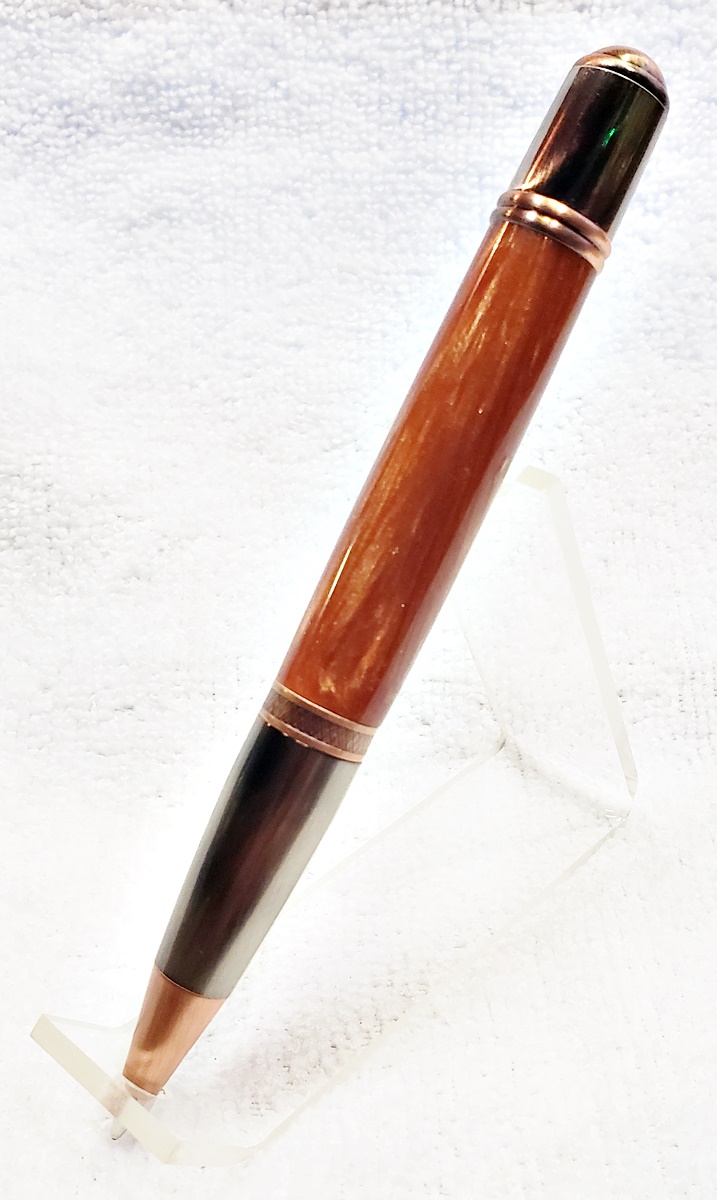

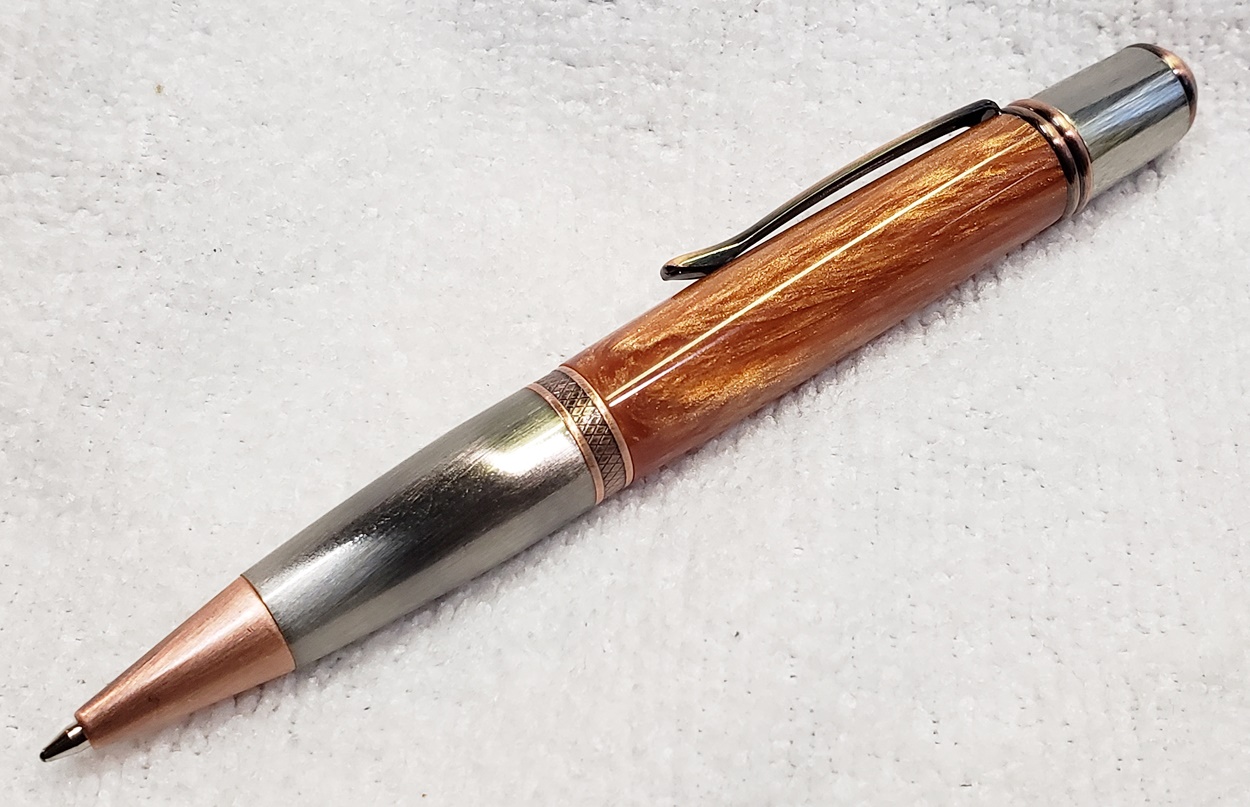

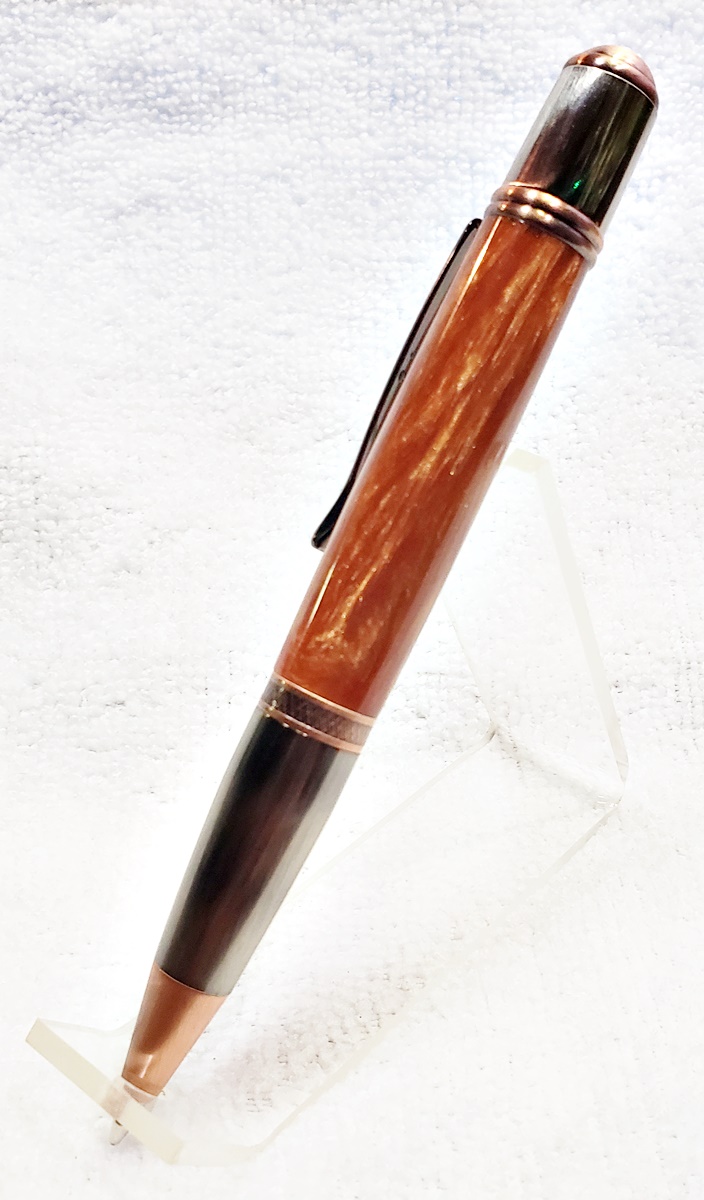

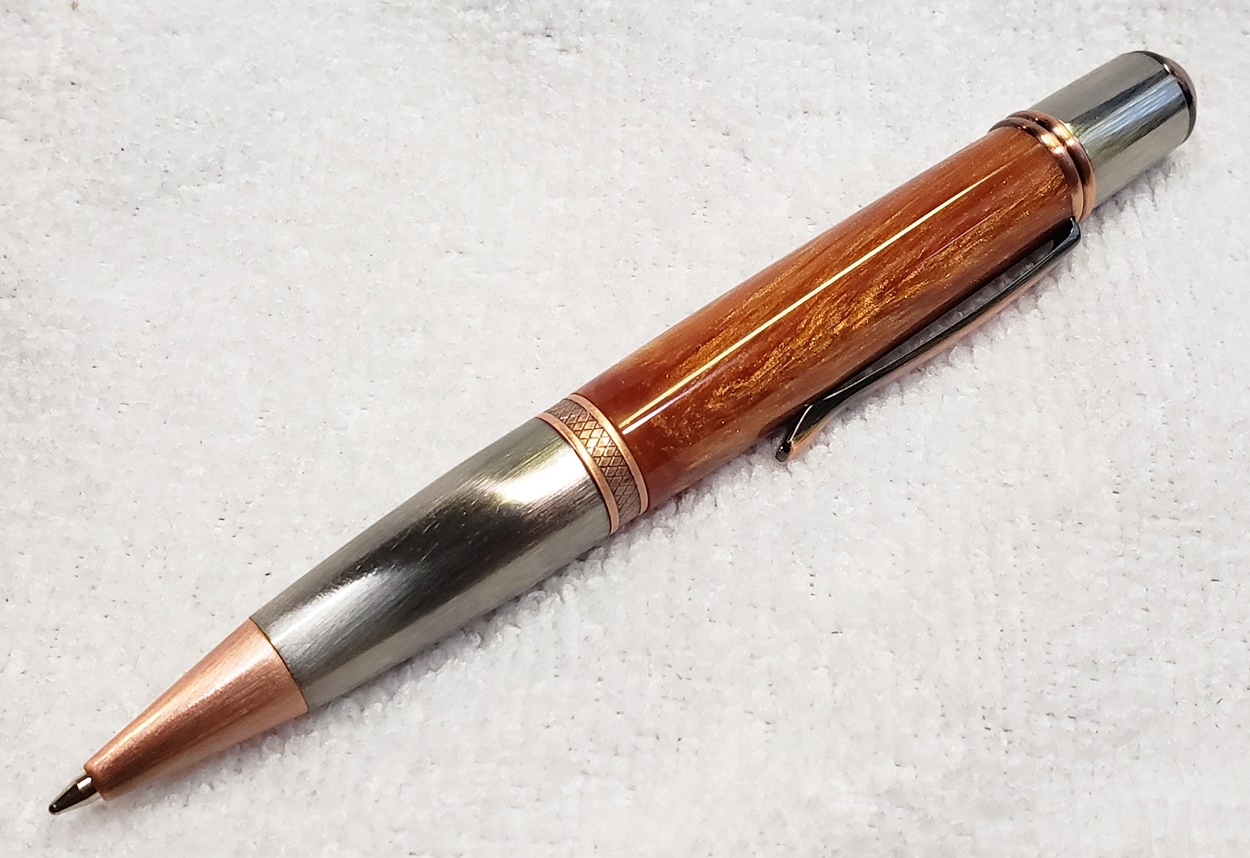

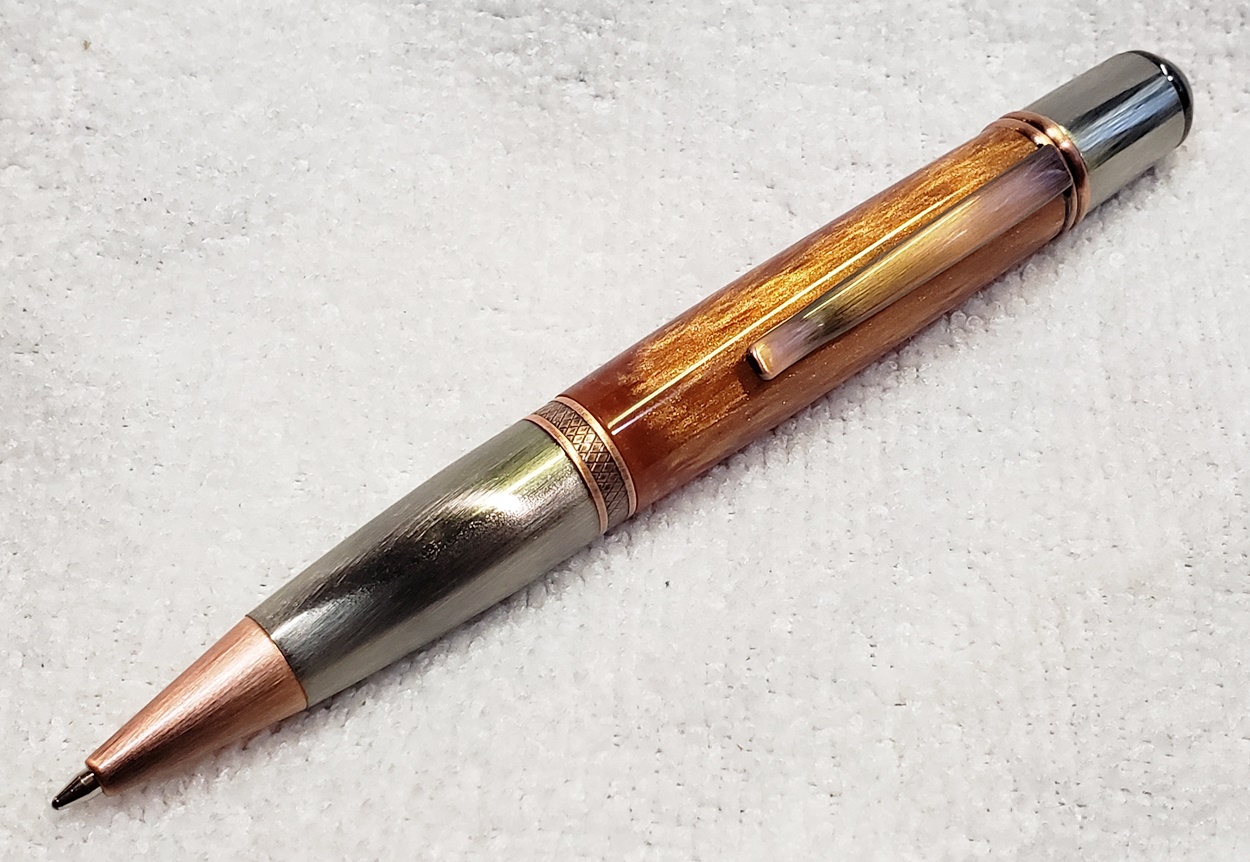

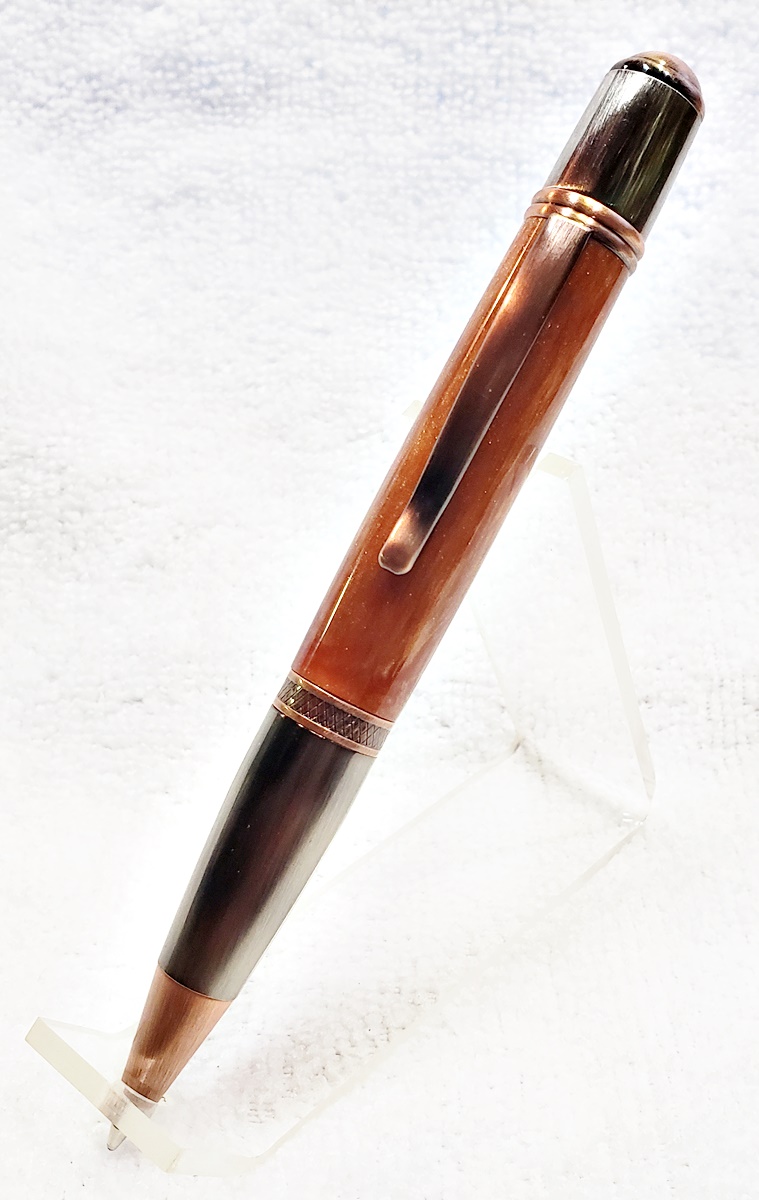

This is my first Monarch Grande pen from Turners Warehouse. It's basically a Sierra Vista derivative, and uses the Berea 50A bushings. The finish is gunpolish and antique rose copper. The blank is called Copper Shimmer, and is from Beartooth Woods. The blank is aptly named, and I think looks great with the finish on the pen components. I did have an issue with the bushings, see my next post below.


Attachments

  • 075.jpg
    334.8 KB · Views: 125
  • 076.jpg
    301.9 KB · Views: 158
  • 077.jpg
    296.6 KB · Views: 126
  • 078.jpg
    178.7 KB · Views: 119
  • 080.jpg
    186.9 KB · Views: 109
  • 081.jpg
    181.2 KB · Views: 104
  • 082.jpg
    193.5 KB · Views: 95
  • 083.jpg
    187.9 KB · Views: 102
  • 084.jpg
    199.7 KB · Views: 90
Signed-In Members Don't See This Ad

qquake

Member
Joined
Feb 8, 2004
Messages
2,949
Location
Northern California

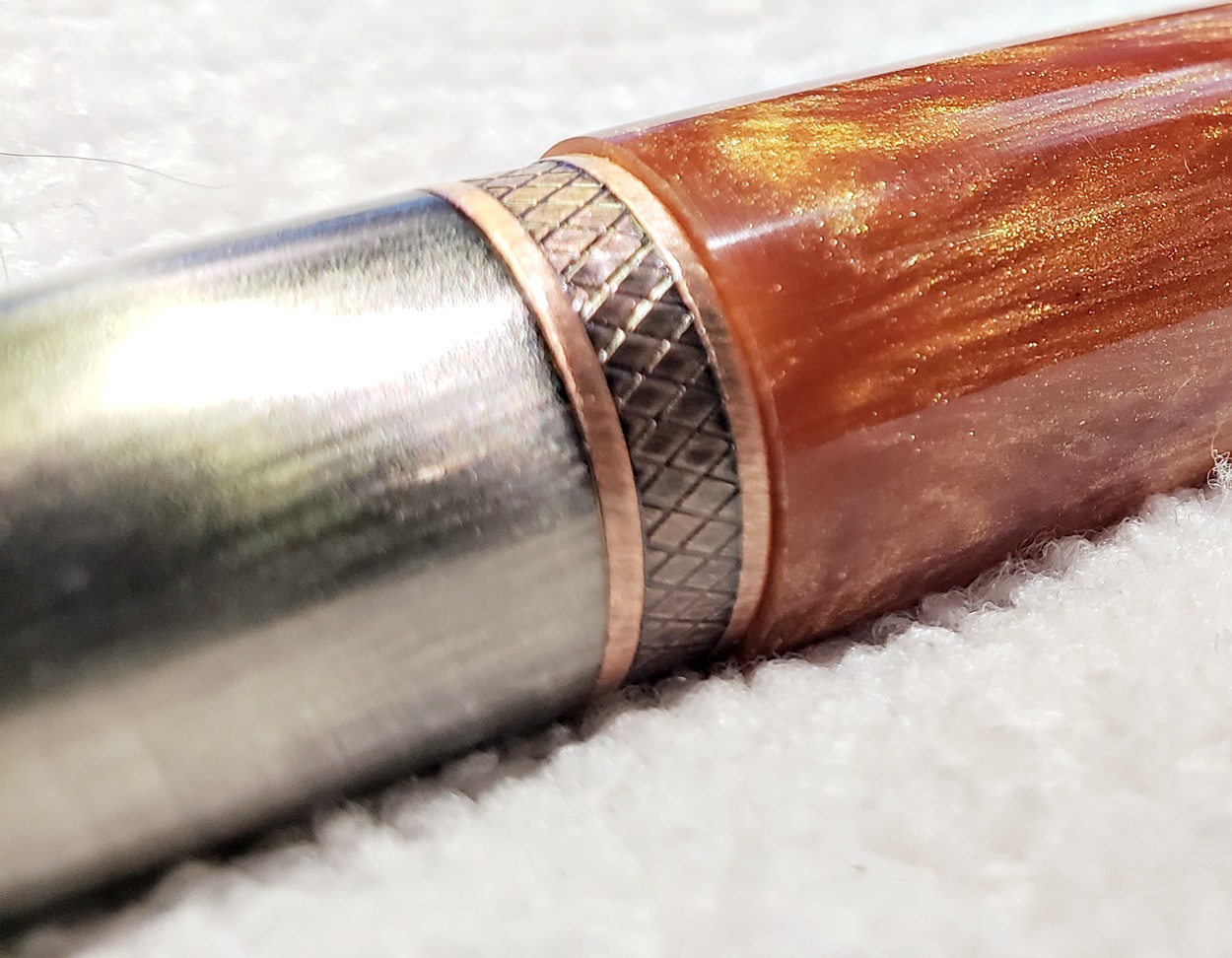

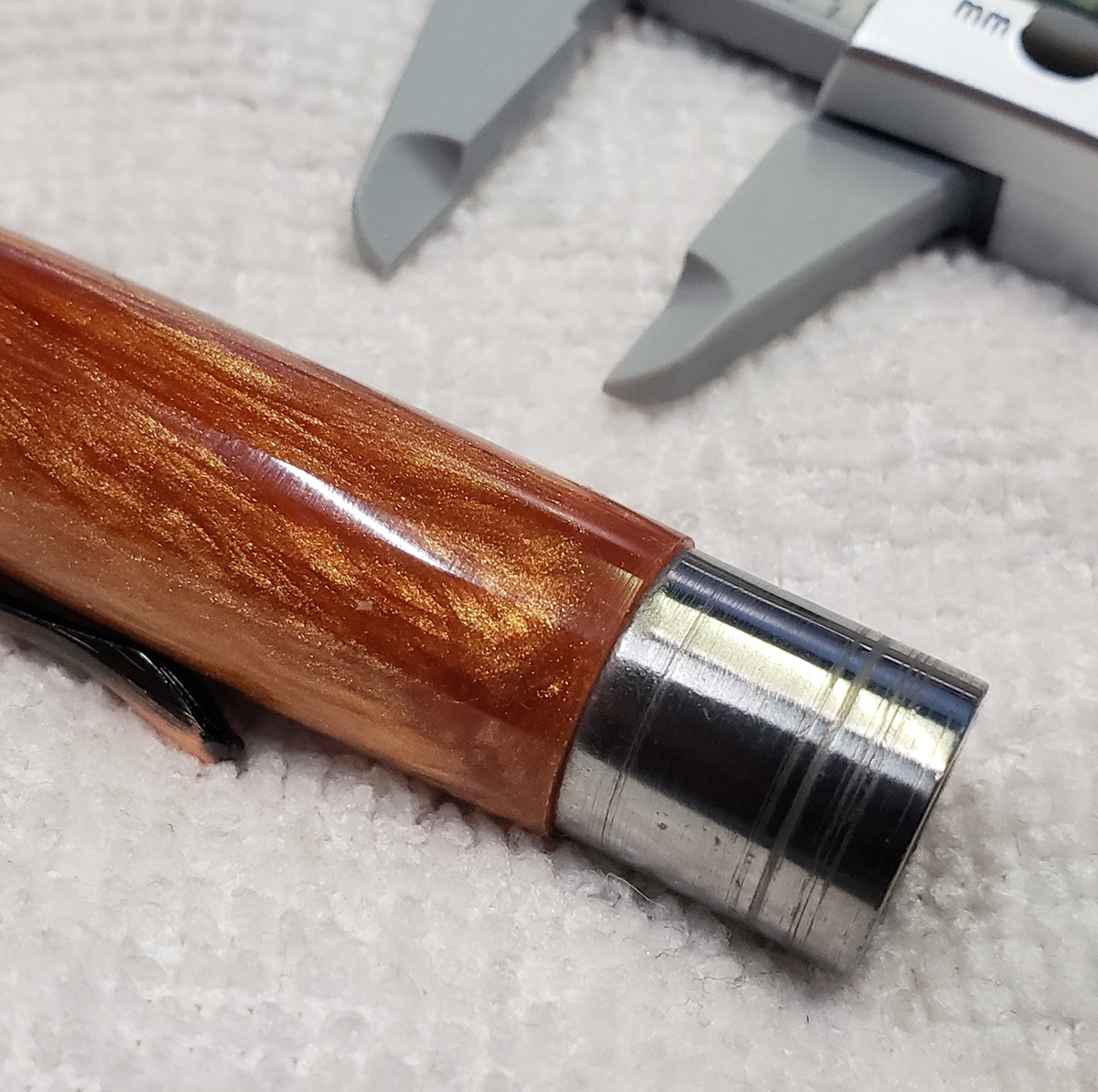

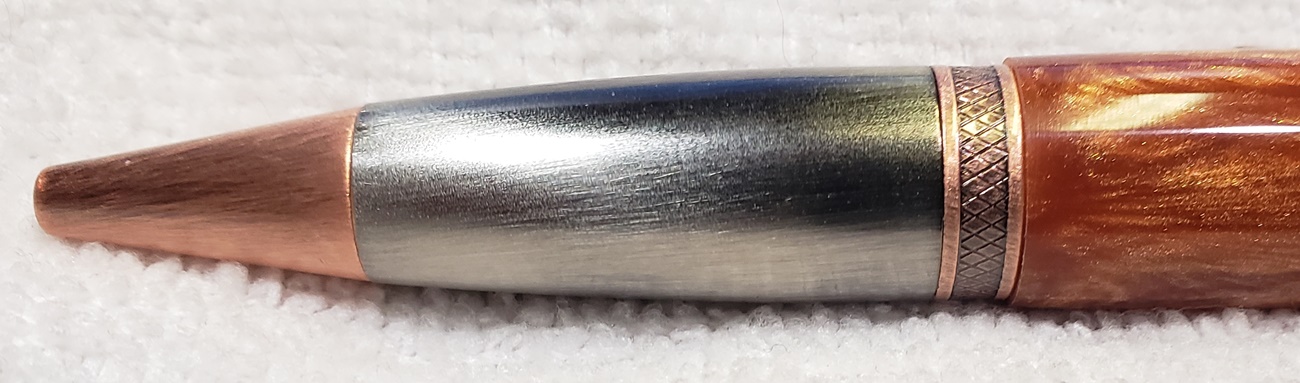

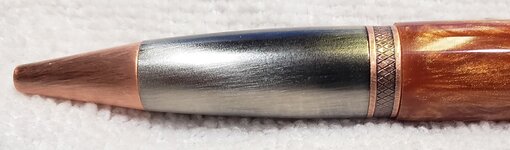

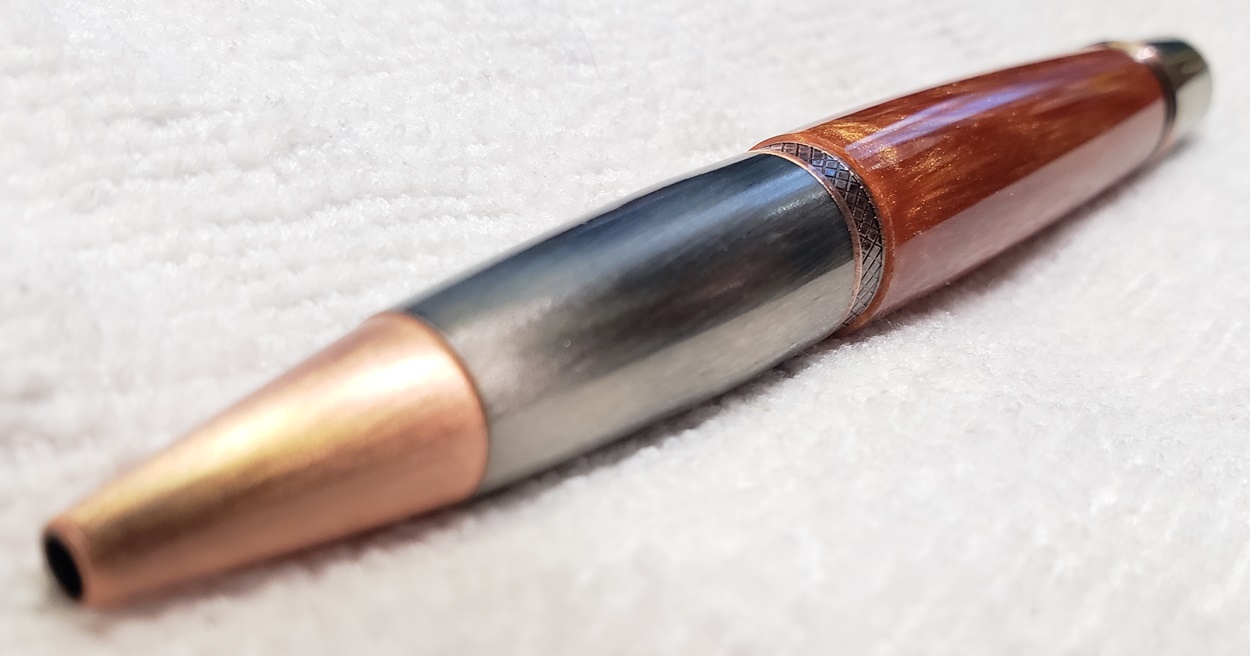

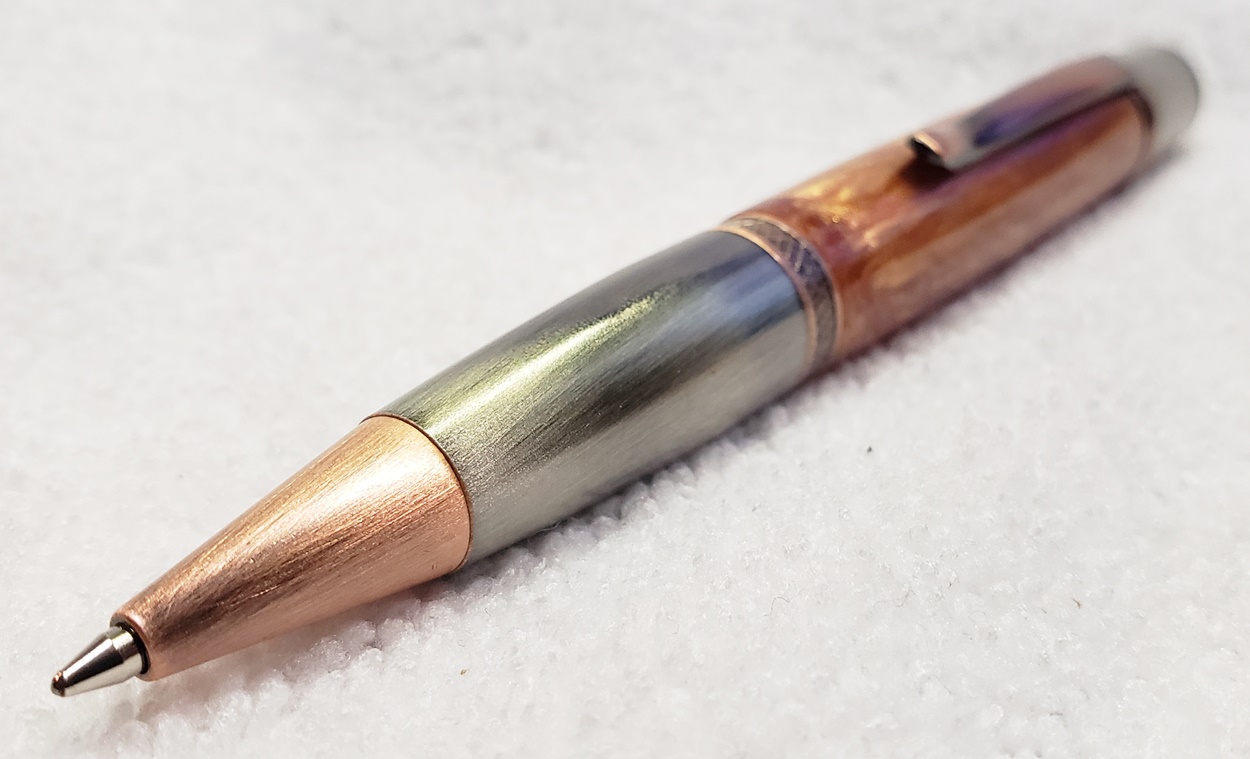

After I turned, polished, and assembled it, I noticed it was underturned on the tip end. That really bugged me, because I try to get bodies as close to the bushings as possible. Just for fun, I measured the bushings, and sure enough. One is 0.51" but the other is 0.54". Well, son of a biscuit! I've only ever used the bushings once before, but didn't remember any problems. I used them on a Sierra Vista with a laser cut kitten blank. I looked at the photos, and sure enough. One end is underturned. I don't remember it being like that, probably because I was so relieved at getting the kitten blank turned. It was fiddly to say the least!


Attachments

  • 054.jpg
    169.5 KB · Views: 77
  • 055.jpg
    149.3 KB · Views: 73
  • 056.jpg
    339.2 KB · Views: 64
  • 057.jpg
    424.4 KB · Views: 78
  • under.JPG
    153.6 KB · Views: 71

qquake

Member
Joined
Feb 8, 2004
Messages
2,949
Location
Northern California

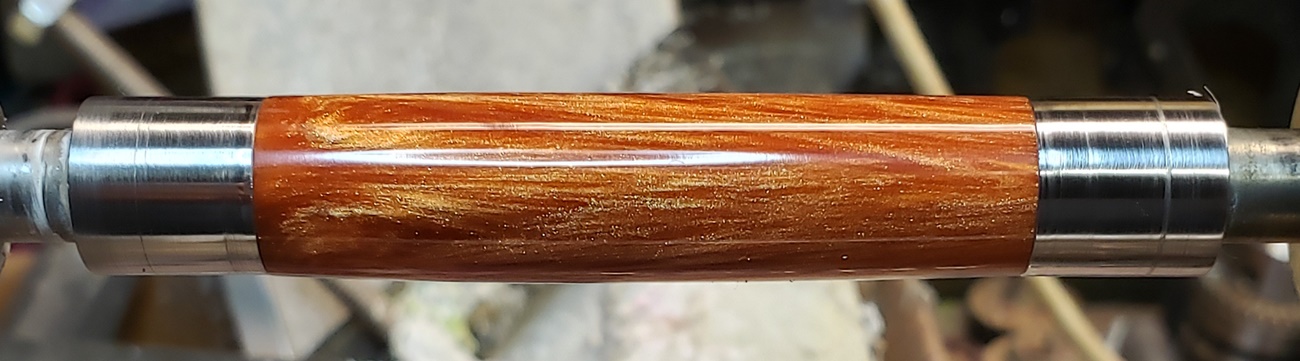

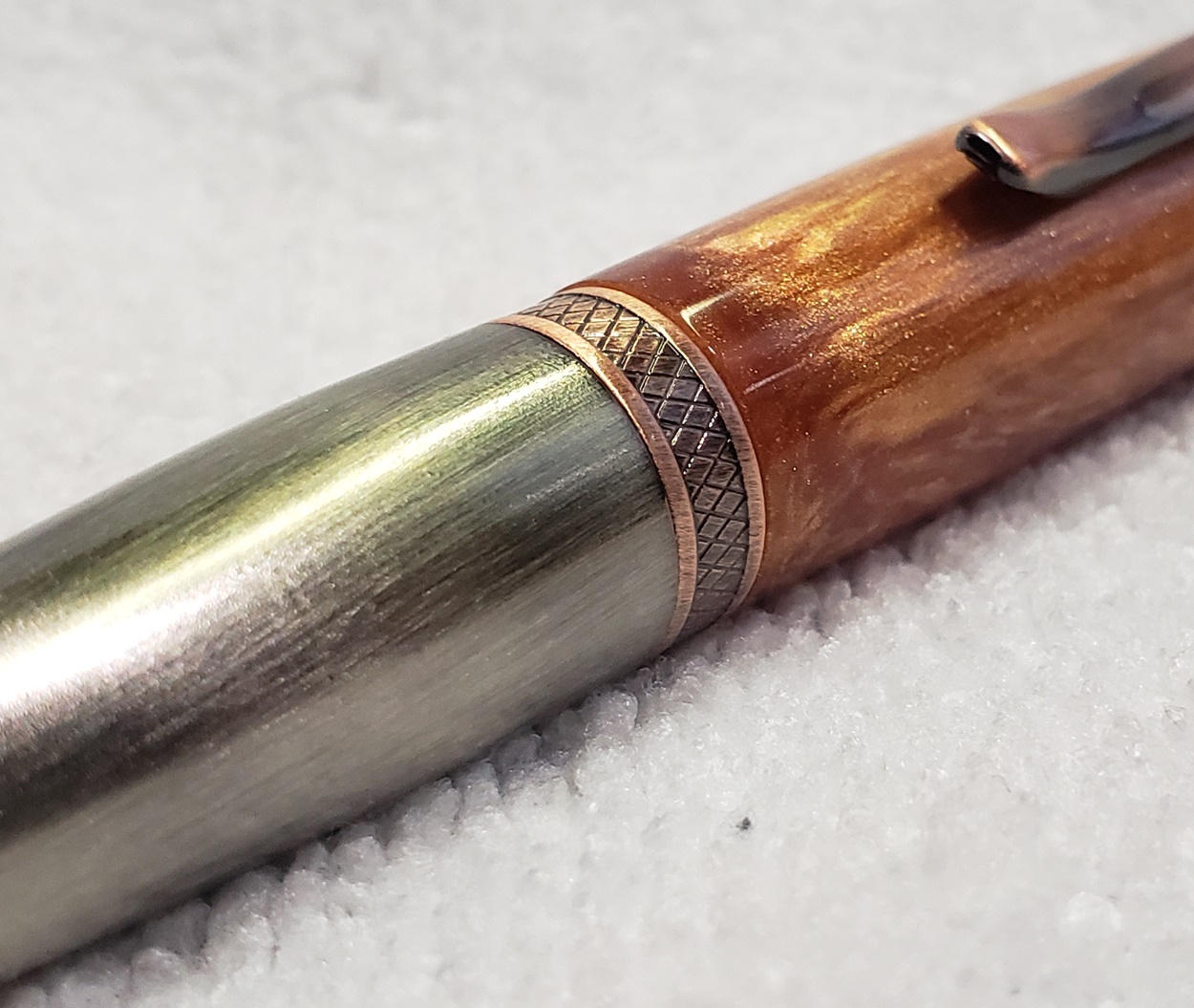

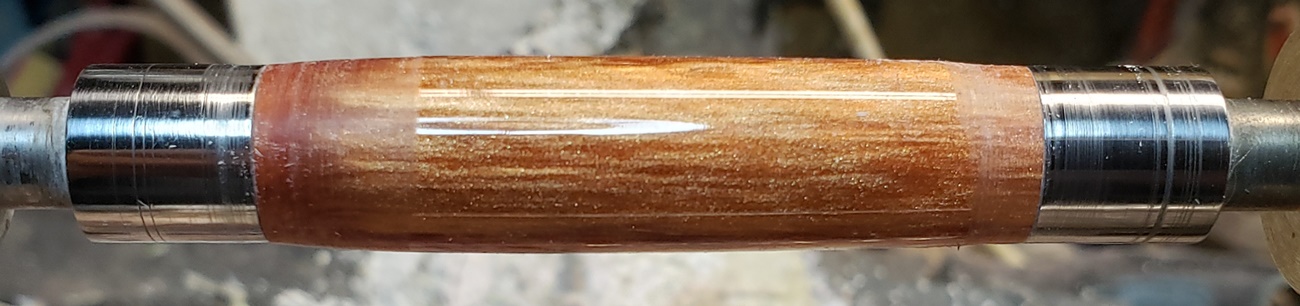

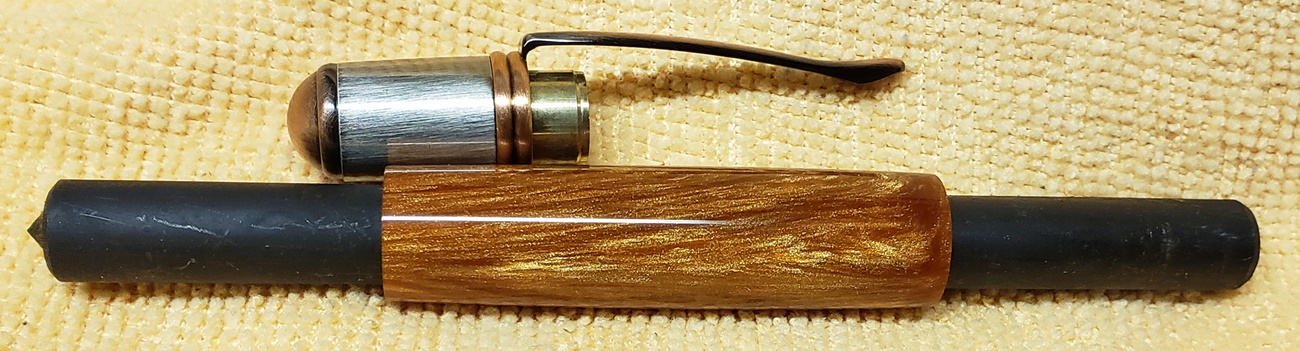

So I disassembled the Monarch Grande and mounted it back on the lathe with a pair of Wall Street III bushings I have. They both measured at 0.51". I re-turned and polished it, and it's much better. It's still a teeny tiny bit underturned, but I can live with it.


Attachments

  • 058.jpg
    238.2 KB · Views: 62
  • 063.jpg
    140 KB · Views: 69
  • 069_205.jpg
    154.8 KB · Views: 83
  • 078.jpg
    178.7 KB · Views: 69
  • 079.jpg
    333.3 KB · Views: 79

magpens

Member
Joined
Feb 2, 2011
Messages
13,665
Location
Coquitlam, BC, Canada
Thanks for showing this pen ... very nice !!

Thanks also for the technical parts ... very worthwhile knowing about ... I also worry about blank-meeting-hardware !


SteveJ

Member
Joined
Jul 11, 2012
Messages
2,585
Location
Grand Junction, Colorado
Great match of the blank to the kit. I usually try to measure the hardware against the bushing and blank before assembling. I've over turned and under turned enough blanks to make me check on a regular basis!
