First M14 cap threads

Signed-In Members Don't See This Ad

its_virgil

Member
Joined
Jan 1, 2004
Messages
8,101
Location
Wichita Falls, TX, USA.

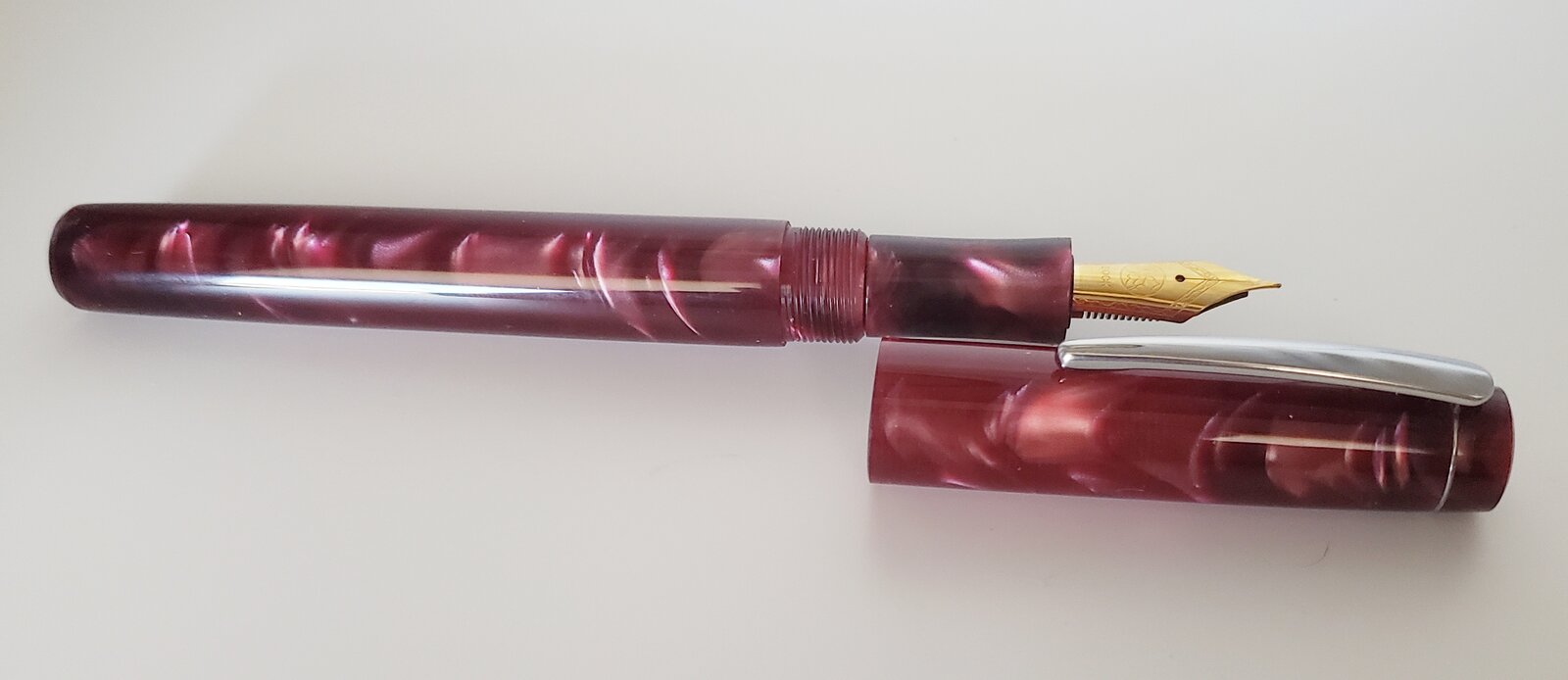

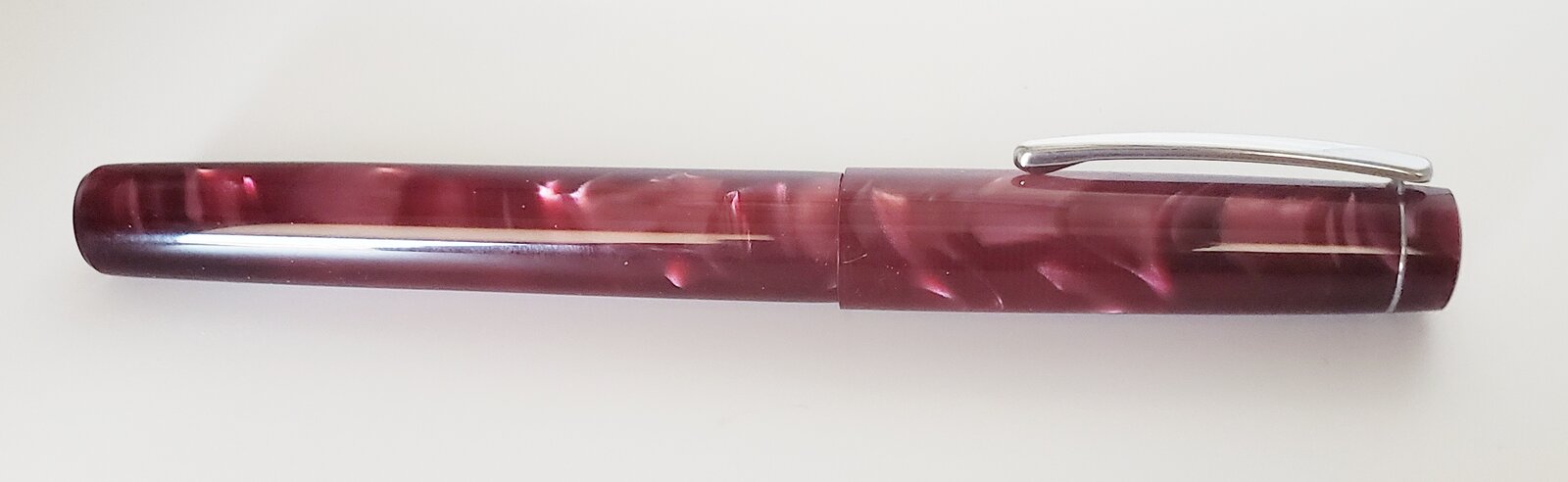

This pen is my first with M14 threads and my second with a clip.

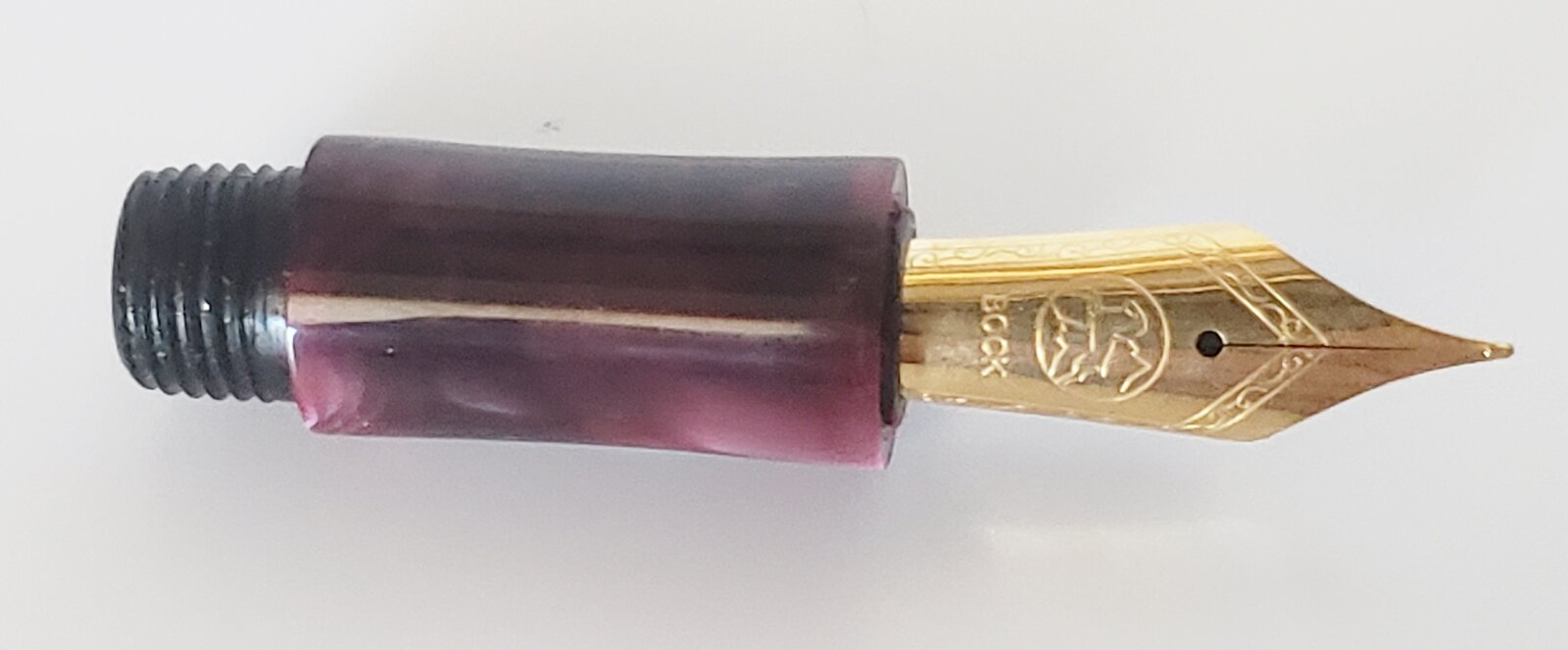

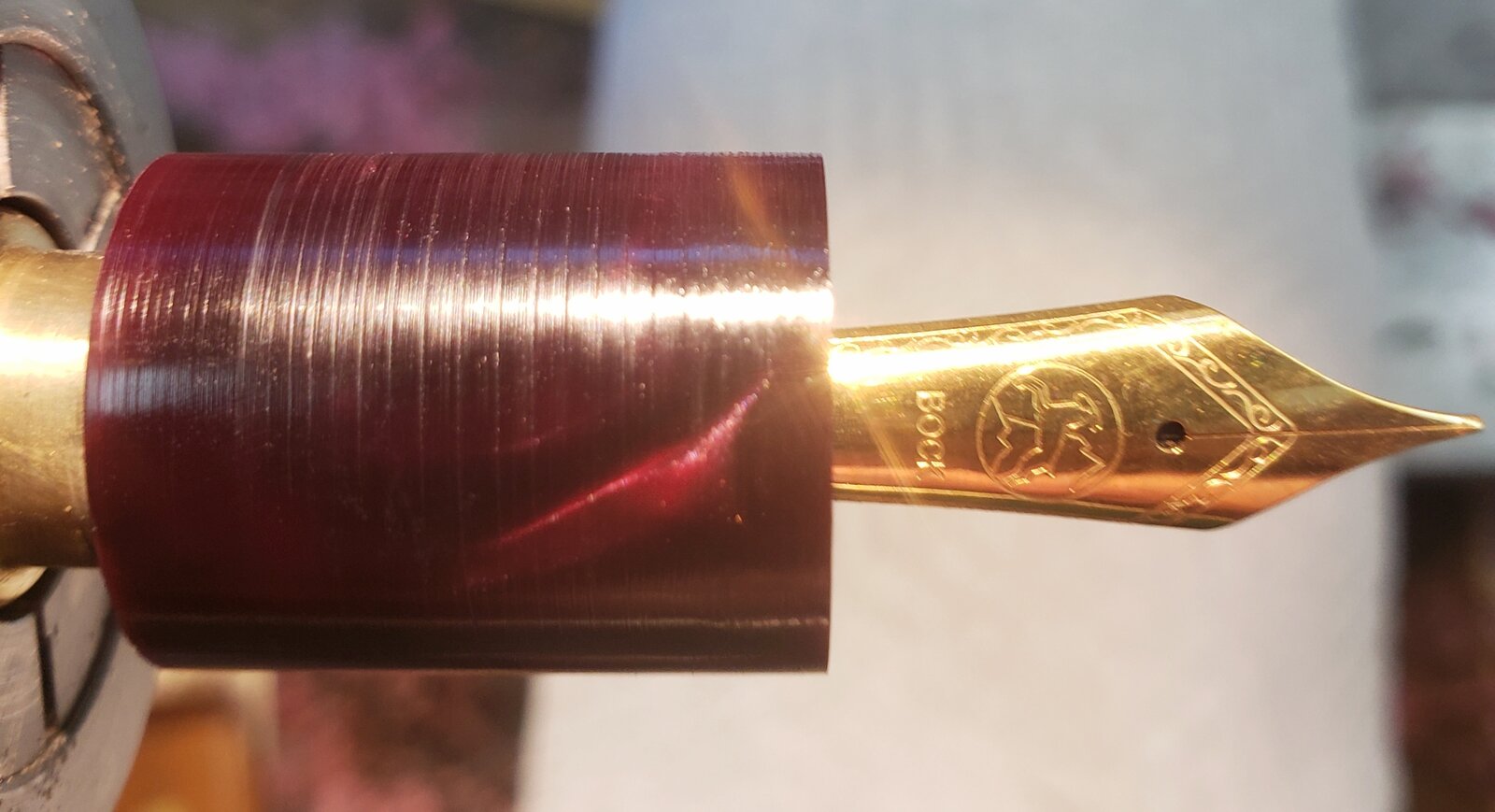

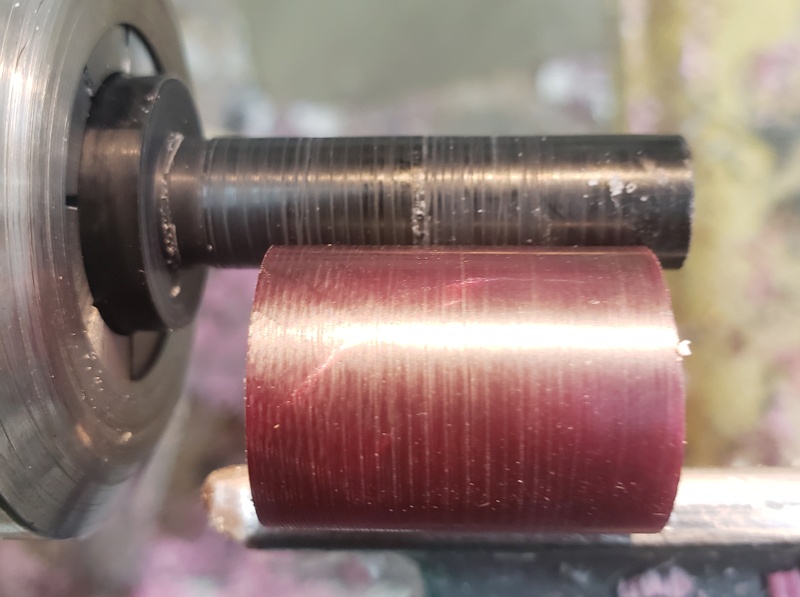

I really wanted the section to be made from the same material as the rest of the pen. The section tenon broke. So, I drilled a 10mm through hole and glued in a slave from acrylic acetate. Success.
Enjoy and comments welcome.
Do a good turn daily.
Don



Attachments

  • 20220101_195140-02.jpeg
    113.4 KB · Views: 136
  • 20220102_111709-01.jpeg
    139.5 KB · Views: 137
  • 20220102_123158-01.jpeg
    79.4 KB · Views: 153
Signed-In Members Don't See This Ad

its_virgil

Member
Joined
Jan 1, 2004
Messages
8,101
Location
Wichita Falls, TX, USA.
Looks really good!! Nice save on the section. Perfect fit on the clip. Is that portion threaded also? What size?
The clip attachment started out for the finial to screw into the cap that did not work out. The threads were to be M10x1 which I've used once before.

The finial ended with a non threaded tenon glued in place with epoxy. I decided to make the clip ring visible.

Thanks for the comments.
Do a good turn daily!
Don


its_virgil

Member
Joined
Jan 1, 2004
Messages
8,101
Location
Wichita Falls, TX, USA.
Thanks. The blank appeared to be a solid color but that changed quickly. There is another row of the figure opposite the one that shows. I was delighted to save the section.
Do a good turn daily!
Don
