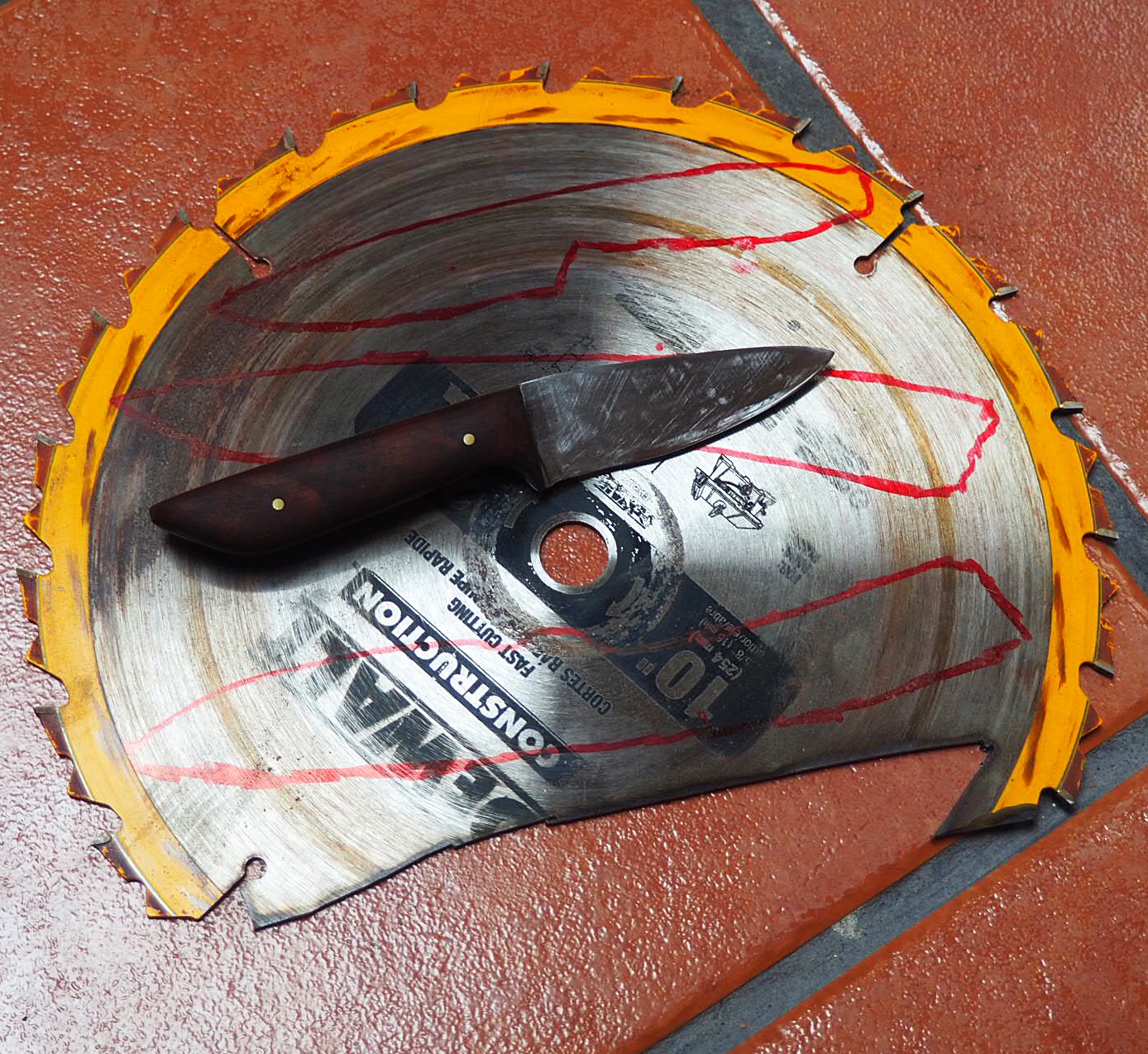

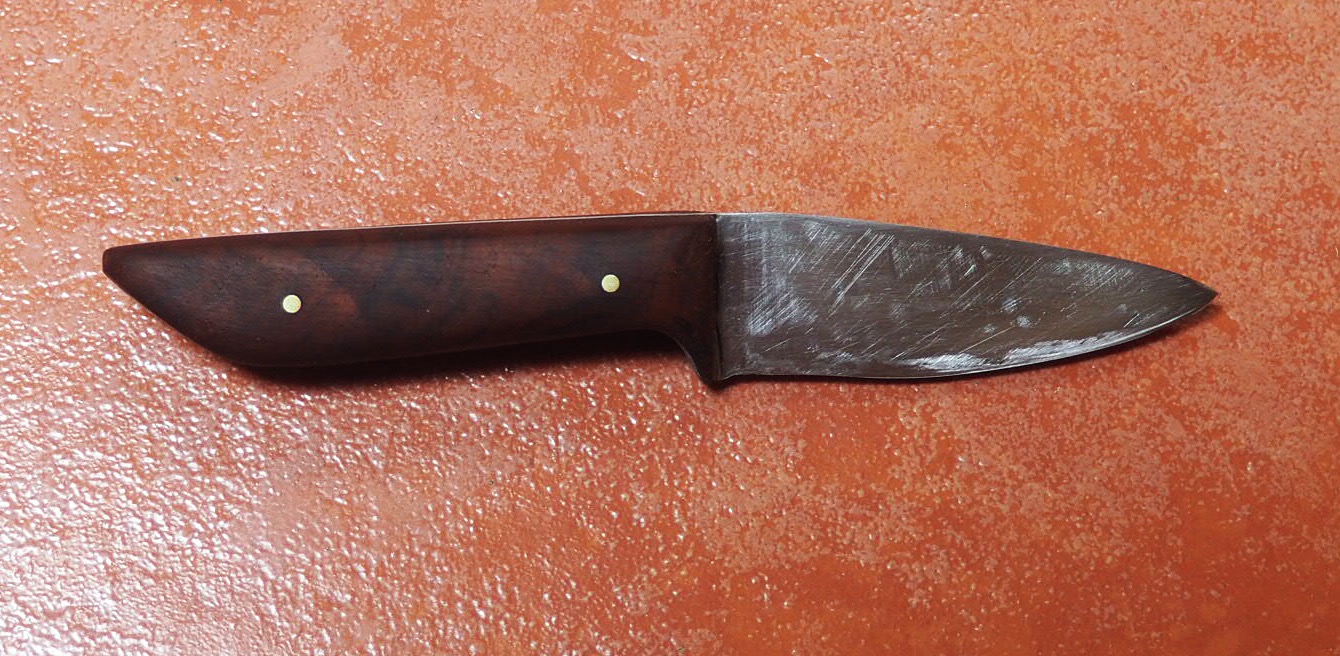

I decided to make a knife using an old circular saw blade. I heat treated it with a Mapp torch and fire bricks. Not a work of art but it's sharp enough to shave hair off my arm.


Attachments

  • 78F6A2D2-6F40-4161-BD19-4F6F1B107BA7.jpeg
    659.2 KB · Views: 285
  • 4BF26403-52DF-4FC3-8F94-0C485E467A60.jpeg
    324.9 KB · Views: 253
Signed-In Members Don't See This Ad

magpens

Member
Joined
Feb 2, 2011
Messages
15,911
Location
Canada
Nice idea !! . Well done !!

That's something I would like to try also. . What size is the circ saw blade; and, how do you cut it ?


Cwalker935

Member
Joined
May 18, 2014
Messages
3,506
Location
Richmond, Va
Nice idea !! . Well done !!

That's something I would like to try also. What size is the circ saw blade; and, how do you cut it ?
It was a 10" blade. I have an old band saw that I put a metal cutting blade on and used that. I tried cutting with an angle grinder but hat was taking too long so I tried the bandsaw. I did use he angle grinder to do the rough shape on the blade.


More4dan

Member
Joined
Mar 17, 2016
Messages
2,102
Location
Katy, TX
Very nice work, wish my first was half as nice!

Be careful with saw blades with carbide teeth, the base blade isn't always good for blade steel. The ones with teeth ground directly on the blade have to be made of hardenable steel. Also, Vegetable oil makes for better quenching oil, thicker oils are slower to pull the heat out of the steel reducing the chance of getting a hard blade.


Sent from my iPad using Penturners.org mobile app

Joined
Sep 24, 2006
Messages
8,206
Location
Tellico Plains, Tennessee, USA.
Very nicely done.... don't think I'll ever try to make a knife though... if I don't burn myself doing the heat treatment, I'd probably cut my fingers off sharpening.... as careful as I try to be, some tools and I just don't seem to get along... they will find a way to bite me. :D
