First Corian
- Thread starter jamesbil
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
navycop
Member
Good job.. Use Verry Sharp tools...
mark james
IAP Collection, Curator
Corian is on my short list (next 6 months), I have a bunch, so no thoughts from me. I have heard it is a bit easier than the hard tru stones, which I have worked with successfully.
But...both pens are beautiful! I will have no complaint if my first corian is as nice as yours! Well done.
But...both pens are beautiful! I will have no complaint if my first corian is as nice as yours! Well done.
Last edited:
rtyler8140
Member
I find the hardest part about turning corian is getting it round. Once you get the edges off, it turns pretty easy. Still takes me a little longer to turn corian than wood, but the finish time is much quicker with corian. I use a carbide to get the blank round and then just my hss gouges to finish it off (usually sharpen them before I start).
Rockytime
Member

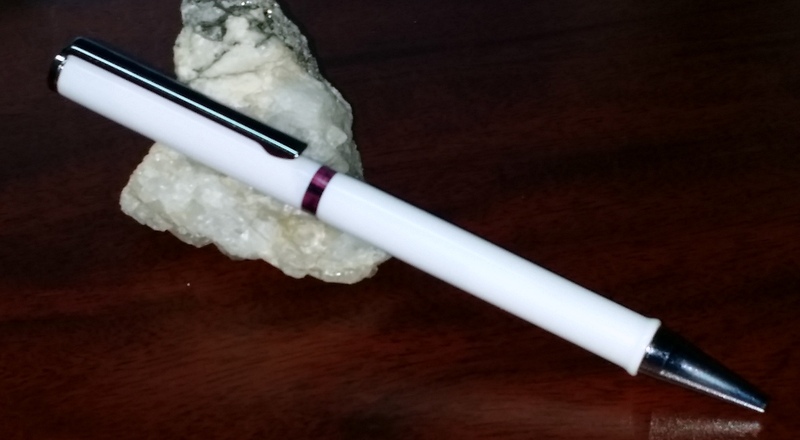

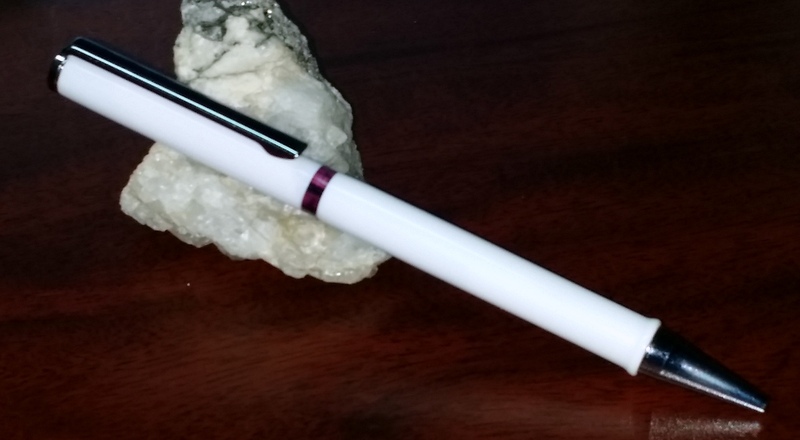

I just made this Corian Slimline. I have a number of 1/2" blanks I received from a member on this site. I was hesitant to try drilling the blanks because they are not square so they cannot be easily drilled on the lathe. I have a new drill vise which allowed me to drill the blank very accurately. I did turn the blank with carbide. It turned like a dream. I am very, very impressed with Corian.
Attachments
Marnat3
Member
Heres one I did not that long ago. Not a big fan of the dust but really like the end result.
The corian is 12 mm thick so I glued 2 together with ca. That's probably why it took so long, turning from 24 mm!
I must make a corner jig to speed things up. Though I am a little nervous about cutting it on the bandsaw. I would imagine it will ruin blades.
I think I sharpened the gauge 6 or 7 times!
lwalper
Member
I've not really noticed Corian to be that much different than any of the other acrylic blanks. It actually seems to be a bit softer than some -- not quite so brittle or prone to chipping and gouging. Use sharp tools.
keithbyrd
Member
I had no trouble turning it - sharp tools or carbide!
Your's is very nice by the way!
But cutting Corian did remove a lot of sharpness from my band saw blade!
Last edited:
Marnat3
Member
It cuts on the bandsaw just fine. Just take it slow. I have some credit card thick trims from corian.
tomtedesco
Member
I agree, cuts about the same as other acrylic blanks, round nose scraper also cuts well. Have you tried rounding the corners on a disk sander? Keeps your fingers away from a band saw blade.
Did my second corian today in half the time!!.
Bit of an issue with the ca used on the end cap reacting with the gold plating after the cap was on the pen before it dried. No ca on the pen but is seems the fumes have tarnished it. Ideas?
Last edited:
thebillofwrites
Member
Hi Tony,
There are quite a few Solid Surface materials out there, and some of them like Staron, Hi-Macs, Wilsonart/Gibraltar and a few others are almost identical to Corian in the way they behave when turning and gluing. These are all acrylics.
There are some others, Avonite comes to mind that make a Polyester type of solid surface material. Some of these can be quite nice for pen making, but many have different levels of translucency which would require painting. They tend to be more brittle and chippy than the acrylics, but not too bad to work with.
If you have a large solid surface fabricator anywhere nearby, they throw away more pen sized scraps than you can imagine. They might let you have bunch.
Bill
