I started concocting this pen over my morning coffee, by the time I called it quits this afternoon, this is where its at.
It will be a Rollerball, using a Pilot G2 refill.
New Guinea Ebony and 6060 aluminium, and some black ebonite for the cap sleeve.
The pen barrel is finished turned, but still waiting for some CA and wax, this will be done in the morning.
The cap still has to be turned to size and tapped , and a clip added. I am still dreaming up a clip for this one. Stay tuned.
The cap threads are 12 x 0.8mm 2x start, the thread for the section/nib is 5/16 unf.

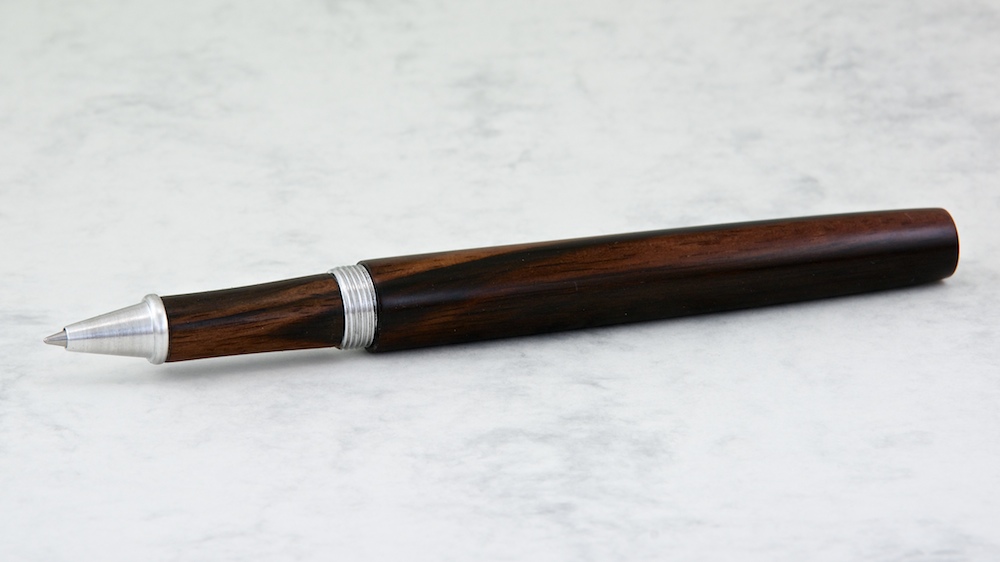

The photo is a quicky using a couple of speed lights in the hallway, will use my usual setup for the finished pen tomorrow.
