Drummond metal lathe

[needastick]

Hello all,

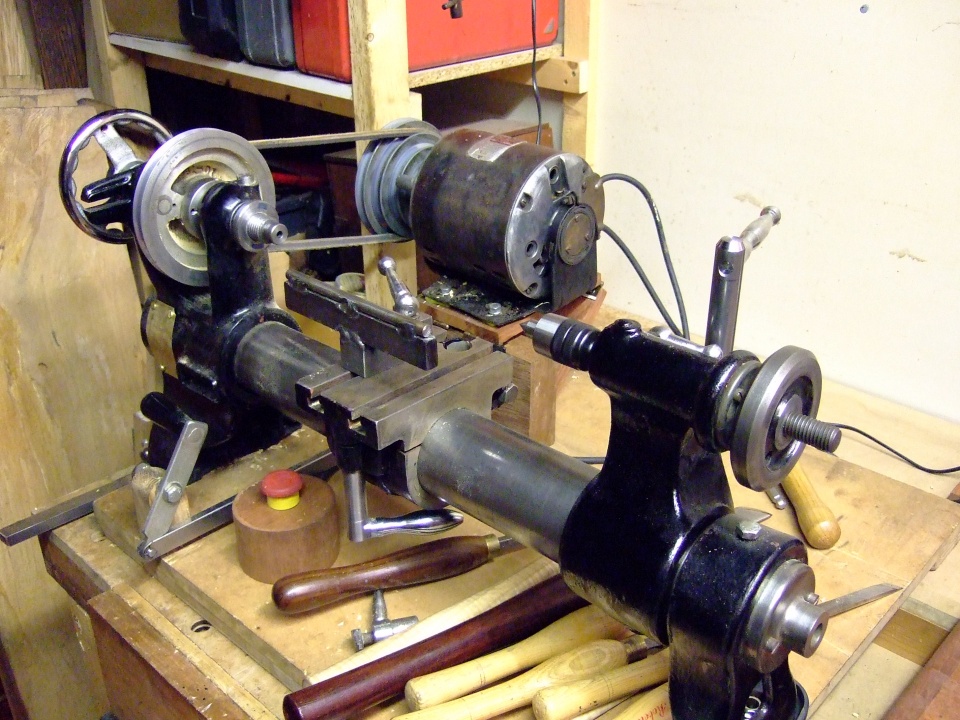

I thought that I'd send a picture of my modified Drummond lathe for my first post.
I've just about got it ready to use now after finding it in a barn.
The machine was built in October 1914 and has seen some use. A lot of these little lathes were used by the Navy and saw service on the battleships of the first war. This one survives hopefully to serve as my pen maker.


http://www.penturners.org/forum/attachment.php?attachmentid=163837&stc=1&d=1494827986



[PatrickR]

That's cool. I'm a sucker for those old machines.
Was it rough when you got it?



[Penultimate]

Nice, did you make the tool rest or was this lathe used on Old Ironsides?[emoji3]


Sent from my iPad using Penturners.org mobile app



[Paul in OKC]

Sweet!



[needastick]

Drummond

A couple more pics if people are interested.

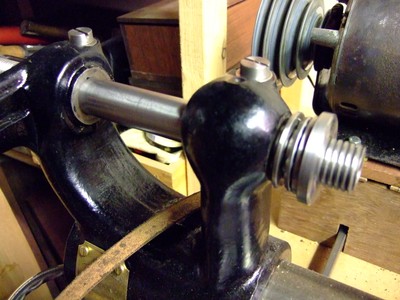

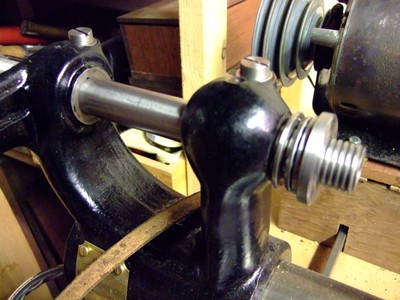

I had to remake a lot of parts including turning a new headstock from tool steel.

http://www.penturners.org/forum/attachment.php?attachmentid=163878&stc=1&d=1494926329

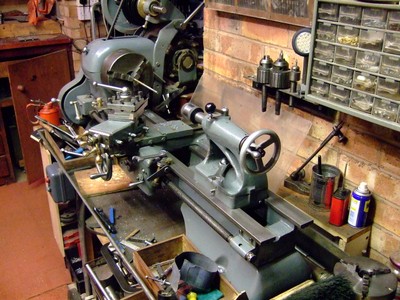

I used my old Atlas for the work. This is made up from two older ones and is nearl as old as the Drummond.

http://www.penturners.org/forum/attachment.php?attachmentid=163879&stc=1&d=1494926329

I had to remove the leadscrew to enable me to reposition the tool post quickly, this of course rotates enabling easy height adjustment.
The pulley arrangement is from an Atlas and re-sleeved. Toolposts, rests and handles al made, rather crudely, by me with an old stick welder.

Hopefully I'll be able to make improvements as I learn.

http://www.penturners.org/forum/attachment.php?attachmentid=163880&stc=1&d=1494926329

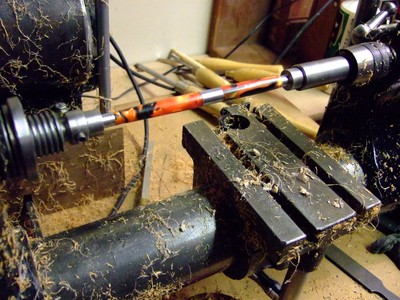

Spinning my first blank, cheers Tony.



[hcpens]

Looks like you already have a LOT of talent, nice work using available parts.
