Drilling hard materials

Signed-In Members Don't See This Ad

Chasper

Member
Joined
Mar 22, 2007
Messages
1,939
Location
Indiana
I need to drill a 37/64 hole in a 3/4 blank, not much room for error. The blank is coral cast in resin, very hard and very brittle. I think I will need to wrap it in fabric and soak in CA to hold it together while drilling. Maybe I should suspend it in a bigger mold and pour clear resin around it to hold it together when drilling. Should I start with a small hole and work my way up to the full size?

I've been looking for granite/marble/glass bits that come in obscure sizes like 37/64, not finding anything. Maybe I could use a 9/16 bit and then file it out a little larger with a rat tail file, but still would need to find a 9/16 bit to drill stone. I'm looking for ideas

Signed-In Members Don't See This Ad

FGarbrecht

Member
Joined
Aug 22, 2019
Messages
469
Location
NY
Most coral skeleton (calcium carbonate) isn't very dense and not very hard actually. As Kyle says, go slow and avoid heat. If the coral is completely encased in resin I wouldn't anticipate any particular problems drilling it out. If there are any unsupported areas, the brittleness of the material will cause it to turn to dust.


magpens

Member
Joined
Feb 2, 2011
Messages
11,395
Location
Coquitlam, BC, Canada
Lemme see … 37/64 hole in a 3/4 ( = 48/64 ) blank … that leaves a wall of 0.5*(48 - 37) = 0.5*11/64 = 0.086 inch ….

…. Yikes ! …. You're right …. not much room …. especially for a fragile material !

Does the blank have a round cross-section so that you can hold and drill it in a lathe chuck ? ( …. delicately ! )

I think you are pretty brave to attempt this.

But I hope you are successful, and I hope you will show us the resulting pen !!


FGarbrecht

Member
Joined
Aug 22, 2019
Messages
469
Location
NY
Lemme see … 37/64 hole in a 3/4 ( = 48/64 ) blank … that leaves a wall of 0.5*(48 - 37) = 0.5*11/64 = 0.086 inch ….

…. Yikes ! …. You're right …. not much room …. especially for a fragile material !

Does the blank have a round cross-section so that you can hold and drill it in a lathe chuck ? ( …. delicately ! )

I think you are pretty brave to attempt this.

But I hope you are successful, and I hope you will show us the resulting pen !!
0.086" = 2.18 mm. Sounds small but I routinely turn kitless with wall thickness of 1 mm. Agree it could be touch and go with a crumbly material in resin. Again, go slow, use sharp tools, do the drilling on the lathe (I would never try this on a drill press). Also question whether you're going to get enough coral structure left in the 2 mm wall to be even visible; I'd be interested in seeing pics along your journey to creating a sea-pen.


magpens

Member
Joined
Feb 2, 2011
Messages
11,395
Location
Coquitlam, BC, Canada
2 mm wall in a homogenous resinous material is one thing …. but in a hybrid blank ?
And don't forget that the drilled blank still has to be turned down a bit and shaped. . (Yes, I know that there is brass support tube to go in.)

I would also like to see a couple of "progress pictures" … very interested in this challenge.


johncrane

Member
Joined
Jan 17, 2006
Messages
9,238
Location
Melbourne, Victoria, Australia.

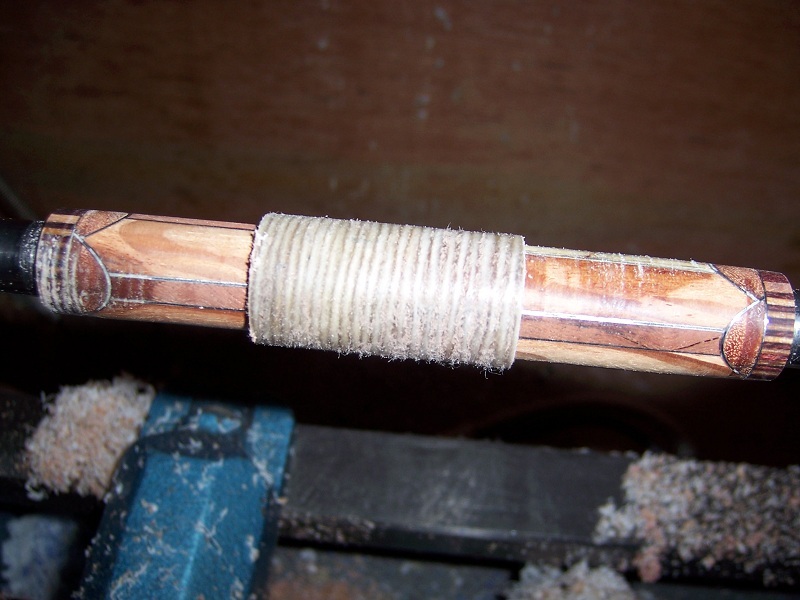

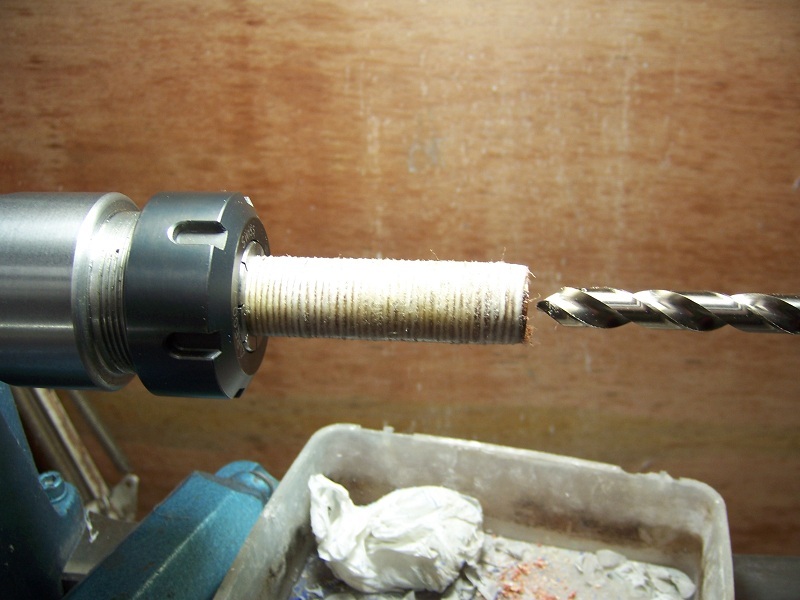

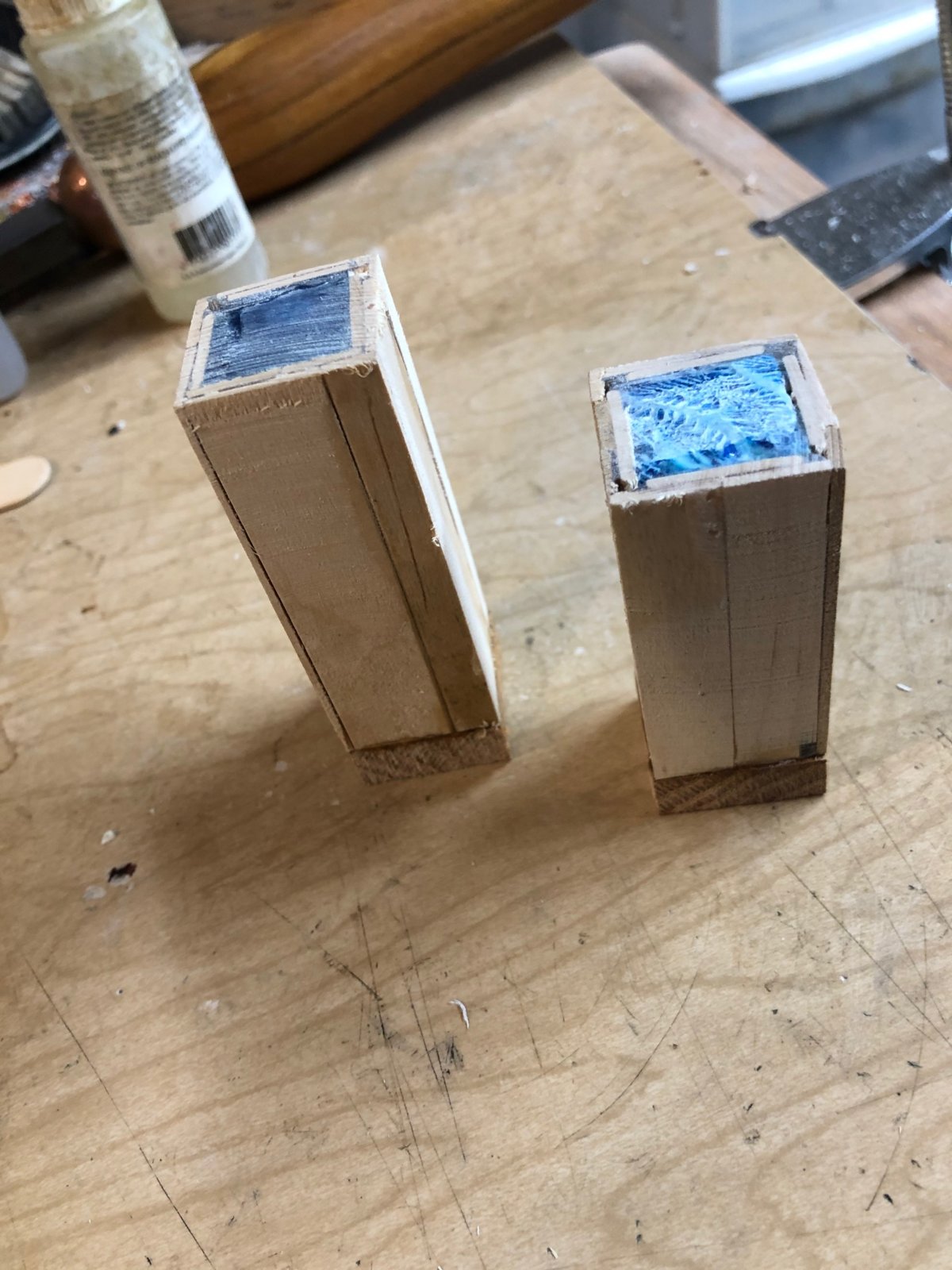

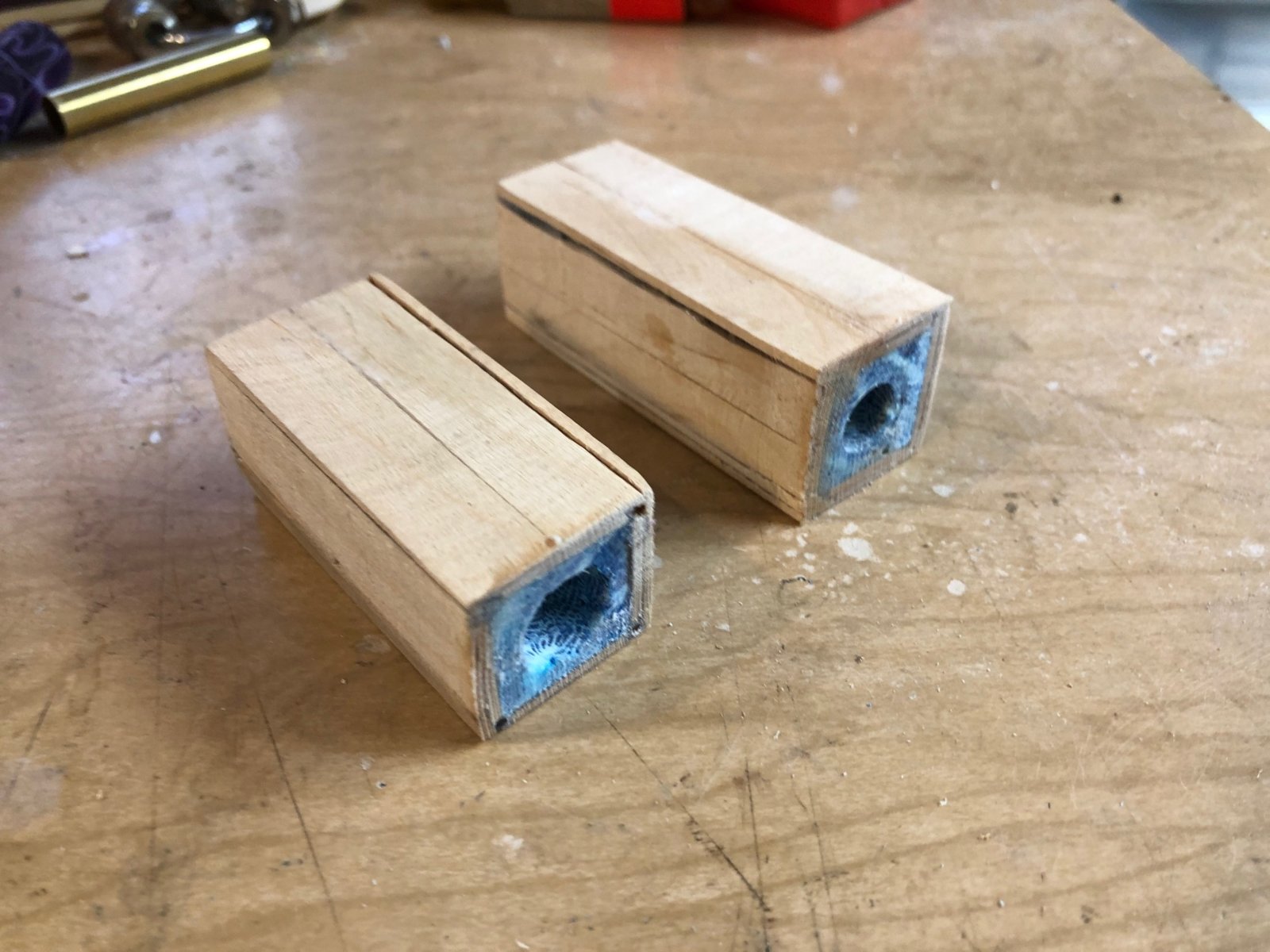

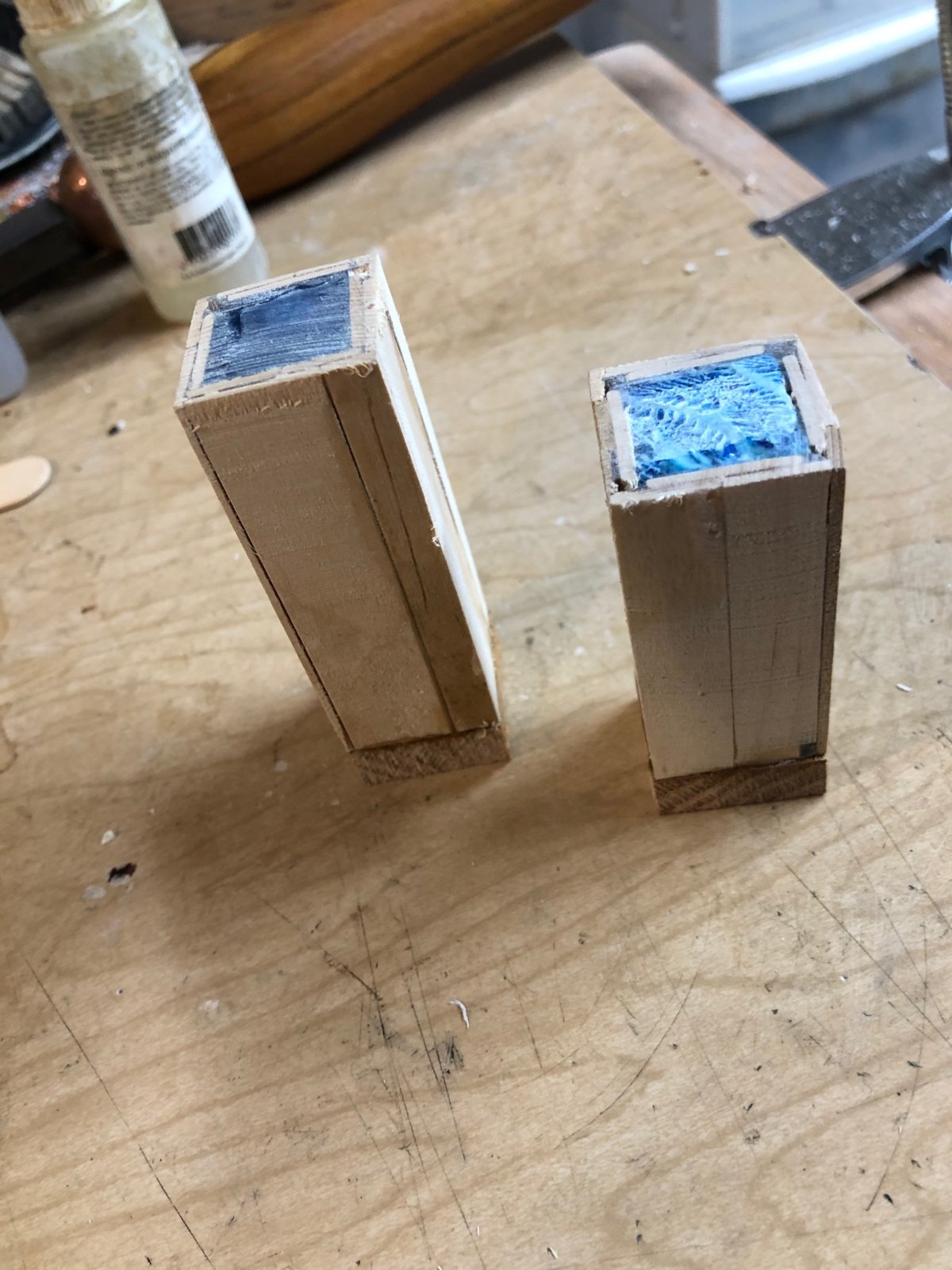

this takes time, CA glue wooden ice cream pop sticks too the 4 sides about 8 sticks if its 3/4, now if you can to drill on the lathe use a center drill on the ends of the blank then turn the blank round between the lathes dead center and live center when the blank is round wrap the blank a few times with string and soak with CA and spray the hardener,you can make it as thick as you like it's up too you, use a mask and eye glasses string and CA gets alot of fumes coming off, once the string sets its tough as nails


howsitwork

Member
Joined
Jul 9, 2016
Messages
383
Location
Thirsk
brilliant idea . I’ve used string and epoxy to reinforce / firm a pleasant handgrip on tool handles but never though of CA to reinforce section of blank.
👍
