New Smaller Jig File
I received feedback my Drill Press jig could be printed by a wider range of folks if it was smaller.

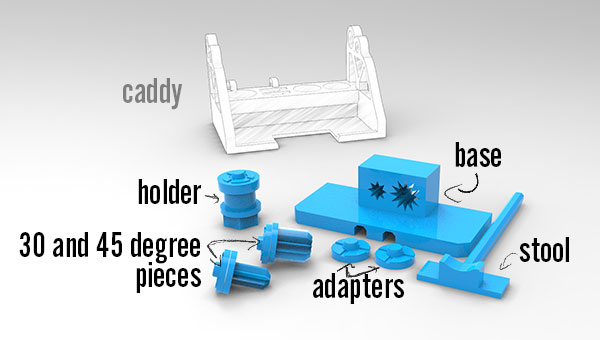

Attached is a new file that contains all the original pieces except for the caddy.
It will fit onto a 3"x3" bed. Use it in good health!

One Extra Jig Up For Grabs
I have one extra jig, without a caddy. First person who would like it may claim it in the thread below.
I ask that you either pay shipping or make a donation of $10-$20 to one of the following charities:
So far the excellent people who signed up for a jig have largely pledged to do both. No pressure though. ; )

Video

I already put together two post about this jig:
My post- Part 1
My post- Part 2
At the risk of over-explaining I threw together a video showing how it is made and works.

Best,
Cullen


Attachments

  • DrillJigSimple_3x3.zip
    81.3 KB · Views: 136

Wmcullen

Member
Joined
Dec 1, 2020
Messages
397
Location
Fairfax, Virginia
You got it Mark. Stock depleted.

While talking to folks about 3d printing there were a lot of really humorous quips including, "I can't 3d print because my spouse said I'm not allowed to pick up another hobby."

But my favorite was, "My 12 years old is confident we can print this!"

; )
Cullen
