Disassemble cameron kit

[woodmum]

Hi all,

I kinda messed up my pen. No problem, I think where I made the mistake.. but now I want to redo it and tried to disassemble the pen.

I got all the parts out pretty easy except for the
part where the nib screws in. It has a large piece of plastic on it, and goes a long way into the tube.

I tried a number of things but it doesnt want to move...I don't have one of these fancy pen presses...
Any suggestions??



[magpens]

Fountain pen kit ? . . . Rollerball pen kit ?



[woodmum]

Fountain pen kit ? . . . Rollerball pen kit ?

It's the rollerbal version...



[magpens]

It's the rollerbal version...

OK, so I am looking at the PSI instruction sheet for the Cameron Rollerball Kit.

I do not see the plastic piece that you refer to.

You describe as .... "a large piece of plastic on it, and goes a long way into the tube"

I see the "Roller Tip", the "Tip Coupler", the "Lower Tube", and the "Lower Cap"
. . . they all seem to be mainly metal, except for what may be a plastic ring on the "Lower Cap".

Might I be missing something ? . . . or perhaps looking at the wrong set of instructions ?

I do see a plastic piece as part of the Upper Barrel . . . that piece is part of the "Band" and it fits into the "Upper Tube"
But I think you are talking about the nib end ( Lower section of pen).

EDIT: I think I see my misunderstanding. . . It is actually the cap that presents the disassembly problem
. . . . the plastic is what the lower part of pen (nib end) screws into when you close up the pen after you have finished writing.

That is going to be a real "toughie" to disassemble . . . . ( see post immediately below by KenB259 )



[KenB259]

I have disassembled a few of them. To get the plastic piece out I either turn or break the barrel material off to get back to the brass tube and then I very carefully file the brass down enough until it breaks out. Assuming you're not trying to save the blank. If you are, obviously my method won't work for you.



[woodmum]

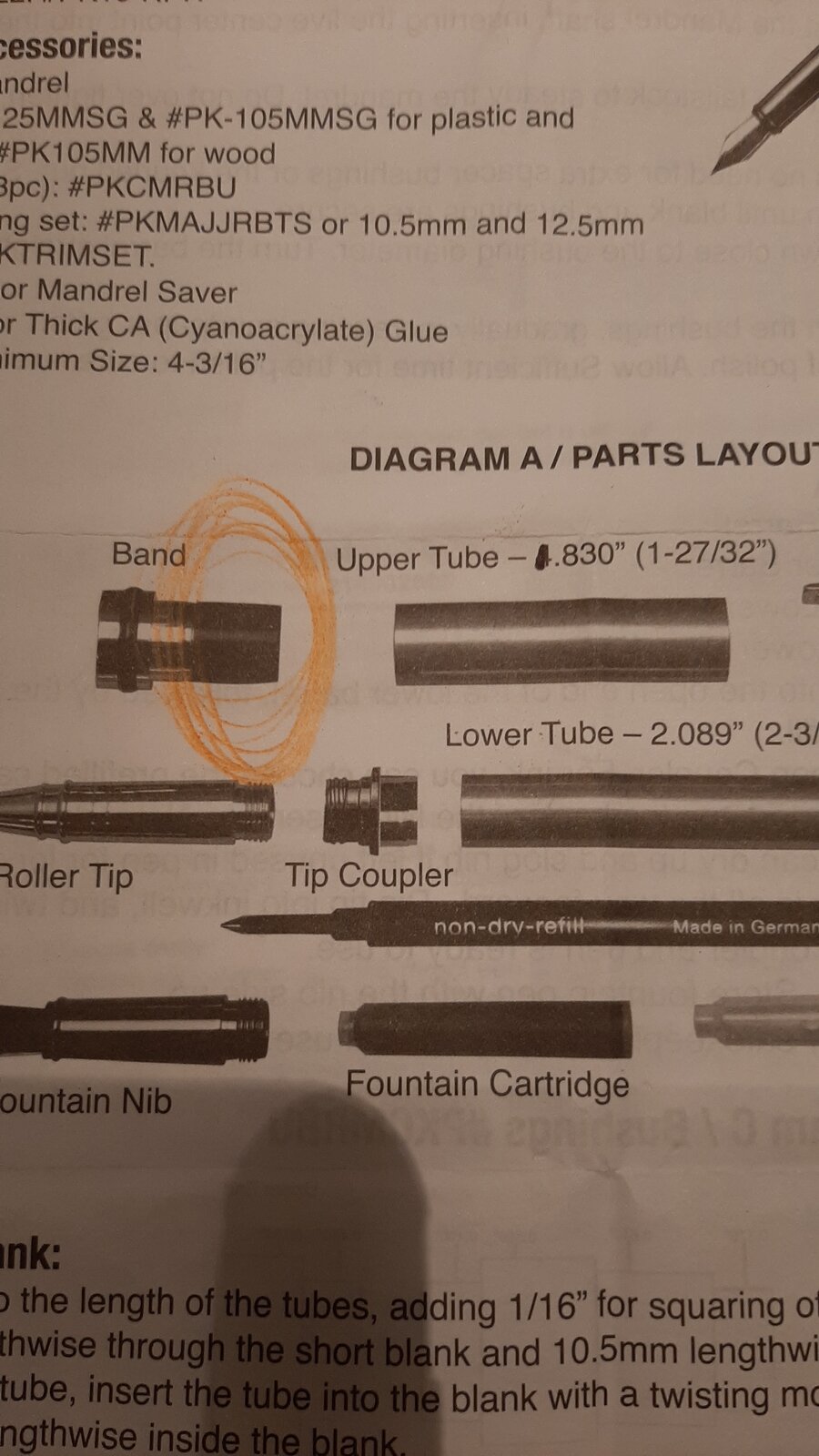

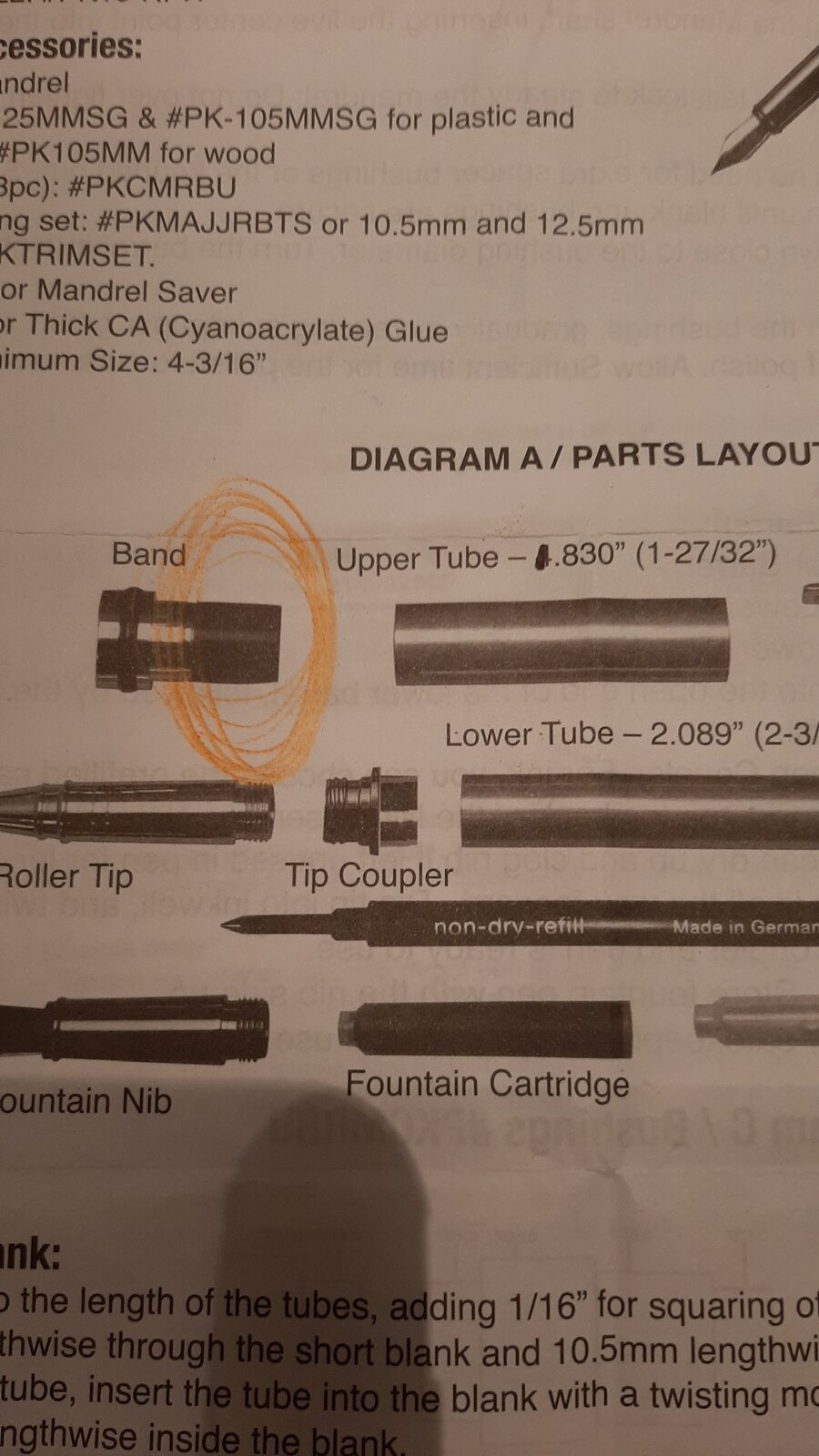

It's the part of the Band that is the plastic...
And I used some force to get it....



[woodmum]

I have disassembled a few of them. To get the plastic piece out I either turn or break the barrel material off to get back to the brass tube and then I very carefully file the brass down enough until it breaks out. Assuming you're not trying to save the blank. If you are, obviously my method won't work for you.

Well I was trying to save the tube... the wood is already beyond salvation...
Here in the Netherlands parts are hard to get.



[KenB259]

Well I was trying to save the tube... the wood is already beyond salvation...
Here in the Netherlands parts are hard to get.

Well so much for my method sorry
