Cutting Blanks to Length

Signed-In Members Don't See This Ad

donstephan

Member
Joined
Jul 24, 2016
Messages
189
Location
Cincinnati Ohio
Made a few wood pens a couple years ago, now making a couple dozen (black walnut, black cherry, American elm) for family and friends. After research, decided to cut my bodies about 3/16" long. I'm rough turning the bodies round, about 1/4" over diameter, before trimming to length. Even with the reduced diameter, my Whiteside pen mill body gets dull after one pair of bodies and I have to hone the long flats before using again.

So I'm wondering how long beyond the tube length more experienced pen turners will cut their pen bodies?

(For final adjustments, I really like sanding on the lathe using a turned mandrel in the drive spindle and a transfer punch in a Jacobs chuck in the tailstock. This method was presented in one of the excellent set of videos by Ed on the Exotic Blanks website. Thanks Ed.)

Signed-In Members Don't See This Ad

TonyL

Member
Joined
Mar 9, 2014
Messages
6,526
Location
Alpharetta, GA 30004
For wood, about 1/16 to 1/8 on each side closer to 1/16. I turn down about 1/2 way, then trim the barrel (sides) on a sanding jig (Rick Herrell's). This was just the way that I was taught - don't really know if the guy who taught me really knew what he was doing (boy, he did have much patience with me though).


Dehn0045

Member
Joined
Mar 19, 2017
Messages
966
Location
Houston, Texas

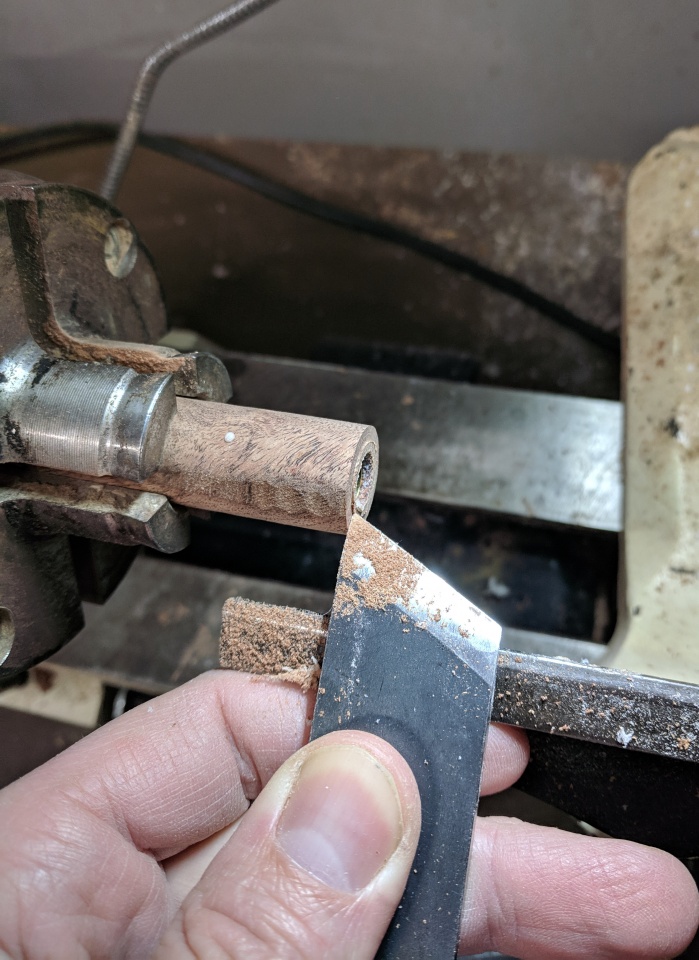

I've tried using a disk sander (no jig) and pen mill, didn't really like either method. Now I turn the blank round then mount the blank in a Chuck and use the point of a skew, taking little bites until I am square at the brass. This method works well for me, doesn't use anything consumable (sandpaper), and doesn't require much setup time. I am also able to easily adjust for brittle or finicky materials. Just my method, best of luck finding what works for you!


Attachments

jttheclockman

Member
Joined
Feb 22, 2005
Messages
12,491
Location
NJ, USA.
Here is how I have been doing this for years. I really do not measure and could care less about specific lengths. I lay the tube on the blank and mark about 1/8" over on each end. Do this by eye. I drill on the lathe and glue the tube in after I rough the tube up with epoxy T88. Will never use 5 minute epoxy. I let sit for 24 hours. Then I go to my belt sander and using my miter gauge I sand the blank down to just barely touching the tube. Take 2 seconds. After that I go to lathe and set my sanding disc plate up and get my drill chuck and insert the appropriate punch bar in that the tubes fit over. I sand with 220 grit sandpaper attached to sanding disc. I use sticky back sandpaper and move it around to get fresh parts after a little bit of sanding. This takes about 20 seconds to 30 seconds to do. Then ready for spinning.

Have actually given up on pen mills.

Now the time the blank being centered on the tube counts the most is when you do segmenting and when you step up to that let us all know and we can assist. Good luck.

Last edited:

magpens

Member
Joined
Feb 2, 2011
Messages
10,243
Location
Coquitlam, BC, Canada
I do what Sam does.

But I do it on a metal-working lathe, so the cutting tool is held very rigidly and can be controlled very easily and precisely.

Sam does the length trimming with the brass tube already glued in and that is just fine.

I do the length trimming before gluing in the tube. . This method requires calipers to measure the trimmed length and get it right. . Of course, the higher degree of control of the metal-working lathe allows you to take off a desired amount of material from the blank length.

Another feature of a metal-working lathe which is very useful is that it has an open throat ... you can insert a blank of almost any length through the chuck jaws and into the throat, grip it solidly with only small amount of the material exposed, and thereby have no need for extended pin jaws to hold the blank securely while you are trimming it.


randyrls

Member
Joined
Feb 2, 2006
Messages
4,185
Location
Harrisburg, PA 17112
Don; I have a blank cutting jig that attaches to my table saw sled. I use a sanding disk setup to finish the blanks.


View in Gallery

The brass tube is visible just above the clamp. Slide the bar to the left until the Brass tube stops it and clamp down. The distance from the end of the bar to the saw blade is now perfect +1/64". Clamp the blank down with the knob and clamp bar. Cut! Then glue tube in blank.

Note I do wood and acrylic blanks differently. This is because wood may move after the hole is drilled.
Wood: Cut the blank to length and then drill for brass tube.
Acrylic: Cut the blank long, drill to length of brass tube +1/8", then cut off un-drilled end to exact length.


gtriever

Member
Joined
Apr 23, 2017
Messages
1,132
Location
Paducah, Kentucky
Like most new turners, I started out with a pen mill, but moved to the sanding jig. I usually cut the bodies 1/8 to 3/16 longer than the tube and sand to length after gluing.

Last edited:

Gary Beasley

Member
Joined
Sep 18, 2009
Messages
1,069
Location
Marietta, Ga. USA
There was a cutting sled developed by a member here that works great on a bandsaw and uses the actual tube to set the cut. I made mine so I could choose between 1/8” and1/16” over. Sorry I dont have a pic but maybe someone will remember the thread and provide a link.


Edgar

New Member Advocate
Joined
Feb 6, 2013
Messages
5,408
Location
Alvin, TX 77511
I first use a drill press to drill a hole about 1/4” deeper than needed. Then I use a bandsaw to cut the blank about 1/16” longer than the tube. I use the tube as a guide to line things up, then set it aside while cutting. No need to mark anything. I use a disk sander & Rick Herrel jig to square the ends.


campzeke

Member
Joined
Jun 28, 2015
Messages
566
Location
Tampa, FL
I use the Pen Blank Cutting Jig from T.V. Geist Manufacturing for a quick and easy way to cut your blanks to the correct size every time without measuring and Rick Herrell's Offset Sanding Jig available here in the IAP Vendors Forum to trim to exact length.


magpens

Member
Joined
Feb 2, 2011
Messages
10,243
Location
Coquitlam, BC, Canada
This is good to know about. . Thanks.

I wonder if this jig can be set up to add an extra 1/16", 1/8" or whatever, to the cut blank length ... an extra bit that can then be turned/cut off after drilling and gluing in the tube.

Pity that the website picture is not a little better to give a clearer understanding.


I use the Pen Blank Cutting Jig from T.V. Geist Manufacturing for a quick and easy way to cut your blanks to the correct size every time without measuring and Rick Herrell's Offset Sanding Jig available here in the IAP Vendors Forum to trim to exact length.


leehljp

Member Liaison
Joined
Feb 6, 2005
Messages
6,797
Location
Tunica, MS,
After reading each post here, you will find that each has his or her own likes. There are different ways to arrive at the same conclusion. People who make and sell quite a few pens on a consistent basis will use a mass produced method, probably a pen mill. Others will use a sanding mill.

I just gave my pen mills away. They worked OK but on my end grain blanks they were a tad finicky. I enjoy the journey of each pen made and take pride that each pen is as near perfection as it can be. I will sneak up on the tube with a sanding mill, take it off, look, sand, look, sand, look and then go. For me, no hurry. I love it when I just "touch" the brass tube with the sanding mill. Probably down to 3/1000's accuracy of better.

I also finish my pens so that the finish is within 2/1000 the size of the clip end, center band or nib end. For me, as I said, I enjoy the journey and take my time with each little fitting.

Last edited:
